Brake pads NewFren type FD.0114 organic for Honda XR CR / Kawasaki KX KLX / Suzuki RM DR-Z / Yamaha WR YZ
- Manufacturer: NewFren
- Item no: 700114
- Manufacturer no.: FD.0114
- EAN: 8025832040965
Item data
| Product type: | Brake pad set |
| Covering B Depth: | 10.5 mm |
| Tuning & Styling Part: | No |
| Vintage part: | No |
| OE/OEM reference number(s): | 06435 KCZ 000, 06455 6CK 006, 43082 0090, 43082 1228, 43105 GT4 004A, 43105 GW2 004A, 43105 KS6 701A, 43105 KS6 702A, 43105 KZ1 405, 43105 MY6 415, 43106 GT4 004B, 43106 GW2 004B, 43106 KS6 701B, 43106 KS6 702B, 43082 1173, 5DH WD0046 00, 5ET W0046 00, 5GR W0046 00, 69100 36820, 69100 36830, 69100 36840, 69100 36850, 69100 36860, 69100 36870, 43082 1267, 5MV W0046 00, 43082 5010, 43082 5012, 43082 1292, 69100 37810, BE2500 22068, 69400 37820, 69100 37830, 69095, 69096, 00TRS01A0075 |
| GTIN: | 8025832040965 |
| Covering A Width: | 75 mm |
| Covering A Height: | 36 mm |

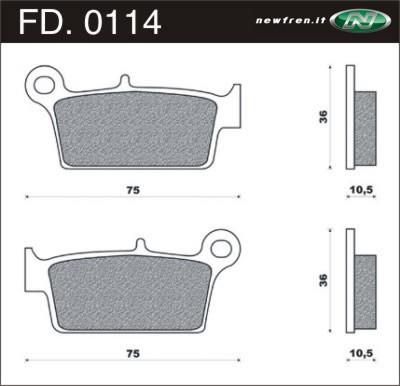

| Covering A Nominal dimension: | 75 x 36 x 10.5 mm |
| Covering A Depth: | 10.5 mm |
| Covering B Width: | 75 mm |
| Decking B Height: | 36 mm |
| Comparison number: | EBC FA131TT, FA131R, MXS131, EPFA131HH, Brenta FT3087, FT4087, TRW/Lucas MCB575, MCB665EC, SBS 632, 604, Verodo FDB539, Vesrah VD144, NewFren FD.0114, FD.0192, Brembo 07HO2608 |
| Covering B Nominal dimension: | 75 x 36 x 10.5 mm |
| Features: | Reduced brake disk wear, Average service life |
| Scope of delivery: | 1x brake pad set |
| Manufacturer number: | FD.0114 |
| Country and region of manufacture: | Italy |
| Installation position: | Rear |
| Type of motorcycle: | Motorcycle |
| Manufacturer warranty: | 2 years |
| Material: | Asbestos-free organic (NAO) |
| Type: | FD.0114 |
