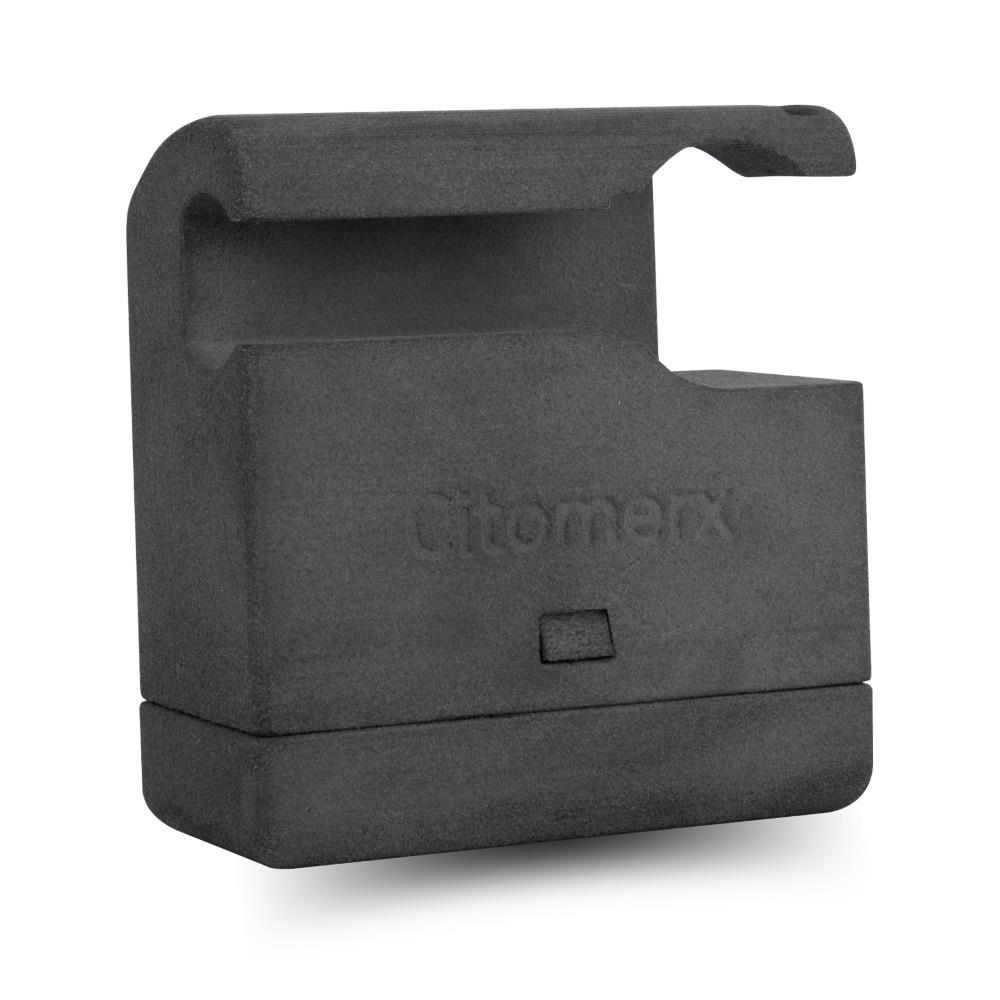

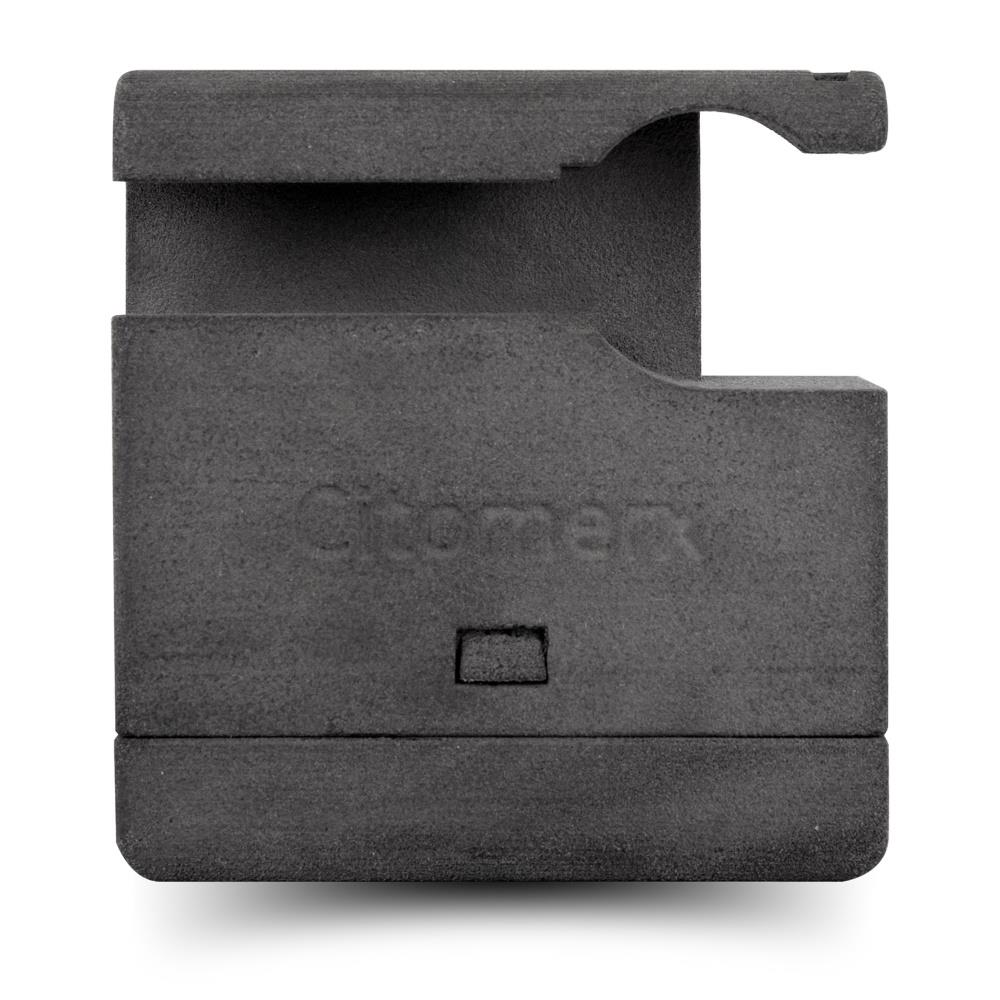

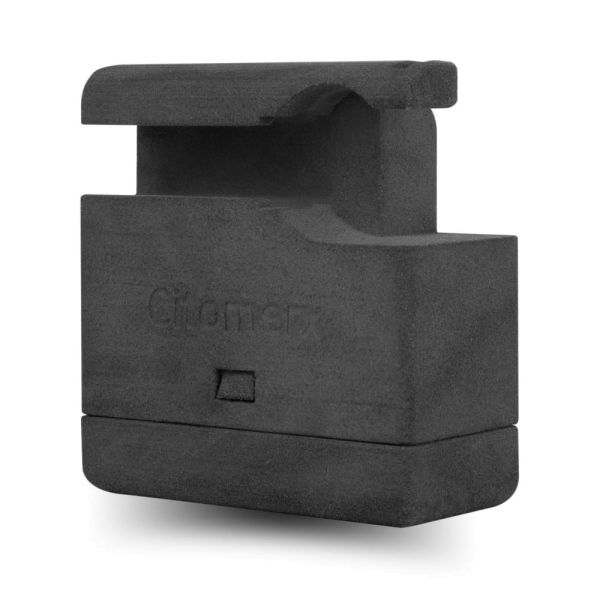

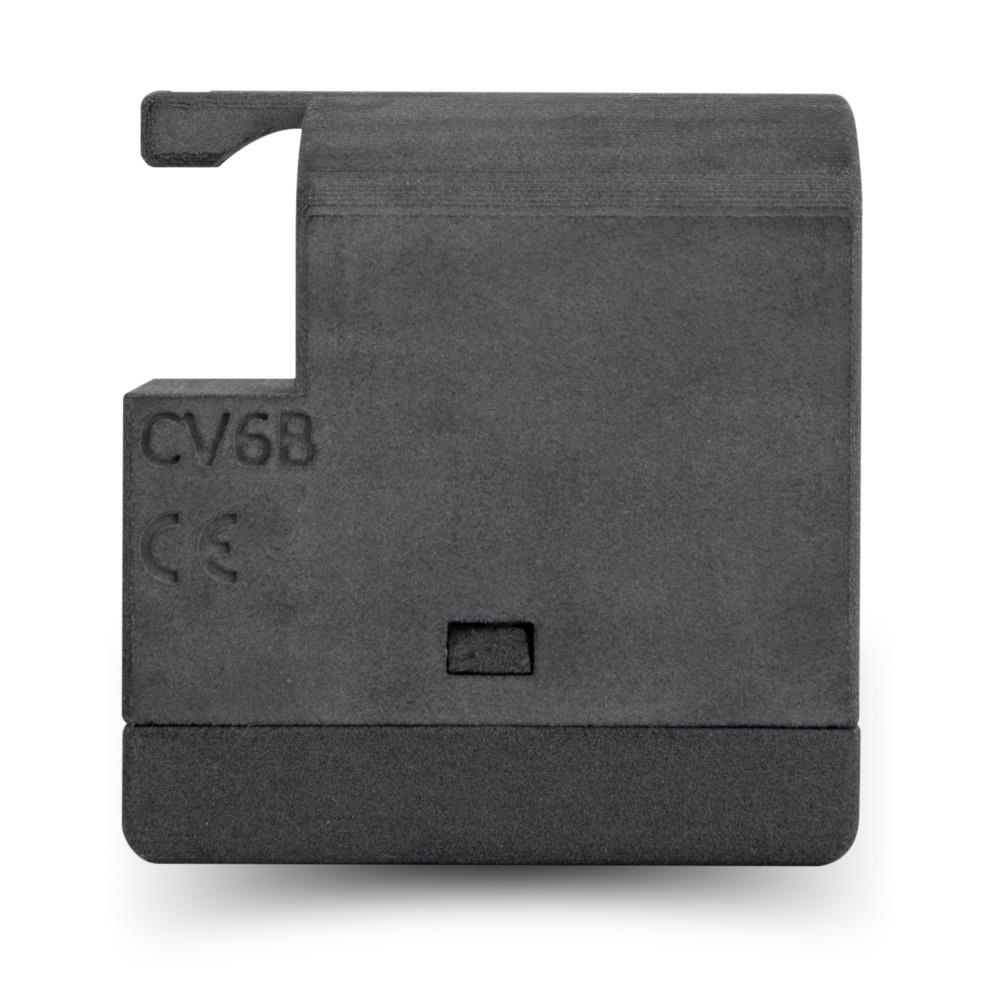

E-Bike Chiptuning Speedbox PBSB - EBike Tuning Box Speedchip for Bosch mid-engines 50 km/h

CMX Chiptuning Speedbox PBSB 50

DESCRIPTION:

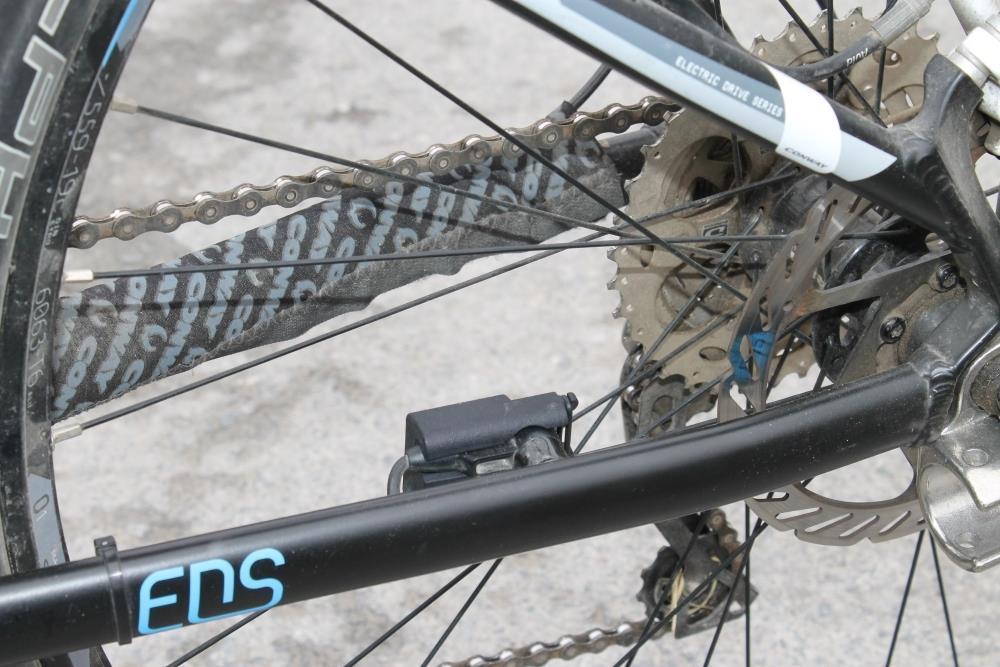

The Speedbox increases the electrical support on e-bikes to about 50 km/h. It is characterized by simple Plug&Play - assembly as well as an intelligent control. For an easy start-up the Chiptuning Speedbox is only plugged on the original speed sensor and secured with the enclosed O-ring. Afterwards the spoke magnet only has to be moved a little bit. Depending on the wheel circumference, the integrated control unit starts at approx. 20-23 km/h to halve the signal of the speed sensor, which enables the support up to 50 km/h.

For use in road traffic, the CMX Speedbox PBSB is simply removed from the sensor and then the magnet is moved back to its old position. The EBike is now back in its original condition.

TECHNICAL DATA:
- Control unit: Microprocessor
- Battery: Lithium-ion button cell type CR2450
- battery life: 4000-5000 km
- Weight: approx. 33 g
- Dimensions: 54 x 46 x 20 mm
- Housing: laser-sintered special housing, water-protected
- Made in Germany

MATCHING E-BIKES:
The CMX Chiptuning Speedbox is suitable for vehicles with a mid-engine from the manufacturers BOSCH, Kalkhoff, Impulse, Brose and Conti.

FURTHER INFORMATION:
The switching speed of the Tuning Speedbox can be changed by the programmable interface through us on request. Commissioning and use of the CMX Speedbox PBSB is not permitted in the area of application of the StVO. The use can lead to loss of warranty.

SCOPE OF DELIVERY:
✔ CMX EBike Chiptuning Speedbox PBSB incl. battery CR2450, mounting O-ring, installation instructions German
