Brake pads EBC type FA197HH sintered metal
- Manufacturer: EBC
- Item no: 680089
- Manufacturer no.: FA197HH
- EAN: 5050953005152
Item data
| Product type: | Brake pad set |
| Covering B Depth: | 9 mm |
| Tuning & Styling Part: | No |
| Vintage part: | No |
| OE/OEM reference number(s): | 06435 KW6 841, 06455 KPC 641, 06455 GCR 006, 3LD W0045 10, 3LD W0045 30, 06455 KR3 000, 06455 KR3 405, 43082 0081, 43082 0128, 43082 1238, 43105 LDH1 E00, 43105 LFC4 305, 43105 SABR Z00M1, 43106 SABR Z00M1, 43108 H3C 000A, 45105 KR3 871, 45106 KR3 871, 4510A KW6 9000, 4510A KFW6 900, 45105 KBE 3050 M2, 59100 07810, 59100 05820, 1S4 W0045 00, 59401 HP7 600, 252 0033A, 43150 LEA5 306, 59301 HP7 600, 45105 EN3 A00, 06455 KW6 843, 06455 KW6 844, 43082 0080, 45105 SEA 0000, 45106 SEA 0000, 5HH W0045 10, PE802576, 59100 21890, 45120 T40 0000, 59401 HP7 600, 06455-KPN-E01, |
| GTIN: | 5050953005152 |
| Covering A Width: | 96.7 mm |
| Covering A Height: | 42 mm |

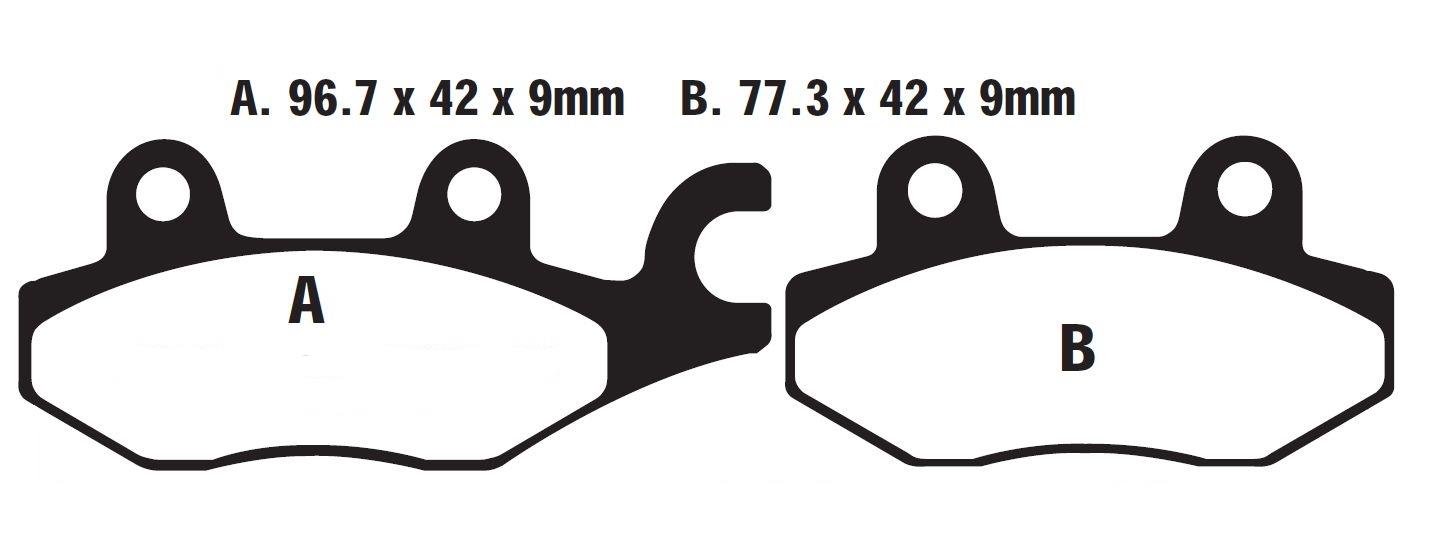

| Covering A Nominal dimension: | 96.7 x 42 x 9 mm |
| Note: | Do not reuse the original windshield |
| Covering A Depth: | 9 mm |
| Covering B Width: | 77.3 mm |
| Decking B Height: | 42 mm |
| Comparison number: | EBC FA197, FA197HH, EPFA197HH, GPFA197HH, EBC SFA197, SFAC197, SFA197HH, Brenta FT3021, FT4021, TRW/Lucas MCB663, MCB663EC, MCB663SRM, SBS 688, Verodo FDB2087, NewFren FD.0257, FD.0208, Brembo 7033 |
| Covering B Nominal dimension: | 77.3 x 42 x 9 mm |
| Features: | Durable, Extremely high friction, High coating performance |
| Scope of delivery: | 1x brake pad set |
| Manufacturer number: | FA197HH |
| Country and region of manufacture: | United States |
| Installation position: | Rear, Front |
| Type of motorcycle: | Motorcycle, Scooter, Road motorcycle |
| Manufacturer warranty: | 2 years |
| Material: | Fully metallic (copper alloy) |
| Type: | FA197HH |
EBC Brakes World Headquarters
Upton Valley Way East
Pineham
NN4 9EF Northampton
Web page https://ebcbrakesdirect.com
Email: sales@ebcbrakesdirect.com
| Product type | Brake pad set |
|---|---|
| Covering B Depth | 9 mm |
| Tuning & Styling Part | No |
| Vintage part | No |
| OE/OEM reference number(s) | 06435 KW6 841, 06455 KPC 641, 06455 GCR 006, 3LD W0045 10, 3LD W0045 30, 06455 KR3 000, 06455 KR3 405, 43082 0081, 43082 0128, 43082 1238, 43105 LDH1 E00, 43105 LFC4 305, 43105 SABR Z00M1, 43106 SABR Z00M1, 43108 H3C 000A, 45105 KR3 871, 45106 KR3 871, 4510A KW6 9000, 4510A KFW6 900, 45105 KBE 3050 M2, 59100 07810, 59100 05820, 1S4 W0045 00, 59401 HP7 600, 252 0033A, 43150 LEA5 306, 59301 HP7 600, 45105 EN3 A00, 06455 KW6 843, 06455 KW6 844, 43082 0080, 45105 SEA 0000, 45106 SEA 0000, 5HH W0045 10, PE802576, 59100 21890, 45120 T40 0000, 59401 HP7 600, 06455-KPN-E01, |
| GTIN | 5050953005152 |
| Covering A Width | 96.7 mm |
| Covering A Height | 42 mm |
| Covering A Nominal dimension | 96.7 x 42 x 9 mm |
| Note | Do not reuse the original windshield |
| Covering A Depth | 9 mm |
| Covering B Width | 77.3 mm |
| Decking B Height | 42 mm |
|---|---|
| Comparison number | EBC FA197, FA197HH, EPFA197HH, GPFA197HH, EBC SFA197, SFAC197, SFA197HH, Brenta FT3021, FT4021, TRW/Lucas MCB663, MCB663EC, MCB663SRM, SBS 688, Verodo FDB2087, NewFren FD.0257, FD.0208, Brembo 7033 |
| Covering B Nominal dimension | 77.3 x 42 x 9 mm |
| Features | Durable, Extremely high friction, High coating performance |
| Scope of delivery | 1x brake pad set |
| Manufacturer number | FA197HH |
| Country and region of manufacture | United States |
| Installation position | Rear, Front |
| Type of motorcycle | Motorcycle, Scooter, Road motorcycle |
| Manufacturer warranty | 2 years |
| Material | Fully metallic (copper alloy) |
| Type | FA197HH |
EBC Brakes - High-quality brake technology for two-wheelers
EBC Brakes is one of the world's leading manufacturers of brake pads and brake discs. For decades, the brand has stood for safety, quality and performance - both in everyday use and in motorsport. Riders of motorcycles, scooters, mopeds and quads trust EBC when it comes to reliable braking power and maximum safety.
Wide range for every application
EBC's portfolio includes organic brake pads, sintered pads, brake discs, clutch discs and accessories for numerous two-wheeler models. Whether sporty riding style, touring or daily city traffic - EBC offers the right solution for every application.
Innovation and proven quality
EBC relies on state-of-the-art materials and manufacturing techniques. The brake pads impress with their high coefficients of friction, low fading tendency and long service life. EBC brake discs are precisely manufactured and offer optimum heat dissipation and consistent performance. All products are tested according to strict standards and therefore guarantee maximum safety on the road and off-road.
The advantages of EBC Brakes at a glance
- ✔️ Wide range - brake pads, brake discs and clutch parts
- ✔️ For all areas of use - everyday, touring, off-road and racing
- ✔️ Maximum safety - tested quality and reliable braking power
- ✔️ Long service life and consistent performance
- ✔️ Leading global brand with motorsport experience
Conclusion: EBC stands for brakes with maximum safety
EBC Brakes supplies brake technology that impresses with its quality, safety and performance. Drivers of two-wheelers rely on this brand when it comes to brakes without compromise.
With EBC, you are investing in brake pads and brake discs that optimally combine riding pleasure and safety.
