Ignition alternator 12V 100W bgl. vape set for Simson S51 S50 S53 S70
Prices plus VAT plus shipping costs
IN STOCK - Delivery time 1-3 working days
- Item no: 168043
- EAN: 4060861165610
- Manufacturer: Citomerx
- Manufacturer no.: 168043
TECHNICAL DATA:
- Product type: Alternator (complete)
- identical to: Vape ignition
- Replacement for: all ignition systems up to 1990
- Ignition pulse generation: fully electric, contactless
- Output: 100W
- Voltage 12V
Charge controller
- identical to: VAPE R54
- Cable length: 90 mm
- Cable connection: 1 plug 3-pin // 2 cables
rotor
- identical to: VAPE A70R-3
- Outer diameter: 104 mm
stator
- identical to: Vape A70S-3
- Cable length: 400 mm
- Cable connection: 1 plug 4-pin
Ignition module
- identical to: VAPE Z71
- Cable length: 90 mm
- Cable connection: 2 plugs 1-/2-pole
Mounting set
- suitable for the electronic parts
- 13-piece mounting set
- Incl. holder for regulator & ignition coil
Flasher unit
- Color: black
- Dimensions: 31 x 31 x 40 mm
- Suitable for 12V on-board voltage
- Power: 0.24W - 240W
- Connections: Ground (31) / input (49) / output (49a)
- incl. mounting bracket
sealing cap
- Material: plastic
- Color: black
- Suitable for the heart box (air filter box)
- Length: approx. 75 mm
- Width: approx. 65 mm
Spark plug connector
- interference suppressed with 5kOhm
- for ignition cables with 5-7 mm thickness
- for spark plugs with width across flats 21
- for clipping onto the upper thread (without SAE terminal)
Ignition cable
- Diameter: 7mm
- Length: 1 meter
- High-voltage safe up to 38000 volts
- heat-resistant up to 220 degrees

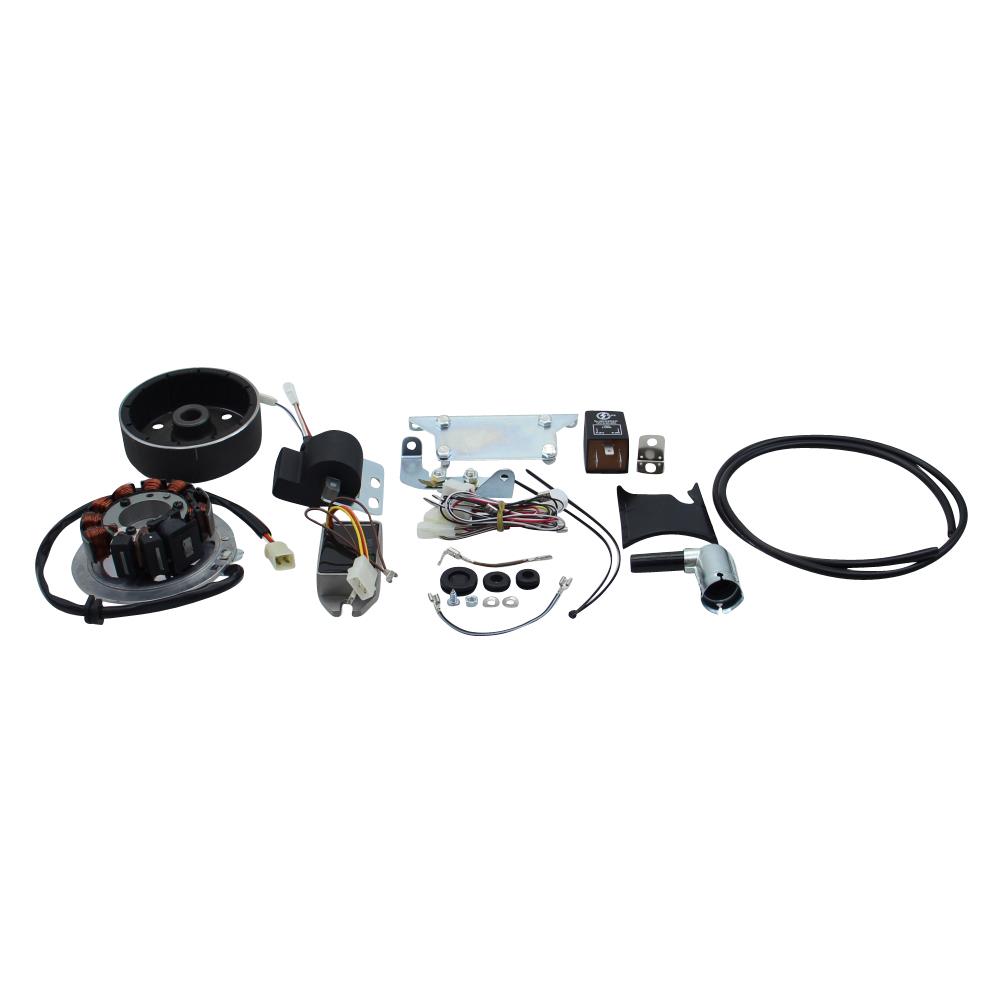

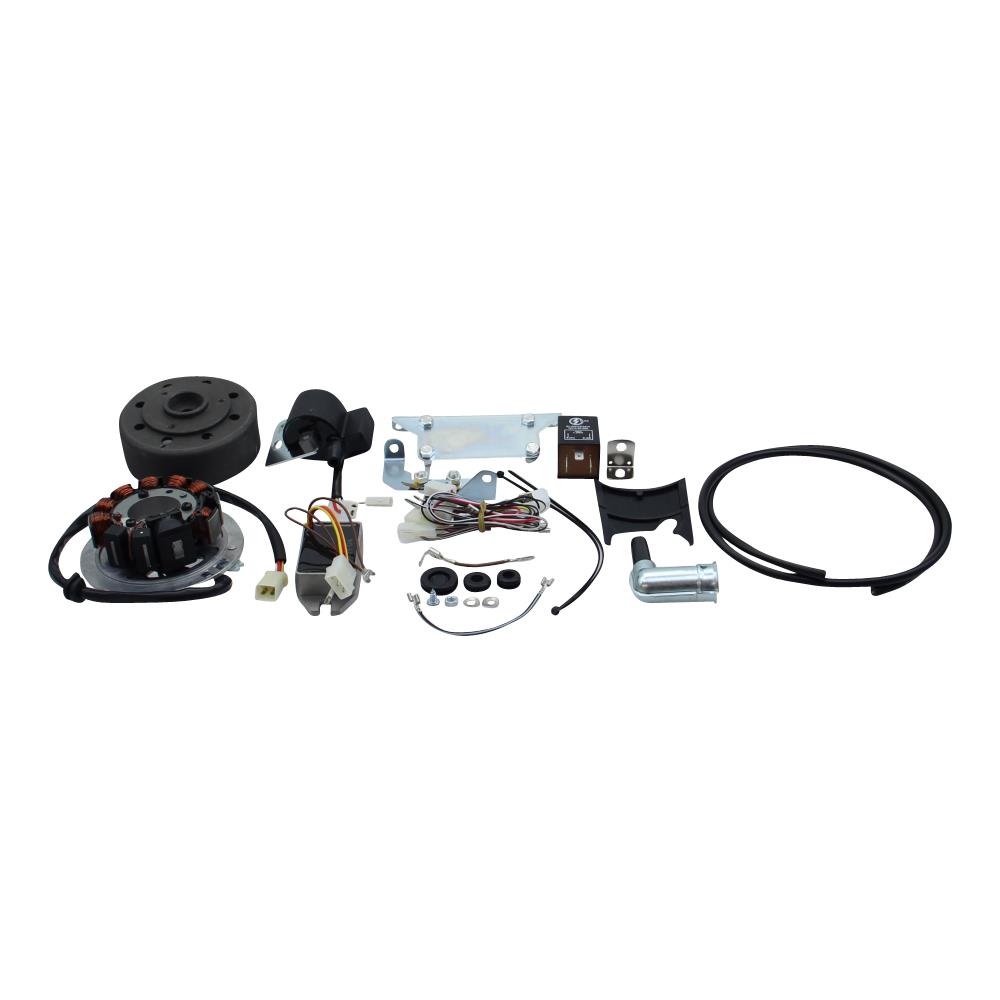

SCOPE OF DELIVERY:
- 1x base plate
- 1x pole wheel
- 1x ignition coil
- 1x charge controller AC-DC
- 1x mounting set
- 1x flasher unit
- 1x sealing cap
- 1x spark plug connector
- 1x ignition cable
| Product type: | Alternator (complete) |
| Mounting set suitable for: | Elektronikteile |
| Ignition pulsing: | vollelektrisch, kontaktlos |
| Ignition module cable connection: | 2 Stecker 1-/2-polig |
| Ignition module Cable length: | 90 mm |
| Charge controller Cable connection: | 1 Stecker 3-polig // 2 Kabel |
| Charge controller Cable length: | 90 mm |
| Ignition cable diameter: | 7 mm |
| Stator cable connection: | 1 Stecker 4-polig |
| Ignition cable length: | 1 Meter |
| Stator cable length: | 400 mm |
| Spark plug connector: | entstört mit 5kOhm |
| Cap suitable for: | Herzkasten |
| Rotor outer diameter: | 104 mm |
| Flasher unit connections: | Masse (31) / Eingang (49) / Ausgang (49a) |
| Flasher unit power: | 0,24W - 240W |
| Replacement for: | alle Zündanlagen bis 1990 |
| Flasher unit dimensions: | 31 x 31 x 40 mm |
| Identical to: | Vape ignition |
| Rotor identical to: | VAPE A70R-3 |
| Ignition module identical to: | VAPE Z71 |
| Charge controller identical to: | VAPE R54 |
| Stator identical to: | Vape A70S-3 |
| Power: | 100W |
| Scope of delivery: | 1x ignition set |
| Manufacturer number: | 168043 |
| Country and region of manufacture: | China |
| Offer package: | Yes |
| Description of the package content: | Ignition set |
| Manufacturer warranty: | 2 years |
