Cylinder Kit 70cc LC Sport Citomerx for Piaggio, Gilera, Aprilia, Derbi
- Manufacturer: Citomerx
- Item no: 150387
- Manufacturer no.: 150387
- EAN: 4260250310083
Item data
| Product type: | Cylinder set |
| Piston pin diameter: | 12 mm |
| Displacement: | 70 ccm |
| Can the original cylinder head be used?: | Yes |
| Tuning & Styling Part: | Yes |
| Piston ring profile: | Halbtrapez-Ring |
| Vintage part: | No |
| Surface finish: | Matt |
| ATTENTION!: | TUNING: Not permitted in the area of the StVZO! |
| GTIN: | 4260250310083 |
| Diffuser internal dimension: | 20 mm |
| Cylinder dimensions (LxWxH): | 100 x 100 x 85 mm |
| Outlet Stud distance: | 46 mm |
| Scope of delivery: | Cylinder, Gasket set, Kolben Set |
| Outlet stud bolt thread: | M6 |
| Cylinder stud distance: | 48 x 48 mm |
| Number of overflows: | 3 |
| Cylinder stud bore: | 7 mm |
| Manifold connection type: | Flange |
| Color: | Grey |
| Number of piston rings: | 2 |
| Features: | Durable, Corrosion resistant |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x cylinder set |
| Manufacturer number: | 150387 |
| Country and region of manufacture: | China |
| Type of motorcycle: | Scooter |
| Offer package: | Yes |
| Units quantity: | 1 |
| Description of the package content: | Cylinder set |
| Manufacturer warranty: | 2 years |
| Material: | Several materials |
| Type: | Tuning |
| suitable for: | Piaggio LC water-cooled (4-cornered) |
Prices plus VAT plus shipping costs
In stock! Delivery time 1-3 working days
Piaggio Tuning: open CDI ignition coil + NGK spark plug connector Sfera TPH Typhoon
Spark Plug Connector LZFH 8710 without Resistance 90° Compact Black NGK for Vintage Cars
Presto Power Brake Cleaner 600 ml – Powerful Parts Cleaner for Residue-Free Cleanliness
Scooter Battery Gel Battery 12V 5AH for REX RS 250 450 460 500 600 700 750 900 - Citomerx
Oil Drain Pan 10 Liter Oil Change Container Plastic Black – Suitable for Scooters, Motorcycles, Quads & ATVs – Citomerx
Hiflo Oil Filter HF183 for Advia Aprilia Derbi Gilera Malaguti Peugeot Piaggio Vespa
Cylinder head 70cc for horizontal Minarelli AC air-cooled engines, Rexy, Aprilia, MBK
Cylinder Kit 70cc AC Minarelli vertical for Aprilia, Italjet, Itteco, MBK, Yamaha
Speed ➡limiter / DZB / controller / speed limiter with toggle switch for scooters with...
Cylinder Kit 70cc LC watercooled incl. head for Piaggio engines, NRG, ZIP, NTT, Gilera Runner
Citomerx cylinder kit 70ccm for Piaggio
DESCRIPTION:

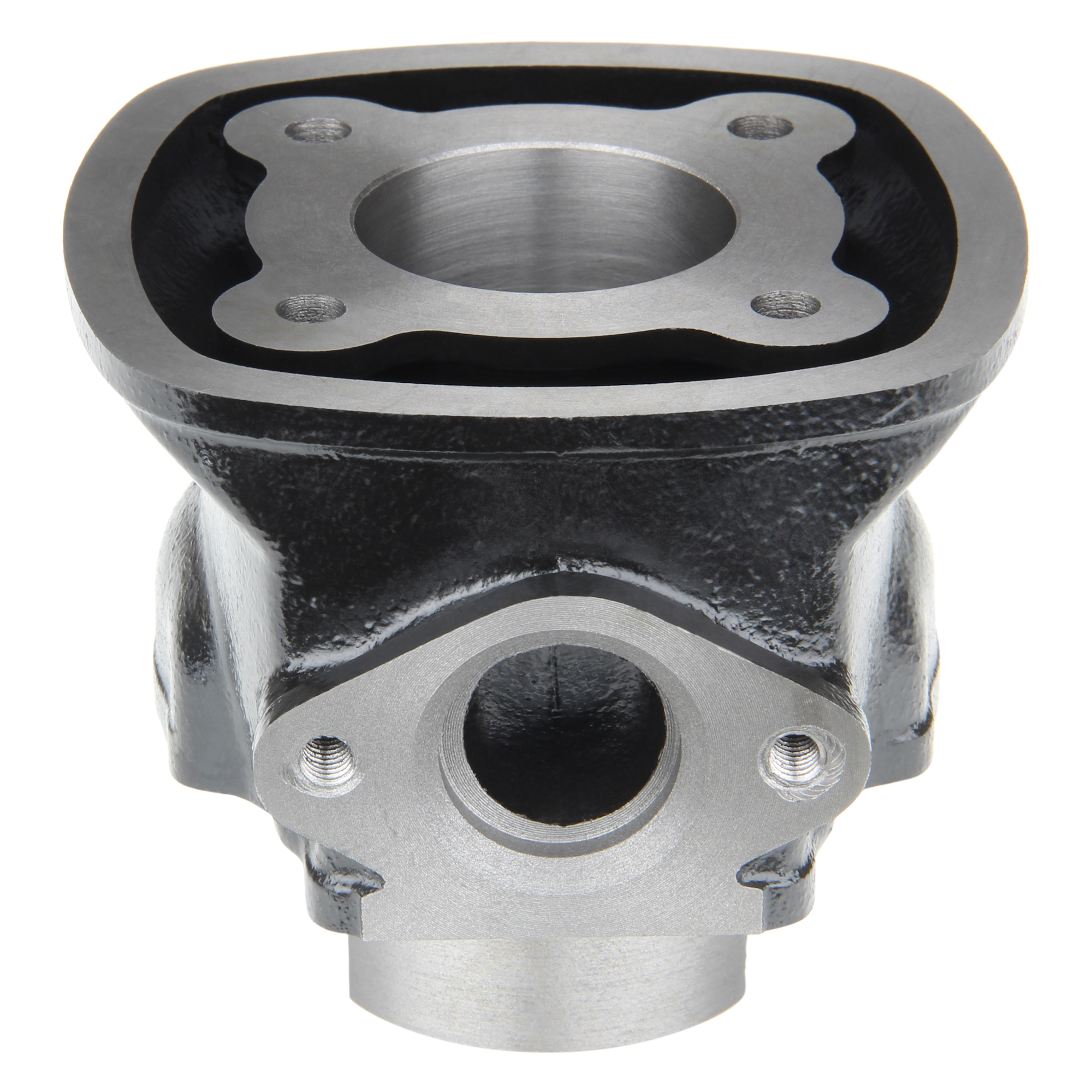

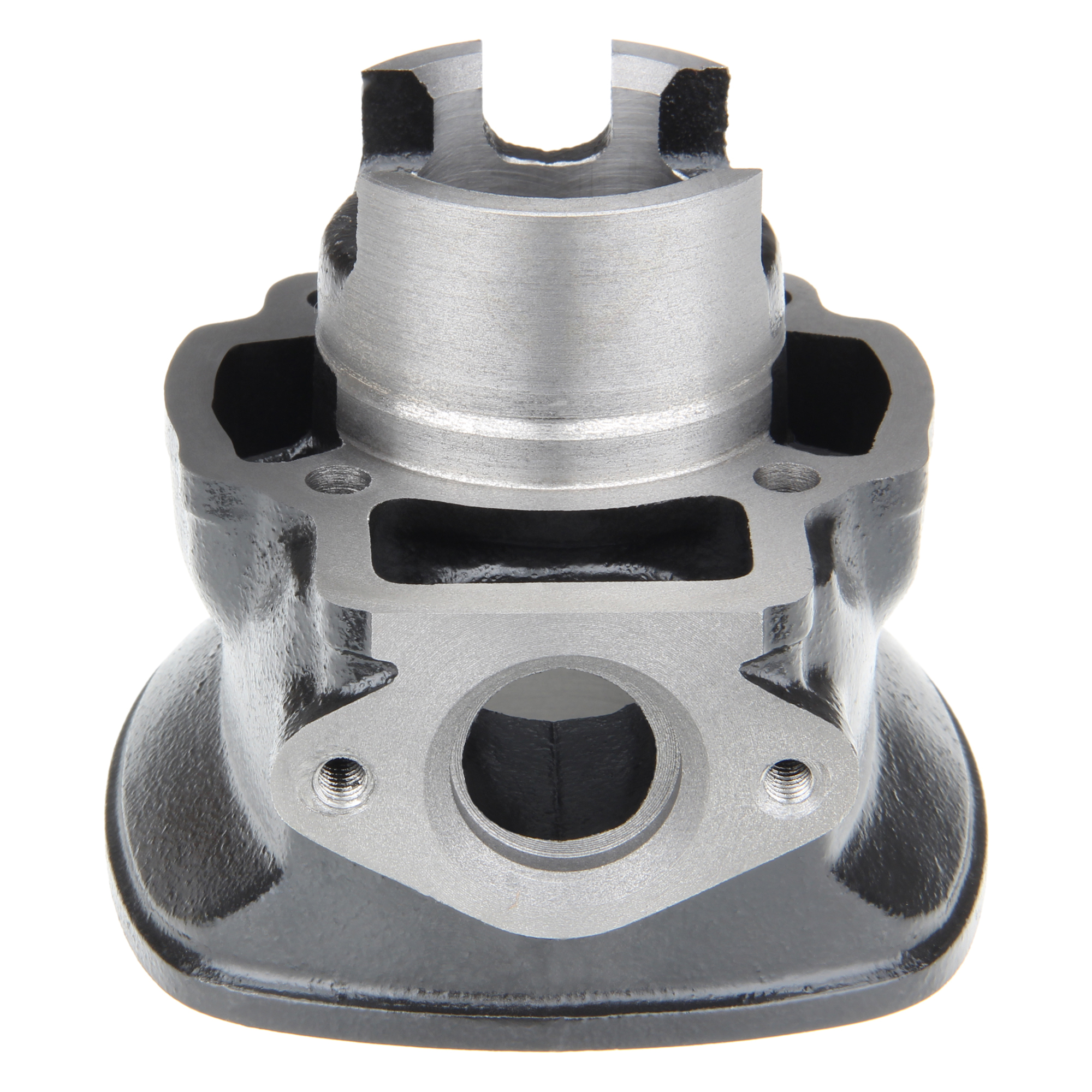

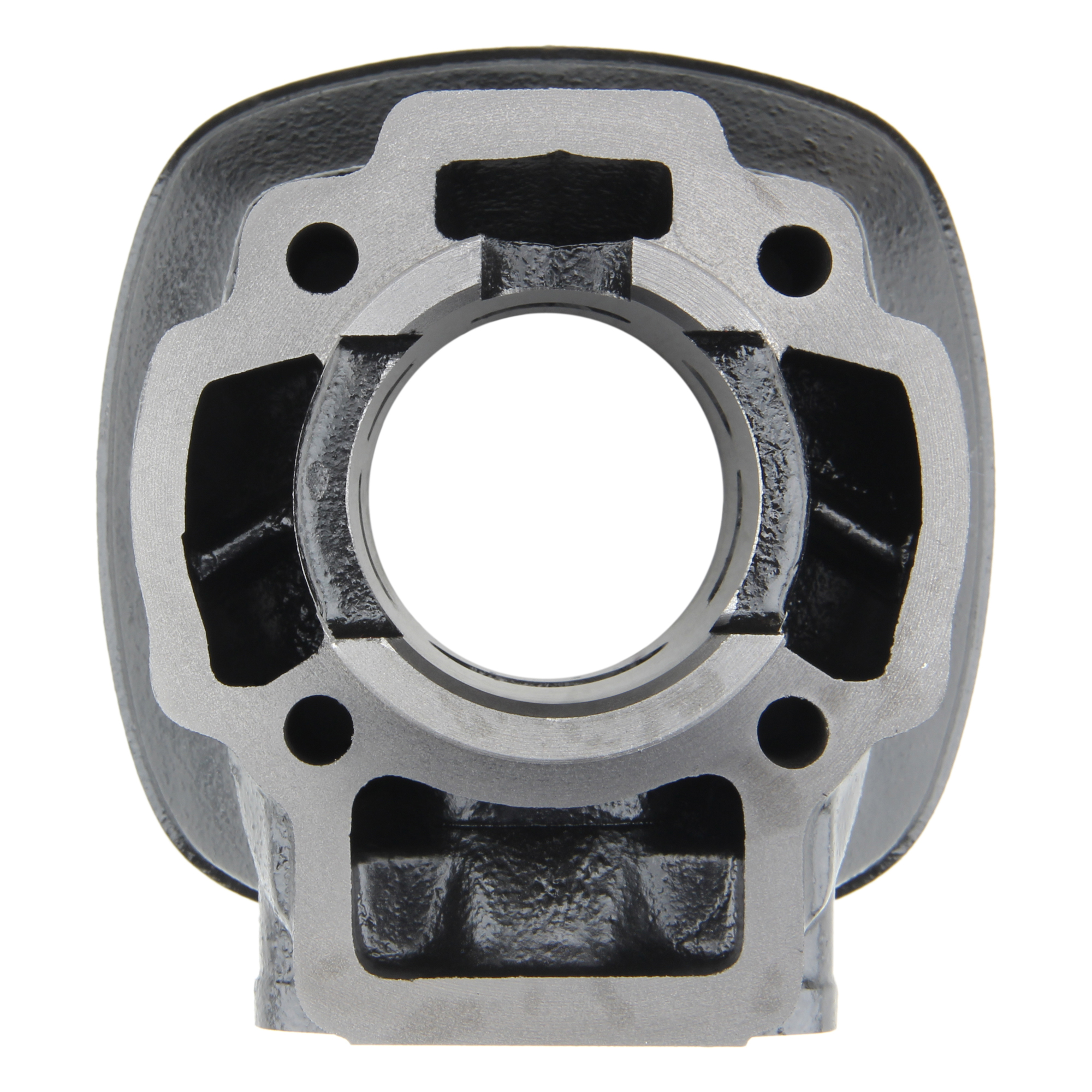

This 70cc Citomerx sports cylinder is made of durable cast iron and offers good performance at low revs.
The engine revs remain at a low level, which is conducive to durability.
TECHNICAL DATA:
- Type: 70cc cylinder
- for 2-stroke LC engines
- Piston pin: 12mm
- Exhaust: 24 mm
- Bore: 47,6 mm
TIP:
Experienced mechanics recommend replacing the coolant when changing the cylinder, as it loses quality after approx. two years and may flocculate, causing seals or fins to become clogged.
Make sure, however, that you use the correct coolant. The rule of thumb is: never mix silicate-containing with silicate-free agents.
Often, however, it is no longer possible to trace which agent was used and a complete change of the fluid is almost impossible because components have been deposited in the lines. Therefore, play it safe with a universal agent of the latest generation that can be mixed with all agents, e.g. Agip Antifreeze 12++.

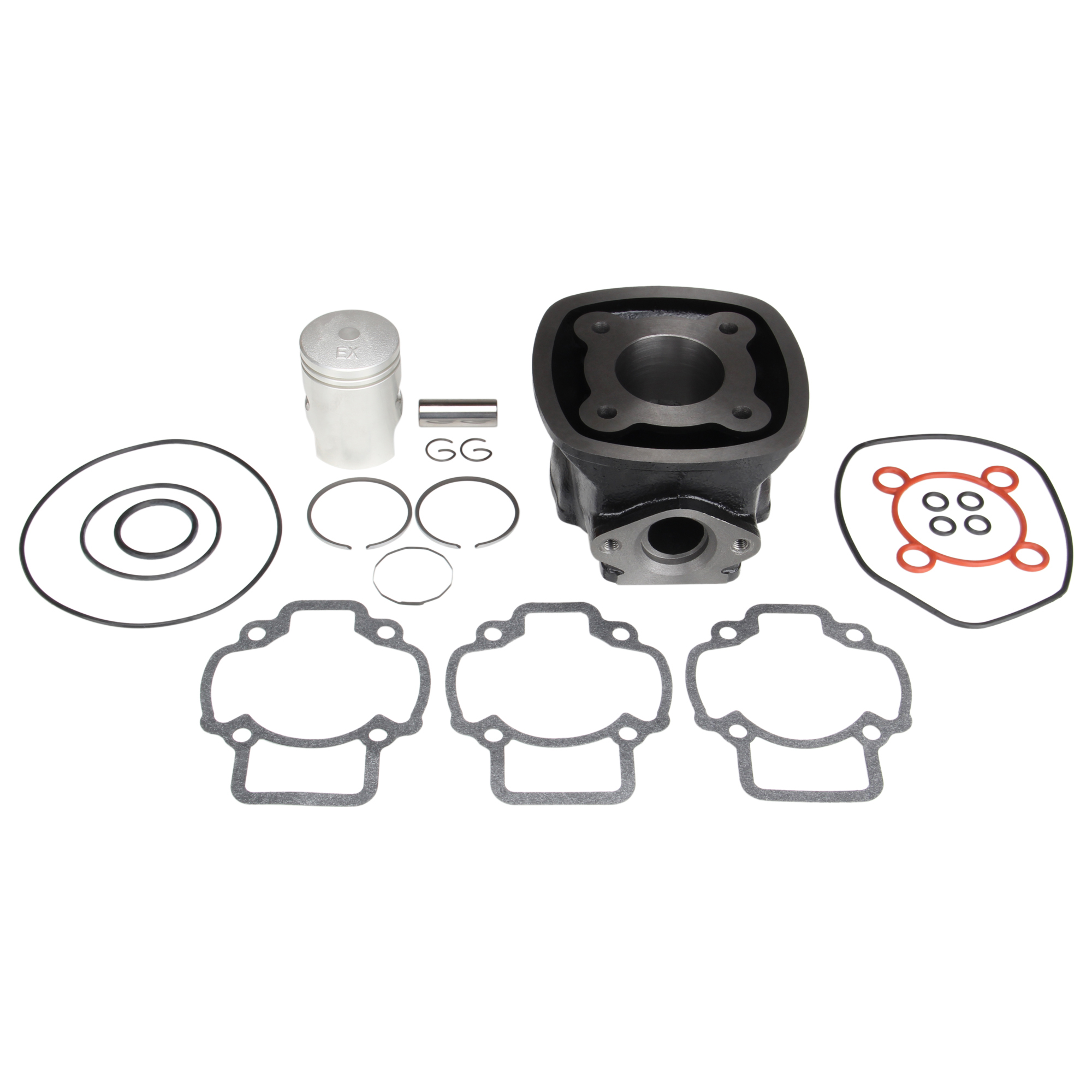

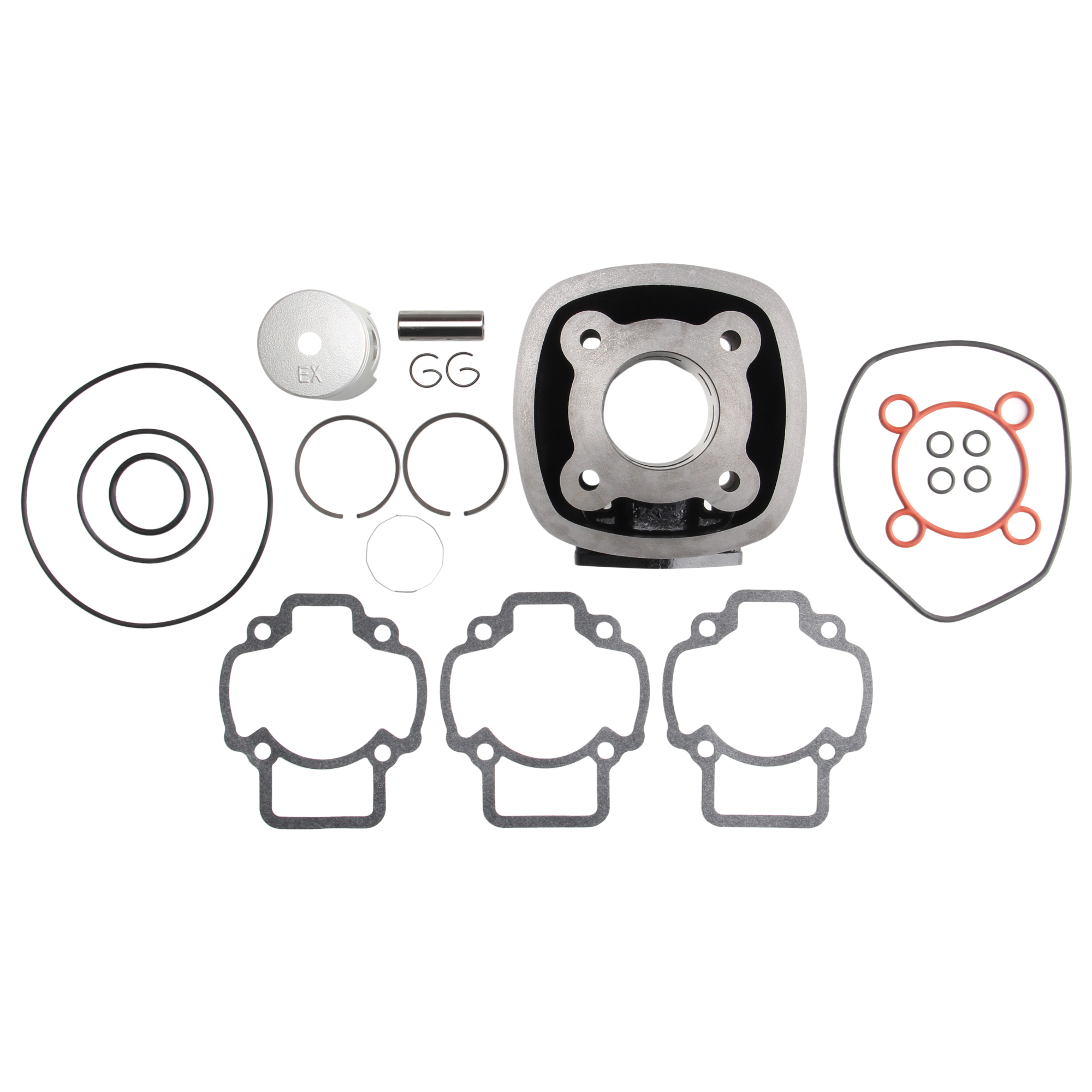

SCOPE OF DELIVERY:

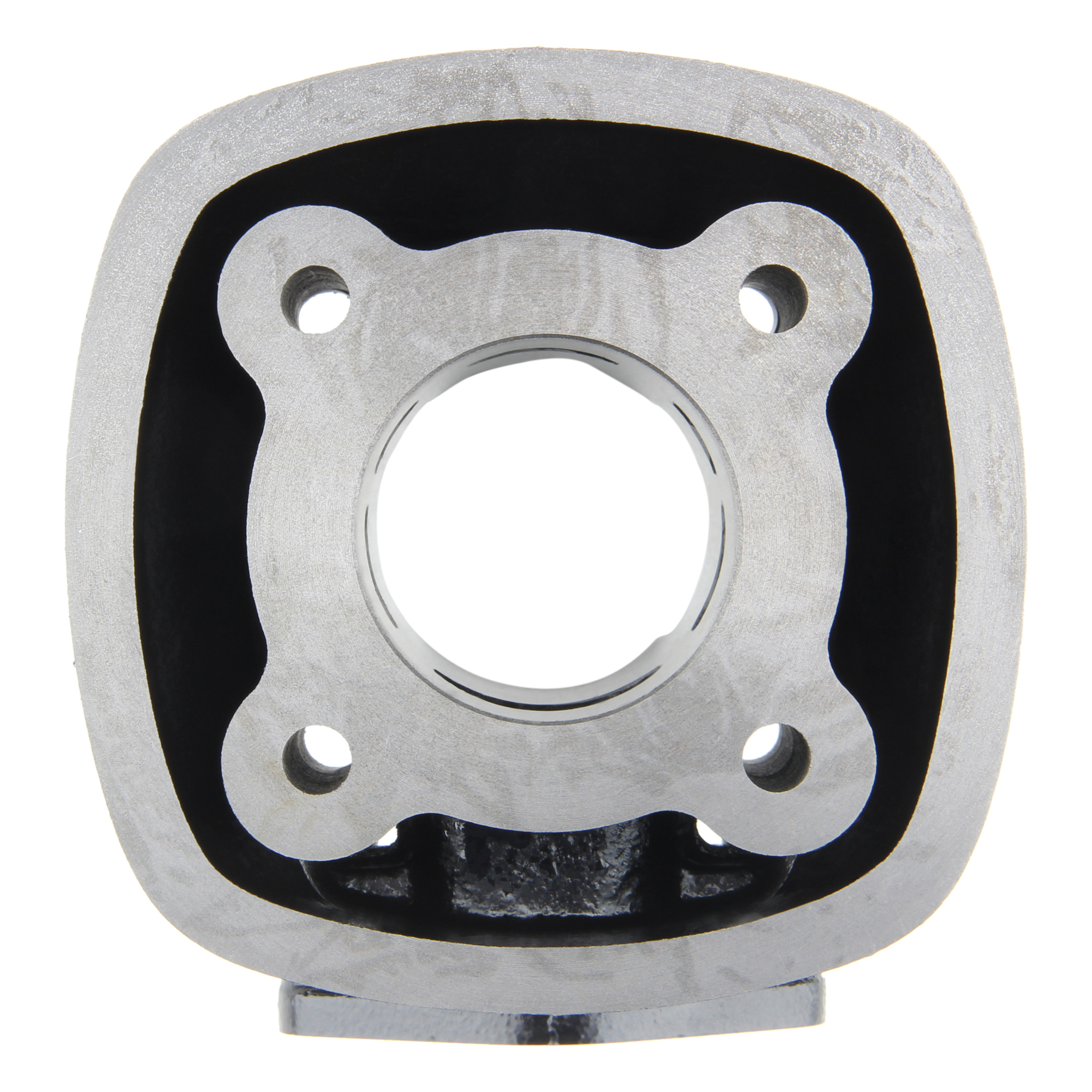

✔ Cylinder

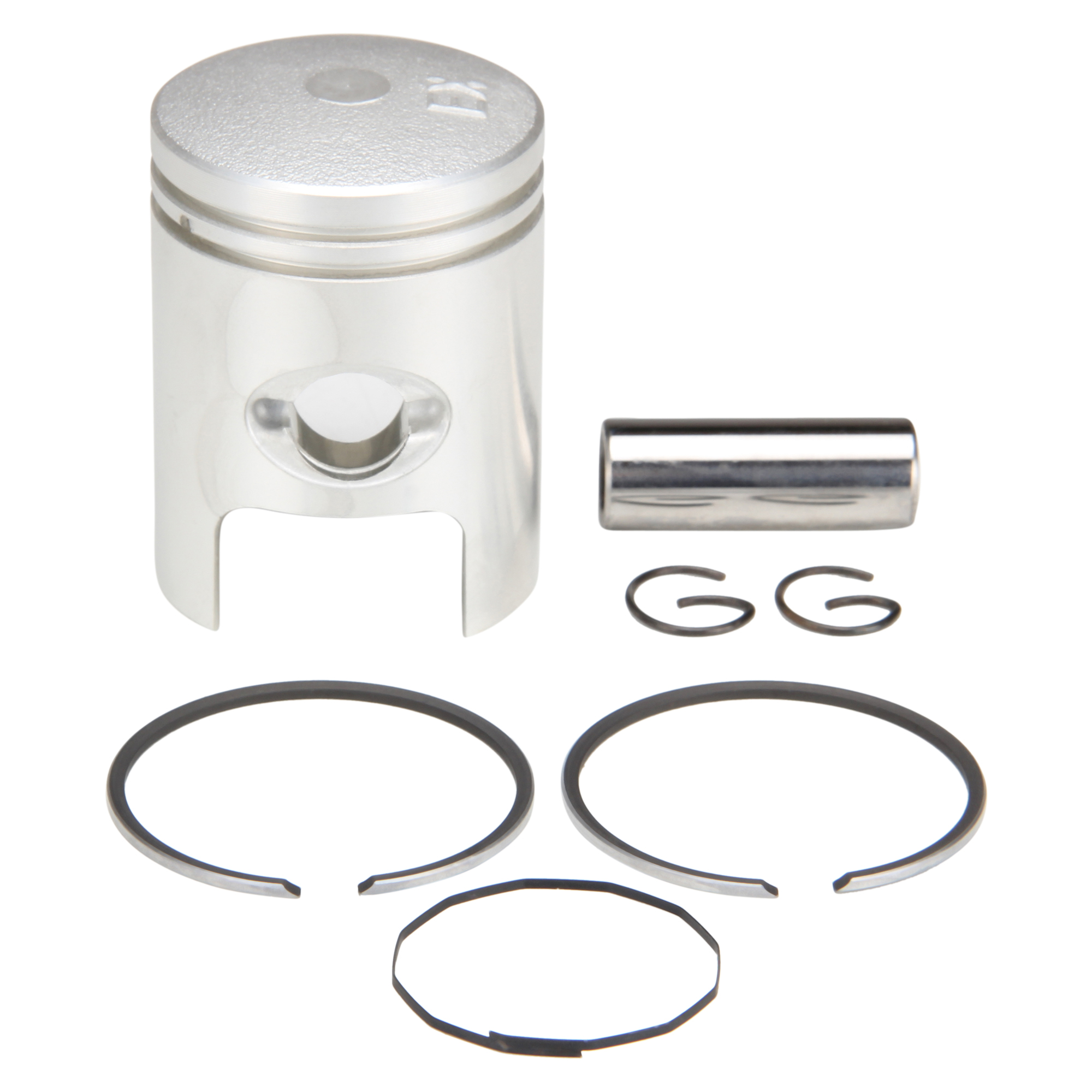

✔ Piston (incl. piston rings, piston pins, clips)

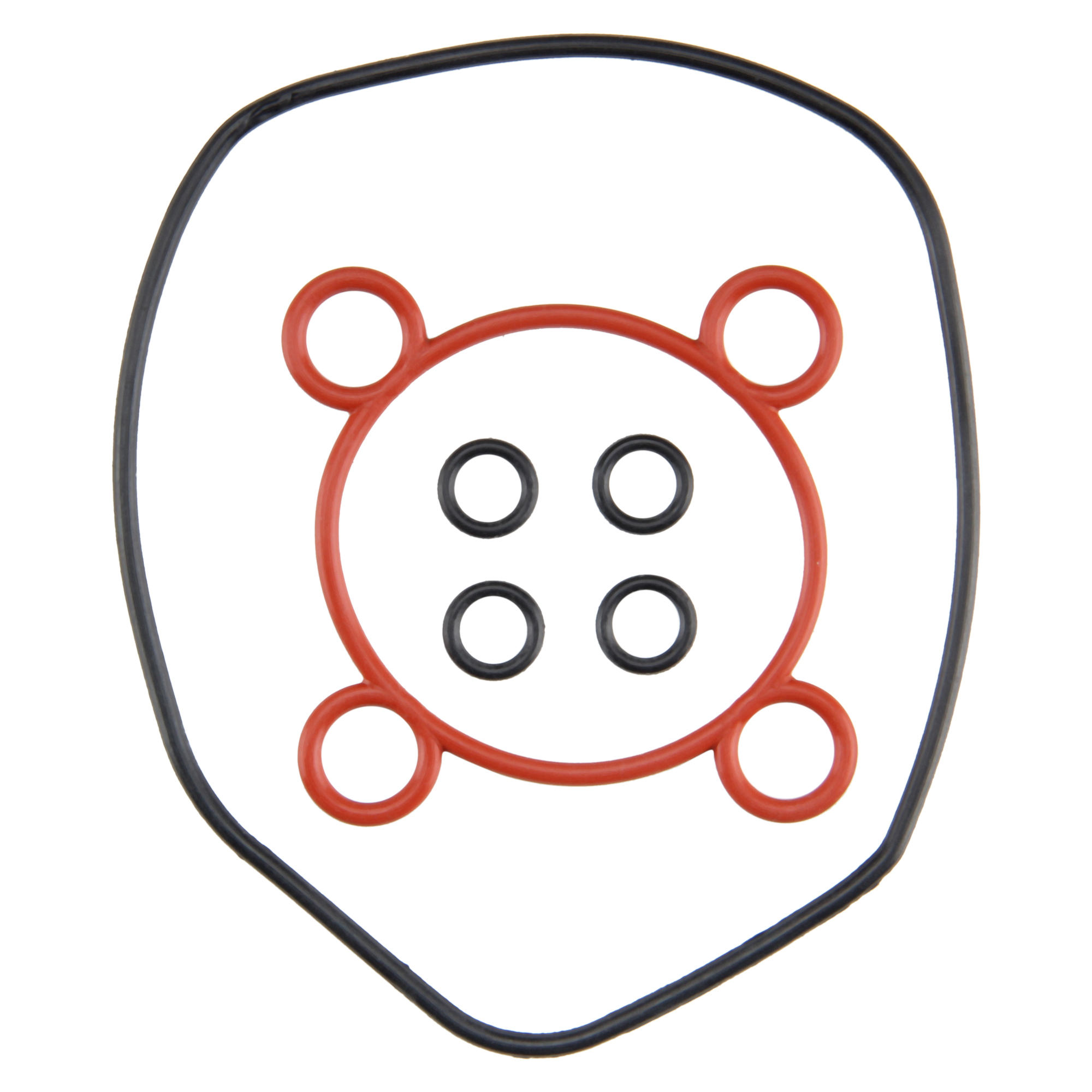

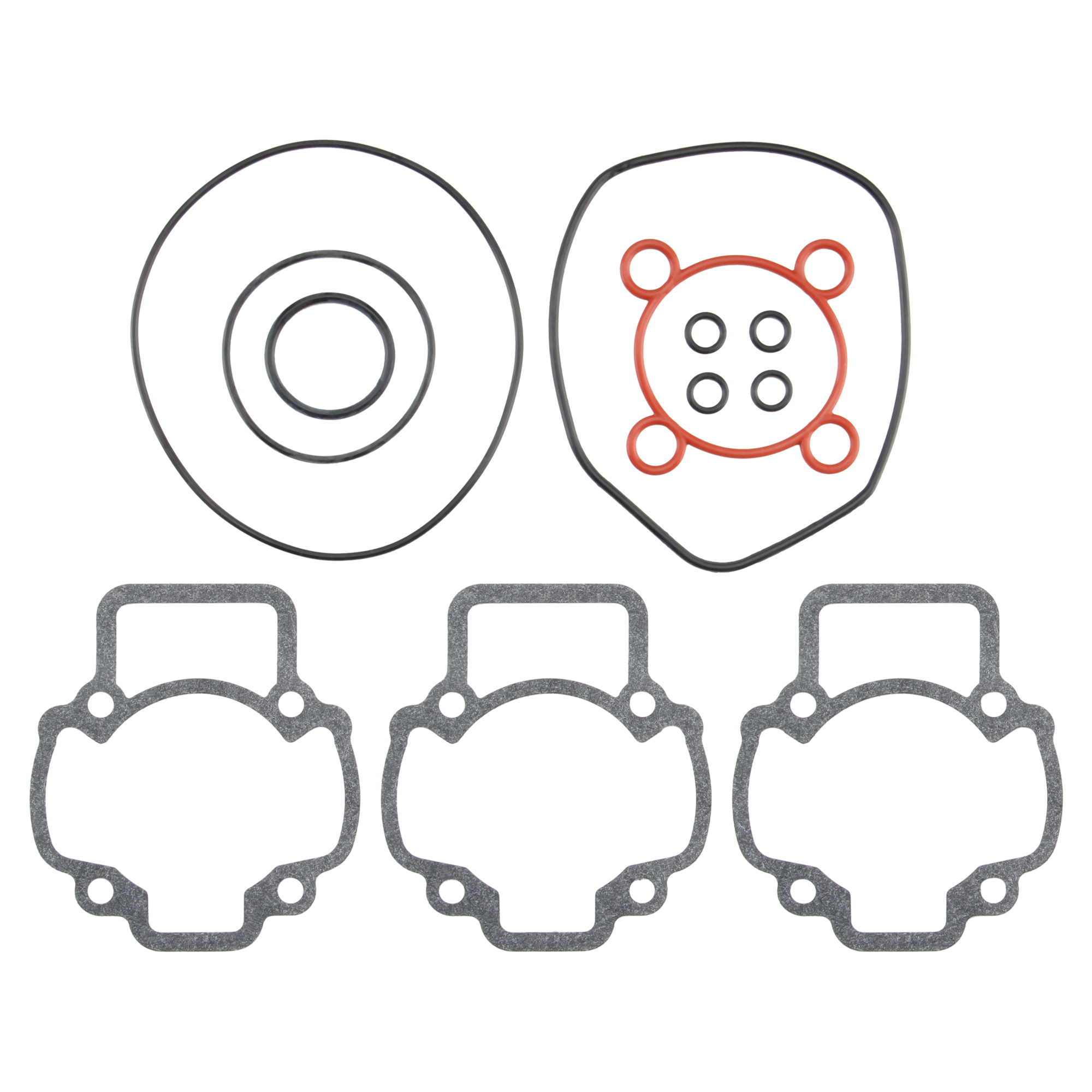

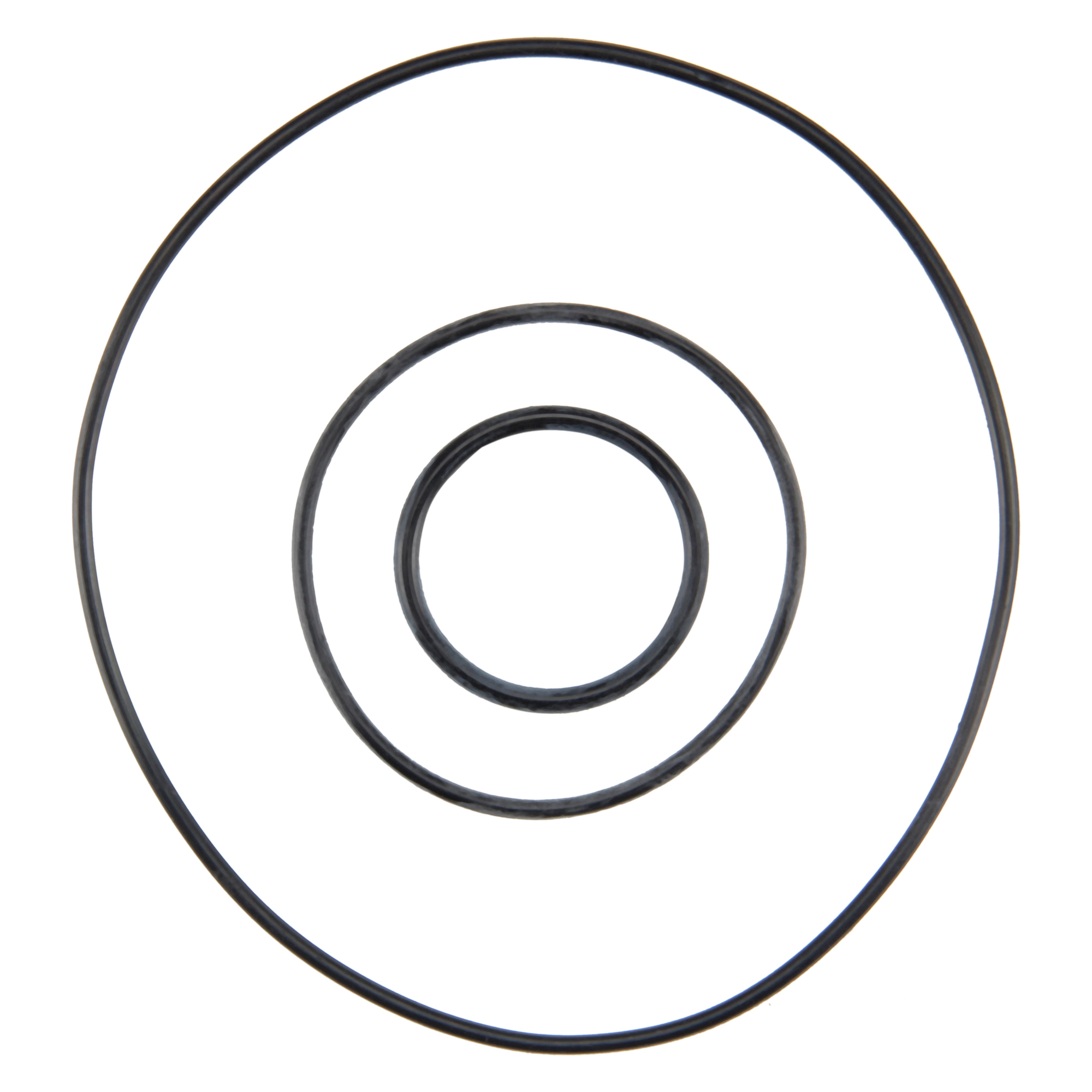

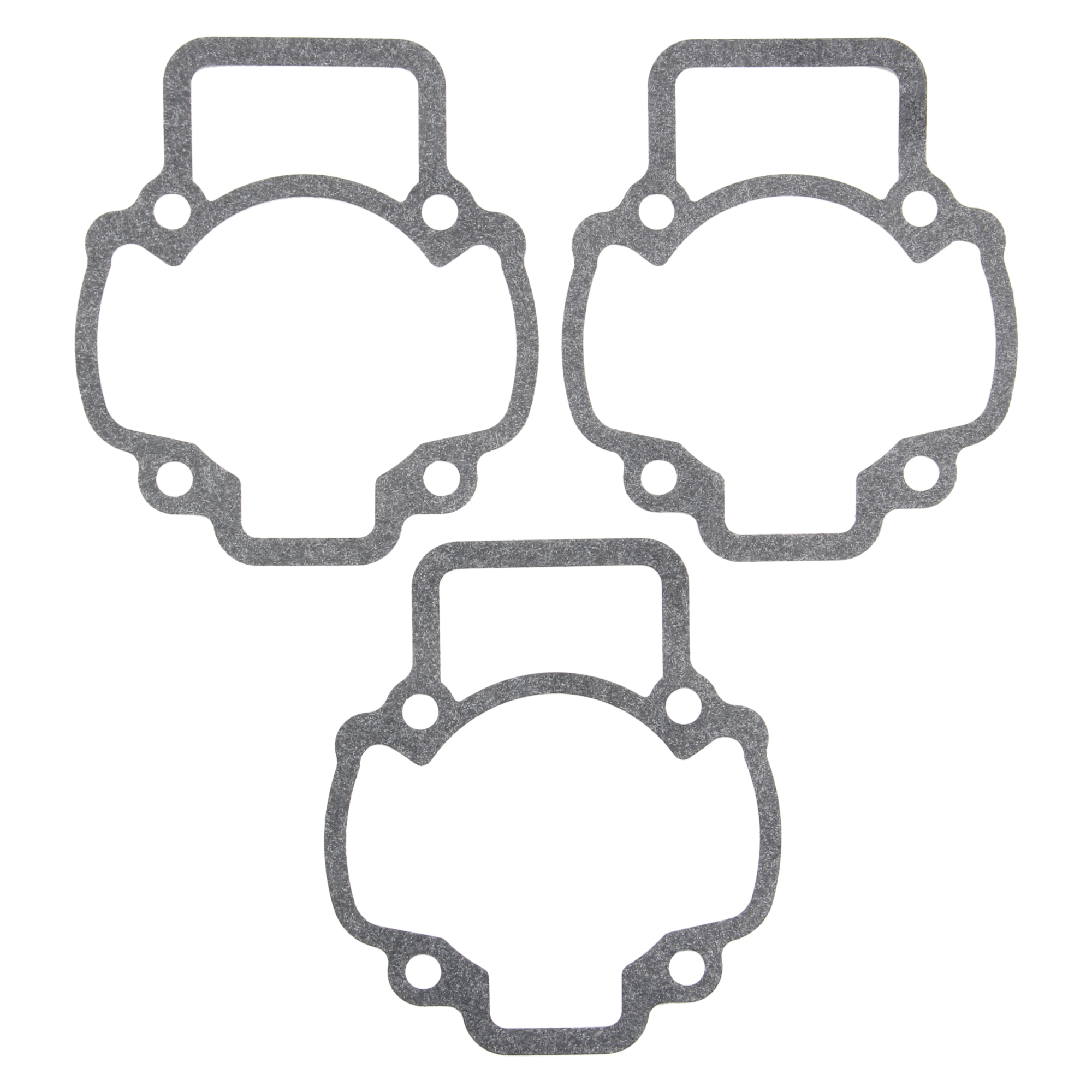

✔ Gasket set
