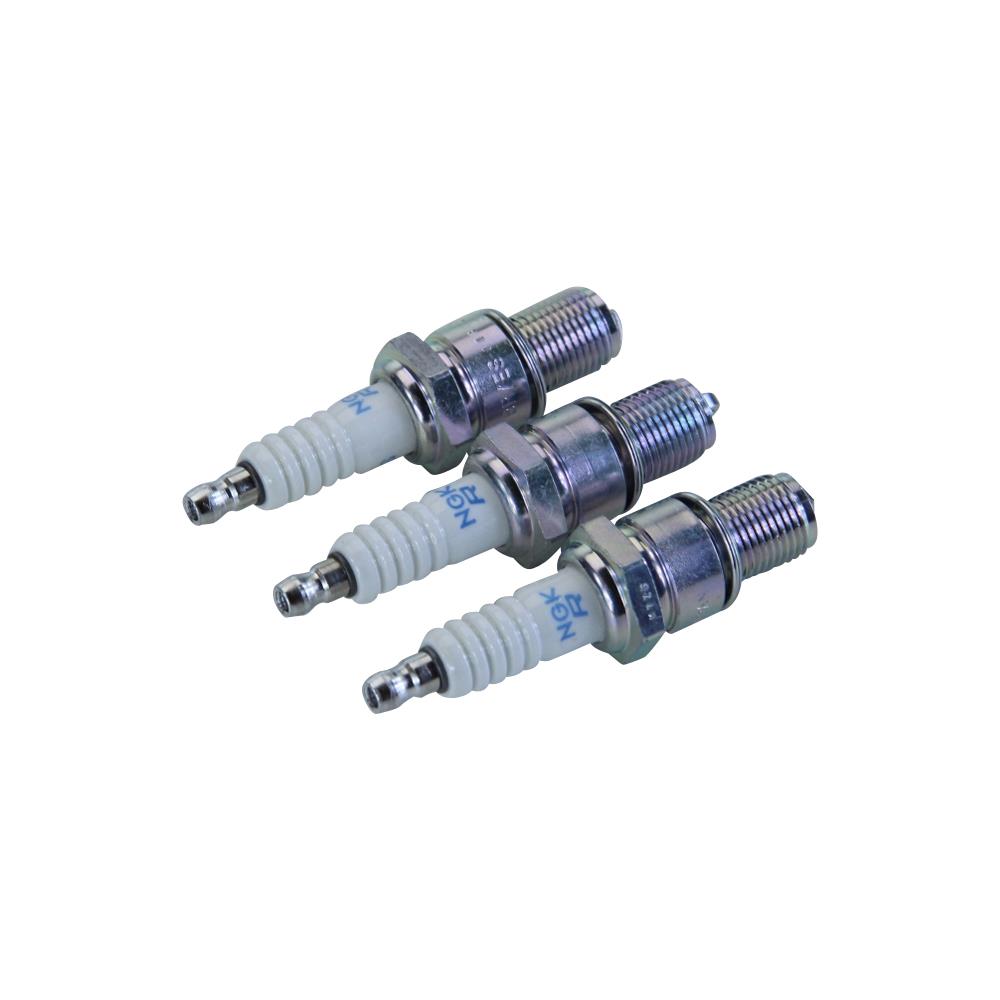

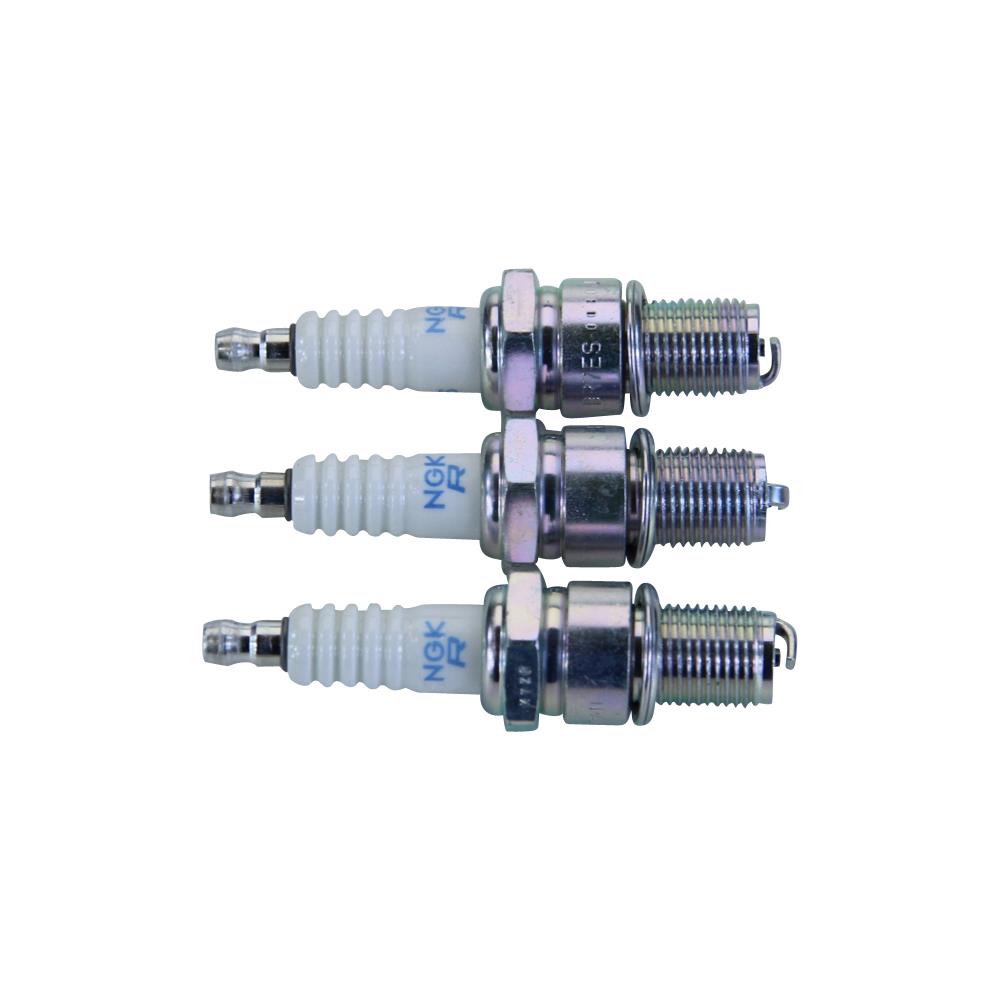

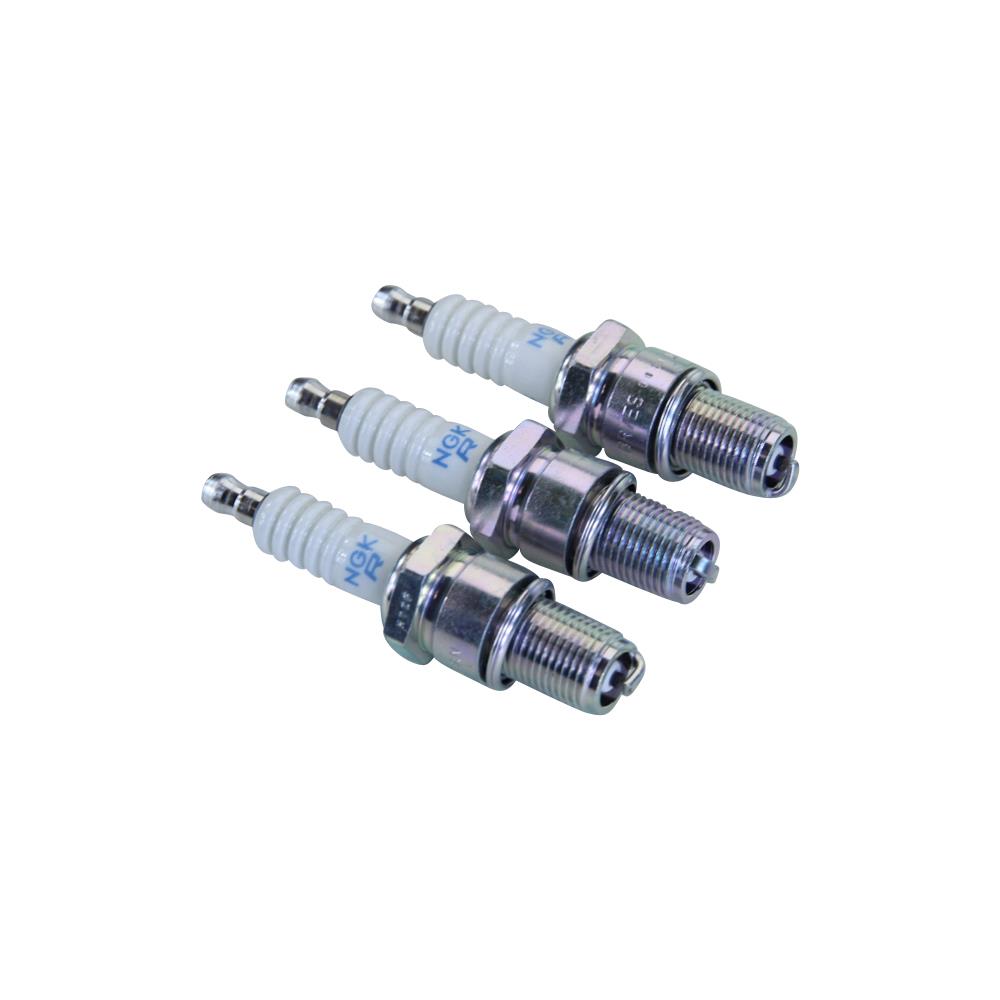

Spark plug NGK BR7ES, 6615, 3 pieces
- Manufacturer: NGK
- Item no: 1001713
- Manufacturer no.: 1001713
- EAN: 4251048876027
Item data
| Product type: | Spark plug |
| Country of origin: | Japan |
| Sealing: | Flat tight fit |
| Replacement part number: | BOSCH WR5CC, BOSCH W4CC, Champion OE098, Champion RN4, Champion RN74C, Denso W22ESR, Denso IW22, Denso W22ESL |
| Number of earth electrodes: | 1 |
| Thermal value: | 7 |
| suppressed?: | Yes, 5 kOhm |
| Tuning & Styling Part: | No |
| Thread diameter: | 14 mm |
| Electrode gap: | 0.8 mm |
| Vintage part: | No |
| Spark plug type: | BR7ES |
| Universal compatibility: | Yes |
| Quantity per pack: | 3 |
| Spark position: | 1.0 mm |
| Contact ignition cable: | Fixed SAE connection |
| GTIN: | 0087295166154 |
| Scope of delivery: | 3x spark plug NGK BR7ES |
| Manufacturer number: | 6615 |
| Country and region of manufacture: | Japan |
| Type of motorcycle: | Motorcycle, Scooter, Moped & Mokick, Quad ATV & Trike |
| Units quantity: | 1 |
| Manufacturer warranty: | 2 years |
| Brand: | NGK |
| Thread length: | 19.0 mm |
| Thread dimensions: | M14 x 1.25 |
| Width across flats: | 20.8 mm (SW21) |
| Material: | Nickel |
OR
£7.17
*
Content:
3 piece
(
£2.39
*
/ 1 piece
)
Prices plus VAT plus shipping costs
In stock! Delivery time 1-3 working days
Customers also bought
Cylinder kit 50cc Minarelli AC air-cooled horizontal engines, CPI, Rexy, Keeway
Content
1 piece
£17.22
*
Presto Power Brake Cleaner 600 ml – Powerful Parts Cleaner for Residue-Free Cleanliness
Content
0.6 liter
(£5.88 * / 1 liter)
£3.53
*
Bremspumpe Bremshebel Griff Bremszylinder rechts China 4-Takt GY6 Roller chrom
Content
1 piece
£16.49
*
Cylinder kit 50cc AC air-cooled 12mm pin straight flange for horizontal CPI engines
Content
1 piece
£21.60
*
Cylinder kit 50cc AC air-cooled 12mm bolt angled flange for horizontal CPI engines, CPI, Keeway
Content
1 piece
£20.78
*
Similar articles
Customers have also viewed
This is where the sparks really fly!
DESCRIPTION:
To make spark plugs extremely resistant and... more
Product information "Spark plug NGK BR7ES, 6615, 3 pieces"
This is where the sparks really fly!
DESCRIPTION:
To make spark plugs extremely resistant and to fulfil their task well, the highest precision is required. In addition, the manufacturer has committed itself to always supply products of the highest quality and to continuously set new standards. This is why the company is the first choice for many vehicle manufacturers.
NGK SPARK PLUGS can rightly call itself a pioneer in the development of ignitions. Since the company was founded in 1936, research and development have been carried out continuously; the results are clearly visible: NGK SPARK PLUG is today represented on all continents with 41 Group Companies, 24 production facilities and 5 Technical Centres and is a leading global supplier to the automotive industry and manufacturer of technical ceramics.
The spark plugs are uniquely designed to guarantee the best possible performance. There is a wide range of different thermal characteristics for a high thermal load.
Order spare parts online? Not quite sure? Brand quality & free return = no risk! Buy spark plugs now & play it safe!
TECHNICAL DATA:
- TYPE BR7ES
- manufacturer no. 6615
- interference suppressed 5 kOhm
- Width across flats SW21 (20,8 mm)
- Thread M14 (14.0 mm)
- Thread length 19 mm
- electrode distance 0.8 mm
- Contact ignition cable fixed SAE connection
COMPARABLE WITH:
- AC Delco CR41CXLS, R41CXLS, R41XLS
- Accel 113
- Autolite 4252, 62, 63
- Beck Arnley 176-5164
- Beru 0002345701, 14R-5DU, 14R-6DU, 14R5DU, 2345701, UX56, Z 47, , Z27, Z47
- Bosch +15, 0 242 245 537, 0 242 245 552, 0 242 245 812, 0242245537, 0242245552, 0242245812, 15, F000KE0P16, W225TR30, W5DC, WR5D, WR5D+, WR5DC, WR5DC+, WR5DP, WR6DC+, WR6DP
- Brisk LR14YC, LR14ZC
- Champion 332, 8332, N7YC, OE008, OE008/R04, OE008/T10, OE018, OE018/R04, OE018/T10, RN6YC, RN7Y, RN7YC, RN7YCC
- champion pcs 339, 813
- Denso 3088, 5307, D19, IW22, VW22, W22EPR, W22EPR-U, W22EPRU, W22TT
- Denso pcs 3088
- Eyquem RC72LS, RC82LS
- Fiat 1L45JR, 5894585, 60800325, 7554436, 7760381, 7772515, 7FYSR, 7FYSSR
- General Motors 5614070
- Honda 98079-57846, 98079-57855
- Iskra FE85CPR, FE85PRS
- Jap Car 123801, 123908
- Kawasaki 920701027, E92070-1027, E920701027
- Lodge 25HL, 2HL
- Magneti Marelli 061830085304, CW8LPR, F8LCR
- Mitsubishi MS 851 219, MS 851 234, MS 851 414, MS851219, MS851234, MS851414, Z 2152 947, Z2 152 947, Z2152947
- Mopar 4339487
- Motorcraft AGR12C, AGR22, AGS12C, AGS12CF6
- Motorcraft pcs 64
- NGK pcs 2023, 6155, 5122
- Nissan -V1417, 22401-V1417, 22401-W9817, V1417
- PAL (Brisk) LR14YC
- PSA Peugeot Citroën 7604.64, 760464
- Renault 77 00 742 094, 77 00 868 864, 7700742094, 7700868864
- Splitfire SF6B
- Subaru 22401 AA210, 22401-AA210, 22401AA210
- Suzuki 09482-00495, 09482-00498
- Tacti V91102024, V91103088
- Torch F7RTC
- Toyota 90098-22325, 90098-22745
- Unipart GSP2036, GSP281, GSP4452, GSP6452
- Valeo 246896
- Yamaha 94700-00218, 94701 00218, 94701-00218, 9470100218, 94703-00218, 94703-00220
SCOPE OF SUPPLY:
✔ 3x Spark plug NGK BR7ES
DESCRIPTION:
To make spark plugs extremely resistant and to fulfil their task well, the highest precision is required. In addition, the manufacturer has committed itself to always supply products of the highest quality and to continuously set new standards. This is why the company is the first choice for many vehicle manufacturers.
NGK SPARK PLUGS can rightly call itself a pioneer in the development of ignitions. Since the company was founded in 1936, research and development have been carried out continuously; the results are clearly visible: NGK SPARK PLUG is today represented on all continents with 41 Group Companies, 24 production facilities and 5 Technical Centres and is a leading global supplier to the automotive industry and manufacturer of technical ceramics.
The spark plugs are uniquely designed to guarantee the best possible performance. There is a wide range of different thermal characteristics for a high thermal load.
Order spare parts online? Not quite sure? Brand quality & free return = no risk! Buy spark plugs now & play it safe!
TECHNICAL DATA:
- TYPE BR7ES
- manufacturer no. 6615
- interference suppressed 5 kOhm
- Width across flats SW21 (20,8 mm)
- Thread M14 (14.0 mm)
- Thread length 19 mm
- electrode distance 0.8 mm
- Contact ignition cable fixed SAE connection
COMPARABLE WITH:
- AC Delco CR41CXLS, R41CXLS, R41XLS
- Accel 113
- Autolite 4252, 62, 63
- Beck Arnley 176-5164
- Beru 0002345701, 14R-5DU, 14R-6DU, 14R5DU, 2345701, UX56, Z 47, , Z27, Z47
- Bosch +15, 0 242 245 537, 0 242 245 552, 0 242 245 812, 0242245537, 0242245552, 0242245812, 15, F000KE0P16, W225TR30, W5DC, WR5D, WR5D+, WR5DC, WR5DC+, WR5DP, WR6DC+, WR6DP
- Brisk LR14YC, LR14ZC
- Champion 332, 8332, N7YC, OE008, OE008/R04, OE008/T10, OE018, OE018/R04, OE018/T10, RN6YC, RN7Y, RN7YC, RN7YCC
- champion pcs 339, 813
- Denso 3088, 5307, D19, IW22, VW22, W22EPR, W22EPR-U, W22EPRU, W22TT
- Denso pcs 3088
- Eyquem RC72LS, RC82LS
- Fiat 1L45JR, 5894585, 60800325, 7554436, 7760381, 7772515, 7FYSR, 7FYSSR
- General Motors 5614070
- Honda 98079-57846, 98079-57855
- Iskra FE85CPR, FE85PRS
- Jap Car 123801, 123908
- Kawasaki 920701027, E92070-1027, E920701027
- Lodge 25HL, 2HL
- Magneti Marelli 061830085304, CW8LPR, F8LCR
- Mitsubishi MS 851 219, MS 851 234, MS 851 414, MS851219, MS851234, MS851414, Z 2152 947, Z2 152 947, Z2152947
- Mopar 4339487
- Motorcraft AGR12C, AGR22, AGS12C, AGS12CF6
- Motorcraft pcs 64
- NGK pcs 2023, 6155, 5122
- Nissan -V1417, 22401-V1417, 22401-W9817, V1417
- PAL (Brisk) LR14YC
- PSA Peugeot Citroën 7604.64, 760464
- Renault 77 00 742 094, 77 00 868 864, 7700742094, 7700868864
- Splitfire SF6B
- Subaru 22401 AA210, 22401-AA210, 22401AA210
- Suzuki 09482-00495, 09482-00498
- Tacti V91102024, V91103088
- Torch F7RTC
- Toyota 90098-22325, 90098-22745
- Unipart GSP2036, GSP281, GSP4452, GSP6452
- Valeo 246896
- Yamaha 94700-00218, 94701 00218, 94701-00218, 9470100218, 94703-00218, 94703-00220
SCOPE OF SUPPLY:
✔ 3x Spark plug NGK BR7ES
Customers also searched for this item under:
Further links to "Spark plug NGK BR7ES, 6615, 3 pieces"
Sicherheitsinformationen für dieses Produkt. more
MANUFACTURER INFORMATION FOR THE EU:
Brand name: NGK
Niterra NGK SPARK PLUG EUROPE GmbH
Web page https://www.ngk.de/home/
Email: info@ngkntk.de
Niterra NGK SPARK PLUG EUROPE GmbH
Harkortstrasse 41
40880 Ratingen
Web page https://www.ngk.de/home/
Email: info@ngkntk.de
INFORMATION ON THE PERSON RESPONSIBLE FOR THE EU:
Eigenschaften more
| Product type | Spark plug |
|---|---|
| Country of origin | Japan |
| Sealing | Flat tight fit |
| Replacement part number | BOSCH WR5CC, BOSCH W4CC, Champion OE098, Champion RN4, Champion RN74C, Denso W22ESR, Denso IW22, Denso W22ESL |
| Number of earth electrodes | 1 |
| Thermal value | 7 |
| suppressed? | Yes, 5 kOhm |
| Tuning & Styling Part | No |
| Thread diameter | 14 mm |
| Electrode gap | 0.8 mm |
| Vintage part | No |
| Spark plug type | BR7ES |
| Universal compatibility | Yes |
| Quantity per pack | 3 |
| Spark position | 1.0 mm |
|---|---|
| Contact ignition cable | Fixed SAE connection |
| GTIN | 0087295166154 |
| Scope of delivery | 3x spark plug NGK BR7ES |
| Manufacturer number | 6615 |
| Country and region of manufacture | Japan |
| Type of motorcycle | Motorcycle, Scooter, Moped & Mokick, Quad ATV & Trike |
| Units quantity | 1 |
| Manufacturer warranty | 2 years |
| Brand | NGK |
| Thread length | 19.0 mm |
| Thread dimensions | M14 x 1.25 |
| Width across flats | 20.8 mm (SW21) |
| Material | Nickel |
NGK - Spark plugs & ignition technology for scooters, motorcycles & mopeds
NGK is... more
"NGK"
NGK - Spark plugs & ignition technology for scooters, motorcycles & mopeds
NGK is the world's leading manufacturer of spark plugs, ignition coils and ignition components for two-wheelers. Whether scooter, motorcycle or moped - NGK products stand for maximum reliability, clean combustion and constant performance. With decades of experience in the two-wheeler and racing sector, NGK supplies the technology that is used by millions of riders every day.
Why NGK convinces in the two-wheeler sector
- ✅ O riginal equipment quality - used by leading motorcycle & scooter manufacturers.
- ✅ Reliable ignition - perfect spark for starting, performance & acceleration.
- ✅ Wide range - standard, iridium, racing and special plugs.
- ✅ Durable - heat-resistant materials for long service life.
- ✅ Motorsport experience - technologies from racing flow directly into series products.
Popular NGK products at a glance
Spark plugs
From standard spark plugs for everyday use to iridium and racing plugs for sporty applications - NGK supplies the highest quality for scooters, motorcycles and mopeds.
Ignition coils
NGK ignition coils are developed for modern two-wheelers. They guarantee a stable spark even at high engine speeds and sporty riding styles.
CDI & ignition parts
For many scooters and mopeds, NGK offers complementary ignition components designed for precision and reliability.
Technical advantages
NGK relies on iridium and platinum technologies that can withstand extreme temperatures and loads. This results in clean ignitions, lower consumption and optimum power delivery. Whether in city traffic, on long tours or during sporty driving - NGK guarantees consistent quality.
Buying advice in a nutshell
- ✅ S cooters & scooters: Standard & iridium spark plugs for everyday use & tuning.
- ✅ Motorcycle: Laser & racing spark plugs for sporty performance.
- moped: Robust standard plugs for reliable starting & long service life.
- ✅ Racing: High-performance spark plugs with motorsport technology.
- electrical system: Ignition coils & CDI for optimum spark generation.
Conclusion
NGK is the reference in the field of ignition technology for two-wheelers. Whether scooter, motorcycle or moped - NGK ensures reliable starting, full power and a long service life. NGK is the first choice for everyday riders as well as tuning and racing fans.
