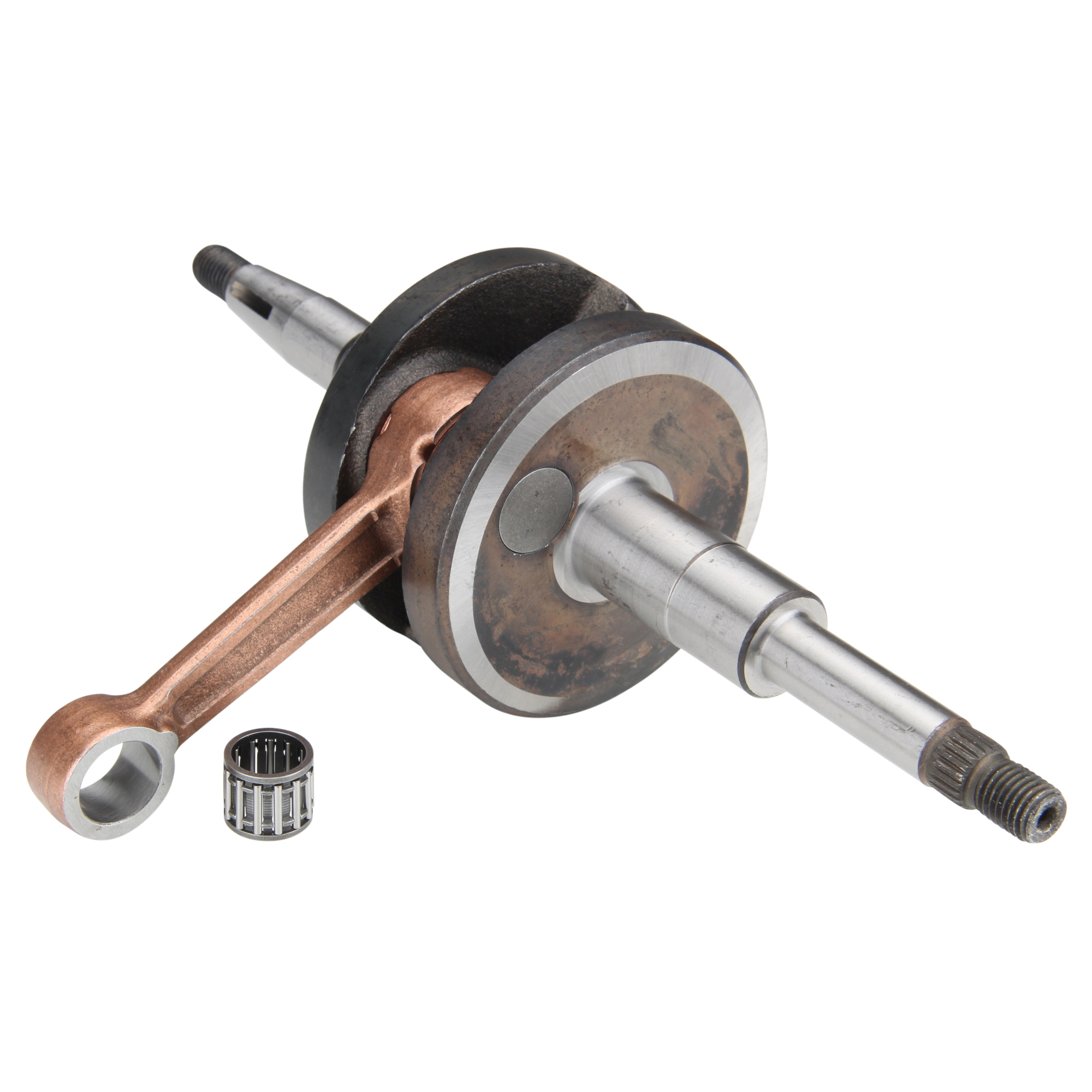

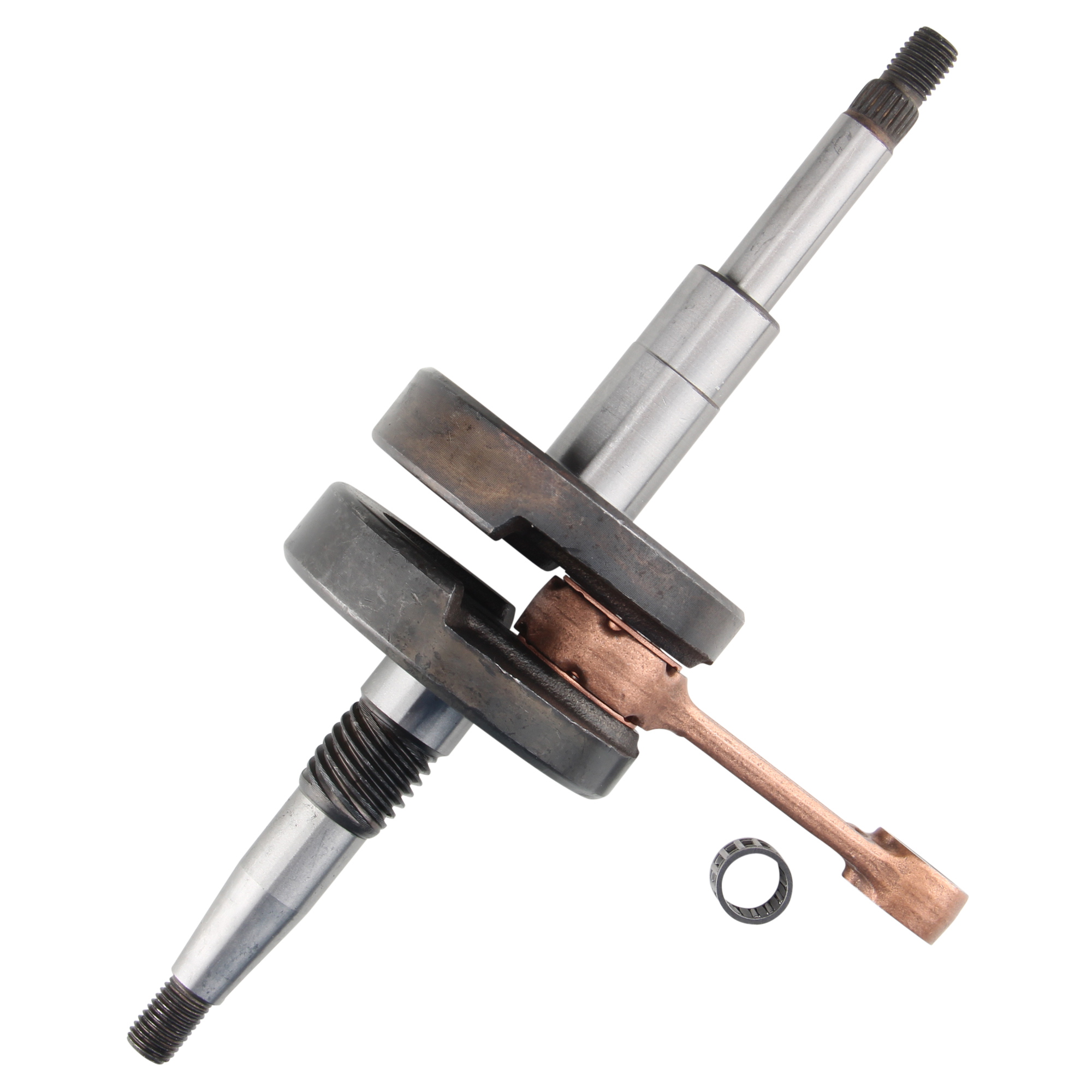

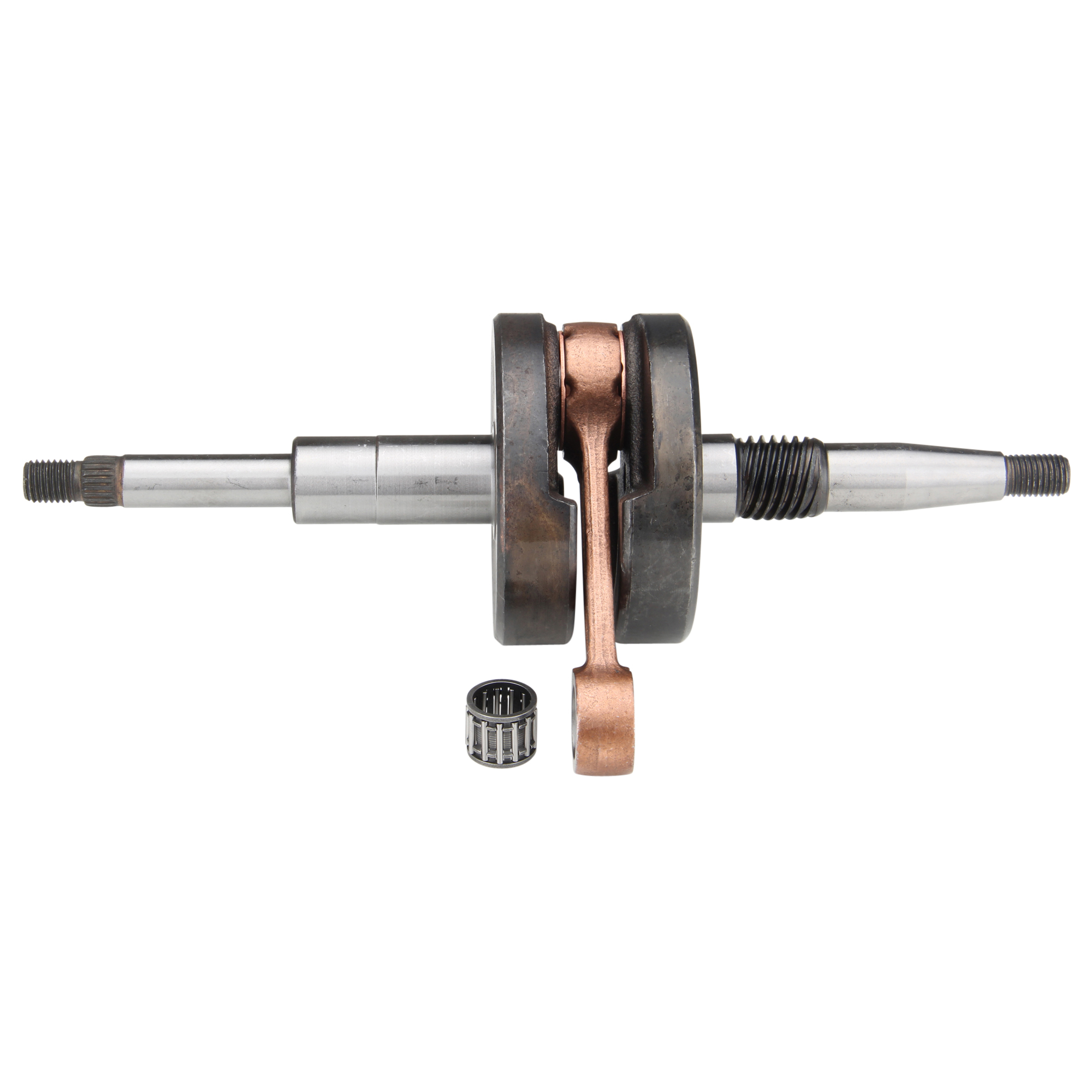

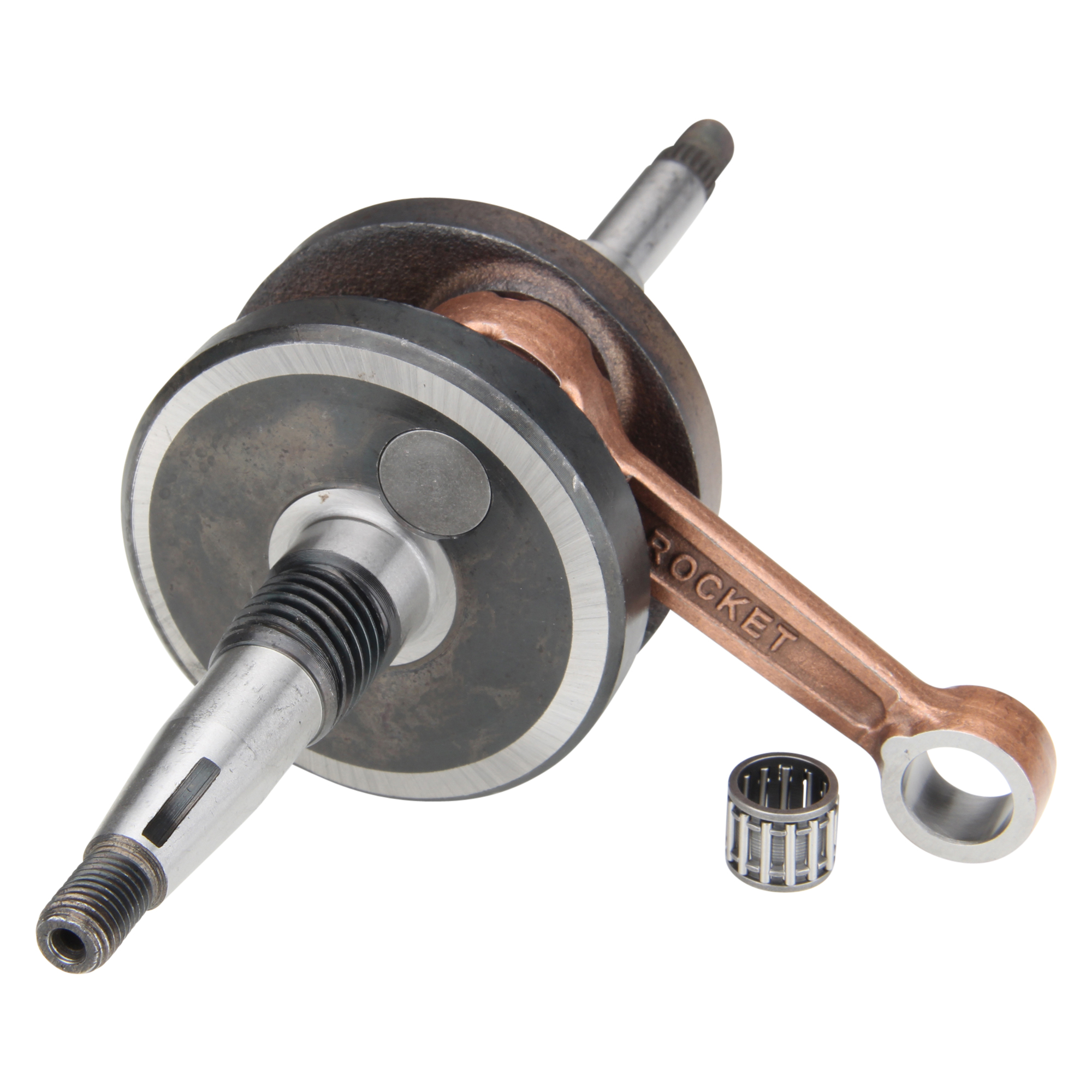

Crankshaft (vertical cylinder/Euro 1) for Peugeot Buxy Elyseo Speedake Speedfight 1 2 Trekker Vivacity Zenith (until 2002)
- Manufacturer: Citomerx
- Item no: 127592
- Manufacturer no.: 127592
- EAN: 4260250310854
Item data
| Product type: | Crankshaft |
| Dimension B (shaft diameter on coupling side): | 20 mm |
| Crankshaft type: | Full cheek crankshaft |
| Dimension F (length of crankshaft stub on clutch side): | 90 mm |
| Tuning & Styling Part: | No |
| Vintage part: | No |

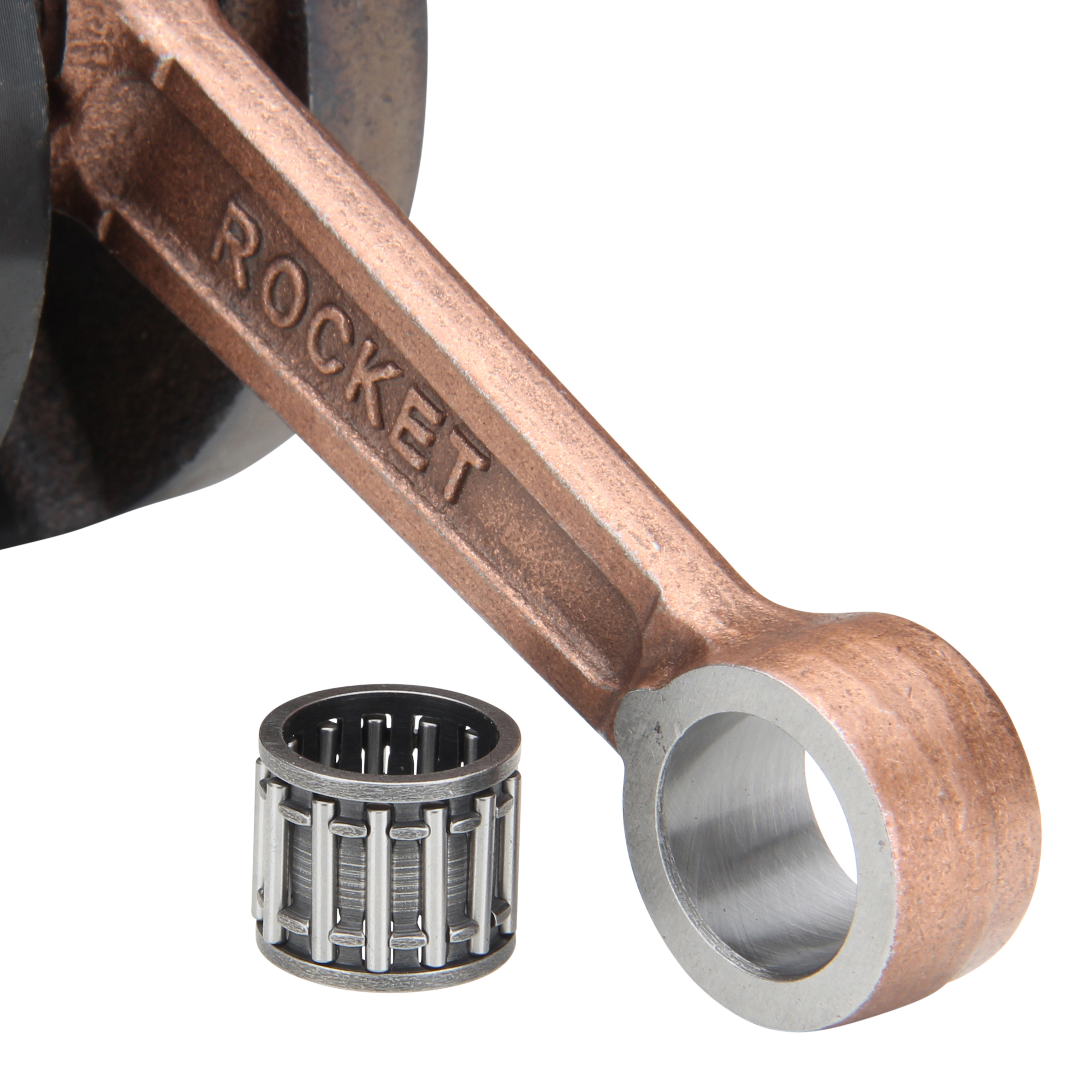

| Dimensions needle bearing piston pin: | 12 x 15 x 15 mm |
| Dimension C (stroke pin offset = half stroke): | 20 mm |
| Dimension J (thread on coupling side): | M10 x 1 right-hand thread |
| Crankshaft stroke: | 40 mm |
| Dimension G (width of crank webs): | 43 mm |
| Surface finish: | Matt |
| Special feature (crankshaft stub on alternator side): | Worm thread |
| matching piston pin: | 12 mm |
| GTIN: | 4260250310854 |
| Dimension D (connecting rod length): | 80 mm |
| Dimension H (top diameter of connecting rod eye): | 15 mm |
| Dimension A (shaft diameter on alternator side): | 20 mm |
| Scope of delivery: | Crankshaft + needle bearing |
| Dimension E (length of crankshaft stub on alternator side): | 71 mm |
| Dimension I (thread on alternator side): | M10 x 1 right-hand thread |
| Color: | Grey |
| Scope of delivery: | 1x crankshaft |
| Manufacturer number: | 127592 |
| Country and region of manufacture: | China |
| Type of motorcycle: | Scooter |
| Offer package: | Yes |
| Description of the package content: | Crankshaft incl. needle bearing |
| Manufacturer warranty: | 2 years |
| Weight: | 1,700 kg |
| Material: | Cast iron |
| Type: | Original |
