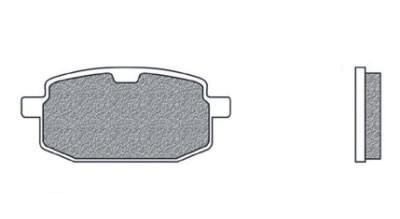

Brake pads NewFren type FD.0175 organic for Adly AGM Baotian Benzhou Fantic Flex Tech Lifan Peugeot Rex
- Manufacturer: NewFren
- Item no: 700175
- Manufacturer no.: FD.0175
- EAN: 8025832041948
Item data
| Product type: | Brake pad set |
| Covering B Depth: | 7.3 mm |
| Tuning & Styling Part: | No |
| Vintage part: | No |
| OE/OEM reference number(s): | 2NA W0045 01, 5CP W0045 00, 45120 107 000, 3XG W0045 00, 5JU W0045 00, B02 507 1000, T01H000101, 64098800, 140330 |
| GTIN: | 8025832041948 |
| Covering A Width: | 61.5 mm |
| Covering A Height: | 28 mm |

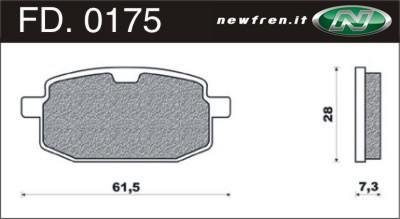

| Covering A Nominal dimension: | 61.5 x 28 x 7.3 mm |
| Covering A Depth: | 7.3 mm |
| Covering B Width: | 61.5 mm |
| Decking B Height: | 28 mm |
| Comparison number: | EBC FA169, SFA169, SFAC169, SFA169HH, Brenta FT3076, TRW/Lucas MCB590, MCB590EC, SBS 619, Verodo FDB636, Vesrah VD253, NewFren FD.0175, Brembo 7041 |
| Covering B Nominal dimension: | 61.5 x 28 x 7.3 mm |
| Features: | Reduced brake disk wear, Average service life |
| Scope of delivery: | 1x brake pad set |
| Manufacturer number: | FD.0175 |
| Country and region of manufacture: | Italy |
| Installation position: | Front |
| Type of motorcycle: | Scooter |
| Manufacturer warranty: | 2 years |
| Material: | Asbestos-free organic (NAO) |
| Type: | FD.0175 |
Gel Battery 12V 5Ah for 50ccm Scooter – YB4L-B, YTX4L-BS, YT4L-B – Citomerx
Gel battery CIT YB4L-B, 12 V 5 Ah, positive pole right, DIN 50411LV + charger
Universal fuel tap for 5-6mm fuel hose (connection width: 6 mm) for scooter moped
Citomerx scooter tire S009 3.50-10 51J TL for e.g. Rex, Baotian, Keeway, Ering, AGM and many more
Citomerx Main Jet Set 80-98 Ø 4 mm B-GRADE for Vacuum Carburetor China Scooter
Cylinder kit 50cc including cylinder head + valves for China scooters, Baotian, Rex RS450
Cylinder kit 50cc including cylinder head + valves for China scooters, Baotian, Rex RS450
Cylinder kit 50cc Minarelli AC air-cooled horizontal engines, CPI, Rexy, Keeway
Cylinder kit 50cc AC air-cooled 12mm bolt angled flange for horizontal CPI engines, CPI, Keeway
Cylinder Kit 70cc LC watercooled incl. head for Piaggio engines, NRG, ZIP, NTT, Gilera Runner
NEWFREN S.R.L.
Via Ettore de Sonnaz, 19
10121 Torino
Web page http://www.newfren.com/indexNew.php
Email: info@newfren.it
| Product type | Brake pad set |
|---|---|
| Covering B Depth | 7.3 mm |
| Tuning & Styling Part | No |
| Vintage part | No |
| OE/OEM reference number(s) | 2NA W0045 01, 5CP W0045 00, 45120 107 000, 3XG W0045 00, 5JU W0045 00, B02 507 1000, T01H000101, 64098800, 140330 |
| GTIN | 8025832041948 |
| Covering A Width | 61.5 mm |
| Covering A Height | 28 mm |
| Covering A Nominal dimension | 61.5 x 28 x 7.3 mm |
| Covering A Depth | 7.3 mm |
| Covering B Width | 61.5 mm |
| Decking B Height | 28 mm |
| Comparison number | EBC FA169, SFA169, SFAC169, SFA169HH, Brenta FT3076, TRW/Lucas MCB590, MCB590EC, SBS 619, Verodo FDB636, Vesrah VD253, NewFren FD.0175, Brembo 7041 |
|---|---|
| Covering B Nominal dimension | 61.5 x 28 x 7.3 mm |
| Features | Reduced brake disk wear, Average service life |
| Scope of delivery | 1x brake pad set |
| Manufacturer number | FD.0175 |
| Country and region of manufacture | Italy |
| Installation position | Front |
| Type of motorcycle | Scooter |
| Manufacturer warranty | 2 years |
| Material | Asbestos-free organic (NAO) |
| Type | FD.0175 |
Newfren - Brakes & clutches for scooters & motorcycles
Newfren is an Italian manufacturer with decades of experience in the production of brakes and clutch components. The company supplies both the original equipment (OEM) and the aftermarket and has established itself as a major player in the international motorcycle and scooter scene. With brake pads, brake discs, clutches and accessories, Newfren offers reliable solutions for everyday use, touring and racing.
Why Newfren products are convincing
- ✅ O riginal equipment quality - installed ex works by many manufacturers.
- ✅ High safety - tested according to international standards.
- ✅ Wide range - for scooters, motorcycles, scooters & racing.
- ✅ Italian know-how - tradition & innovation from a single source.
- ✅ Durability - robust materials for a long service life.
Popular Newfren product groups
Brake pads & brake shoes
Organic, sintered and racing brake pads for the highest demands. Suitable for scooters, motorcycles and off-road vehicles. Also available as brake shoes for drum brakes.
Brake discs & drums
Precisely manufactured brake discs and brake drums ensure reliable braking performance and even wear - from everyday use to the race track.
Clutches & clutch plates
Clutch plates, linings and clutch baskets are available in various designs - from standard to racing. Ideal for clean clutch engagement and precise power transmission.
Complete clutch kits
Newfren supplies complete kits with all the necessary components for quick replacement. Particularly practical for workshops and ambitious mechanics.
Technical advantages
Newfren relies on modern compounds, precise manufacturing and high-quality coatings. Brake pads are asbestos-free, many racing components are heat-resistant up to well over 600°C. Clutch plates impress with optimum friction values, low wear and constant performance.
Buying advice in a nutshell
- ✅ S cooters & scooters: Standard brake pads & clutches for everyday and city traffic.
- ✅ Motorcycle: Sintered pads & brake discs for touring & sport use.
- ✅ Racing: High-quality racing pads & clutches for extreme conditions.
- ✅ Drum brakes: OE-quality brake shoes for older models.
- ✅ Workshop supplies: Complete kits for quick & safe repairs.
Conclusion
Newfren stands for Italian quality, safety and performance. With a wide range of brake pads, clutches and brake discs, the brand offers everything riders need for everyday use, touring or racing. Anyone who values reliable brake and clutch technology will find the right partner in Newfren.
