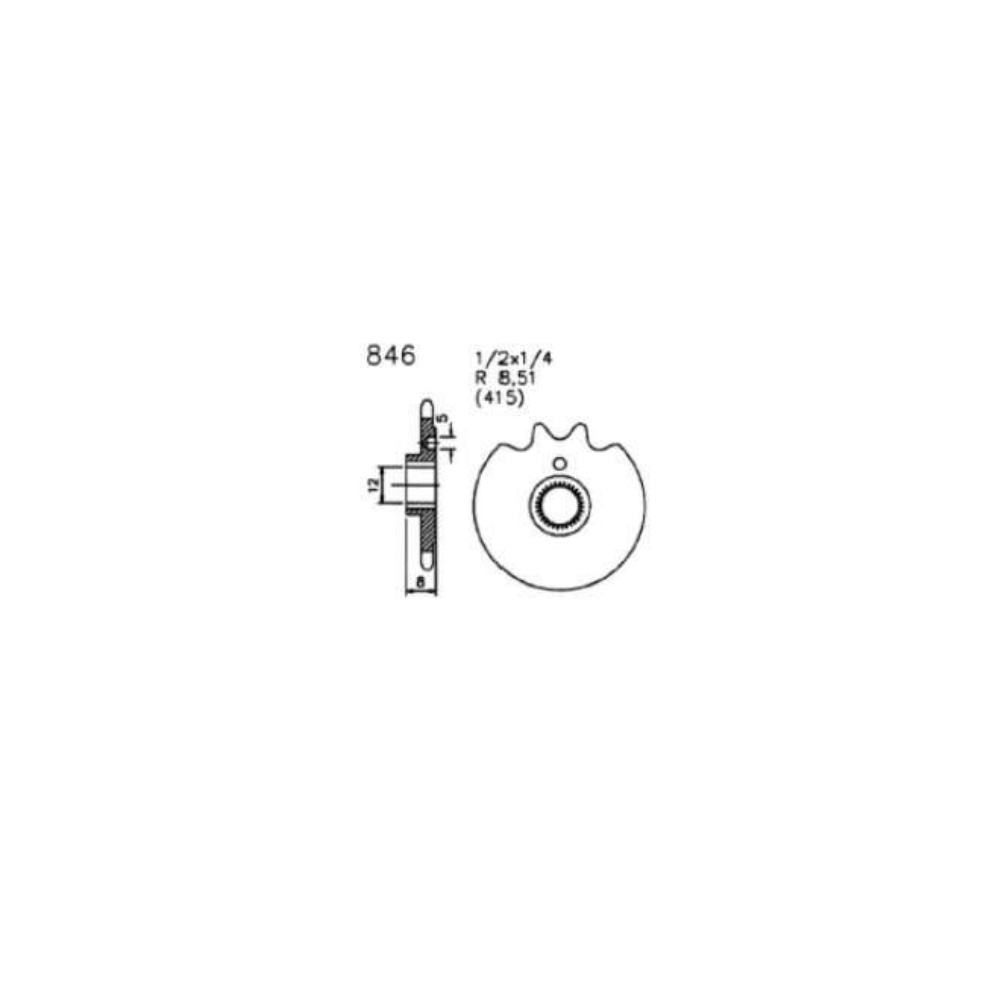

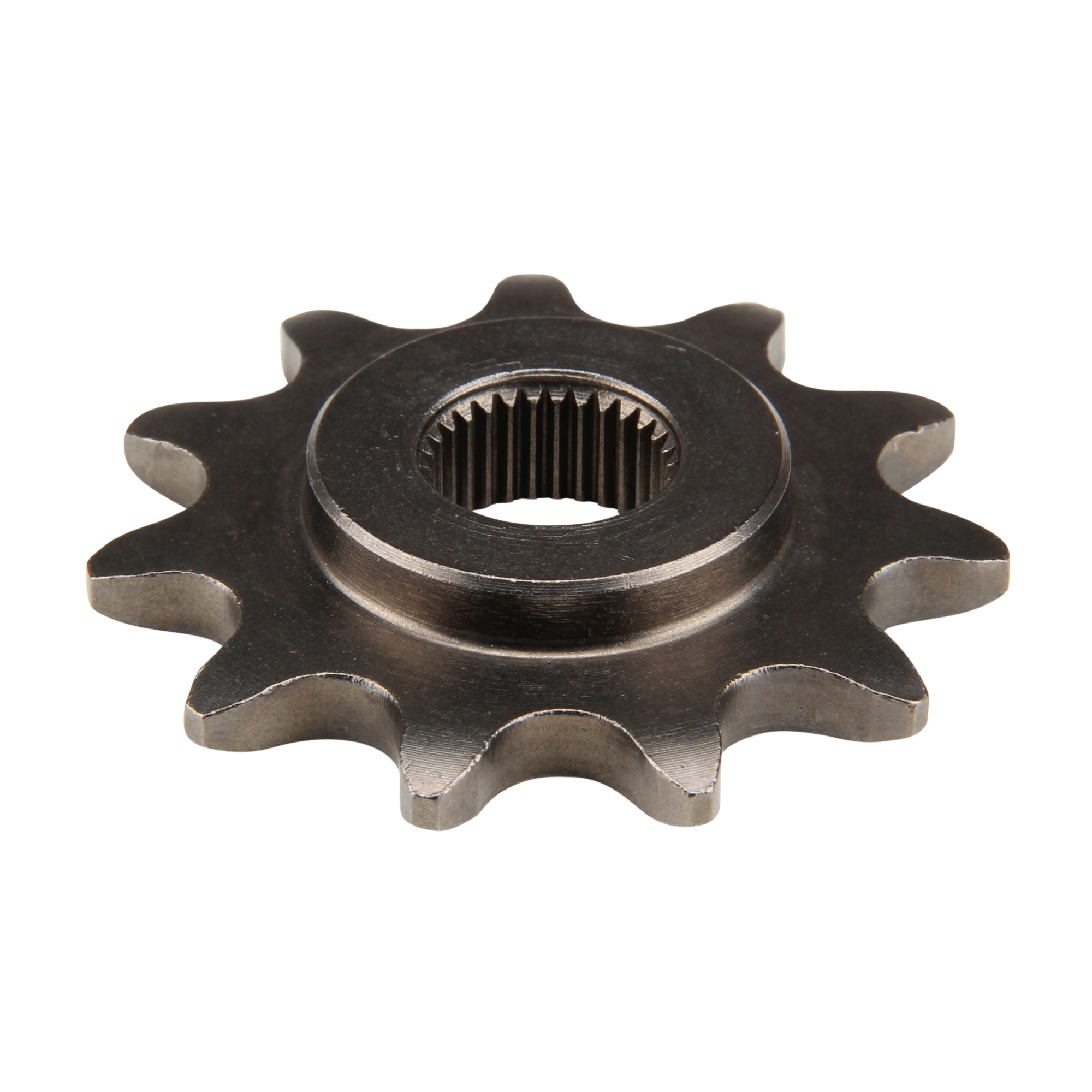

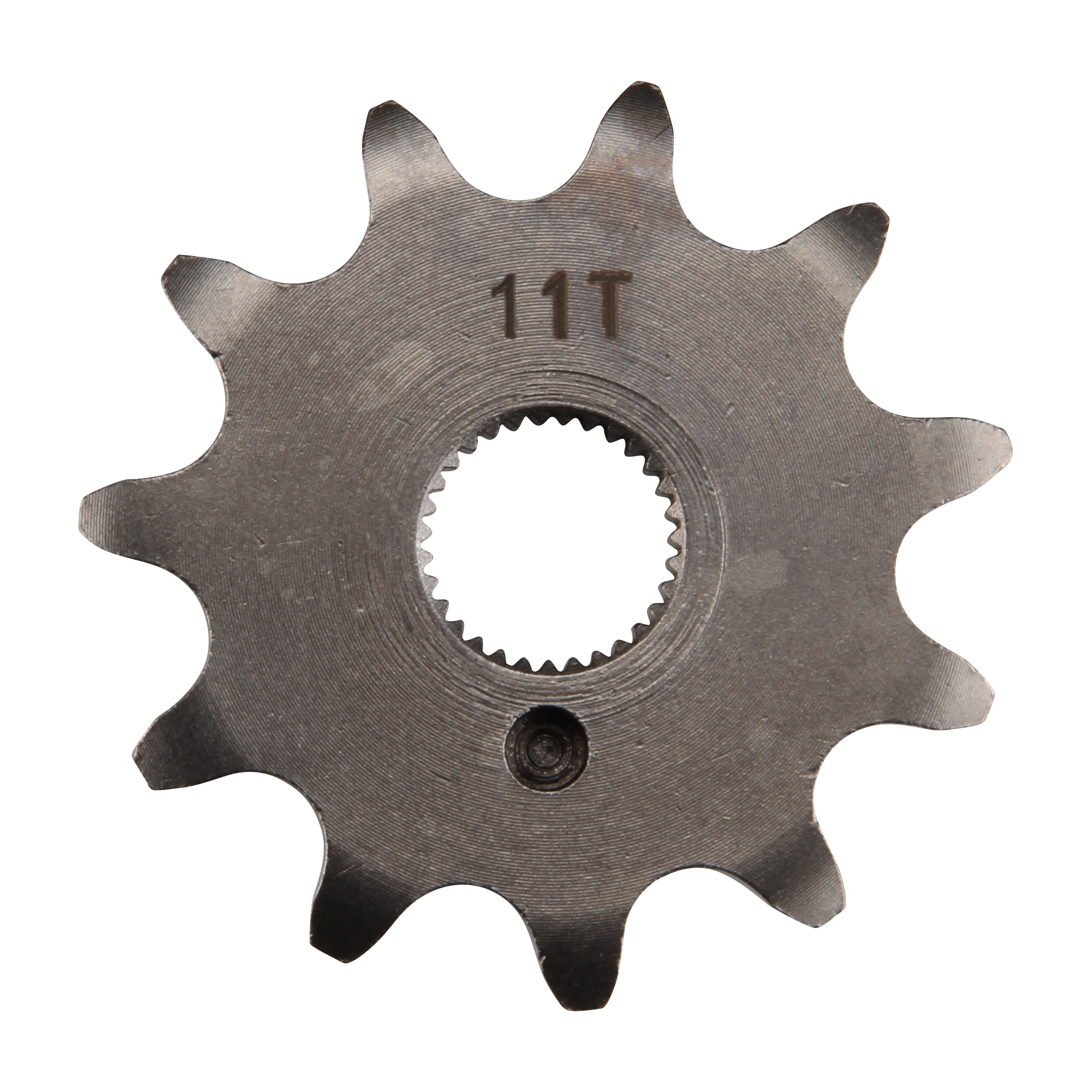

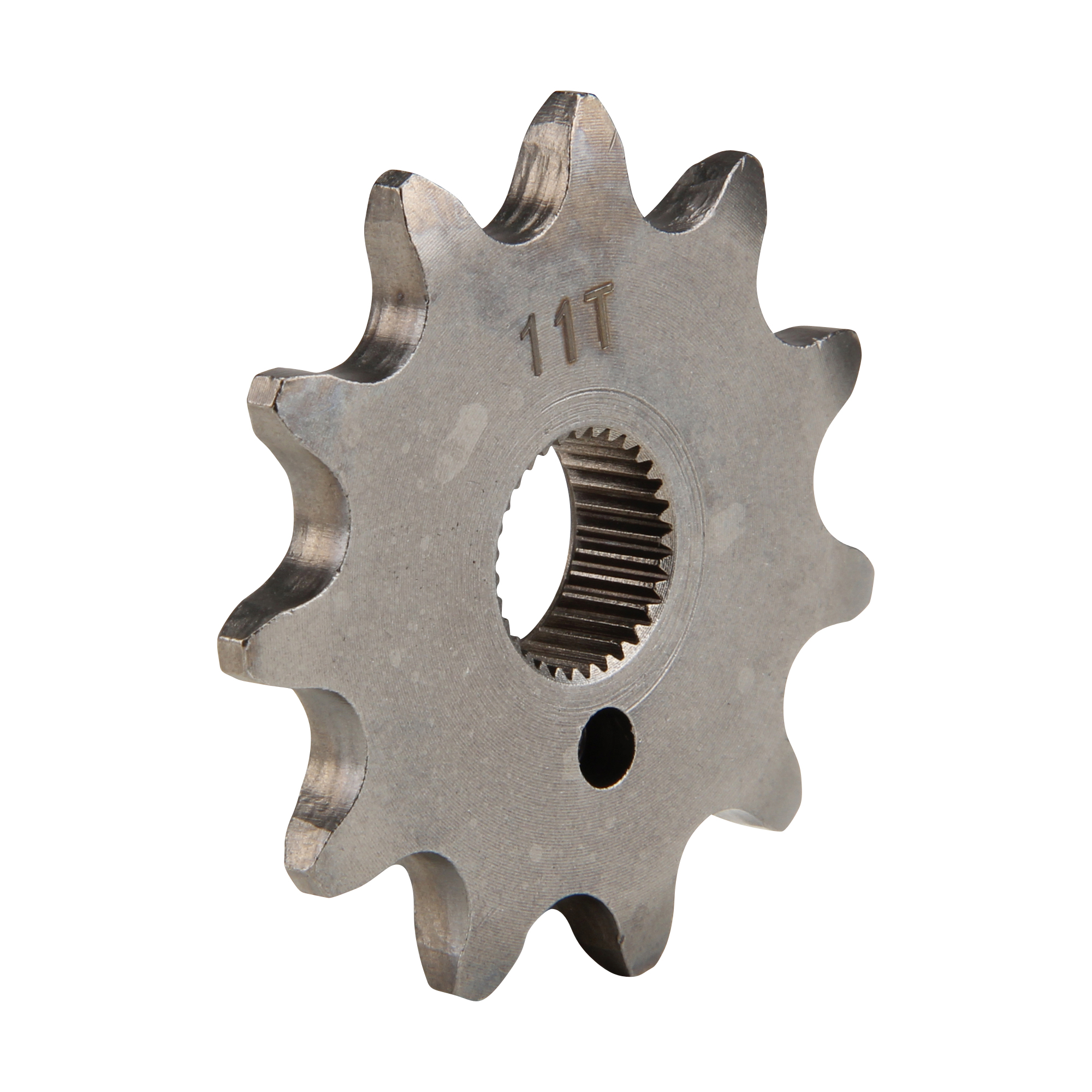

Pinion 11 teeth pitch 415 type 0846 for Zundapp ZD 20 25 40 50 type 446 / Hai 50 type 448 / ZX ZL ZS X 25 type 460
- Manufacturer: Citomerx
- Item no: 278-05.161
- Manufacturer no.: 190017
- EAN: 4060861063121
Item data
| Product type: | Chain sprocket |
| Country of origin: | China |
| Division: | 415 (1/2 x 3/16 x 7.75) |
| Shaft mounting form: | round toothed |
| Vintage part: | Yes |
| Shaft mounting Dimensions: | 12.0 / 13.0 mm |
| Universal compatibility: | No |
| Chainring thickness: | 3/16" (4.60 mm) |
| Compatible year: | not specified |
| Model compatibility: | not specified |
| Pinion tuning note 1: | More teeth -> more top speed / less acceleration |
| OE/OEM reference number(s): | 278-05.161 |
| Pinion tuning hint 2: | Fewer teeth -> better acceleration / less top speed |
| ATTENTION!: | Change in the number of teeth -> Cancellation of operating license! |
| GTIN: | 4060861063121 |
| Note: | Note the original translation! |
| Compatible chain link length: | 1/2" (12.70 mm) |
| Color: | Grey |
| Total width: | 8.00 mm |
| Drill hole: | 5.00 mm |
| Scope of delivery: | 1x chain sprocket |
| Manufacturer number: | 190017 |
| Country and region of manufacture: | China |
| Brand compatibility: | Zündapp |
| Installation position: | Front |
| Type of motorcycle: | Moped & Mokick |
| Manufacturer warranty: | 2 years |
| Diameter: | 45.00 mm |
| Material: | Steel |
| Type: | 0846 |
Bowden cable set black for Zündapp ZD 20 Type 446-400 (FG No. 9220511 - 9612246)
Sprocket 41 teeth pitch 415 type 0835 SILVER for Zundapp C ZD Hai ZX ZL KS GTS CS 25 50 type 441 446 448 460 517 529
Cylinder kit 50cc including cylinder head + valves for China scooters, Baotian, Rex RS450
Cylinder kit 50cc Minarelli AC air-cooled horizontal engines, CPI, Rexy, Keeway
Cylinder kit 50cc AC air-cooled 12mm bolt angled flange for horizontal CPI engines, CPI, Keeway
Cylinder Kit 70cc LC watercooled incl. head for Piaggio engines, NRG, ZIP, NTT, Gilera Runner
Pinion 11 teeth pitch 415 type 0852 for Zundapp ZS ZE ZX X ZL 25 40 type 460 / Star 1 2 type 462
Original für:
ZD 40 Typ 446-300 (ab FG-Nr. 9030749-9201498) (118mm Bremstrommel)
ZD 20 Typ 446-400 (ab FG-Nr. 9030749-9199883) (118mm Bremstrommel)
ZD 40 Typ 446-300 (ab FG-Nr. 9201499-9255042)
ZD 20 Typ 446-400 (ab FG-Nr. 9199883-9255042)
ZD 25 Typ 446-420 (ab FG-Nr. 9165722-9255042)
ZD 50 Typ 446-422 (ab FG-Nr. 9255043)
ZD 20 Typ 446-450
ZS 25 Typ 460-050 (bis Motor Nr. 9955240)
ZS 25 Typ 460-051 (bis Motor Nr. 9955240)
Tuning für:
Hai 50 Typ 448-110
Hai 50 Typ 448-111
Hai 50 Typ 448-160
ZX 25 Typ 460-010 (bis Motor Nr. 9955240)
ZX 25 Typ 460-013 (bis Motor Nr. 9432205)
ZX 25 Typ 460-013 (Motor Nr. 9432206 - 9955240)
X 25 Typ 460-014 (bis Motor Nr. 9955240)
ZL 25 Typ 460-040 (bis Motor Nr. 9955240)
ZL 25 Typ 460-041 (bis Motor Nr. 9955240)
