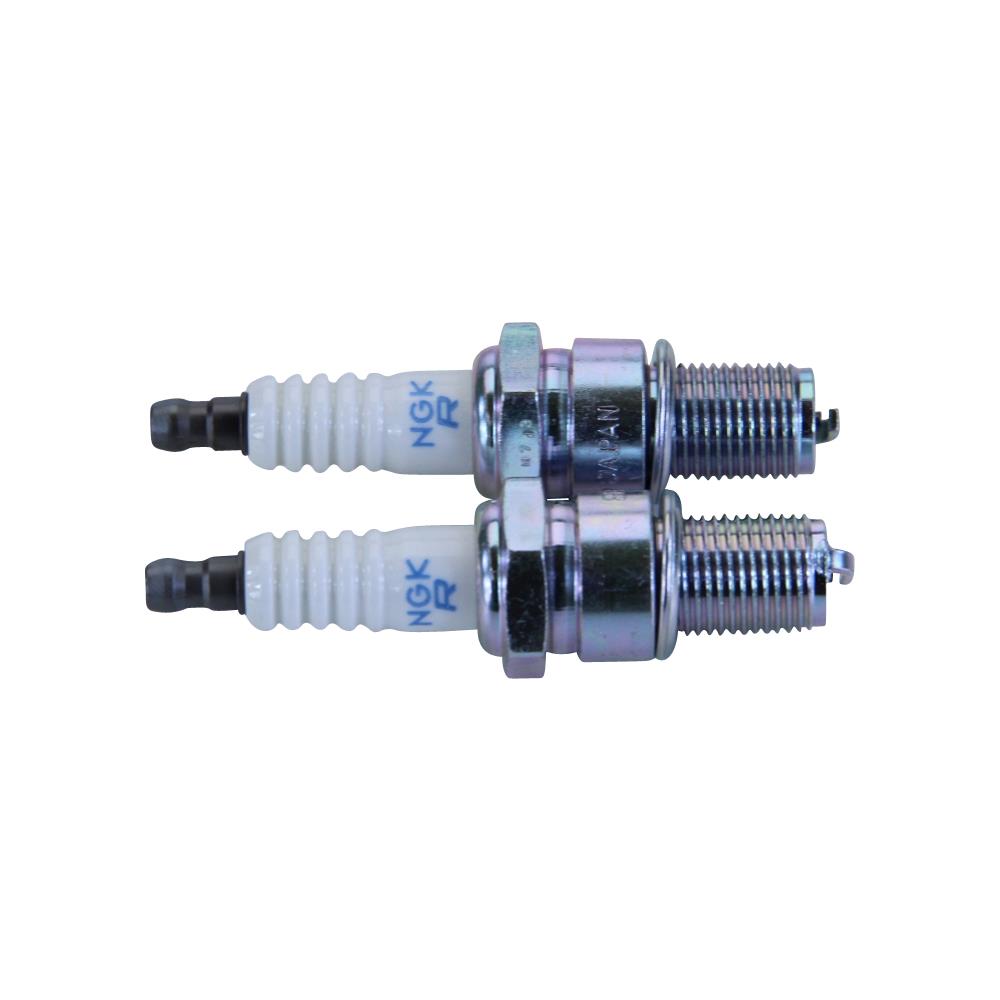

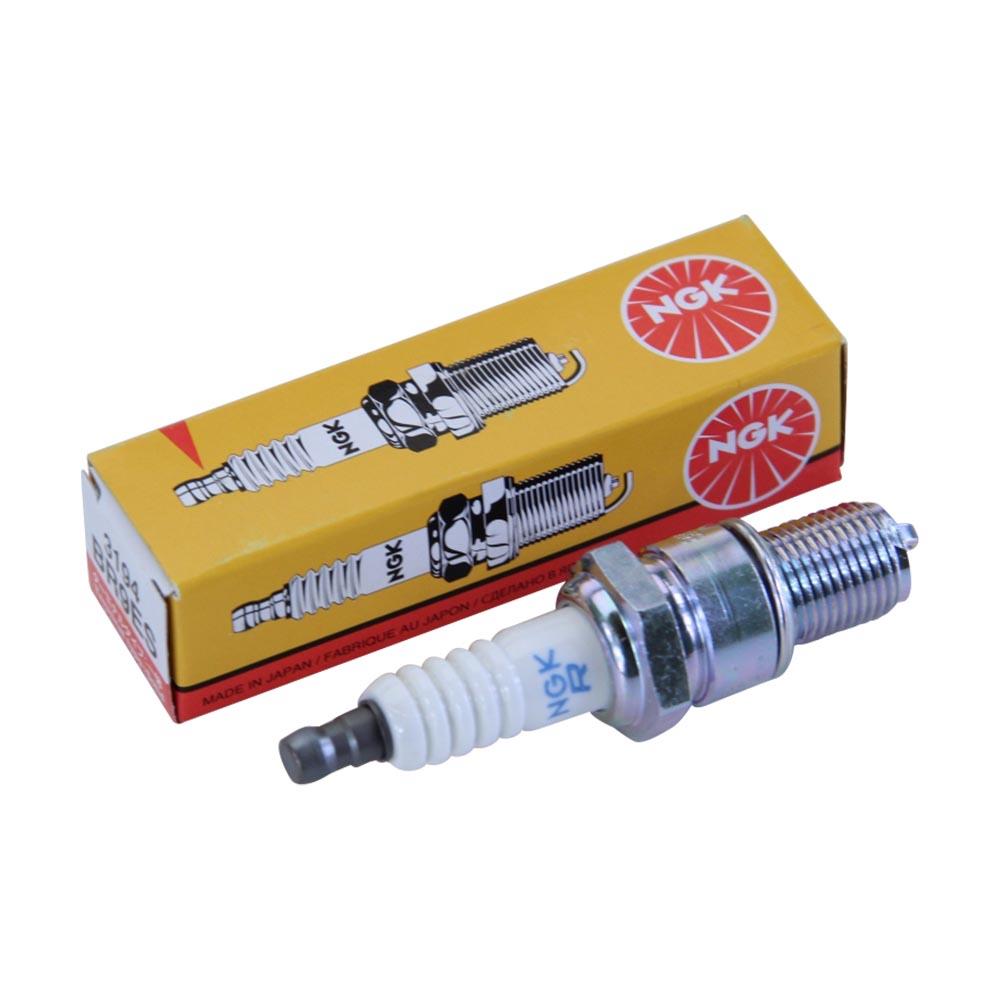

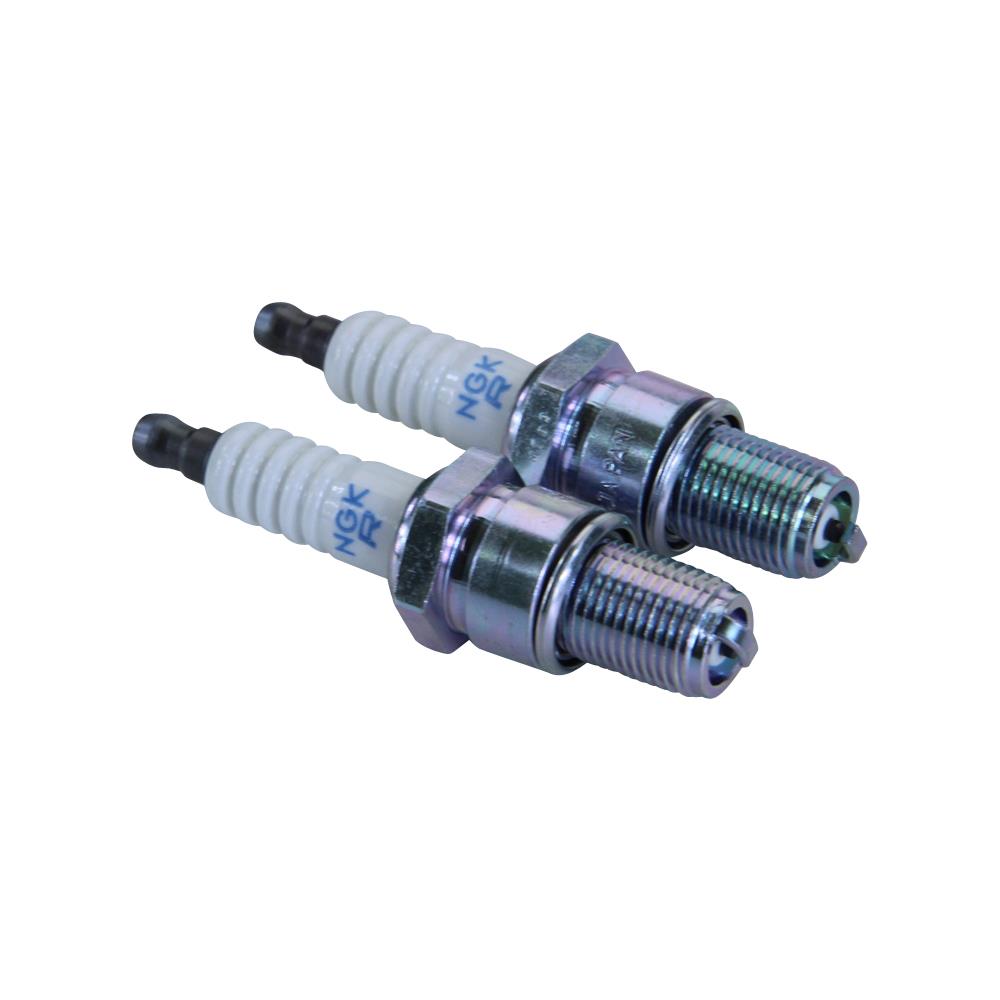

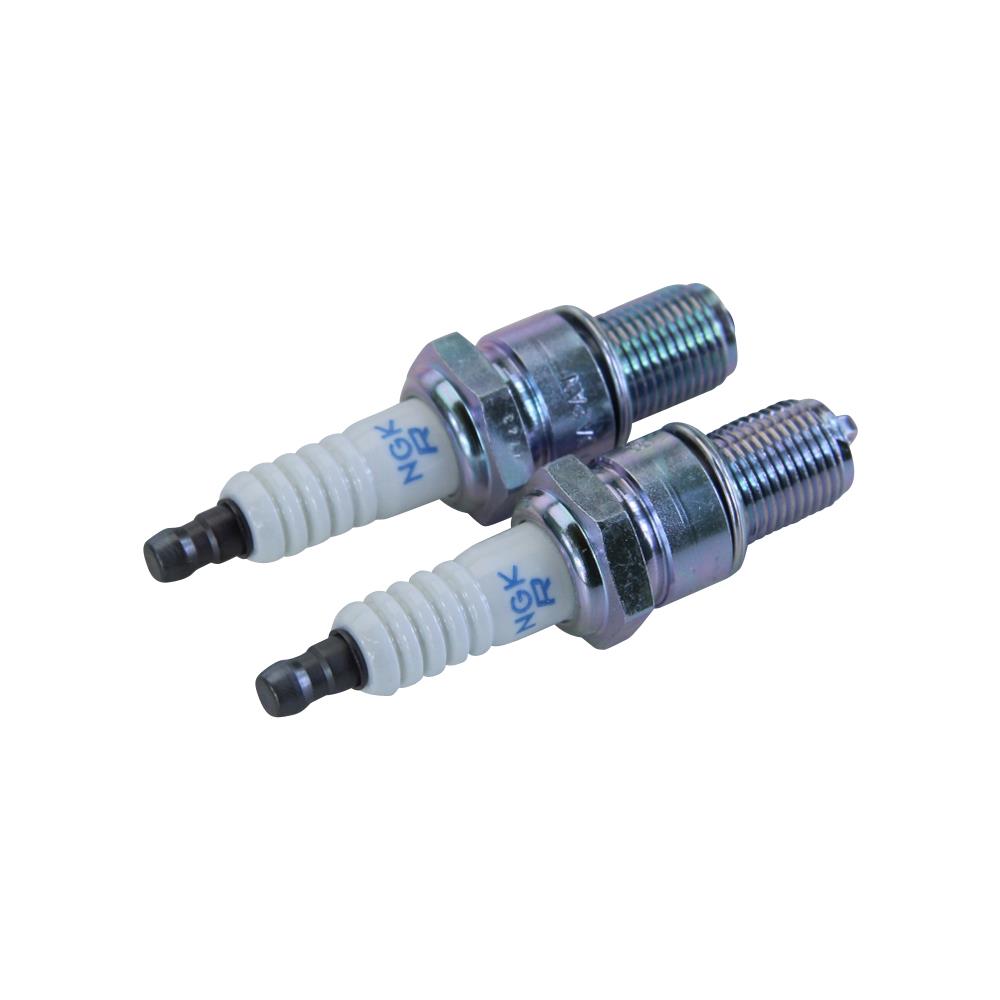

Spark plug NGK BR9ES, 5722, 2 pieces
- Manufacturer: NGK
- Item no: 1050112
- Manufacturer no.: 1050112
- EAN: 4251048876164
Item data
| Product type: | Spark plug |
| Country of origin: | Japan |
| Sealing: | Flat tight fit |
| Number of earth electrodes: | 1 |
| Thermal value: | 9 |
| suppressed?: | Yes, 5 kOhm |
| Tuning & Styling Part: | No |
| Thread diameter: | 14 mm |
| Electrode gap: | 0.8 mm |
| Vintage part: | No |
| Spark plug type: | BR9ES |
| Universal compatibility: | Yes |
| Quantity per pack: | 2 |
| Spark position: | 1.0 mm |
| Contact ignition cable: | Fixed SAE connection |
| GTIN: | 0087295157220 |
| Scope of delivery: | 2x spark plug NGK BR9ES |
| Manufacturer number: | 5722 |
| Country and region of manufacture: | Japan |
| Type of motorcycle: | Motorcycle, Scooter, Moped & Mokick, Quad ATV & Trike |
| Units quantity: | 1 |
| Manufacturer warranty: | 2 years |
| Brand: | NGK |
| Thread length: | 19.0 mm |
| Thread dimensions: | M14 x 1.25 |
| Width across flats: | 20.8 mm (SW21) |
| Material: | Nickel |
OR
£6.41
*
Content:
2 piece
(
£3.21
*
/ 1 piece
)
Prices plus VAT plus shipping costs
In stock! Delivery time 1-3 working days
Customers also bought
Gel Battery 12V 5Ah for 50ccm Scooter – YB4L-B, YTX4L-BS, YT4L-B – Citomerx
Content
1 piece
from
£12.89
*
Needle Bearing Piston Pin Bearing 500501 original for Piaggio NRG ZIP TPH BASE SSL 50 25
Content
1 piece
£5.69
*
Fuel tap + fuel filter + transparent fuel hose set for Vespa ET2 ET4 125 150 LX 50
Content
1 piece
£10.62
*
12mm carburetor intake manifold reed valve block for Piaggio Zip SSL 25 (up to 1999)
Content
1 piece
£43.11
*
Fuel Filter AP8202402 Original for Aprilia SR 50 SR50 Factory DiTech Racing Di-Tech
Content
1 piece
£7.85
*
Receptacle nipple in lever for clutch and brake cables for Piaggio Ciao Bravo SI Boxer (177073)
Content
1 piece
£1.37
*
Presto 3x600 ml Power Brake Cleaner - Effective Parts Cleaner for Motorcycle, Scooter & Moped
Content
1.8 liter
(£5.56 * / 1 liter)
£10.01
*
Fuel Tap 575331 Vacuum Original Piaggio for Gilera Runner, Stalker, Piaggio NRG, ZIP SP, TPH 50
Content
1 piece
£10.01
*
Variomatik komplett Original Piaggio 50cc 2T/4T – Vespa, Aprilia, Derbi, Gilera
Content
1 piece
£35.91
*
TIP
Presto 6x600 ml Power Brake Cleaner - Powerful Part Cleaner for Motorcycle & Scooter
Content
3.6 liter
(£5.18 * / 1 liter)
£18.66
*
Presto Power Brake Cleaner 600 ml – Powerful Parts Cleaner for Residue-Free Cleanliness
Content
0.6 liter
(£5.88 * / 1 liter)
£3.53
*
Cat Eye turn signals 4 pcs. Yamaha Honda Suzuki 20 mm tinted black 2 pairs E-number
Content
2 piece
(£11.49 * / 1 piece)
£22.98
*
Naraku V-belt NK900.14 - 811 mm for scooters with Piaggio engine, long block
Content
1 piece
£12.89
*
Similar articles
NGK Spark Plug BR9ES 5722 for Scooter, Motorcycle, Moped – Part Number 105011
Content
1 piece
£3.24
*
Customers have also viewed
3, 2, 1, ignition!
DESCRIPTION:
The spark plug produces a spark to ignite the mixture. This... more
Product information "Spark plug NGK BR9ES, 5722, 2 pieces"
3, 2, 1, ignition!
DESCRIPTION:
The spark plug produces a spark to ignite the mixture. This spark is produced on one or more earth electrodes, which are located on the thread of the spark plug. Inside is the necessary counterpart - the centre electrode. Both are separated from each other by the white ceramic insulator. The spark must jump from the earth electrode to the centre electrode to generate enough heat for ignition.
NGK SPARK PLUG stands for highest quality, not only in Germany and Europe. After its foundation in 1936, the manufacturer has gradually established itself all over the world. Through outstanding commitment in the areas of quality, technology, research and development, the company is today the world's number one supplier of spark plugs. So it is no coincidence that the spark plugs are also used in the motor sport segment, such as Formula 1. Here the perfect function of the spark plug is always relied upon.
The spark plugs are uniquely designed to guarantee the best possible performance. There is a wide range of different thermal characteristics for high thermal load.
Always order spark plugs at ZS2Radteile at a favourable price! Top quality & top selection - Now access ignition and maintenance parts.
TECHNICAL DATA:
- TYPE BR9ES
- manufacturer no. 5722
- interference suppressed 5 kOhm
- Width across flats SW21 (20,8 mm)
- Thread M14 (14.0 mm)
- Thread length 19 mm
- electrode distance 0.8 mm
- Contact ignition cable M4 thread with screw-on SAE nut
COMPARABLE WITH:
AC Delco R41CXL, R41XL, R42XL, S40XLR, S41XLR
Accel 141, 142, ACCR9ES
Aprilia 8206915, AP8206915
Autolite 3702, 3703, 4062, 4063, XS4062
Beru 14Z-3CU, Z38
Bosch 0242255502, W2CC, W3CC, W4CC, WR3CC, WR3CP
Bosch pcs 7529, 7530
Brisk LR12C
Champion 818, 8902, N2C, NR2C, OE091, OE091/T10, QN2, QN2C, RN2, RN2C
Champion pcs 805, 818
Denso 4045, 5317, 5714, 6069, IW01-27, IW27, W27ESR, W27ESR-U, W27ESR/W27ESR-U, W27ESRU
Denso pcs 4045
Evinrude MCBR9ES
Fuji 065-01402-50
General Motors 5613388, 5613493, 5614068
Honda 98076-57720, 98079-59816, 98079-59847, 98079-59876
Iskra FE100RS
Italjet 94029
Johnson MCBR9ES
Kawasaki 920701109, 920701157, E92070-1053, E92070-1109, E920701109, E920701157, J4520W27ESRU
MBK 9079Q-0416400
Mercruiser 33-809679, 33-809679B, 33-818, 33-818S
Mercury 809679, 809679B
Motorcraft AG071
Motorcraft pcs 68
NGK pcs 3194, 5722
Piaggio AP8206915
PSA Peugeot Citroën 7540.50, 75405
Splitfire SF406C
Suzuki 09482-00098, 09482-00127, 09482-00233-111, 09482-00349
Tacti V91104045
Toyota 90098-27935
Yamaha 90793-22037, 94700-00261, 94701 00188, 94701-00188, 9470100188, 94702 00188, 94702-00188, 9470200188, 94703-00188
SCOPE OF SUPPLY:
✔ 2x Spark plug NGK BR9ES
DESCRIPTION:
The spark plug produces a spark to ignite the mixture. This spark is produced on one or more earth electrodes, which are located on the thread of the spark plug. Inside is the necessary counterpart - the centre electrode. Both are separated from each other by the white ceramic insulator. The spark must jump from the earth electrode to the centre electrode to generate enough heat for ignition.
NGK SPARK PLUG stands for highest quality, not only in Germany and Europe. After its foundation in 1936, the manufacturer has gradually established itself all over the world. Through outstanding commitment in the areas of quality, technology, research and development, the company is today the world's number one supplier of spark plugs. So it is no coincidence that the spark plugs are also used in the motor sport segment, such as Formula 1. Here the perfect function of the spark plug is always relied upon.
The spark plugs are uniquely designed to guarantee the best possible performance. There is a wide range of different thermal characteristics for high thermal load.
Always order spark plugs at ZS2Radteile at a favourable price! Top quality & top selection - Now access ignition and maintenance parts.
TECHNICAL DATA:
- TYPE BR9ES
- manufacturer no. 5722
- interference suppressed 5 kOhm
- Width across flats SW21 (20,8 mm)
- Thread M14 (14.0 mm)
- Thread length 19 mm
- electrode distance 0.8 mm
- Contact ignition cable M4 thread with screw-on SAE nut
COMPARABLE WITH:
AC Delco R41CXL, R41XL, R42XL, S40XLR, S41XLR
Accel 141, 142, ACCR9ES
Aprilia 8206915, AP8206915
Autolite 3702, 3703, 4062, 4063, XS4062
Beru 14Z-3CU, Z38
Bosch 0242255502, W2CC, W3CC, W4CC, WR3CC, WR3CP
Bosch pcs 7529, 7530
Brisk LR12C
Champion 818, 8902, N2C, NR2C, OE091, OE091/T10, QN2, QN2C, RN2, RN2C
Champion pcs 805, 818
Denso 4045, 5317, 5714, 6069, IW01-27, IW27, W27ESR, W27ESR-U, W27ESR/W27ESR-U, W27ESRU
Denso pcs 4045
Evinrude MCBR9ES
Fuji 065-01402-50
General Motors 5613388, 5613493, 5614068
Honda 98076-57720, 98079-59816, 98079-59847, 98079-59876
Iskra FE100RS
Italjet 94029
Johnson MCBR9ES
Kawasaki 920701109, 920701157, E92070-1053, E92070-1109, E920701109, E920701157, J4520W27ESRU
MBK 9079Q-0416400
Mercruiser 33-809679, 33-809679B, 33-818, 33-818S
Mercury 809679, 809679B
Motorcraft AG071
Motorcraft pcs 68
NGK pcs 3194, 5722
Piaggio AP8206915
PSA Peugeot Citroën 7540.50, 75405
Splitfire SF406C
Suzuki 09482-00098, 09482-00127, 09482-00233-111, 09482-00349
Tacti V91104045
Toyota 90098-27935
Yamaha 90793-22037, 94700-00261, 94701 00188, 94701-00188, 9470100188, 94702 00188, 94702-00188, 9470200188, 94703-00188
SCOPE OF SUPPLY:
✔ 2x Spark plug NGK BR9ES
Customers also searched for this item under:
Further links to "Spark plug NGK BR9ES, 5722, 2 pieces"
Sicherheitsinformationen für dieses Produkt. more
MANUFACTURER INFORMATION FOR THE EU:
Brand name: NGK
Niterra NGK SPARK PLUG EUROPE GmbH
Web page https://www.ngk.de/home/
Email: info@ngkntk.de
Niterra NGK SPARK PLUG EUROPE GmbH
Harkortstrasse 41
40880 Ratingen
Web page https://www.ngk.de/home/
Email: info@ngkntk.de
INFORMATION ON THE PERSON RESPONSIBLE FOR THE EU:
Eigenschaften more
| Product type | Spark plug |
|---|---|
| Country of origin | Japan |
| Sealing | Flat tight fit |
| Number of earth electrodes | 1 |
| Thermal value | 9 |
| suppressed? | Yes, 5 kOhm |
| Tuning & Styling Part | No |
| Thread diameter | 14 mm |
| Electrode gap | 0.8 mm |
| Vintage part | No |
| Spark plug type | BR9ES |
| Universal compatibility | Yes |
| Quantity per pack | 2 |
| Spark position | 1.0 mm |
| Contact ignition cable | Fixed SAE connection |
|---|---|
| GTIN | 0087295157220 |
| Scope of delivery | 2x spark plug NGK BR9ES |
| Manufacturer number | 5722 |
| Country and region of manufacture | Japan |
| Type of motorcycle | Motorcycle, Scooter, Moped & Mokick, Quad ATV & Trike |
| Units quantity | 1 |
| Manufacturer warranty | 2 years |
| Brand | NGK |
| Thread length | 19.0 mm |
| Thread dimensions | M14 x 1.25 |
| Width across flats | 20.8 mm (SW21) |
| Material | Nickel |
