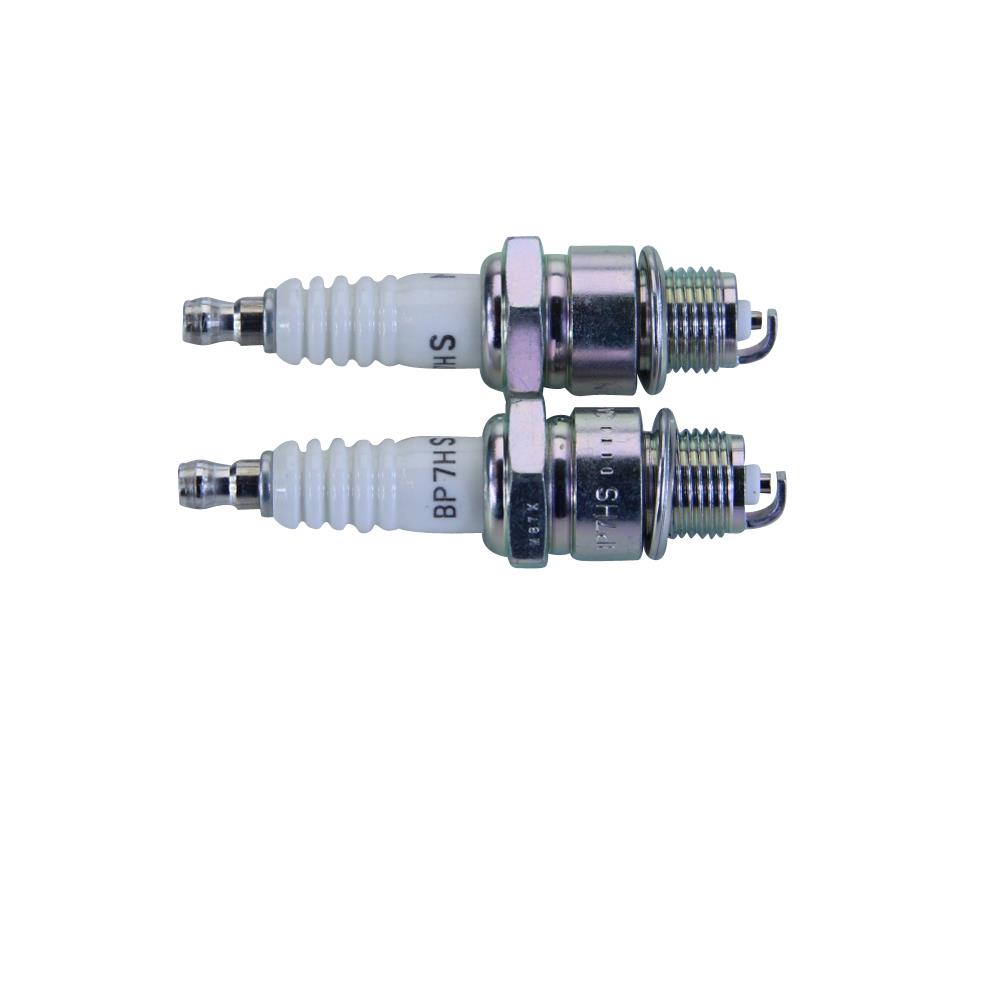

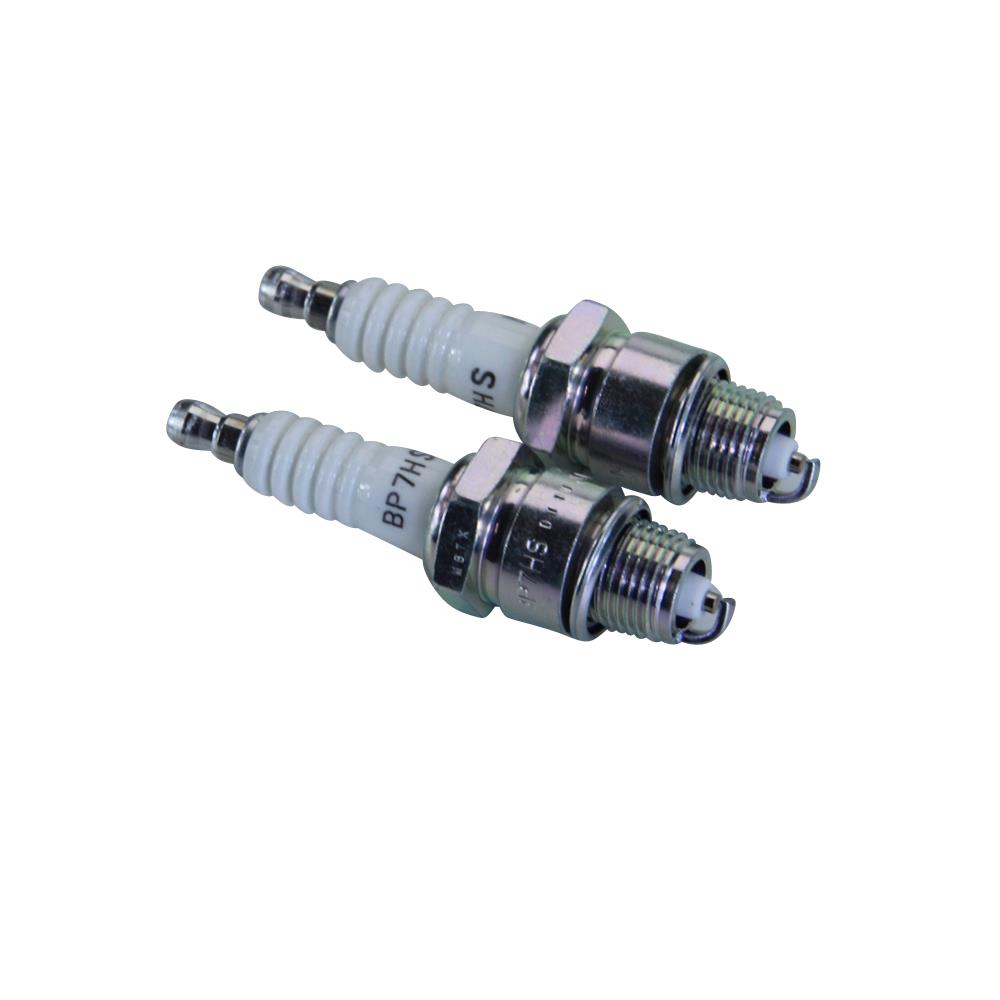

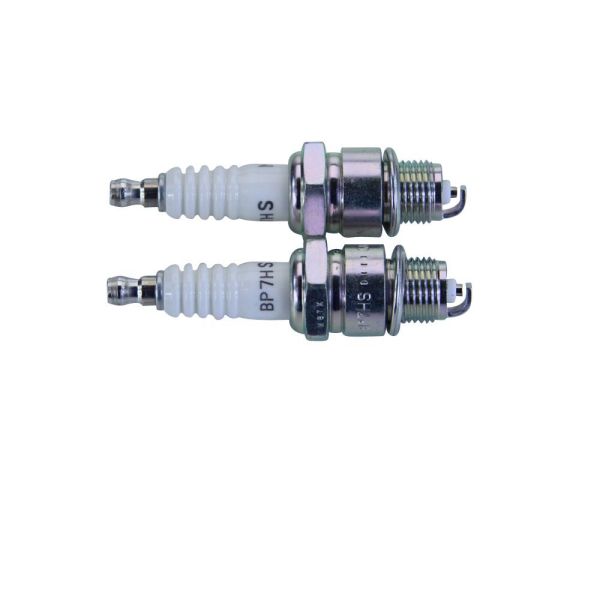

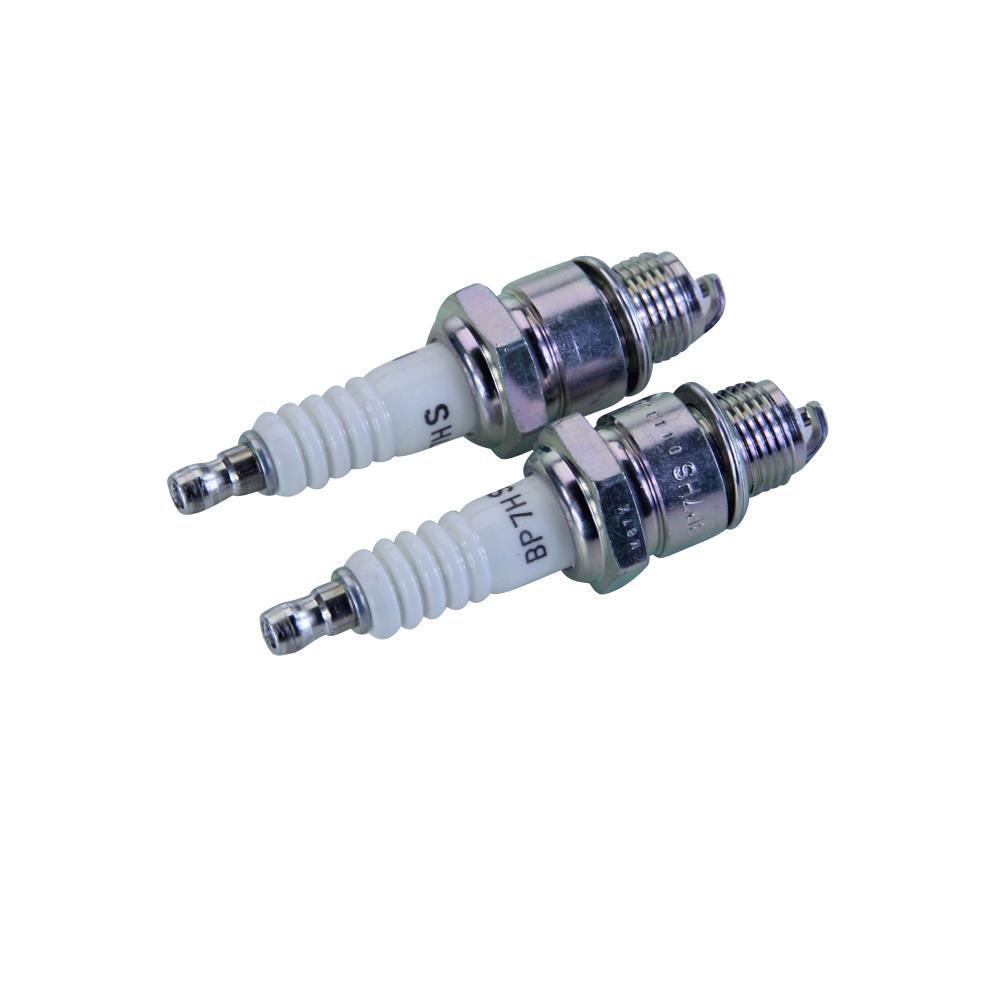

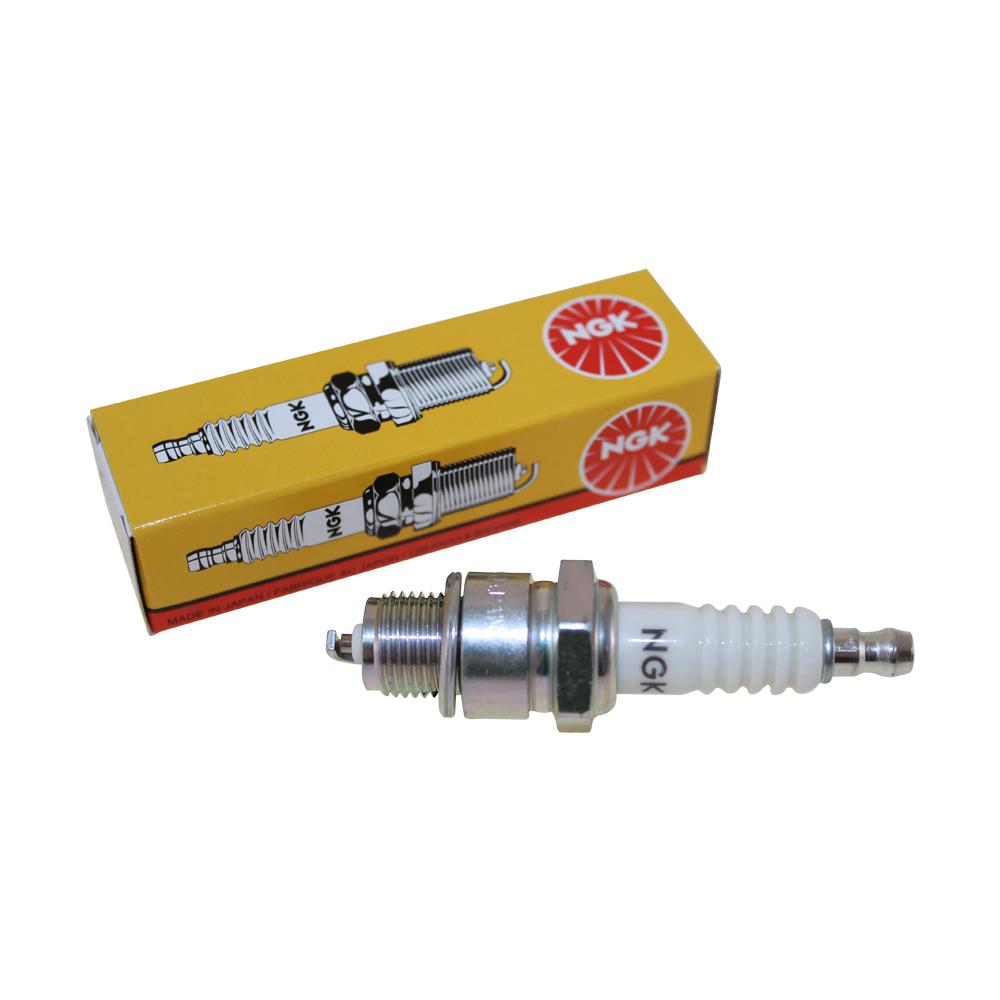

Spark plug NGK BP7HS, 5111, 2 pieces
- Manufacturer: NGK
- Item no: 1601932
- Manufacturer no.: 1601932
- EAN: 4251048876676
Item data
| Product type: | Spark plug |
| Country of origin: | Japan |
| Sealing: | Flat tight fit |
| Number of earth electrodes: | 1 |
| suppressed?: | no |
| Tuning & Styling Part: | No |
| Thread diameter: | 14 mm |
| Electrode gap: | 0.7 mm |
| Vintage part: | No |
| Spark plug type: | BP7HS |
| Universal compatibility: | Yes |
| Quantity per pack: | 2 |
| Spark position: | 3.5 mm |
| Contact ignition cable: | Unscrewable SAE connection |
| GTIN: | 0087295151112 |
| 12.7 mm: | no |
| Features: | advanced insulator tip |
| Scope of delivery: | 2x spark plug NGK BP7HS |
| Manufacturer number: | 5111 |
| Country and region of manufacture: | Japan |
| Reference number(s) OE: | Bosch 0 241 245 553 0 241 245 619 0241235754, 0241245553 0241245619 0241245656, 0241245659 0242240561 0242245531, F000KE0P23 W225T35 W5B W5B+, W5BC W5BP W7BC WR5BC WR6BC pcs, 7597 Champion 328 L64Y L81Y L82YC, L87YC OE007 OE038 P-L7YC RL87YC, UL82Y pcs 327 Denso 4021 5379 D74 IWF22, W22FP W22FP-U W22FPR-U W22FPU, W22FPUS stk 4021 |
| Type of motorcycle: | Motorcycle, Scooter, Moped & Mokick, Quad ATV & Trike |
| Units quantity: | 1 |
| Manufacturer warranty: | 2 years |
| Brand: | NGK |
| Thread length: | 12.7 mm |
| Thread dimensions: | M14 x 1.25 |
| Width across flats: | 20.8 mm (SW21) |
| Material: | Nickel |
OR
£6.41
*
Content:
2 piece
(
£3.21
*
/ 1 piece
)
Prices plus VAT plus shipping costs
In stock! Delivery time 1-3 working days
Customers also bought
Gel Battery 12V 5Ah for 50ccm Scooter – YB4L-B, YTX4L-BS, YT4L-B – Citomerx
Content
1 piece
from
£12.89
*
Racing sport cylinder kit 70 ccm complete for Minarelli lying 50 Aprilia Atala
Content
1 piece
£18.66
*
Similar articles
Cylinder kit 50cc including cylinder head + valves for China scooters, Baotian, Rex RS450
Content
1 piece
£47.47
*
Cylinder kit 50cc Minarelli AC air-cooled horizontal engines, CPI, Rexy, Keeway
Content
1 piece
£17.22
*
Cylinder kit 50cc AC air-cooled 12mm bolt angled flange for horizontal CPI engines, CPI, Keeway
Content
1 piece
£20.78
*
Cylinder Kit 70cc LC watercooled incl. head for Piaggio engines, NRG, ZIP, NTT, Gilera Runner
Content
1 piece
£39.54
*
Customers have also viewed
Want a new spark? - You've come to the right place!
DESCRIPTION:
The ignition voltage... more
Product information "Spark plug NGK BP7HS, 5111, 2 pieces"
Want a new spark? - You've come to the right place!
DESCRIPTION:
The ignition voltage generated by the ignition coil and ignition breaker is transferred to the spark plugs via the spark plug leads. There the ignition spark generated by the ignition voltage jumps over between another ceramically insulated centre electrode and a ground electrode fixed to the fastening thread and thus starts the combustion process.
NGK SPARK PLUG is today represented on all continents by 41 Group Companies, 24 production facilities and 5 Technical Centres and is a leading global supplier to the automotive industry and manufacturer of technical ceramics. NGK SPARK PLUG has specialized in the field of ignition and sensor technology.
This spark plug reliably ignites very lean fuel-air mixtures, as the plug extends a little further into the combustion chamber.
Ignition components at ZS2Radteile order online at low cost! Tested quality & top prices. Order spark plugs now and get started!
TECHNICAL DATA:
- TYPE BP7HS
- manufacturer no. 5111
- not interference suppressed
- Width across flats SW21 (20.8 mm)
- Thread M14 (14.0 mm)
- Thread length 12,7 mm
- Electrode distance 0.7 mm
- Contact ignition cable M4 thread with screw-on SAE nut
- Spark plugs with advanced insulator tip
SCOPE OF DELIVERY:
✔ Set of nozzle gauges
FIT FOR:
AC Delco C42CFS, R42CFS, R42FS
GSP A23B
Autolite 273, 275, 4113, 4123 Beck Arnley 176-9023
Beru 0001445700, 14-4B2, 14-5B, 14-5BU, 1445700, 145BU, 225/14A, 240/14A, Z 41, , Z41
Bosch 0 241 245 553, 0 241 245 619, 0241235754, 0241245553, 0241245619, 0241245656, 0241245659, 0242240561, 0242245531, F000KE0P23, W225T35, W5B, W5B+, W5BC, W5BP, W7BC, WR5BC, WR6BC
Bosch pcs 7597
Brisk N14Y, N14YC
Champion 328, L64Y, L81Y, L82YC, L87YC, OE007, OE038, P-L7YC, RL87YC, UL82Y
Champion pcs 327
Denso 4021, 5379, D74, IWF22, W22FP, W22FP-U, W22FPR-U, W22FPU, W22FPUS
Denso pc 4021
Encoder F85CP
Eyquem 755S, C62S
Fiat 603302211, 82CYS
General Motors 5613527, 5613824
Harley Davidson 4-5, 45
Hitachi M44PW
Honda 98076-57711, 98076-57719, 98076-57719-01
Iskra F85PS, F95P, F95PS
Isolator PM14-225, PM14225
Kawasaki 920701141C, 920701202B, E920701141C, E920701202B
KLG F95P, GT7
Lodge 2HNY
Magneti Marelli CW7NP, CW8NP
Marchal Valeo GT34, GT34D
Mercruiser 33-328, 33-8134141
Mercury 8134141
Motorcraft AE22, AE22C
Motorcraft pcs 58
Napa X936
NGK pcs 5111
PAL (Brisk) 14-9Y, N14YC, N8Y
Prestolite 1.4E+23, 14E22
Suzuki 09482-00060, 09482-00105, 09482-00189
Tacti V91104021
Torch E7TC, E8TC
Toyota 90098-22515
Unipart GSP2075, GSP4356, GSP571
Yamaha 94700-00050, 94701 00050, 94701-00050, 9470100050, 94703-00050
ZONGSHEN 1453
DESCRIPTION:
The ignition voltage generated by the ignition coil and ignition breaker is transferred to the spark plugs via the spark plug leads. There the ignition spark generated by the ignition voltage jumps over between another ceramically insulated centre electrode and a ground electrode fixed to the fastening thread and thus starts the combustion process.
NGK SPARK PLUG is today represented on all continents by 41 Group Companies, 24 production facilities and 5 Technical Centres and is a leading global supplier to the automotive industry and manufacturer of technical ceramics. NGK SPARK PLUG has specialized in the field of ignition and sensor technology.
This spark plug reliably ignites very lean fuel-air mixtures, as the plug extends a little further into the combustion chamber.
Ignition components at ZS2Radteile order online at low cost! Tested quality & top prices. Order spark plugs now and get started!
TECHNICAL DATA:
- TYPE BP7HS
- manufacturer no. 5111
- not interference suppressed
- Width across flats SW21 (20.8 mm)
- Thread M14 (14.0 mm)
- Thread length 12,7 mm
- Electrode distance 0.7 mm
- Contact ignition cable M4 thread with screw-on SAE nut
- Spark plugs with advanced insulator tip
SCOPE OF DELIVERY:
✔ Set of nozzle gauges
FIT FOR:
AC Delco C42CFS, R42CFS, R42FS
GSP A23B
Autolite 273, 275, 4113, 4123 Beck Arnley 176-9023
Beru 0001445700, 14-4B2, 14-5B, 14-5BU, 1445700, 145BU, 225/14A, 240/14A, Z 41, , Z41
Bosch 0 241 245 553, 0 241 245 619, 0241235754, 0241245553, 0241245619, 0241245656, 0241245659, 0242240561, 0242245531, F000KE0P23, W225T35, W5B, W5B+, W5BC, W5BP, W7BC, WR5BC, WR6BC
Bosch pcs 7597
Brisk N14Y, N14YC
Champion 328, L64Y, L81Y, L82YC, L87YC, OE007, OE038, P-L7YC, RL87YC, UL82Y
Champion pcs 327
Denso 4021, 5379, D74, IWF22, W22FP, W22FP-U, W22FPR-U, W22FPU, W22FPUS
Denso pc 4021
Encoder F85CP
Eyquem 755S, C62S
Fiat 603302211, 82CYS
General Motors 5613527, 5613824
Harley Davidson 4-5, 45
Hitachi M44PW
Honda 98076-57711, 98076-57719, 98076-57719-01
Iskra F85PS, F95P, F95PS
Isolator PM14-225, PM14225
Kawasaki 920701141C, 920701202B, E920701141C, E920701202B
KLG F95P, GT7
Lodge 2HNY
Magneti Marelli CW7NP, CW8NP
Marchal Valeo GT34, GT34D
Mercruiser 33-328, 33-8134141
Mercury 8134141
Motorcraft AE22, AE22C
Motorcraft pcs 58
Napa X936
NGK pcs 5111
PAL (Brisk) 14-9Y, N14YC, N8Y
Prestolite 1.4E+23, 14E22
Suzuki 09482-00060, 09482-00105, 09482-00189
Tacti V91104021
Torch E7TC, E8TC
Toyota 90098-22515
Unipart GSP2075, GSP4356, GSP571
Yamaha 94700-00050, 94701 00050, 94701-00050, 9470100050, 94703-00050
ZONGSHEN 1453
Customers also searched for this item under:
Further links to "Spark plug NGK BP7HS, 5111, 2 pieces"
Sicherheitsinformationen für dieses Produkt. more
MANUFACTURER INFORMATION FOR THE EU:
Brand name: NGK
Niterra NGK SPARK PLUG EUROPE GmbH
Web page https://www.ngk.de/home/
Email: info@ngkntk.de
Niterra NGK SPARK PLUG EUROPE GmbH
Harkortstrasse 41
40880 Ratingen
Web page https://www.ngk.de/home/
Email: info@ngkntk.de
INFORMATION ON THE PERSON RESPONSIBLE FOR THE EU:
Eigenschaften more
| Product type | Spark plug |
|---|---|
| Country of origin | Japan |
| Sealing | Flat tight fit |
| Number of earth electrodes | 1 |
| suppressed? | no |
| Tuning & Styling Part | No |
| Thread diameter | 14 mm |
| Electrode gap | 0.7 mm |
| Vintage part | No |
| Spark plug type | BP7HS |
| Universal compatibility | Yes |
| Quantity per pack | 2 |
| Spark position | 3.5 mm |
| Contact ignition cable | Unscrewable SAE connection |
| GTIN | 0087295151112 |
| 12.7 mm | no |
|---|---|
| Features | advanced insulator tip |
| Scope of delivery | 2x spark plug NGK BP7HS |
| Manufacturer number | 5111 |
| Country and region of manufacture | Japan |
| Reference number(s) OE | Bosch 0 241 245 553 0 241 245 619 0241235754, 0241245553 0241245619 0241245656, 0241245659 0242240561 0242245531, F000KE0P23 W225T35 W5B W5B+, W5BC W5BP W7BC WR5BC WR6BC pcs, 7597 Champion 328 L64Y L81Y L82YC, L87YC OE007 OE038 P-L7YC RL87YC, UL82Y pcs 327 Denso 4021 5379 D74 IWF22, W22FP W22FP-U W22FPR-U W22FPU, W22FPUS stk 4021 |
| Type of motorcycle | Motorcycle, Scooter, Moped & Mokick, Quad ATV & Trike |
| Units quantity | 1 |
| Manufacturer warranty | 2 years |
| Brand | NGK |
| Thread length | 12.7 mm |
| Thread dimensions | M14 x 1.25 |
| Width across flats | 20.8 mm (SW21) |
| Material | Nickel |
