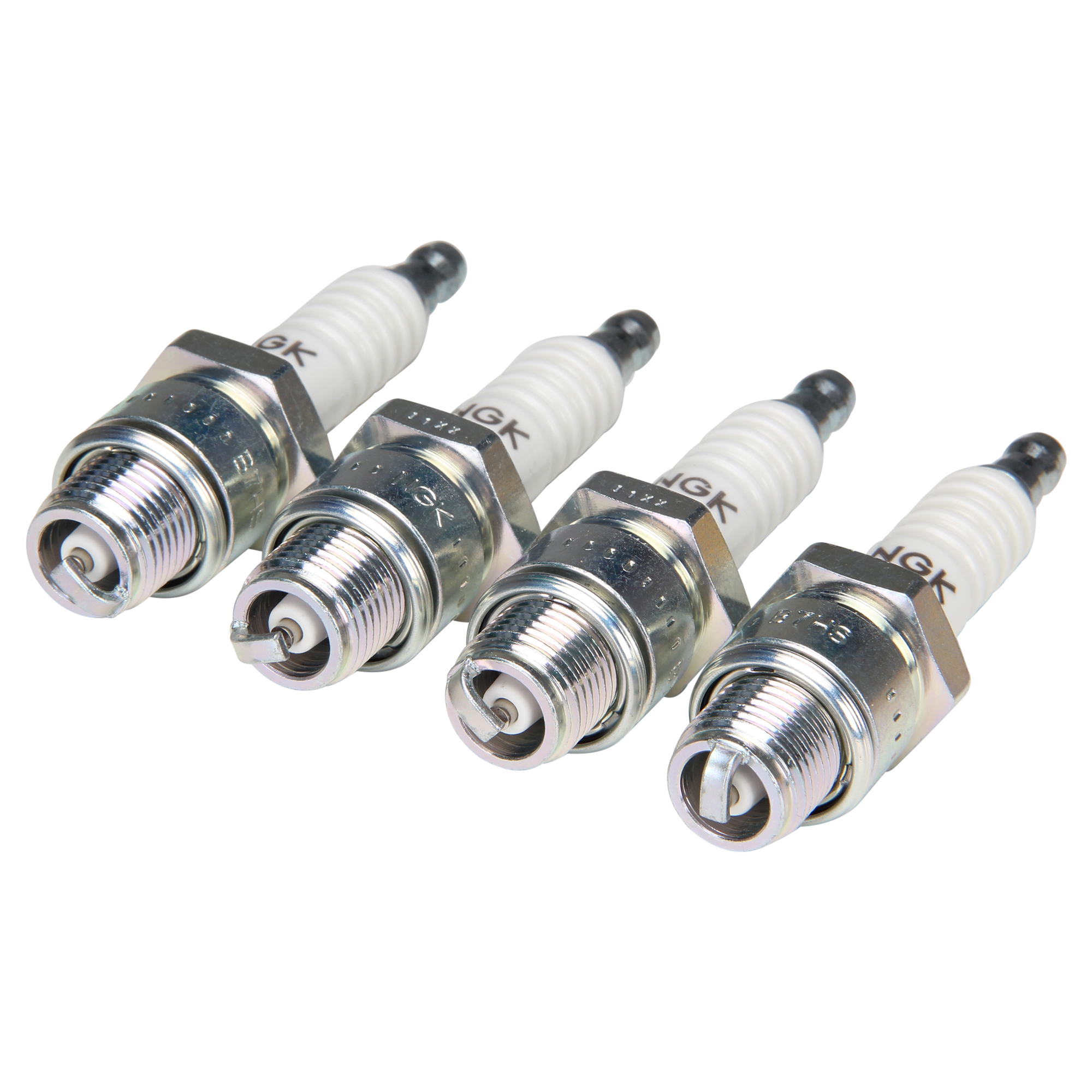

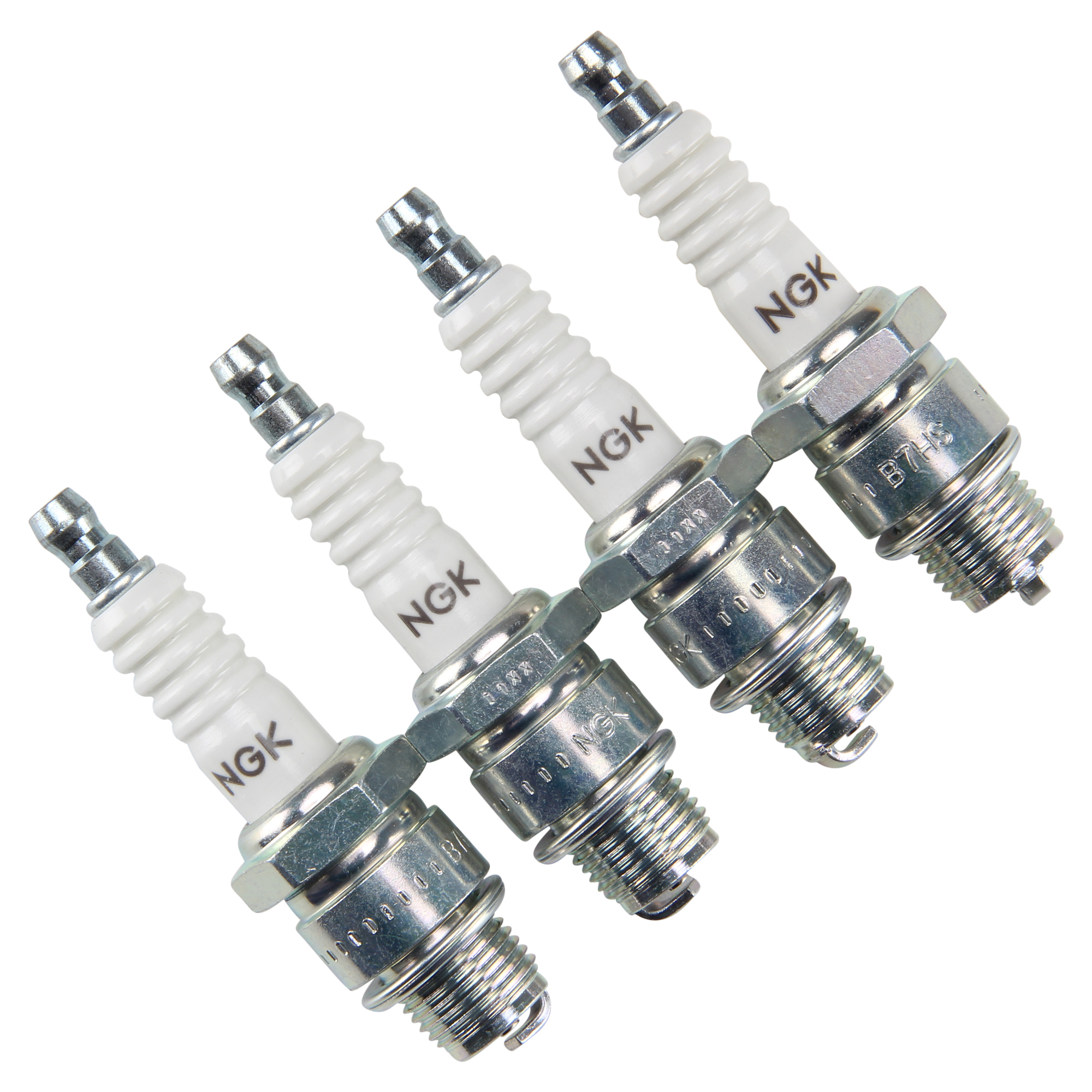

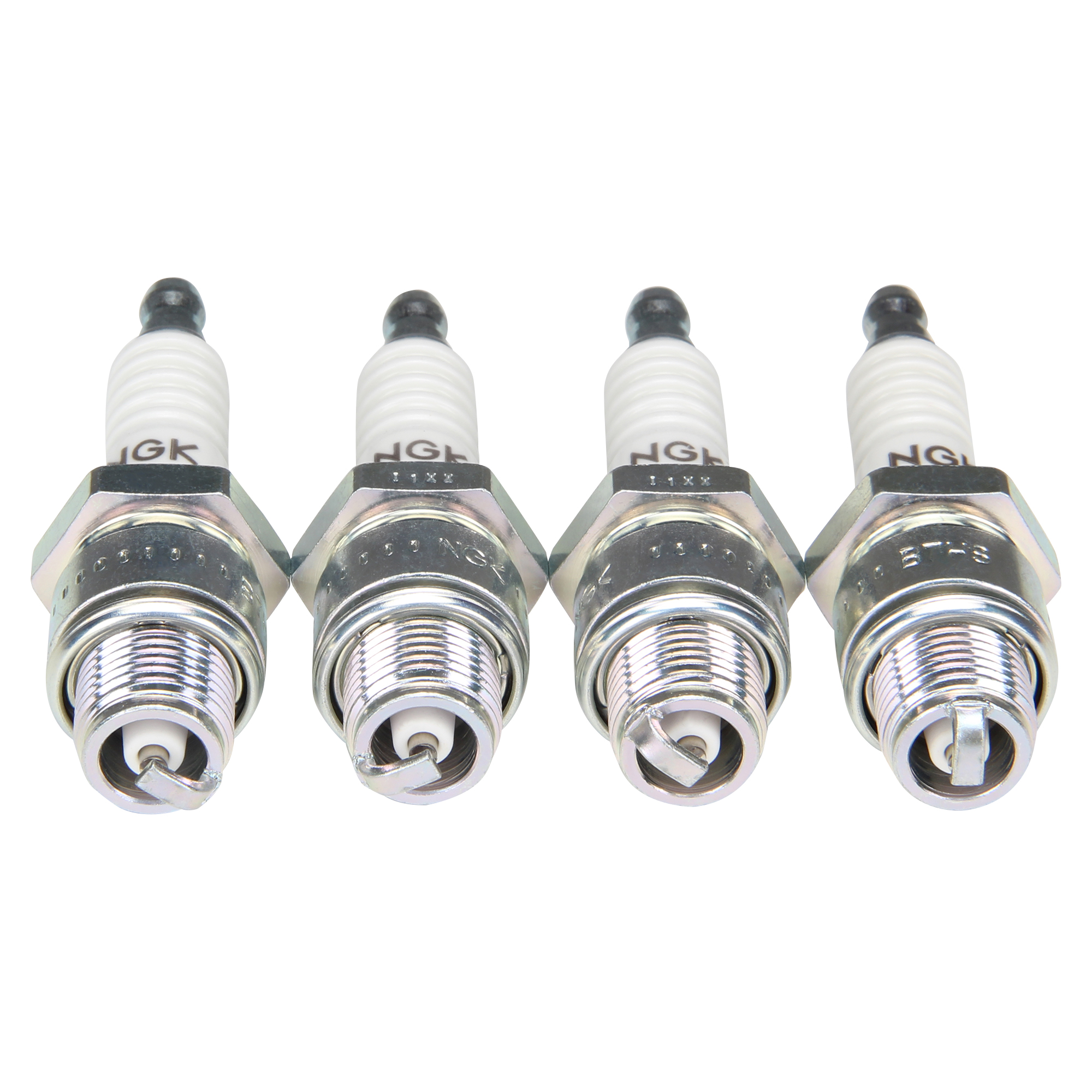

Spark plug NGK B7HS, 5110, 4 pieces
- Manufacturer: NGK
- Item no: 1605664
- Manufacturer no.: 1605664
- EAN: 4251048877109
Prices plus VAT plus shipping costs
In stock! Delivery time 1-3 working days
Cylinder kit 50cc including cylinder head + valves for China scooters, Baotian, Rex RS450
Cylinder kit 50cc Minarelli AC air-cooled horizontal engines, CPI, Rexy, Keeway
Cylinder kit 50cc AC air-cooled 12mm bolt angled flange for horizontal CPI engines, CPI, Keeway
Cylinder Kit 70cc LC watercooled incl. head for Piaggio engines, NRG, ZIP, NTT, Gilera Runner
To get the spark going again.
DESCRIPTION:
In the compression stroke, combustion of the compressed fuel/air mixture is initiated by an electric spark. The spark plug's task here is to generate this spark. It is created by the high voltage generated by the ignition coil and jumps between the electrodes. Since its foundation in 1936, NGK SPARK PLUGS has established itself as the world market leader in the ignition sector. Outstanding quality and continuous technical development are the hallmarks of this manufacturer. So it is no wonder that NGK spark plugs are installed in most two-wheelers from the factory. Today, the company manufactures over 1,000 different types of spark plugs for all types of motor vehicles as well as for motorcycles, watercraft, motor sports and many other applications. The spark plugs are uniquely designed to guarantee the best possible performance. There is a wide range of different thermal characteristics for high thermal load.
TECHNICAL DATA:
- TYPE: B7HS
- Manufacturer No.: 5110
- Interference suppression: not suppressed
- Width across flats: SW21 (20.8 mm)
- Thread: M14 (14.0 mm)
- Thread length: 12.7 mm
- Electrode gap: 0.7 mm
- Ignition cable contact: M4 thread with screw-on SAE nut
REFERENCE NUMBERS / COMPARABLE WITH:
AC Delco 41F, 42F, 430Z, M42FF, MC42F, R41F, R42CF, S42F
Accel 156, ACC7HS
APS A232
Autolite 2636, 2653, 2654, 4092, 4093, 413, XS4093
Beck Arnley 176-5006
Beru 0001445702, 14-4A, 14-4A2, 14-4AU, 14-5A, 14-5AU, 14Z-7AU, 225/14, 240/14, Z 40, , Z40
Bosch 0241245580, 0241245602, 0241245658, 0242245517, W225T1, W3AC, W4C3, W5A, W5AC, W5AP, WR5AC, WR5AP
Bosch stk 7528, 7532
Brisk N14, N14C, N15, N15C
Champion 811, L11S, L4J, L5, L77J, L77JC, L78, L78C, L81, L82C, UL4J, UL81C, UL81J
Champion stk 807, 811, 835
Denso 4025, 5379, 6051, IWF22, TR22, W22FS, W22FS-U, W22FSU
Denso stk 4025
Enker F80C
Eyquem 755, 850, 850 MOTO, 850MOTO, C62
Fuji 065-01400-41, 065-01400-90
General Motors 5612871, 5613200, 5613456, 5613817, 5614011, 5614067
Hitachi M44W, M44X
Honda 98076-57710, 98076-57740
Iskra F80, F80S
Isolator M14-225, M14225
Kawasaki 92070001, E92070-0001, E92070001
KLG F80
Kubota 13581-6771-6, 13581-67710, 13581-67716
Lodge 2H, 2HN, H14, HN14
Magneti Marelli CW250A, CW260N, CW8N, CWC9NJ
Marchal Valeo 34S, 4N
MBK 9079Q-0415600
Mercruiser 33-811, 33-811S, 33-82371B, 33-82371M
Mercury 82371B, 82371M
Mighty M4E4
Mitsubishi 801033, MS 851 134, MS851134
Motorcraft AE1C, AE1X, AE2, AE2C, AE2X, AES4C, AV2CU, AV2X
Motorcraft stk 41
Napa X531
NGK stk 5110
OMC 387694, 509929
PAL (Brisk) 17-9, N8
Prestolite 1.40E+002, 1.40E+003, 1400, 14E2
PSA Peugeot Citroën 7567.59, 756759
Splitfire SF409B, SF409C
Subaru 82054-9310, 82054-9312, 820549310, 820549312
Suzuki 09482-00082, 09482-00083, 09482-00153, 09482-00191
Tacti V91104025
Toyota 90098-22645
Unipart GSP2050, GSP560
Wolf 2016 301, 2016301
XL E7C
Yamaha 94700-00040, 94701 00040, 94701-00040, 9470100040, 94702 00149, 94702-00040, 94702-00149, 9470200149, 94703-00040
SCOPE OF DELIVERY:

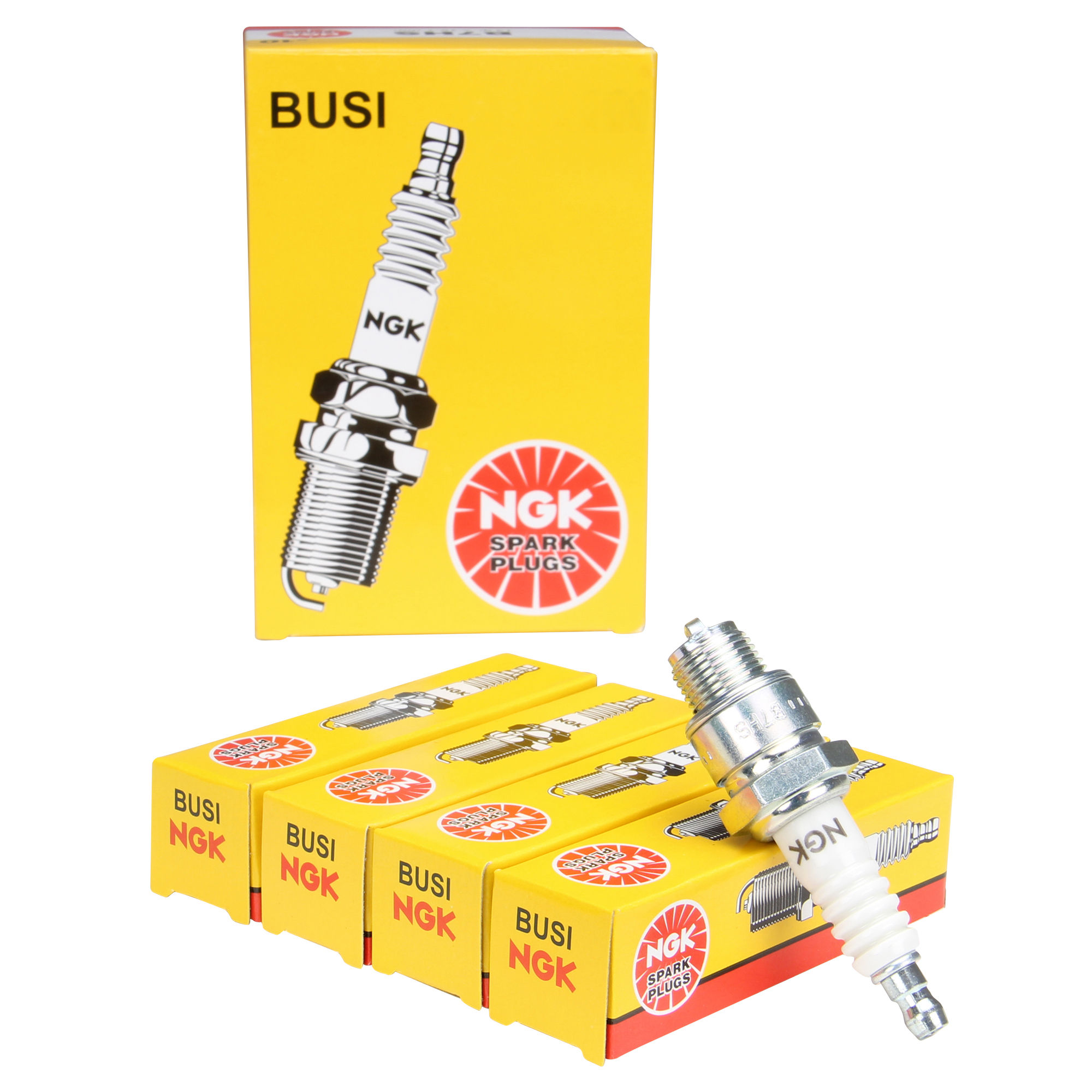

✓ 4x NGK spark plug B7HS, 5110
Niterra NGK SPARK PLUG EUROPE GmbH
Harkortstrasse 41
40880 Ratingen
Web page https://www.ngk.de/home/
Email: info@ngkntk.de
NGK - Spark plugs & ignition technology for scooters, motorcycles & mopeds
NGK is the world's leading manufacturer of spark plugs, ignition coils and ignition components for two-wheelers. Whether scooter, motorcycle or moped - NGK products stand for maximum reliability, clean combustion and constant performance. With decades of experience in the two-wheeler and racing sector, NGK supplies the technology that is used by millions of riders every day.
Why NGK convinces in the two-wheeler sector
- ✅ O riginal equipment quality - used by leading motorcycle & scooter manufacturers.
- ✅ Reliable ignition - perfect spark for starting, performance & acceleration.
- ✅ Wide range - standard, iridium, racing and special plugs.
- ✅ Durable - heat-resistant materials for long service life.
- ✅ Motorsport experience - technologies from racing flow directly into series products.
Popular NGK products at a glance
Spark plugs
From standard spark plugs for everyday use to iridium and racing plugs for sporty applications - NGK supplies the highest quality for scooters, motorcycles and mopeds.
Ignition coils
NGK ignition coils are developed for modern two-wheelers. They guarantee a stable spark even at high engine speeds and sporty riding styles.
CDI & ignition parts
For many scooters and mopeds, NGK offers complementary ignition components designed for precision and reliability.
Technical advantages
NGK relies on iridium and platinum technologies that can withstand extreme temperatures and loads. This results in clean ignitions, lower consumption and optimum power delivery. Whether in city traffic, on long tours or during sporty driving - NGK guarantees consistent quality.
Buying advice in a nutshell
- ✅ S cooters & scooters: Standard & iridium spark plugs for everyday use & tuning.
- ✅ Motorcycle: Laser & racing spark plugs for sporty performance.
- moped: Robust standard plugs for reliable starting & long service life.
- ✅ Racing: High-performance spark plugs with motorsport technology.
- electrical system: Ignition coils & CDI for optimum spark generation.
Conclusion
NGK is the reference in the field of ignition technology for two-wheelers. Whether scooter, motorcycle or moped - NGK ensures reliable starting, full power and a long service life. NGK is the first choice for everyday riders as well as tuning and racing fans.
