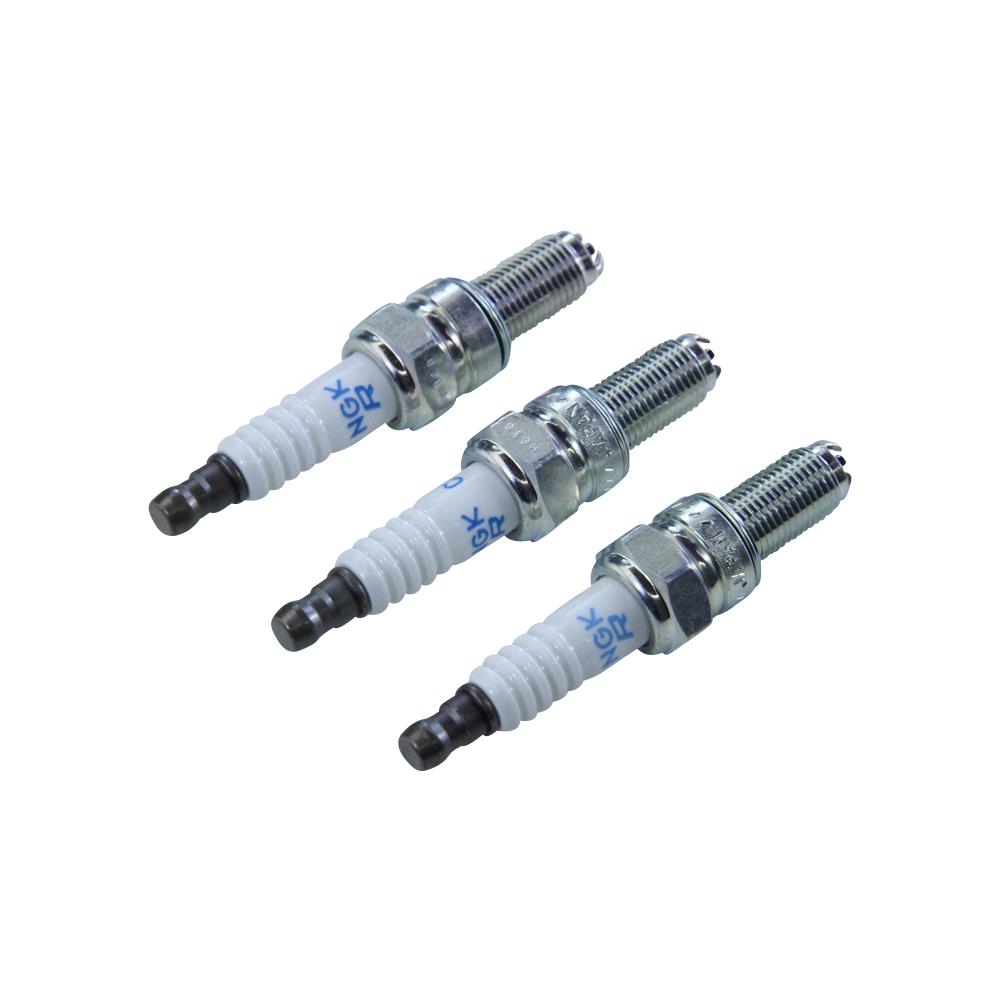

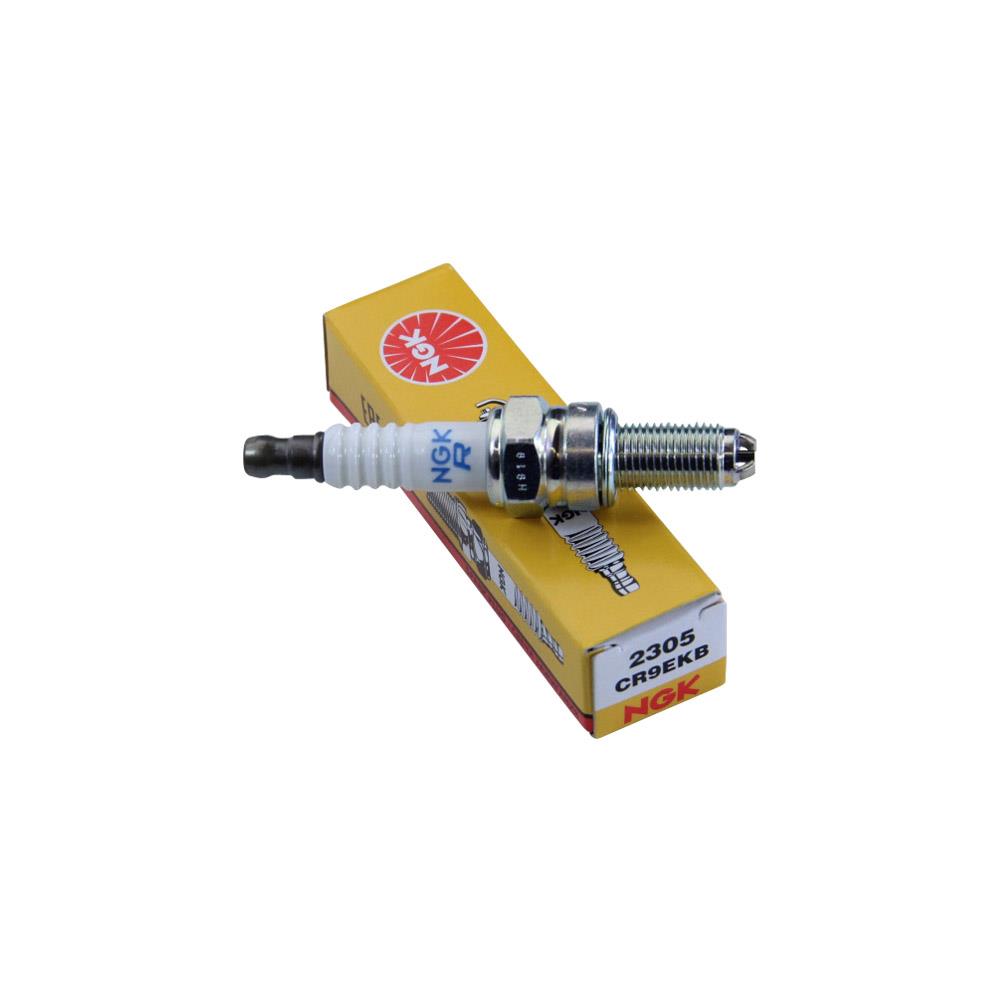

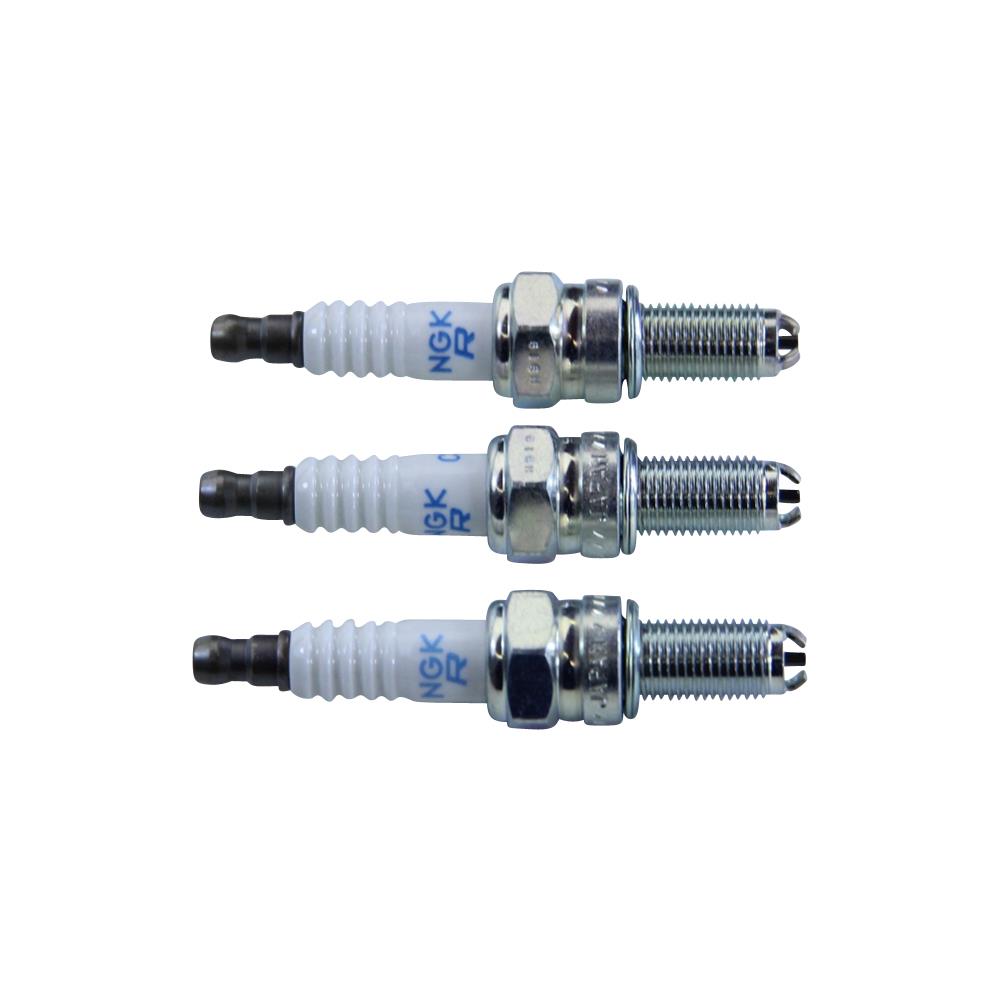

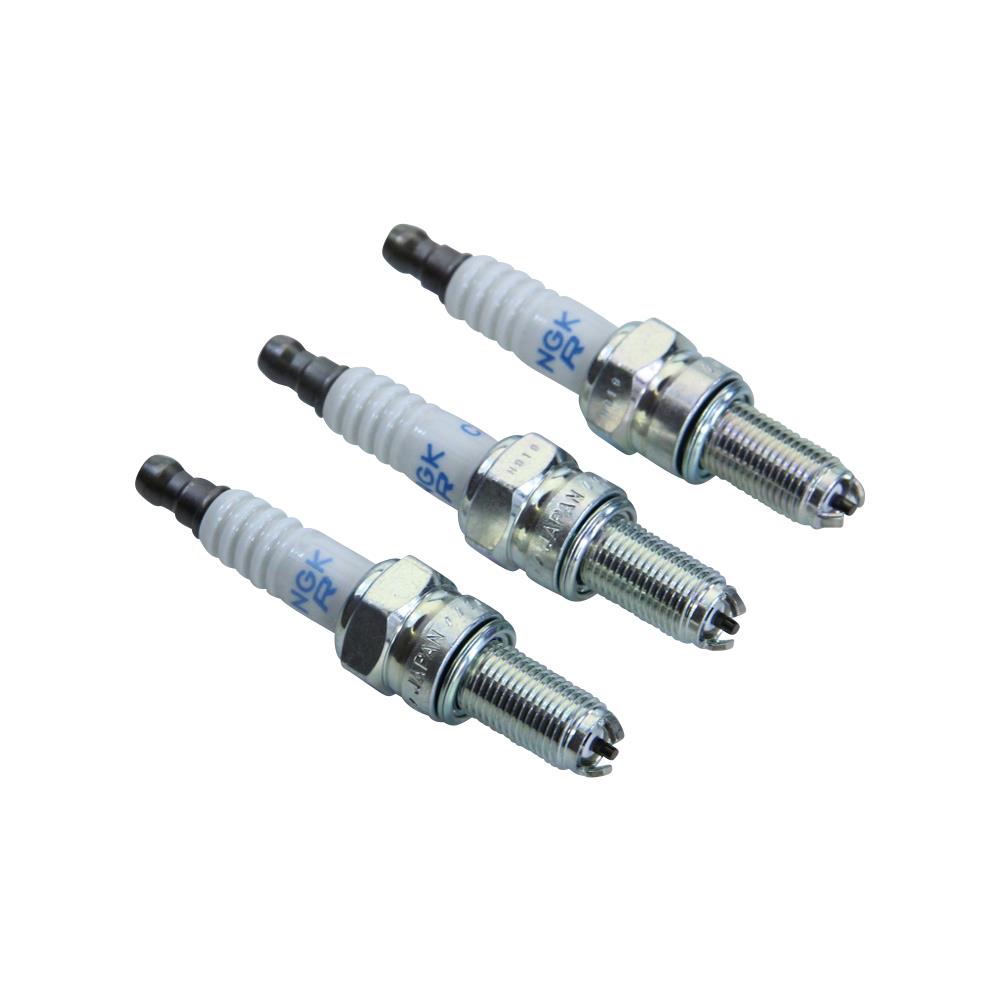

Spark plug NGK CR9EKB, 2305, 3 pieces
- Manufacturer: NGK
- Item no: 1606823
- Manufacturer no.: 1606823
- EAN: 4251048879875
Item data
| Product type: | Spark plug |
| Country of origin: | Japan |
| Sealing: | Flat tight fit |
| Number of earth electrodes: | 2 |
| suppressed?: | Yes, 5 kOhm |
| Tuning & Styling Part: | No |
| Thread diameter: | 10 mm |
| Electrode gap: | 0.7 mm |
| Vintage part: | No |
| Spark plug type: | CR9EKB |
| Universal compatibility: | Yes |
| Quantity per pack: | 3 |
| Spark position: | 2.5 mm |
| Contact ignition cable: | Fixed SAE connection |
| GTIN: | 0087295123058 |
| Features: | Multiple electrode |
| Scope of delivery: | 3x spark plug NGK CR9EKB |
| Manufacturer number: | 2305 |
| Country and region of manufacture: | Japan |
| Reference number(s) OE: | Champion 8698 Champion OE122 Champion, RG4PHP Champion RG92DC Denso, 5366 Denso IU27A Denso U27ETR |
| Type of motorcycle: | Motorcycle, Scooter, Moped & Mokick, Quad ATV & Trike |
| Units quantity: | 1 |
| Manufacturer warranty: | 2 years |
| Brand: | NGK |
| Thread length: | 19.0 mm |
| Thread dimensions: | M10 x 1 |
| Width across flats: | 16 mm (SW16) |
| Material: | Nickel |
Prices plus VAT plus shipping costs
Available immediately! Estimated delivery …
Cylinder kit 50cc Minarelli AC air-cooled horizontal engines, CPI, Rexy, Keeway
Cylinder kit 50cc AC air-cooled 12mm bolt angled flange for horizontal CPI engines, CPI, Keeway
Cylinder Kit 70cc LC watercooled incl. head for Piaggio engines, NRG, ZIP, NTT, Gilera Runner
Cylinder kit 80cc including cylinder head + valves for China scooters, Baotian, Rex, MKS, Zongshen
DESCRIPTION:
In the compression stroke the combustion of the compressed fuel-air mixture is initiated by an electric spark. The task of the spark plug is to generate this spark. It is generated by the high voltage generated by the ignition coil and jumps over between the electrodes.
NGK SPARK PLUGS have been associated with spark plugs of the highest quality since the 1950s. The world market leader in this segment is not only distinguished by the outstanding quality of its products. NGK has also set itself the task of continuous further development and adaptation to current conditions. Also in the motor sport sector, people always trust in products from NGK SPARK PLUGS.
One strategy for extending the service life of a standard spark plug made of nickel is to equip it with two ground electrodes. With these spark plugs, the spark always jumps over to the other earth electrode. The wear is thus distributed to both earth electrodes and the service life is thus extended.
Spark plugs in top quality and at a favourable price? Fast shipping and over 10,000 other products. Of course with ZS2 wheel parts.
TECHNICAL DATA:
- TYPE CR9EKB
- manufacturer no. 2305
- interference suppressed 5 kOhm
- Width across flats SW16 (16.0 mm)
- Thread M10 (10,0 mm)
- Thread length 19 mm
- electrode gap 0.7 mm
- Contact ignition cable fixed SAE connection
SPECIAL FEATURE:
- spark plugs with 2 ground electrodes
COMPARABLE WITH:
- Autolite 4302, XS4302
- BMW 12 12 7710636, 12127710636
- Brisk AR10S
- Champion 8698, OE122, RG4PHP, RG92DC
- Denso 5366, IU27A, U27ETR
- Honda ZJ980-002-000
- KTM 770.39.093.000, 77039093000
- MV-AGUSTA 7699116, 80099561
- Suzuki 09482-00582
- Yamaha 94702-00403
SCOPE OF SUPPLY:
✔ 3x Spark plug NGK CR9EKB
Niterra NGK SPARK PLUG EUROPE GmbH
Harkortstrasse 41
40880 Ratingen
Web page https://www.ngk.de/home/
Email: info@ngkntk.de
| Product type | Spark plug |
|---|---|
| Country of origin | Japan |
| Sealing | Flat tight fit |
| Number of earth electrodes | 2 |
| suppressed? | Yes, 5 kOhm |
| Tuning & Styling Part | No |
| Thread diameter | 10 mm |
| Electrode gap | 0.7 mm |
| Vintage part | No |
| Spark plug type | CR9EKB |
| Universal compatibility | Yes |
| Quantity per pack | 3 |
| Spark position | 2.5 mm |
| Contact ignition cable | Fixed SAE connection |
| GTIN | 0087295123058 |
|---|---|
| Features | Multiple electrode |
| Scope of delivery | 3x spark plug NGK CR9EKB |
| Manufacturer number | 2305 |
| Country and region of manufacture | Japan |
| Reference number(s) OE | Champion 8698 Champion OE122 Champion, RG4PHP Champion RG92DC Denso, 5366 Denso IU27A Denso U27ETR |
| Type of motorcycle | Motorcycle, Scooter, Moped & Mokick, Quad ATV & Trike |
| Units quantity | 1 |
| Manufacturer warranty | 2 years |
| Brand | NGK |
| Thread length | 19.0 mm |
| Thread dimensions | M10 x 1 |
| Width across flats | 16 mm (SW16) |
| Material | Nickel |
