Bosch spark plug 4x FR 7 LDC+
- Manufacturer: Bosch
- Item no: FR7LDC4
- Manufacturer no.: 0 242 235 668 , FR 7 LDC+
- EAN: 4060861113048
Item data
| Number of earth electrodes: | 2 |
| Product group: | Motor parts |
| suppressed?: | Yes |
| Electrode gap: | 0,9 |
| Contact ignition cable: | M4 thread with screw-on SAE nut |
| GTIN: | 4060861113048 |
| Center electrode material: | Nickel |
| Reference number(s) OEM: | AUTOLITE 3923 - BRISK A-line 20, A-Line20 - FINWHALE VT5RL, BERU 0001335732, 14F-7LDUR, 14F-7LDUR4, 14FGH-7DTURX, 14FR-7KDU, 14FR-7LDU, 14FR-7LDUW, UXT1, UXT3, Z14, Z257, Z90, Z98, CHAMPION 7GYSSR, OE026, OE030, OE085, RC8BYC, RC8DMC, RC9BMC, DENSO 5063, 5344, IKH20, K20TR-11, K20TXR, QL20TR-S, EYQUEM RFC58LS2E, RFC58LZ2E, RFC58LZ3EX - WEVER 015206, 033076, NGK 2848, 3045, 4388, 5461, 6342, 6895, BCPR7ER, BKR6EK, BKR6EKB, BKR6EKB-11, BKR6EKC, BKUR5ET, BKUR5ETZ, BKUR6EK, BKUR6EK-9, BKUR6ET, BKUR6ET-10, BKUR6ETB-10, V-LINE NO. 20 24 26 27 29, RENAULT RFC50LZ2E - VALEO 246852, RF74HZ2, RF74HZ3YE |
| Product type: | Spark plug |

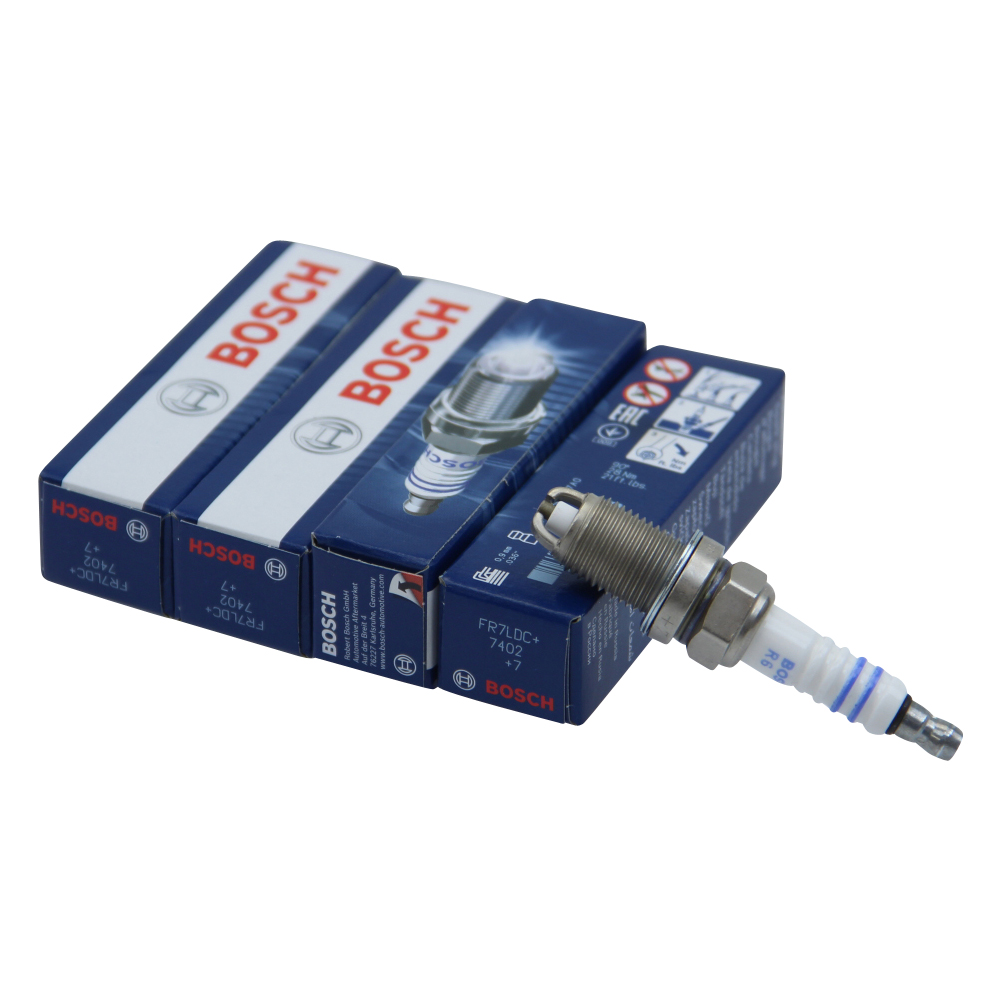

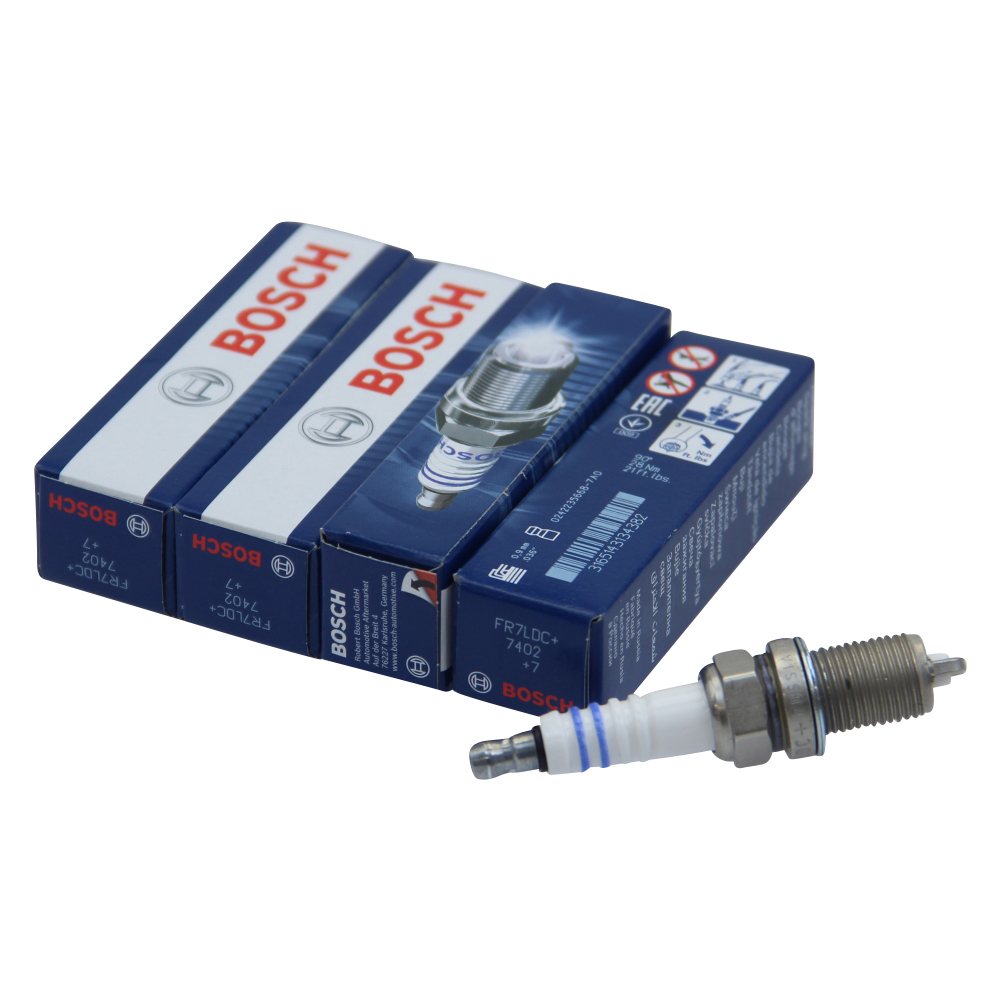

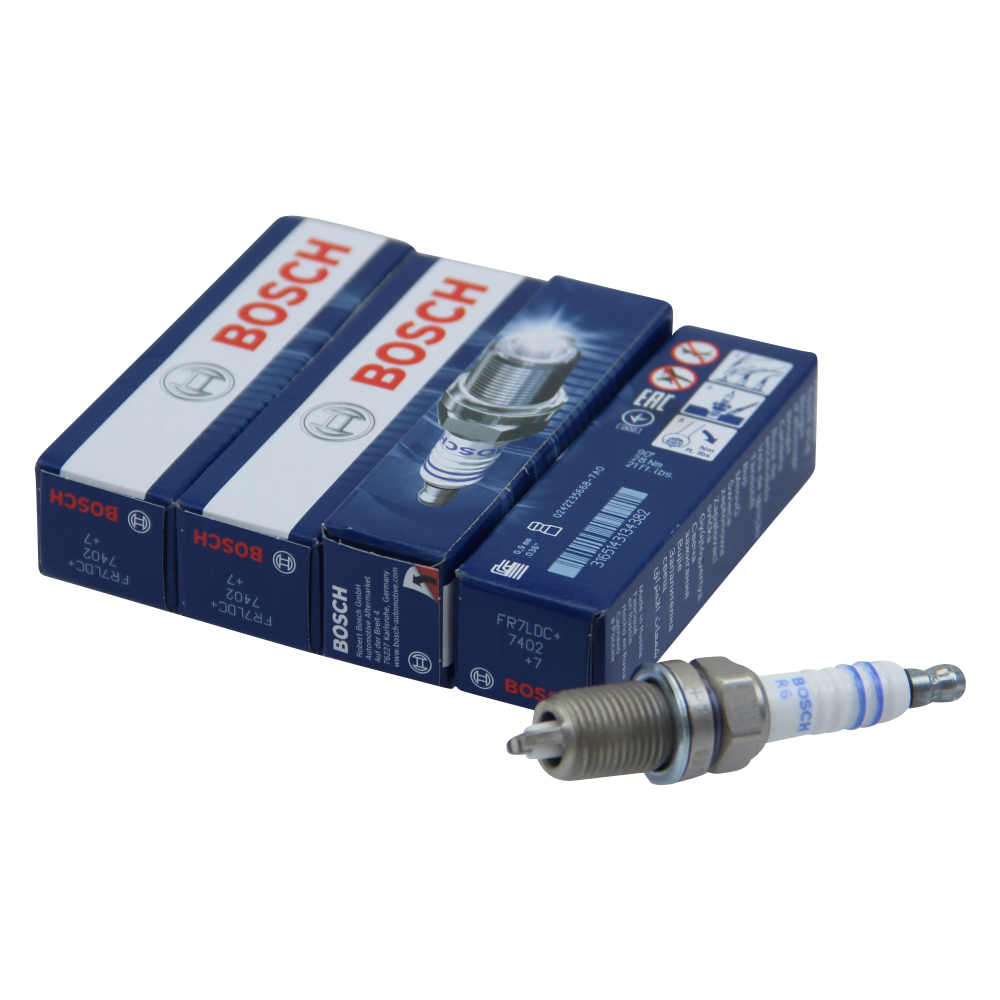

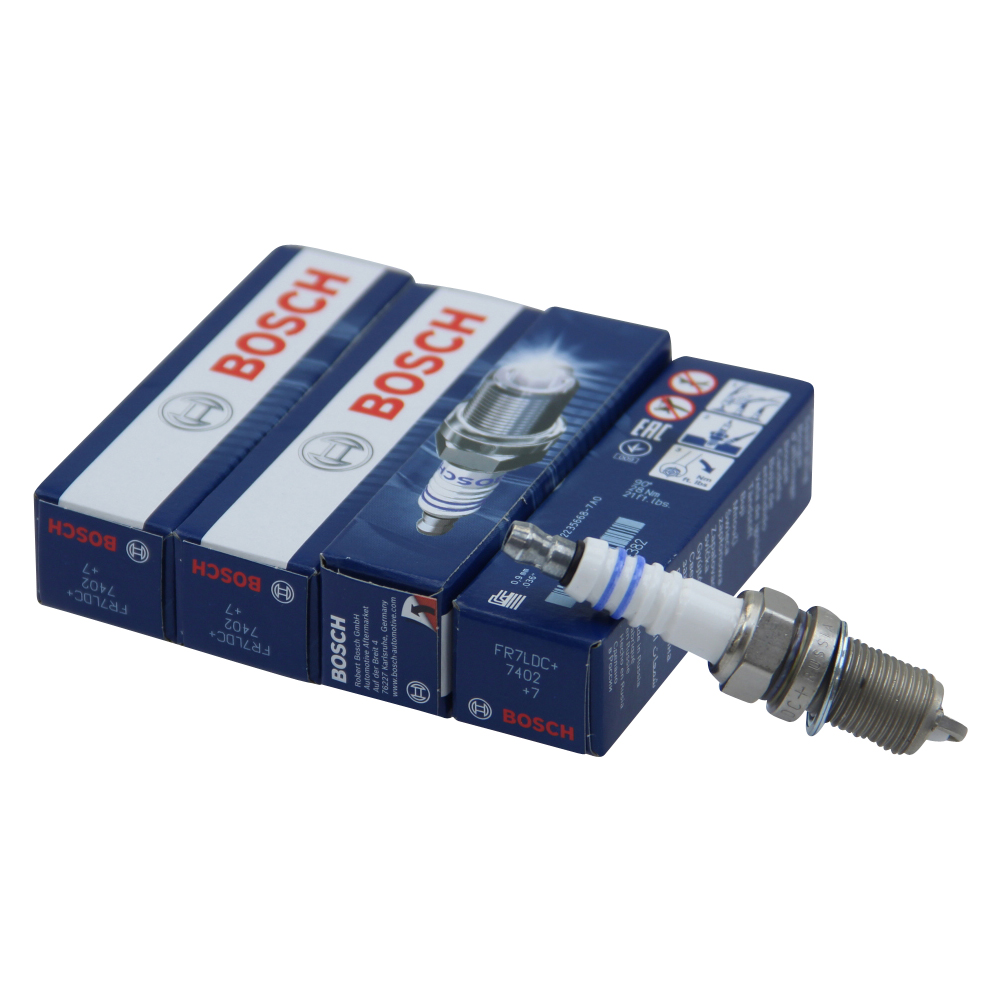

| Scope of delivery: | 4x Bosch spark plug FR7LDC+ |
| Manufacturer number: | FR7LDC+4 |
| Installation position: | Links, Right |
| Reference number(s) OE: | 0 242 235 668 , FR 7 LDC+ |
| Offer package: | Yes |
| Thread: | M 14 x 1.25 |
| Units quantity: | 4 |
| Description of the package content: | 4x spark plug FR7LDC+ |
| Manufacturer warranty: | 2 years |
| Thread length: | 19 mm |
| Width across flats: | SW16 (16.0 mm) |
Prices plus VAT plus shipping costs
No longer available
Cylinder kit 50cc including cylinder head + valves for China scooters, Baotian, Rex RS450
Cylinder kit 50cc Minarelli AC air-cooled horizontal engines, CPI, Rexy, Keeway
Cylinder kit 50cc AC air-cooled 12mm bolt angled flange for horizontal CPI engines, CPI, Keeway
Cylinder Kit 70cc LC watercooled incl. head for Piaggio engines, NRG, ZIP, NTT, Gilera Runner
Technical data:
- TYPE FR 7 LDC+
- Manufacturer No. 0 242 235 668
- center electrode made of nickel
- interference suppressed
- Width across flats SW16 (16.0 mm)
- thread M14 x 1.25
- Thread length 19 mm
- electrode gap 0,9 mm
- Spark plugs with 2 ground electrodes
- Contact ignition cable M4- thread with screw-on SAE- nut
Comparable with:
AUTOLITE 3923
BERU 0001335732 , 14F-7LDUR , 14F-7LDUR4 , 14FGH-7DTURX , 14FR-7KDU , 14FR-7LDU , 14FR-7LDUW , UXT1 , UXT3 , Z14 , Z257 , Z90 , Z98
BOSCH 0242235914 , F7LTCR , FR7KDC , FR7LDC+
BRISK A-line 20 , A-Line20
CHAMPION 7GYSSR , C9BMC , OE026 , OE030 , OE085 , RC8BYC , RC8DMC , RC9BMC
DENSO 5063 , 5344 , IKH20 , K20TR-11 , K20TXR , QL20TR-S
EYQUEM RFC58LS2E , RFC58LZ2E , RFC58LZ3EX
FINWHALE VT5RL
NGK 2848 , 3045 , 4388 , 5461 , 6342 , 6895 , BCPR7ER , BKR6EK , BKR6EKB , BKR6EKB-11 , BKR6EKC , BKUR5ET , BKUR5ETZ , BKUR6EK , BKUR6EK-9 , BKUR6ET , BKUR6ET-10 , BKUR6ETB-10 , V-LINE NO.20 , V-LINE NO.24 , V-LINE NO.26 , V-LINE NO.27 , V-LINE NO.29 , V-line-20 , V-LINE20 , V-LINE24 , V-LINE26 , V-LINE27 , V-Line29 , V-LINENR.20 , V-LINENR.24 , V-LINENR.26 , V-LINENR.27 , V-LINENR.29
RENAULT RFC50LZ2E
VALEO 246852 , RF74HZ2 , RF74HZ3YE
WEVER 015206 , 033076
Robert Bosch GmbH
Robert-Bosch-Platz 1
70839 Gerlingen-Schillerhöhe
Web page http://de.bosch-automotive.com/de/parts_and_accessories/specials_1/bikes/bikes_1
Email: kontakt@bosch.de
| Number of earth electrodes | 2 |
|---|---|
| Product group | Motor parts |
| suppressed? | Yes |
| Electrode gap | 0,9 |
| Contact ignition cable | M4 thread with screw-on SAE nut |
| GTIN | 4060861113048 |
| Center electrode material | Nickel |
| Reference number(s) OEM | AUTOLITE 3923 - BRISK A-line 20, A-Line20 - FINWHALE VT5RL, BERU 0001335732, 14F-7LDUR, 14F-7LDUR4, 14FGH-7DTURX, 14FR-7KDU, 14FR-7LDU, 14FR-7LDUW, UXT1, UXT3, Z14, Z257, Z90, Z98, CHAMPION 7GYSSR, OE026, OE030, OE085, RC8BYC, RC8DMC, RC9BMC, DENSO 5063, 5344, IKH20, K20TR-11, K20TXR, QL20TR-S, EYQUEM RFC58LS2E, RFC58LZ2E, RFC58LZ3EX - WEVER 015206, 033076, NGK 2848, 3045, 4388, 5461, 6342, 6895, BCPR7ER, BKR6EK, BKR6EKB, BKR6EKB-11, BKR6EKC, BKUR5ET, BKUR5ETZ, BKUR6EK, BKUR6EK-9, BKUR6ET, BKUR6ET-10, BKUR6ETB-10, V-LINE NO. 20 24 26 27 29, RENAULT RFC50LZ2E - VALEO 246852, RF74HZ2, RF74HZ3YE |
| Product type | Spark plug |
| Scope of delivery | 4x Bosch spark plug FR7LDC+ |
| Manufacturer number | FR7LDC+4 |
|---|---|
| Installation position | Links, Right |
| Reference number(s) OE | 0 242 235 668 , FR 7 LDC+ |
| Offer package | Yes |
| Thread | M 14 x 1.25 |
| Units quantity | 4 |
| Description of the package content | 4x spark plug FR7LDC+ |
| Manufacturer warranty | 2 years |
| Thread length | 19 mm |
| Width across flats | SW16 (16.0 mm) |
Bosch - quality spare parts and ignition technology for two-wheelers
Bosch is one of the best-known brands in the field of ignition technology, electrics and spare parts. For decades, Bosch has stood for top quality, innovative technologies and reliable products that are also widely used in the two-wheeler sector. Riders of motorcycles, scooters, mopeds and quads rely on Bosch when it comes to durable and high-performance components.
Wide range for motorcycles, scooters and quads
The Bosch portfolio includes spark plugs, batteries, ignition coils, regulators and many other electrical and wear parts. Thanks to a wide model coverage, Bosch products are available for numerous two-wheeler types and are characterized by their precise fit and easy installation. This makes them the ideal choice for riders and workshops who rely on dependability.
Innovation and tested quality
Bosch products are manufactured to the highest standards and are subject to strict quality controls. State-of-the-art technologies ensure efficient ignition, stable power supply and a long service life. This makes the brand one of the world's leading suppliers of ignition and electrical components.
The advantages of Bosch at a glance
- ✔️ Large selection - spark plugs, batteries, ignition coils and regulators
- ✔️ High accuracy of fit - for numerous motorcycle, scooter and quad models
- ✔️ Innovative technology - reliable ignition and stable power supply
- ✔️ Durable and robust - proven under high loads
- ✔️ Globally renowned brand with decades of experience
Conclusion: Bosch stands for reliability in the two-wheeler sector
Bosch supplies high-quality spare parts and electrical components that set standards in terms of quality, performance and durability. Riders and workshops worldwide rely on the brand's proven technology.
With Bosch, you are investing in spare parts that will reliably power your motorcycle, scooter or quad bike and keep it in top form over the long term.
