Cylinder Kit 70ccm for Minarelli water cooled engines, Aprilia SR50, Yamaha Aerox, MBK Nitro
- Manufacturer: Citomerx
- Item no: 129046
- Manufacturer no.: 129046
- EAN: 4260250311004
Item data
| Product type: | Cylinder set |
| Cylinder head dimensions (LxWxH): | 130 x 100 x 40 mm |
| Piston pin diameter: | 10 mm |
| Displacement: | 70 ccm |
| Can the original cylinder head be used?: | Yes |
| Cylinder head stud bolt spacing: | 50 x 50 mm |
| Tuning & Styling Part: | Yes |
| Piston ring profile: | Halbtrapezring |
| Vintage part: | No |
| Cylinder head stud diameter: | 8 mm |
| Piston special feature: | Mit zwei 10x15mm Kolbenfensterbohrungen |
| Surface finish: | Matt |
| Cylinder special feature: | Kühlwasseranschluss: 17 mm |
| ATTENTION!: | TUNING: Not permitted in the area of the StVZO! |
| GTIN: | 4260250311004 |
| Diffuser internal dimension: | 24 mm |
| Cylinder dimensions (LxWxH): | 130 x 90 x 90 mm |
| Outlet Stud distance: | 48 mm |
| Scope of delivery: | Cylinder head, Cylinder, Gasket set, Kolben Set |
| Outlet stud bolt thread: | M6 |
| Cylinder stud distance: | 50 x 50 mm |
| Number of overflows: | 3 |
| Cylinder stud bore: | 8 mm |
| Manifold connection type: | Flange |
| Color: | Grey |
| Spark plug thread: | M14 x 1.25 |
| Number of piston rings: | 2 |
| Features: | Durable, Corrosion resistant |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x cylinder set |
| Manufacturer number: | 129046 |
| Country and region of manufacture: | China |
| Type of motorcycle: | Scooter |
| Offer package: | Yes |
| Units quantity: | 1 |
| Description of the package content: | Cylinder head cylinder set |
| Manufacturer warranty: | 2 years |
| Material: | Several materials |
| Type: | Tuning |
| suitable for: | Minarelli LC horizontal |
Water pump repair kit for Minarelli LC engines, MBK Nitro, Yamaha Aerox, Aprilia SR50
Cylinder kit with aluminum cylinder head 50 cc + NGK spark plug Yamaha Aerox, MBK Nitro
Gel Battery 12V 5Ah for 50ccm Scooter – YB4L-B, YTX4L-BS, YT4L-B – Citomerx
Water pump repair kit for Minarelli with normal sealing ring without drive gear
Starter freewheel complete for AC & LC Minarelli engines, Aerox, Nitro, SR50, CPI
Presto Power Brake Cleaner 600 ml – Powerful Parts Cleaner for Residue-Free Cleanliness
Naraku Exhaust Stud Bolt Set NK101.91 with Nuts - M6x32mm
Intake manifold gasket for horizontal Minarelli engines Aerox Nitro SR50,CPI Oliver Keeway
Rear shock absorber 300mm black for Aprilia CPI Keeway Generic MBK Peugeot Rex Yamaha
Speed ➡limiter / DZB / controller / speed limiter with toggle switch for scooters with...
Liqui Moly 2-Stroke Motor Oil 0.25 L – High-Quality Lubricant for Optimal Performance
Presto 3x600 ml Power Brake Cleaner - Effective Parts Cleaner for Motorcycle, Scooter & Moped
Presto 6x600 ml Power Brake Cleaner - Powerful Part Cleaner for Motorcycle & Scooter
Crankshaft bearing set SKF C4 for Yamaha Aerox Aprilia SR 50 Stage6 Malossi Hebo
Brake pads Brenta 3015 organic rear for Peugeot Jet Force Speedfight 1 2 XP6 XR7 50
70cc Racing Sport Cylinder Kit Complete for Minarelli vertical 50 Aprilia SR 50
Cylinder head 50cc LC water-cooled for Minarelli engines, Aprilia SR50, MBK Nitro, Aerox
Piston 70cc 47mm 10mm Pin for Minarelli Engines - Citomerx - suitable for Aerox, Nitro, Rally, CPI
Cylinder kit 70cc incl. cylinder head LC water cooled for Minarelli engines, AM 2, 3, 4, 5, 6
Cylinder Kit 70cc AC Minarelli vertical for Aprilia, Italjet, Itteco, MBK, Yamaha

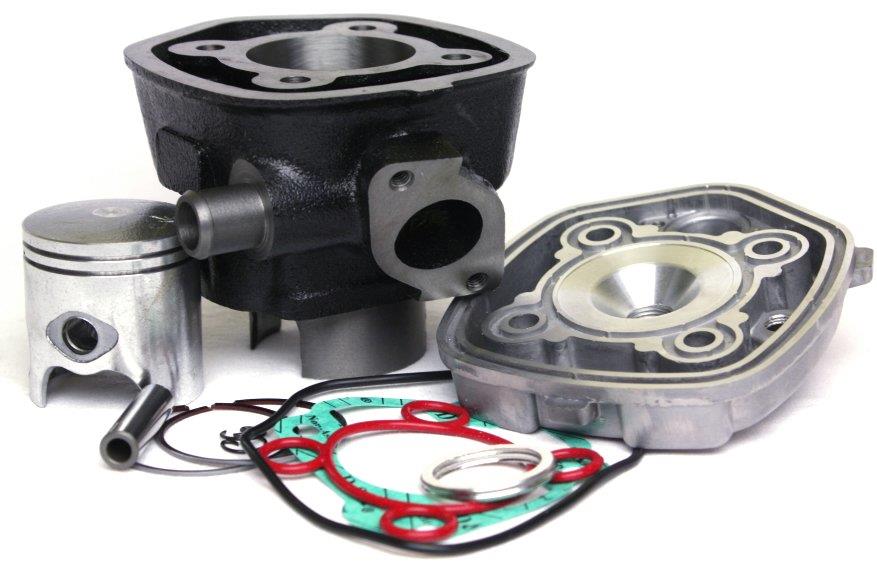

Citomerx cylinder kit
DESCRIPTION:
This sport cylinder is a 70cc cast iron cylinder in original equipment manufacturer quality from "CITOMERX". The cylinder kit is equipped with large transfer ports and a large outlet that makes this cylinder a top-class sports kit. This kit has a piston with a 10mm gudgeon pin. The 12mm version can also be supplied on request. It is recommended to change the needle bearing as well. You can of course also find the right one in our shop.
TECHNICAL SPECIFICATIONS:
- Type: Cylinder Kit
- Color gray
- Displacement: 70cc
- Piston: 10 mm gudgeon pin
- Cooling: water-cooled
- Material: cast iron
- Accessories: incl. cylinder head
- Suitable for: Minarelli LC engines with horizontal cylinder
MORE INFORMATION:
Experienced screwdrivers recommend replacing the cooling water when changing the cylinder, as this loses quality after about two years and may flake, causing seals or fins to become clogged. However, make sure to use the correct coolant. The rule of thumb is: Never mix silicate-containing with silicate-free agents. However, it is often no longer possible to trace which agent was used and a complete change of the liquid is almost impossible because components have accumulated in the lines. So play it safe with a universally applicable agent of the latest generation that can be mixed with all agents, e.g. Agip Antifreeze 12++ Our cylinder kit bundle already contains 1x Agip Antifreeze!
SCOPE OF DELIVERY:
✔ 1x cylinder

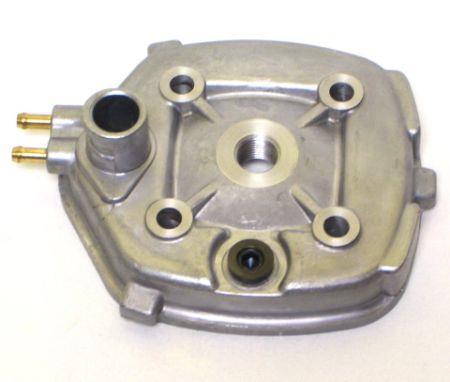

✔ 1x aluminum cylinder head
✔ 1x piston including piston rings, piston clips, piston pin

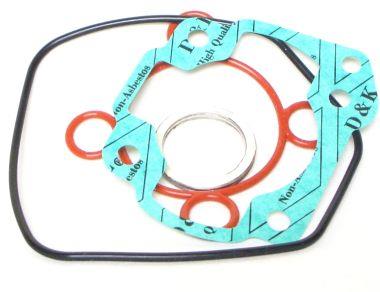

✔ 1x cylinder gasket set
✔ 1x assembly instructions
ZS 2Radteile GmbH
Unterbibracherstr. 3
95519 Vorbach
Web page https://www.citomerx.de
Email: info@zweiradteile.net
| Product type: | Cylinder set |
| Cylinder head dimensions (LxWxH): | 130 x 100 x 40 mm |
| Piston pin diameter: | 10 mm |
| Displacement: | 70 ccm |
| Can the original cylinder head be used?: | Yes |
| Cylinder head stud bolt spacing: | 50 x 50 mm |
| Tuning & Styling Part: | Yes |
| Piston ring profile: | Halbtrapezring |
| Vintage part: | No |
| Cylinder head stud diameter: | 8 mm |
| Piston special feature: | Mit zwei 10x15mm Kolbenfensterbohrungen |
| Surface finish: | Matt |
| Cylinder special feature: | Kühlwasseranschluss: 17 mm |
| ATTENTION!: | TUNING: Not permitted in the area of the StVZO! |
| GTIN: | 4260250311004 |
| Diffuser internal dimension: | 24 mm |
| Cylinder dimensions (LxWxH): | 130 x 90 x 90 mm |
| Outlet Stud distance: | 48 mm |
| Scope of delivery: | Cylinder head, Cylinder, Gasket set, Kolben Set |
| Outlet stud bolt thread: | M6 |
| Cylinder stud distance: | 50 x 50 mm |
| Number of overflows: | 3 |
| Cylinder stud bore: | 8 mm |
| Manifold connection type: | Flange |
| Color: | Grey |
| Spark plug thread: | M14 x 1.25 |
| Number of piston rings: | 2 |
| Features: | Durable, Corrosion resistant |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x cylinder set |
| Manufacturer number: | 129046 |
| Country and region of manufacture: | China |
| Type of motorcycle: | Scooter |
| Offer package: | Yes |
| Units quantity: | 1 |
| Description of the package content: | Cylinder head cylinder set |
| Manufacturer warranty: | 2 years |
| Material: | Several materials |
| Type: | Tuning |
| suitable for: | Minarelli LC horizontal |
Citomerx spare parts - precision, quality and top performance for your two-wheeler
Citomerx is an established brand in the field of spare parts and accessories for motorcycles, scooters, mopeds and quads. The company stands for precisely manufactured products, a wide range and excellent value for money. Riders and workshops who value reliable quality, a long service life and a high degree of fitting accuracy have been placing their trust in Citomerx for years.
Comprehensive range for all requirements
The Citomerx range includes far more than just standard spare parts: In addition to cylinder kits and variomatic weights, there are high-performance brake systems, robust clutches, electrical components such as alternators and starters as well as exhaust systems and carburetors. Many products are not only intended as replacements for original parts, but also offer a noticeable improvement in performance and durability thanks to technical optimizations. This allows drivers to keep their vehicle in top shape or optimize it in a targeted manner.
Precise fit and easy installation
Citomerx is particularly valued for the precise fit of its parts. Whether you are a hobby mechanic or a professional workshop - installation goes smoothly, as each component is precisely matched to the respective vehicle model. This saves time, ensures greater safety and reduces wear.
Suitable for everyday use and resilient
Another advantage of Citomerx is its consistent focus on suitability for everyday use. All products are designed for high loads and can withstand intensive use - whether in city traffic, on long tours or in sporty use. This makes Citomerx the right choice for all those who rely on technology that functions reliably and at the same time guarantees riding pleasure.
The advantages of Citomerx at a glance
- ✔️ Precise fit - easy installation without compromise
- ✔️ Wide range - from cylinder kits and brakes to electrics and exhaust systems
- ✔️ Optimized performance - many parts offer noticeable improvements over standard components
- ✔️ High load capacity - developed for everyday, touring and sporty use
- ✔️ Fair price-performance ratio - premium quality at attractive conditions
Conclusion: Citomerx impresses across the board
Whether for regular maintenance, necessary repairs or targeted tuning: Citomerx offers the right parts for almost every vehicle model. Drivers who value quality, reliability and durability consciously choose this brand.
With Citomerx, you are not only investing in spare parts, but also in the safety, value retention and performance of your two-wheeler. If you are looking for riding enjoyment without compromise, Citomerx is the right choice.
