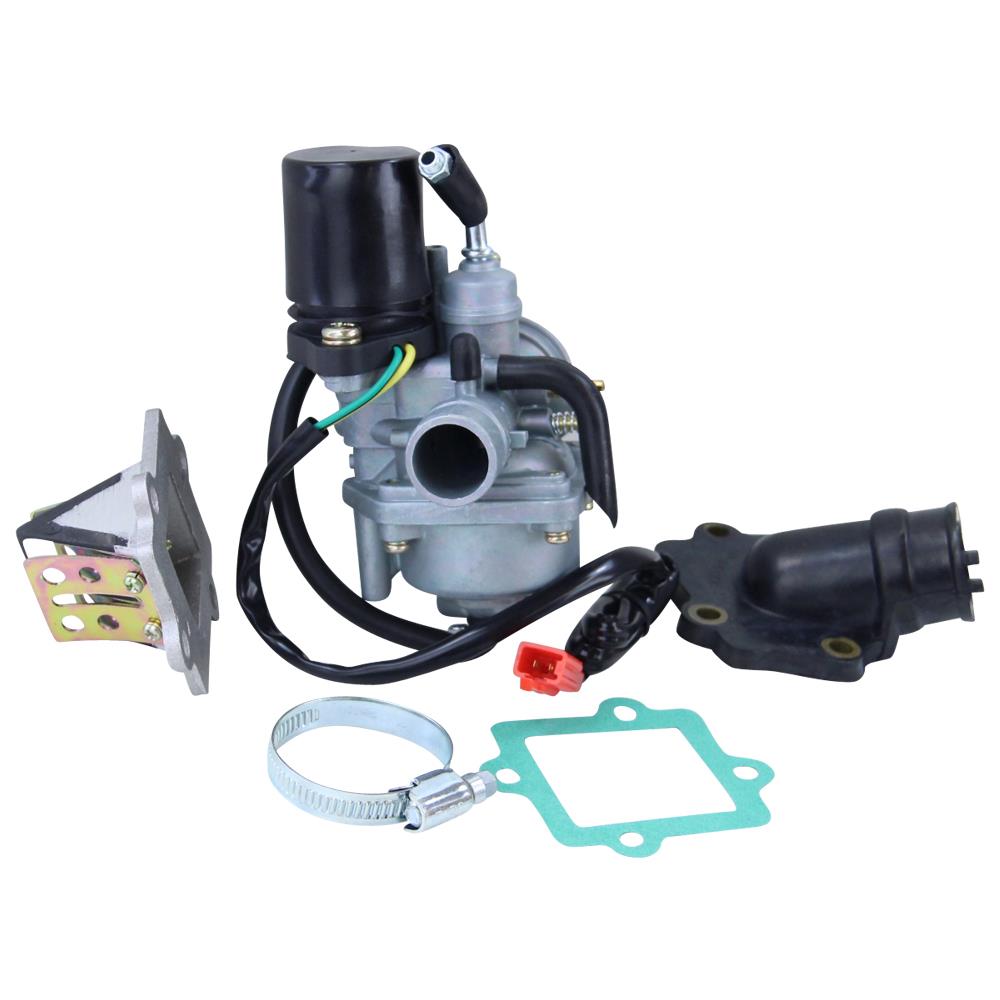

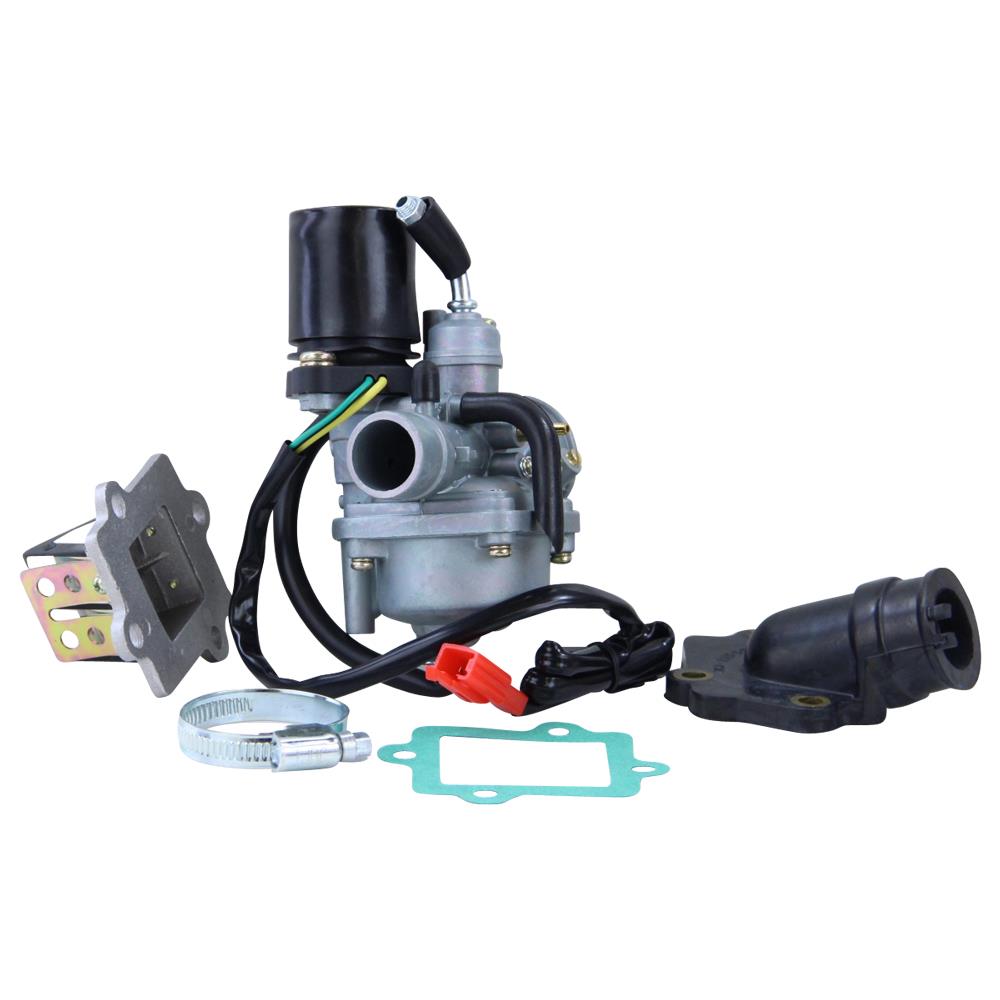

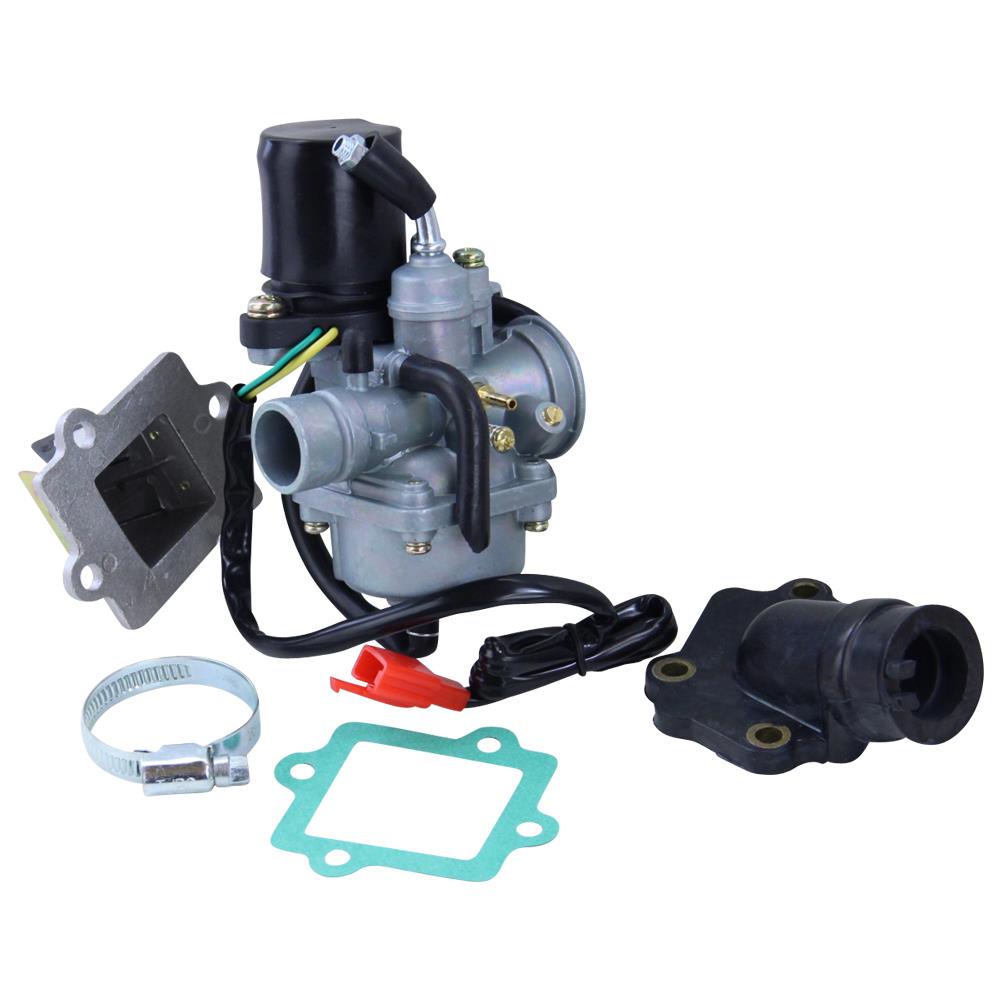

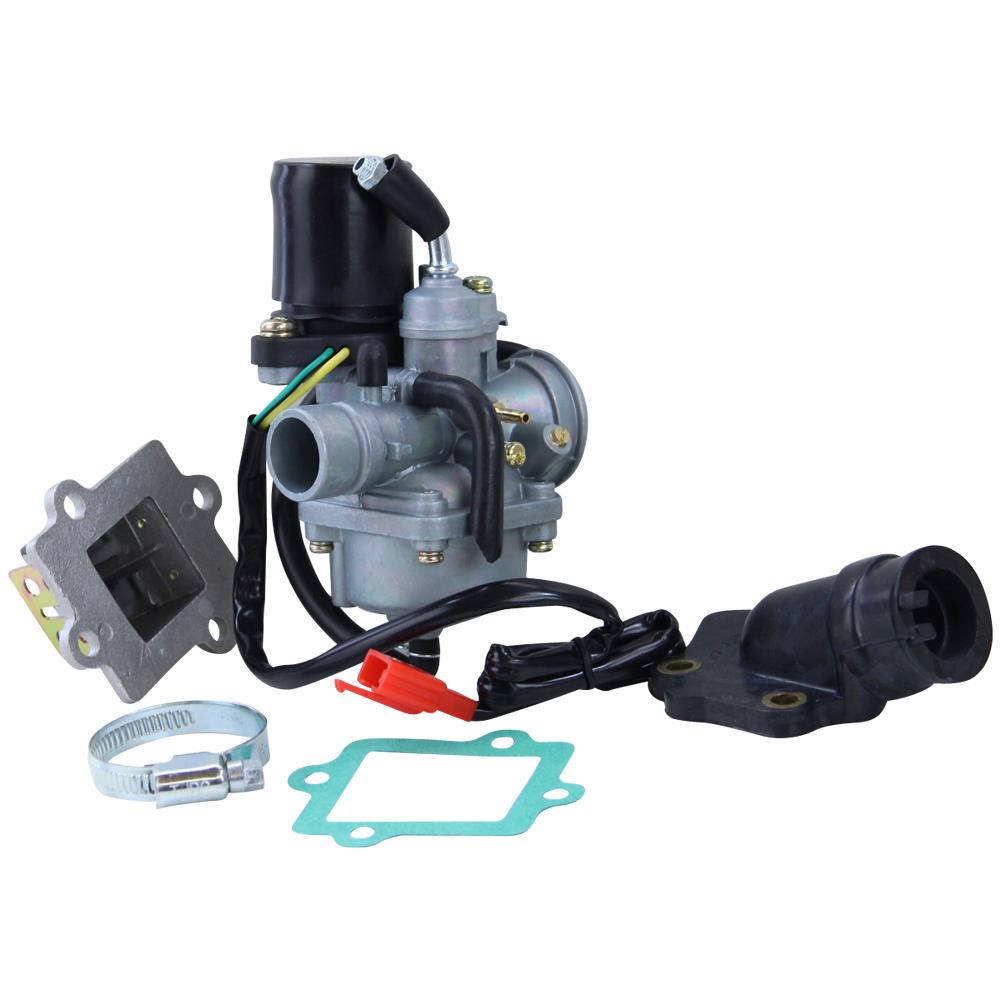

Yamaha Aerox MBK Nitro Minarelli carburettor 17,5mm + intake + reed block
- Manufacturer: Citomerx
- Item no: 166149
- Manufacturer no.: 166149
- EAN: 4251048891976
Item data
| Product type: | Carburetor kit |
| Country of origin: | China |
| Air filter side connection: | ca. 35 mm |
| Length of connection cable 2-pole: | 500 mm |
| Connection motor side: | ca. 24 mm |
| GTIN: | 4251048891976 |
| Tuning intake manifold: | Durchlass 20 mm, Anschlussweite (ohne Dehnung): 22,4 mm, für liegende Minarelli Motoren AC und LC |
| Scope of delivery: | Carburetor, intake manifold, diaphragm block, gasket |
| Membrane block: | mit Metall Zungen, für liegende Minarelli Motoren, STVZO-Zulassung |
| Carburetor: | mit E-Choke, vorabgestimmt, Hauptdüse 80, 6 mm Gewinde |
| Sealing: | Hole spacing (hole center to hole center) 63mm x 55mm, inner cut-out 43.5 mm x 37 mm |
| Manufacturer number: | 166149 |
| Country and region of manufacture: | China |
| Modification description: | enlarged aperture to 17.5 mm |
| Modified item: | Yes |
| Offer package: | Yes |
| Units quantity: | 1 |
| Description of the package content: | Carburetor + intake manifold + diaphragm block + gasket |
| Manufacturer warranty: | 2 years |
| Brand: | Citomerx |
| suitable for: | all 50 cc 2-stroke scooters with 1P40QM/B engine |
Prices plus VAT plus shipping costs
In stock! Delivery time 1-3 working days
Presto Power Brake Cleaner 600 ml – Powerful Parts Cleaner for Residue-Free Cleanliness
Intake manifold gasket for horizontal Minarelli engines Aerox Nitro SR50,CPI Oliver Keeway
Water pump repair kit for Minarelli LC engines, MBK Nitro, Yamaha Aerox, Aprilia SR50
Cylinder Kit 70ccm for Minarelli water cooled engines, Aprilia SR50, Yamaha Aerox, MBK Nitro
Cylinder kit with aluminum cylinder head 50 cc + NGK spark plug Yamaha Aerox, MBK Nitro
Gel Battery 12V 5Ah for 50ccm Scooter – YB4L-B, YTX4L-BS, YT4L-B – Citomerx
Spark Plug NGK BR7HS 4122 suitable for Scooter, Moped, Motorcycle – Spare Part Number 105031
Sport Variator 16 mm crankshaft stub for Explorer Baotian CPI Generic Keeway 50cc 2-stroke
Universal fuel tap for 5-6mm fuel hose (connection width: 6 mm) for scooter moped
Starter / electric starter for Minarelli engines AC & LC, Aprilia, Beta, MBK, Rexy, Yamaha
Cylinder kit 50cc Minarelli AC air-cooled horizontal engines, CPI, Rexy, Keeway
Citomerx main jet set 55-115 Ø 6 mm for Dellorto & Mikuni carburetors - 25 pieces
Kickstarter set: pinion+shaft+spring+driver for Yamaha Aerox Minarelli 50cc MBK
Yamaha Aerox crankshaft + cylinder + gasket set MBK Nitro Aprilia SR 50 Gulliver
Scooter Mirror Set left/right black with E-Number for Keeway, ATU, etc. - Citomerx
Gel battery CIT YB4L-B, 12 V 5 Ah, positive pole right, DIN 50411LV + charger
Starter freewheel complete for AC & LC Minarelli engines, Aerox, Nitro, SR50, CPI
Cylinder kit 50cc AC air-cooled 12mm bolt angled flange for horizontal CPI engines, CPI, Keeway
Citomerx main jet set 55-115 Ø 6 mm for Dellorto & Mikuni carburetors - 25 pieces
Carburettor Standard Gurtner replica 12mm with E-Choke Peugeot, Hercules, Kymco, SYM
Float incl. float needle + bolt for Dellorto PHVA PHBN 12-17.5 mm carburetor Citomerx
Float Chamber Gasket Carburetor Mikuni for CPI Generic Keeway Yamaha MBK SYM Peugeot Kymco
Alternator Version 1 (3-pin connector / 2 cables) for 4-stroke 50cc China GY6 / Kymco 139QMB 139QMA
Stator Alternator 4 Wires for 2-Stroke China Scooters CPI Keeway Generic ATU 50 Citomerx 105526
Presto 3x600 ml Power Brake Cleaner - Effective Parts Cleaner for Motorcycle, Scooter & Moped
Brake pads Brenta 3074 organic front for CPI Baby Hussar Mars Popcorn 50 / XS 250
Carburetor 2-stroke 12mm for Hercules MK 3, MK 4, Sportbike SB 2, SB 3, Sachs Type 501,Tomos
Universal fuel tap for 5-6mm fuel hose (connection width: 6 mm) for scooter moped
Carburettor DellOrto PHVA 17.5 TS Adly/Herchee, Aprilia, Benelli, Beta, Kreidler, Yamaha 01389
Brake pads type FA115 set of 4 for Piaggio, Peugeot with AJP calipers
Rear shock absorber 300mm black for Aprilia CPI Keeway Generic MBK Peugeot Rex Yamaha
More power for your scooter - this set makes it possible!
DESCRIPTION:
Because this set includes not only the gasket, safety clamp and reed valve block, but also intake manifold and sports carburettor - each with enlarged passage. So on the one hand you get everything you need for the complete renewal of the carburettor including accessories. On the other hand you increase the performance of your scooter.
But the set also has other advantages: Compared to buying the set individually, you no longer have to search for all the individual parts you need. Also the price of the set is significantly lower than buying it separately.
So don't wait any longer, but convince yourself of the advantages of this set as soon as possible!
TECHNICAL DATA:
CARBURETTOR
- Carburettor with E-Choke
- pre-tuned
- Main nozzle 80, 6 mm thread
- passage 17,5 mm
- Connection air filter side: approx. 35mm
- Connection motor side: approx. 24mm
- Connection petrol hose: 3,5mm
- Length of connection cable (2-pole): 500mm+
- Carburettor fits all 50cc 2-stroke scooters with 1P40QM/B engine
SUGGESTORS
- Tuning intake manifold
- passage: 20mm
- Connection width (without expansion): 22.4mm
- for horizontal Minarelli motors up to a connection width of 24mm
- air- and water-cooled
MEMBRANE BLOCK
- Diaphragm block with metal reeds
- for horizontal Minarelli engines
- permitted in road traffic (STVZO)
SEALING
- Hole spacing "hole centre to hole centre" (measured on opposite sides): 63mm x 55mm
- inner cut-out: 43,5mm x 37mm
SCOPE OF SUPPLY:
✔ 1x sports carburettor
✔ 1x intake socket
✔ 1x membrane block
✔ 1x intake manifold gasket
✔ 1x mounting clip
