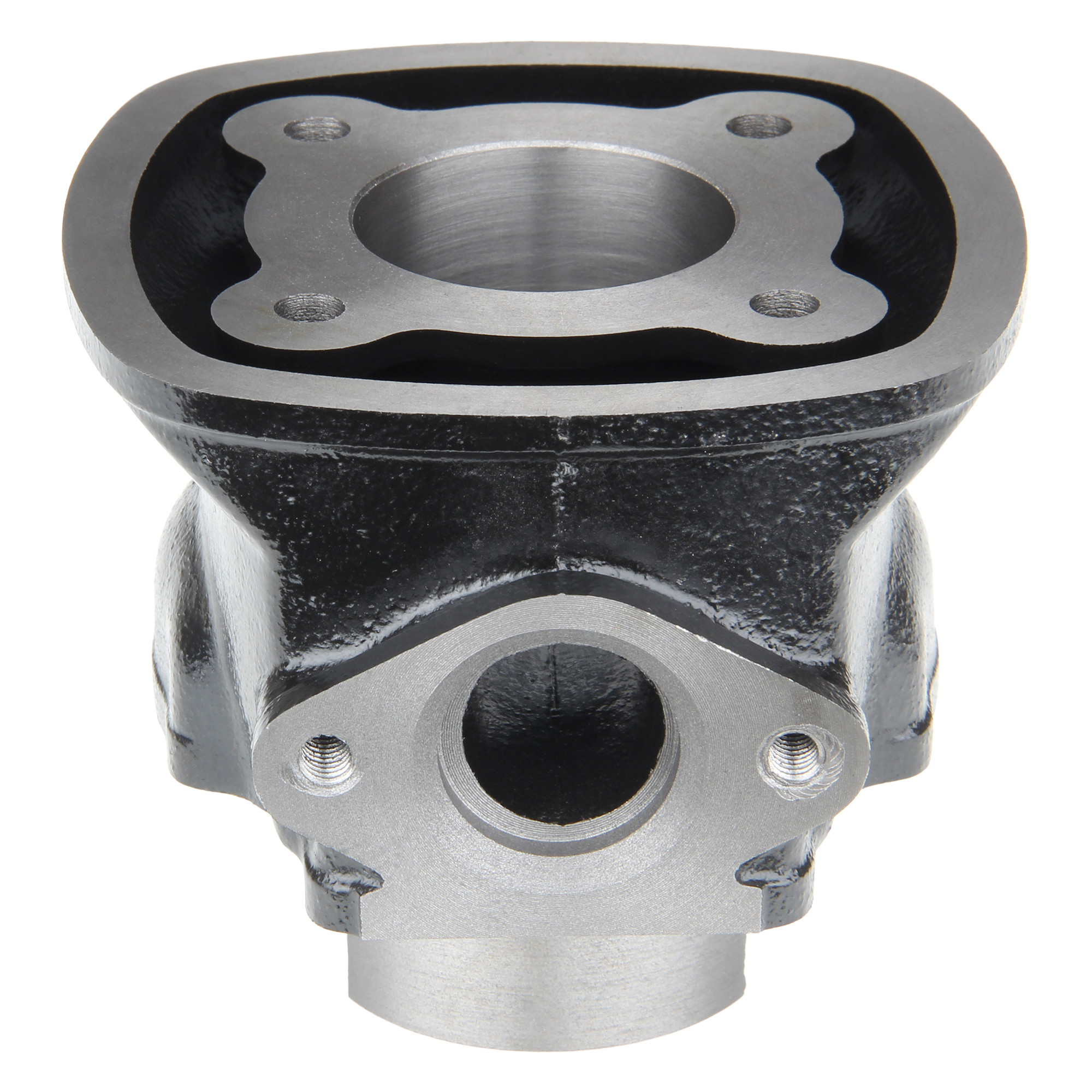

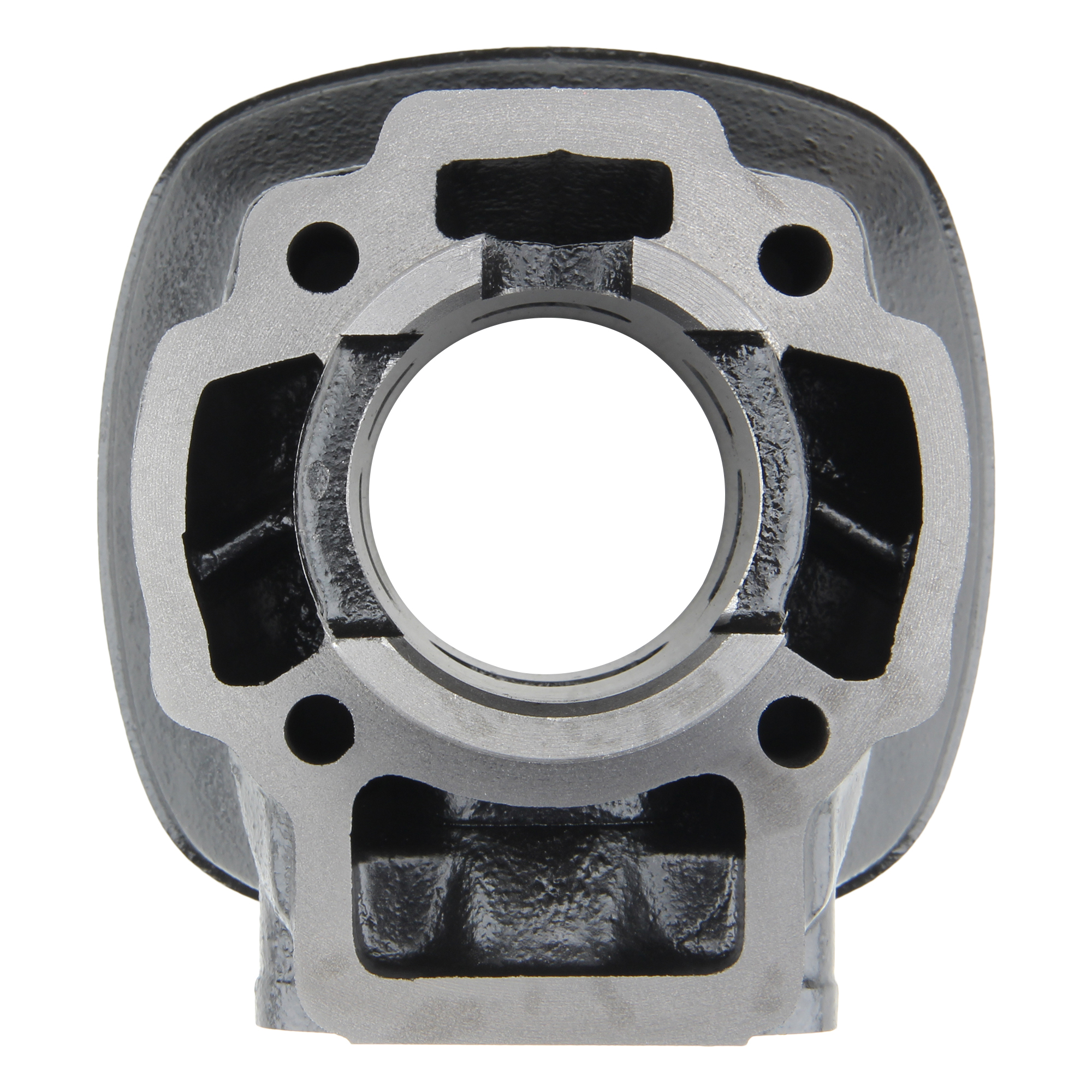

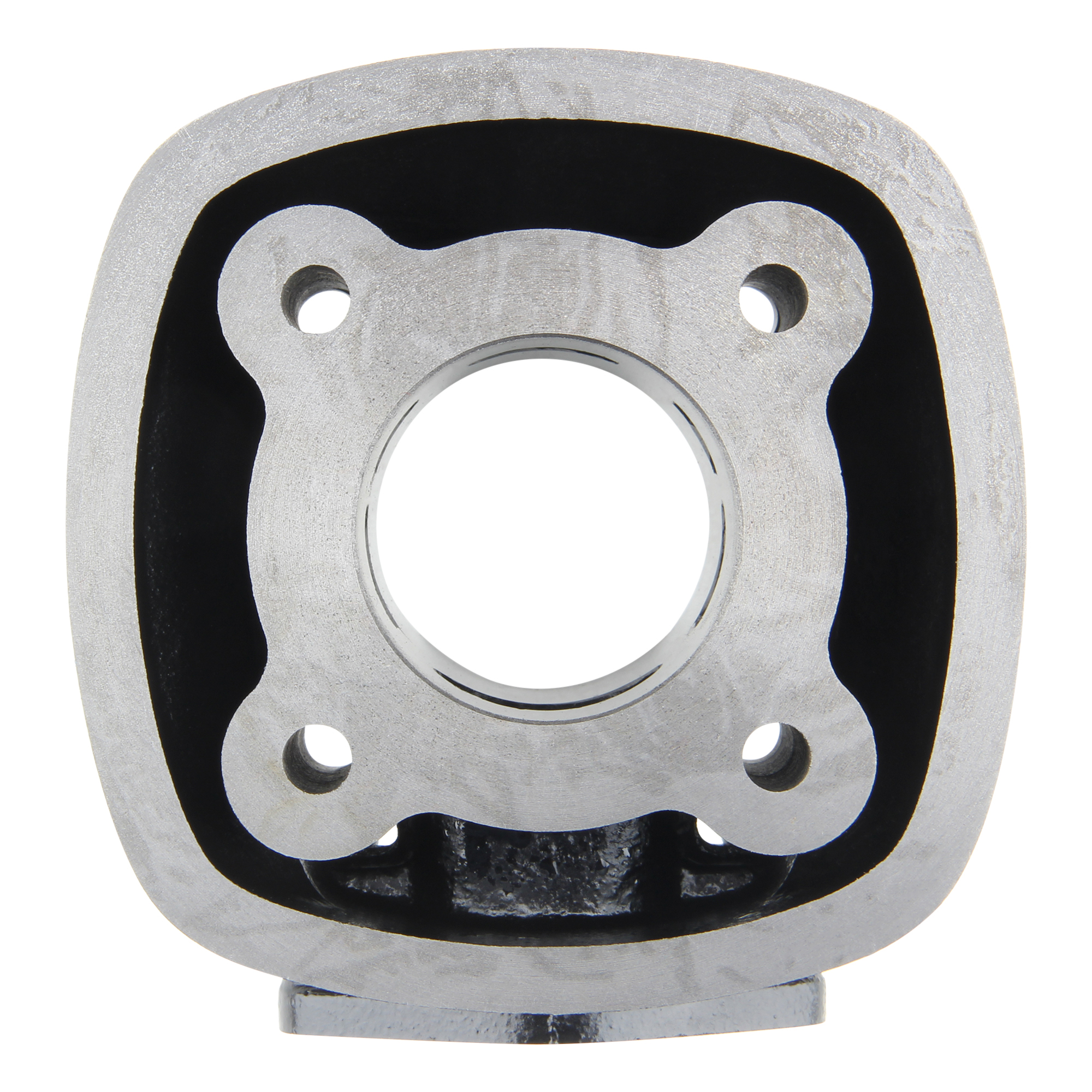

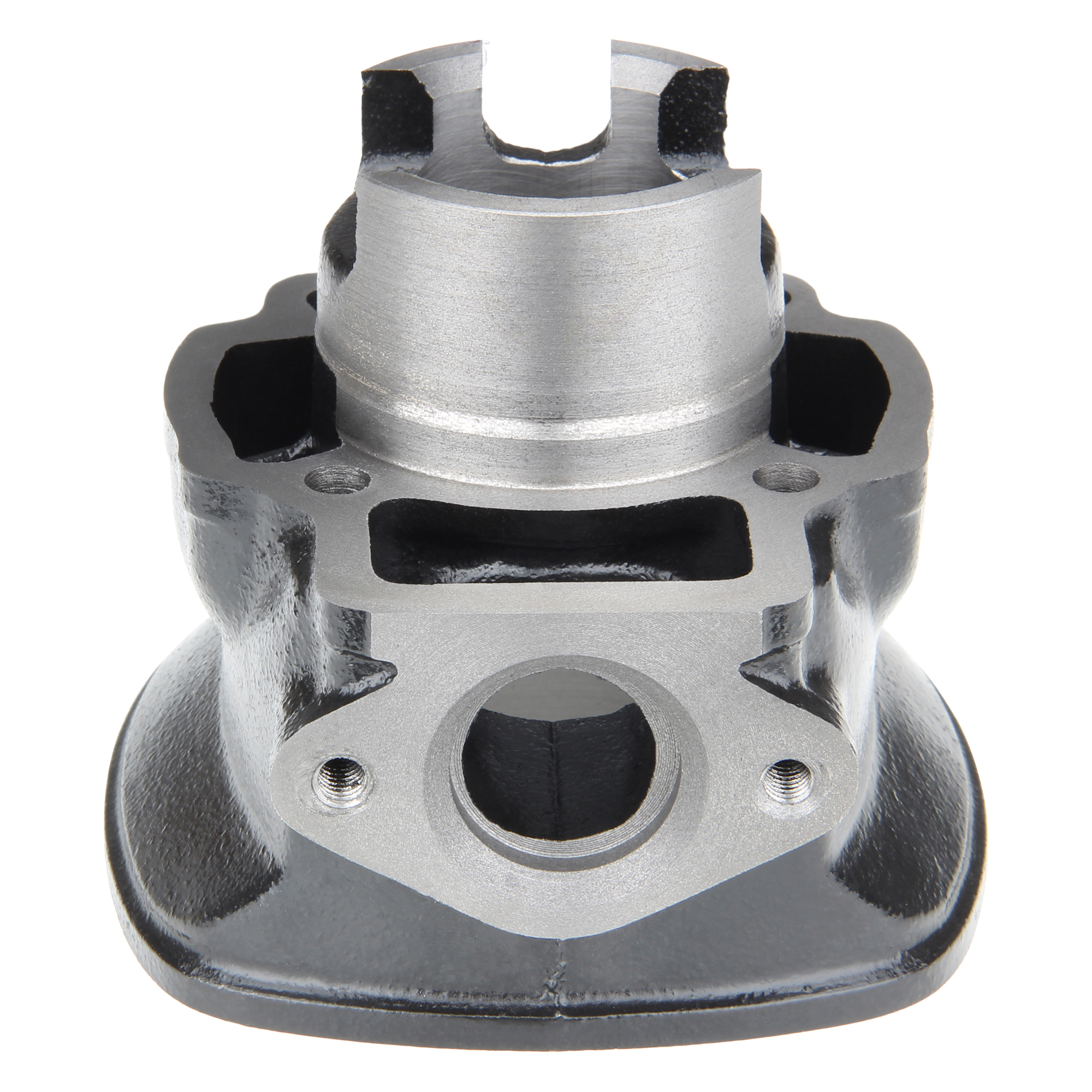

Cylinder set 50cc 40mm (square) LARGE for Piaggio LC NRG NTT Quartz Zip / Gilera Runner (until 1997)
- Manufacturer: Citomerx
- Item no: 165233
- Manufacturer no.: 165233
- EAN: 4251048825681
Item data
| Product type: | Cylinder set |
| Country of origin: | China |
| Piston pin diameter: | 12 mm |
| Displacement: | 50 cc |
| Can the original cylinder head be used?: | Yes |
| Tuning & Styling Part: | No |
| Piston ring profile: | Halbtrapez-Ring |
| Vintage part: | No |
| Surface finish: | Matt |
| GTIN: | 4251048825681 |
| Diffuser internal dimension: | 20 mm |
| Cylinder dimensions (LxWxH): | 100 x 100 x 85 mm |
| Outlet Stud distance: | 46 mm |

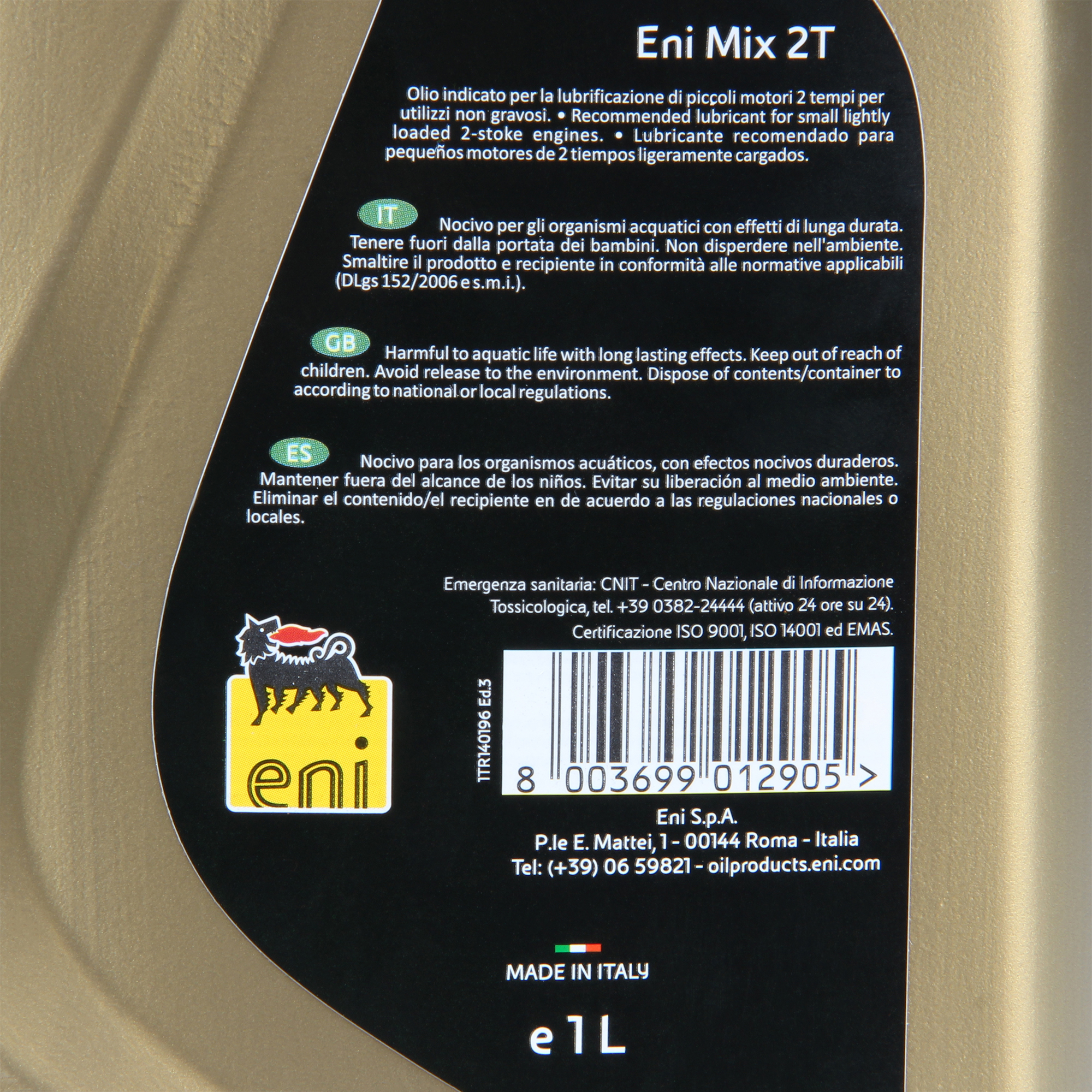

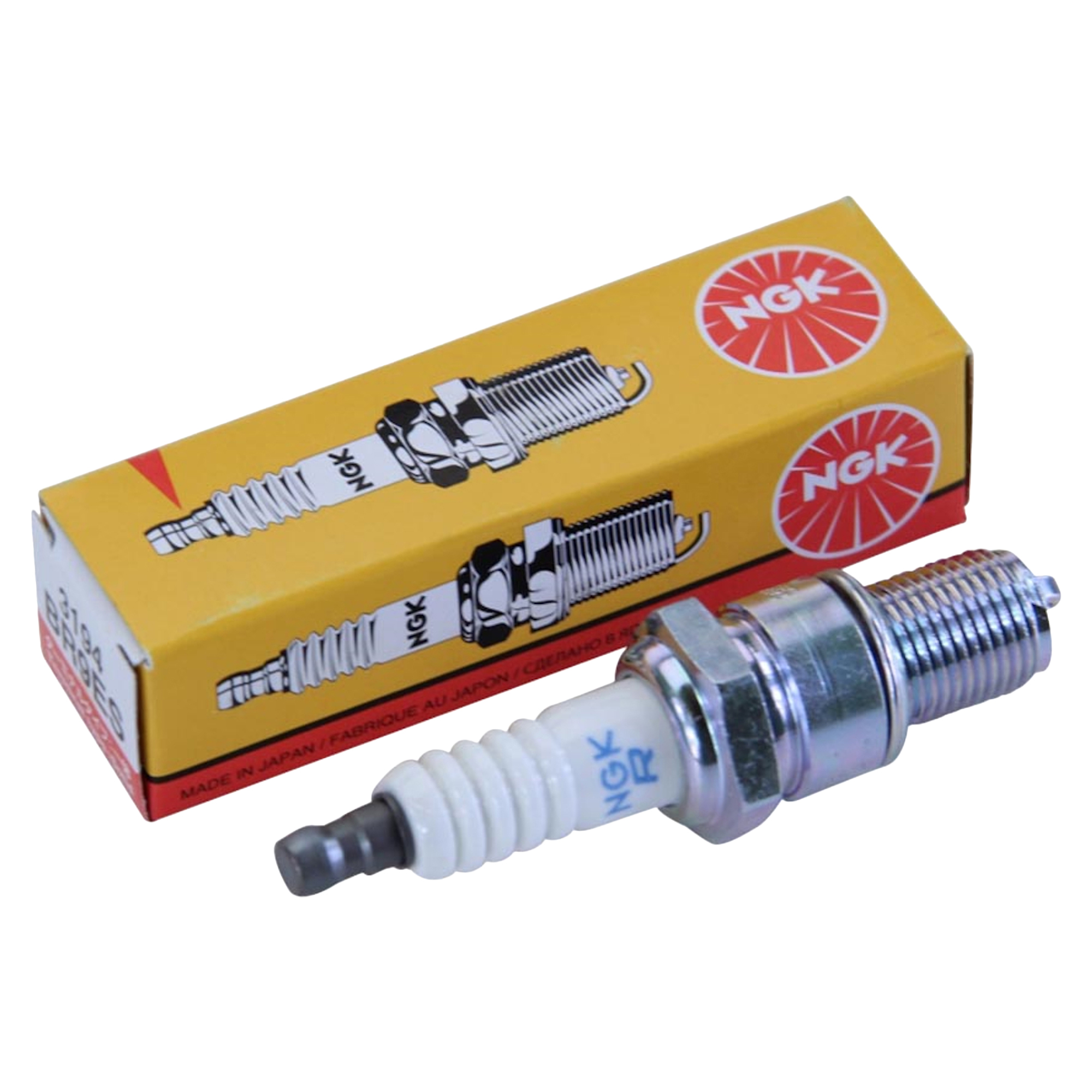

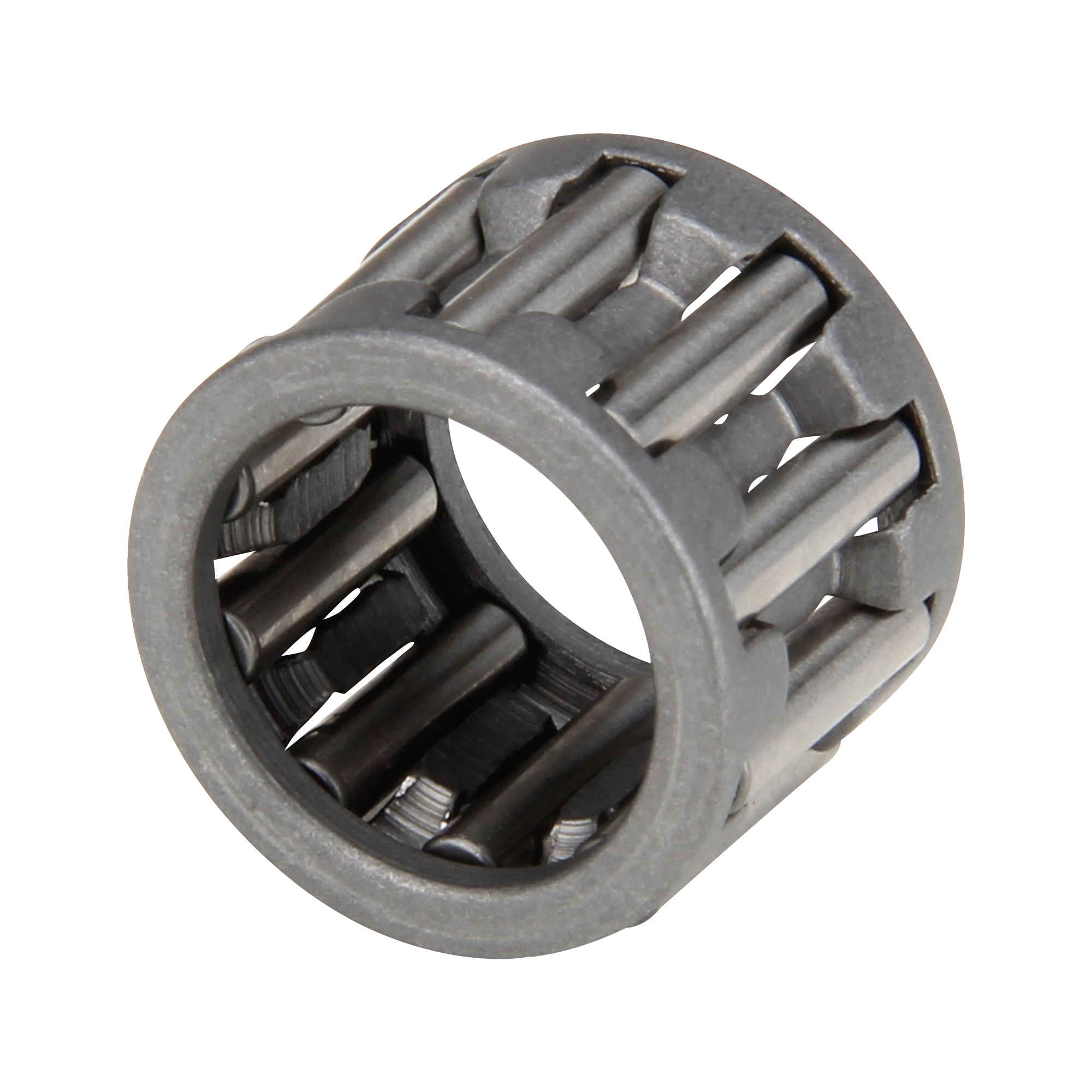

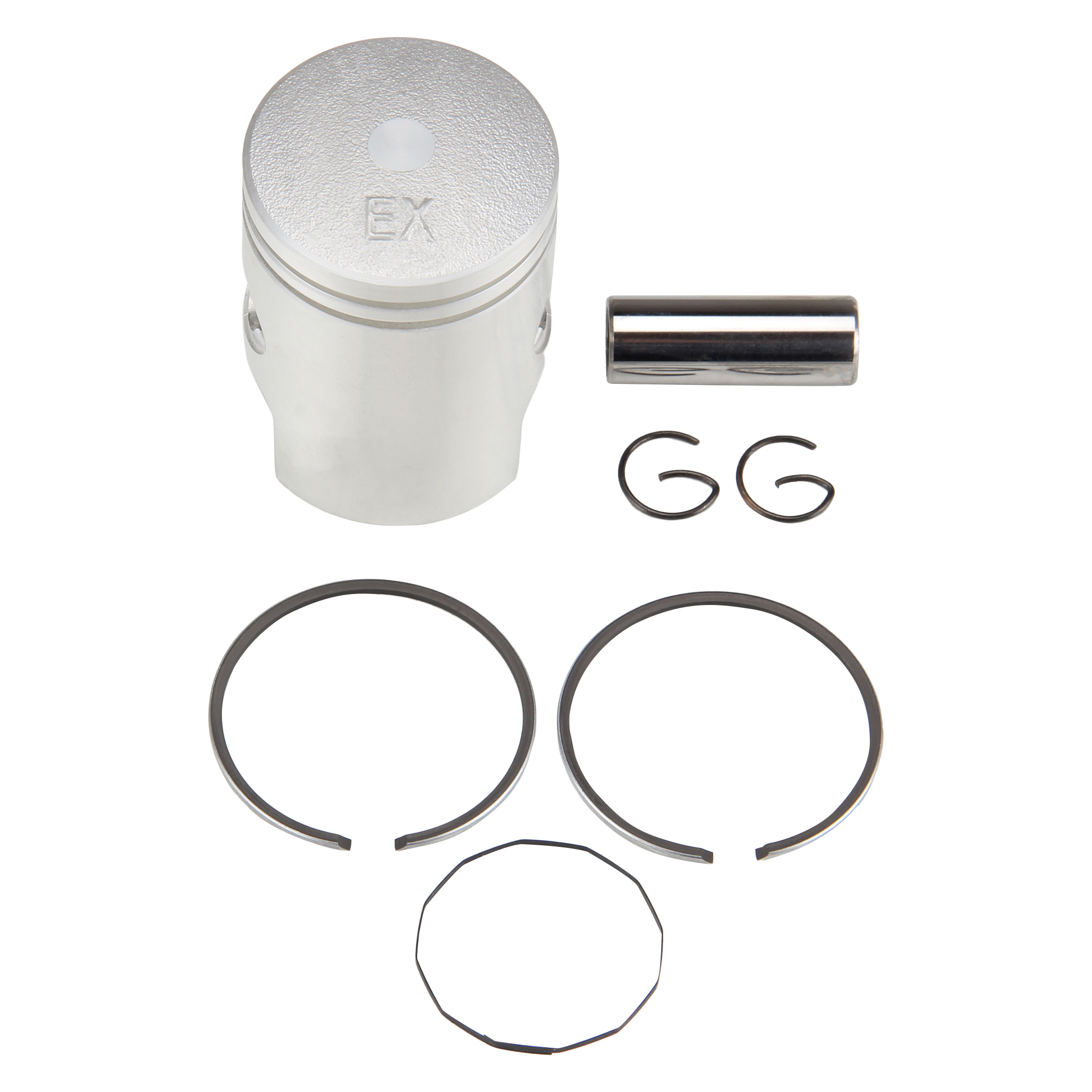

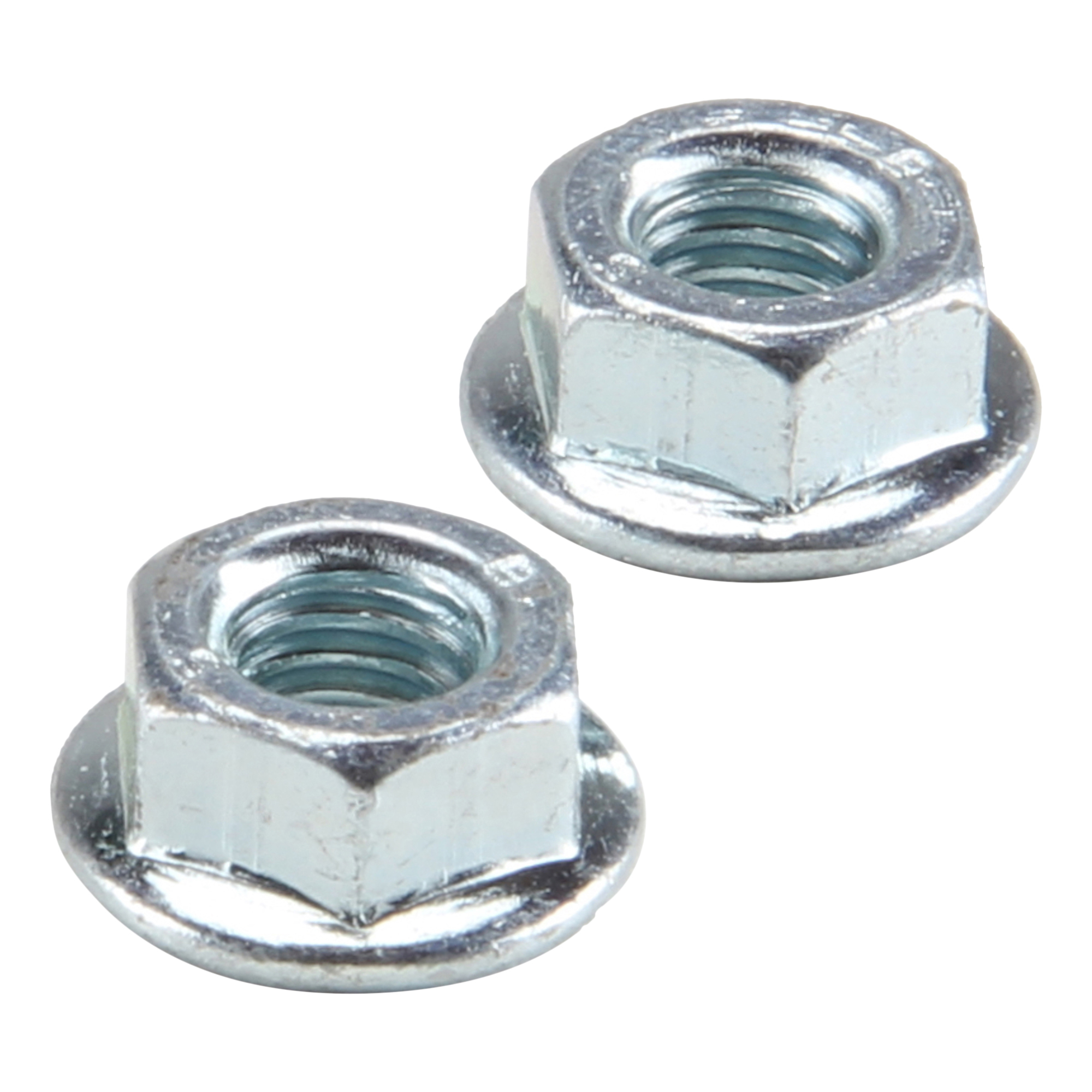

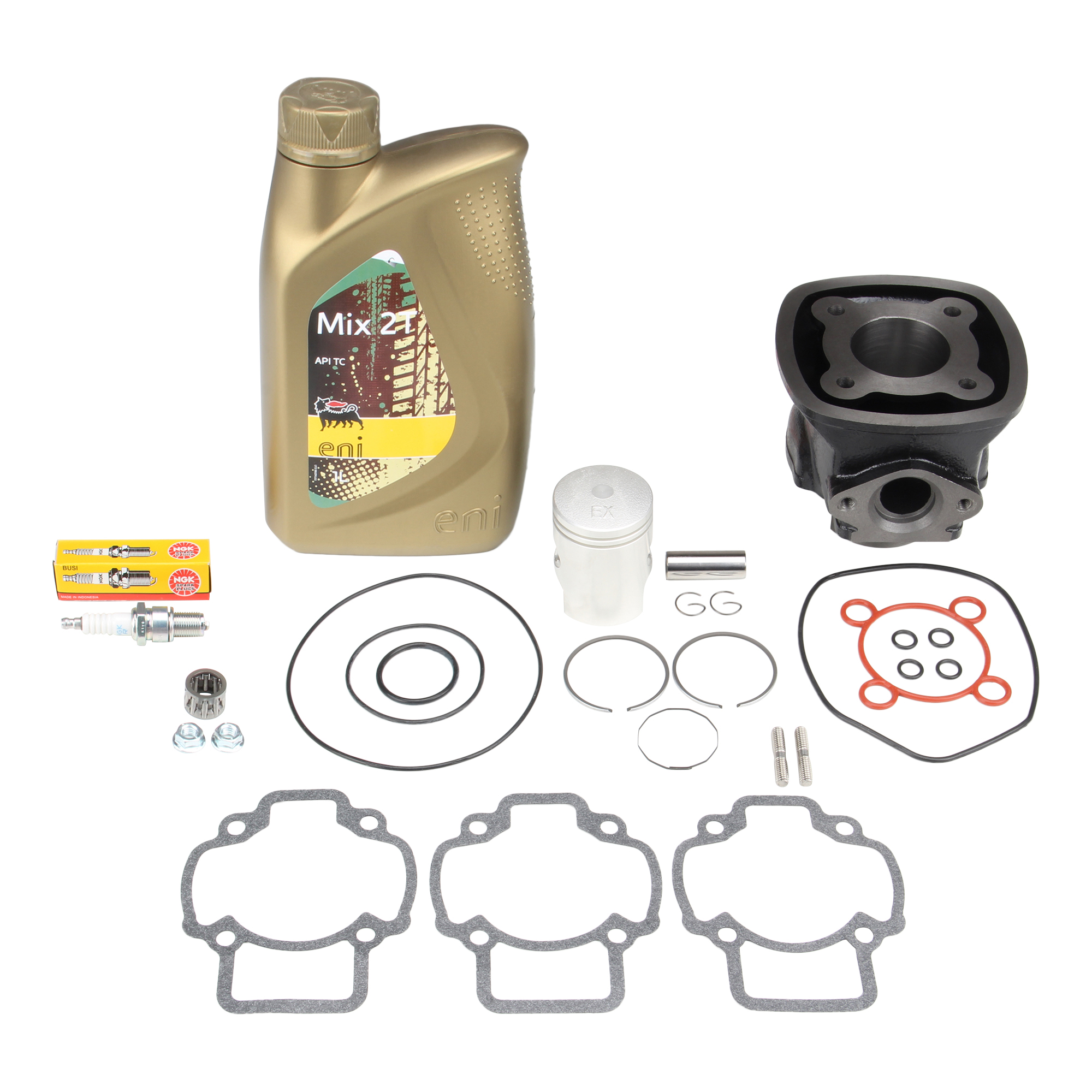

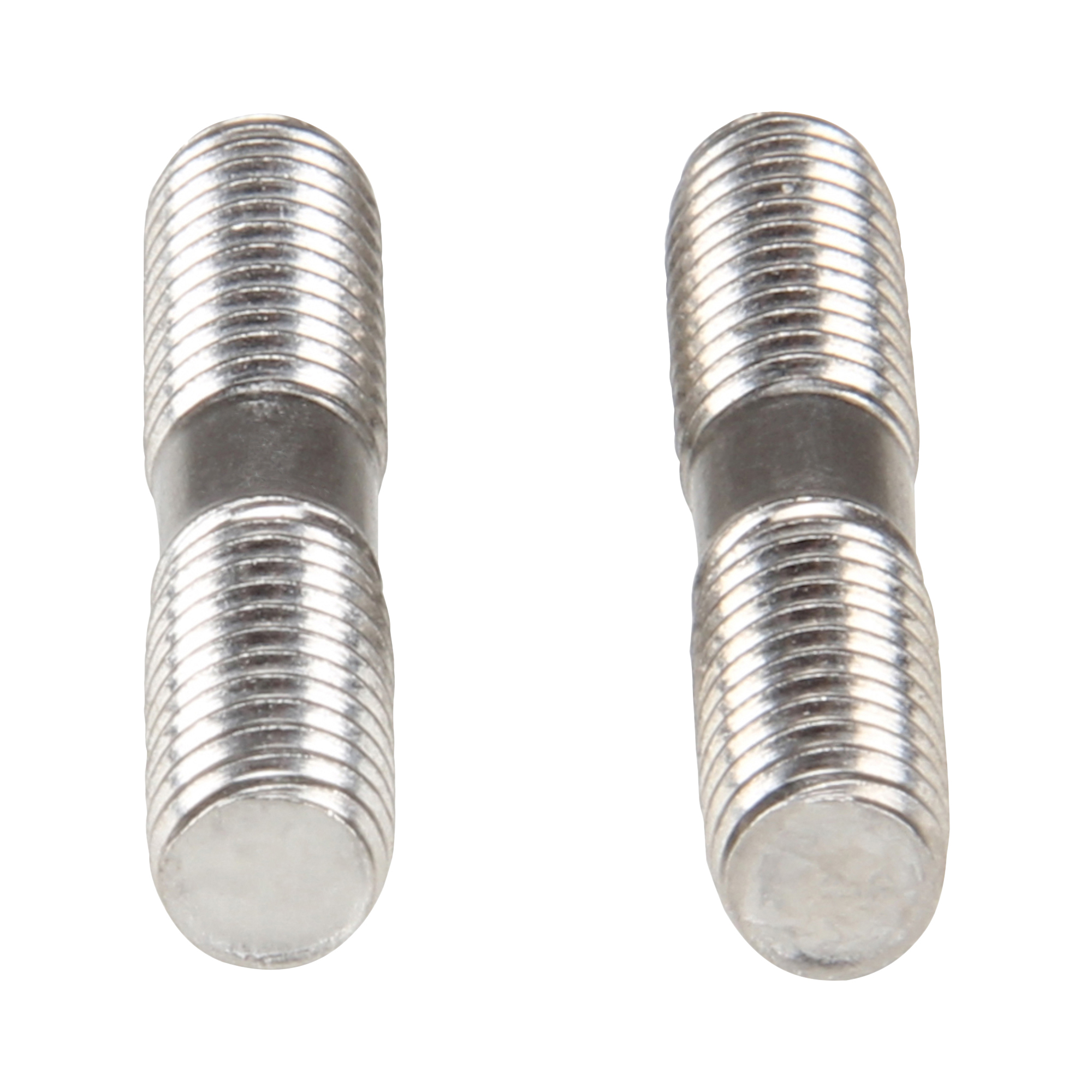

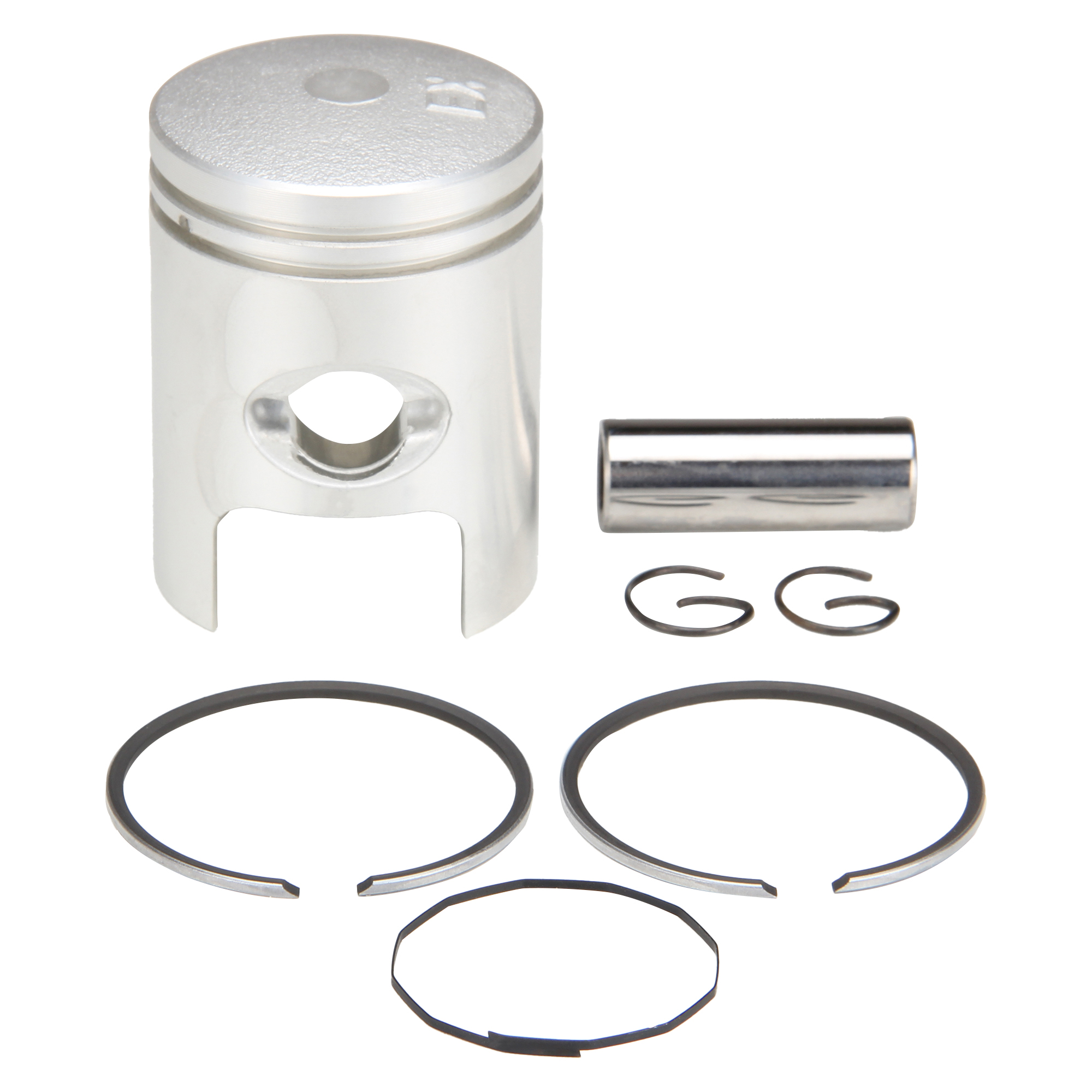

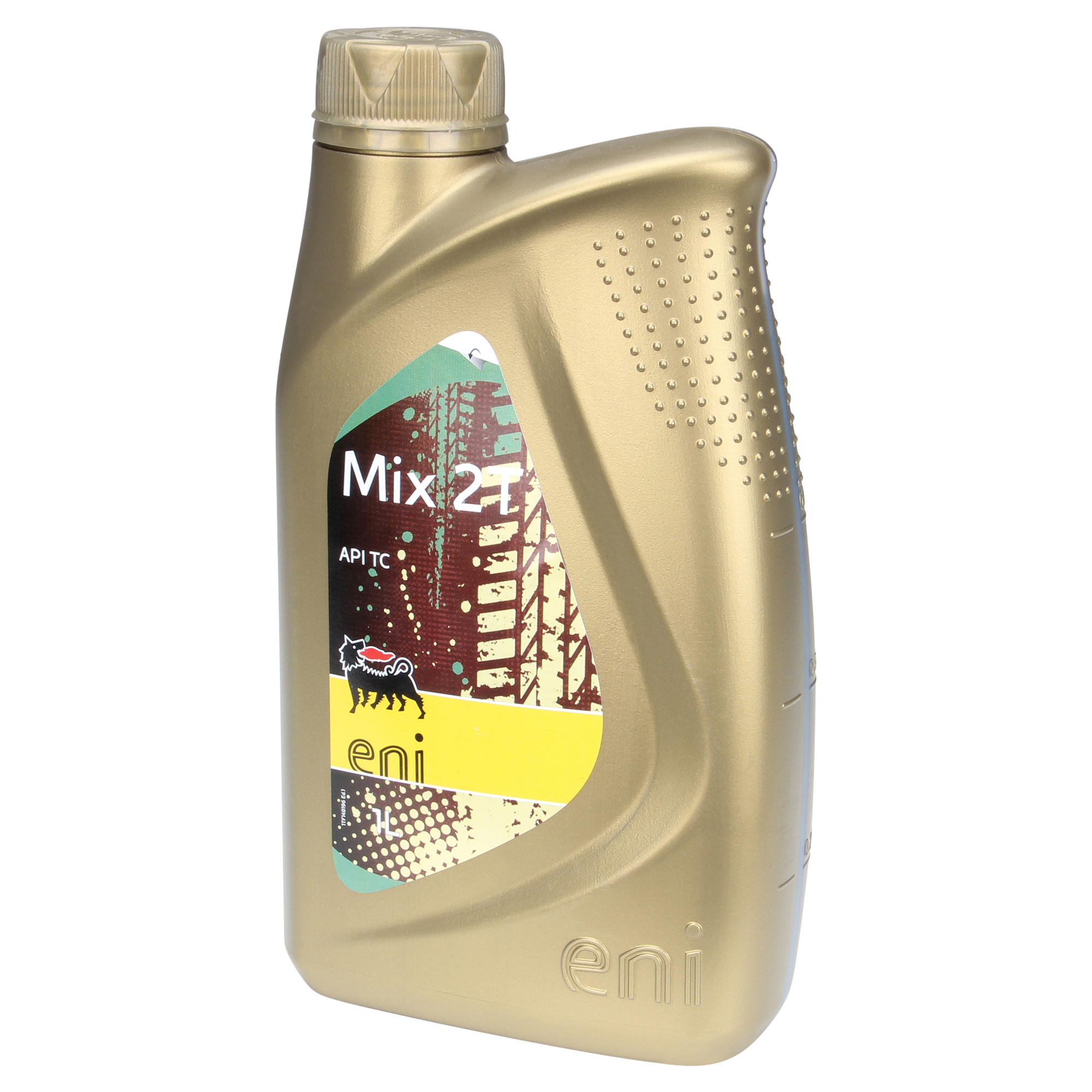

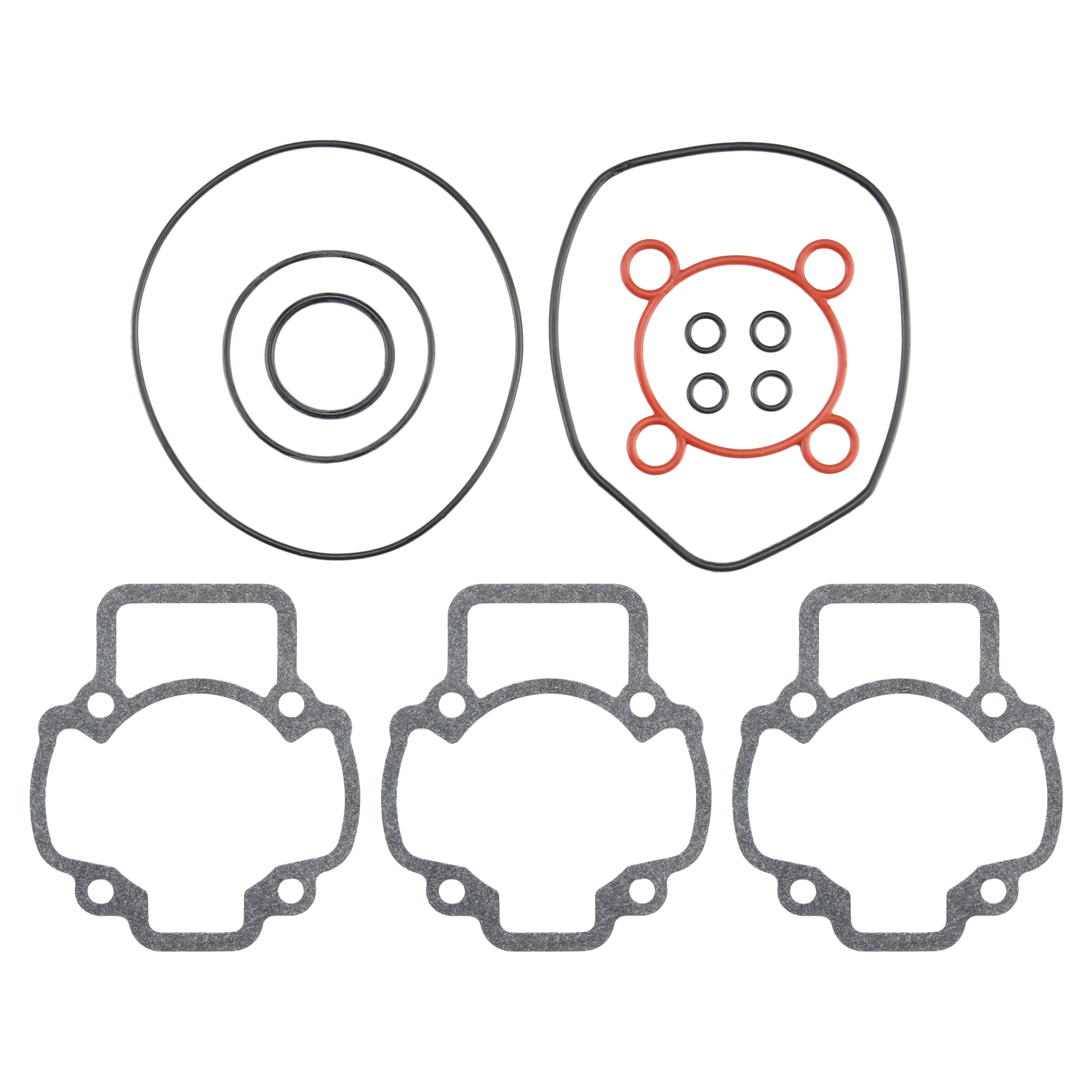

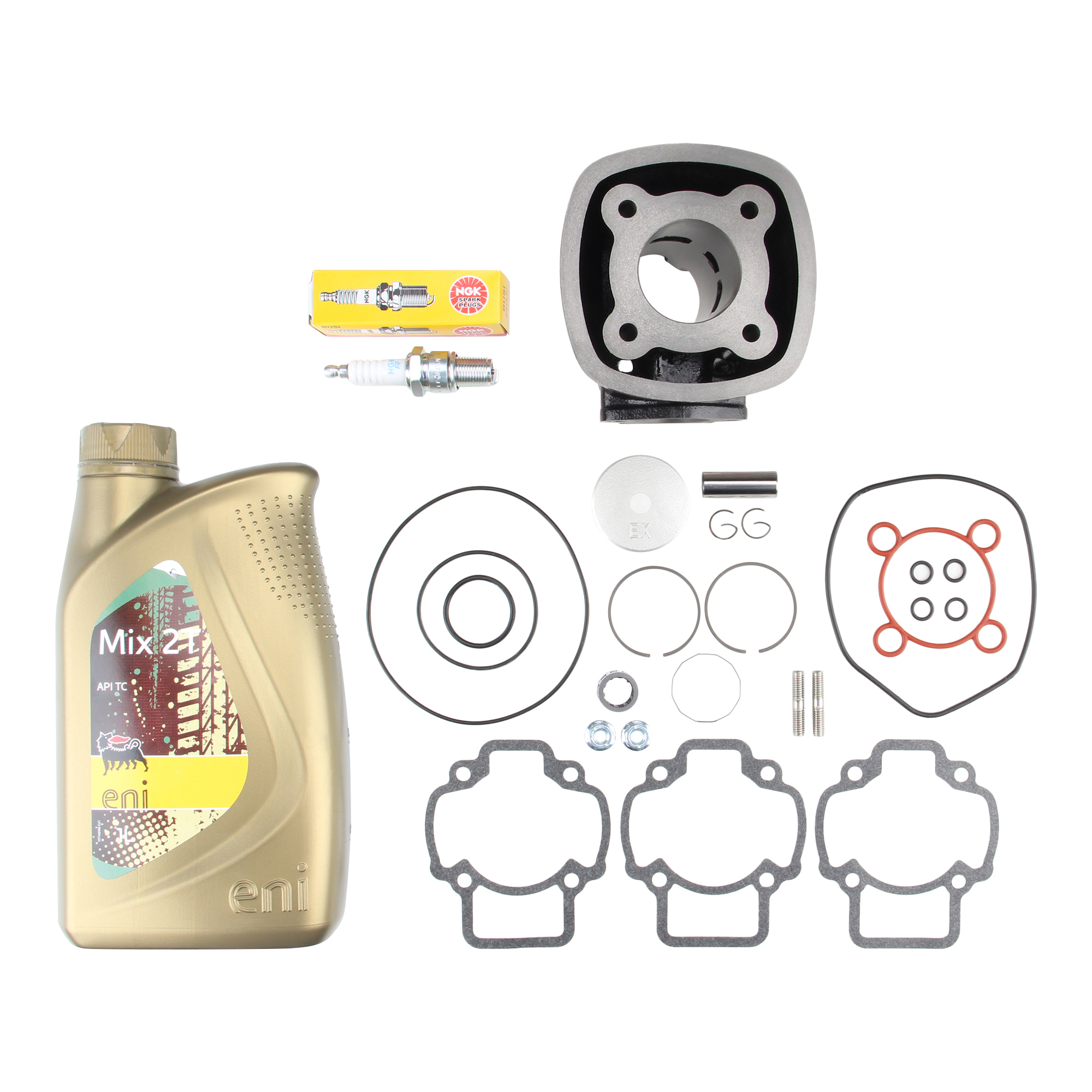

| Scope of delivery: | Cylinder, Gasket set, Kolben Set, Zündkerze NGK BR9ES, 2x Stehbolzen M6x26, Nadellager 12x17x13, 2x Krümmermutter M6, Öl Agip Mix 2T |
| Outlet stud bolt thread: | M6 |
| Cylinder stud distance: | 48 x 48 mm |
| Number of overflows: | 3 |
| Cylinder stud bore: | 7 mm |
| Manifold connection type: | Flange |
| Color: | Grey |
| Number of piston rings: | 2 |
| Features: | Durable, Corrosion resistant |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x cylinder set |
| Manufacturer number: | 165233 |
| Country and region of manufacture: | China |
| Type of motorcycle: | Scooter |
| Offer package: | Yes |
| Units quantity: | 1 |
| Description of the package content: | Cylinder set Needle bearing Spark plug Stud bolt Oil |
| Manufacturer warranty: | 2 years |
| Material: | Several materials |
| Type: | Standard |
| suitable for: | Piaggio LC water-cooled (4-cornered) |
