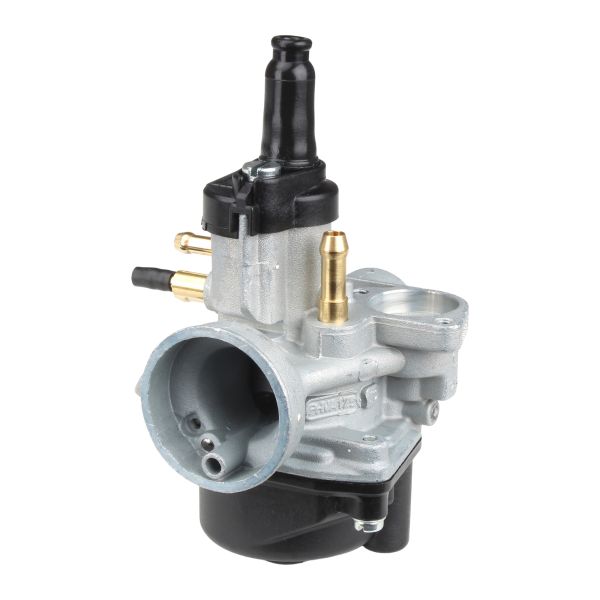

Carburettor Dellorto PHVA 17.5 TS 01403
- Manufacturer: Dellorto
- Item no: 999901403
- Manufacturer no.: 01403
- EAN: 4251048831507
Item data
| Product type: | Carburetor |
| Country of origin: | Italien |
| Number of mixing chambers: | 1 |
| Series: | PHVA |
| Connection Type (Motor Side): | Steck |
| Connection Type: Air Filter Side: | Steck |
| Side Adjustment Screw: | S |
| Dellorto Carburetor Number: | 01403 |
| Main jet (type / thread / size): | 6413-95 / M6 / 95 |
| Idle jet (type / thread / size): | 11600-38 / M4 / 38 |
| Air filter side connection: | 35 mm |
| Tuning & Styling Part: | No |
| Vintage part: | No |
| Universal compatibility: | No |
| ATTENTION: | Vergaser auch für andere Modelle passend! Maße vergleichen! |
| Connection motor side: | 24 mm |
| GTIN: | 4251048831507 |
| Lubrication: | Getrennt |
| Note: | Vergaser grundeingestellt. Abstimmung muss nach Einbau erfolgen! |
| Scope of delivery: | Carburetor |
| Comparison number: | Dellorto 01403, Dellorto 1403 |
| Throttle cable: | gerade |
| Color: | Grey |
| Culvert: | 17.5 mm |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x carburetor |
| Manufacturer number: | 01403 |
| Installation position: | Engine compartment |
| Type of motorcycle: | Scooter |
| Units quantity: | 1 |
| Manufacturer warranty: | 2 years |
| Material: | Metal |
| Type: | PHVA 17,5 TS |
