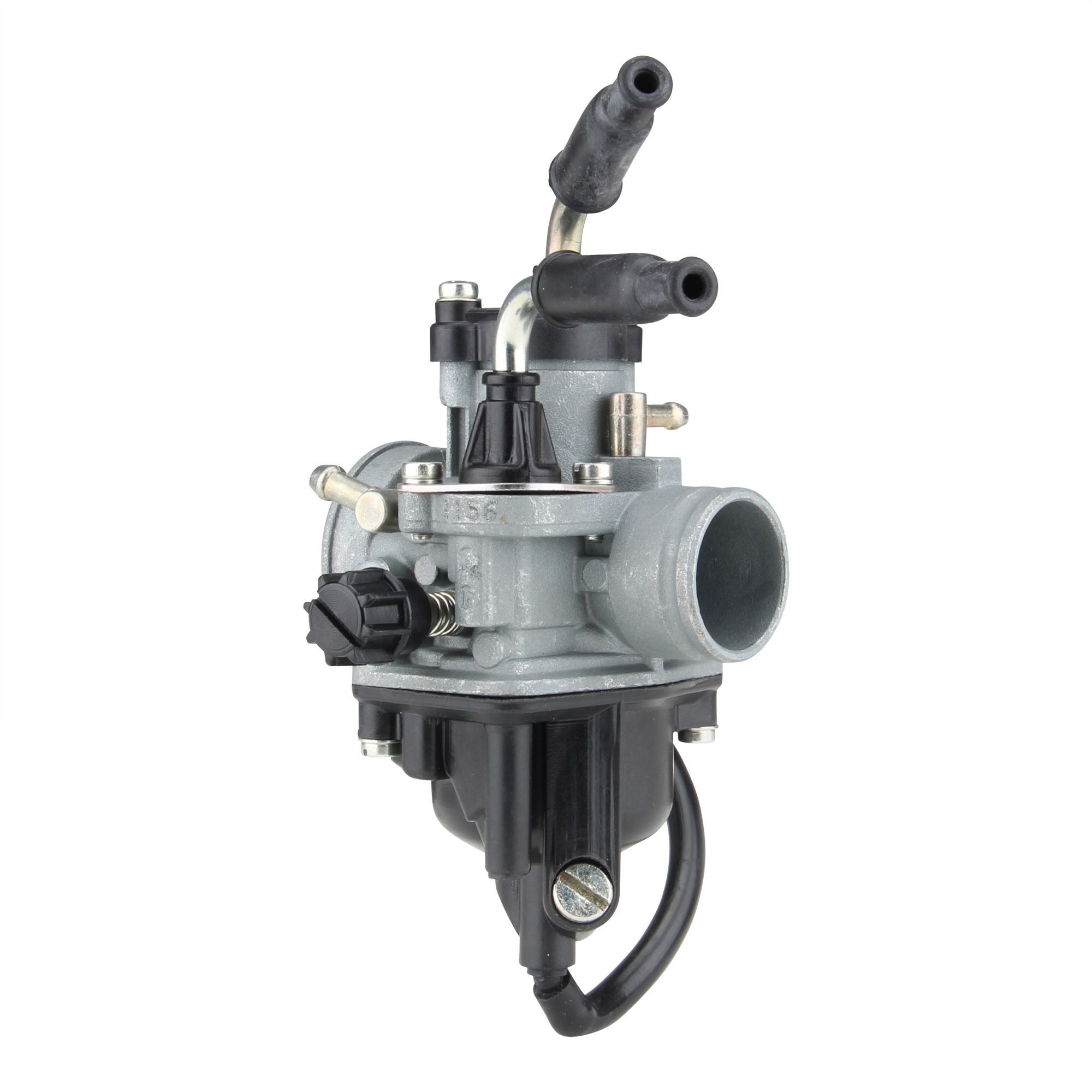

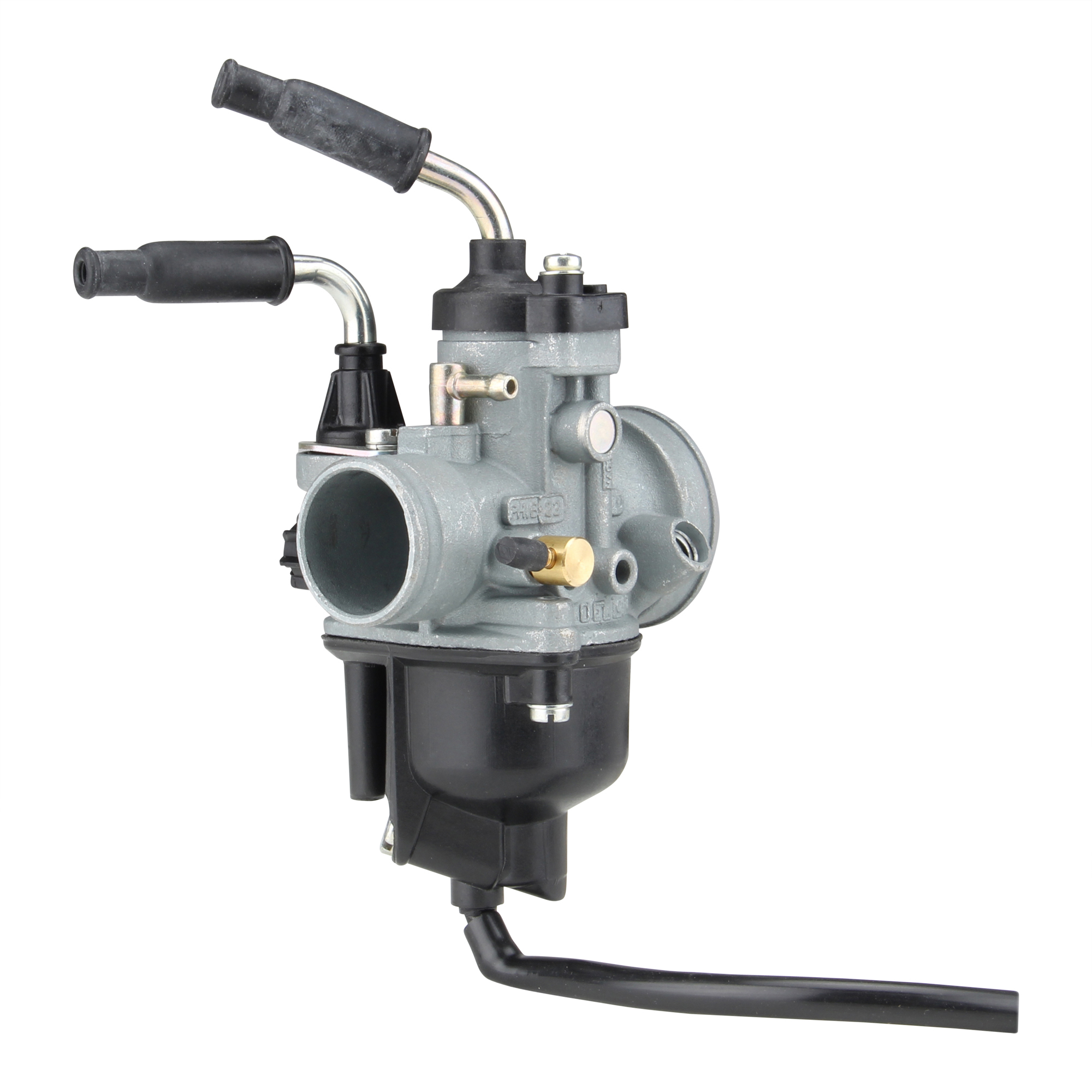

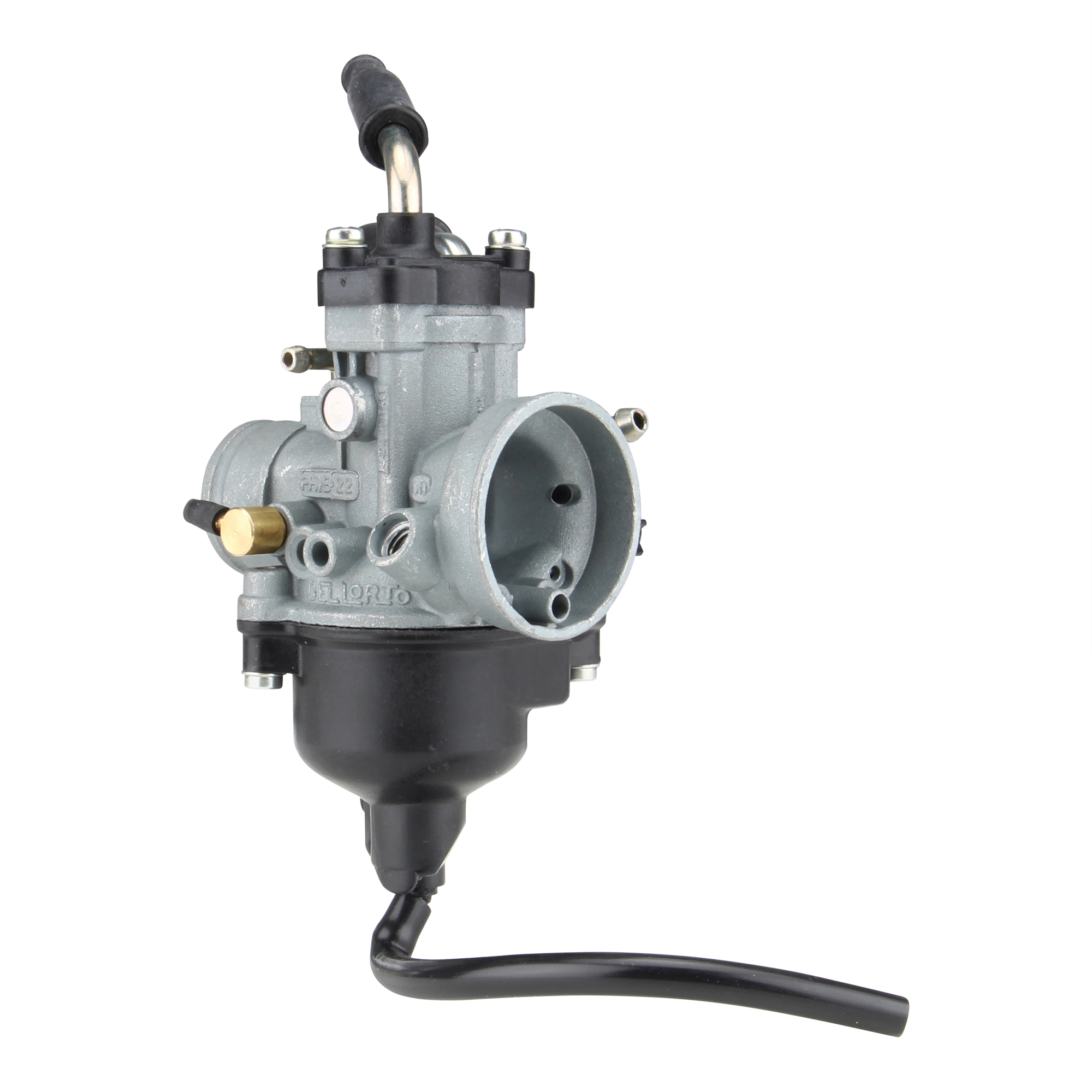

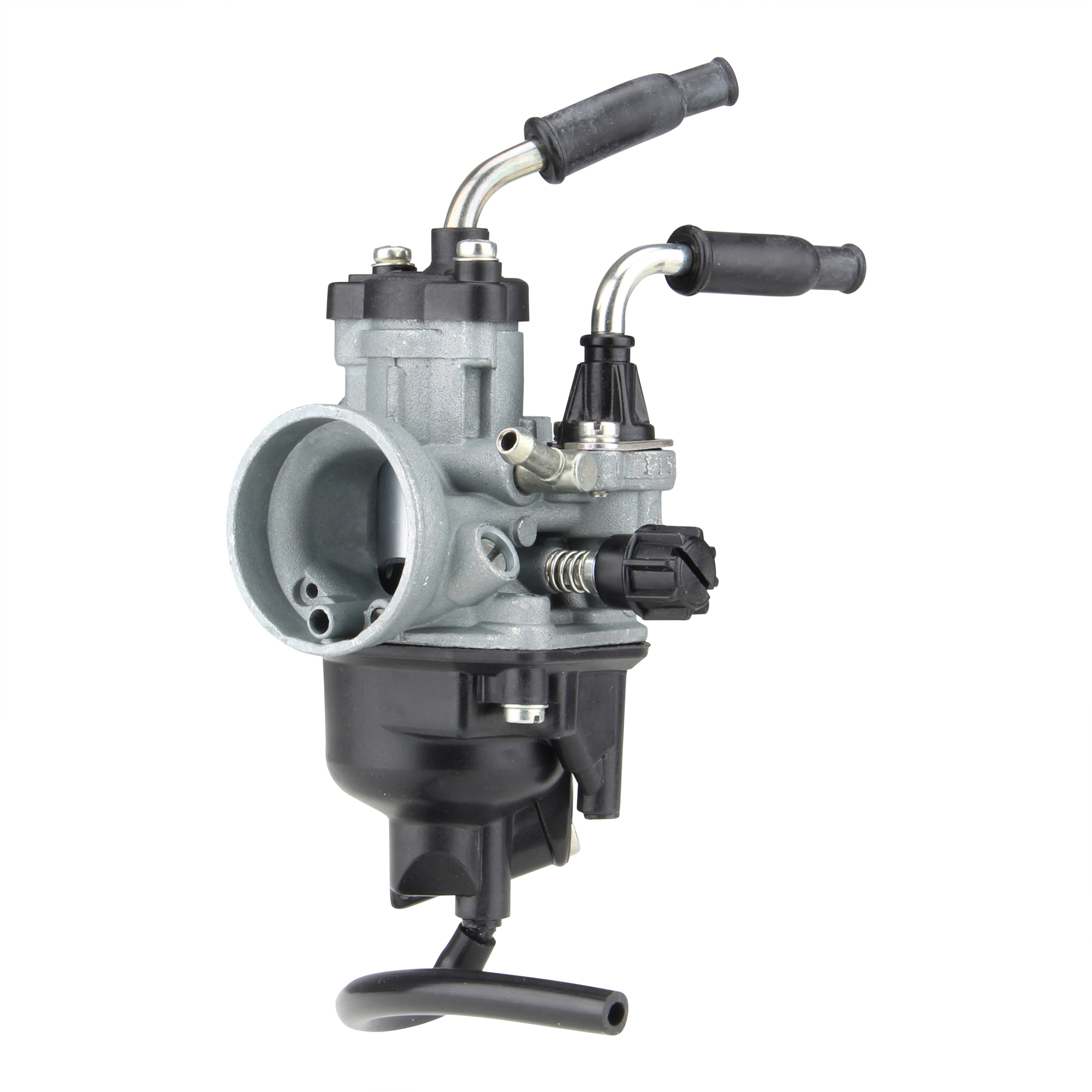

Dell Orto carburetor 01156, type PHVB 22 CD, adjustment right, 2-stroke
- Manufacturer: Dellorto
- Item no: 999901156
- Manufacturer no.: 01156
- EAN: 4251048832368
Item data
| Product type: | Carburetor |
| Country of origin: | Italien |
| Number of mixing chambers: | 1 |
| Side Adjustment Screw: | D |
| Connection Type (Motor Side): | Steck |
| Connection Type: Air Filter Side: | Steck |
| Main jet (type / thread / size): | 6413-95 / M6 / 95 |
| Series: | PHVB |
| Idle jet (type / thread / size): | 15500-45 / M5 / 45 |
| Dellorto Carburetor Number: | 01156 |
| Air filter side connection: | 41,5 mm |
| Tuning & Styling Part: | No |
| Vintage part: | No |
| Universal compatibility: | No |
| ATTENTION: | Vergaser auch für andere Modelle passend! Maße vergleichen! |
| Connection motor side: | 29 mm |
| GTIN: | 4251048832368 |
| Lubrication: | Getrennt |
| Note: | Vergaser grundeingestellt. Abstimmung muss nach Einbau erfolgen! |
| Scope of delivery: | Carburetor |
| Comparison number: | Dellorto 01156, Dellorto 1156 |
| Throttle cable: | Winkel |
| Color: | Grey |
| Culvert: | 22 mm |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x carburetor |
| Manufacturer number: | 01156 |
| Installation position: | Engine compartment |
| Type of motorcycle: | Scooter |
| Units quantity: | 1 |
| Manufacturer warranty: | 2 years |
| Vacuum connection: | Yes |
| Material: | Metal |
| Type: | PHVB 22 DD |
Cylinder kit 50cc including cylinder head + valves for China scooters, Baotian, Rex RS450
Cylinder kit 50cc Minarelli AC air-cooled horizontal engines, CPI, Rexy, Keeway
Cylinder kit 50cc AC air-cooled 12mm bolt angled flange for horizontal CPI engines, CPI, Keeway
Cylinder Kit 70cc LC watercooled incl. head for Piaggio engines, NRG, ZIP, NTT, Gilera Runner
If the engine runs unevenly, this could be a sign of a faulty carburetor. Dell'Orto, the carburetor specialist from Italy, offers the right spare parts and complete carburetors of the highest quality.
Dell'Orto is one of the world's largest manufacturers of carburetors for motorcycles, mopeds, mopeds and scooters. Dell'Orto has been supplying Italian motorcycle manufacturers such as Aprilia, Piaggio, Moto Guzzi, Ducati, Benelli, Laverda and MV Agusta as well as other manufacturers such as BMW, Honda, Husqvarna, Husaberg, KTM, Peugeot and Yamaha with high-quality, innovative carburetors since 1933. The major scooter engine manufacturers Minarelli and Morini also rely on the expertise and premium quality of the Italian carburetor specialist Dell'Orto.
Always on the right track with a new Dell'Orto carburetor.
The basic function of the carburetor is modified or supplemented by several additional features. For example, the cold and hot start behavior, the enrichment and acceleration phase or even the mixture drop after closing the throttle are changed by influencing the air or fuel supply.
The PHVA and PHVB carburetors are the most common models in the 50cc class. Almost every Piaggio engine is equipped with them. With the classic design and a wide range of equipment options, such as various throttle cable and choke variants, these models are extremely variable.
Technical data:
Type PHVB Var. C with 22 mm passage, separate lubrication
- for 2-stroke engines
- Adjusting screws on the right
- Rubber flange connection Ø29mm
- Angled throttle cable
- Cable choke
equipped with
- throttle slide 14371-40
- Carburetor needle M 15377-06
- Main atomizer GH 15378-212
- Main jet 6413-95
- Idle jet 15500-45
- Float 13700-01, 3,5gr
