JASIL - Top Racing connecting rod repair kit ORIGINAL (91mm) for Zündapp 3/4/5 gear
- Manufacturer: JASIL - Top Racing
- Item no: 6001042
- Manufacturer no.: 6001042
- EAN: 5605822001621
Item data
| Product type: | Connecting rod |

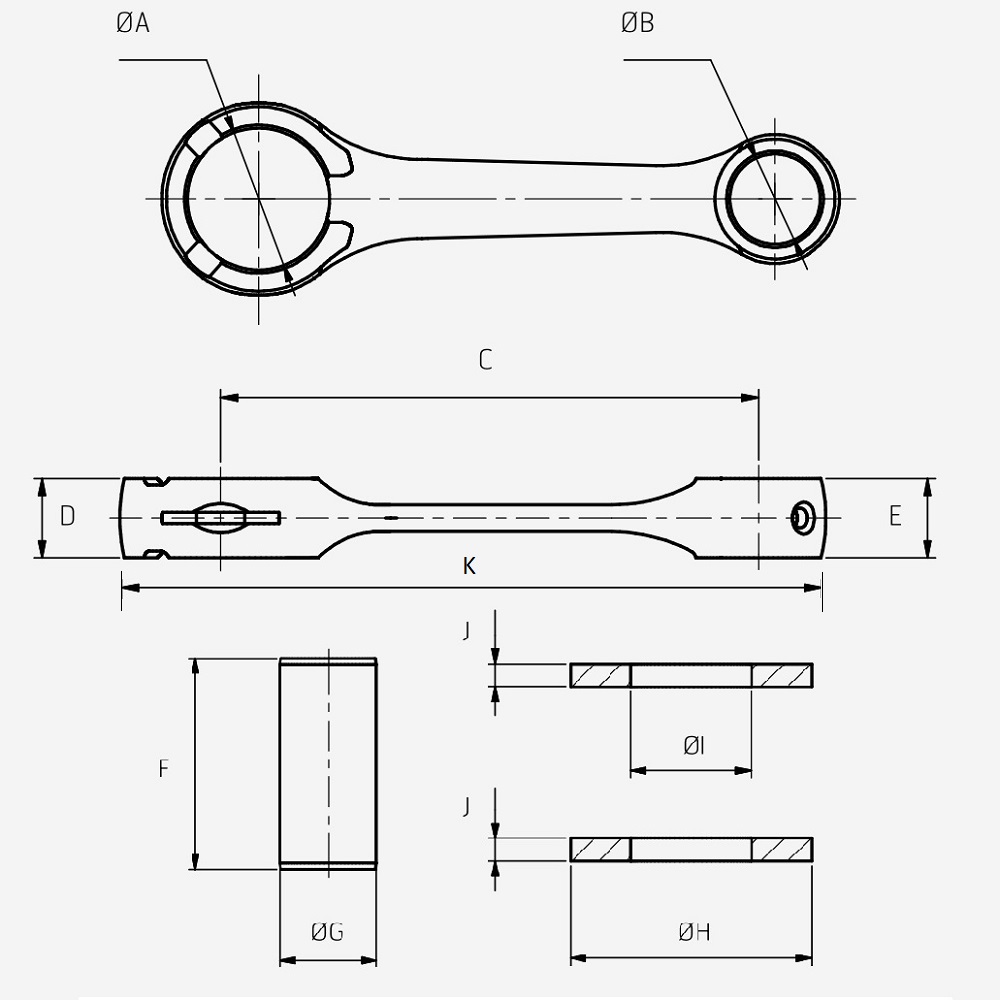

| Dimension I (inner diameter of shims): | 16.1 mm |
| Dimension F (length of lifting pin): | 37.8 mm |
| Feature: | 91 mm connecting rod |
| Needle roller bearing pin dimensions: | 16x21x10 mm |
| Tuning & Styling Part: | No |
| Dimension J (thickness of shims): | 0.8 mm |
| Vintage part: | Yes |
| Dimensions needle bearing piston pin: | 12x15x15 mm |
| Surface finish: | Matt |
| Dimension C (connecting rod length): | 91 mm |
| Dimension G (diameter of lifting pin): | 16 mm |
| matching piston pin: | 12 mm |
| Dimension K (total length of connecting rod): | 118 mm |
| OE/OEM reference number(s): | Jasil - Top Racing 6 001 042 |
| GTIN: | 4251048859099 |
| Dimension A (diameter of connecting rod eye at bottom): | 21 mm |
| Dimension D (width of connecting rod at bottom): | 10 mm |
| Dimension H (outer diameter of shims): | 28.5 mm |
| Scope of delivery: | Bolt, Needle roller bearing, Connecting rod |
| Dimension E (top width of connecting rod): | 10 mm |
| Dimension B (top diameter of connecting rod eye): | 15 mm |
| Color: | Grey |
| Scope of delivery: | 1x connecting rod repair kit |
| Manufacturer number: | 6001042 |
| Country and region of manufacture: | Portugal |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |

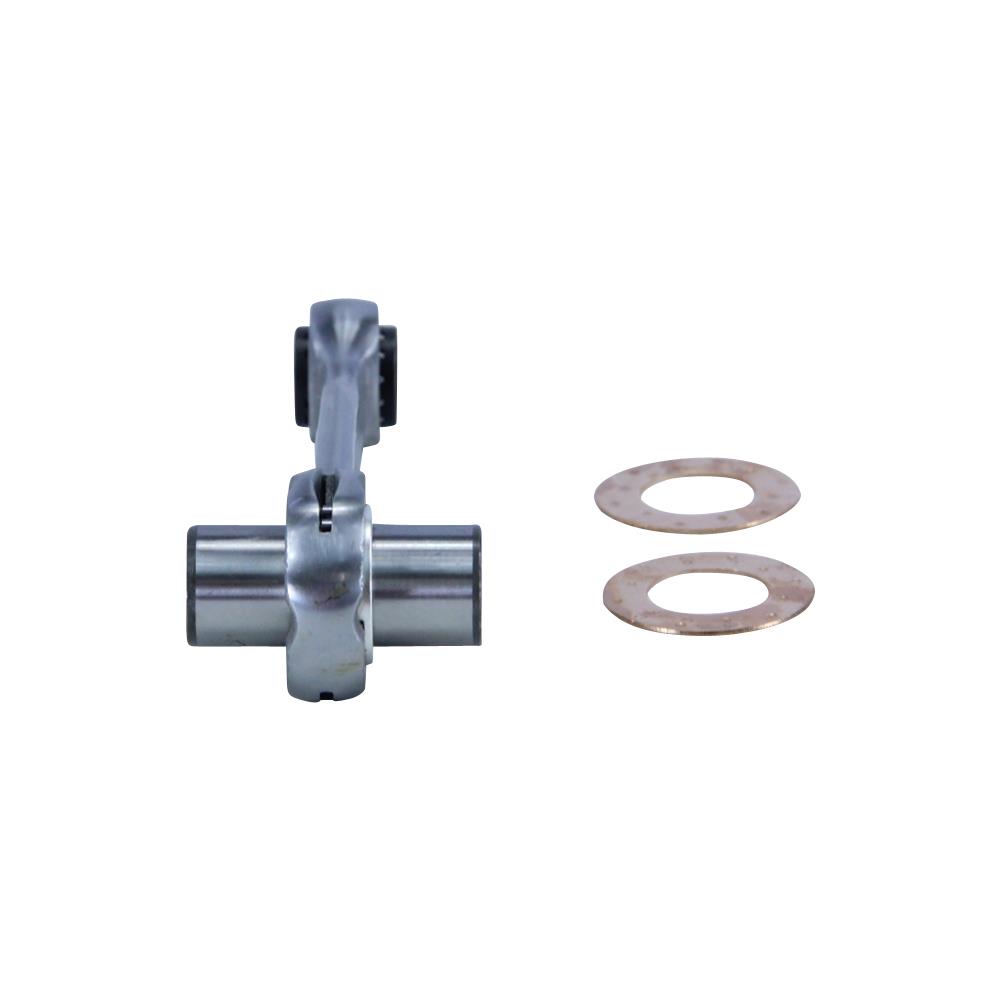

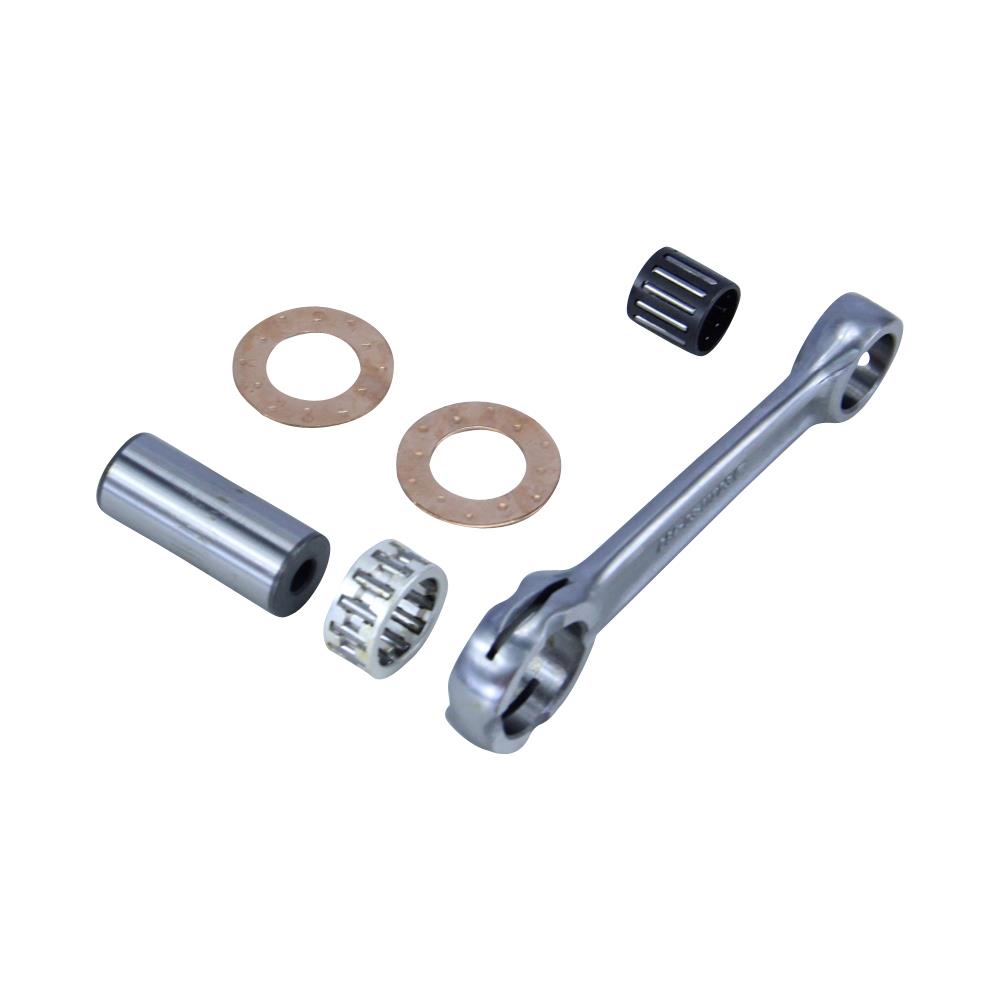

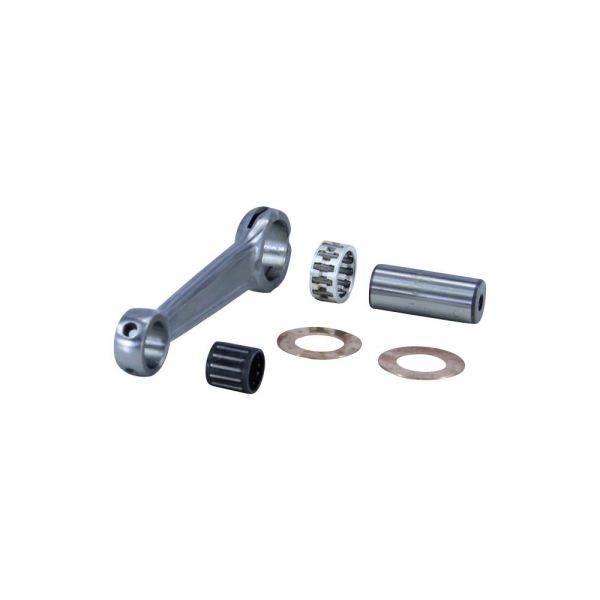

| Description of the package content: | Connecting rod incl. needle bearing, crank pin, washers |
| Manufacturer warranty: | 2 years |
| Weight: | 0.155 kg |
| Material: | Cast iron |
| Type: | Original |
Prices plus VAT plus shipping costs
In stock! Delivery time 1-3 working days
Bearing set SKF seal oil seals 4 speed foot shift engine overhaul set for Zündapp
Bearing set SKF seal Simmerrings 3 speed foot shift engine overrun set for Zündapp
Locking plate clutch basket for Zündapp C ZD CS Hai ZX ZL ZS GTS KS R RS 50
Cylinder kit 50cc including cylinder head + valves for China scooters, Baotian, Rex RS450
Cylinder kit 50cc Minarelli AC air-cooled horizontal engines, CPI, Rexy, Keeway
Cylinder kit 50cc AC air-cooled 12mm bolt angled flange for horizontal CPI engines, CPI, Keeway
Cylinder Kit 70cc LC watercooled incl. head for Piaggio engines, NRG, ZIP, NTT, Gilera Runner
C 50 Super Type 441-01L0 (from engine no. 3730133)
C 50 Super Type 441-01L1 (from engine no. 3730133)
C 50 Super Type 441-05L2 (from engine no . 3730133)
C 50 Super type 441-05L3 (from engine no. 3730133)
C 50 Super type 441-05L4 (from engine no. 3730133)
C 50 Super type 441-05L5 (from engine no. 3730133)
ZD 40 type 446-300
ZD 20 type 446-400
ZD 25 type 446-420
ZD 50 type 446-422
ZD 20 type 446-450
CS 50 type 448-010
CS 50 type 448-011
CS 50 type 448-013
Hai 50 type 448-110
Hai 50 type 448-111
CS 25 type 448-140
CS 25 type 448-141
Hai 25 type 448-150
CX 25 type 448-151
Sprinter Type 448-051
Hai 50 Type 448-160
C 50 Sport Type 517-21L0
C 50 Sport Type 517-21LA
GTS 50 Type 517-39L0
GTS 50 Type 517-40L0
GTS 50 Type 517-40L5
C 50 Type 517-05LA
GTS 50 Type 517-35LA
GTS 50 Type 517-35LC
GTS 50 Type 517-35LE
Super Sport Type 517-35LB
Super Sport Type 517-35LD
Super Sport Type 517-35LF
C 50 Sport Type 529-010< br />GTS 50 type 529-020
GTS 50 type 529-022
GTS 50 type 529-023
GTS 50 type 529-024
GTS 50 type 529-026< br />CS 50 type 529-030
CS 50 type 529-032
CS 50 type 529-034
GTS 50 type 529-050
GTS 50 type 529-052< br />GTS 50 type 529-054
GTS 50 type 529-056
KS 50 type 529-051
KS 50 type 529-053
KS 50 type 529-055< br />KS 50 type 529-057
CS 50 type 517-05C
GTS 50 type 517-35G
KS 50 type 517-35H
CS 50 type 529-03L0< br />GTS 50 type 529-05L0
KS 50 type 529-05L1
ZX 25 type 460-010
ZX 25 type 460-013
X 25 type 460 -014
ZL 25 type 460-040
ZL 25 type 460-041
ZS 25 type 460-050
ZS 25 type 460-051
ZE 40 type 460 -090
ZE 40 type 460-091
GTS Super type 517-35L5
C 50 Sport type 517-02L8 engine type 278-01L3 (from engine no. 3730133)
C 50 Sport type 517-21L0 engine type 278-25L0 (from engine no. 3730133)
C 50 Super type 517-05L9 engine type 266-50L1 (from engine no. 3730133)
C 50 Super type 517 -23L3 engine type 266-70L1 (from engine no. 3730133)
C 50 Sport type 517-23L1 engine type 266-70L1 (from engine no. 3730133)
GTS 50 type 540-120
KS 50 type 540-121
CS 50 type 540-190
R 50 type 561-051
R 50 type 561-052
R 50 type 561-003 engine type 267 -020 (from engine no. 8018080)
RS 50 type 561-004 engine type 276-010 (from engine no. 8510659)
RS 50 Super type 561-06L0 engine type 276-44L0 (from engine No. 8510659)
KS 50 WC type 517-50L0 (up to engine no.4813449)
KS 50 WC type 517-50LA (up to engine no. 4813449)
GTS 50 type 529-028
GTS 50 type 529-029
KS 50 WC type 530- 65L1
KS 50 WC type 530-66L1
KS 50 WC type 530-66L2
KS 50 WC type 530-66L3
KS 50 Sport type 530-60L1
KS 50 Super Sport Type 530-61L1
KS 50 Cross Type 517-51L0
KS 50 Cross Type 517-51LA
KS 50 Super Sport Type 517-51LB
KS 50 Super Sport Type 517-06L5 Engine Type 284-03L2 (Engine No. 4749859-4763416)
KS 50 Super Sport Type 517-20LB Engine Type 284-03L2 (Engine No. 4749859-4763416)
KS 50 Type 517-06L7 engine type 284-03L3 (engine no. 4749859-4763416)
KS 50 Sport type 517-20L0 engine type 284-03L3 (engine no. 4749859-4763416)
KS 50 Super Sport type 517-20L2 engine type 284-03L3 (engine no. 4749859-4763416)
KS 50 Super Sport type 517-20LC engine type 284-03L3 (engine no. 4749859-4763416)
KS 50 Super Sport type 517-06L5 engine type 284-03L2 (from engine no. 4763417)
KS 50 Super Sport type 517-20LB engine type 284-03L2 (from engine no. 4763417)
KS 50 type 517-06L7 engine Type 284-03L3 (from engine No. 4763417)
KS 50 Sport Type 517-20L0 Engine Type 284-03L3 (from engine No. 4763417)
KS 50 Super Sport Type 517-20L2 Engine Type 284- 03L3 (from engine no. 4763417)
KS 50 Super Sport type 517-20LC engine type 284-03L3 (from engine no. 4763417)
KS 50 WC type 517-52L0 (from engine no . 4813450)
KS 50 WC type 517-52LA (from engine no. 4813450)
KS 50 WC type 530-010
KS 50 WC TT type 530-011
KS 50 WC TT type 530-012
KS 50 WC TT type 530-014
KS 50 Super Sport type 530-500
KS 50 Super Sport TT type 530-500
KS 50 Sport Type 530-510
KS 50 Cross Type 517-53L0
KS 50 Super Sport Type 517-53L1
KS 50 Super Sport type 517-20LB engine type 284-03L2 (from engine no. 4763417)
KS 50 type 517-06L7 engine type 284-03L3 (from engine no. 4763417)
KS 50 Sport Type 517-20L0 Engine Type 284-03L3 (from Engine No. 4763417)
KS 50 Super Sport Type 517-20L2 Engine Type 284-03L3 (from Engine No. 4763417)
KS 50 Super Sport type 517-20LC engine type 284-03L3 (from engine no. 4763417)
KS 50 WC type 517-52L0 (from engine no. 4813450)
KS 50 WC type 517- 52LA (from engine no. 4813450)
KS 50 WC type 530-010
KS 50 WC TT type 530-011
KS 50 WC TT type 530-012
KS 50 WC TT Type 530-014
KS 50 Super Sport Type 530-500
KS 50 Super Sport TT Type 530-500
KS 50 Sport Type 530-510
KS 50 Cross type 517-53L0
KS 50 Super Sport type 517-53L1
KS 50 Super Sport type 517-20LB engine type 284-03L2 (from engine no. 4763417)
KS 50 type 517-06L7 engine type 284-03L3 (from engine no. 4763417)
KS 50 Sport Type 517-20L0 Engine Type 284-03L3 (from Engine No. 4763417)
KS 50 Super Sport Type 517-20L2 Engine Type 284-03L3 (from Engine No. 4763417)
KS 50 Super Sport type 517-20LC engine type 284-03L3 (from engine no. 4763417)
KS 50 WC type 517-52L0 (from engine no. 4813450)
KS 50 WC type 517- 52LA (from engine no. 4813450)
KS 50 WC type 530-010
KS 50 WC TT type 530-011
KS 50 WC TT type 530-012
KS 50 WC TT Type 530-014
KS 50 Super Sport Type 530-500
KS 50 Super Sport TT Type 530-500
KS 50 Sport Type 530-510
KS 50 Cross type 517-53L0
KS 50 Super Sport type 517-53L1
J. Antonio da Silva
Parque Industrial de Adaúfe Lote I-6
4701-853 Braga
Web page https://www.jasil.com/
Email: info@jasil.com
| Product type | Connecting rod |
|---|---|
| Dimension I (inner diameter of shims) | 16.1 mm |
| Dimension F (length of lifting pin) | 37.8 mm |
| Feature | 91 mm connecting rod |
| Needle roller bearing pin dimensions | 16x21x10 mm |
| Tuning & Styling Part | No |
| Dimension J (thickness of shims) | 0.8 mm |
| Vintage part | Yes |
| Dimensions needle bearing piston pin | 12x15x15 mm |
| Surface finish | Matt |
| Dimension C (connecting rod length) | 91 mm |
| Dimension G (diameter of lifting pin) | 16 mm |
| matching piston pin | 12 mm |
| Dimension K (total length of connecting rod) | 118 mm |
| OE/OEM reference number(s) | Jasil - Top Racing 6 001 042 |
| GTIN | 4251048859099 |
| Dimension A (diameter of connecting rod eye at bottom) | 21 mm |
| Dimension D (width of connecting rod at bottom) | 10 mm |
|---|---|
| Dimension H (outer diameter of shims) | 28.5 mm |
| Scope of delivery | Bolt, Needle roller bearing, Connecting rod |
| Dimension E (top width of connecting rod) | 10 mm |
| Dimension B (top diameter of connecting rod eye) | 15 mm |
| Color | Grey |
| Scope of delivery | 1x connecting rod repair kit |
| Manufacturer number | 6001042 |
| Country and region of manufacture | Portugal |
| Type of motorcycle | Moped & Mokick |
| Offer package | Yes |
| Description of the package content | Connecting rod incl. needle bearing, crank pin, washers |
| Manufacturer warranty | 2 years |
| Weight | 0.155 kg |
| Material | Cast iron |
| Type | Original |
