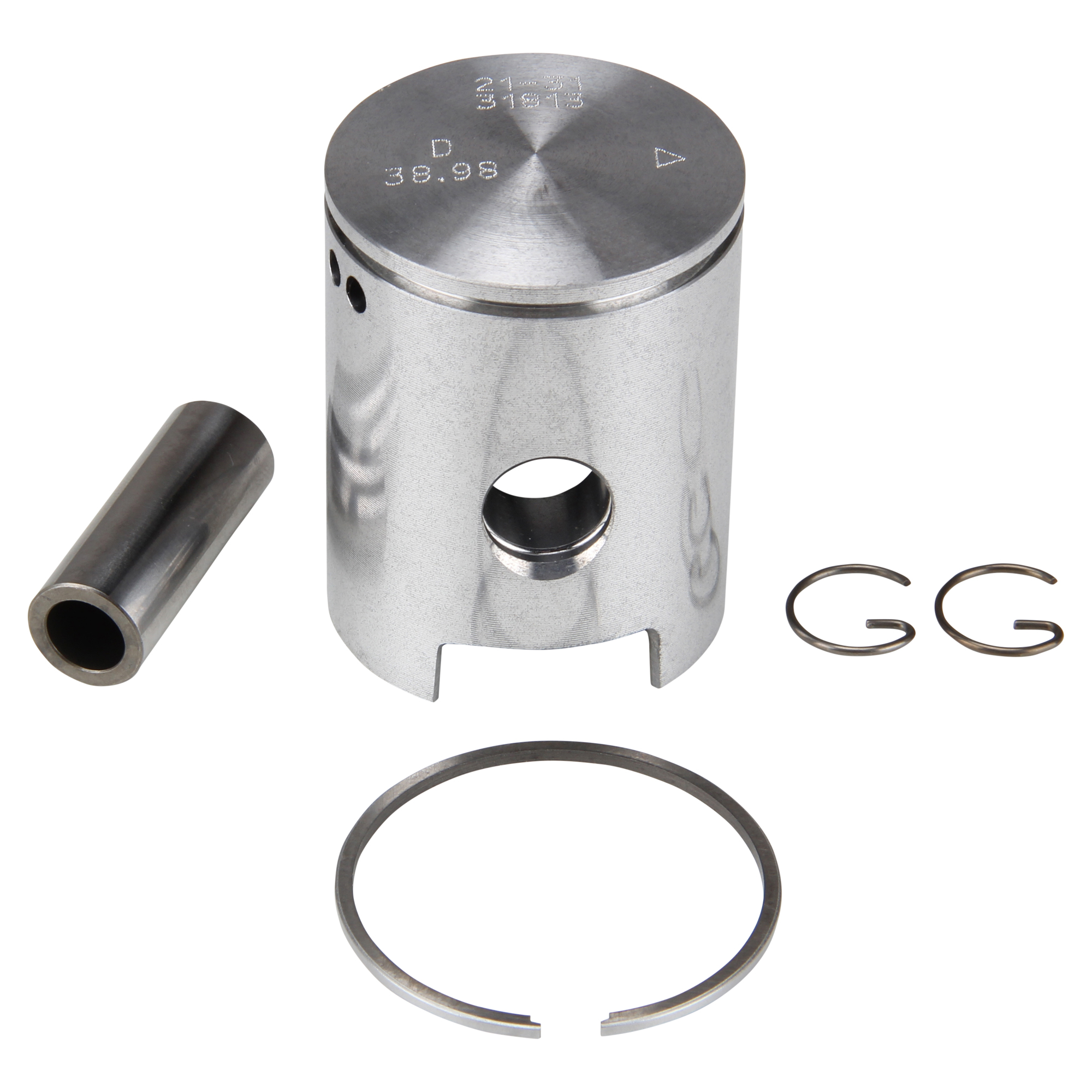

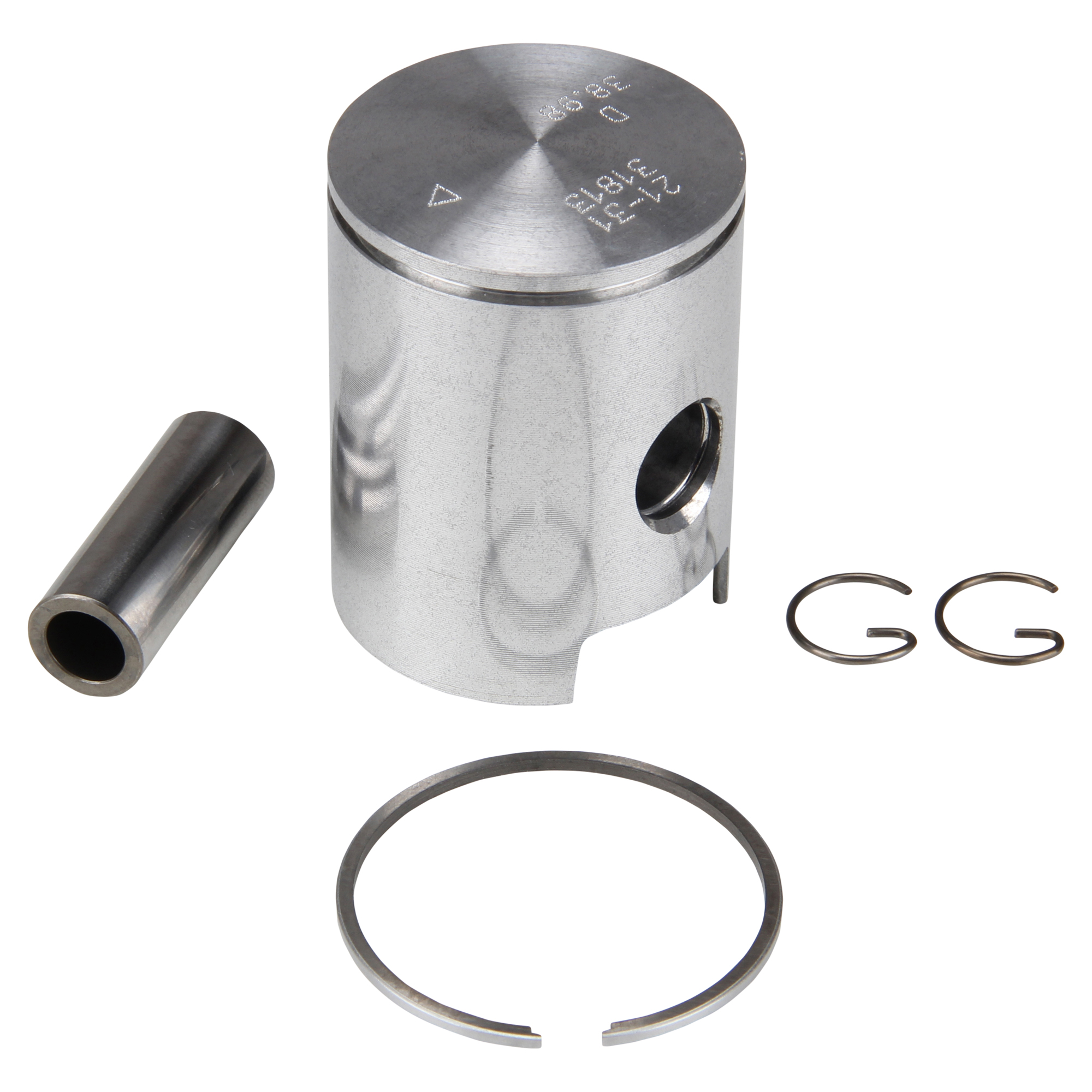

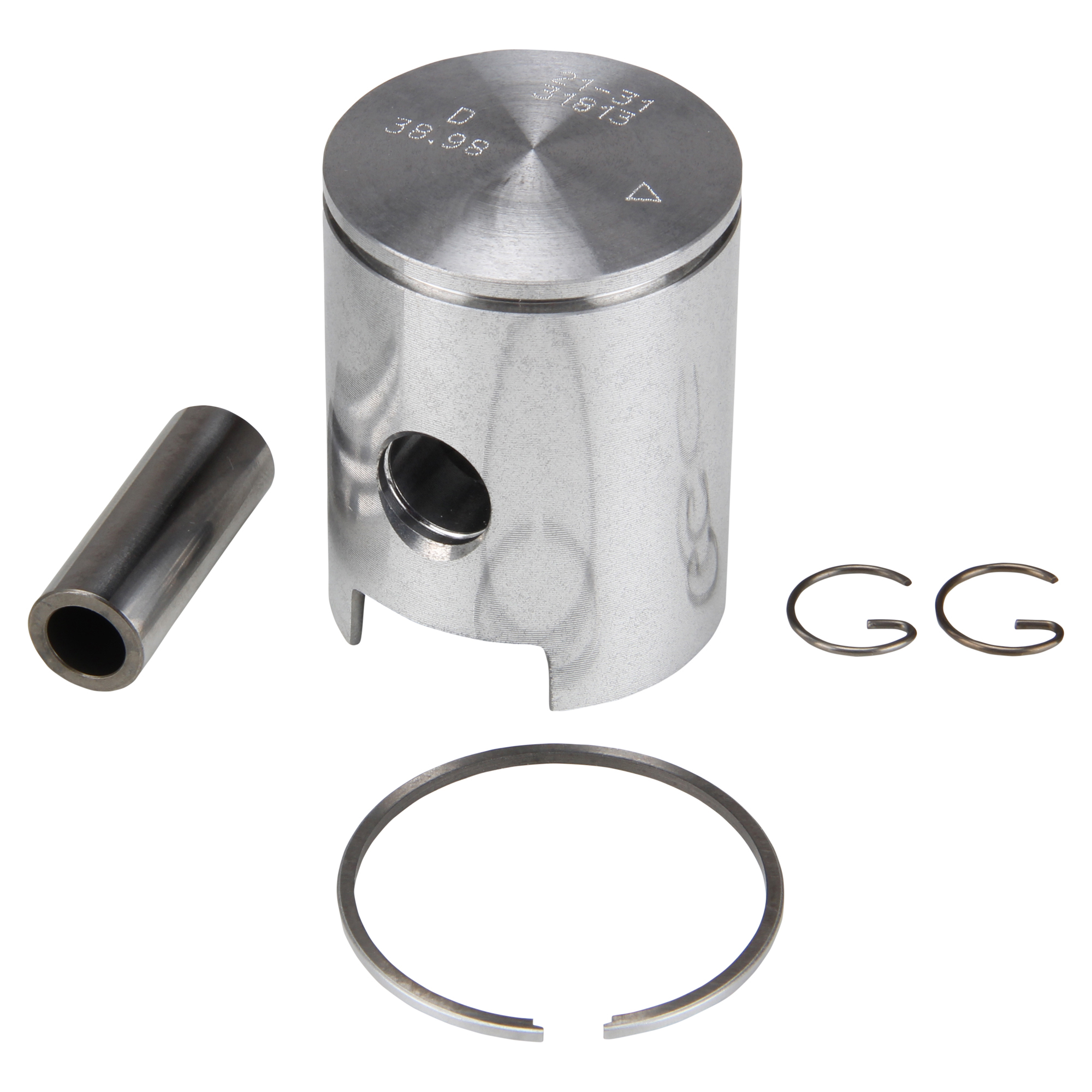

Piston set 38.98mm Tol. D 50ccm for Zündapp Mini/Superterm GTS KS C CS ZD ZS ZX 446 448 460 517 529
- Manufacturer: Athena
- Item no: 003002.D
- Manufacturer no.: 003002.D
- EAN: 4251048859945
Item data
| Product type: | Piston set |

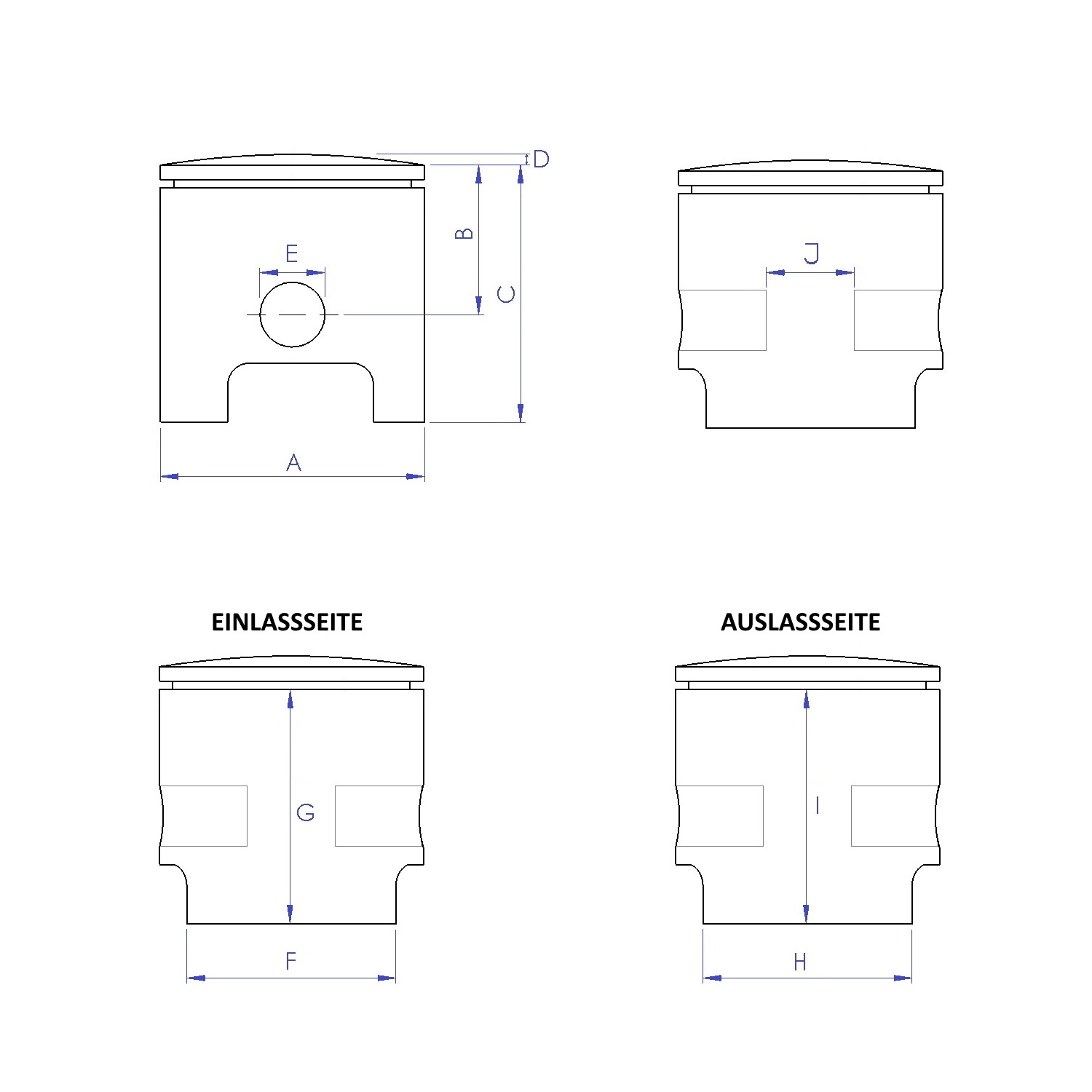

| Dimension B (compression height): | 26 mm |
| Dimension F (piston skirt width inlet side): | 33 mm |
| Dimension I (piston skirt length outlet side): | 46.5 mm |
| Piston ring dimension: | 39 x 1.5 mm |
| Tuning & Styling Part: | Yes |
| Piston ring profile: | Rectangular ring |
| Vintage part: | Yes |
| Cylinder bores: | 39 mm |
| Dimension C (piston height): | 50 mm |
| Dimension J (max. needle bearing width): | 15.5 mm |
| Dimension C + D (total height): | 51.5 mm |
| Dimension G (piston skirt length inlet side): | 46.5 mm |
| OE/OEM reference number(s): | Athena 003002.D, Athena S4C03900001D |
| ATTENTION!: | TUNING: Not permitted in the area of the StVZO! |
| GTIN: | 4251048859945 |
| Dimension A (piston diameter): | 38.98 mm |
| Bolt diameter: | 12 mm |
| Dimension D (curvature): | 1.5 mm |
| Note: | With two 3.5x7mm piston window bores / piston ring chrome-plated. |
| Dimension H (piston skirt width outlet side): | 32 mm |
| Scope of delivery: | Piston, Piston pin, Piston clips, Piston ring |
| Bolt length: | 32 mm |
| Piston ring width: | 1.8 mm |
| Dimension E (piston pin diameter): | 12 mm |
| Tolerance size: | D (38.98mm) |
| Piston ring shape: | B (groove for center locking pin) |
| Color: | Silver |
| Piston diameter: | 39 mm |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x piston set |
| Manufacturer number: | S4C03900001D |
| Country and region of manufacture: | Italy |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Piston + piston ring + piston pin + piston clips |
| Manufacturer warranty: | 2 years |
| Weight: | 0.083 kg |
| Material: | Aluminum alloy |
| suitable for: | 50 cc |
