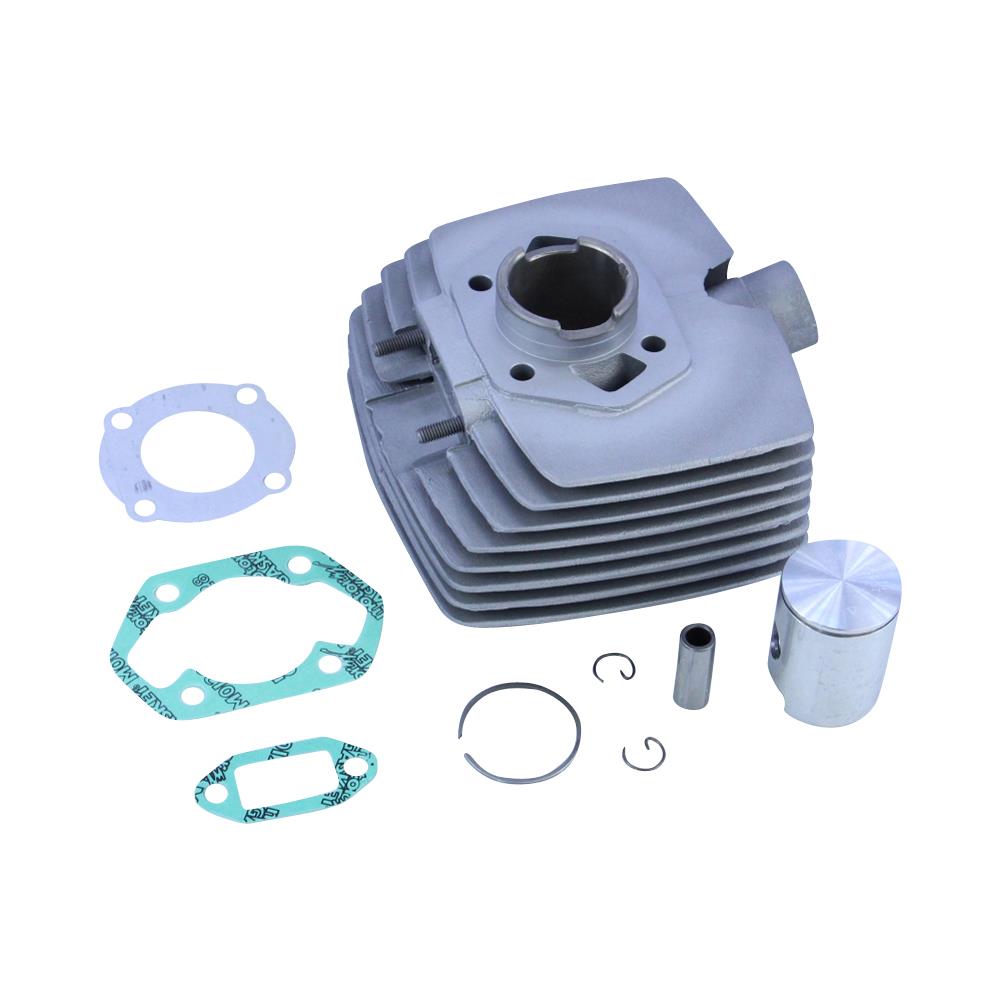

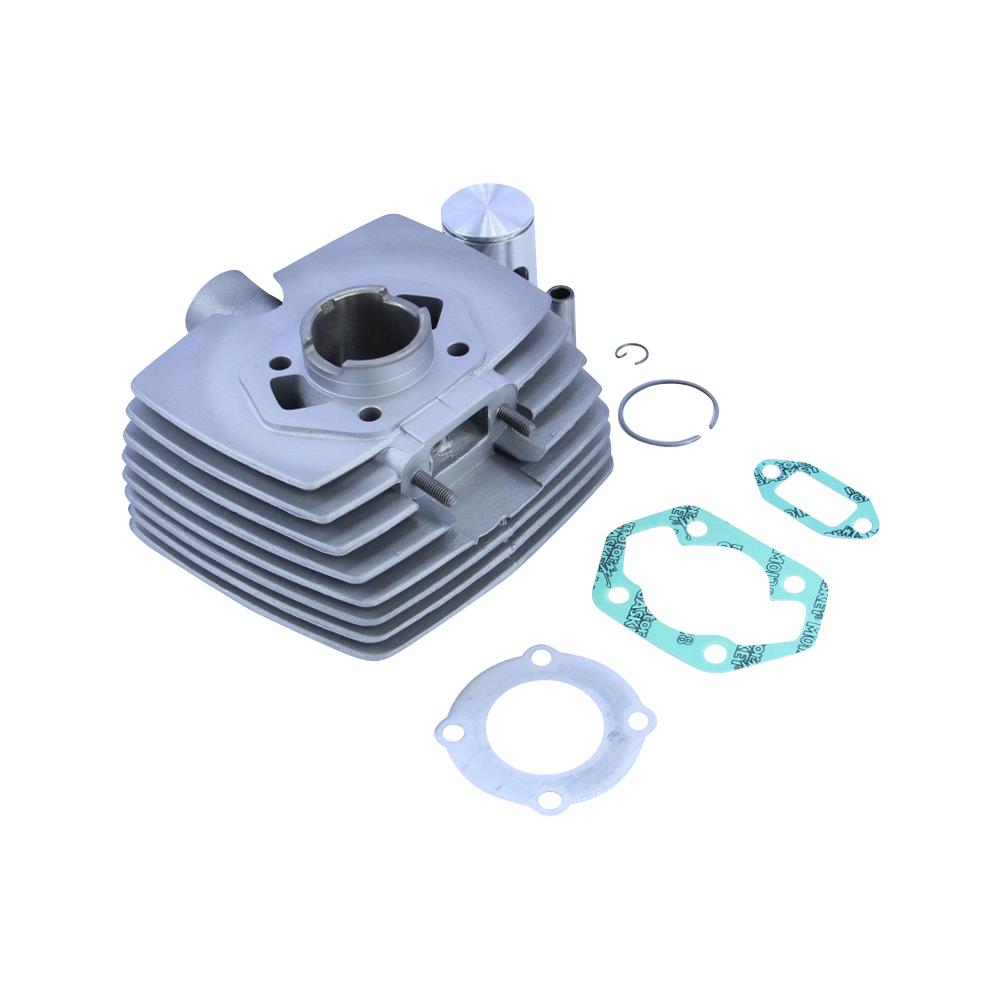

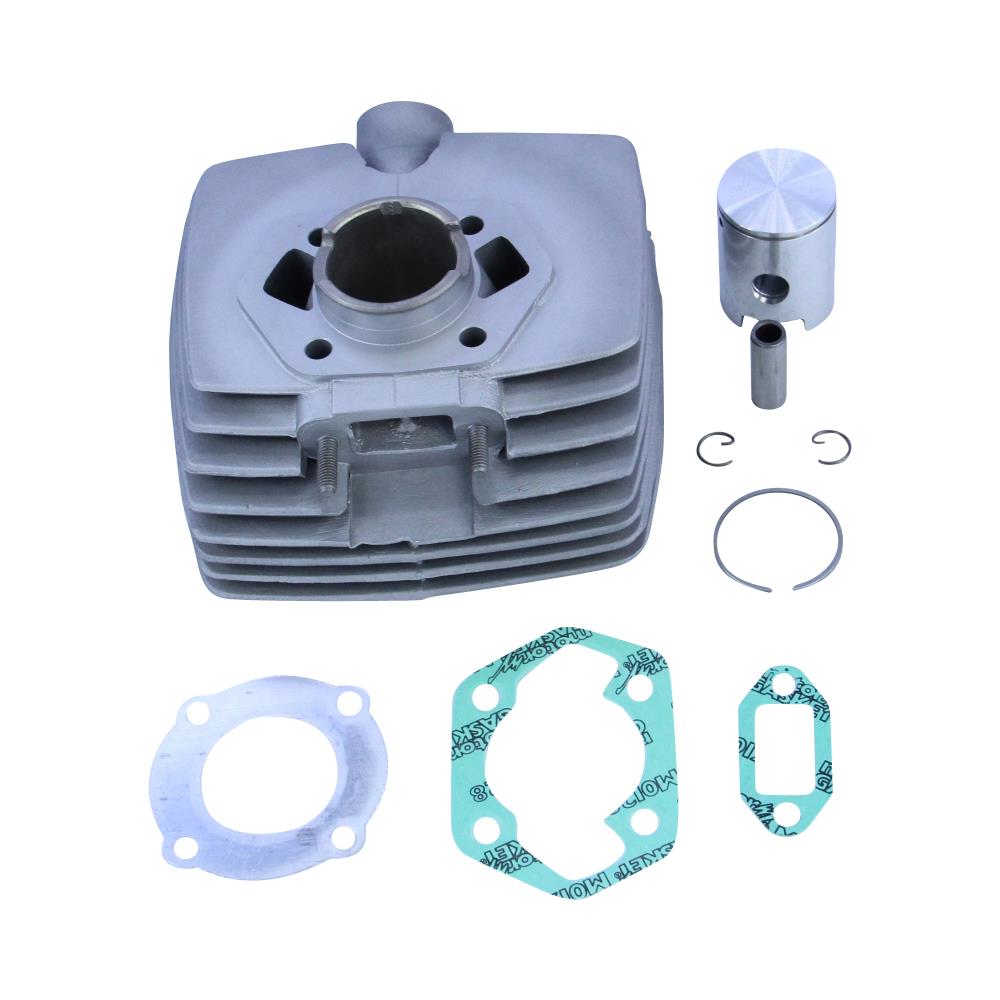

Cylinder set 50cc 39mm (4 ÜS) for Zündapp Minitherm CS Hai 25 448 / ZD ZL ZX 25 446 460 / GTS C 50 Sport 517 529
- Manufacturer: Athena
- Item no: 007200
- Manufacturer no.: 007200
- EAN: 8052204292028
Item data
| Product type: | Cylinder set |
| Piston pin diameter: | 12 mm |
| Displacement: | 50 cc |
| Can the original cylinder head be used?: | Yes |
| Tuning & Styling Part: | Yes |
| Piston ring profile: | Rectangular ring |
| Vintage part: | Yes |
| Piston special feature: | With two 3.5x7mm piston window bores / piston ring chrome-plated. |
| Surface finish: | Matt |
| Cylinder special feature: | Nikasil-coated piston track |
| Inlet inside dimension: | 17 x 30 mm, square |
| Outlet Outer dimension: | 32 mm |
| ATTENTION!: | TUNING: Not permitted in the area of the StVZO! |
| GTIN: | 8052204292028 |
| Inlet stud spacing: | 45 mm |
| Inlet stud bolt thread: | M6 |
| Diffuser internal dimension: | 27 mm |
| Cylinder dimensions (LxWxH): | 140 x 160 x 90 mm |
| Scope of delivery: | Gasket set, Piston, Piston rings, Cylinder |
| Cylinder stud distance: | 45 x 45 mm |
| Number of overflows: | 4 |
| Comparison number: | Athena 007200 |
| Cylinder stud bore: | 8 mm |
| Manifold connection type: | Clamp/plug |
| Color: | Grey |
| Number of piston rings: | 1 |
| Features: | Durable, Corrosion resistant |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x cylinder set |
| Manufacturer number: | 007200 |
| Country and region of manufacture: | Italy |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Units quantity: | 1 |
| Description of the package content: | Cylinder + piston + gasket set |
| Manufacturer warranty: | 2 years |
| Weight: | 2.10 kg |
| Material: | Aluminum |
| Type: | Tuning |
| suitable for: | Zündapp Minitherm |
