Cylinder set 50cc 39mm for Zündapp BLOWN COOLED C 50 Sport 441 517 / KS 50 Super 515 516 / R RS 50 561
- Manufacturer: Athena
- Item no: 063700
- Manufacturer no.: 063700
- EAN: 8052204292349
Item data
| Product type: | Cylinder set |
| Piston pin diameter: | 12 mm |
| Displacement: | 50 cc |
| Can the original cylinder head be used?: | Yes |
| Tuning & Styling Part: | Yes |
| Piston ring profile: | Rectangular ring |
| Vintage part: | Yes |
| Piston special feature: | With two 3.5x7mm piston window bores / piston ring chrome-plated. |
| Surface finish: | Matt |
| Cylinder special feature: | Nikasil-coated piston track |
| Inlet inside dimension: | 18 x 27 mm, square |
| Outlet Outer dimension: | 32 mm |
| ATTENTION!: | TUNING: Not permitted in the area of the StVZO! |
| GTIN: | 8052204292349 |
| Inlet stud spacing: | 40 mm |
| Inlet stud bolt thread: | M6 |
| Diffuser internal dimension: | 27 mm |
| Cylinder dimensions (LxWxH): | 110 x 110 x 90 mm |

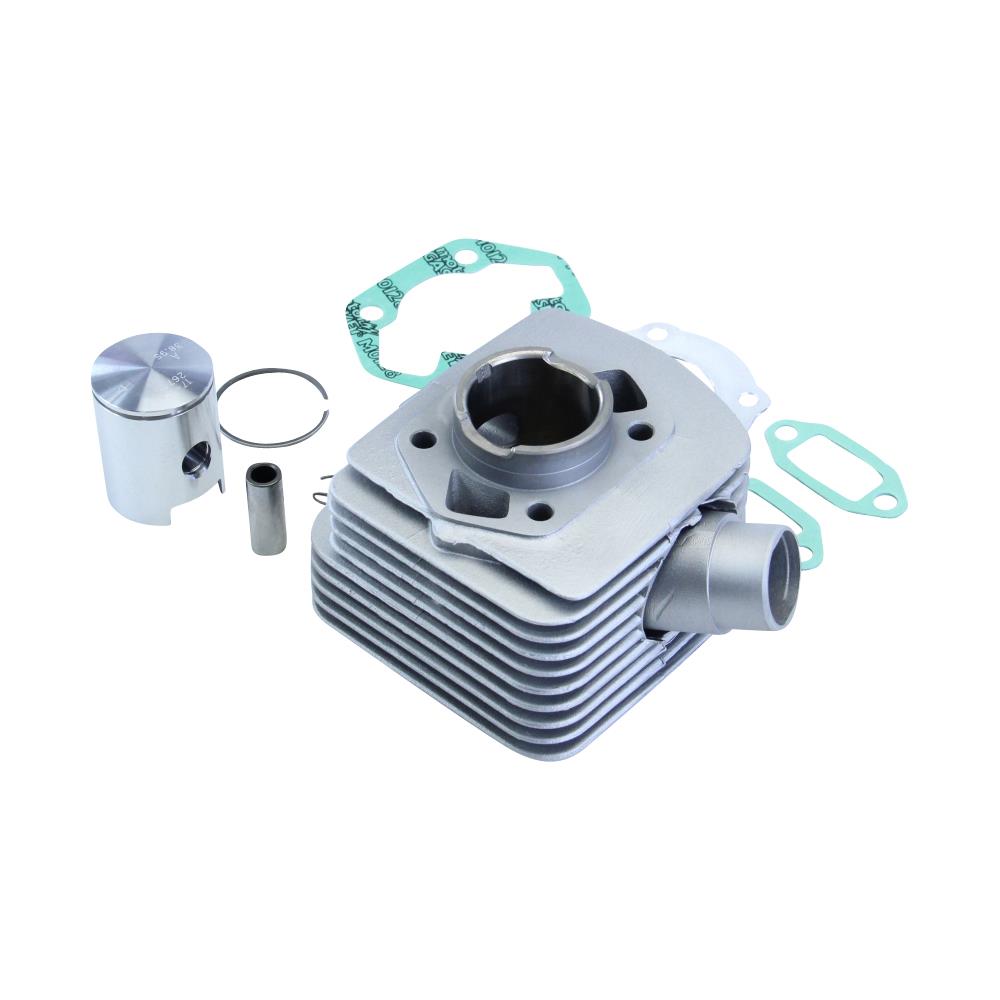

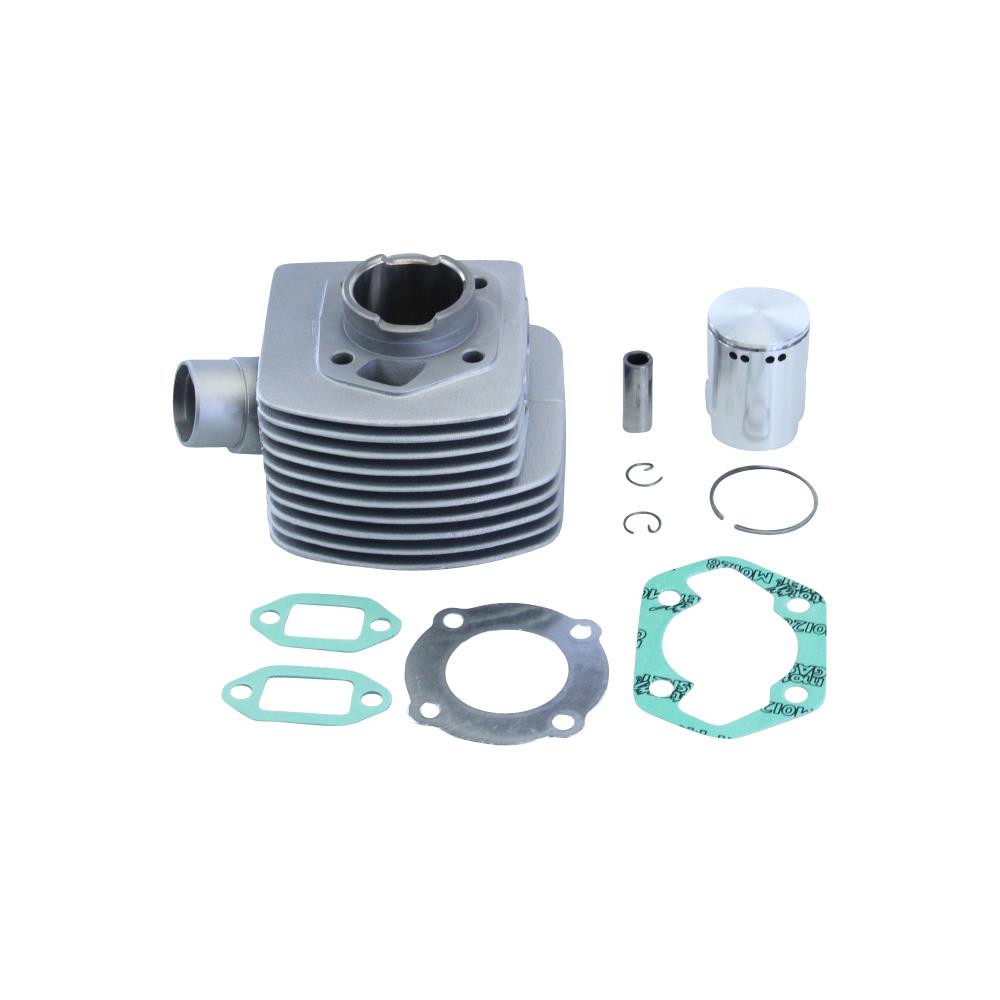

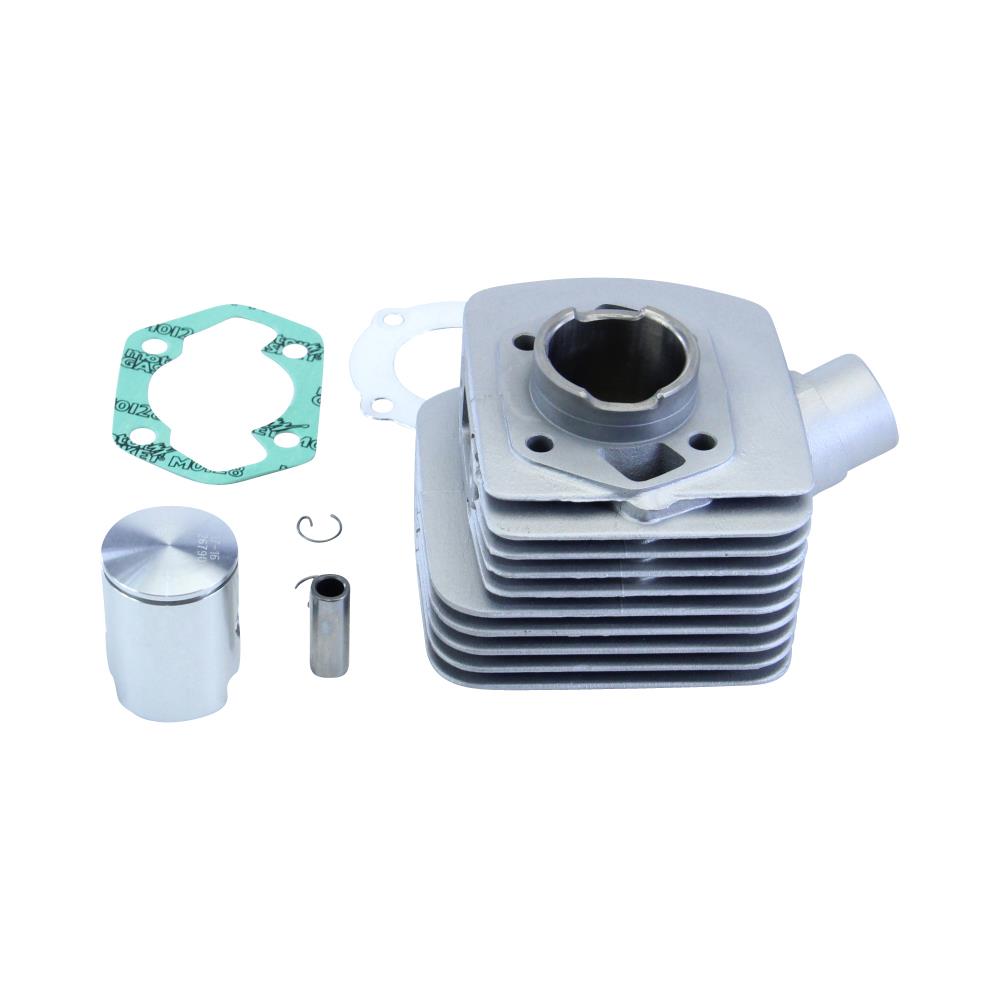

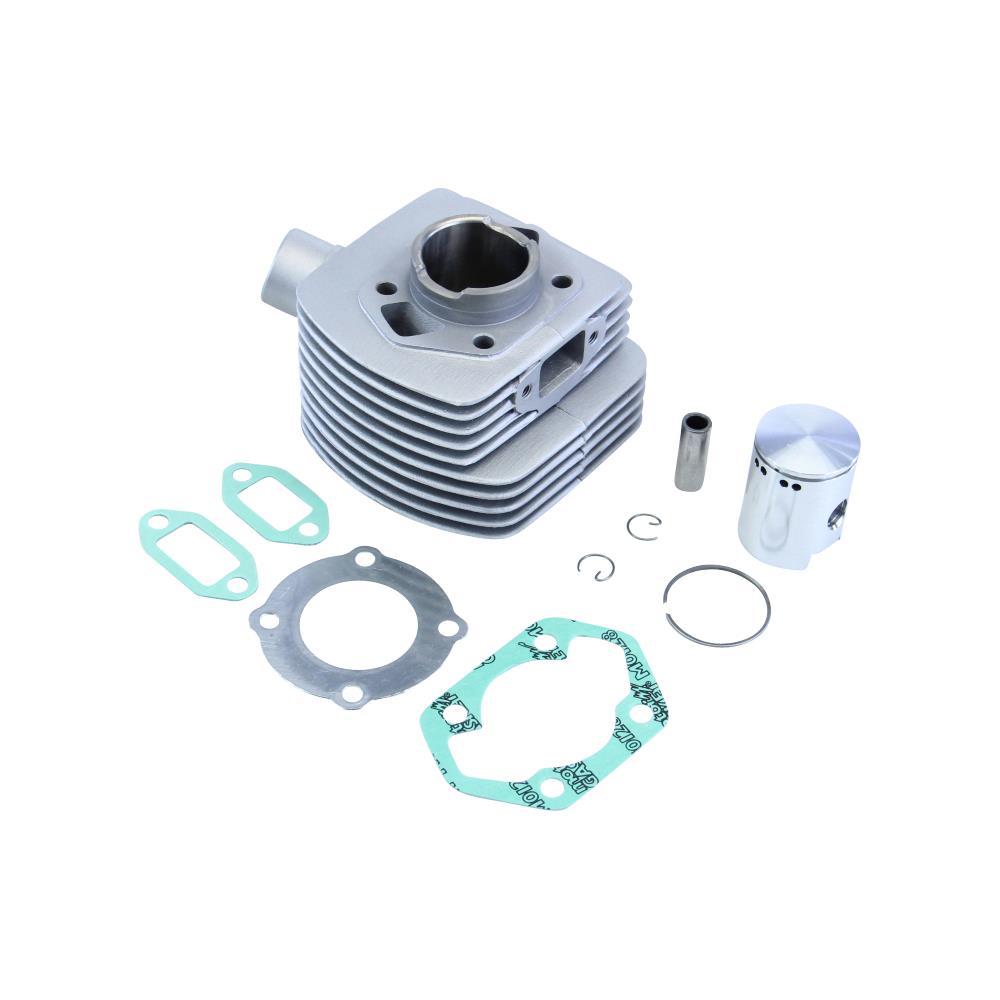

| Scope of delivery: | Gasket set, Piston, Piston rings, Cylinder |
| Cylinder stud distance: | 45 x 45 mm |
| Number of overflows: | 2 |
| Comparison number: | Athena 063700 |
| Cylinder stud bore: | 8 mm |
| Manifold connection type: | Clamp/plug |
| Color: | Grey |
| Number of piston rings: | 1 |
| Features: | Durable, Corrosion resistant |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x cylinder set |
| Manufacturer number: | 063700 |
| Country and region of manufacture: | Italy |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Units quantity: | 1 |
| Description of the package content: | Cylinder + piston + gasket set |
| Manufacturer warranty: | 2 years |
| Weight: | 1.20 kg |
| Material: | Aluminum |
| Type: | Tuning |
| suitable for: | Zündapp fan-cooled |
