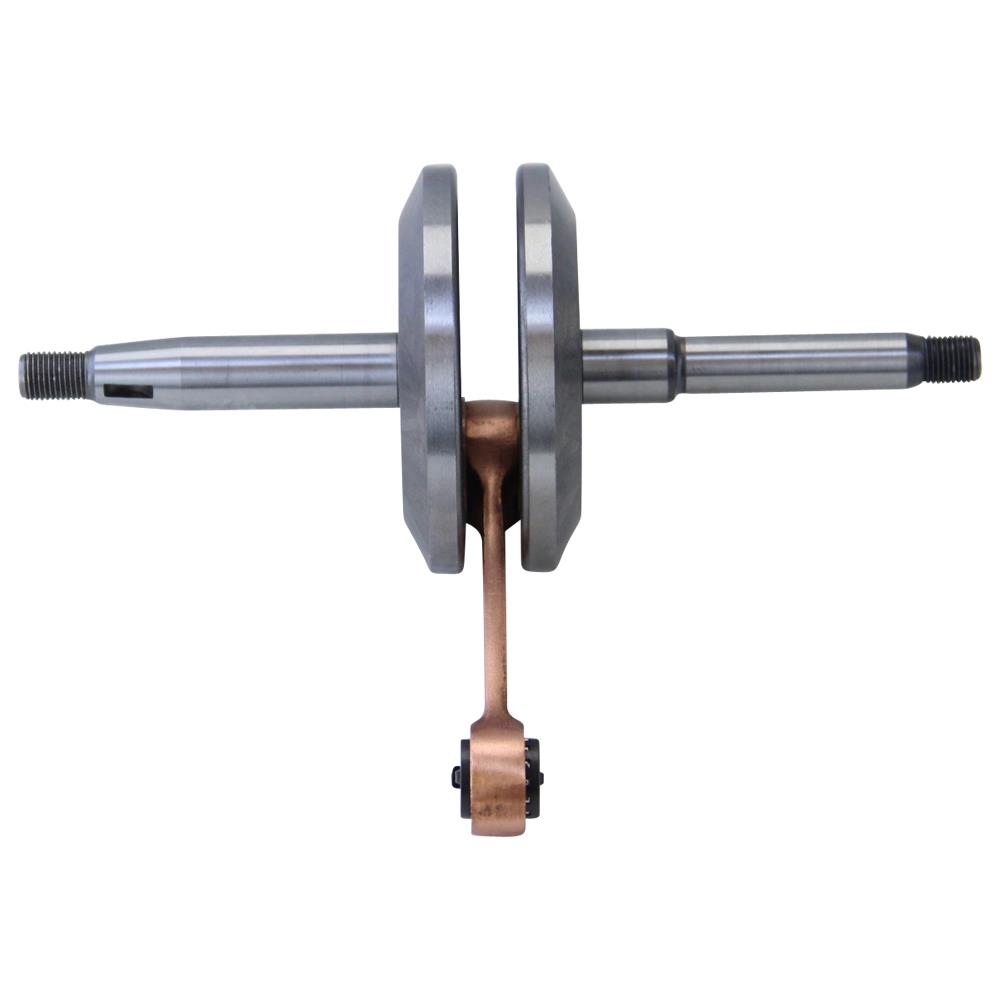

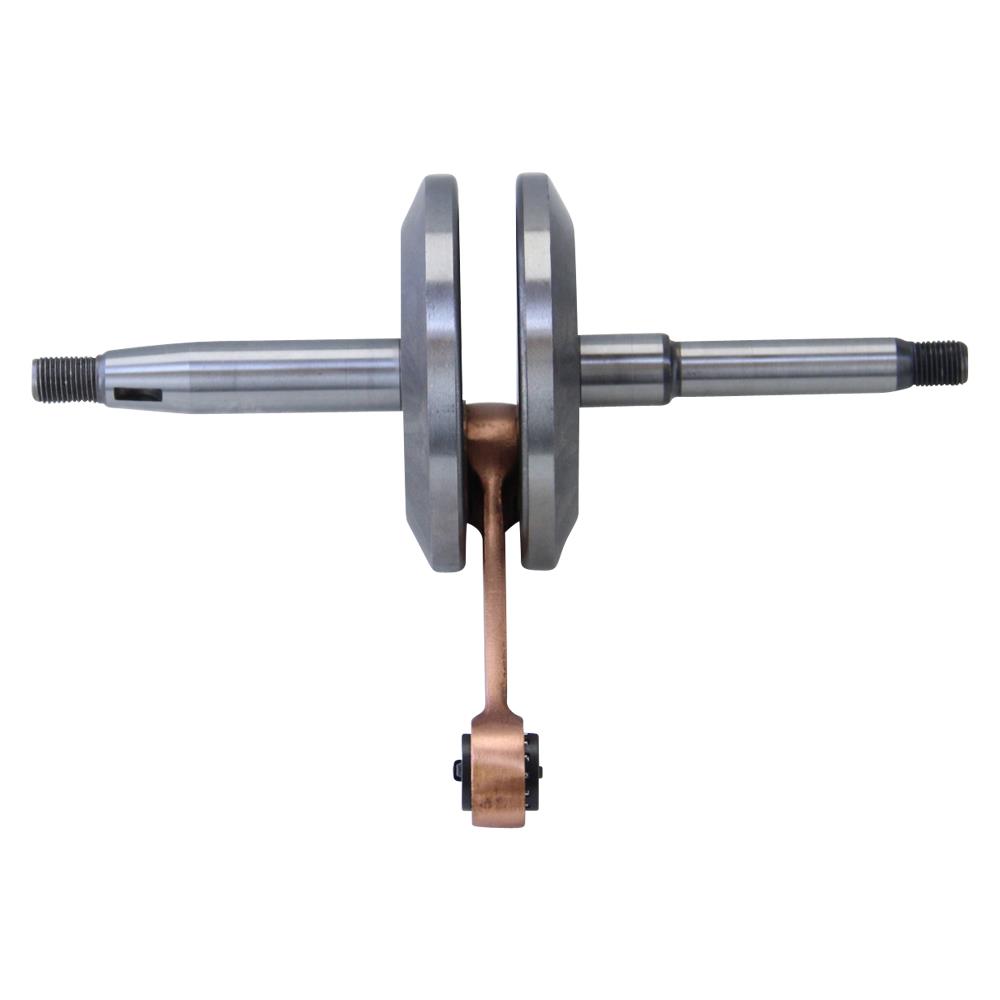

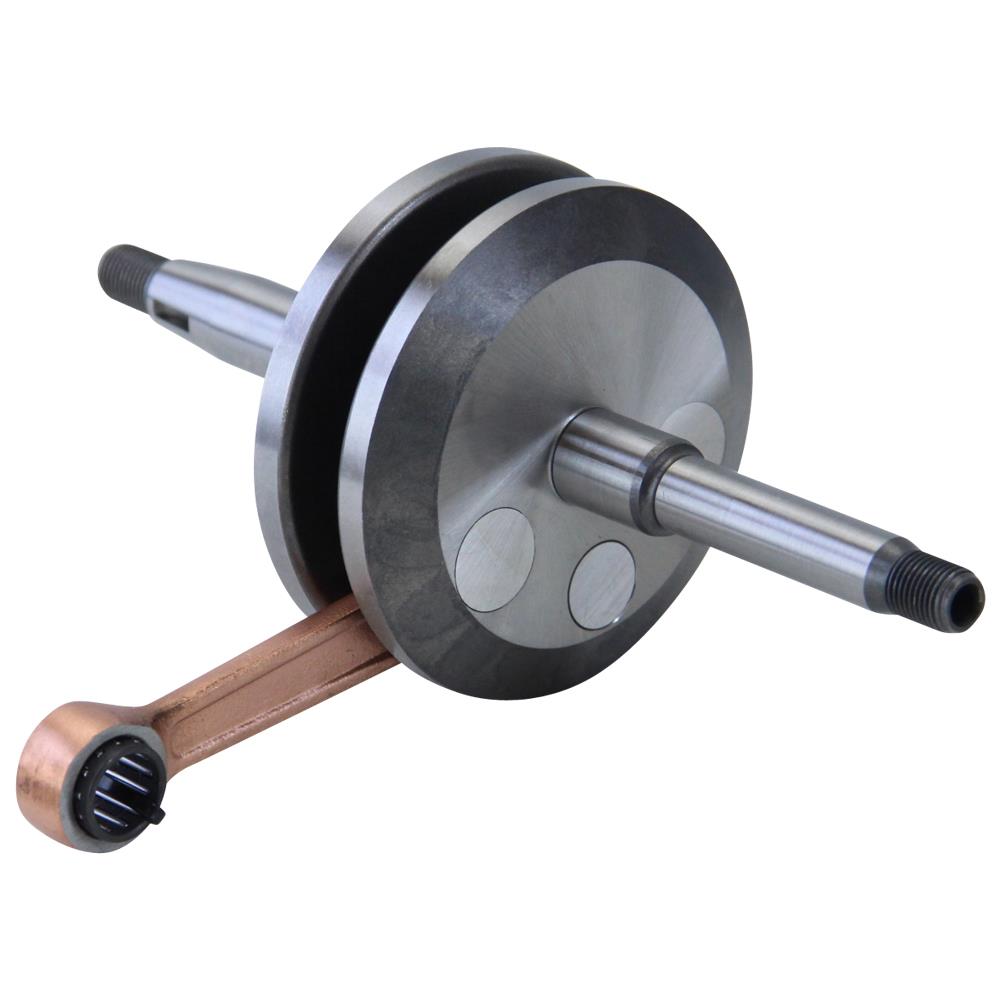

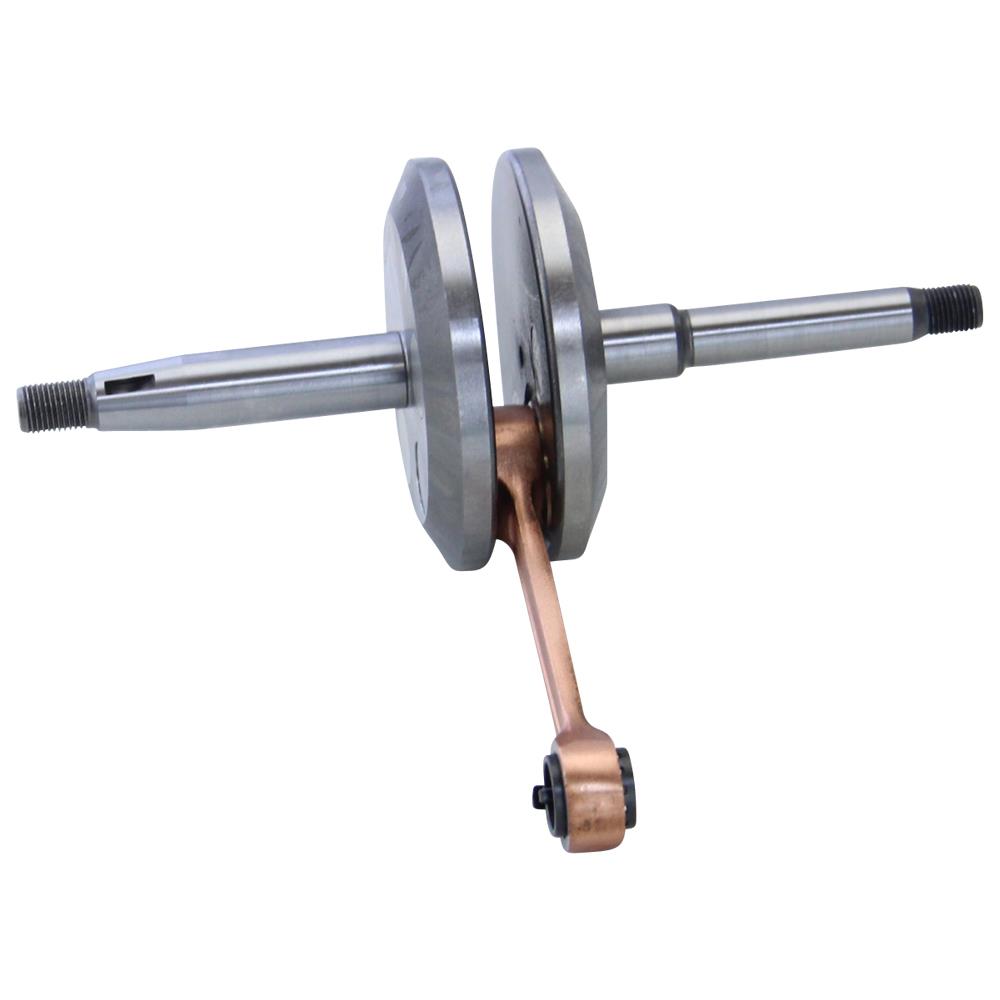

JASIL crankshaft EVOLUTION for Hercules Prima M HR2 Jogging MX1 Supra 2D 3D // Sachs 505/1 505/2 505/3
- Manufacturer: JASIL - Top Racing
- Item no: 6034155
- Manufacturer no.: 6034155
- EAN: 5605822005186
Item data
| Product type: | Crankshaft |

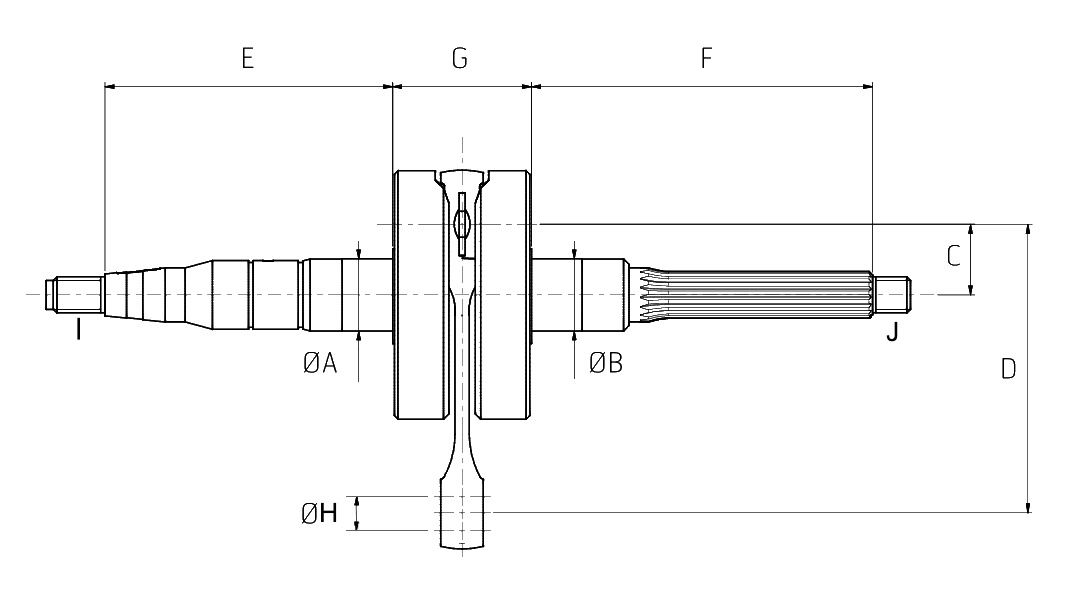

| Dimension B (shaft diameter on coupling side): | 15 mm |
| Feature: | 44 mm stroke |
| Crankshaft type: | Full cheek crankshaft |
| Dimension F (length of crankshaft stub on clutch side): | 65.6 mm |
| Tuning & Styling Part: | Yes |
| Vintage part: | Yes |
| Dimensions needle bearing piston pin: | 12x15x15 mm |
| Dimension C (stroke pin offset = half stroke): | 22 mm |
| Dimension J (thread on coupling side): | M10 x 1 right-hand thread |
| Crankshaft stroke: | 44 mm |
| Dimension G (width of crank webs): | 34.4 mm |
| Surface finish: | Matt |
| matching piston pin: | 12 mm |
| OE/OEM reference number(s): | 0288 114 000 / 0288114000, 0288 114 625 / 0288114625, 0288 114 002 / 0288114002, 0288 114 005 / 0288114005, 0288 114 008 / 0288114008, 0288 114 011 / 0288114011, 0288 114 405 / 0288114405, Jasil - Top Racing 6 034 155 |
| GTIN: | 5605822005186 |
| Dimension D (connecting rod length): | 85 mm |
| Dimension H (top diameter of connecting rod eye): | 15 mm |
| Dimension A (shaft diameter on alternator side): | 15 mm |
| Scope of delivery: | Crankshaft + needle bearing |
| Dimension E (length of crankshaft stub on alternator side): | 59.4 mm |
| Dimension I (thread on alternator side): | M10 x 1 right-hand thread |
| Color: | Grey |
| Scope of delivery: | 1x crankshaft |
| Manufacturer number: | 6034155 |
| Country and region of manufacture: | Portugal |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Crankshaft incl. needle bearing |
| Manufacturer warranty: | 2 years |
| Weight: | not specified |
| Material: | Cast iron |
| Type: | Evolution |
Prices plus VAT plus shipping costs
In stock! Delivery time 1-3 working days
Cylinder Set 50ccm 38mm Sachs 504 505 | Hercules Optima Prima M Tuning | Gasket Included
Chain set 3-piece silver 11/47 teeth for Hercules Prima 2 3 4 5 5 M 4 5 HR2 P 1 3 MX1 Optima
Electronic ignition counterclockwise 12V 35W for Hercules Prima Optima, Sachs 50...
Cylinder kit 50cc including cylinder head + valves for China scooters, Baotian, Rex RS450
Cylinder kit 50cc Minarelli AC air-cooled horizontal engines, CPI, Rexy, Keeway
Cylinder kit 50cc AC air-cooled 12mm bolt angled flange for horizontal CPI engines, CPI, Keeway
Cylinder Kit 70cc LC watercooled incl. head for Piaggio engines, NRG, ZIP, NTT, Gilera Runner
Cylinder Set 50ccm 38mm Sachs 504 505 | Hercules Optima Prima M Tuning | Gasket Included
Chain set 3-piece silver 11/47 teeth for Hercules Prima 2 3 4 5 5 M 4 5 HR2 P 1 3 MX1 Optima
JASIL crankshaft (12mm Kobo) for Hercules Prima GT GX Pronto Presto // Sachs 506/3 B BY
Hercules HR 2 (1974-1987)
Hercules Jogging (1984-1986)
Hercules M 4 (1974-1975)
Hercules M 4 S (1974-1975)
Hercules M 5 (1974-1975)
Hercules M 5 S (1974-1975)
Hercules MX 1 (1985-1997)
Hercules Prima S (1978-1987)
Hercules Prima (1978-1987)
Hercules Prima 2 S (1978-1996)
Hercules Prima 2 (1978-1996)
Hercules Prima 3 S (1978-1996)
Hercules Prima 3 (1978-1996)
Hercules Prima 4 LN (1978-1996)
Hercules Prima 4 N (1978-1996)
Hercules Prima 4 S (1978-1996)
Hercules Prima 4 SL (1978-1996)
Hercules Prima 4 (1978-1996)
Hercules Prima 5 LN (1978-1996)
Hercules Prima 5 N (1978-1996)
Hercules Prima 5 SE (1994-1995)
Hercules Prima 5 SX (1983-1986)
Hercules Prima 5 (1983-1986)
Hercules Prima 5 (1978-1996)
Hercules Prima 6 (1979-1981)
Hercules Optima de Luxe
Hercules Optima S (1980-1986)
Hercules Optima S (1982-2002)
Hercules Optima S (1986 -1988)
Hercules Optima S (1988-1993)
Hercules Optima S (1992-1996)
Hercules Optima (1982-2002)
Hercules Optima (1979-1980)< br />Hercules P 3 (1974-1979)
Hercules Supra 2D (1982-1985)
Hercules Supra 3D (1986-1988)
Sachs 505/1 A
Sachs 505/1 A NL
Sachs 505/1 B
Sachs 505/1 BX
Sachs 505/1 BY
Sachs 505/1 C
Sachs 505/ 1 D
Sachs 505/2 AK S
Sachs 505/2 AK SF
Sachs 505/2 A NL
Sachs 505/2 B
Sachs 505 /2 BS
Sachs 505/2 BY
Sachs 505/2 BY KF
Sachs 505/2 C
Sachs 505/2 CK
Sachs 505/2 DK< br />Sachs 505/2 DY
Sachs 505/3 BX
Sachs 505/3 DK
Sachs 505/3 DK CM
Sachs 505/3 D CM< br />Sachs 505/3 E S
J. Antonio da Silva
Parque Industrial de Adaúfe Lote I-6
4701-853 Braga
Web page https://www.jasil.com/
Email: info@jasil.com
| Product type | Crankshaft |
|---|---|
| Dimension B (shaft diameter on coupling side) | 15 mm |
| Feature | 44 mm stroke |
| Crankshaft type | Full cheek crankshaft |
| Dimension F (length of crankshaft stub on clutch side) | 65.6 mm |
| Tuning & Styling Part | Yes |
| Vintage part | Yes |
| Dimensions needle bearing piston pin | 12x15x15 mm |
| Dimension C (stroke pin offset = half stroke) | 22 mm |
| Dimension J (thread on coupling side) | M10 x 1 right-hand thread |
| Crankshaft stroke | 44 mm |
| Dimension G (width of crank webs) | 34.4 mm |
| Surface finish | Matt |
| matching piston pin | 12 mm |
| OE/OEM reference number(s) | 0288 114 000 / 0288114000, 0288 114 625 / 0288114625, 0288 114 002 / 0288114002, 0288 114 005 / 0288114005, 0288 114 008 / 0288114008, 0288 114 011 / 0288114011, 0288 114 405 / 0288114405, Jasil - Top Racing 6 034 155 |
| GTIN | 5605822005186 |
| Dimension D (connecting rod length) | 85 mm |
| Dimension H (top diameter of connecting rod eye) | 15 mm |
|---|---|
| Dimension A (shaft diameter on alternator side) | 15 mm |
| Scope of delivery | Crankshaft + needle bearing |
| Dimension E (length of crankshaft stub on alternator side) | 59.4 mm |
| Dimension I (thread on alternator side) | M10 x 1 right-hand thread |
| Color | Grey |
| Scope of delivery | 1x crankshaft |
| Manufacturer number | 6034155 |
| Country and region of manufacture | Portugal |
| Type of motorcycle | Moped & Mokick |
| Offer package | Yes |
| Description of the package content | Crankshaft incl. needle bearing |
| Manufacturer warranty | 2 years |
| Weight | not specified |
| Material | Cast iron |
| Type | Evolution |
Jasil - High-quality crankshafts and engine parts for two-wheelers
Jasil is an internationally recognized manufacturer of crankshafts, engine and drive parts for motorcycles, scooters and mopeds. The Portuguese company was founded in 1950 and has made a name for itself worldwide through precision, quality and technical innovation.
Premium quality crankshafts
Jasil is particularly well-known for its crankshafts, which are available in different versions: from standard and replacement crankshafts to reinforced racing versions. They are characterized by precise manufacturing, high-quality materials and a long service life. This makes Jasil crankshafts suitable for everyday use as well as for performance-oriented tuning projects.
Engine and drive components
In addition to crankshafts, Jasil offers a wide range of engine parts such as pistons, shafts, gears and other components. All products are manufactured to modern standards and offer the perfect balance of stability, functionality and performance.
Technology & innovation from Portugal
With decades of experience and continuous development, Jasil relies on innovative manufacturing processes that ensure consistently high quality. The products are in demand worldwide among mechanics, workshops and racing teams, as they combine durability with increased performance.
The advantages of Jasil at a glance
- ✔️ High-quality crankshafts for everyday use and racing
- ✔️ Precise manufacturing & long service life
- ✔️ Wide range of engine and drive parts
- ✔️ Suitable for scooters, mopeds and motorcycles
- ✔️ Decades of experience and state-of-the-art technology
Conclusion: Jasil for quality and performance
Jasil stands for engine parts that impress with their precision, robustness and performance. Whether as a spare part for everyday use or as a tuning component for more power - with Jasil, drivers are opting for quality at the highest level.
With Jasil crankshafts and engine parts, you are investing in longevity and driving pleasure.
