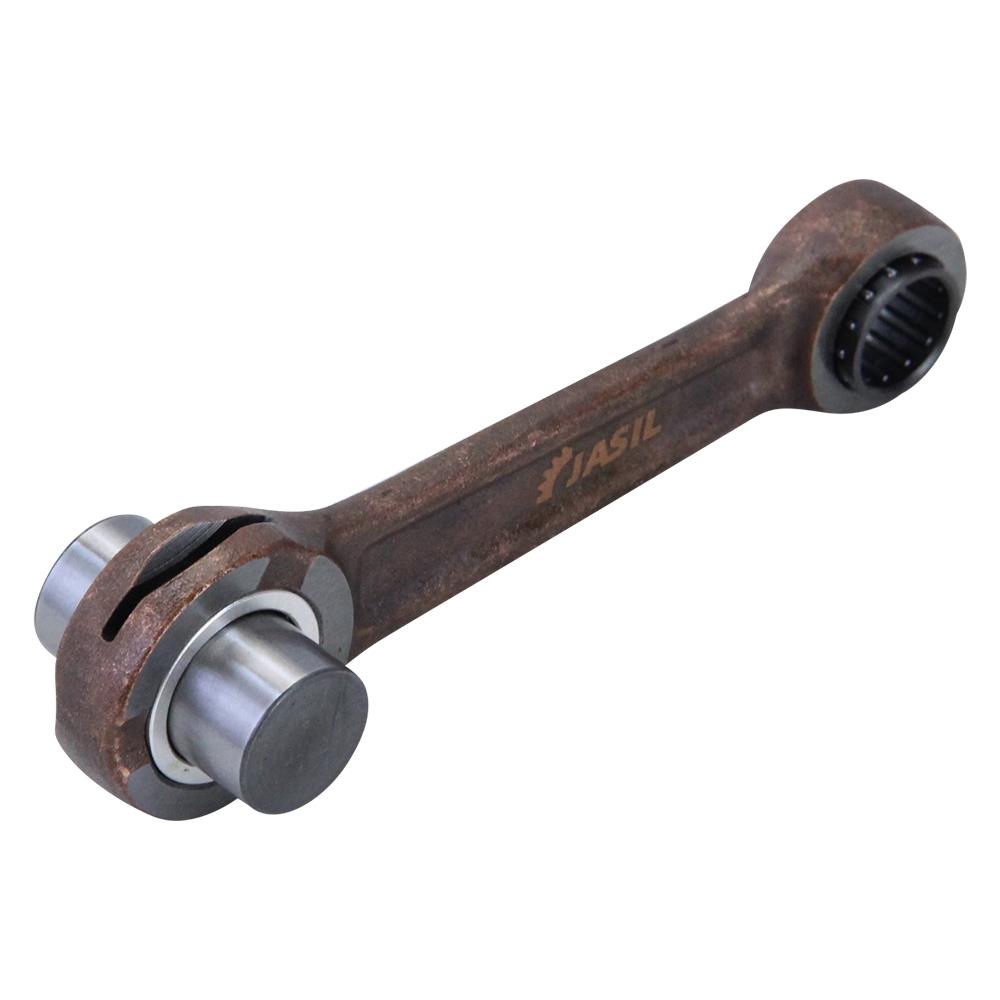

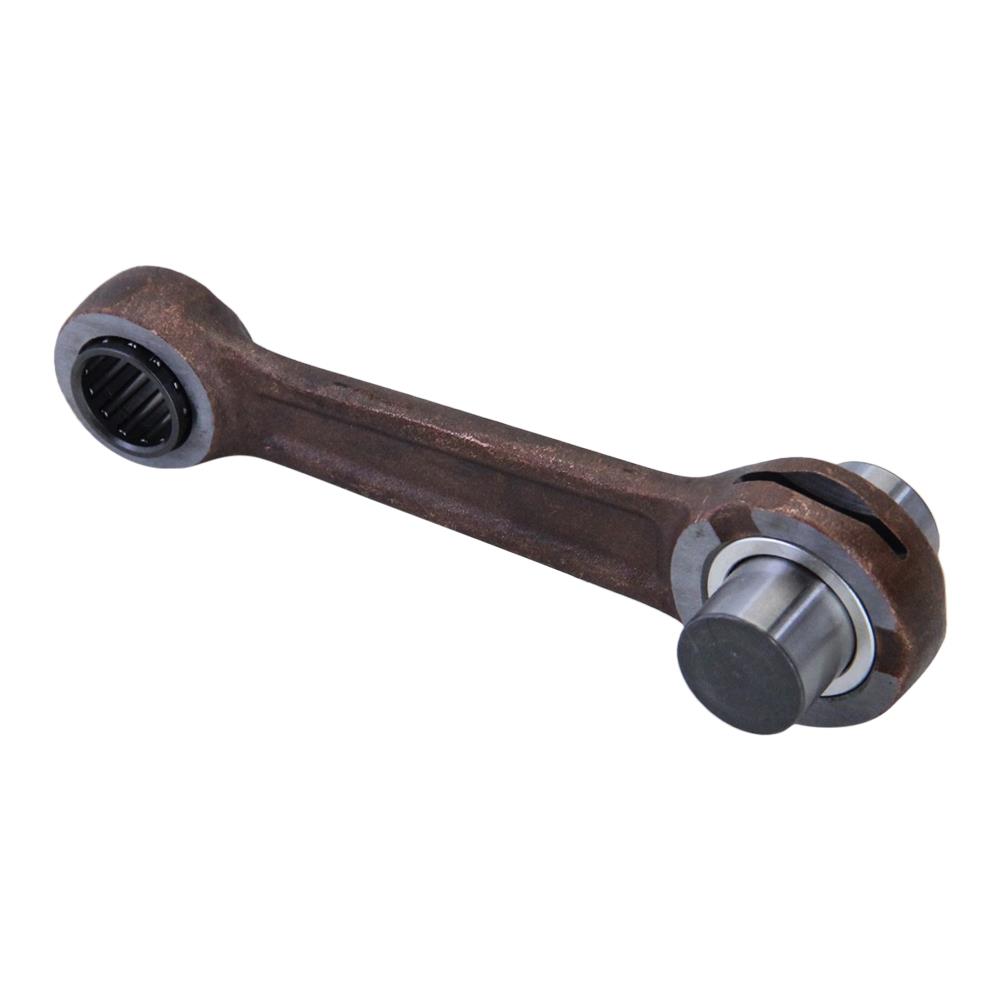

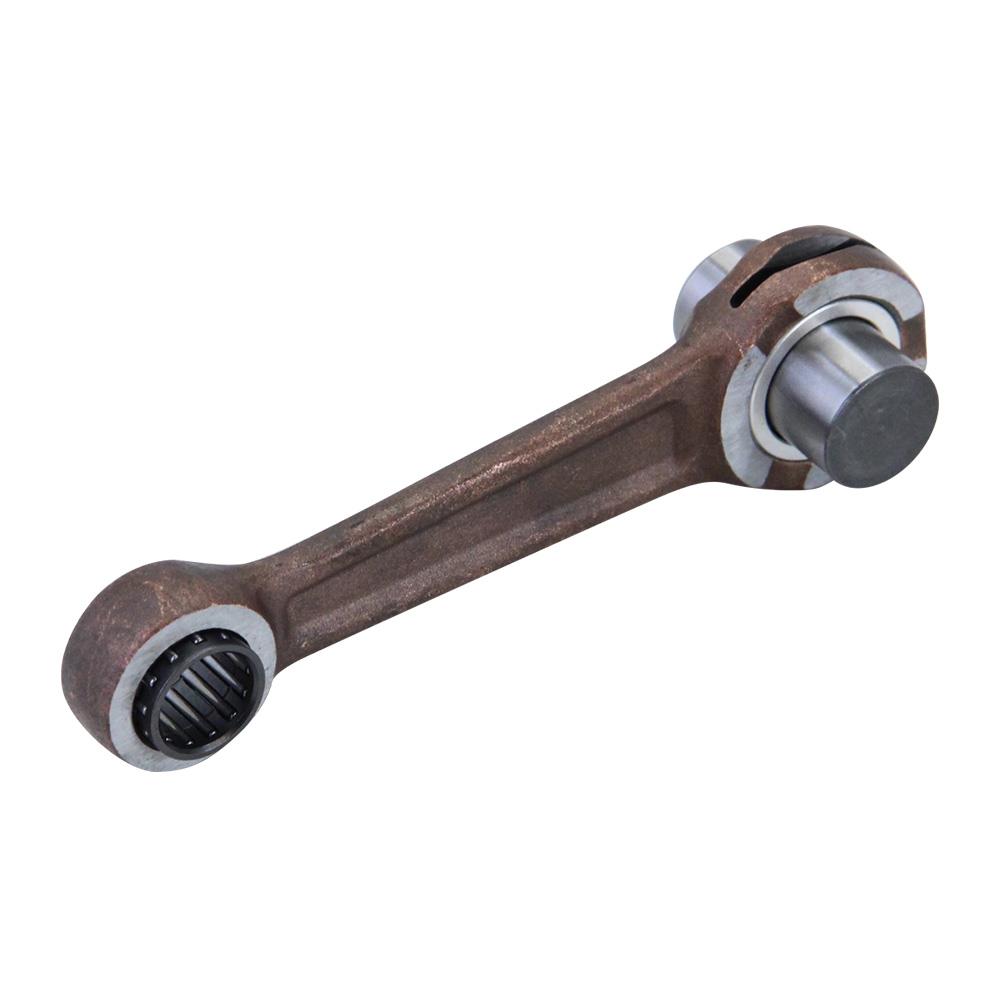

JASIL connecting rod repair kit ORIGINAL for Hercules 222 MF3 MP 2 3 4 R50 Lastboy // Sachs 50/2 50/3 50/4


  • JASIL - Top Racing
  • 6001038
  • 6001038
  • 5605822000365

Item data

Product type: Connecting rod

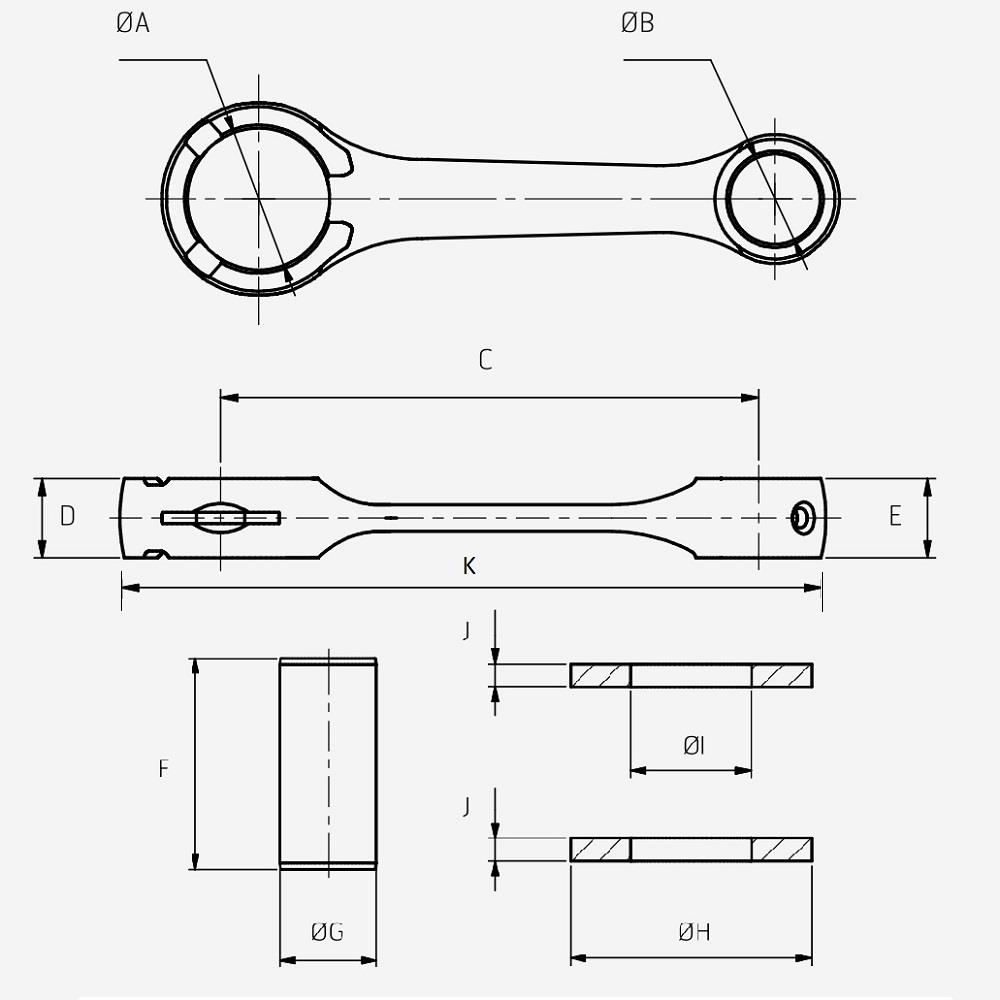

Dimension F (length of lifting pin): 30 mm
Needle roller bearing pin dimensions: 16x21x10 mm
Tuning & Styling Part: No
Vintage part: Yes
Dimensions needle bearing piston pin: 12x15x15 mm
Surface finish: Matt
Dimension C (connecting rod length): 85 mm
Dimension G (diameter of lifting pin): 16 mm
matching piston pin: 12 mm
Dimension K (total length of connecting rod): 111 mm
OE/OEM reference number(s): Jasil - Top Racing 6 001 038
GTIN: 5605822000365
Dimension A (diameter of connecting rod eye at bottom): 21 mm
Dimension D (width of connecting rod at bottom): 10 mm
Scope of delivery: Bolt, Needle roller bearing, Connecting rod
Dimension E (top width of connecting rod): 10 mm
Dimension B (top diameter of connecting rod eye): 15 mm
Color: Grey
Scope of delivery: 1x connecting rod repair kit
Manufacturer number: 6001038
Country and region of manufacture: Portugal
Type of motorcycle: Moped & Mokick
Offer package: Yes
Description of the package content: Connecting rod incl. needle bearing, crank pin
Manufacturer warranty: 2 years
Weight: not specified
Material: Cast iron
Type: Original
£32.34 *
Content: 1 piece

Prices plus VAT plus shipping costs

In stock! Delivery time 1-3 working days

Hercules 222 MFH (1966-) Hercules MF 3 (1972-1975) Hercules 222 T (1966-) Hercules 222 TH... more
Product information "JASIL connecting rod repair kit ORIGINAL for Hercules 222 MF3 MP 2 3 4 R50 Lastboy // Sachs 50/2 50/3 50/4"

Hercules 222 MFH (1966-)
Hercules MF 3 (1972-1975)
Hercules 222 T (1966-)
Hercules 222 TH (1967-)
Hercules 222 TS (1966-)
Hercules HR 1 (1972-1974)
Hercules LASTBOY (1965-)
Hercules MK 50 (1965-1966)
Hercules MK 50 (1967-1970 )
Hercules MP 2 (1971-1977)
Hercules MP 3 (1971-)
Hercules MP 4 Duo - Type 632 (1972-1978)
Hercules MP 4 Duo - Type 632 (1976-1978)
Hercules Optima MP 4 (1982-2002)
Hercules R 50 (1975-1979)
Hercules R 50 (1964-1979)
HerculesR 50 ( 1965-1974)
Hercules Prima G3 (1978-1987)
Hercules LASTBOY (1965-)
Hercules R 50 S (1961-1974)

Sachs 50/2 MA
Sachs 50/2 MA NL
Sachs 50/2 MA SF
Sachs 50/2 MA X
Sachs 50/2 MB
Sachs 50/2 S< br />Sachs 50/2 DK
Sachs 50/2 C
Sachs 50/2 D
Sachs 50/2 D NL
Sachs 50/2 MAK
Sachs 50/2 MAK SF
Sachs 50/2 K
Sachs 50/2 K S
Sachs 50/2 K DK
Sachs 50/2 MLA
Sachs 50/2 MLA 3 MA SF
Sachs 50/3 MA X
Sachs 50/3 MB
Sachs 50/3 MK
Sachs 50/3 MK
Sachs 50/3 MAK SF
Sachs 50/3 MKA
Sachs 50/3 MKA I
Sachs 50/3 L
Sachs 50/3 LS
Sachs 50/3 H"
Sachs 50/3 MLA
Sachs 50/3 MLA X
Sachs 50/3 MLA NL
Sachs 50/3 MLB
Sachs 50/3 LH
Sachs 50/3 LH X
Sachs 50/3 MLKB
Sachs 50/3 MLKA
Sachs 50/3 MLKA LKH
Sachs 50/3 LKH NL
Sachs 50/3 C
Sachs 50/3 C NL
Sachs 50/3 D
Sachs 50/3 MAKF
Sachs 50/3 MAKF SF
Sachs 50/3 MAKF X
Sachs 50/3 KF
Sachs 50/3 KF S
Sachs 50/3 BKF
Sachs 50/3 BKF S
Sachs 50/3 MLFB
Sachs 50/3 LFH
Sachs 50/3 LFS

Sachs 50/4 CF
Sachs 50/4 CF NL
Sachs 50/4 DF
Sachs 50/4 DF X
Sachs 50/4 LF
Sachs 50/4 LF NL
Sachs 50/ 4 MLFA
Sachs 50/4 MLFA NL
Sachs 50/4 MLFB
Sachs 50/4 MLKA X
Sachs 50/4 LKS
Sachs 50/4 LKH< /p>

Further links to "JASIL connecting rod repair kit ORIGINAL for Hercules 222 MF3 MP 2 3 4 R50 Lastboy // Sachs 50/2 50/3 50/4"
Sicherheitsinformationen für dieses Produkt. more
MANUFACTURER INFORMATION FOR THE EU:
Brand name: JASIL - Top Racing

J. Antonio da Silva

Parque Industrial de Adaúfe Lote I-6
4701-853 Braga

PRT


Web page https://www.jasil.com/
Email: info@jasil.com
INFORMATION ON THE PERSON RESPONSIBLE FOR THE EU:







Eigenschaften more
Product type Connecting rod
Dimension F (length of lifting pin) 30 mm
Needle roller bearing pin dimensions 16x21x10 mm
Tuning & Styling Part No
Vintage part Yes
Dimensions needle bearing piston pin 12x15x15 mm
Surface finish Matt
Dimension C (connecting rod length) 85 mm
Dimension G (diameter of lifting pin) 16 mm
matching piston pin 12 mm
Dimension K (total length of connecting rod) 111 mm
OE/OEM reference number(s) Jasil - Top Racing 6 001 038
GTIN 5605822000365
Dimension A (diameter of connecting rod eye at bottom) 21 mm
Dimension D (width of connecting rod at bottom) 10 mm
Scope of delivery Bolt, Needle roller bearing, Connecting rod
Dimension E (top width of connecting rod) 10 mm
Dimension B (top diameter of connecting rod eye) 15 mm
Color Grey
Scope of delivery 1x connecting rod repair kit
Manufacturer number 6001038
Country and region of manufacture Portugal
Type of motorcycle Moped & Mokick
Offer package Yes
Description of the package content Connecting rod incl. needle bearing, crank pin
Manufacturer warranty 2 years
Weight not specified
Material Cast iron
Type Original
Jasil - High-quality crankshafts and engine parts for two-wheelers Jasil is an... more
"JASIL - Top Racing"
JASIL - Top Racing

Jasil - High-quality crankshafts and engine parts for two-wheelers

Jasil is an internationally recognized manufacturer of crankshafts, engine and drive parts for motorcycles, scooters and mopeds. The Portuguese company was founded in 1950 and has made a name for itself worldwide through precision, quality and technical innovation.

Premium quality crankshafts

Jasil is particularly well-known for its crankshafts, which are available in different versions: from standard and replacement crankshafts to reinforced racing versions. They are characterized by precise manufacturing, high-quality materials and a long service life. This makes Jasil crankshafts suitable for everyday use as well as for performance-oriented tuning projects.

Engine and drive components

In addition to crankshafts, Jasil offers a wide range of engine parts such as pistons, shafts, gears and other components. All products are manufactured to modern standards and offer the perfect balance of stability, functionality and performance.

Technology & innovation from Portugal

With decades of experience and continuous development, Jasil relies on innovative manufacturing processes that ensure consistently high quality. The products are in demand worldwide among mechanics, workshops and racing teams, as they combine durability with increased performance.

The advantages of Jasil at a glance

  • ✔️ High-quality crankshafts for everyday use and racing
  • ✔️ Precise manufacturing & long service life
  • ✔️ Wide range of engine and drive parts
  • ✔️ Suitable for scooters, mopeds and motorcycles
  • ✔️ Decades of experience and state-of-the-art technology

Conclusion: Jasil for quality and performance

Jasil stands for engine parts that impress with their precision, robustness and performance. Whether as a spare part for everyday use or as a tuning component for more power - with Jasil, drivers are opting for quality at the highest level.

With Jasil crankshafts and engine parts, you are investing in longevity and driving pleasure.
