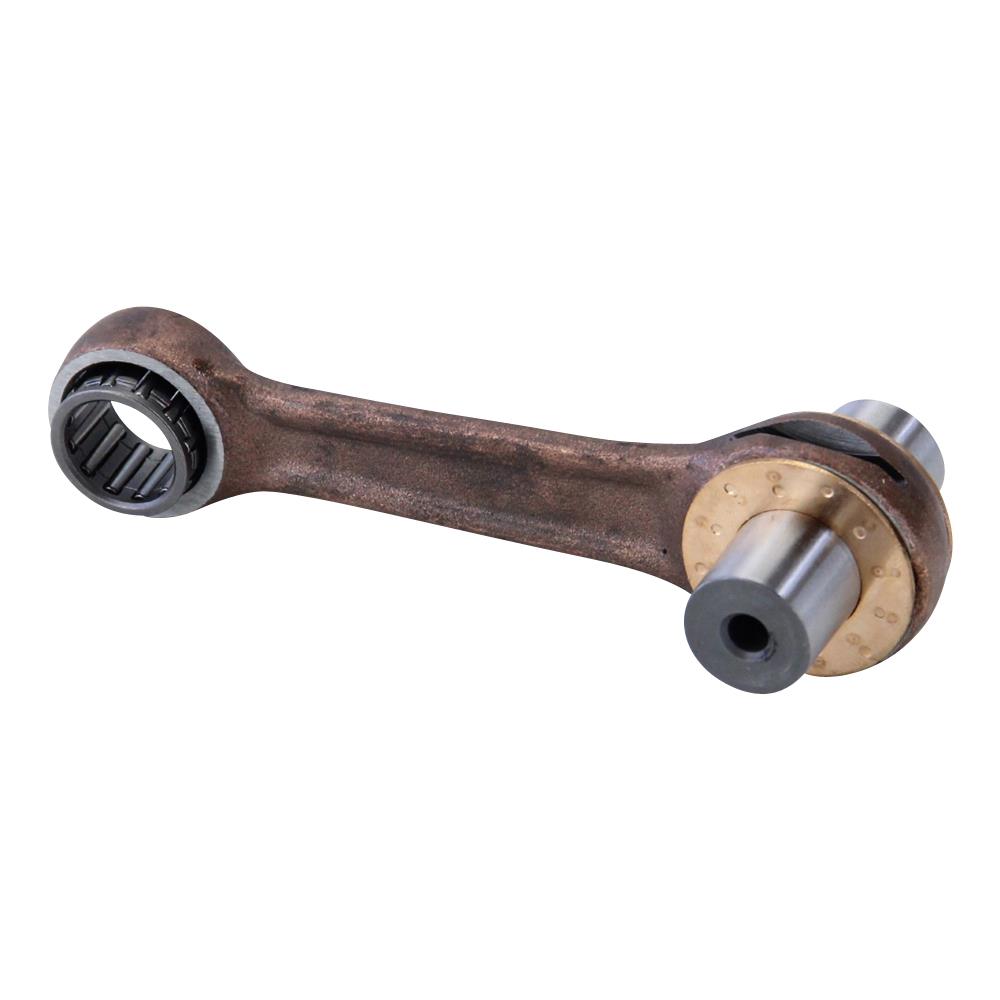

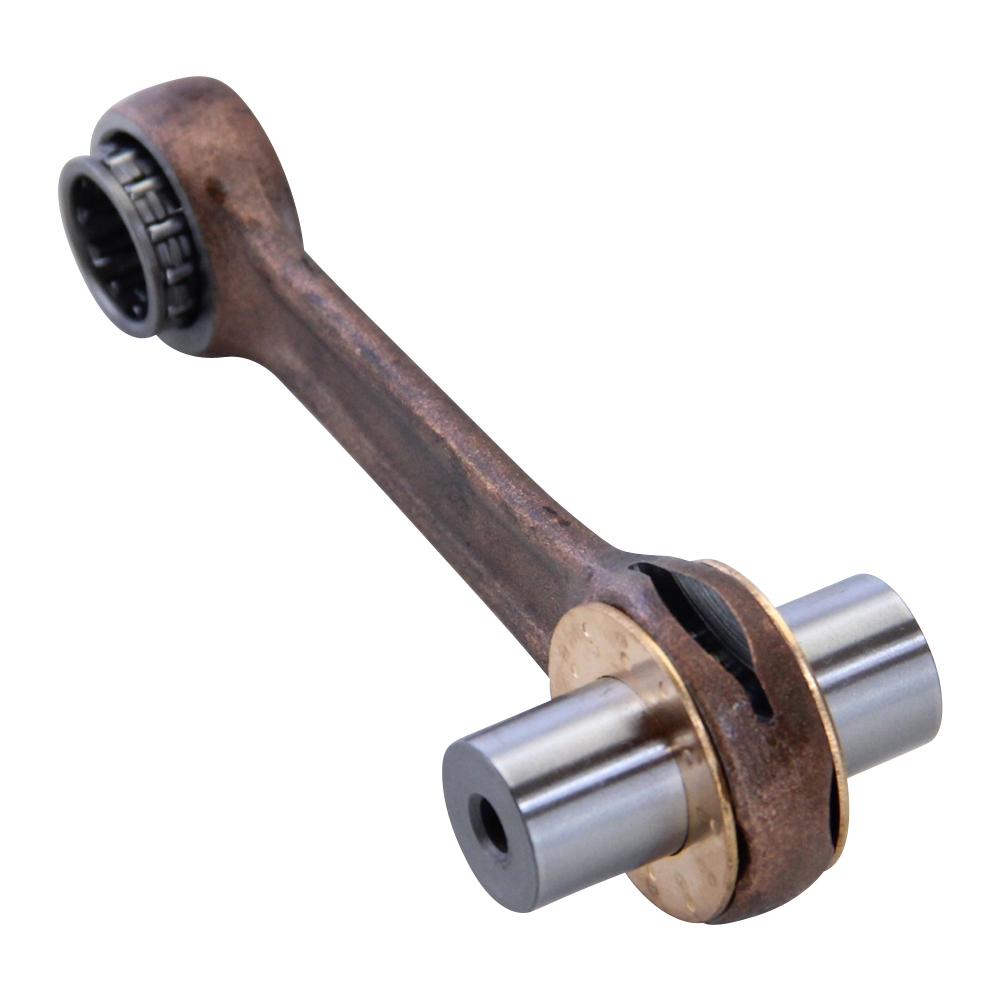

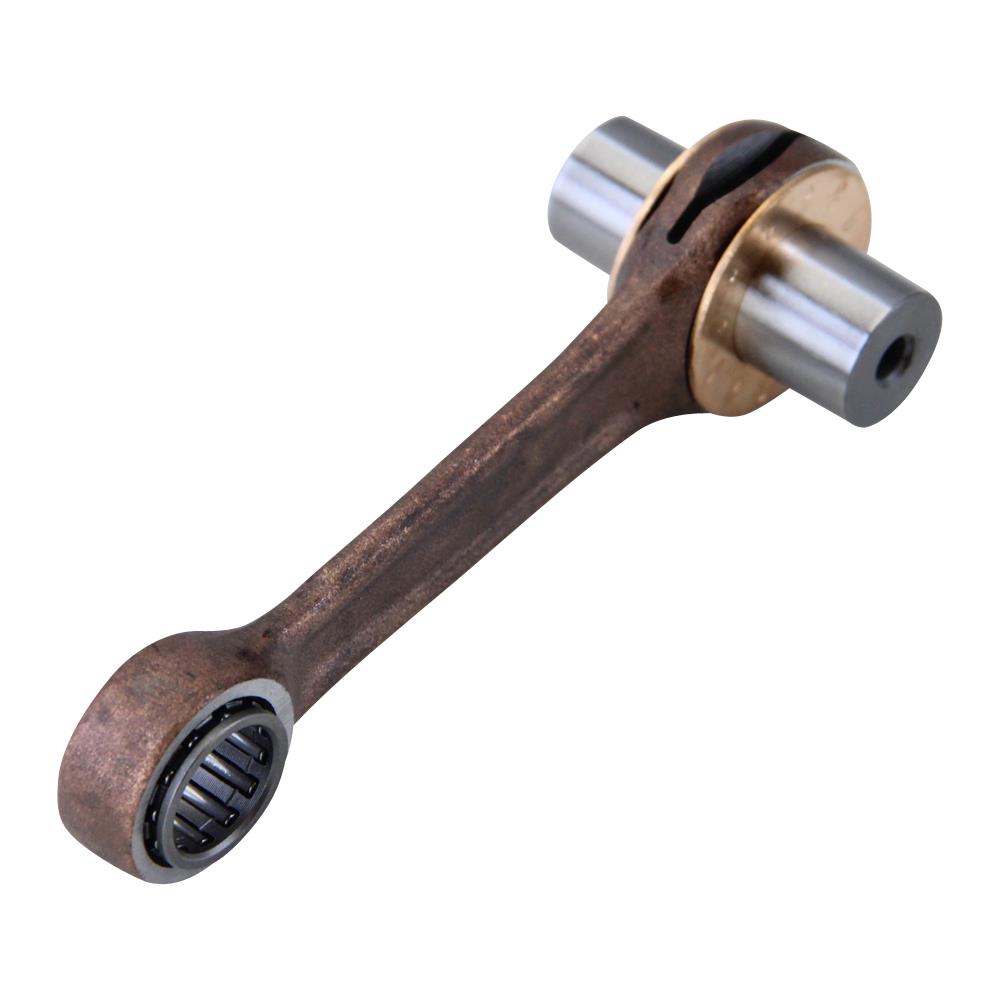

JASIL connecting rod repair kit ORIGINAL for Hercules K 50 RE RL SX Sprint Ultra KX SB XE // Sachs 50/5 AKF / 50S


  • JASIL - Top Racing
  • 6001040
  • 6001040
  • 5605822000389

Item data

Product type: Connecting rod

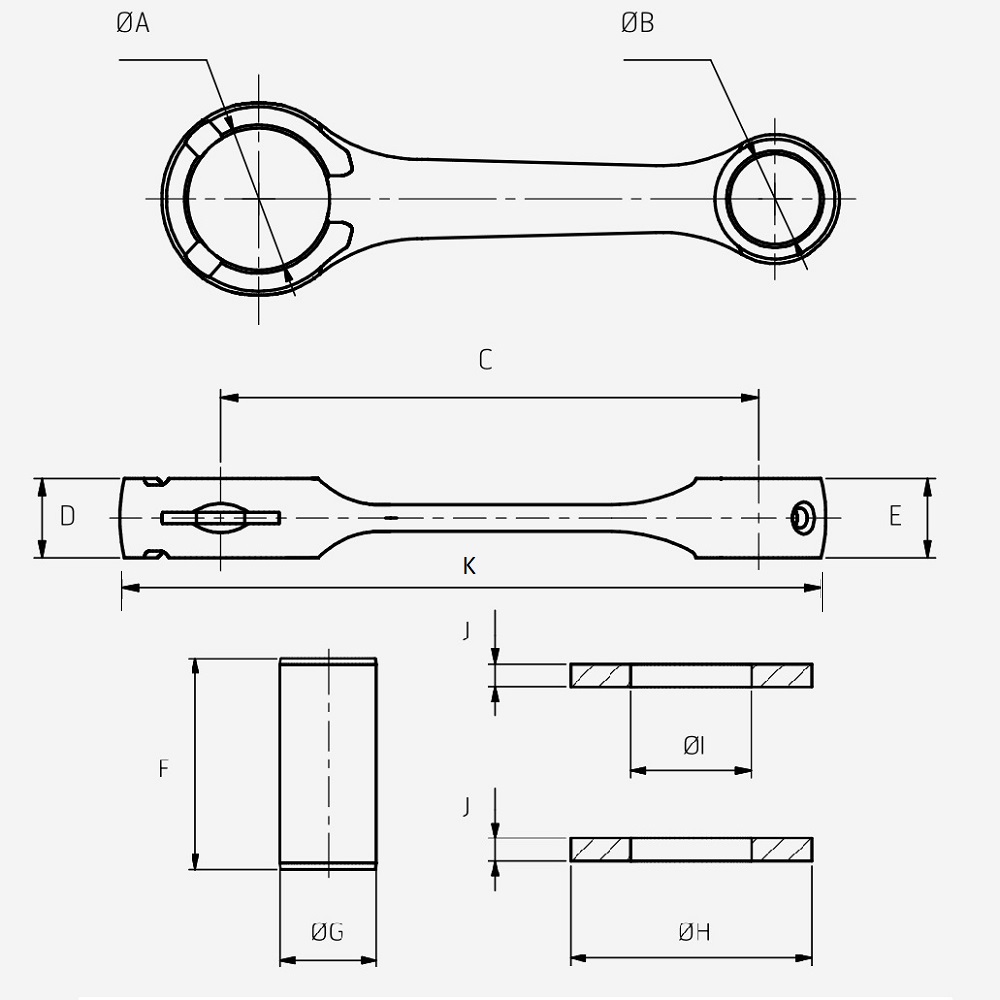

Dimension I (inner diameter of shims): 16.1 mm
Dimension F (length of lifting pin): 40.4 mm
Needle roller bearing pin dimensions: 16x21x10 mm
Tuning & Styling Part: No
Dimension J (thickness of shims): 1 mm
Vintage part: Yes
Dimensions needle bearing piston pin: 14x18x13 mm
Surface finish: Matt
Dimension C (connecting rod length): 85 mm
Dimension G (diameter of lifting pin): 16 mm
matching piston pin: 14 mm
Dimension K (total length of connecting rod): 112 mm
OE/OEM reference number(s): Jasil - Top Racing 6 001 040
GTIN: 5605822000389
Dimension A (diameter of connecting rod eye at bottom): 21 mm
Dimension D (width of connecting rod at bottom): 10 mm
Dimension H (outer diameter of shims): 28.5 mm
Scope of delivery: Bolt, Needle roller bearing, Connecting rod, Slices
Dimension E (top width of connecting rod): 10 mm
Dimension B (top diameter of connecting rod eye): 18 mm
Color: Grey
Scope of delivery: 1x connecting rod repair kit
Manufacturer number: 6001040
Country and region of manufacture: Portugal
Type of motorcycle: Moped & Mokick
Offer package: Yes
Description of the package content: Connecting rod incl. needle bearing, crank pin, washers
Manufacturer warranty: 2 years
Weight: not specified
Material: Cast iron
Type: Original
£33.78 *
Content: 1 piece

Prices plus VAT plus shipping costs

In stock! Delivery time 1-3 working days

Hercules K 50 RS (1968-1970) Hercules K 50 Sport (1968-1969) Hercules K 50 Super Sport... more
Product information "JASIL connecting rod repair kit ORIGINAL for Hercules K 50 RE RL SX Sprint Ultra KX SB XE // Sachs 50/5 AKF / 50S"

Hercules K 50 RS (1968-1970)
Hercules K 50 Sport (1968-1969)
Hercules K 50 Super Sport (1968-1970)
Hercules K 50 (1963-1970 )
Hercules K 50 RE (1973-1974)
Hercules K 50 RL (09/1976-1980)
Hercules K 50 RX (1969-1972)
Hercules K 50 SE (1973-1974)
Hercules K 50 SL (09/1976-)
Hercules K 50 SL (1974-08/1976)
Hercules K 50 SX (1969-1972)
Hercules K 50 Sprint (1969-1980)
Hercules K 50 Ultra AC (09/1976-1979)
Hercules K 50 Ultra II AC (1979-1980)
Hercules KX-5 ( 1984-1995)
Hercules RT 159 (1973)
Hercules SB 1 Sport Bike (1972-1975)
Hercules SB 5 Sport Bike (1975-1979)
Hercules XE-5 Enduro (1984-1989)

Sachs 50/5 AKF

Sachs 50S cast iron cylinder

Sachs 50S aluminum cylinder

Further links to "JASIL connecting rod repair kit ORIGINAL for Hercules K 50 RE RL SX Sprint Ultra KX SB XE // Sachs 50/5 AKF / 50S"
Sicherheitsinformationen für dieses Produkt. more
MANUFACTURER INFORMATION FOR THE EU:
Brand name: JASIL - Top Racing

J. Antonio da Silva

Parque Industrial de Adaúfe Lote I-6
4701-853 Braga

PRT


Web page https://www.jasil.com/
Email: info@jasil.com
INFORMATION ON THE PERSON RESPONSIBLE FOR THE EU:







Eigenschaften more
Product type Connecting rod
Dimension I (inner diameter of shims) 16.1 mm
Dimension F (length of lifting pin) 40.4 mm
Needle roller bearing pin dimensions 16x21x10 mm
Tuning & Styling Part No
Dimension J (thickness of shims) 1 mm
Vintage part Yes
Dimensions needle bearing piston pin 14x18x13 mm
Surface finish Matt
Dimension C (connecting rod length) 85 mm
Dimension G (diameter of lifting pin) 16 mm
matching piston pin 14 mm
Dimension K (total length of connecting rod) 112 mm
OE/OEM reference number(s) Jasil - Top Racing 6 001 040
GTIN 5605822000389
Dimension A (diameter of connecting rod eye at bottom) 21 mm
Dimension D (width of connecting rod at bottom) 10 mm
Dimension H (outer diameter of shims) 28.5 mm
Scope of delivery Bolt, Needle roller bearing, Connecting rod, Slices
Dimension E (top width of connecting rod) 10 mm
Dimension B (top diameter of connecting rod eye) 18 mm
Color Grey
Scope of delivery 1x connecting rod repair kit
Manufacturer number 6001040
Country and region of manufacture Portugal
Type of motorcycle Moped & Mokick
Offer package Yes
Description of the package content Connecting rod incl. needle bearing, crank pin, washers
Manufacturer warranty 2 years
Weight not specified
Material Cast iron
Type Original
