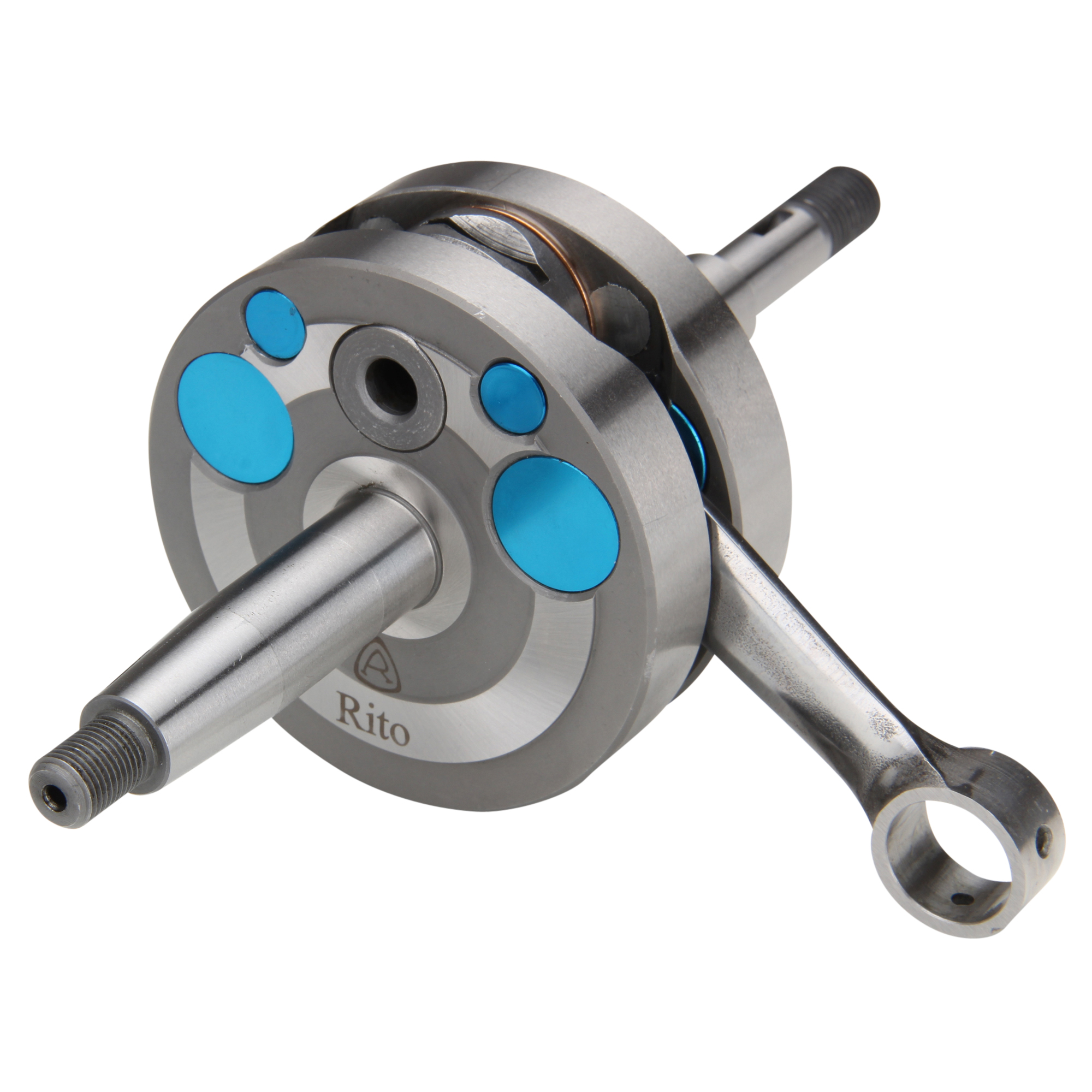

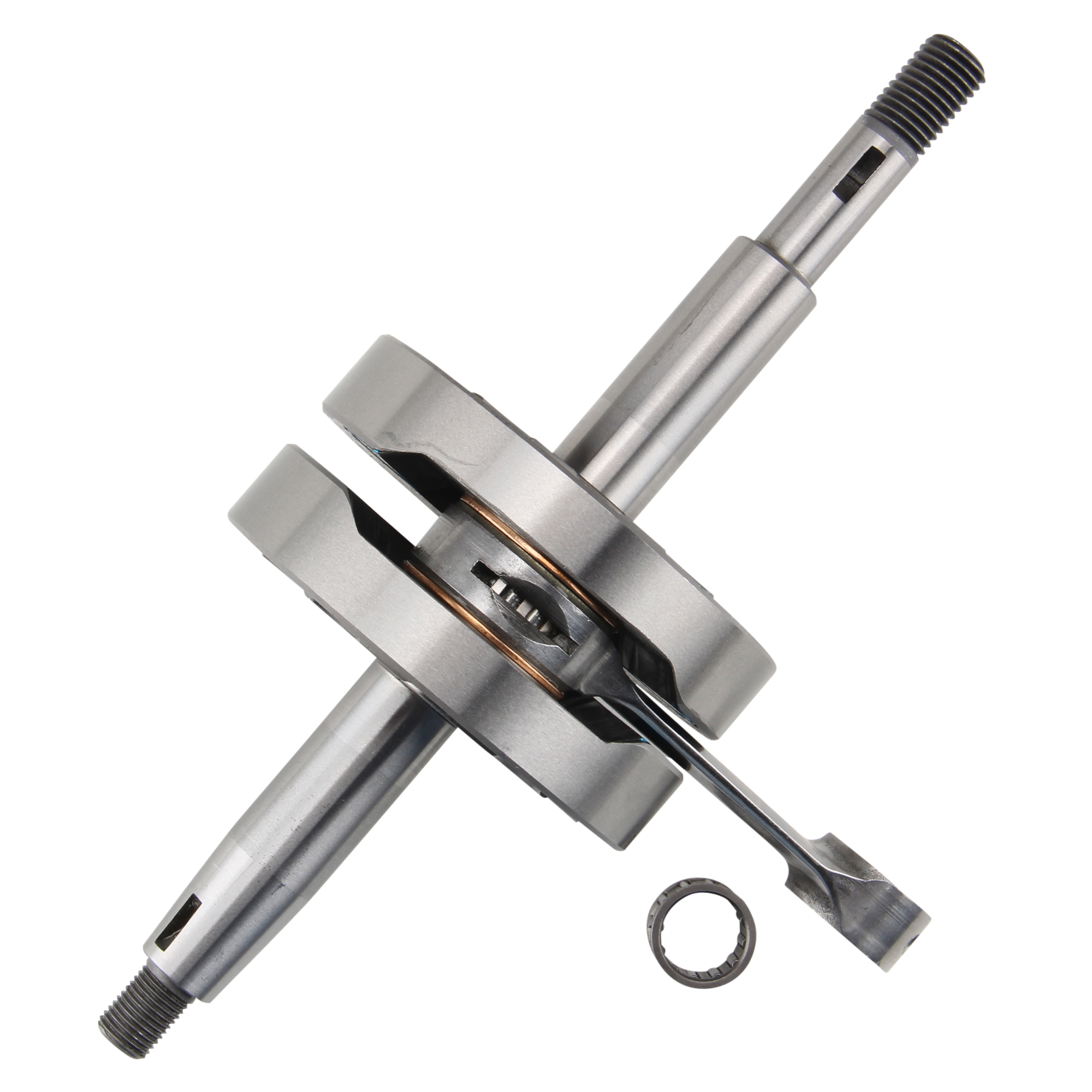

RITO crankshaft RACING 19000RPM (48mm stroke) for Hercules RX9 Ultra 80 Ultra RS 80 XE9 // Sachs 80 SA SW
- Manufacturer: RITO
- Item no: 9.149.41.1.012
- Manufacturer no.: 9.149.41.1.012
- EAN: 4251048886699
Item data
| Product type: | Crankshaft |
| Dimension B (shaft diameter on coupling side): | 17 mm |
| Feature: | 48 mm stroke |
| Crankshaft type: | Full cheek crankshaft |
| Dimension F (length of crankshaft stub on clutch side): | 75 mm |
| Tuning & Styling Part: | Yes |
| Vintage part: | Yes |

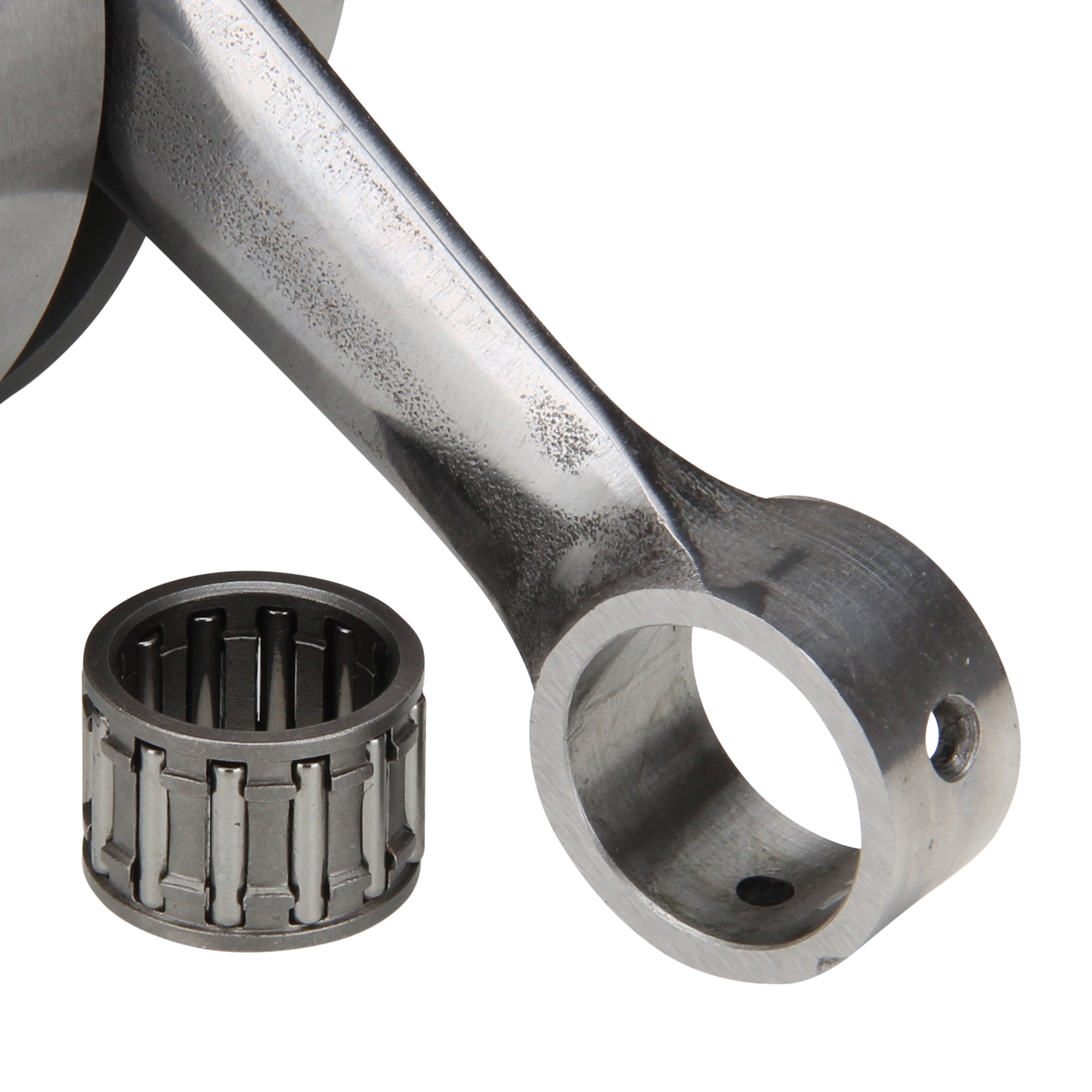

| Dimensions needle bearing piston pin: | 14x18x12.5 mm |
| Dimension C (stroke pin offset = half stroke): | 24 mm |
| Dimension J (thread on coupling side): | M12 x 1.5 right-hand thread |
| Crankshaft stroke: | 48 mm |
| Dimension G (width of crank webs): | 38 mm |
| Surface finish: | Matt |
| Special feature (crankshaft stub on alternator side): | Cone 1:7.5 |
| matching piston pin: | 14 mm |
| OE/OEM reference number(s): | RITO 9.149.41.1.012, 0288 135 001, 0288135001, 0288 135 101, 0288135101 |
| GTIN: | 4251048886699 |
| Dimension D (connecting rod length): | 95 mm |
| Dimension H (top diameter of connecting rod eye): | 18 mm |
| Dimension A (shaft diameter on alternator side): | 17 mm |

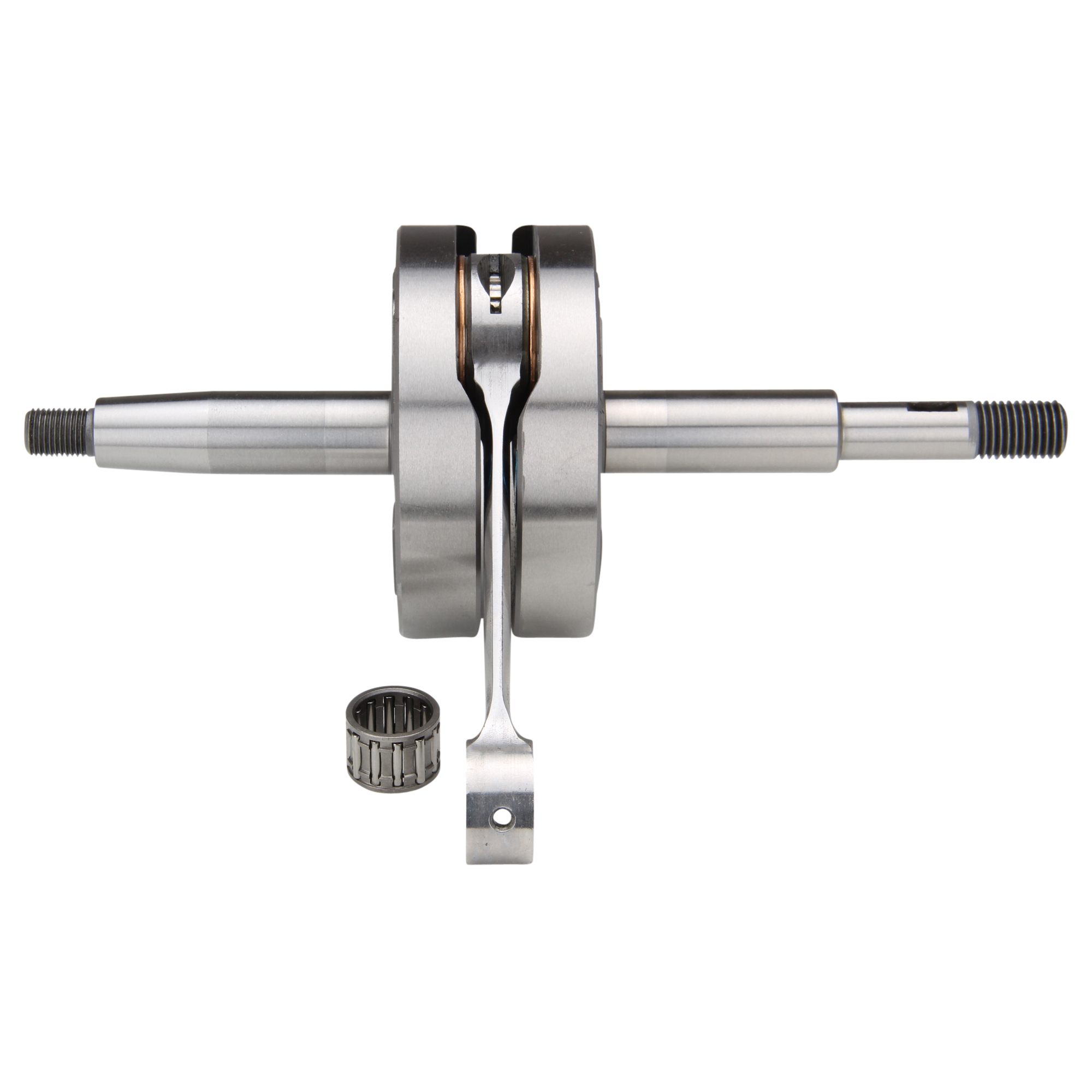

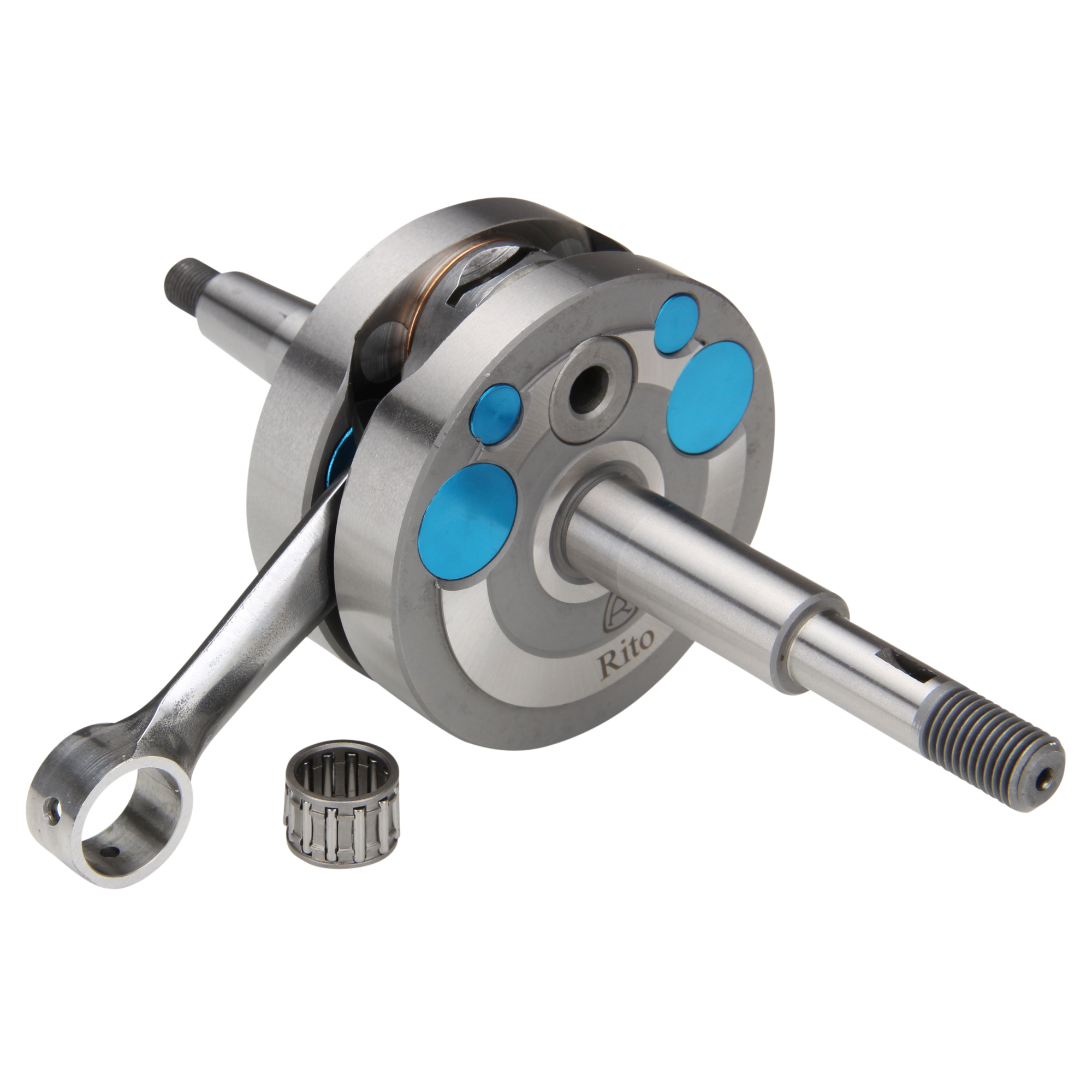

| Scope of delivery: | Crankshaft + needle bearing |
| Dimension E (length of crankshaft stub on alternator side): | 58 mm |
| Dimension I (thread on alternator side): | M10 x 1 left-hand thread |
| Color: | Grey |
| Scope of delivery: | 1x crankshaft |
| Manufacturer number: | 9.149.41.1.012 |
| Country and region of manufacture: | Portugal |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Crankshaft incl. needle bearing |
| Manufacturer warranty: | 2 years |
| Weight: | not specified |
| Material: | Cast iron |
| Type: | Racing |
Cylinder kit 50cc including cylinder head + valves for China scooters, Baotian, Rex RS450
Cylinder kit 50cc Minarelli AC air-cooled horizontal engines, CPI, Rexy, Keeway
Cylinder kit 50cc AC air-cooled 12mm bolt angled flange for horizontal CPI engines, CPI, Keeway
Cylinder Kit 70cc LC watercooled incl. head for Piaggio engines, NRG, ZIP, NTT, Gilera Runner
JASIL crankshaft for Hercules K 50 RE RL SX Sprint Ultra KX SB XE // Sachs 50/5 AKF / 50S
RITO crankshaft RACING (L17 bearing 17mm) (44mm stroke) for Sachs 50/3 50/4 engine
RITO clutch basket RACING (76/17T) straight teeth Zündapp Combinette C ZD CS Hai ZX ZL ZS KS GTS R RS
JASIL crankshaft (14mm Kobo) for Hercules MK 4 50 / Supra 4 Enduro GP // Sachs 501/4 AKF / 506/4 AKF
Hercules RX 9 LC full fairing (1982-)
Hercules RX-9 AC (1984-)
Hercules RX-9 LC Replica (1985-)
Hercules RX-9 LC partial fairing ( 1982-)
Hercules Ultra 80 AC (1981-1983)
Hercules Ultra 80 AC Chopper (1982-1984)
Hercules Ultra 80 LC (1981-1983)
Hercules Ultra 80 LC Chopper (1982-1984)
Hercules Ultra 80 LC F (driving school) (1981-1983)
Hercules Ultra RS 80 AC (1982-1983)
Hercules Ultra RS 80 LC (1982- 1983)
Hercules XE-9 Enduro (1983-1986)
Sachs 80 SA
Sachs 80 SW
António Ferreira Rito & Filhos
Rua de Ventosa 37 C
4705-112 Braga
Web page https://www.rito.pt/en/
Email: rito@rito.pt
| Product type | Crankshaft |
|---|---|
| Dimension B (shaft diameter on coupling side) | 17 mm |
| Feature | 48 mm stroke |
| Crankshaft type | Full cheek crankshaft |
| Dimension F (length of crankshaft stub on clutch side) | 75 mm |
| Tuning & Styling Part | Yes |
| Vintage part | Yes |
| Dimensions needle bearing piston pin | 14x18x12.5 mm |
| Dimension C (stroke pin offset = half stroke) | 24 mm |
| Dimension J (thread on coupling side) | M12 x 1.5 right-hand thread |
| Crankshaft stroke | 48 mm |
| Dimension G (width of crank webs) | 38 mm |
| Surface finish | Matt |
| Special feature (crankshaft stub on alternator side) | Cone 1:7.5 |
| matching piston pin | 14 mm |
| OE/OEM reference number(s) | RITO 9.149.41.1.012, 0288 135 001, 0288135001, 0288 135 101, 0288135101 |
| GTIN | 4251048886699 |
| Dimension D (connecting rod length) | 95 mm |
|---|---|
| Dimension H (top diameter of connecting rod eye) | 18 mm |
| Dimension A (shaft diameter on alternator side) | 17 mm |
| Scope of delivery | Crankshaft + needle bearing |
| Dimension E (length of crankshaft stub on alternator side) | 58 mm |
| Dimension I (thread on alternator side) | M10 x 1 left-hand thread |
| Color | Grey |
| Scope of delivery | 1x crankshaft |
| Manufacturer number | 9.149.41.1.012 |
| Country and region of manufacture | Portugal |
| Type of motorcycle | Moped & Mokick |
| Offer package | Yes |
| Description of the package content | Crankshaft incl. needle bearing |
| Manufacturer warranty | 2 years |
| Weight | not specified |
| Material | Cast iron |
| Type | Racing |
