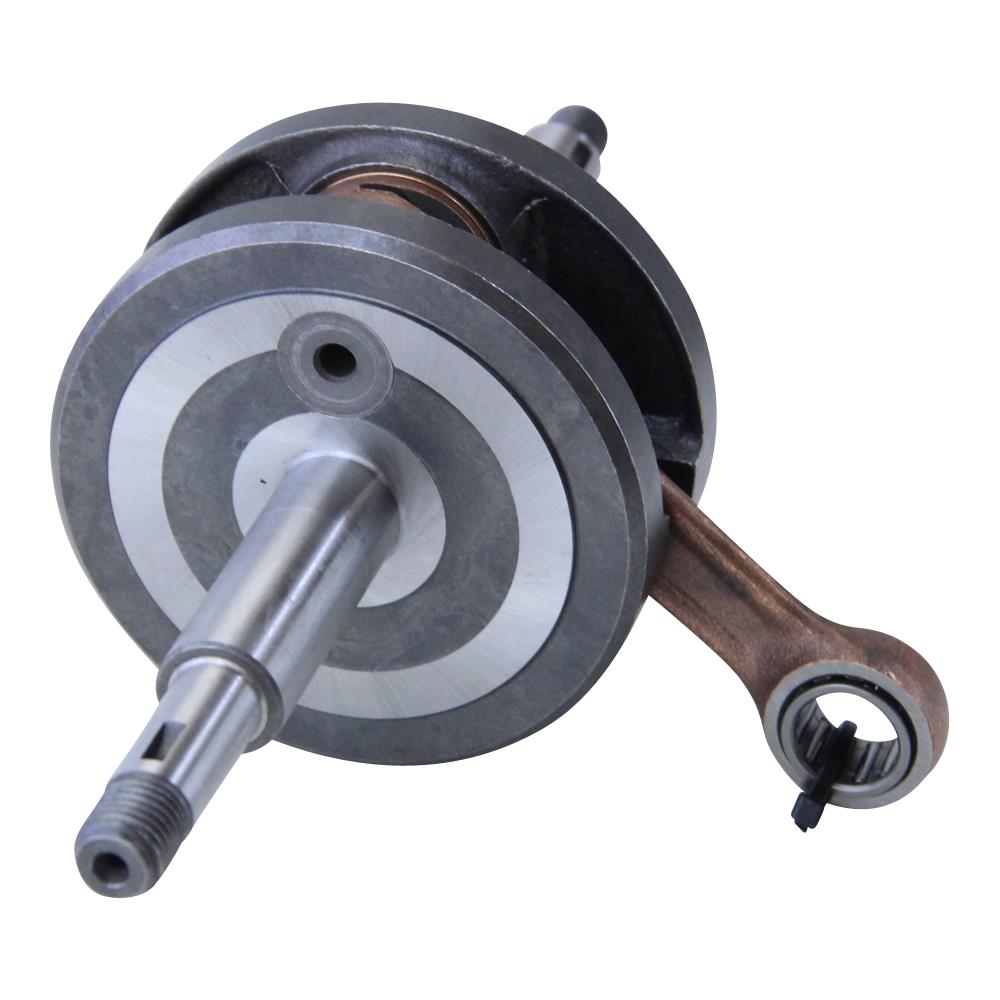

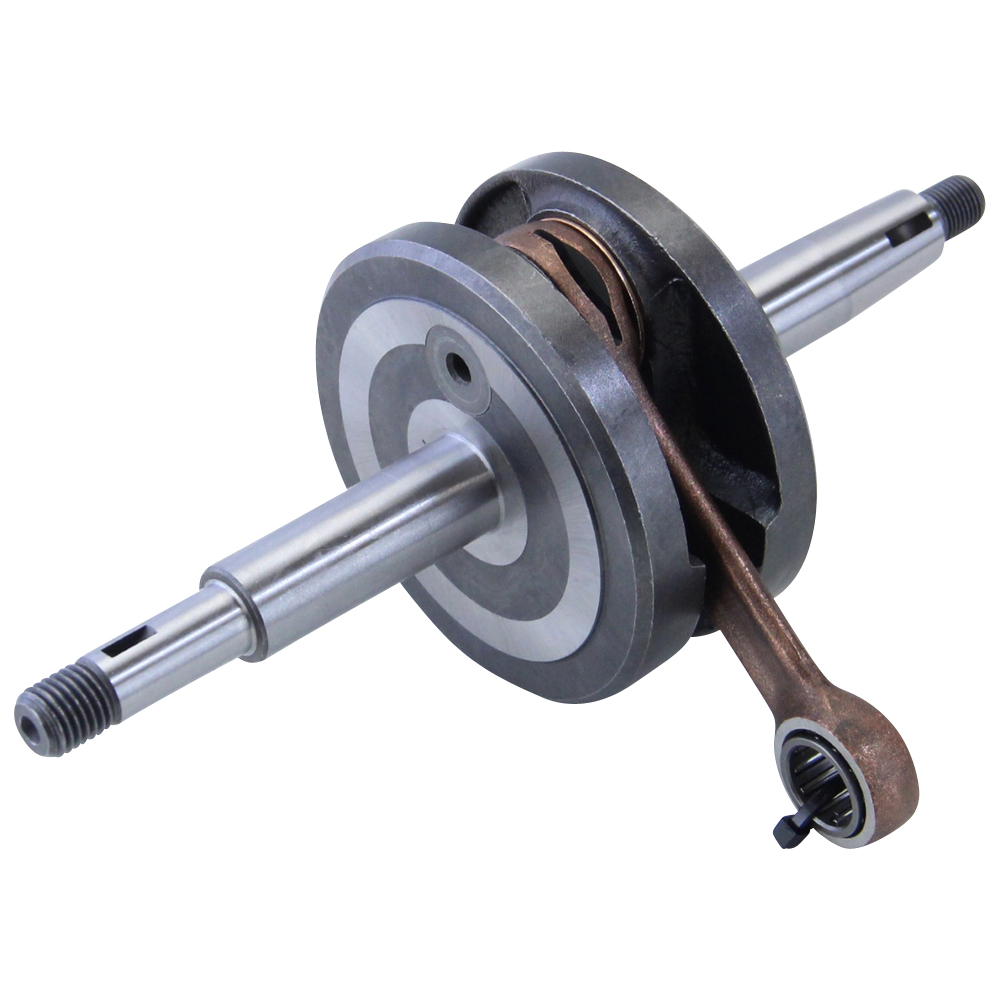

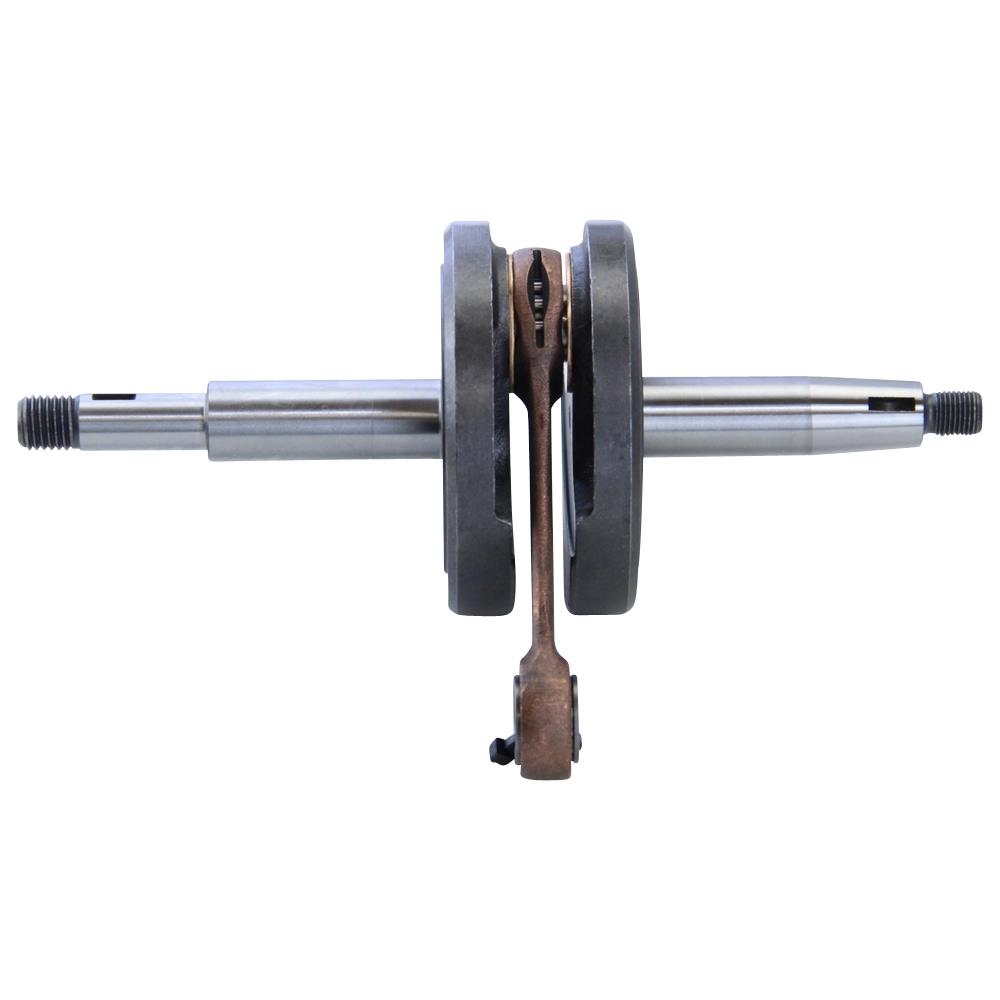

JASIL crankshaft for Hercules K 50 RE RL SX Sprint Ultra KX SB XE // Sachs 50/5 AKF / 50S
- Manufacturer: JASIL - Top Racing
- Item no: 6030057
- Manufacturer no.: 6030057
- EAN: 5605822003670
Item data
| Product type: | Crankshaft |
| Dimension B (shaft diameter on coupling side): | 17 mm |
| Crankshaft type: | Full cheek crankshaft |
| Dimension F (length of crankshaft stub on clutch side): | 73 mm |
| Tuning & Styling Part: | No |
| Vintage part: | Yes |

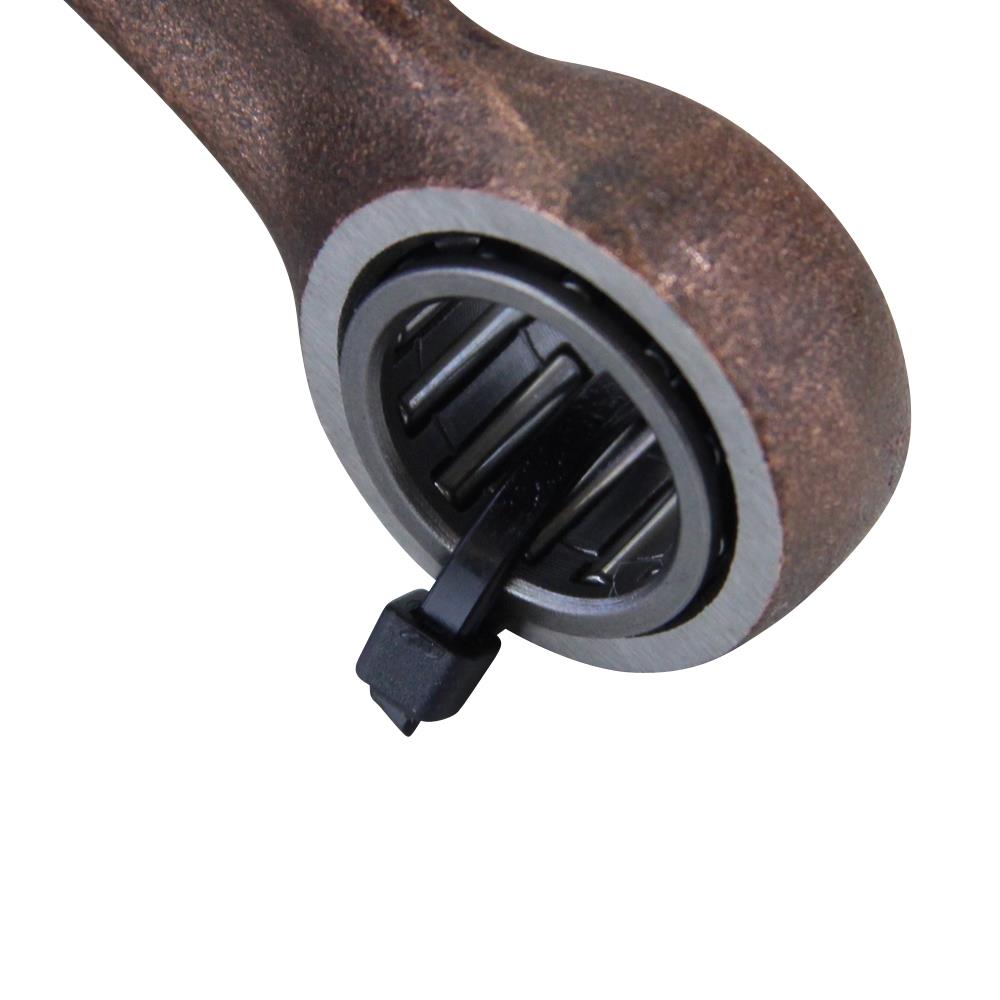

| Dimensions needle bearing piston pin: | 14x18x13 mm |
| Dimension C (stroke pin offset = half stroke): | 22 mm |
| Dimension J (thread on coupling side): | M12 x 1.5 right-hand thread |
| Crankshaft stroke: | 44 mm |
| Dimension G (width of crank webs): | 40.5 mm |
| Surface finish: | Matt |
| Special feature (crankshaft stub on alternator side): | Cone 1:7.5 |
| matching piston pin: | 14 mm |
| OE/OEM reference number(s): | Jasil - Top Racing 6 030 057, 0288 104 717, 0288104717, 0286 325 000, 0286325000, 0288 104 100, 0288104100 |
| GTIN: | 5605822003670 |
| Dimension D (connecting rod length): | 85 mm |
| Dimension H (top diameter of connecting rod eye): | 18 mm |
| Dimension A (shaft diameter on alternator side): | 17 mm |
| Scope of delivery: | Crankshaft + needle bearing |
| Dimension E (length of crankshaft stub on alternator side): | 59 mm |
| Dimension I (thread on alternator side): | M10 x 1 left-hand thread |
| Color: | Grey |
| Scope of delivery: | 1x crankshaft |
| Manufacturer number: | 6030057 |
| Country and region of manufacture: | Portugal |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Crankshaft incl. needle bearing |
| Manufacturer warranty: | 2 years |
| Weight: | not specified |
| Material: | Cast iron |
| Type: | Original |
