The perfect spare parts for your Hercules can be found here!

The velocipede factory Carl Marschütz & Co. is probably better known today as Nuremberg Hercules Werke. In 1886, the Marschütz brothers founded the company and produced mainly bicycles until 1928. From this time on, the production of small motorcycles became profitable again, due to the exemption from driving licenses and taxes. The Hercules factories had been using engines from Fichtel & Sachs since 1930.

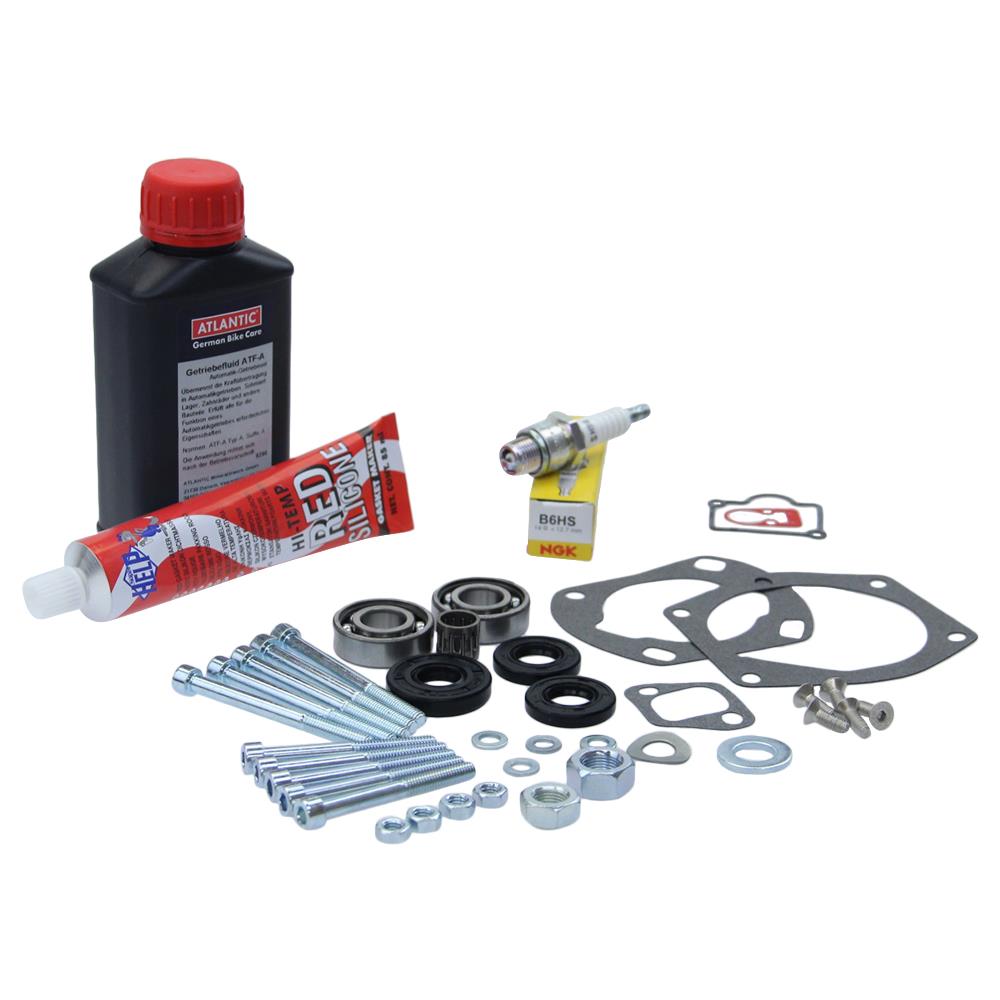

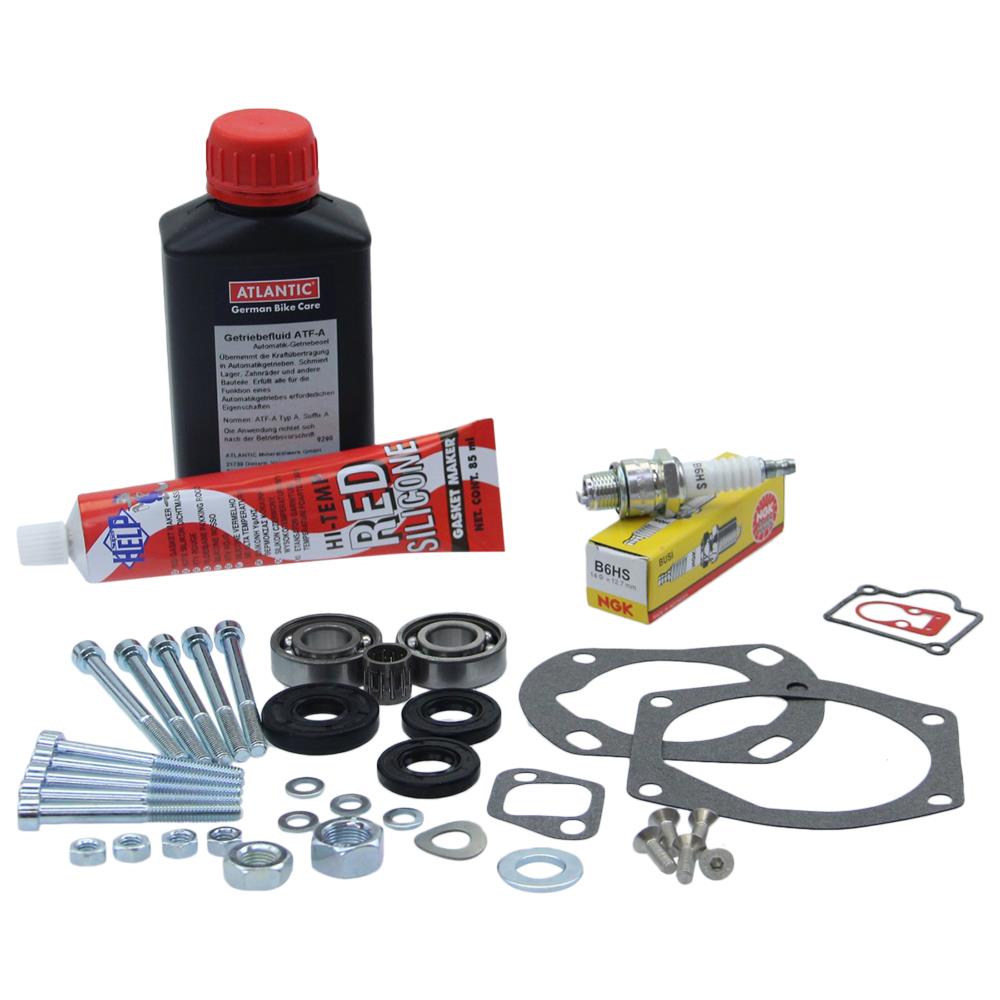

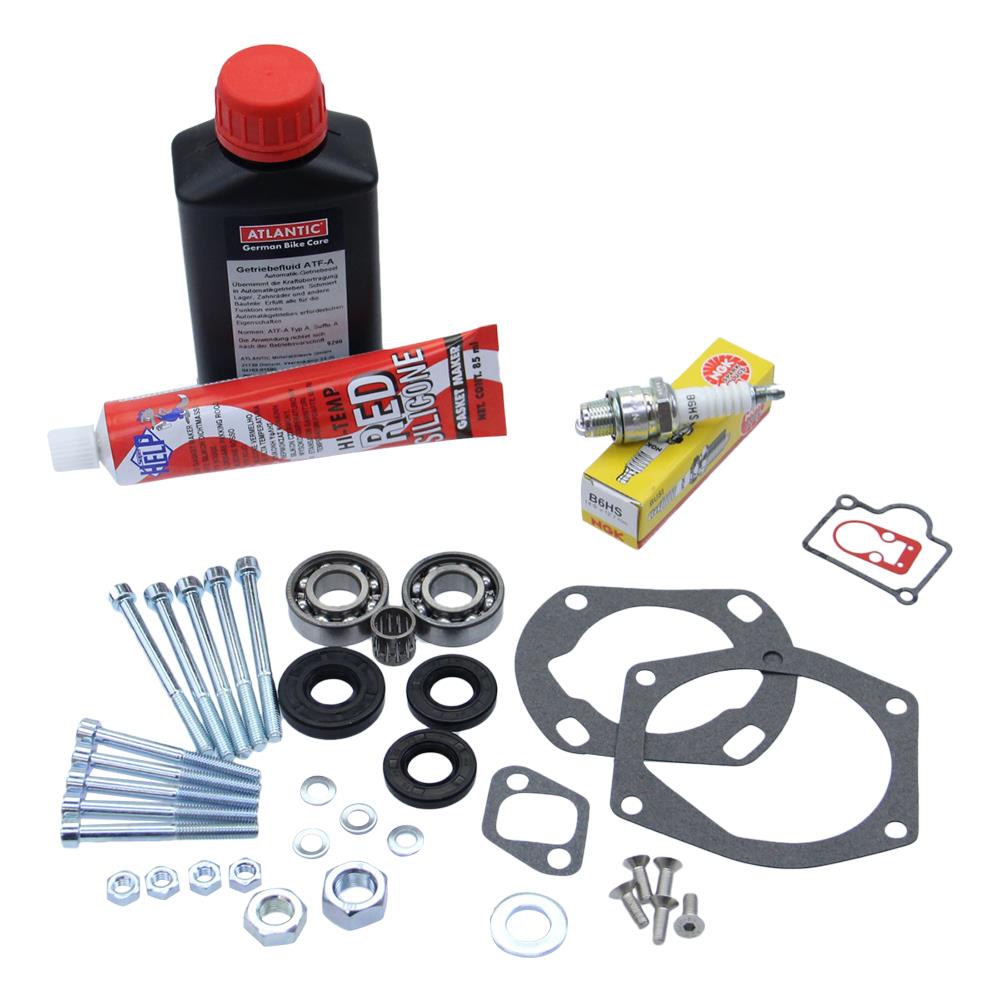

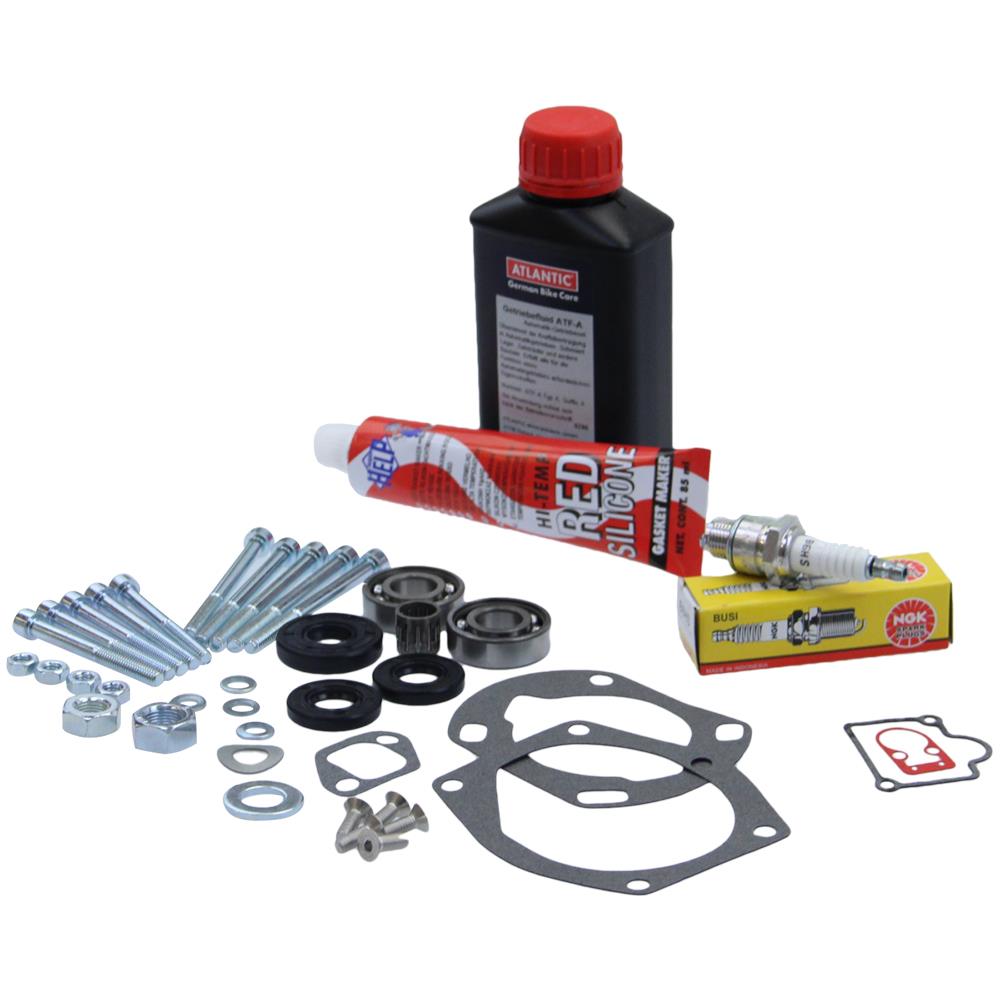

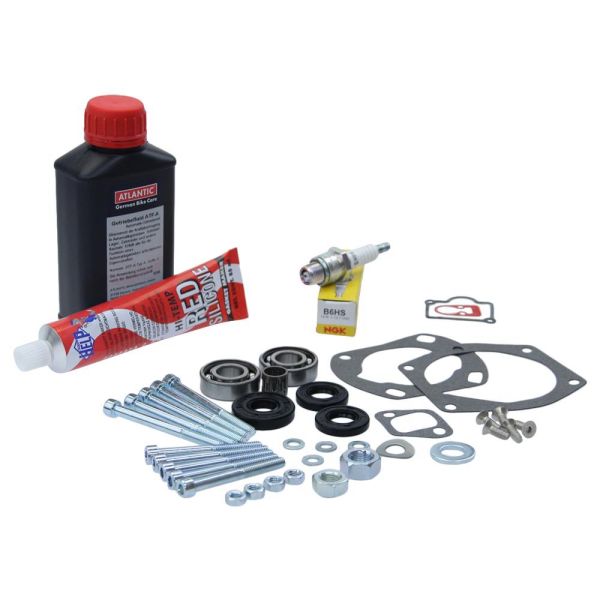

With this MEGA overhaul kit for your Sachs 504 engine, restoration is no problem. The set contains all the spare parts you need, from gaskets to bearings to spark plugs. With the branded ball bearings from SKF you ensure an optimal bearing of your engine. The high-quality seals, oil seals and sealing compound ensure perfect sealing. Another part of the gasket set is the bolt set including nuts and washers. Additionally, you will receive two carburetor gaskets for your Bing 85 carburetor. To make the overhaul complete you will also receive the matching gear oil and a spark plug.

Buy your new spare, wear or tuning part now!

Technical data:
- suitable for Sachs 504/1 A B engine
- Oil seal sizes: 15x30x5mm (2 pieces) // 15x35x7 mm
- Seals: high quality paper seal material
- SKF branded ball bearings: type 6202C3 // 15x35x11 mm // open
- needle bearing: 12x15x13 mm
- 27-piece screw set
- Gear oil ATF-A automatic 250ml
- Oil check screw M14x1
- Silicone sealant: content 85ml // color red // temperature resistant from -62°C to 315°C
- Spark plug: type NGK B6HS // thread M14 // thread length 12,7 mm // wrench size SW21
- Carburetor gaskets for Bing type 85/10/, 85/12/ and 85/13/ carburetor

Scope of delivery:
- 3-piece gasket set
- 3x oil seal
- 2x SKF ball bearing 6202C3
- 1x needle bearing
- 27-piece screw set
- 250 ml gear oil ATF
- 1x oil check screw
- 1x sealant
- 1x spark plug NGK B6HS
- 2x carburetor gaskets
