Piaggio Zylinder 50 ccm AC NRG TPH X ZIP FR LX V Free Storm Ball ET 2
- Manufacturer: Piaggio (Original OE)
- Item no: 831116
- Manufacturer no.: 831116
- EAN: 4060861008771
Item data
| Product type: | Cylinder set |
| Type of cooling: | AC - air-cooled |
| Displacement: | 49 ccm |
| Tuning & Styling Part: | No |
| Vintage part: | No |
| Exhaust flange: | oval, 46 mm bolt spacing (M6) |
| OE/OEM reference number(s): | Piaggio 831116 |
| Original packaging can be: | be blue, white or air cushion |

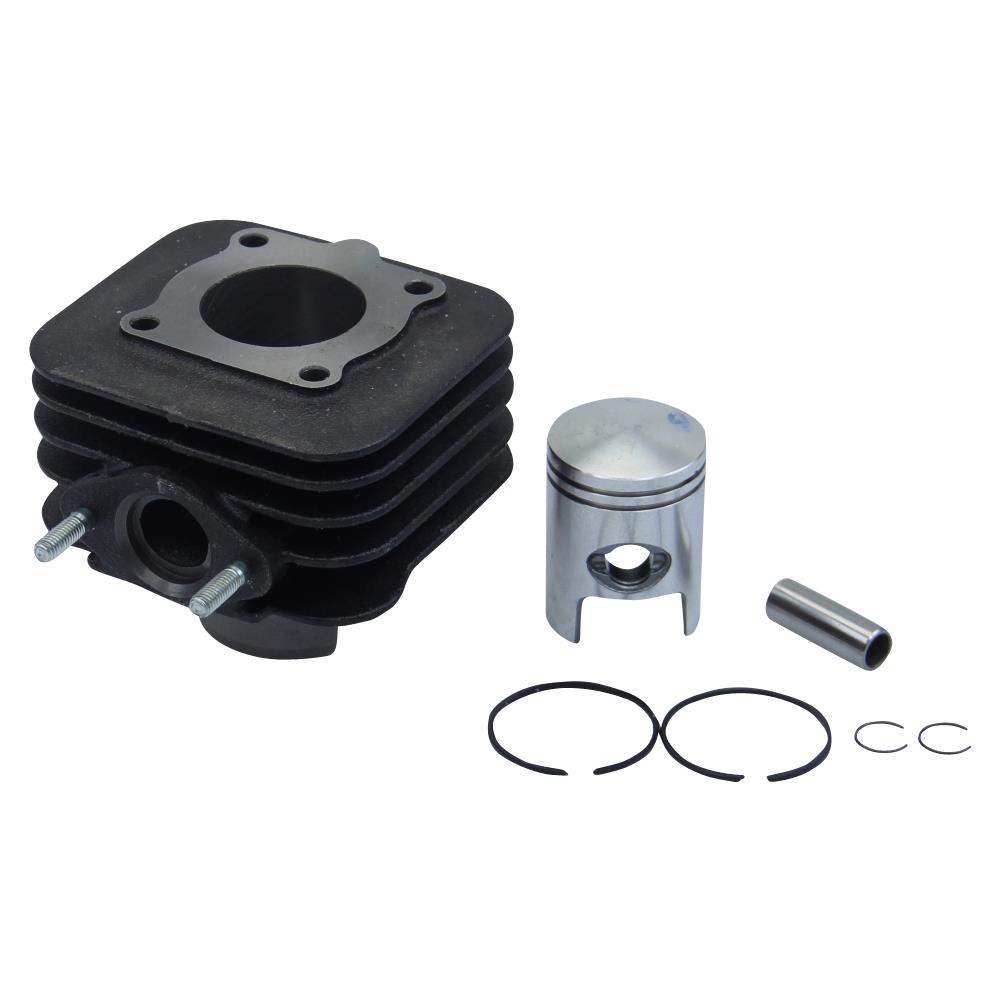

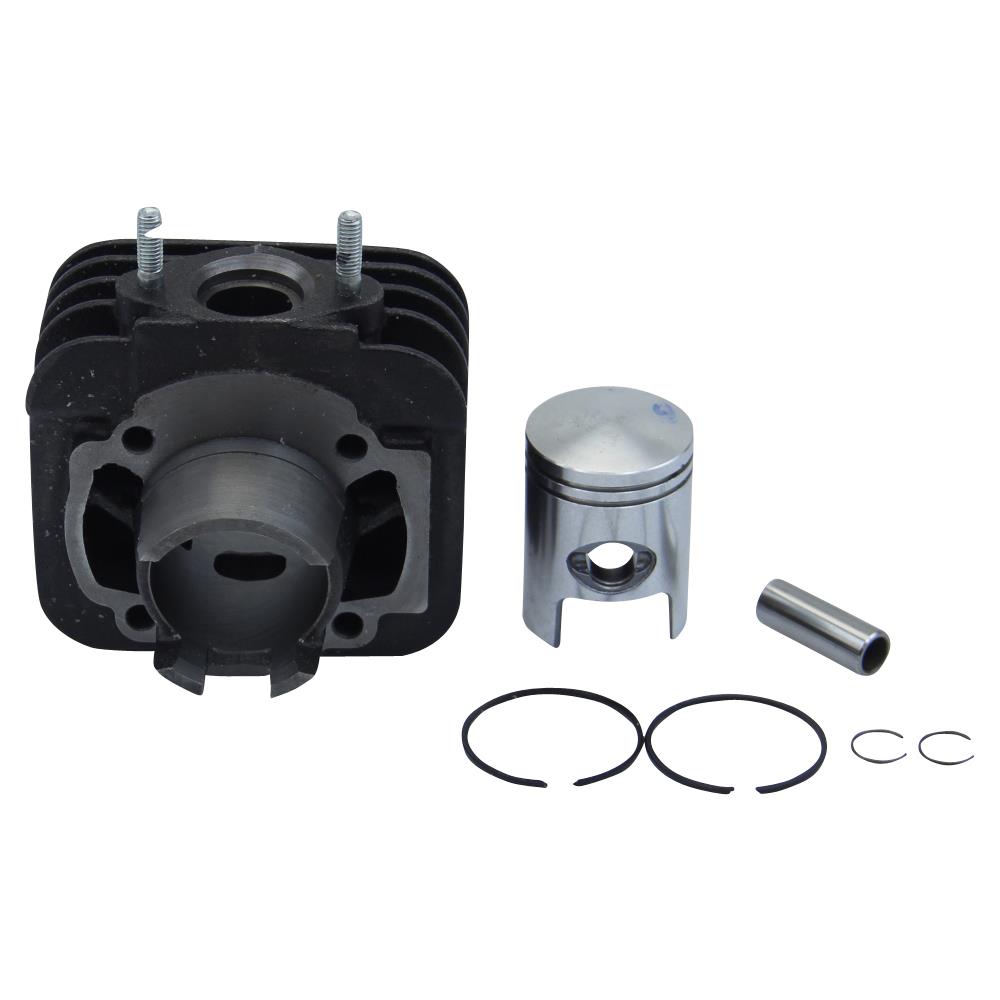

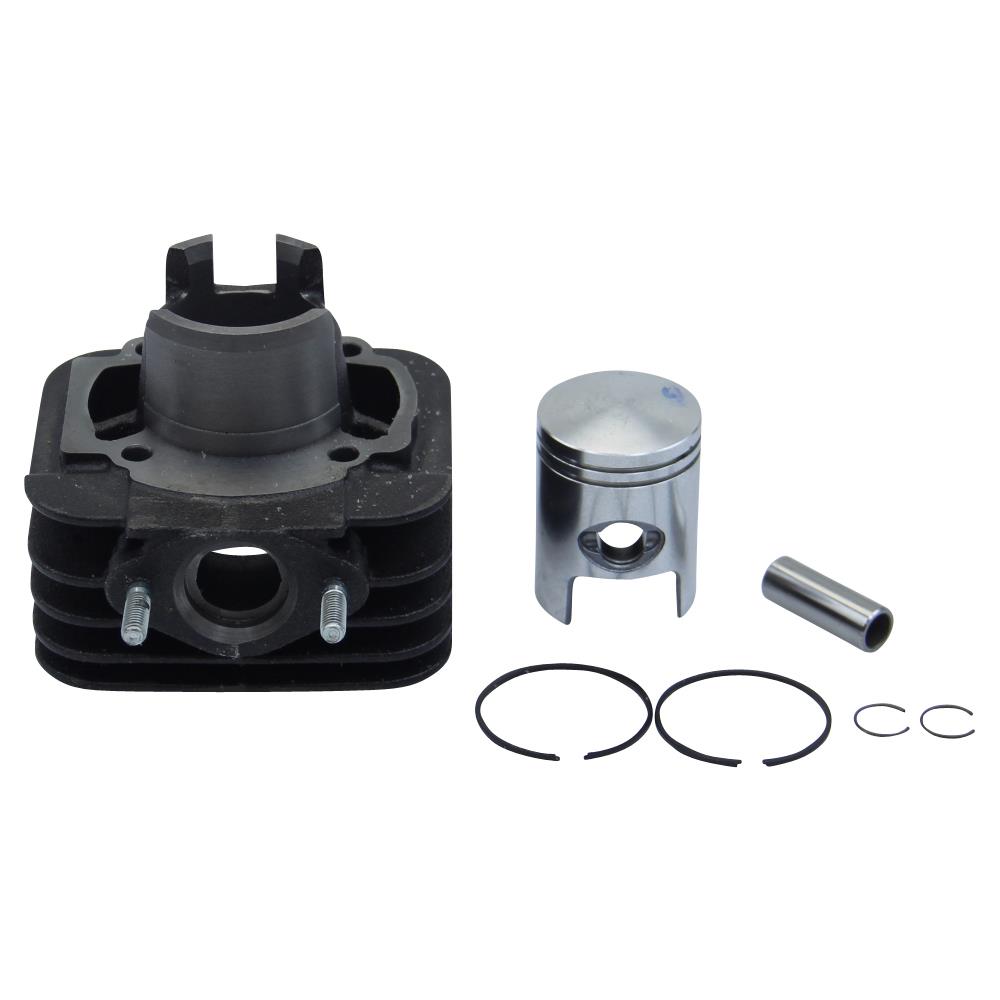

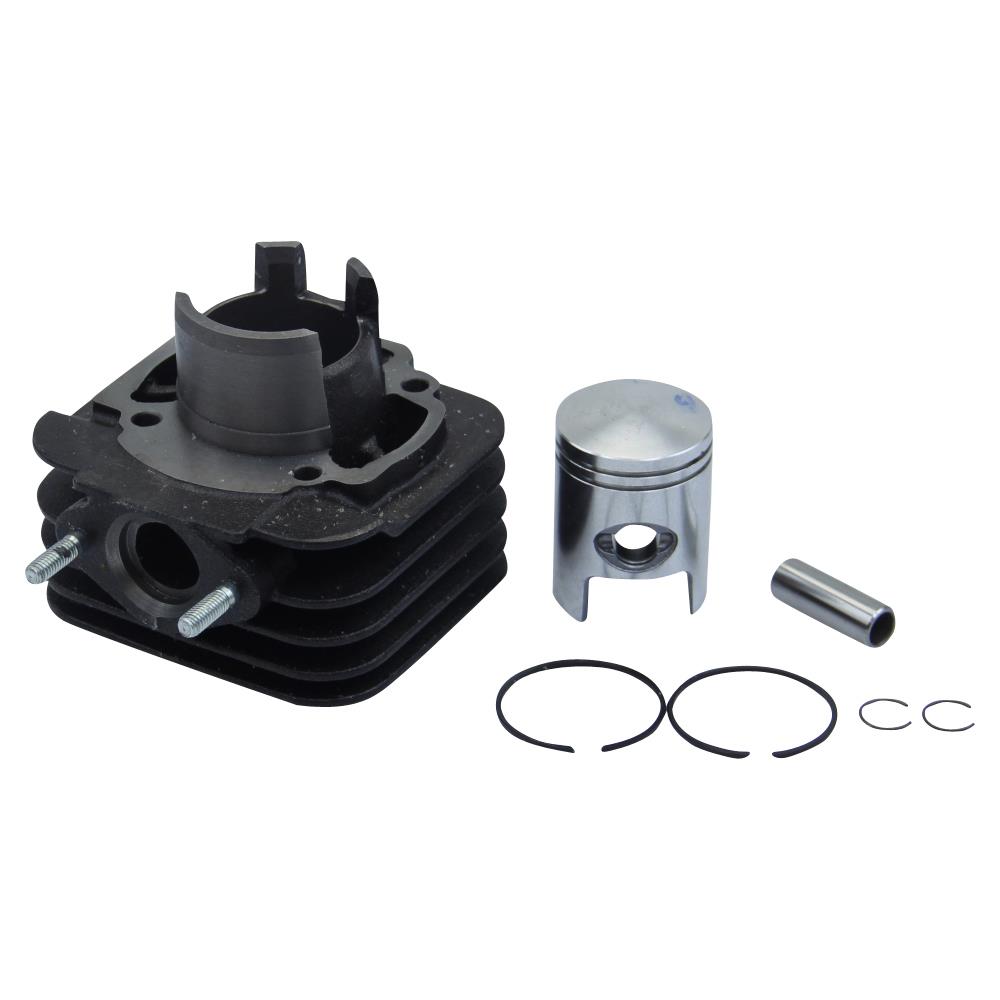

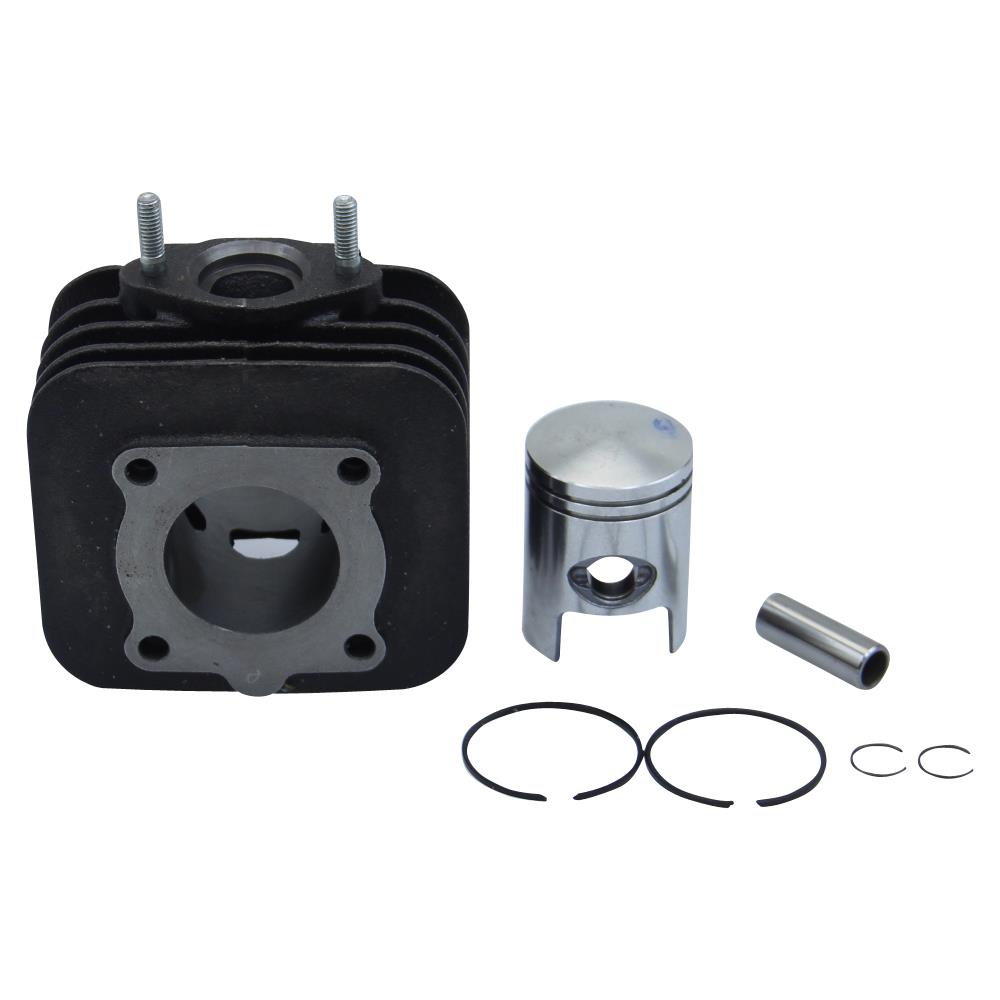

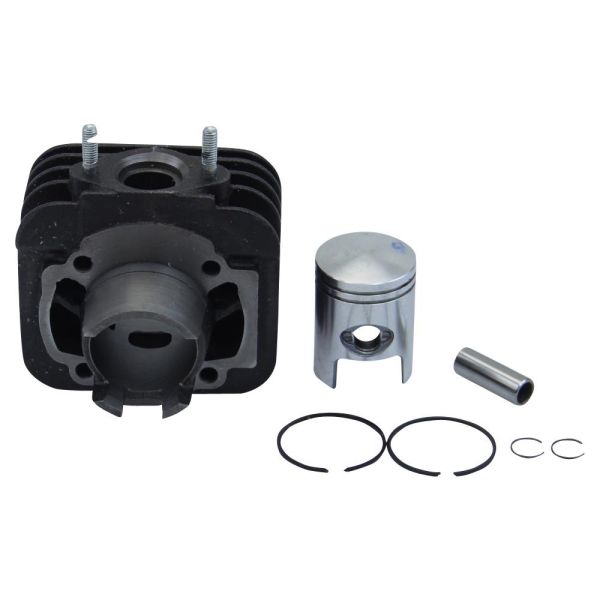

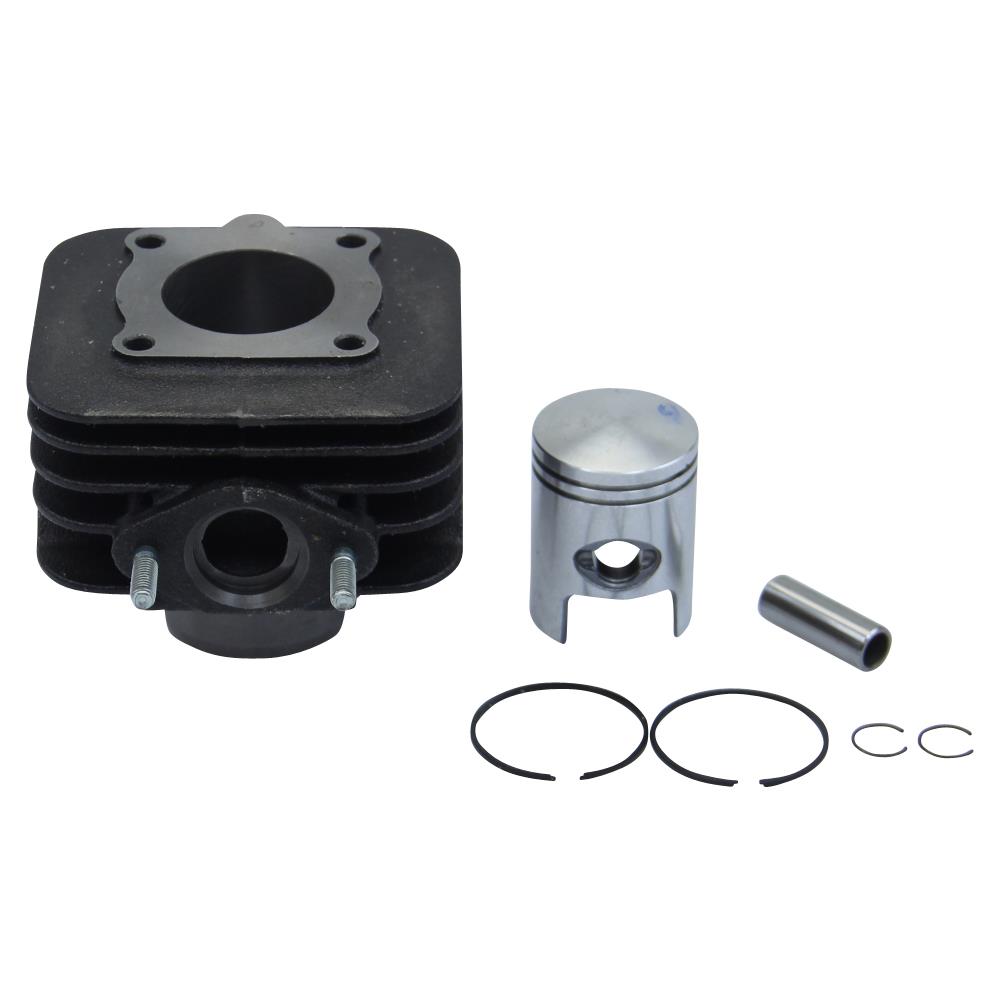

| Scope of delivery: | Piston, Piston rings, Retaining rings, Cylinder liner, Joint pins |
| recommended spark plug: | NGK B9ES |
| Spark plug hole thread: | M 14 x 1.25 |
| Number of overflows: | 5 (including 1 boost port) |
| Features: | Durable |
| Engine type: | 2-stroke |
| Drill hole: | 40 mm |
| Manufacturer number: | 831116 |
| Country and region of manufacture: | Italy |
| Manufacturer warranty: | 2 years |
| Material: | Gray cast iron |
Prices plus VAT plus shipping costs
In stock! Delivery time 1-3 working days
Fuel Tap 575331 Vacuum Original Piaggio for Gilera Runner, Stalker, Piaggio NRG, ZIP SP, TPH 50
Piaggio TPH 50 starter electric starter + starter freewheel Aprilia SR-50 Gilera Runner
RMS rear shock absorber black for Gilera Runner Stalker Typhoon / Piaggio NRG TPH Typhoon Zip
Cylinder kit 50cc including cylinder head + valves for China scooters, Baotian, Rex RS450
Cylinder kit 50cc Minarelli AC air-cooled horizontal engines, CPI, Rexy, Keeway
Cylinder kit 50cc AC air-cooled 12mm bolt angled flange for horizontal CPI engines, CPI, Keeway
Cylinder Kit 70cc LC watercooled incl. head for Piaggio engines, NRG, ZIP, NTT, Gilera Runner
Piaggio original cylinder 50 cc
DESCRIPTION:
The cylinder of all cylinders. Durable as a marine diesel and suitable for Piaggio engines with 49 ccm and standard 50 or 45 km/h top speed. It only breaks down after 30000 kilometers, if the piston rings are not changed or if no 2 stroke oil is filled in. Otherwise the cylinder is almost indestructible. But if it is broken, it is not a big deal, because you can get a new original cylinder with piston for a very reasonable price.
I point out the maximum speed, because this cylinder does not fit on vehicles that have already come as mopeds from the factory out of the box. On Piaggio in the nineties, the cylinder bases were narrowed on the moped versions and on the Zip and Free they had narrowed outlets to boot. On these vehicles, the mokick cylinder from this offer does not fit on the engine block.
On all other 50 cc two-stroke air-cooled Piaggio engines, which are installed on Vespa, Aprilia, Gilera and Piaggio, this cylinder fits. Feel free to check the attached usage list.
TECHNICAL DATA:
Spark plugs - diameter: 12 mm
- Spark plugs
- Thread type: M14x1,25
- Spark plug thread: long
- heat value NGK: B9ES
CYLINDER
-capacity: 49 cm³
-bore: 40 mm
-engine type: 2-stroke
-type of cooling: air-cooled -Material: cast iron
-Piston skirt material: cast iron
- Number of overflows (incl. boost ports): 5
- Number of boost ports: 1
- Exhaust shape: 1-piece (oval)
- Exhaust mounting: Flange
- Flange type: with cone
- Distance exhaust studs: 46 mm
- Thread exhaust stud: M6
SCOPE OF DELIVERY:
✔ Piaggio cylinder 50 cc AC NRG TPH X ZIP FR LX V Free Sfera Storm ET 2
