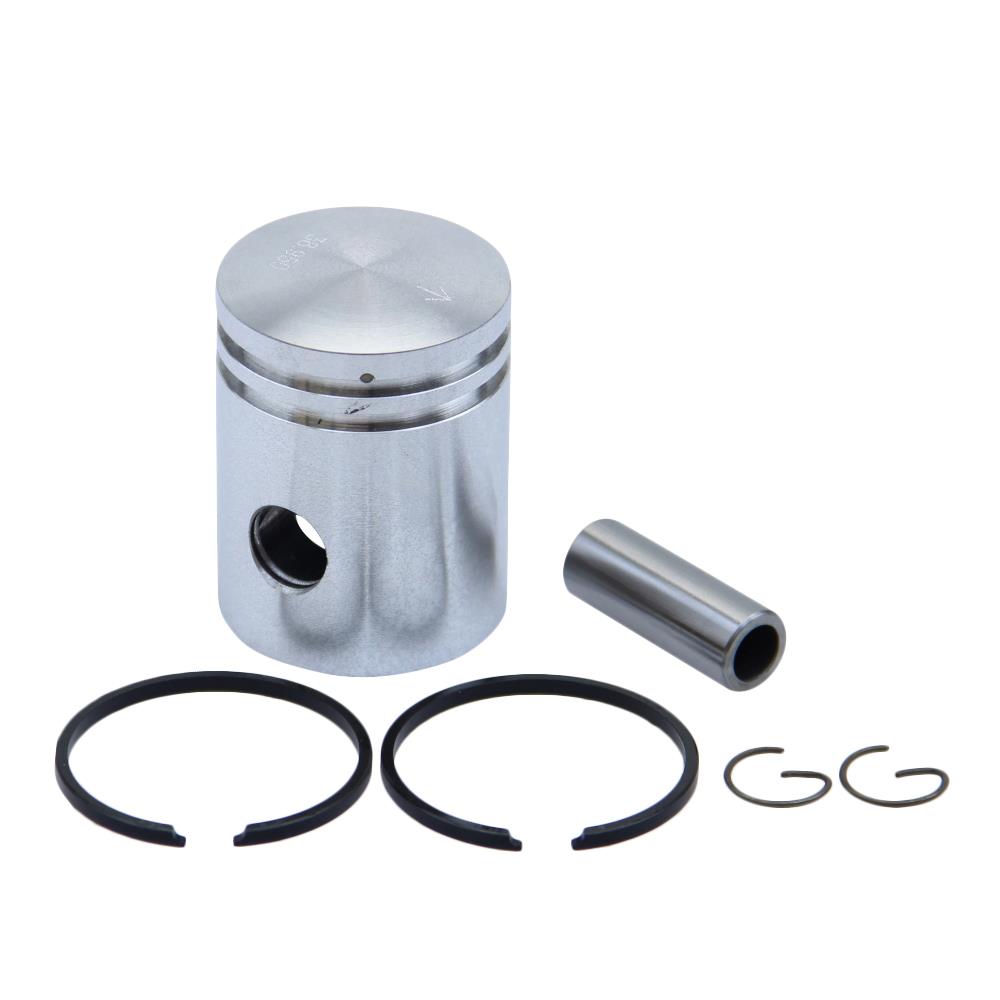

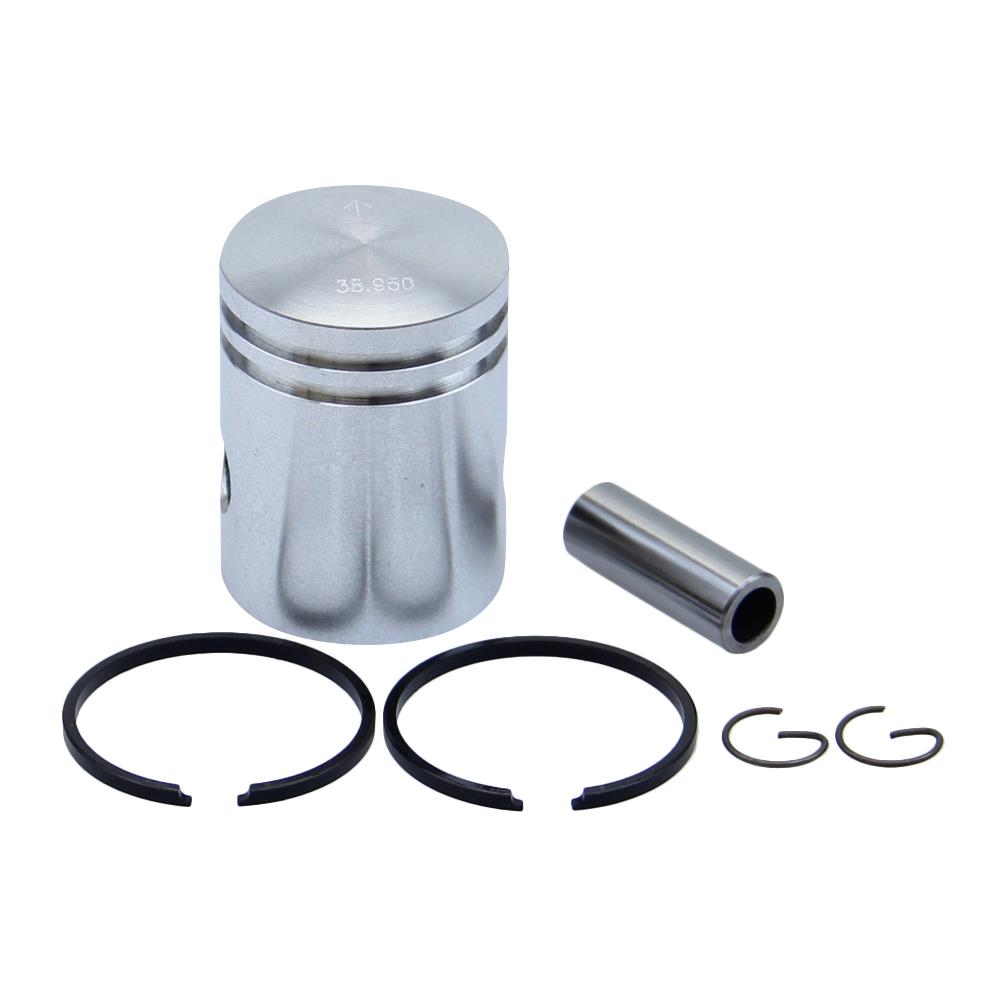

Piston set 38.950mm Tol. B 50ccm for Zündapp Sport Super Combinette Falconette type 423 425 428 433 435 510 515 517
- Manufacturer: Citomerx
- Item no: 265-02.700-B
- Manufacturer no.: 185265
- EAN: 4060861015403
Item data
| Product type: | Piston set |

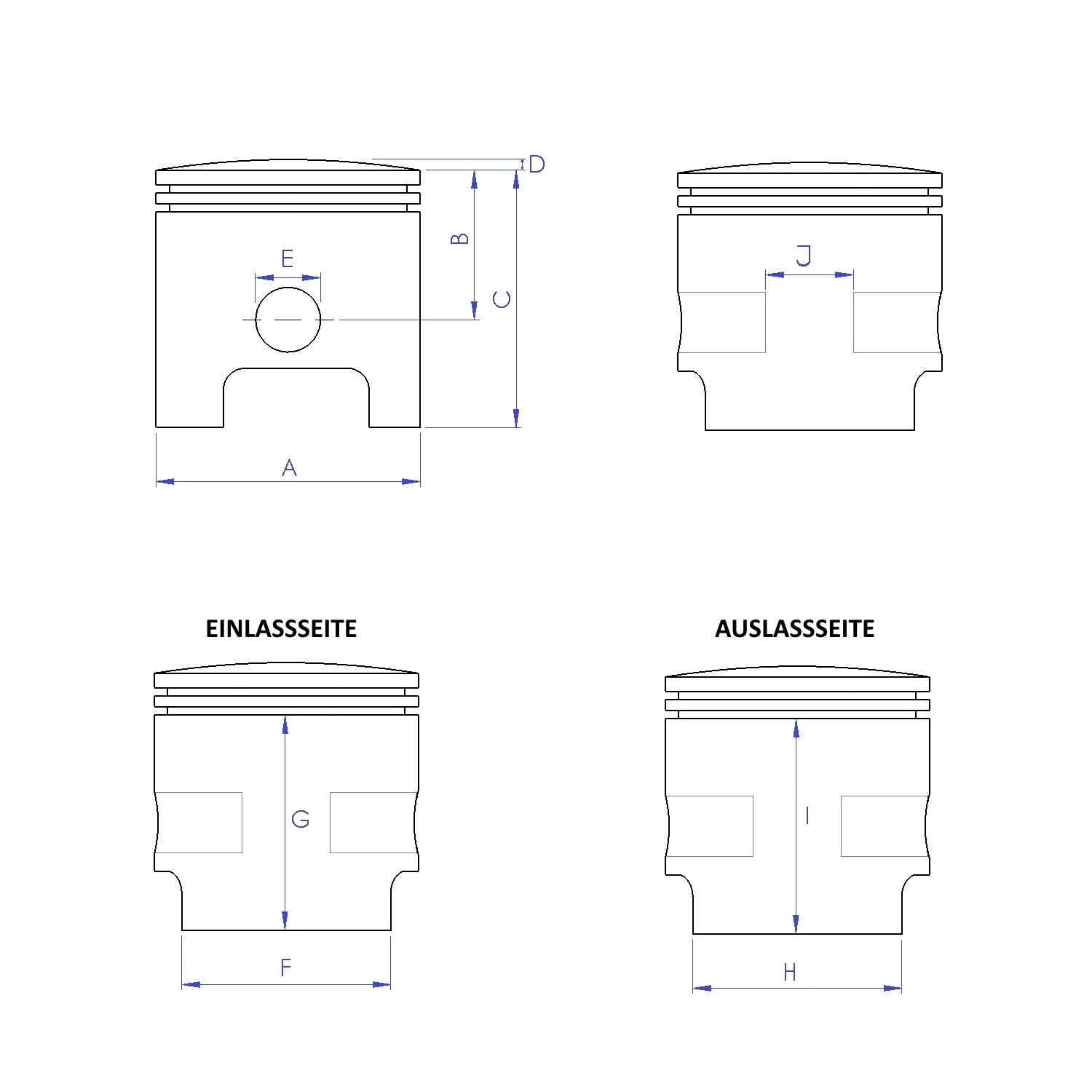

| Dimension B (compression height): | 32 mm |
| Dimension I (piston skirt length outlet side): | 38 mm |
| Tuning & Styling Part: | No |
| Piston ring (top) Width: | 1.7 mm |
| Vintage part: | Yes |
| Piston ring (top) Shape: | C (groove for locking pin on the edge) |
| Cylinder bores: | 39 mm |
| Dimension C (piston height): | 50 mm |
| Dimension J (max. needle bearing width): | 15.5 mm |
| Piston ring (top) Dimension: | 39 x 2.5 mm |
| Piston ring (top) Profile: | Rectangular ring |
| Dimension C + D (total height): | 51.5 mm |
| Dimension G (piston skirt length inlet side): | 38 mm |
| OE/OEM reference number(s): | 265-02.700, 265-02.710 |
| Piston ring (bottom) Width: | 1.7 mm |
| GTIN: | 4060861015403 |
| Piston ring (bottom) Shape: | C (groove for locking pin on the edge) |
| Dimension A (piston diameter): | 38,950 mm |
| Bolt diameter: | 12 mm |
| Piston ring (bottom) Dimension: | 39 x 2.5 mm |
| Dimension D (curvature): | 1.5 mm |
| Piston ring (bottom) Profile: | Rectangular ring |
| Scope of delivery: | Piston, Piston rings, Piston pin, Piston clips |
| Bolt length: | 32 mm |
| Dimension E (piston pin diameter): | 12 mm |
| Tolerance size: | B (38,950mm) |
| Color: | Silver |
| Piston diameter: | 39 mm |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x piston set |
| Manufacturer number: | 185265 |
| Country and region of manufacture: | Sweden |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Piston + piston rings + piston pin + piston clips |
| Manufacturer warranty: | 2 years |
| Weight: | 0.091 kg |
| Material: | Aluminum alloy |
| suitable for: | 50 cc |
