Piston set 38.950mm Tol. B 50ccm for Zündapp CS Hai ZX X ZL ZS 25 / C GTS R 50 type 448 460 517 529 540 561


  • Citomerx
  • 278-02.729-B
  • 185275
  • 4060861015502

Item data

Product type: Piston set
Dimension B (compression height): 26.5 mm
Dimension I (piston skirt length outlet side): 47 mm
Piston ring dimension: 39 x 1.5 mm
Tuning & Styling Part: No
Piston ring profile: Rectangular ring
Vintage part: Yes
Cylinder bores: 39 mm
Dimension C (piston height): 50.5 mm
Dimension J (max. needle bearing width): 15.5 mm
Dimension C + D (total height): 52 mm
Dimension G (piston skirt length inlet side): 47 mm
OE/OEM reference number(s): 278-02.729, 278-02.757, 248-02.703
GTIN: 4060861015502
Dimension A (piston diameter): 38,950 mm
Bolt diameter: 12 mm
Dimension D (curvature): 1.5 mm

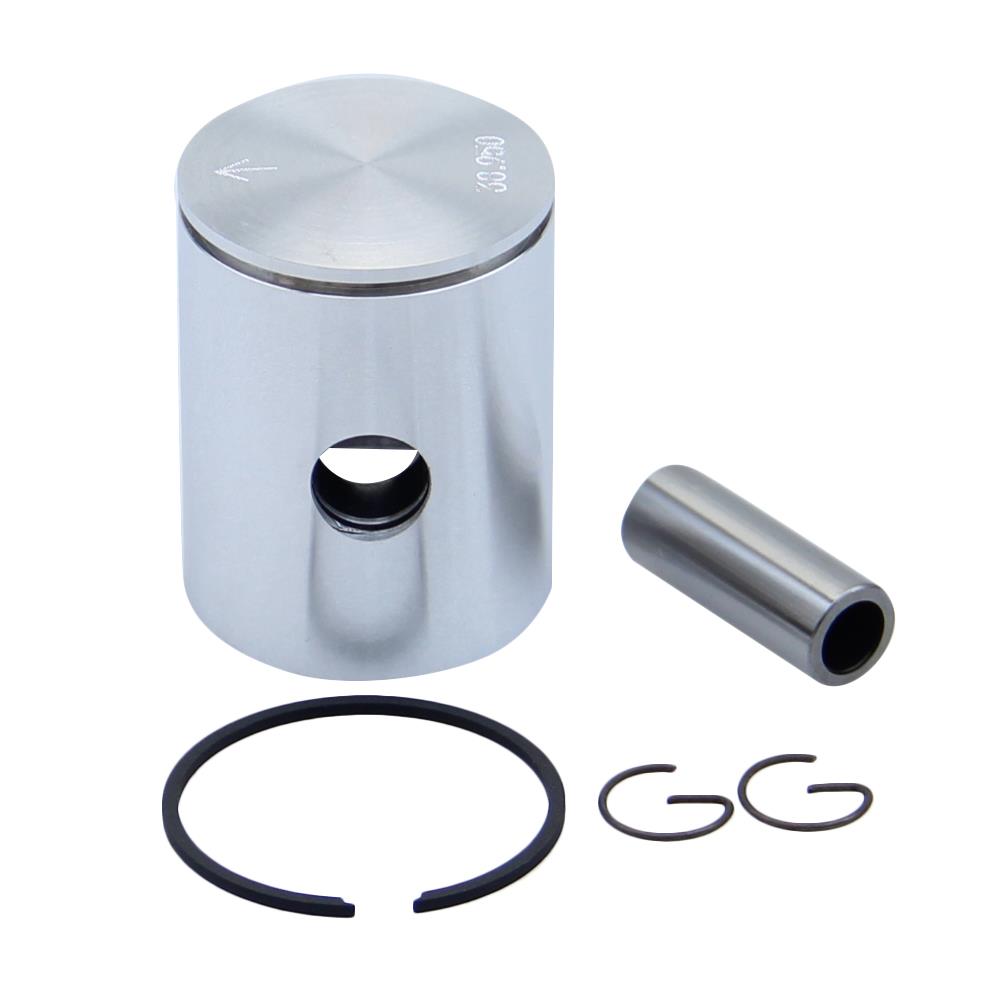

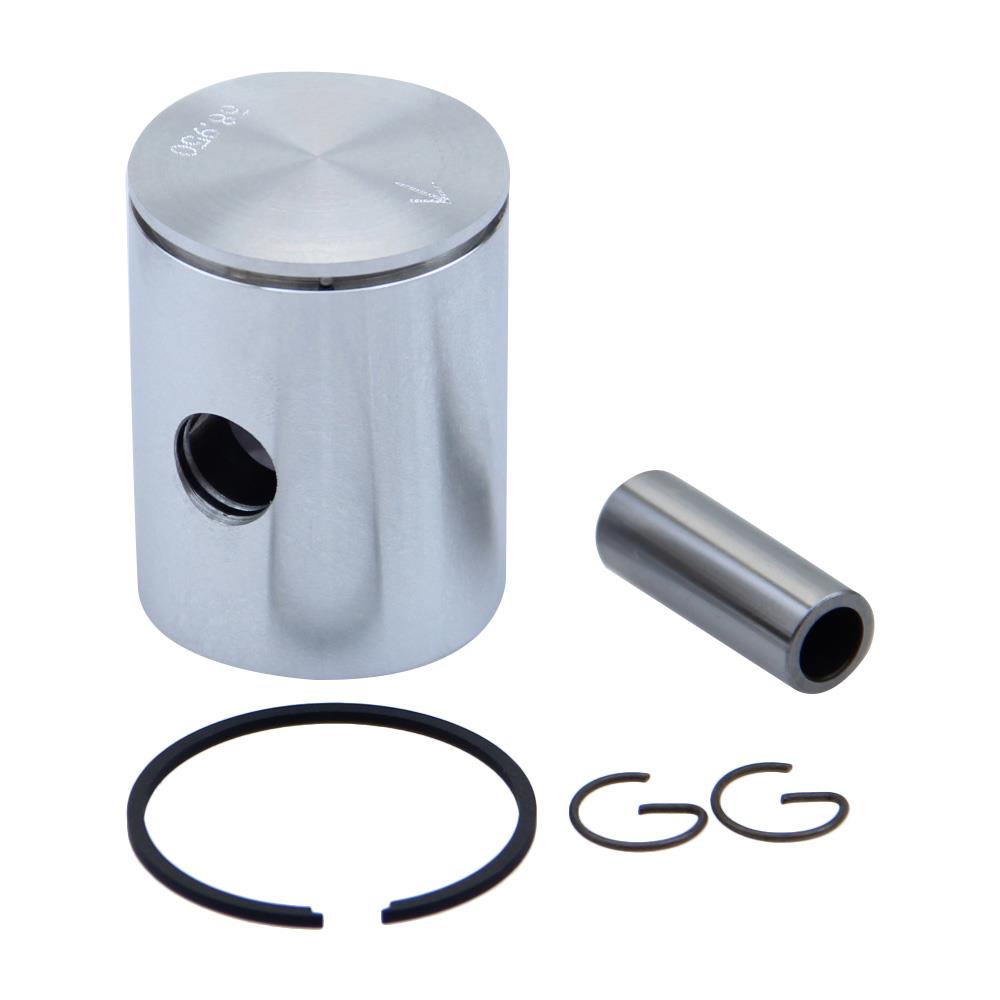

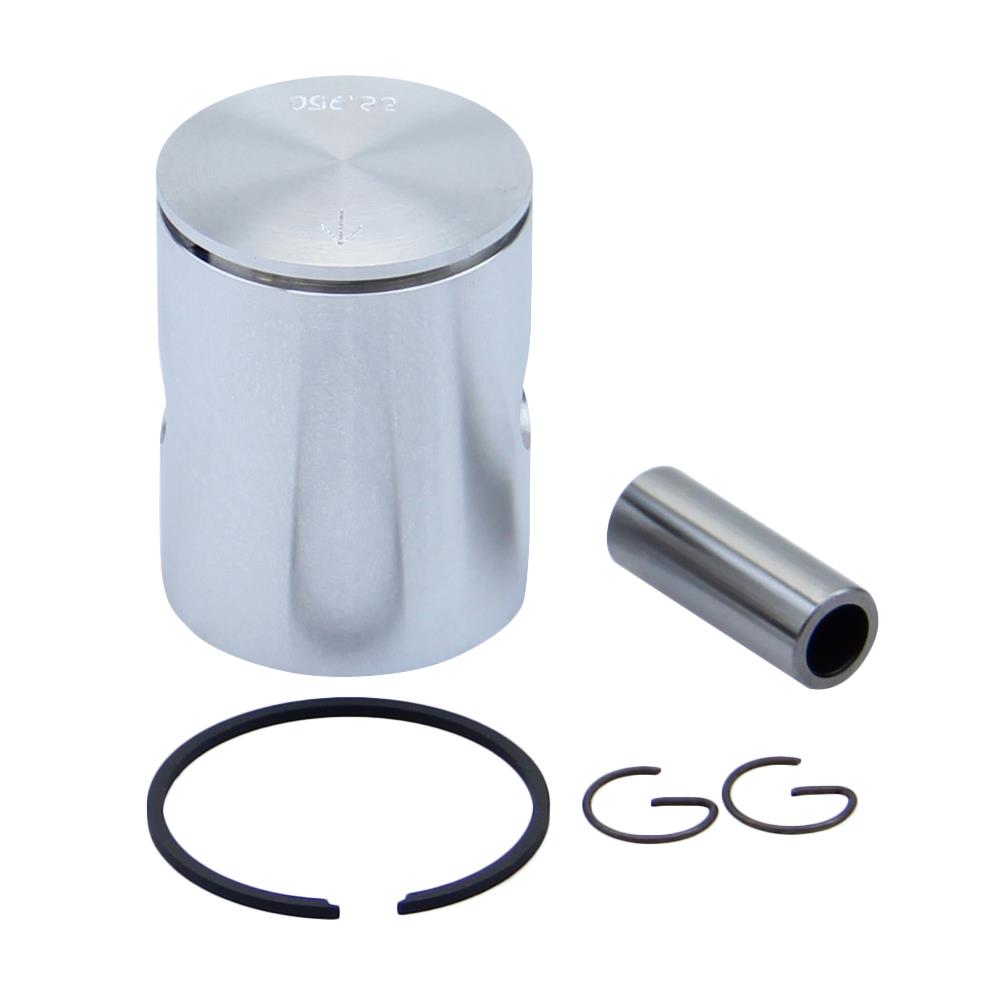

Scope of delivery: Piston, Piston pin, Piston clips, Piston ring
Bolt length: 31 mm
Piston ring width: 1.65 mm
Dimension E (piston pin diameter): 12 mm
Tolerance size: B (38,950mm)
Piston ring shape: B (groove for center locking pin)
Color: Silver
Piston diameter: 39 mm
Engine type: 2-stroke
Scope of delivery: 1x piston set
Manufacturer number: 185275
Country and region of manufacture: Sweden
Type of motorcycle: Moped & Mokick
Offer package: Yes
Description of the package content: Piston + piston ring + piston pin + piston clips
Manufacturer warranty: 2 years
Weight: 0.085 kg
Material: Aluminum alloy
suitable for: 50 cc
£18.66 *
Content: 1 piece

Prices plus VAT plus shipping costs

No longer available

ZD 40 type 446-300 ZD 20 type 446-400 ZD 25 type 446-420 ZD 50 type 446-422 CS 50 type 448-010 CS... more
Product information "Piston set 38.950mm Tol. B 50ccm for Zündapp CS Hai ZX X ZL ZS 25 / C GTS R 50 type 448 460 517 529 540 561"
ZD 40 type 446-300 ZD 20 type 446-400 ZD 25 type 446-420 ZD 50 type 446-422 CS 50 type 448-010 CS 50 type 448-011 CS 50 type 448-013 Hai 50 type 448-110 Hai 50 Type 448-111 CS 25 Type 448-140 CS 25 Type 448-141 Hai 25 Type 448-150 CX 25 Type 448-151 Sprinter Type 448-051 Hai 50 Type 448-160 ZX 25 Type 460-010 ZX 25 Type 460- 013 Engine type 278-01L3 (from engine no. 3730133) C 50 Sport type 517-21L0 Engine type 278-25L0 (from engine no. 3730133) C 50 Sport type 529-010 GTS 50 type 529-020 GTS 50 type 529-022 GTS 50 type 529-023 GTS 50 type 529-024 GTS 50 type 529-026 GTS 50 type 529-028 GTS 50 type 529-029 GTS 50 type 540-120 KS 50 type 540-121 CS 50 type 540-190 R 50 Type 561-051 R 50 Type 561-052
Customers also searched for this item under:
Further links to "Piston set 38.950mm Tol. B 50ccm for Zündapp CS Hai ZX X ZL ZS 25 / C GTS R 50 type 448 460 517 529 540 561"
Sicherheitsinformationen für dieses Produkt. more
MANUFACTURER INFORMATION FOR THE EU:
Brand name: Citomerx

ZS 2Radteile GmbH

Unterbibracherstr. 3
95519 Vorbach

DEU


Web page https://www.citomerx.de
Email: info@zweiradteile.net
INFORMATION ON THE PERSON RESPONSIBLE FOR THE EU:







Eigenschaften more
Product type Piston set
Dimension B (compression height) 26.5 mm
Dimension I (piston skirt length outlet side) 47 mm
Piston ring dimension 39 x 1.5 mm
Tuning & Styling Part No
Piston ring profile Rectangular ring
Vintage part Yes
Cylinder bores 39 mm
Dimension C (piston height) 50.5 mm
Dimension J (max. needle bearing width) 15.5 mm
Dimension C + D (total height) 52 mm
Dimension G (piston skirt length inlet side) 47 mm
OE/OEM reference number(s) 278-02.729, 278-02.757, 248-02.703
GTIN 4060861015502
Dimension A (piston diameter) 38,950 mm
Bolt diameter 12 mm
Dimension D (curvature) 1.5 mm
Scope of delivery Piston, Piston pin, Piston clips, Piston ring
Bolt length 31 mm
Piston ring width 1.65 mm
Dimension E (piston pin diameter) 12 mm
Tolerance size B (38,950mm)
Piston ring shape B (groove for center locking pin)
Color Silver
Piston diameter 39 mm
Engine type 2-stroke
Scope of delivery 1x piston set
Manufacturer number 185275
Country and region of manufacture Sweden
Type of motorcycle Moped & Mokick
Offer package Yes
Description of the package content Piston + piston ring + piston pin + piston clips
Manufacturer warranty 2 years
Weight 0.085 kg
Material Aluminum alloy
suitable for 50 cc
