Piston set 44.955mm Tol. C 70ccm for Zündapp ZD CS Hai CX ZX ZL C GTS KS RM Type 434 446 448 460 442 517 529 561
- Manufacturer: Citomerx
- Item no: 187369
- Manufacturer no.: 187369
- EAN: 4060861036460
Item data
| Product type: | Piston set |
| Dimension B (compression height): | 26 mm |
| Dimension F (piston skirt width inlet side): | 40.5 mm |
| Dimension I (piston skirt length outlet side): | 45 mm |
| Piston ring dimension: | 45 x 2.0 mm |
| Tuning & Styling Part: | Yes |
| Piston ring profile: | L-ring |
| Vintage part: | Yes |
| Cylinder bores: | 45 mm |
| Dimension C (piston height): | 48 mm |
| Dimension J (max. needle bearing width): | 15.5 mm |
| Dimension C + D (total height): | 49.5 mm |
| Dimension G (piston skirt length inlet side): | 45 mm |
| ATTENTION!: | TUNING: Not permitted in the area of the StVZO! |
| GTIN: | 4060861036460 |
| Dimension A (piston diameter): | 44.955 mm |
| Bolt diameter: | 12 mm |
| Dimension D (curvature): | 1.5 mm |
| Note: | With two 5 mm piston window bores! |
| Dimension H (piston skirt width outlet side): | 38 mm |

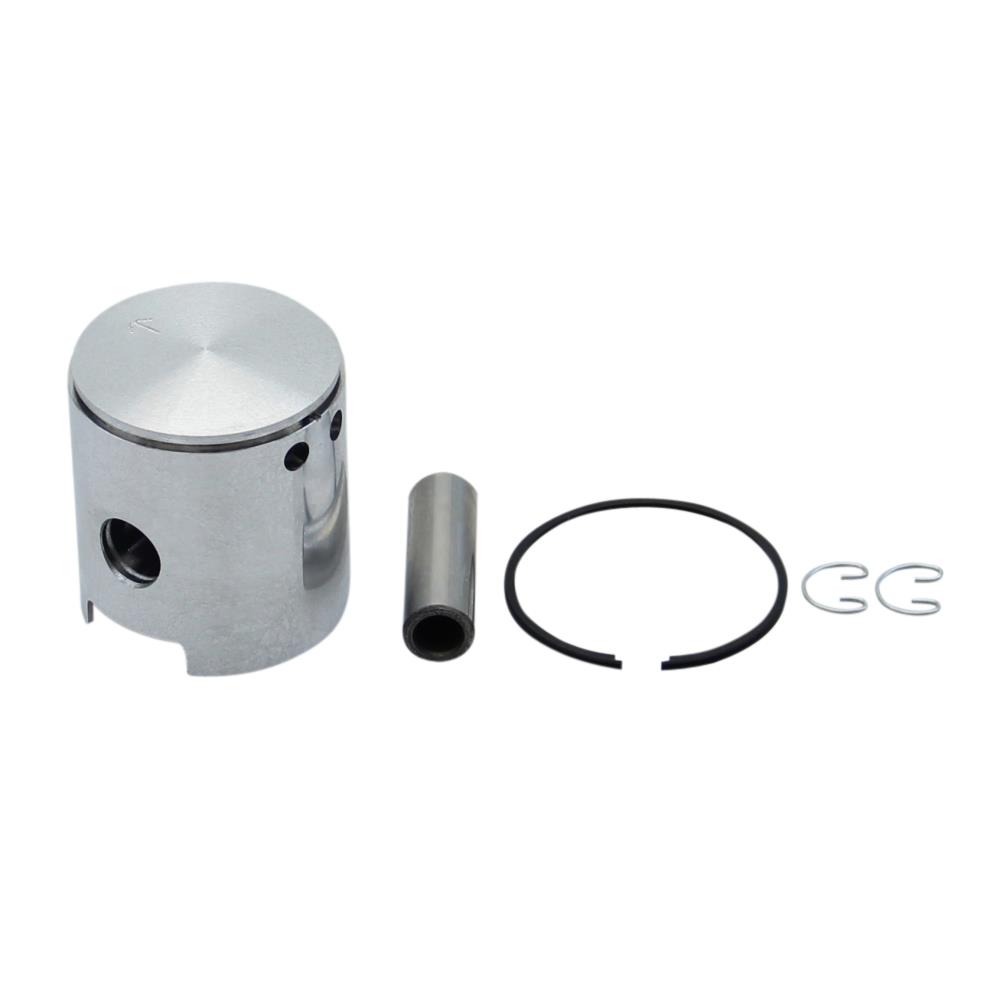

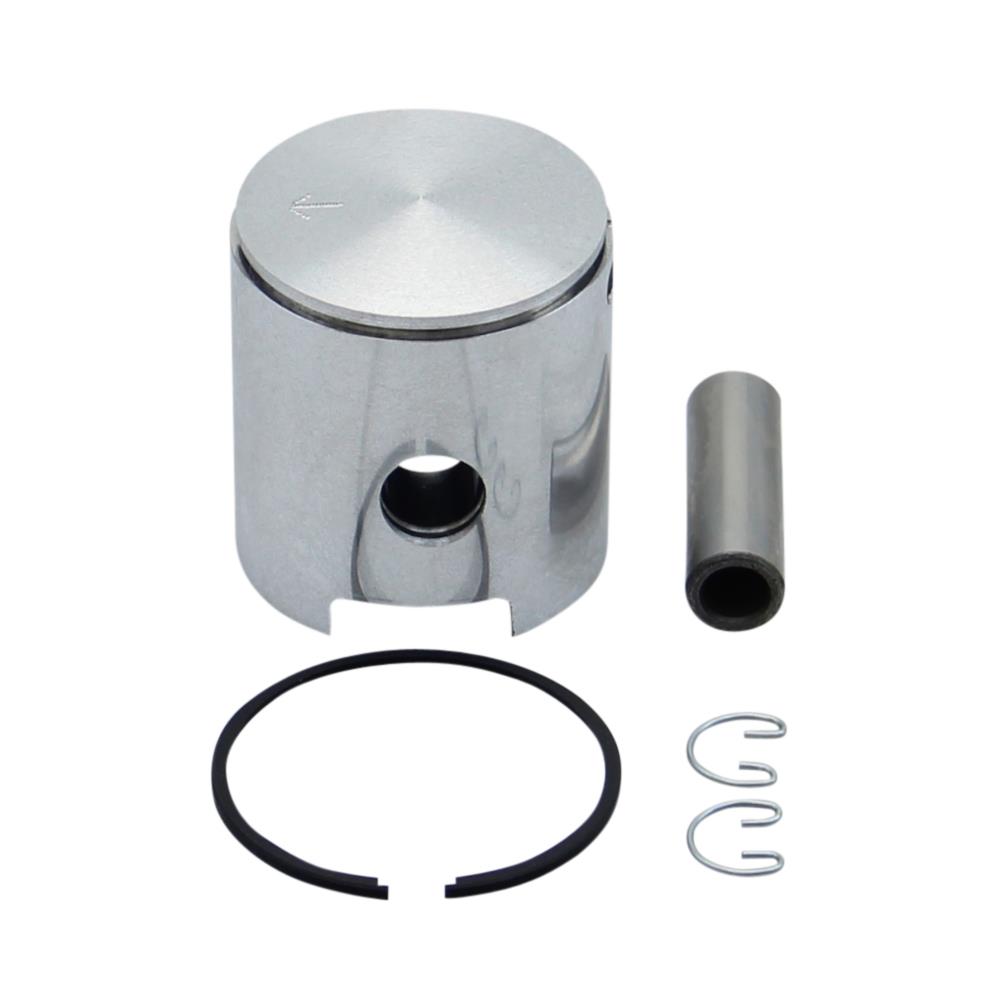

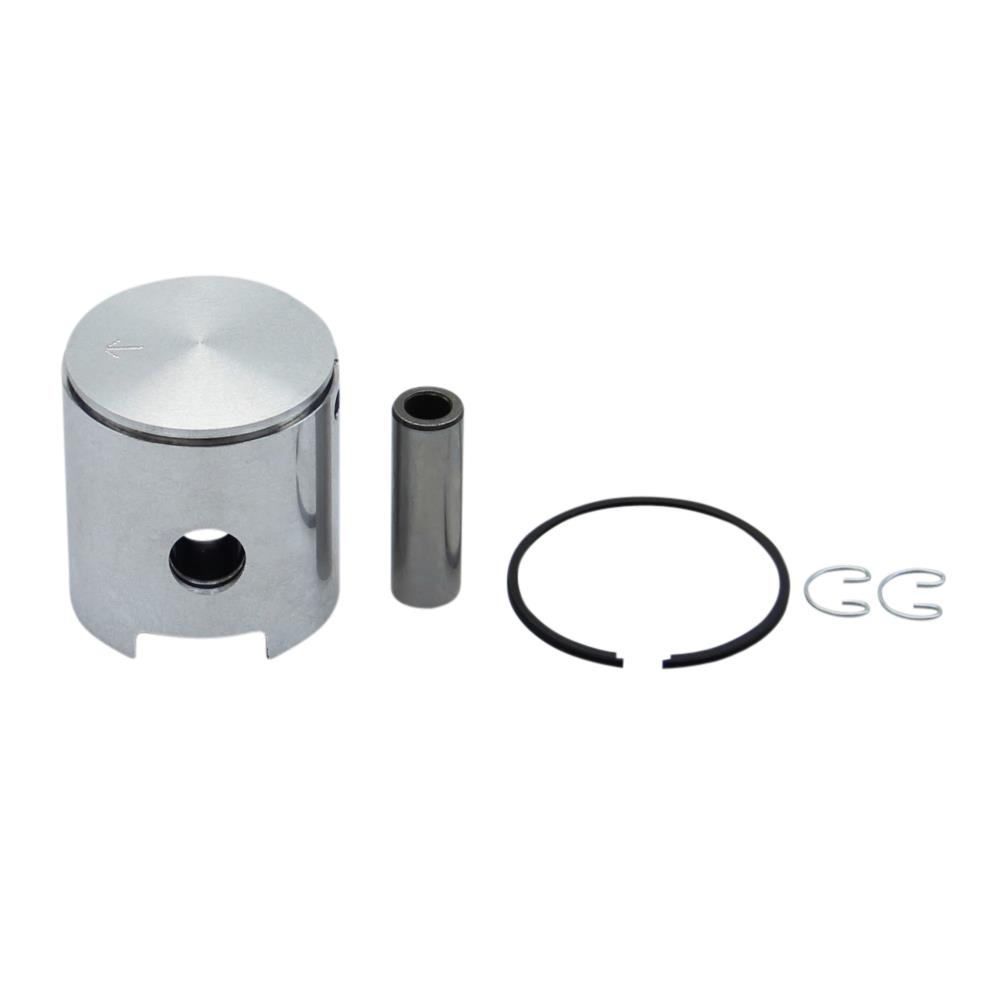

| Scope of delivery: | Piston, Piston pin, Piston clips, Piston ring |
| Bolt length: | 38 mm |
| Piston ring width: | 1.8 mm |
| Dimension E (piston pin diameter): | 12 mm |
| Tolerance size: | C (44.955mm) |
| Piston ring shape: | B (groove for center locking pin) |
| Color: | Silver |
| Piston diameter: | 45 mm |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x piston set |
| Manufacturer number: | 187369 |
| Country and region of manufacture: | Sweden |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Piston + piston ring + piston pin + piston clips |
| Manufacturer warranty: | 2 years |
| Weight: | 0.1 kg |
| Material: | Aluminum alloy |
| suitable for: | 70 ccm |
