Connecting rod repair kit for Honda MT MB 5 50


  • JASIL - Top Racing
  • 187923
  • 187923
  • 4060861042164

Item data

Product type: Connecting rod
Country of origin: Portugal

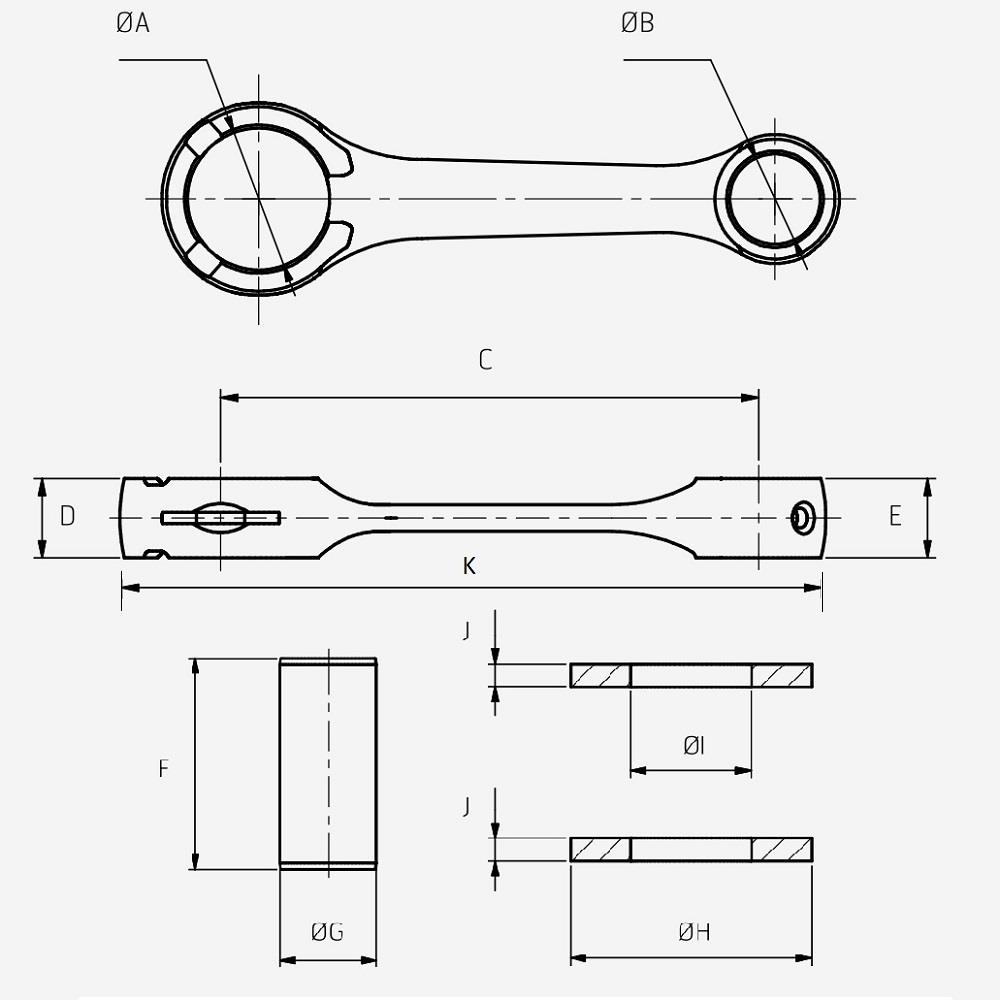

Dimension F: 40 mm
Needle roller bearing Lifting pin: 16x22x11.8 mm
Needle bearing Kobo: 12x17x14 mm
Dimension J: 0.8 mm
Dimension C: 80 mm
Dimension G: 16 mm
Dimension K: 105 mm
Dimension A: 22 mm
Dimension D: 11.8 mm
Dimension H: 27.8 mm
Dimension E: 11.8 mm
Dimension B: 17 mm
Dimension I: 16.3 mm
Color: Multicolored
Scope of delivery: 1x connecting rod repair kit
Manufacturer number: 6001030
Reference number(s) OE: 13201-166-310 (connecting rod), 13202-GT4-691 (disks, 91102-GC8-004 (Kobo needle bearing), 91002-166-004 / 91004-166-004 (Hub pin needle bearing), 13381-GM6-300 (lifting pin)
Offer package: Yes
Description of the package content: Connecting rod repair kit
Manufacturer warranty: 2 years
Material: Metal
suitable for: 12 mm piston pin
£39.54 *
Content: 1 piece

Prices plus VAT plus shipping costs

In stock! Delivery time 1-3 working days

Honda original/reference number: 13201-166-310 (connecting rod) 13202-GT4-691 (washers)... more
Product information "Connecting rod repair kit for Honda MT MB 5 50"
Honda original/reference number: 13201-166-310 (connecting rod) 13202-GT4-691 (washers) 91102-GC8-004 (Kobo needle bearing) 91002-166-004 / 91004-166-004 (crank pin needle bearing) 13381-GM6-300 (crank pin) TECHNICAL DATA: - Color: Multi-colored - Material: Metal - Needle bearing Kobo: 12x17x14 mm - suitable for 12 mm piston pin - Needle bearing crank pin: 16x22x11.8 mm A: 22 mm B: 17 mm C: 80 mm D: 11.8 mm E: 11.8 mm F: 40 mm G: 16 mm H: 27.8 mm I: 16.3 mm J: 0.8 mm K: 105 mm SCOPE OF DELIVERY: - 1x connecting rod repair kit
Further links to "Connecting rod repair kit for Honda MT MB 5 50"
Sicherheitsinformationen für dieses Produkt. more
MANUFACTURER INFORMATION FOR THE EU:
Brand name: JASIL - Top Racing

J. Antonio da Silva

Parque Industrial de Adaúfe Lote I-6
4701-853 Braga

PRT


Web page https://www.jasil.com/
Email: info@jasil.com
INFORMATION ON THE PERSON RESPONSIBLE FOR THE EU:







Eigenschaften more
Product type Connecting rod
Country of origin Portugal
Dimension F 40 mm
Needle roller bearing Lifting pin 16x22x11.8 mm
Needle bearing Kobo 12x17x14 mm
Dimension J 0.8 mm
Dimension C 80 mm
Dimension G 16 mm
Dimension K 105 mm
Dimension A 22 mm
Dimension D 11.8 mm
Dimension H 27.8 mm
Dimension E 11.8 mm
Dimension B 17 mm
Dimension I 16.3 mm
Color Multicolored
Scope of delivery 1x connecting rod repair kit
Manufacturer number 6001030
Reference number(s) OE 13201-166-310 (connecting rod), 13202-GT4-691 (disks, 91102-GC8-004 (Kobo needle bearing), 91002-166-004 / 91004-166-004 (Hub pin needle bearing), 13381-GM6-300 (lifting pin)
Offer package Yes
Description of the package content Connecting rod repair kit
Manufacturer warranty 2 years
Material Metal
suitable for 12 mm piston pin
Jasil - High-quality crankshafts and engine parts for two-wheelers Jasil is an... more
"JASIL - Top Racing"
JASIL - Top Racing

Jasil - High-quality crankshafts and engine parts for two-wheelers

Jasil is an internationally recognized manufacturer of crankshafts, engine and drive parts for motorcycles, scooters and mopeds. The Portuguese company was founded in 1950 and has made a name for itself worldwide through precision, quality and technical innovation.

Premium quality crankshafts

Jasil is particularly well-known for its crankshafts, which are available in different versions: from standard and replacement crankshafts to reinforced racing versions. They are characterized by precise manufacturing, high-quality materials and a long service life. This makes Jasil crankshafts suitable for everyday use as well as for performance-oriented tuning projects.

Engine and drive components

In addition to crankshafts, Jasil offers a wide range of engine parts such as pistons, shafts, gears and other components. All products are manufactured to modern standards and offer the perfect balance of stability, functionality and performance.

Technology & innovation from Portugal

With decades of experience and continuous development, Jasil relies on innovative manufacturing processes that ensure consistently high quality. The products are in demand worldwide among mechanics, workshops and racing teams, as they combine durability with increased performance.

The advantages of Jasil at a glance

  • ✔️ High-quality crankshafts for everyday use and racing
  • ✔️ Precise manufacturing & long service life
  • ✔️ Wide range of engine and drive parts
  • ✔️ Suitable for scooters, mopeds and motorcycles
  • ✔️ Decades of experience and state-of-the-art technology

Conclusion: Jasil for quality and performance

Jasil stands for engine parts that impress with their precision, robustness and performance. Whether as a spare part for everyday use or as a tuning component for more power - with Jasil, drivers are opting for quality at the highest level.

With Jasil crankshafts and engine parts, you are investing in longevity and driving pleasure.
