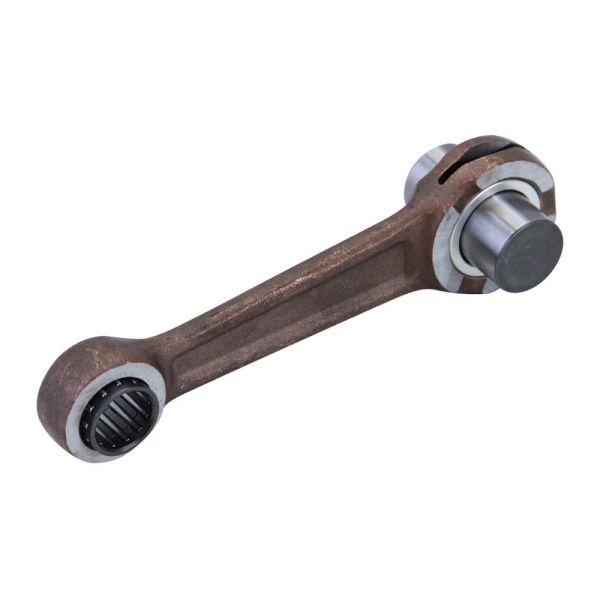

Connecting rod repair kit ORIGINAL for Sachs 50/2 50/3 50/4 engine
- Manufacturer: Citomerx
- Item no: 187926
- Manufacturer no.: 187926
- EAN: 4060861042195
Item data
| Product type: | Connecting rod |

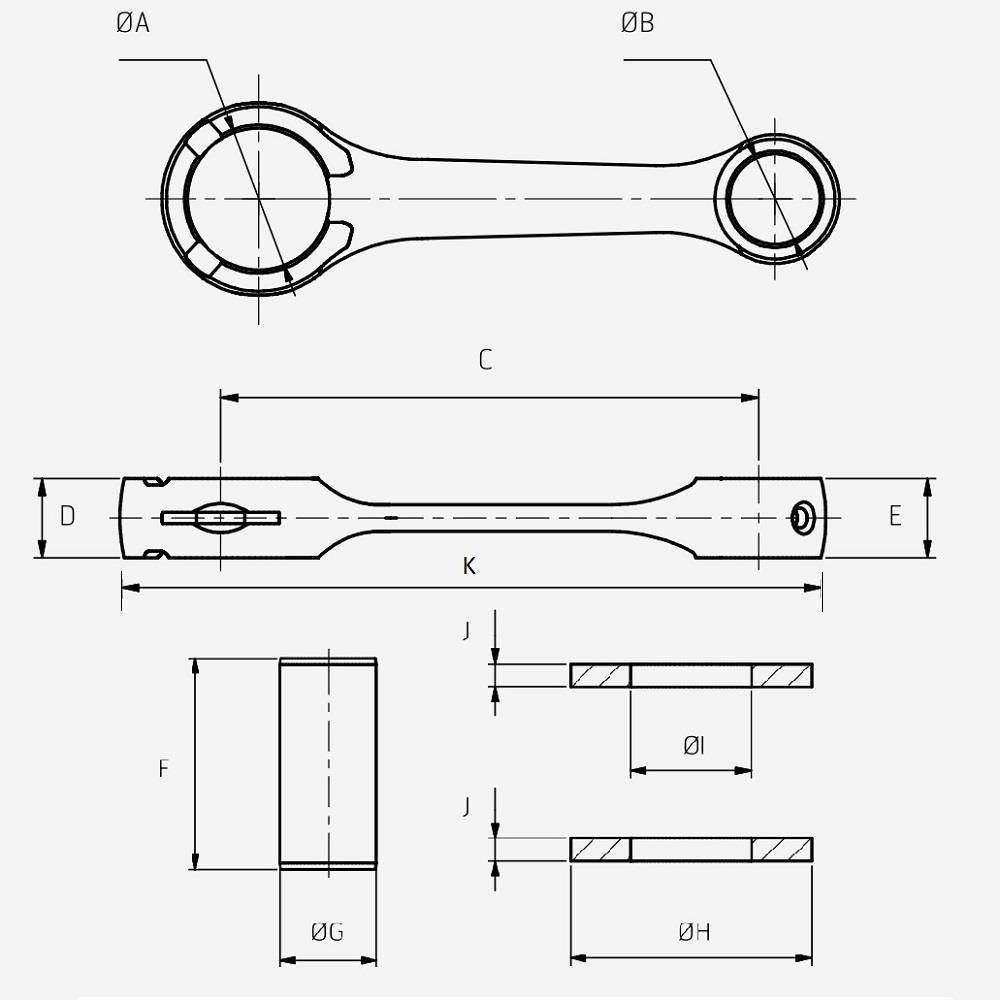

| Dimension F (length of lifting pin): | 30 mm |
| Needle roller bearing pin dimensions: | 16x21x10 mm |
| Tuning & Styling Part: | No |
| Vintage part: | Yes |
| Dimensions needle bearing piston pin: | 12x15x15 mm |
| Surface finish: | Matt |
| Dimension C (connecting rod length): | 85 mm |
| Dimension G (diameter of lifting pin): | 16 mm |
| matching piston pin: | 12 mm |
| Dimension K (total length of connecting rod): | 111 mm |
| GTIN: | 4060861042195 |
| Dimension A (diameter of connecting rod eye at bottom): | 21 mm |
| Dimension D (width of connecting rod at bottom): | 10 mm |
| Scope of delivery: | Bolt, Needle roller bearing, Connecting rod |
| Dimension E (top width of connecting rod): | 10 mm |
| Dimension B (top diameter of connecting rod eye): | 15 mm |
| Color: | Grey |
| Scope of delivery: | 1x connecting rod repair kit |
| Manufacturer number: | 187926 |
| Country and region of manufacture: | China |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Connecting rod incl. needle bearing, crank pin |
| Manufacturer warranty: | 2 years |
| Weight: | not specified |
| Material: | Cast iron |
| Type: | Standard |
Prices plus VAT plus shipping costs
In stock! Delivery time 1-3 working days
Cylinder kit 50cc including cylinder head + valves for China scooters, Baotian, Rex RS450
Cylinder kit 50cc Minarelli AC air-cooled horizontal engines, CPI, Rexy, Keeway
Cylinder kit 50cc AC air-cooled 12mm bolt angled flange for horizontal CPI engines, CPI, Keeway
Cylinder Kit 70cc LC watercooled incl. head for Piaggio engines, NRG, ZIP, NTT, Gilera Runner
Sachs 50/2 MA
Sachs 50/2 MA NL
Sachs 50/2 MA SF
Sachs 50/2 MA X
Sachs 50/2 MB
Sachs 50/2 S
Sachs 50/2 DK
Sachs 50/2 C
Sachs 50/2 D
Sachs 50/2 D NL
Sachs 50/ 2 MAK
Sachs 50/2 MAK SF
Sachs 50/2 K
Sachs 50/2 K S
Sachs 50/2 K DK
Sachs 50/2 MLA< br />Sachs 50/2 MLA
Sachs 50/3 MA SF
Sachs 50/3 MA X
Sachs 50/3 MB
Sachs 50/3 MK
Sachs 50/3 MK X
Sachs 50/3 MAK
Sachs 50/3 MAK SF
Sachs 50/3 MKA
Sachs 50/3 MKA I
Sachs 50/3 L
Sachs 50/3 LS
Sachs 50/3 H"
Sachs 50/3 MLA
Sachs 50/3 MLA X
Sachs 50/3 MLA NL
Sachs 50/ 3 MLB
Sachs 50/3 LH
Sachs 50/3 LH X
Sachs 50/3 MLKB
Sachs 50/3 MLKA
Sachs 50/3 MLKA br />Sachs 50/3 LKH
Sachs 50/3 LKH NL
Sachs 50/3 C
Sachs 50/3 C NL
Sachs 50/3 D
Sachs 50/3 MAKF
Sachs 50/3 MAKF SF
Sachs 50/3 MAKF X
Sachs 50/3 KF
Sachs 50/3 KF S
Sachs 50 /3 BKF
Sachs 50/3 BKF S
Sachs 50/3 MLFB
Sachs 50/3 LFH
Sachs 50/3 LFS
Sachs 50/ 4 CF
Sachs 50/4 CF NL
Sachs 50/4 DF
Sachs 50/4 DF X
Sachs 50/4 LF
Sachs 50/4 LF NL
Sachs 50/4 MLFA
Sachs 50/4 MLFA NL
Sachs 50/4 MLFB
Sachs 50/4 MLKA X
Sachs 50/4 LKS
Sachs 50/4 LKH
