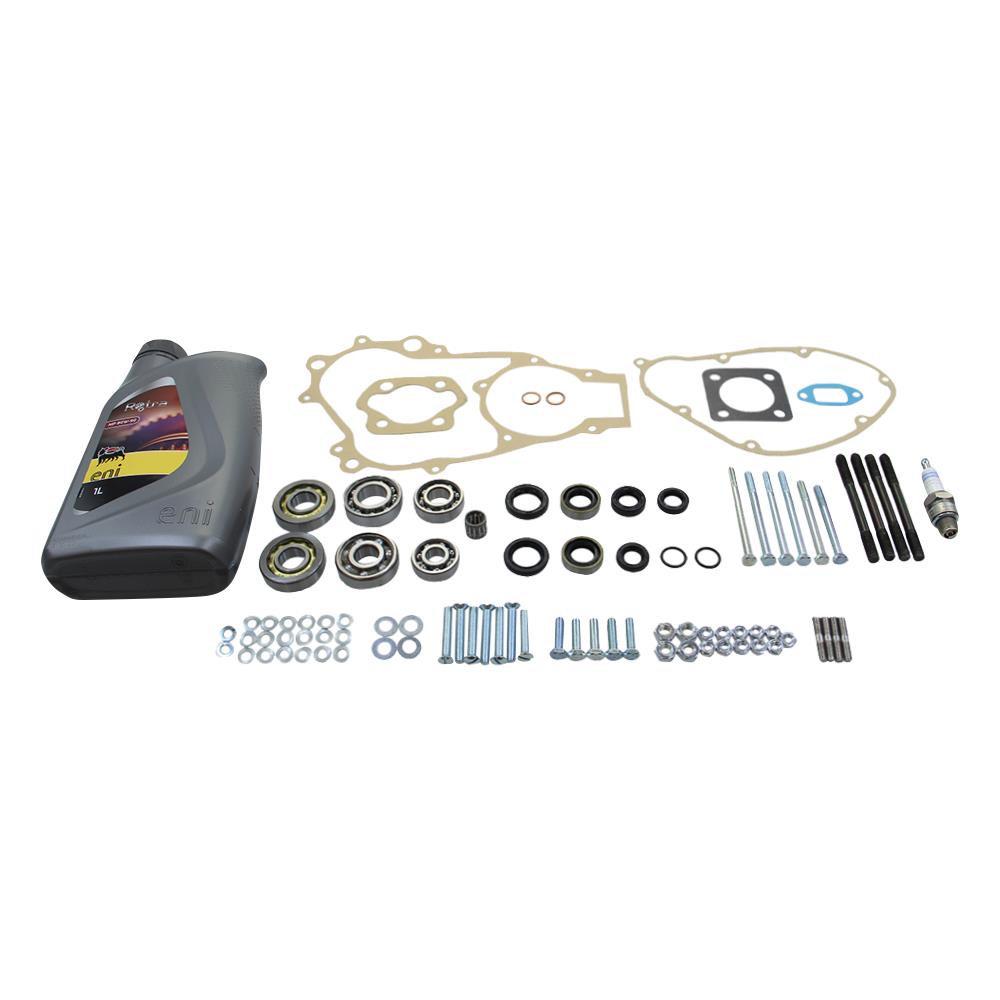

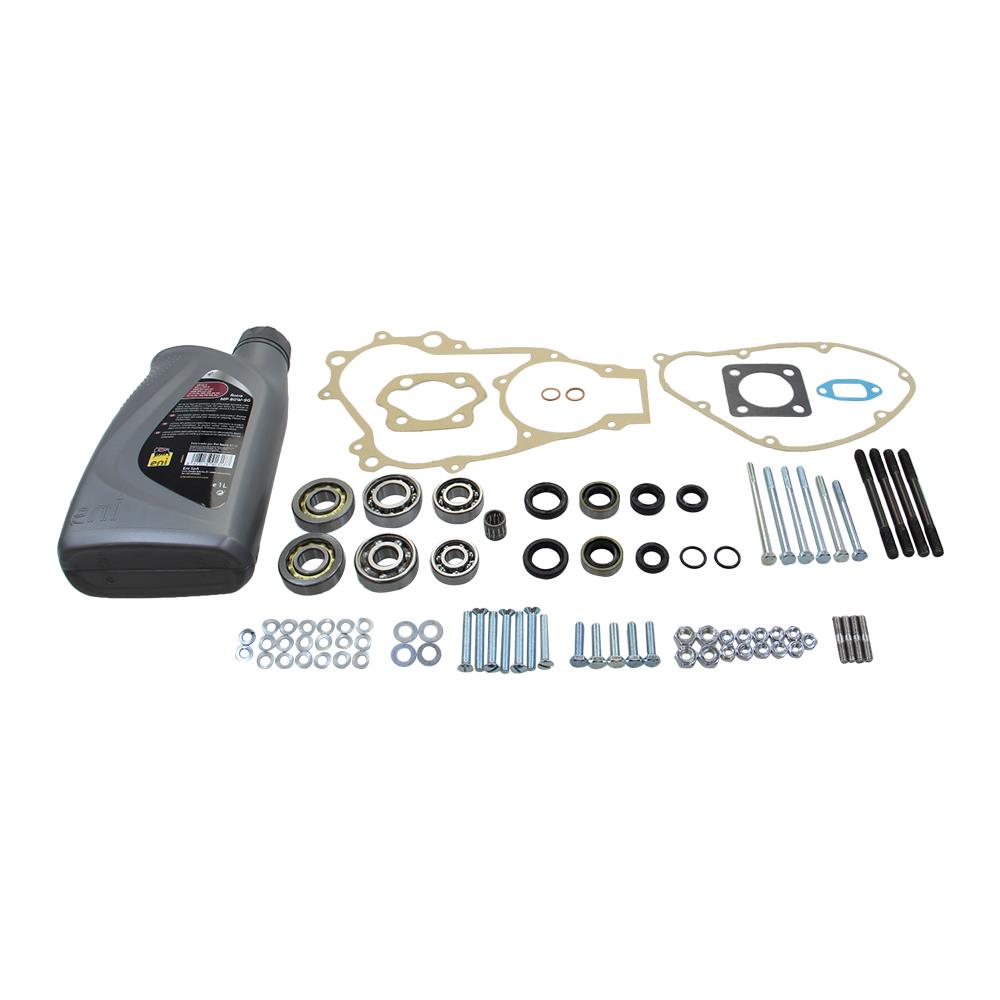

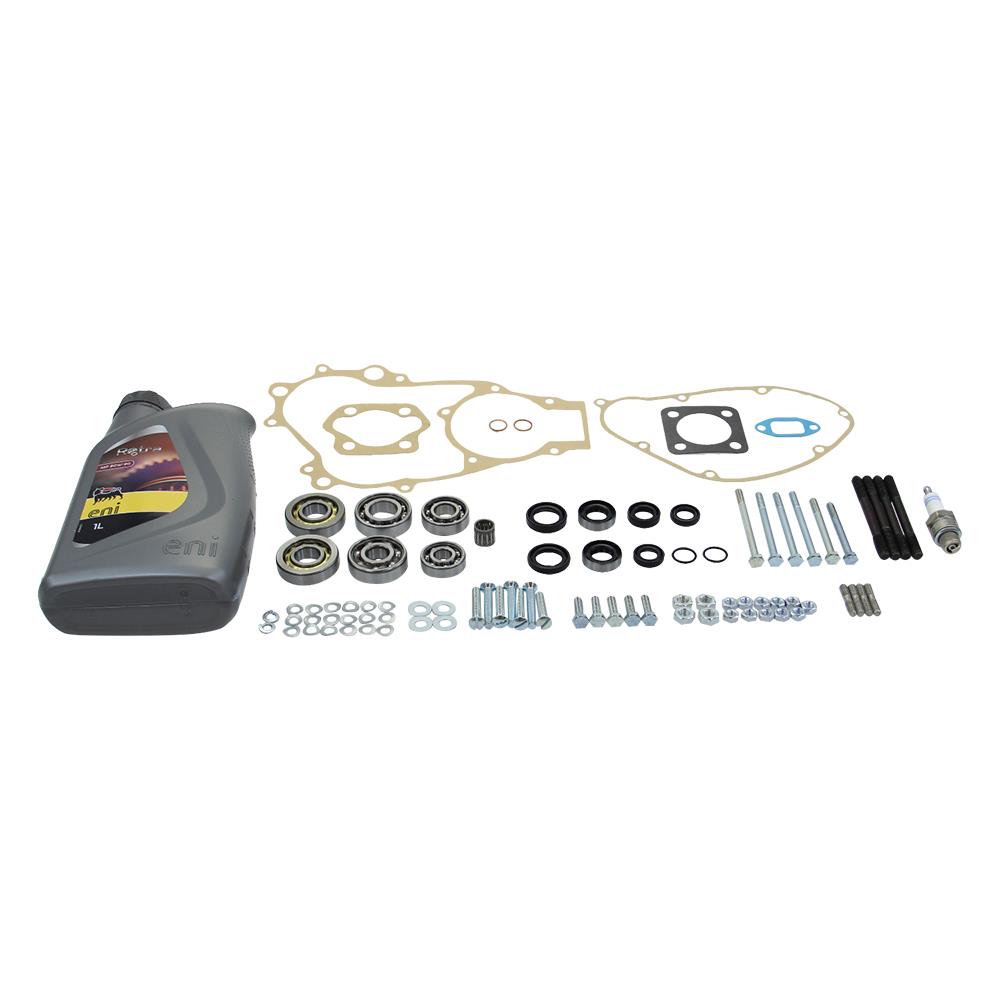

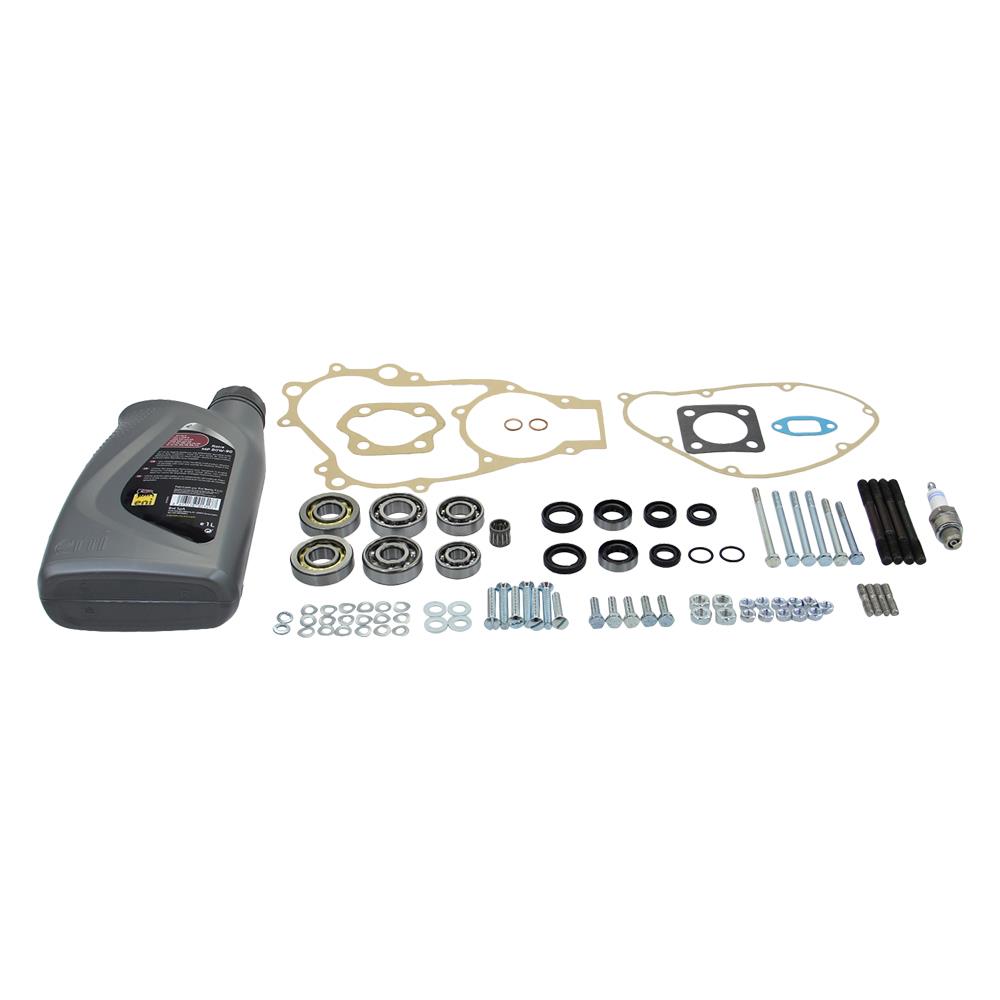

Revision set large for Kreidler Florett egg tank LH LF 3-speed engine


  • Citomerx
  • 168136
  • 168136
  • 4060861176937

Item data

Product type: Revision set large
Hersteller: Citomerx
Copper sealing rings: M12
Stock 3: 6202 C3 / 15x35x11 mm / offen / SKF
WeDI 3: 20x30x7 mm (2x pedal shaft)
Bearing 4: 6302 C3 / 15x42x13 mm / offen / SKF
Stud bolt exhaust/inlet: M6 x 26 mm
WeDI 4: 14x22x5 mm (foot control shaft)
Installation note 1: Je nach Motor können ein / zwei Schrauben übrig bleiben.
Bearing 5: 2x BO17 / 17x44x11 mm / Messing-Käfig
WeDI 5: 13x22x5 mm (clutch shaft up to 1963)
Installation note 2: Steg beim Kurbelwellenpleuel vor Einbau abschneiden.
Stud bolt cylinder: M8 x 95 mm
Bearing 1: 6004 C3 / 20x42x12 mm / offen / SKF
Stud distance intake manifold seal: 42 mm
Spark plug: Bosch W7AC / M14 / mit aufschraubbarer SAE-Mutter
O-ring: 14x2 mm (2x selector shaft)
Gear oil: Liqui Moly SAE 80W 1020 1 Liter
Hole spacing stud bolt: 44 mm
Screw set: 58-teilig / Stahl 8.8 verzinkt
Scope of delivery: 1x Revisionsset groß
WeDI 1: 17x28x8 mm (2x crankshaft)
Bearing 2: 6201 C3 / 12x32x10 mm / offen / SKF
Intake manifold gasket passage: 17 x 26 mm
WeDI 2: 15x24x7 mm (main shaft)
Color: Multicolored
Reference number(s) OEM: 00.10.36 (screw M6x80) / 00.10.37 (screw M6x70), 00.10.58 (screw M6x65) / 00.10.59 (screw M6x85), 00.10.39 (screw M6x25) / 00.16.11 (screw M6x40), 00.16.12 (bolt M6x35) / 00.20.10 (nut M6), 00.43.57 (spring washer M6) / 00.43.57 (spring washer M6), 00.30.03 (washer M8) / 00.20.16 (nut M8), 08.11.03 (spark plug) / 00.22.03 (stud bolt M6), 00.22.00/00.22.04 (stud bolt M8)
Needle roller bearing: 14x18x13 mm
Manufacturer number: 168136
Country and region of manufacture: Sweden
Reference number(s) OE: 15.21.20 (housing gasket) / 15.10.02 (clutch cover gasket), 15.03.05 (cylinder head gasket) / 15.63.64 (cylinder base gasket), 15.63.61 (Intake manifold gasket), 00.76.51 (WeDi kickstarter shaft) / 00.76.53 (WeDi crankshaft), 00.77.50 (WeDi main shaft) / 00.76.55 (WeDi foot control shaft), 00.76.06 (WeDi clutch shaft) / 33.30.01 (WeDi gearshift shaft), 00.70.01 (copper sealing ring), 00.63.00 (bearing BO17) / 00.61.00 (bearing 6201 C3), 00.61.30 (bearing 6302 C3) / 00.61.31 (bearing 6004 C3), 00.61.01 (bearing 6202 C3) / 15.65.02 (needle roller bearing)
Offer package: Yes
Units quantity: 1
Description of the package content: Motor revision set
Manufacturer warranty: 2 years
suitable for: Kreidler 3-speed engine
£56.83 *
Content: 1 piece

Prices plus VAT plus shipping costs

No longer available

Kreidler original/comparison number: 15.21.20 (housing gasket) 15.10.02 (Clutch cover gasket)... more
Product information "Revision set large for Kreidler Florett egg tank LH LF 3-speed engine"

Kreidler original/comparison number:
15.21.20 (housing gasket)
15.10.02 (Clutch cover gasket)
15.03.05 (cylinder head gasket)
15.63.64 (cylinder base gasket)
15.63.61 (intake port gasket)
00.76.51 (WeDi kick starter shaft)
00.76.53 (WeDi crankshaft)
00.77.50 (WeDi main shaft)
00.76.55 (WeDi foot control shaft)
00.76.06 (WeDi clutch shaft)
33.30.01 (WeDi shift shaft)
00.70.01 (Copper sealing ring)
00.63.00 (Bearing BO17)
00.61.00 (Bearing 6201 C3)
00.61.30 (bearing 6302 C3)
00.61.31 (bearing 6004 C3)
00.61.01 (bearing 6202 C3)
15.65.02 (needle bearing)
00.10.36 (screw M6x80)
00.10.37 (screw M6x70)
00.10.58 (screw M6x65)
00.10.59 (screw M6x85)
00.10.39 (screw M6x25)
00.16.11 (screw M6x40)
00.16.12 (screw M6x35)
00.20.10 (nut M6)
00.43.57 (spring washer M6)
00.43.57 (spring washer M6)
00.30.03 (washer M8)
00.20.16 (nut M8)
08.11.03 (spark plug)
00.22.03 (stud bolt M6)
00.22.00/00.22.04 (stud bolt M8)

TECHNICAL DATA:
- suitable for Kreidler 3-speed engine
- color: multicolor
- Installation note 1: Depending on the engine, one / two bolts may remain.
- Installation note 2: Cut off the web at the crankshaft connecting rod before installation.

Seal kit:
- Stud hole spacing: 44 mm
- Stud distance intake port gasket: 42 mm
- Intake port gasket passage: 17 x 26 mm
- Copper sealing rings: M12

Oil seal kit
- WeDI 1: 17x28x8 mm (2x crankshaft)
- WeDI 2: 15x24x7 mm (main shaft)
- WeDI 3: 20x30x7 mm (2x pedal shaft)
- WeDI 4: 14x22x5 mm (foot shift shaft)
- WeDI 5: 13x22x5 mm (clutch shaft until 1963)
- O-ring: 14x2 mm (2x shift shaft)

Bearing set
- Bearing 1: 6004 C3 / 20x42x12 mm / open / SKF
- Bearing 2: 6201 C3 / 12x32x10 mm / open / SKF
- Bearing 3: 6202 C3 / 15x35x11 mm / open / SKF
- Bearing 4: 6302 C3 / 15x42x13 mm / open / SKF
- Bearing 5: 2x BO17 / 17x44x11 mm / brass cage
- needle bearing: 14x18x13 mm

Screw set
- 58-piece screw set
- Material: steel 8.8 galvanized

Gear oil
- Specification: SAE80W-90
- Content: 1 liter

Spark plug
- Type: W7AC
- Thread: M14
- Thread length: 12,7 mm
- Contact: Ignition cable M4 thread with screw-on SAE nut

Stud cylinder
- Thread: M8
- length: 95 mm

Stud bolt exhaust/inlet
- Thread: M6
- Length: 26 mm

SCOPE OF DELIVERY:
