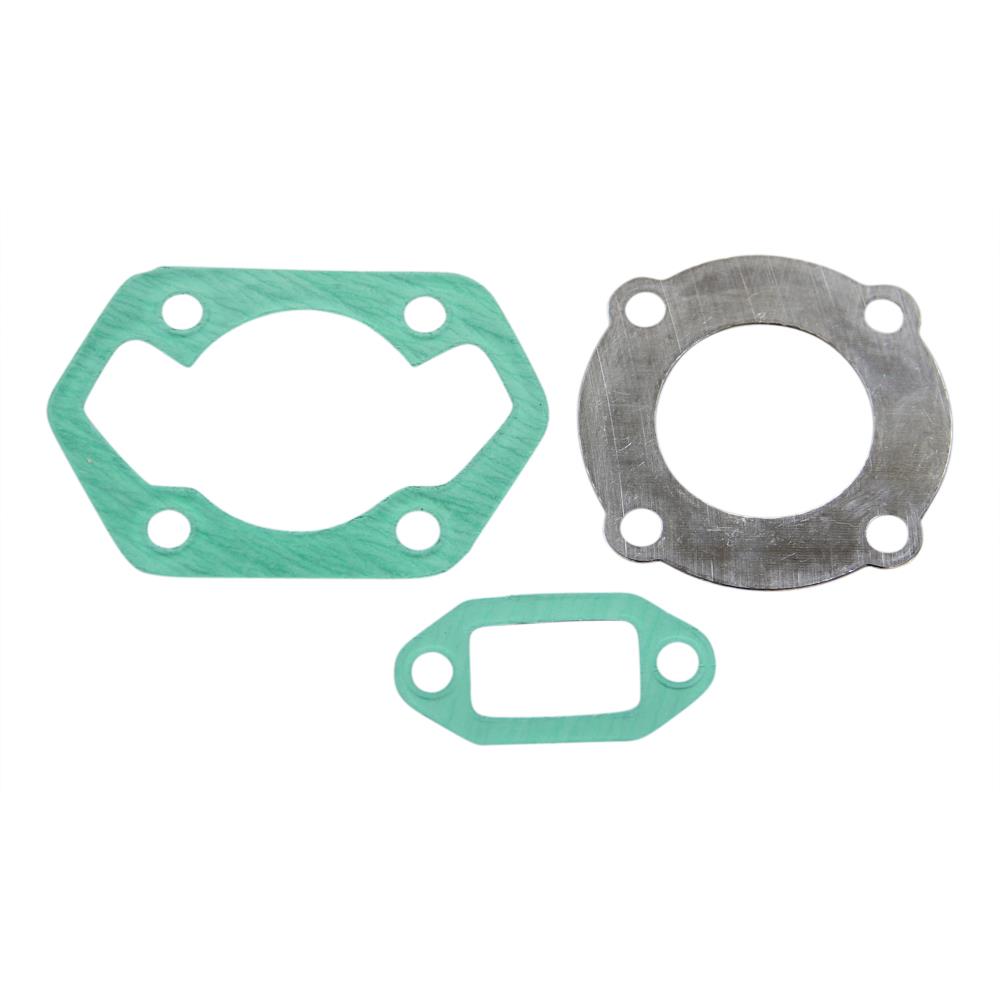

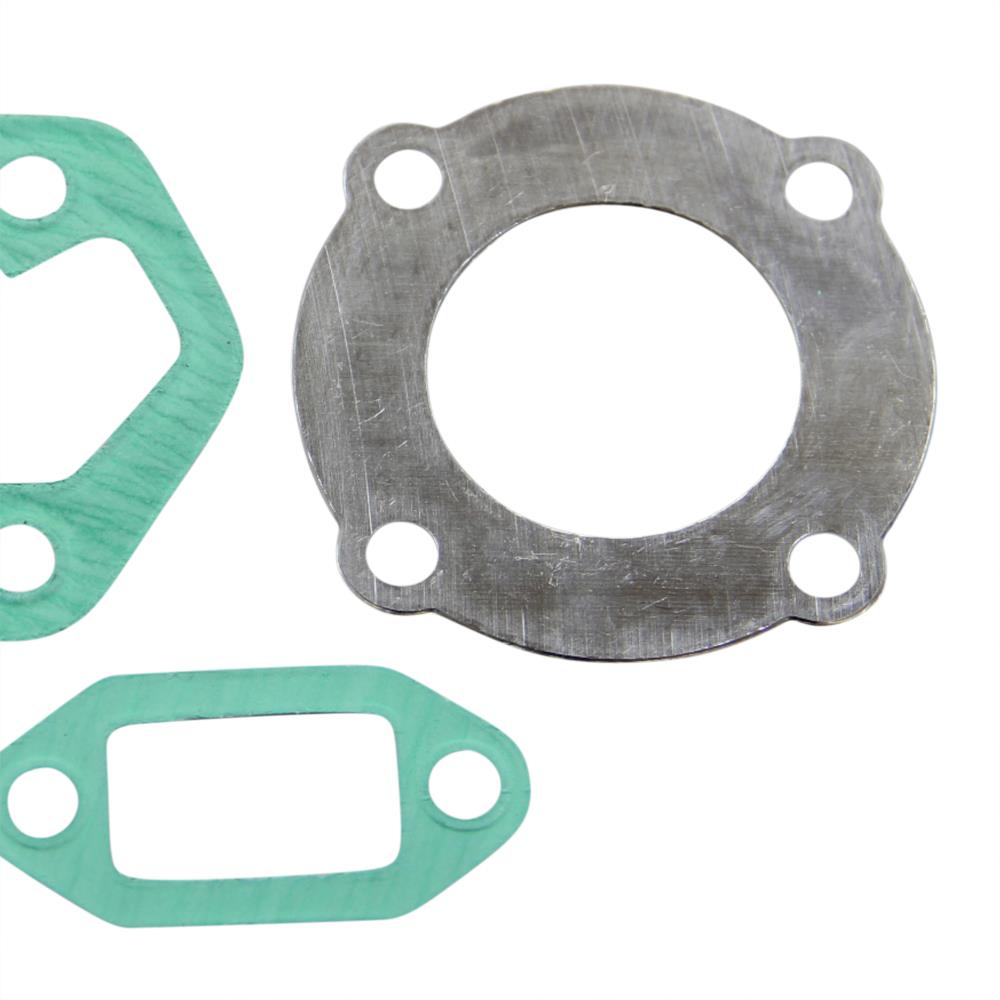

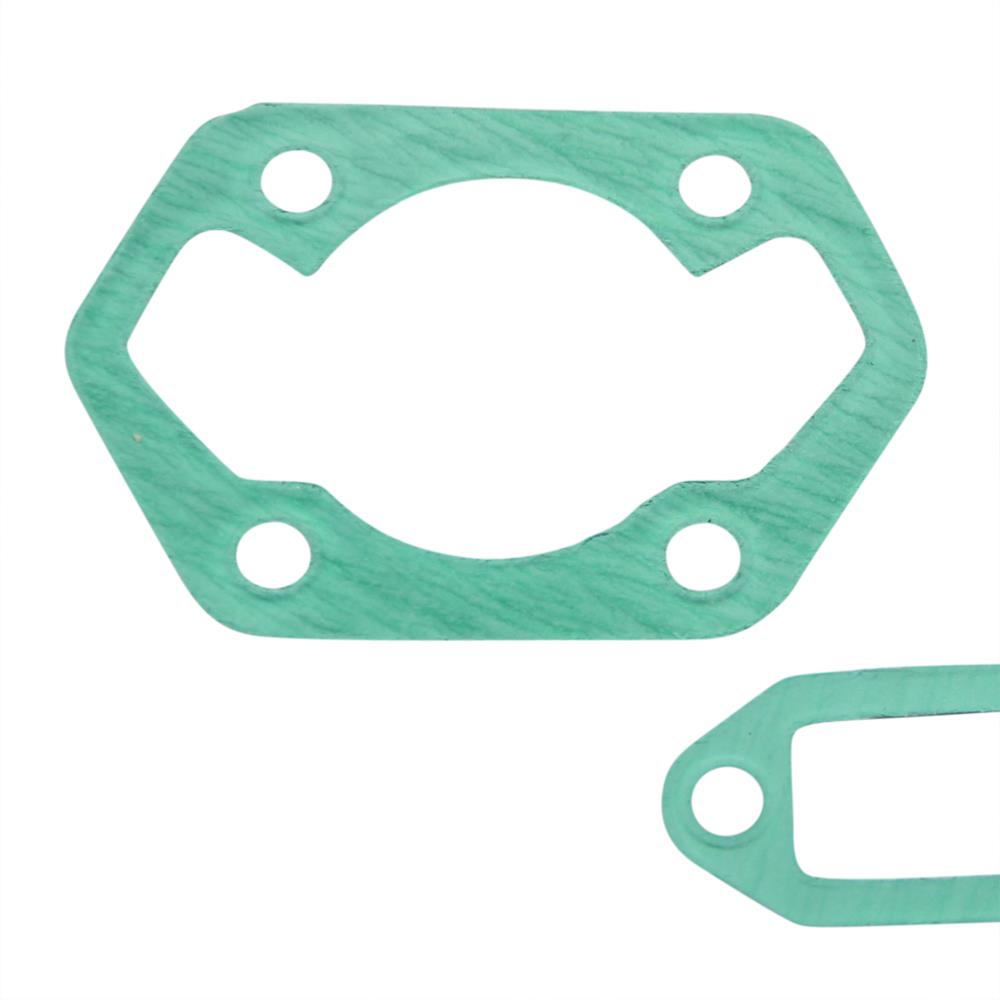

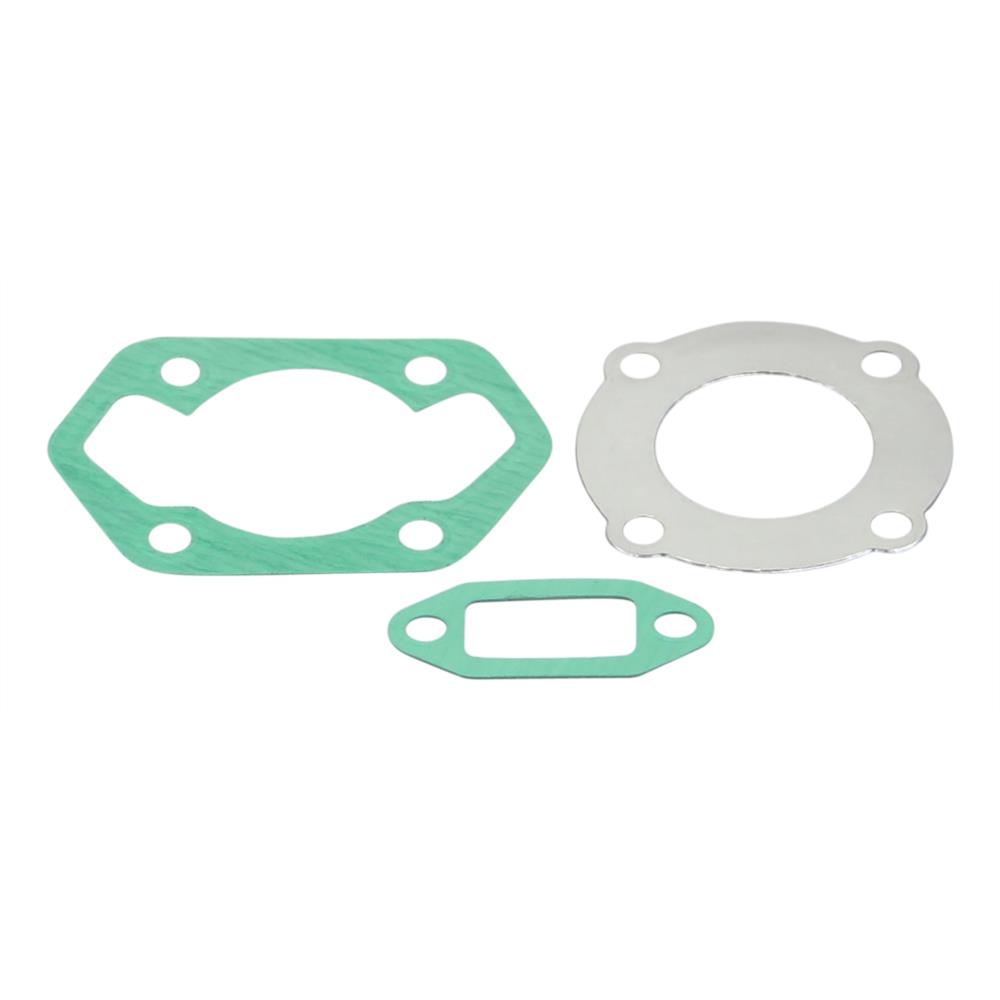

Zylinderdichtsatz 50ccm 39mm für Zündapp STANDARD LUFTGEKÜHLT
- Manufacturer: Athena
- Item no: 003003
- Manufacturer no.: 003003
- EAN: 4060861187063
Item data
| Product type: | Cylinder gasket set |
| Outer diameter of cylinder head gasket: | 71 mm |
| Tuning & Styling Part: | Yes |
| Vintage part: | Yes |
| OE/OEM reference number(s): | Athena 003003 |
| Hole spacing intake manifold seal: | 46 mm |
| Thick cylinder base gasket: | 0.6 mm |
| Hole spacing stud bolt: | approx. 45x45 mm |
| Scope of delivery: | Cylinder base / cylinder head / intake gasket |
| Thick intake manifold gasket: | 1.1 mm |
| Comparison number: | 003003 |
| Intake manifold gasket passage: | 17x30 mm |
| Thick cylinder head gasket: | 0.5 mm |
| Color: | Multicolored |
| Features: | Durable |
| Engine type: | 2-stroke |
| Drill hole: | 39 mm |
| Scope of delivery: | 1x cylinder gasket set |
| Manufacturer number: | 168380 |
| Country and region of manufacture: | China |
| Type of motorcycle: | Moped & Mokick |
| Manufacturer warranty: | 2 years |
| Material: | Paper / Aluminum |
| suitable for: | Zündapp engine with Athena cylinder 50 ccm air-cooled |
Prices plus VAT plus shipping costs
