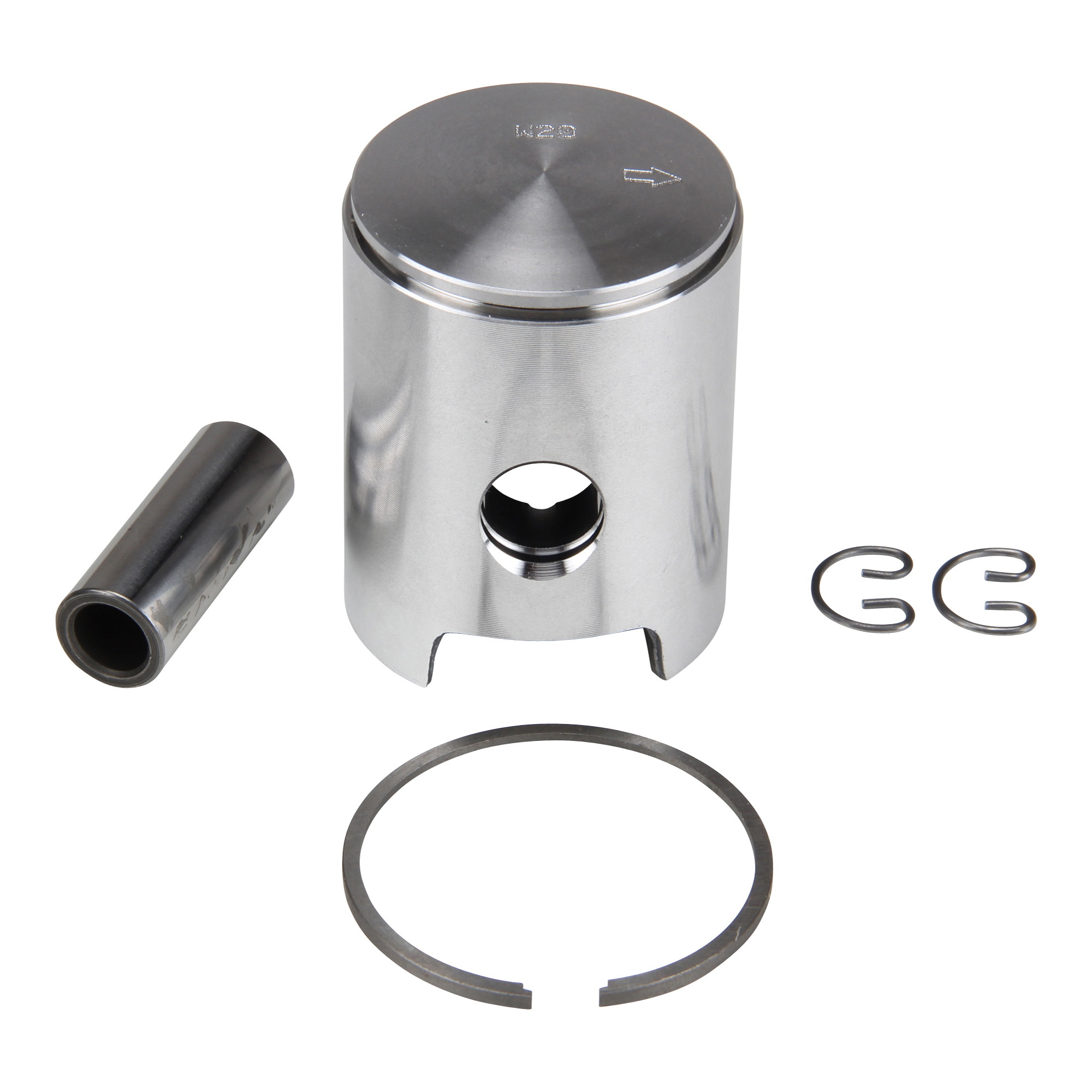

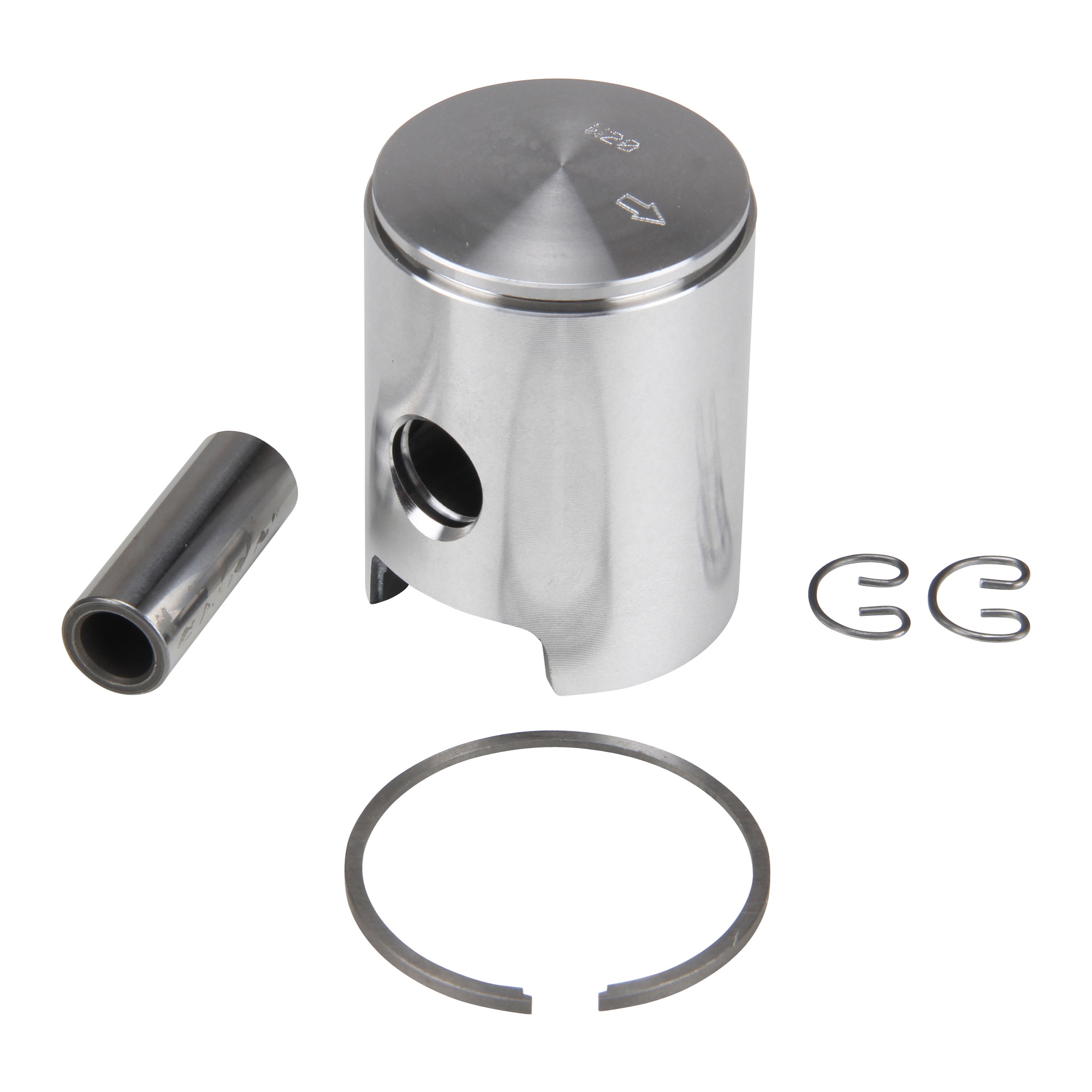

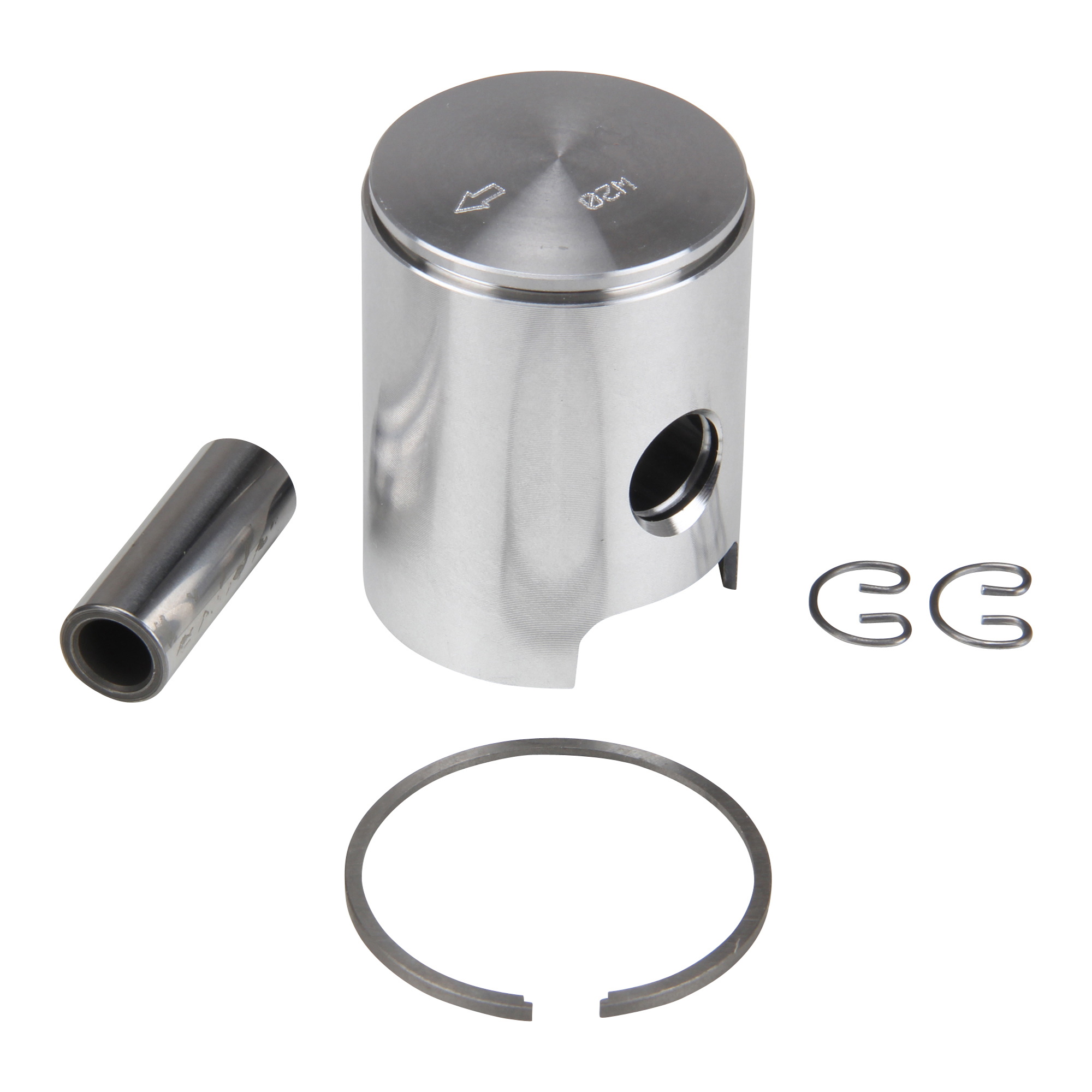

Piston set 38.97mm Tol. EF 50ccm for Zündapp C KS RS 50 type 441 515 517 530 561
- Manufacturer: Meteor Piston
- Item no: PC0933EF
- Manufacturer no.: PC0933EF
- EAN: 4060861114366
Item data
| Product type: | Piston set |
| Dimension B (compression height): | 26 mm |
| Dimension F (piston skirt width inlet side): | 31.5 mm |
| Dimension I (piston skirt length outlet side): | 47 mm |
| Piston ring dimension: | 39 x 2.0 mm |
| Tuning & Styling Part: | No |
| Piston ring profile: | L-ring |
| Vintage part: | Yes |
| Cylinder bores: | 39 mm |
| Dimension C (piston height): | 50 mm |
| Dimension J (max. needle bearing width): | 15.5 mm |
| Dimension C + D (total height): | 51.5 mm |
| Dimension G (piston skirt length inlet side): | 47 mm |
| OE/OEM reference number(s): | 284-02.706, 284-02.775, 284-02.747, 284-02.701, 284-02.713, Meteor SP120315080HI (piston pin), Meteor F0390020017531H0I (piston ring), Meteor AN2B1210SET (piston clips), Meteor PC0933EF (piston) |
| GTIN: | 4060861114366 |
| Dimension A (piston diameter): | 38.97 mm |
| Bolt diameter: | 12 mm |
| Dimension D (curvature): | 1.5 mm |
| Dimension H (piston skirt width outlet side): | 31.5 mm |
| Scope of delivery: | Piston, Piston pin, Piston clips, Piston ring |
| Bolt length: | 31.5 mm |
| Piston ring width: | 1.75 mm |
| Dimension E (piston pin diameter): | 12 mm |
| Tolerance size: | EF (38.97mm) |
| Piston ring shape: | B (groove for center locking pin) |
| Color: | Silver |
| Piston diameter: | 39 mm |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x piston set |
| Manufacturer number: | PC0933EF |
| Country and region of manufacture: | Italy |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Piston + piston ring + piston pin + piston clips |
| Manufacturer warranty: | 2 years |
| Weight: | 0.075 kg |
| Material: | Aluminum alloy |
| suitable for: | 50 cc |
OR
£28.74
*
Content:
1 piece
Prices plus VAT plus shipping costs
In stock! Delivery time 1-3 working days
Customers also bought
Cylinder head gasket 0,1 mm Alu for Zündapp C GTS CS KS R 50 Type 517 529 530 561
Content
1 piece
£2.09
*
Similar articles
Cylinder kit 50cc including cylinder head + valves for China scooters, Baotian, Rex RS450
Content
1 piece
£47.47
*
Cylinder kit 50cc Minarelli AC air-cooled horizontal engines, CPI, Rexy, Keeway
Content
1 piece
£17.22
*
Cylinder kit 50cc AC air-cooled 12mm bolt angled flange for horizontal CPI engines, CPI, Keeway
Content
1 piece
£20.78
*
Cylinder Kit 70cc LC watercooled incl. head for Piaggio engines, NRG, ZIP, NTT, Gilera Runner
Content
1 piece
£39.54
*
Customers have also viewed
Fork Stanchion Immersion Tube Telescopic Fork for Zündapp GTS KS C 50 Type 529 530
Content
1 piece
£25.14
*
Piston ring 39x1.5mm form C rectangular ring for Zündapp ZD 10 30 type 446 / ZA A 25 40 type 460
Content
1 piece
£6.41
*
Engine gasket set 50 cc for Zündapp ZD 10 30 446 / ZR 10 20 30 447 / ZA 25 40 460
Content
1 piece
£10.01
*
Wellendichtring Satz Motor für Zündapp ZD 10 30 ZR 10 20 30 ZA 25 40 A 25 Typ 446 447 460
Content
1 piece
£8.57
*
C 50 Super Type 441-05L2 (from engine No. 3730133) C 50 Super Type 441-05L3 (from engine No.... more
Product information "Piston set 38.97mm Tol. EF 50ccm for Zündapp C KS RS 50 type 441 515 517 530 561"
C 50 Super Type 441-05L2 (from engine No. 3730133) C 50 Super Type 441-05L3 (from engine No. 3730133) C 50 Super Type 441-05L4 (from engine No. 3730133) C 50 Super Type 441-05L5 ( from engine no. 3730133) KS 50 Super Type 515-052 KS 50 Super Type 515-058 KS 50 Super Type 515-053 KS 50 Super Type 515-051 KS 50 Super Type 515-061 KS 50 Cross Type 517-51L0 KS 50 Cross type 517-51LA KS 50 Super Sport type 517-51LB KS 50 WC type 517-50L0 (up to engine no. 4813449) KS 50 WC type 517-50LA (up to engine no. 4813449) KS 50 Super SL type 517-01L0 engine Type 284-01L0 KS 50 Sport Type 517-06L0 Engine Type 284-03L0 (up to engine no. 4749858) KS 50 Super Sport Type 517-06L5 Engine type 284-03L2 (up to engine no. 4749858) KS 50 Super Sport Type 517- 020LB engine type 284-03L (up to engine no. 4749858) KS 50 type 517-06L7 engine type 284-03L3 (up to engine no.4749858) KS 50 Sport type 517-20L0 engine type 284-03L3 (up to engine no. 4749858) KS 50 Super Sport type 517-20L2 engine type 284-03L3 (up to engine no. 4749858) KS 50 Super Sport type 517-20LC engine Type 284-03L3 (up to engine no. 4749858) KS 50 Super Sport type 517-06L5 engine type 284-03L2 (engine no. 4749859-4763416) KS 50 Super Sport type 517-20LB engine type 284-03L2 (engine no. 4749859 -4763416) KS 50 Type 517-06L7 motor type 284-03L3 (engine No. 4749859-4763416) KS 50 Sport Type 517-20L0 Motor type 284-03L3 (engine No. 4749859-4763416) KS 50 Super Sport Type 517-20L2 Engine type 284-03L3 (engine no. 4749859-4763416) KS 50 Super Sport type 517-20LC engine type 284-03L3 (engine no. 4749859-4763416) Super Combinette type 517-08L0 engine type 266-53L0 RS 50 type 561- 004 Engine type 276-010 (from engine no. 8510659) RS 50 Super type 561-06L0 Engine type 276-44L0 (from engine no.8510659) KS 50 WC type 530-65L1 KS 50 WC type 530-66L1 KS 50 WC type 530-66L2 KS 50 WC type 530-66L3 KS 50 Sport type 530-60L1 KS 50 Super Sport type 530-61L1 KS 50 WC type 530 -010 KS 50 WC TT type 530-011 KS 50 WC TT type 530-012 KS 50 WC TT type 530-014 KS 50 Super Sport type 530-500 KS 50 Super Sport TT type 530-500 KS 50 Sport type 530-510 KS 50 Cross type 517-53L0 KS 50 Super Sport type 517-53L1 KS 50 WC type 517-52L0 (from engine no. 4813450) KS 50 WC type 517-52LA (from engine no. 4813450) C 50 Super type 441-05L2 (up to engine no. 3730132) C 50 Super type 441-05L3 (up to engine no. 3730132) C 50 Super type 441-05L4 (up to engine no. 3730132) C 50 Super type 441-05L5 (up to engine no. 3730132) RS 50 Type 561-004 Engine Type 276-010 (up to engine no. 8510658) RS 50 Super Type 561-06L0 Engine type 276-44L0 (up to engine no.8510658) KS 50 Super Sport Type 517-06L5 Engine Type 284-03L2 (from Engine No. 4763417) KS 50 Super Sport Type 517-20LB Engine Type 284-03L2 (from Engine No. 4763417) KS 50 Type 517-06L7 Engine Type 284-03L3 (from engine no. 4763417) KS 50 Sport type 517-20L0 engine type 284-03L3 (from engine no. 4763417) KS 50 Super Sport type 517-20L2 engine type 284-03L3 (from engine no. 4763417) KS 50 Super Sport type 517-20LC engine type 284-03L3 (from engine no. 4763417)
