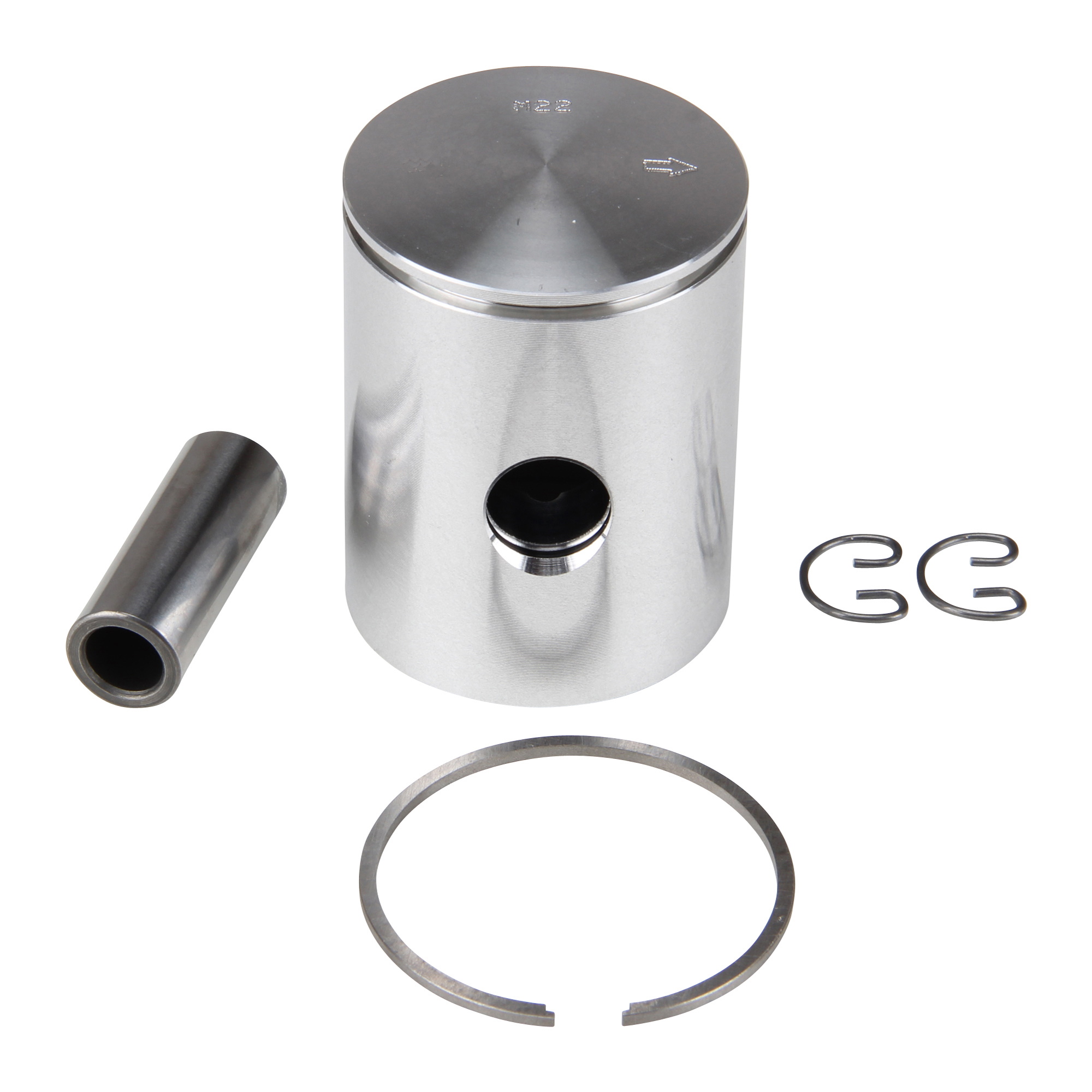

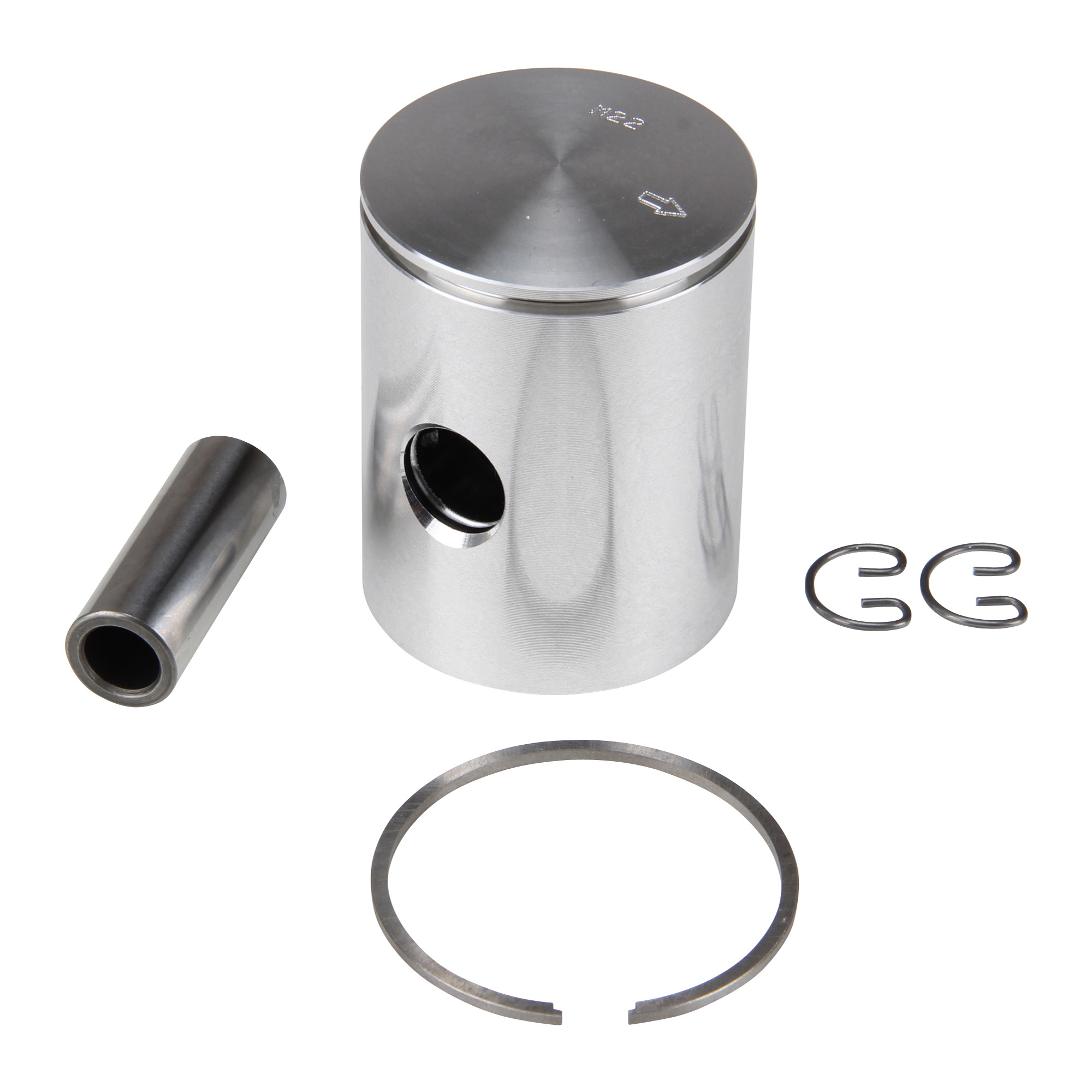

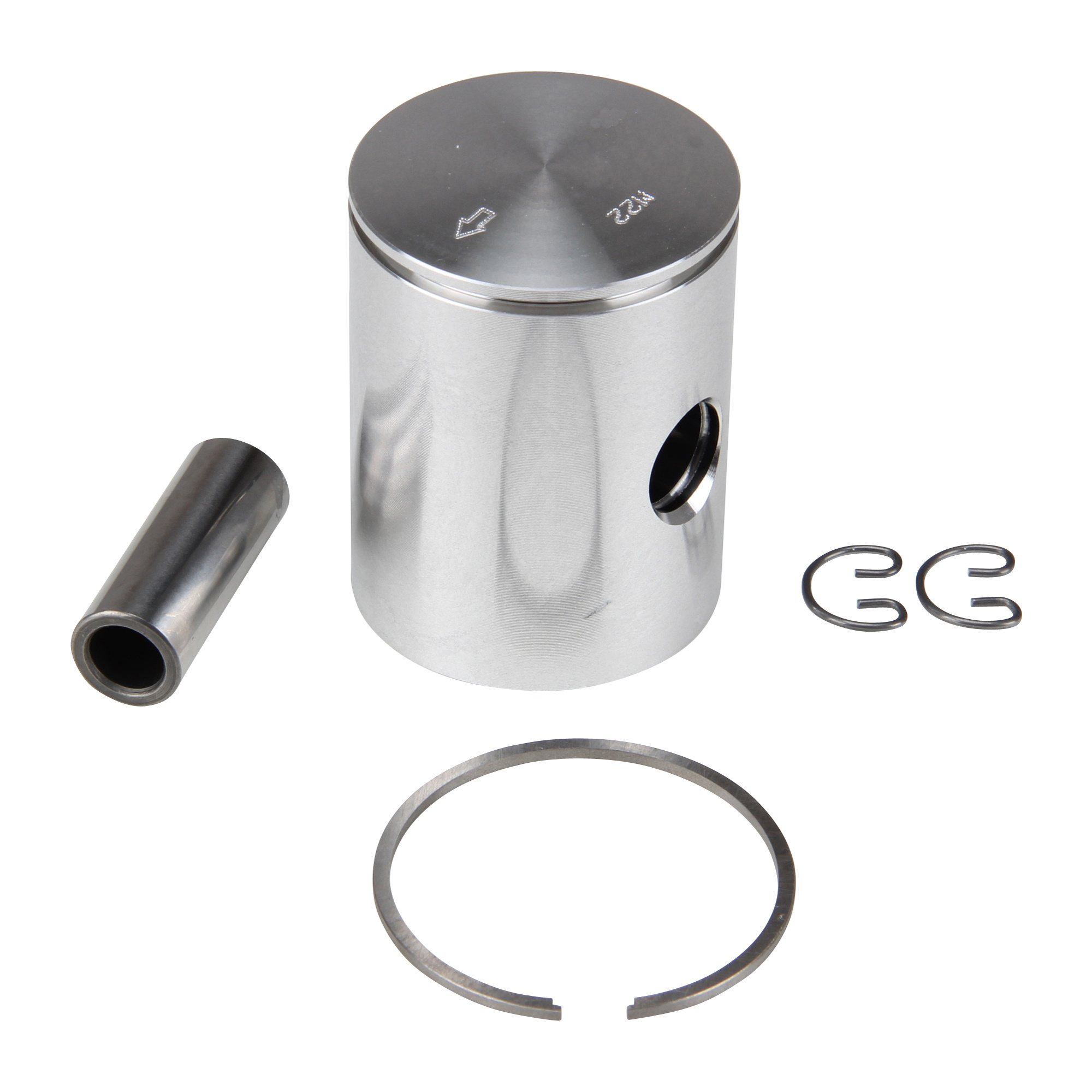

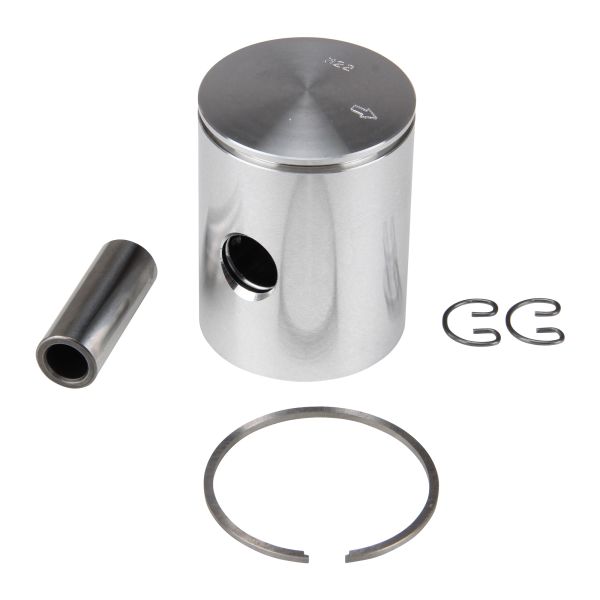

Piston set 38.965mm Tol. DE 50cc for Zündapp ZD CS Hai CX ZX ZL C GTS KS RM Type 434 446 448 460 442 517 529 561
- Manufacturer: Meteor Piston
- Item no: PC0774DE
- Manufacturer no.: PC0774DE
- EAN: 4060861114403
Item data
| Product type: | Piston set |
| Dimension B (compression height): | 26 mm |
| Dimension I (piston skirt length outlet side): | 47 mm |
| Piston ring dimension: | 39 x 1.5 mm |
| Tuning & Styling Part: | No |
| Piston ring profile: | Rectangular ring |
| Vintage part: | Yes |
| Cylinder bores: | 39 mm |
| Dimension C (piston height): | 50 mm |
| Dimension J (max. needle bearing width): | 15.5 mm |
| Dimension C + D (total height): | 51.5 mm |
| Dimension G (piston skirt length inlet side): | 47 mm |
| OE/OEM reference number(s): | 278-02.729, 278-02.757, 248-02.703, Meteor SP120315080HI (piston pin), Meteor AN2B1210SET (piston clips), Meteor F0390015016530H0I (piston ring), Meteor PC0774EN (piston) |
| GTIN: | 4060861114403 |
| Dimension A (piston diameter): | 38.965 mm |
| Bolt diameter: | 12 mm |
| Dimension D (curvature): | 1.5 mm |
| Scope of delivery: | Piston, Piston pin, Piston clips, Piston ring |
| Bolt length: | 31.5 mm |
| Piston ring width: | 1.65 mm |
| Dimension E (piston pin diameter): | 12 mm |
| Tolerance size: | DE (38.965mm) |
| Piston ring shape: | B (groove for center locking pin) |
| Color: | Silver |
| Piston diameter: | 39 mm |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x piston set |
| Manufacturer number: | PC0774EN |
| Country and region of manufacture: | Italy |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Piston + piston ring + piston pin + piston clips |
| Manufacturer warranty: | 2 years |
| Weight: | 0.087 kg |
| Material: | Aluminum alloy |
| suitable for: | 50 cc |
OR
£38.10
*
Content:
1 piece
Prices plus VAT plus shipping costs
In stock! Delivery time 1-3 working days
Customers also bought
Similar articles
Cylinder kit 50cc including cylinder head + valves for China scooters, Baotian, Rex RS450
Content
1 piece
£47.47
*
Cylinder kit 50cc Minarelli AC air-cooled horizontal engines, CPI, Rexy, Keeway
Content
1 piece
£17.22
*
Cylinder kit 50cc AC air-cooled 12mm bolt angled flange for horizontal CPI engines, CPI, Keeway
Content
1 piece
£20.78
*
Cylinder Kit 70cc LC watercooled incl. head for Piaggio engines, NRG, ZIP, NTT, Gilera Runner
Content
1 piece
£39.54
*
Customers have also viewed
ZD 40 type 446-300 ZD 20 type 446-400 ZD 25 type 446-420 ZD 50 type 446-422 CS 50 type 448-010 CS... more
Product information "Piston set 38.965mm Tol. DE 50cc for Zündapp ZD CS Hai CX ZX ZL C GTS KS RM Type 434 446 448 460 442 517 529 561"
ZD 40 type 446-300 ZD 20 type 446-400 ZD 25 type 446-420 ZD 50 type 446-422 CS 50 type 448-010 CS 50 type 448-011 CS 50 type 448-013 Hai 50 type 448-110 Hai 50 Type 448-111 CS 25 Type 448-140 CS 25 Type 448-141 Hai 25 Type 448-150 CX 25 Type 448-151 Sprinter Type 448-051 Hai 50 Type 448-160 ZX 25 Type 460-010 ZX 25 Type 460- 013 Engine type 278-01L3 (from engine no. 3730133) C 50 Sport type 517-21L0 Engine type 278-25L0 (from engine no.3730133) C 50 Sport Type 529-010 GTS 50 Type 529-020 GTS 50 Type 529-022 GTS 50 Type 529-023 GTS 50 Type 529-024 GTS 50 Type 529-026 GTS 50 Type 529-028 GTS 50 Type 529- 029 GTS 50 Type 540-120 KS 50 Type 540-121 CS 50 Type 540-190 R 50 Type 561-051 R 50 Type 561-052 Star 1 Type 462-020 Star 2 Type 462-021 Engine Type 276 M 25 Mountaineer Type 434-02L1 (from engine no. 3111703) M 50 Bergsteiger type 434-01L0 (from engine no. 3111703) M 25 Bergsteiger BASF type 434-16L0 (from engine no. 3111703) C 50 Super type 441-01L0 (from engine no . 3730133) C 50 Super type 441-01L1 (from engine no.3730133) Automatic type 442-01L0 Automatic type 442-11L0 Automatic type 442-12L0 Automatic type 442-16L0 Automatic type 442-16L1 Automatic type 442-17L0 Automatic type 442-17L1 ZD 20 Type 446-450 C 50 Sport type 517-21L0 C 50 Sport Type 517-21LA GTS 50 Type 517-39L0 GTS 50 Type 517-40L0 GTS 50 Type 517-40L5 C 50 Type 517-05LA GTS 50 Type 517-35LA GTS 50 Type 517-35LC GTS 50 Type 517-35LE Super Sport type 517-35LB Super Sport type 517-35LD Super Sport type 517-35LF GTS Super type 517-35L5 C 50 Super type 517-05L9 engine type 266-50L1 (from engine no. 3730133) C 50 Super type 517-23L3 engine Type 266-70L1 (from engine no. 3730133) C 50 Sport Type 517-23L1 Engine type 266-70L1 (from engine no.3730133) CS 50 type 529-030 CS 50 type 529-032 CS 50 type 529-034 GTS 50 type 529-050 GTS 50 type 529-052 GTS 50 type 529-054 GTS 50 type 529-056 KS 50 type 529-051 KS 50 type 529-053 KS 50 type 529-055 KS 50 type 529-057 CS 50 type 517-05C GTS 50 type 517-35G KS 50 type 517-35H CS 50 type 529-03L0 GTS 50 type 529-05L0 KS 50 Type 529-05L1 R 50 Type 561-003 Engine Type 267-020 (from engine no. 8018080)
Customers also searched for this item under:
Further links to "Piston set 38.965mm Tol. DE 50cc for Zündapp ZD CS Hai CX ZX ZL C GTS KS RM Type 434 446 448 460 442 517 529 561"
Sicherheitsinformationen für dieses Produkt. more
MANUFACTURER INFORMATION FOR THE EU:
Brand name: Meteor Piston
METEOR PISTON S.R.L.
Telephone number: +39 02 356 16 34
Web page http://www.meteorpiston.com
Email: info@meteorpiston.com
METEOR PISTON S.R.L.
VIA MONTE AMIATA 9-11
20021 BARANZATE
Telephone number: +39 02 356 16 34
Web page http://www.meteorpiston.com
Email: info@meteorpiston.com
INFORMATION ON THE PERSON RESPONSIBLE FOR THE EU:
Eigenschaften more
| Product type | Piston set |
|---|---|
| Dimension B (compression height) | 26 mm |
| Dimension I (piston skirt length outlet side) | 47 mm |
| Piston ring dimension | 39 x 1.5 mm |
| Tuning & Styling Part | No |
| Piston ring profile | Rectangular ring |
| Vintage part | Yes |
| Cylinder bores | 39 mm |
| Dimension C (piston height) | 50 mm |
| Dimension J (max. needle bearing width) | 15.5 mm |
| Dimension C + D (total height) | 51.5 mm |
| Dimension G (piston skirt length inlet side) | 47 mm |
| OE/OEM reference number(s) | 278-02.729, 278-02.757, 248-02.703, Meteor SP120315080HI (piston pin), Meteor AN2B1210SET (piston clips), Meteor F0390015016530H0I (piston ring), Meteor PC0774EN (piston) |
| GTIN | 4060861114403 |
| Dimension A (piston diameter) | 38.965 mm |
| Bolt diameter | 12 mm |
| Dimension D (curvature) | 1.5 mm |
| Scope of delivery | Piston, Piston pin, Piston clips, Piston ring |
| Bolt length | 31.5 mm |
|---|---|
| Piston ring width | 1.65 mm |
| Dimension E (piston pin diameter) | 12 mm |
| Tolerance size | DE (38.965mm) |
| Piston ring shape | B (groove for center locking pin) |
| Color | Silver |
| Piston diameter | 39 mm |
| Engine type | 2-stroke |
| Scope of delivery | 1x piston set |
| Manufacturer number | PC0774EN |
| Country and region of manufacture | Italy |
| Type of motorcycle | Moped & Mokick |
| Offer package | Yes |
| Description of the package content | Piston + piston ring + piston pin + piston clips |
| Manufacturer warranty | 2 years |
| Weight | 0.087 kg |
| Material | Aluminum alloy |
| suitable for | 50 cc |
