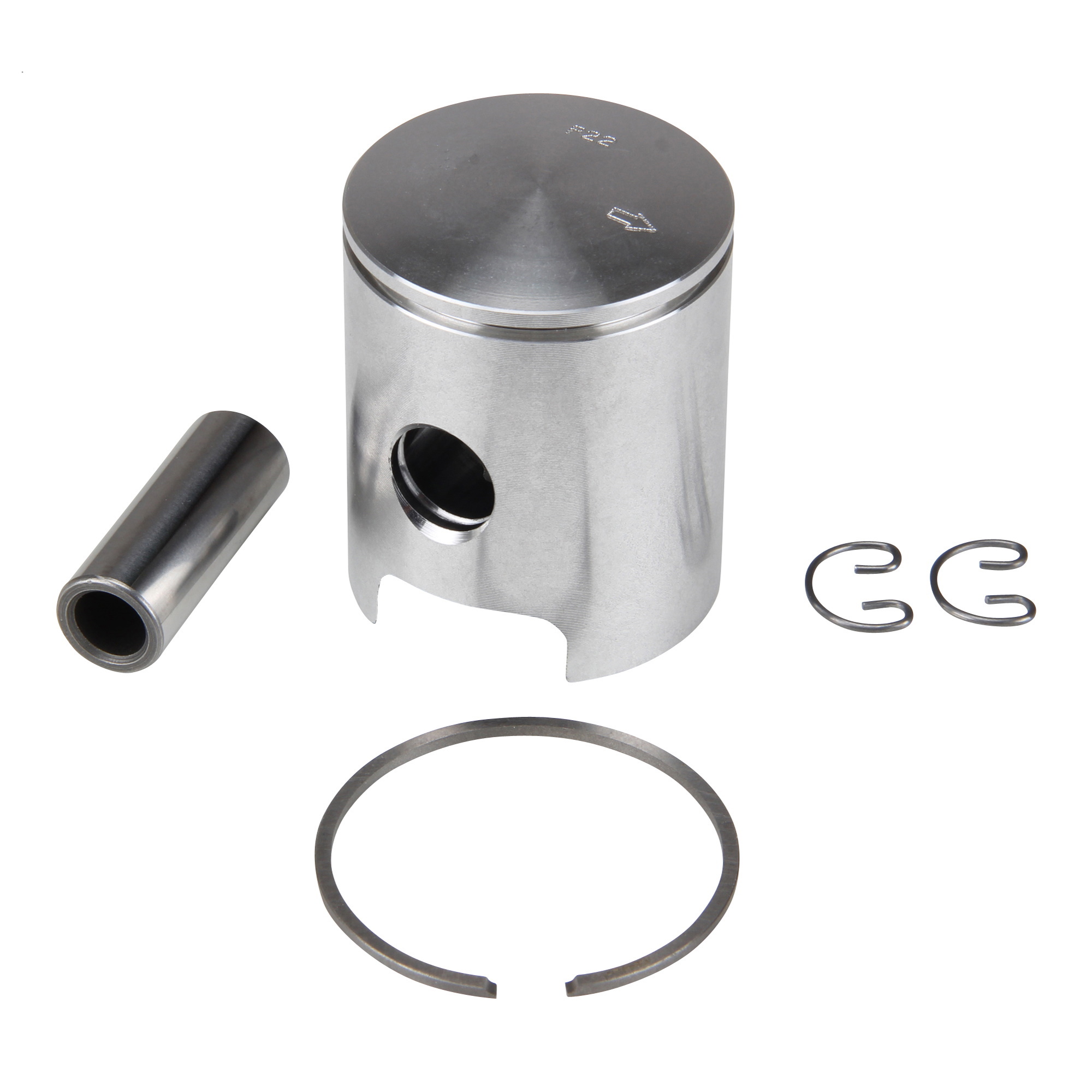

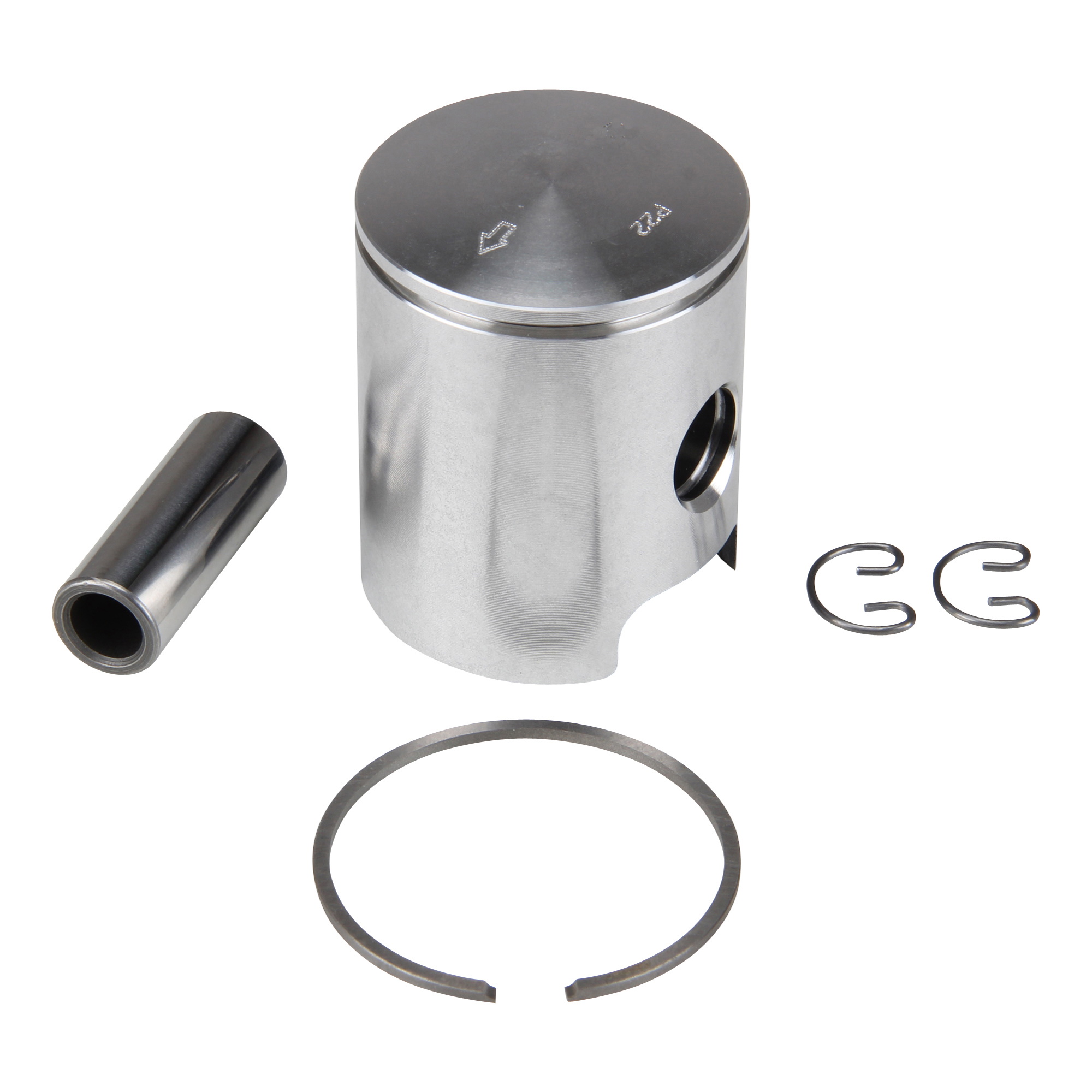

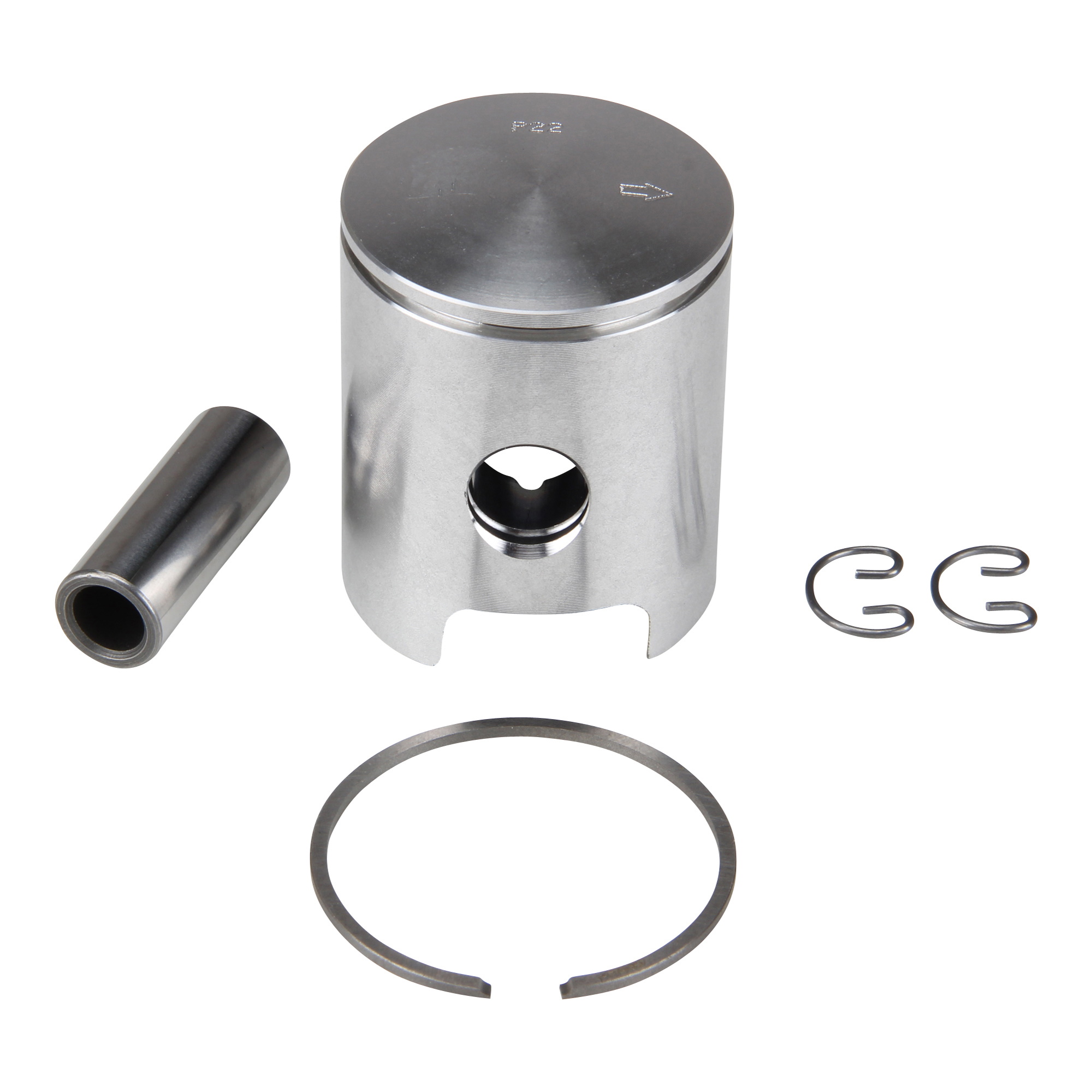

Piston set 39mm Tol. FG 50ccm for Zündapp ZD 10 30 ZA 25 40 Automatic ZR 10 20 30 type 444 446 447 460
- Manufacturer: Meteor Piston
- Item no: PC1011FG
- Manufacturer no.: PC1011FG
- EAN: 4060861114496
Item data
| Product type: | Piston set |
| Dimension B (compression height): | 23 mm |
| Dimension F (piston skirt width inlet side): | 35 mm |
| Dimension I (piston skirt length outlet side): | 43 mm |
| Piston ring dimension: | 39 x 1.5 mm |
| Tuning & Styling Part: | No |
| Piston ring profile: | Rectangular ring |
| Vintage part: | Yes |
| Cylinder bores: | 39 mm |
| Dimension C (piston height): | 46.5 mm |
| Dimension J (max. needle bearing width): | 15.5 mm |
| Dimension C + D (total height): | 48 mm |
| Dimension G (piston skirt length inlet side): | 43 mm |
| OE/OEM reference number(s): | Meteor SP120315080HI (piston pin), Meteor AN2B1210SET (piston clips), 250-02.711, 249-02.709, Meteor F0390015016515H0I (piston ring), Meteor PC1011FG (piston) |
| GTIN: | 4060861114496 |
| Dimension A (piston diameter): | 38.975 - 38.985 mm |
| Bolt diameter: | 12 mm |
| Dimension D (curvature): | 1.5 mm |
| Note: | 249-02.709 (original with 39x2 piston ring) |
| Dimension H (piston skirt width outlet side): | 30.5 mm |
| Scope of delivery: | Piston, Piston pin, Piston clips, Piston ring |
| Bolt length: | 31.5 mm |
| Piston ring width: | 1.65 mm |
| Dimension E (piston pin diameter): | 12 mm |
| Tolerance size: | FG (38.975-38.985mm) |
| Piston ring shape: | C (groove for locking pin on the edge) |
| Color: | Silver |
| Piston diameter: | 39 mm |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x piston set |
| Manufacturer number: | PC1011FG |
| Country and region of manufacture: | Italy |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Piston + piston ring + piston pin + piston clips |
| Manufacturer warranty: | 2 years |
| Weight: | 0.075 kg |
| Material: | Aluminum alloy |
| suitable for: | 50 cc |
