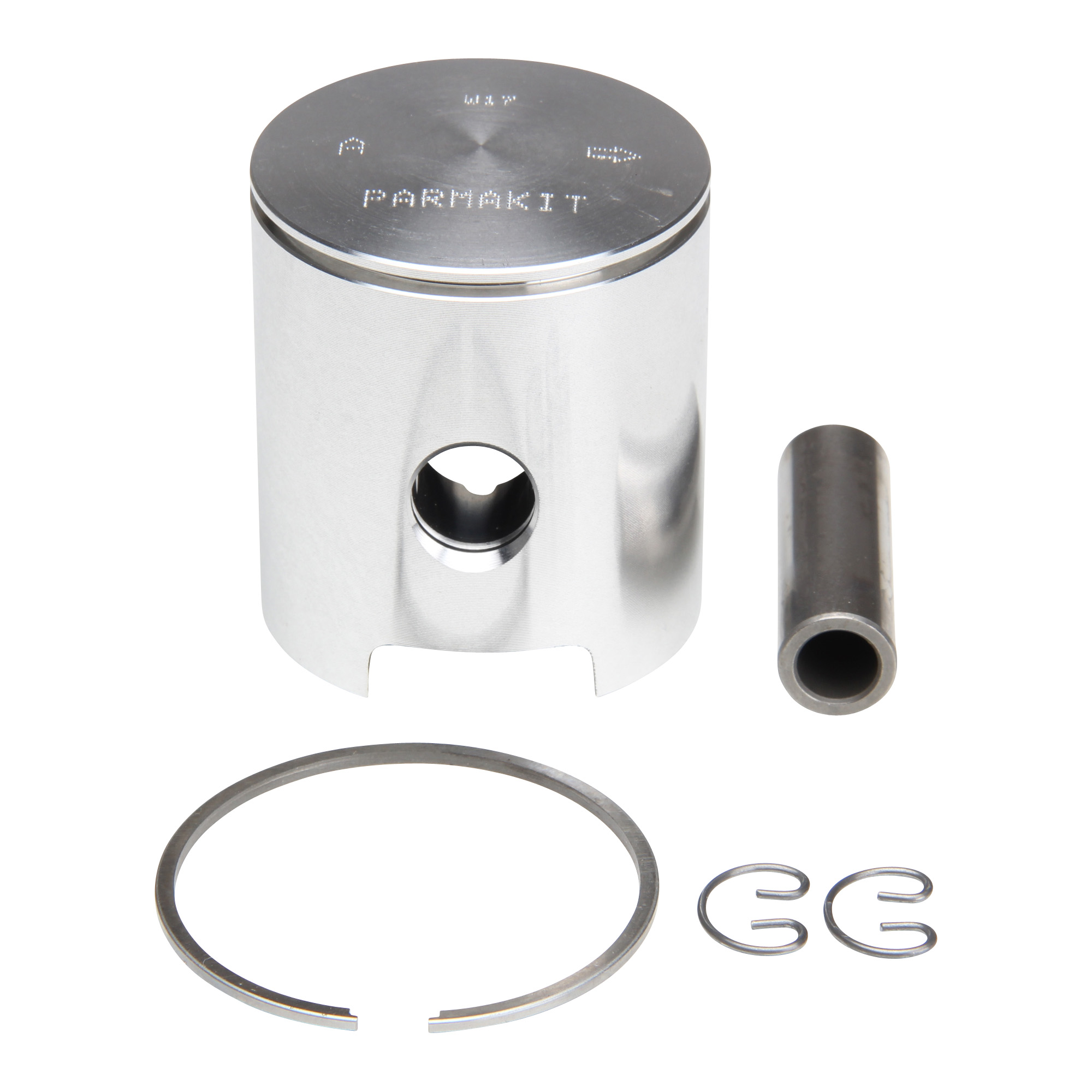

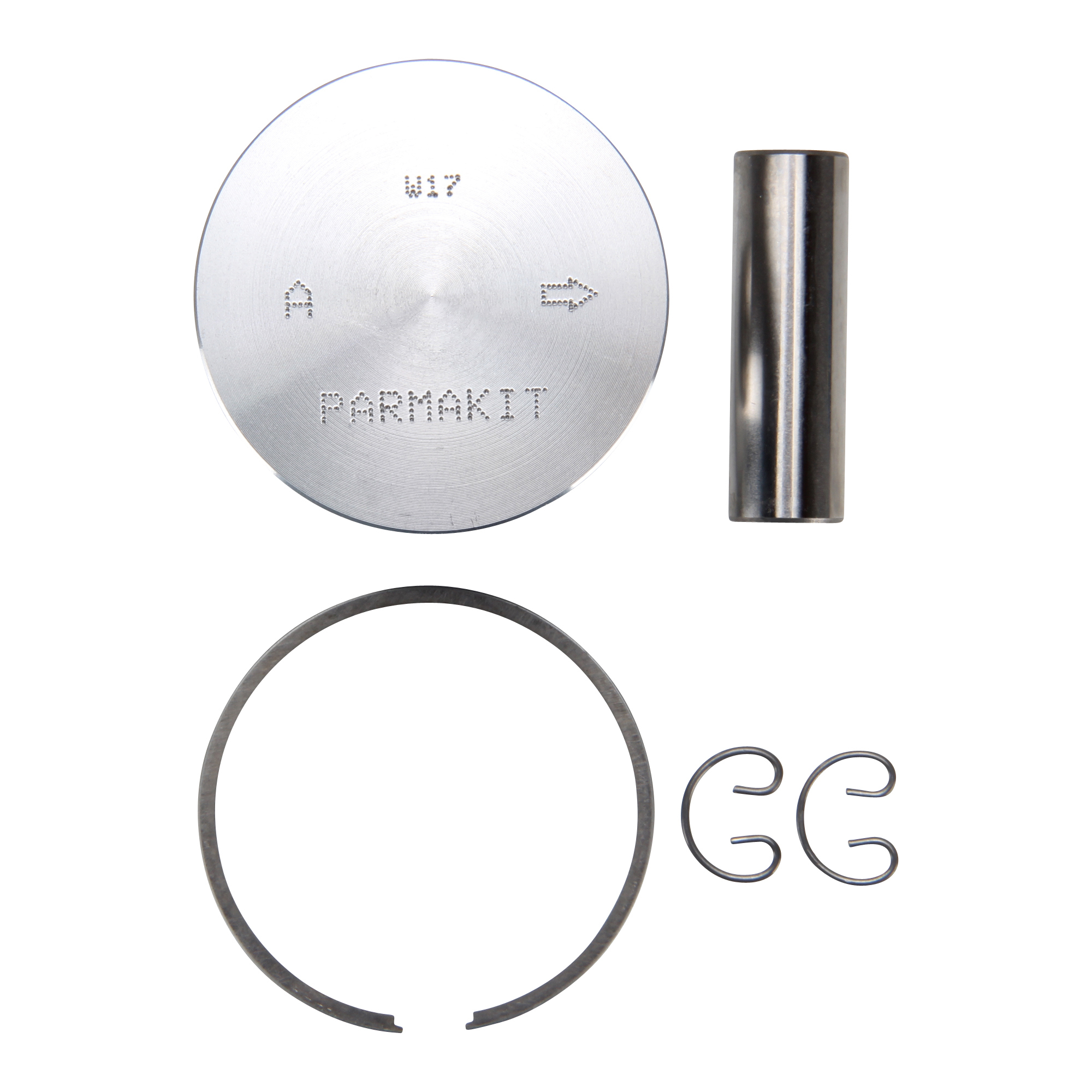

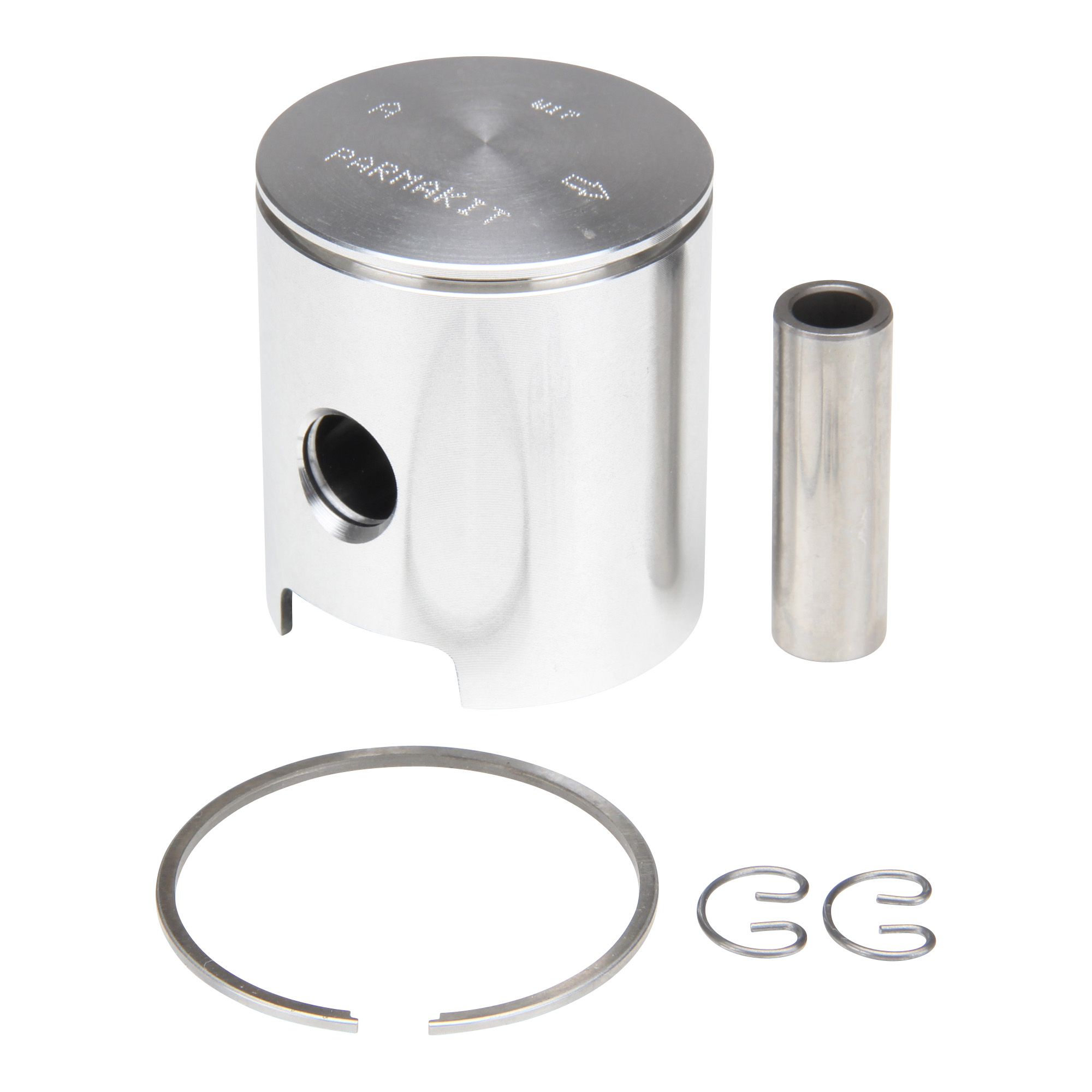

Piston set 44.xxmm Tol. A 70ccm for Zündapp KS 50 WC type 517 530
- Manufacturer: Parmakit
- Item no: 85120.02A
- Manufacturer no.: 85120.02A
- EAN: 8059384050462
Item data
| Product type: | Piston set |
| Dimension B (compression height): | 26 mm |
| Dimension F (piston skirt width inlet side): | 40 mm |
| Dimension I (piston skirt length outlet side): | 47 mm |
| Piston ring dimension: | 45 x 1.5 mm |
| Tuning & Styling Part: | Yes |
| Piston ring profile: | Rectangular ring |
| Vintage part: | Yes |
| Cylinder bores: | 45 mm |
| Dimension C (piston height): | 50 mm |
| Dimension J (max. needle bearing width): | 15.5 mm |
| Dimension C + D (total height): | 51.5 mm |
| Dimension G (piston skirt length inlet side): | 47 mm |
| OE/OEM reference number(s): | Parmakit 85120.02A |
| ATTENTION!: | TUNING: Not permitted in the area of the StVZO! |
| GTIN: | 4060861114519 |
| Dimension A (piston diameter): | 44.95 mm |
| Bolt diameter: | 12 mm |
| Dimension D (curvature): | 1.5 mm |
| Note: | Chrome-plated piston ring |
| Dimension H (piston skirt width outlet side): | 37.7 mm |
| Scope of delivery: | Piston, Piston pin, Piston clips, Piston ring |
| Bolt length: | 38 mm |
| Piston ring width: | 1.9 mm |
| Dimension E (piston pin diameter): | 12 mm |
| Tolerance size: | A (44.95mm) |
| Piston ring shape: | B (groove for center locking pin) |
| Color: | Silver |
| Piston diameter: | 45 mm |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x piston set |
| Manufacturer number: | 85120.02A |
| Country and region of manufacture: | Italy |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Piston + piston ring + piston pin + piston clips |
| Manufacturer warranty: | 2 years |
| Weight: | 0.110 kg |
| Material: | Aluminum alloy |
| suitable for: | 70 ccm |
Prices plus VAT plus shipping costs
In stock! Delivery time 1-3 working days
Zylinderkopfdichtung 1,3 mm 70ccm für Zündapp KS 50 WC Typ 530 / GTS 50 WK Typ 540-180
Cylinder kit 50cc including cylinder head + valves for China scooters, Baotian, Rex RS450
Cylinder kit 50cc Minarelli AC air-cooled horizontal engines, CPI, Rexy, Keeway
Cylinder kit 50cc AC air-cooled 12mm bolt angled flange for horizontal CPI engines, CPI, Keeway
Cylinder Kit 70cc LC watercooled incl. head for Piaggio engines, NRG, ZIP, NTT, Gilera Runner
PARMAKIT Srl
Strada Antolini, 18/C
43044 Lemignano di Collecchio PR
Web page https://www.parmakit.com/
Email: info@parmakit.com
| Product type | Piston set |
|---|---|
| Dimension B (compression height) | 26 mm |
| Dimension F (piston skirt width inlet side) | 40 mm |
| Dimension I (piston skirt length outlet side) | 47 mm |
| Piston ring dimension | 45 x 1.5 mm |
| Tuning & Styling Part | Yes |
| Piston ring profile | Rectangular ring |
| Vintage part | Yes |
| Cylinder bores | 45 mm |
| Dimension C (piston height) | 50 mm |
| Dimension J (max. needle bearing width) | 15.5 mm |
| Dimension C + D (total height) | 51.5 mm |
| Dimension G (piston skirt length inlet side) | 47 mm |
| OE/OEM reference number(s) | Parmakit 85120.02A |
| ATTENTION! | TUNING: Not permitted in the area of the StVZO! |
| GTIN | 4060861114519 |
| Dimension A (piston diameter) | 44.95 mm |
| Bolt diameter | 12 mm |
| Dimension D (curvature) | 1.5 mm |
| Note | Chrome-plated piston ring |
| Dimension H (piston skirt width outlet side) | 37.7 mm |
|---|---|
| Scope of delivery | Piston, Piston pin, Piston clips, Piston ring |
| Bolt length | 38 mm |
| Piston ring width | 1.9 mm |
| Dimension E (piston pin diameter) | 12 mm |
| Tolerance size | A (44.95mm) |
| Piston ring shape | B (groove for center locking pin) |
| Color | Silver |
| Piston diameter | 45 mm |
| Engine type | 2-stroke |
| Scope of delivery | 1x piston set |
| Manufacturer number | 85120.02A |
| Country and region of manufacture | Italy |
| Type of motorcycle | Moped & Mokick |
| Offer package | Yes |
| Description of the package content | Piston + piston ring + piston pin + piston clips |
| Manufacturer warranty | 2 years |
| Weight | 0.110 kg |
| Material | Aluminum alloy |
| suitable for | 70 ccm |
