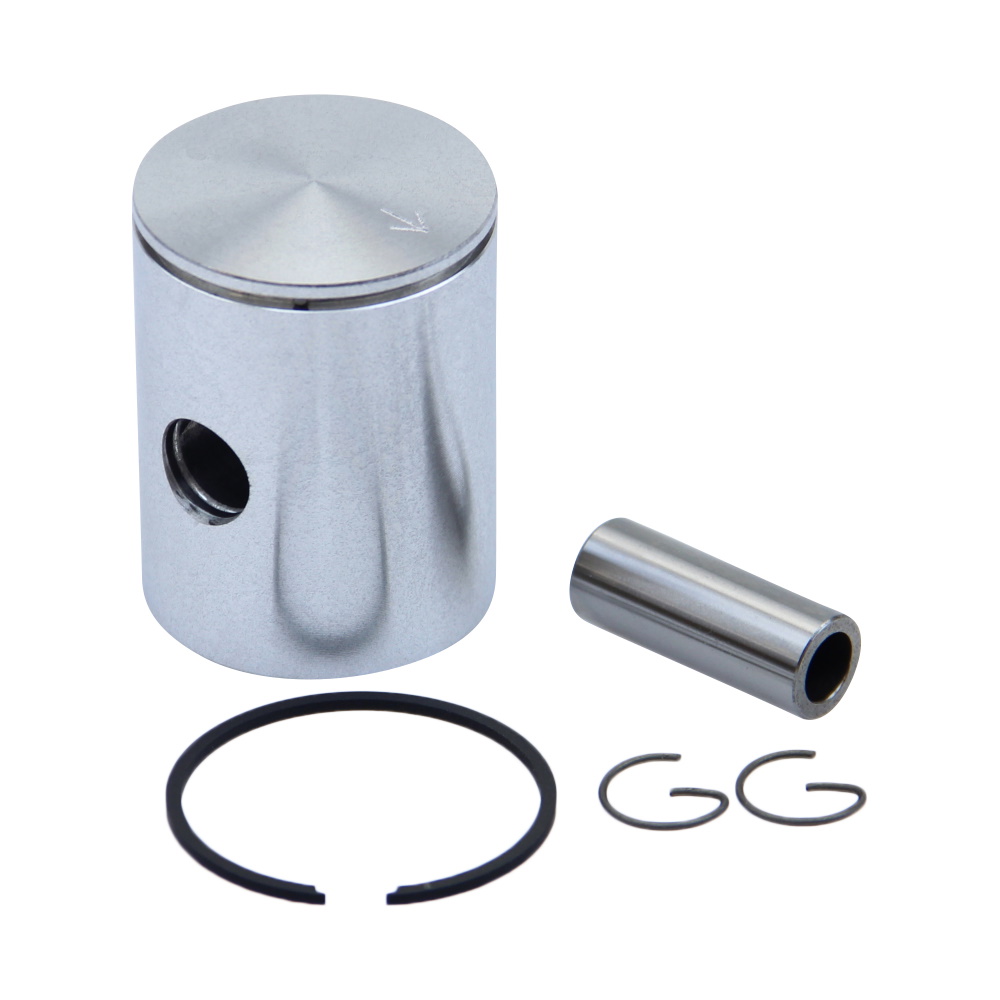

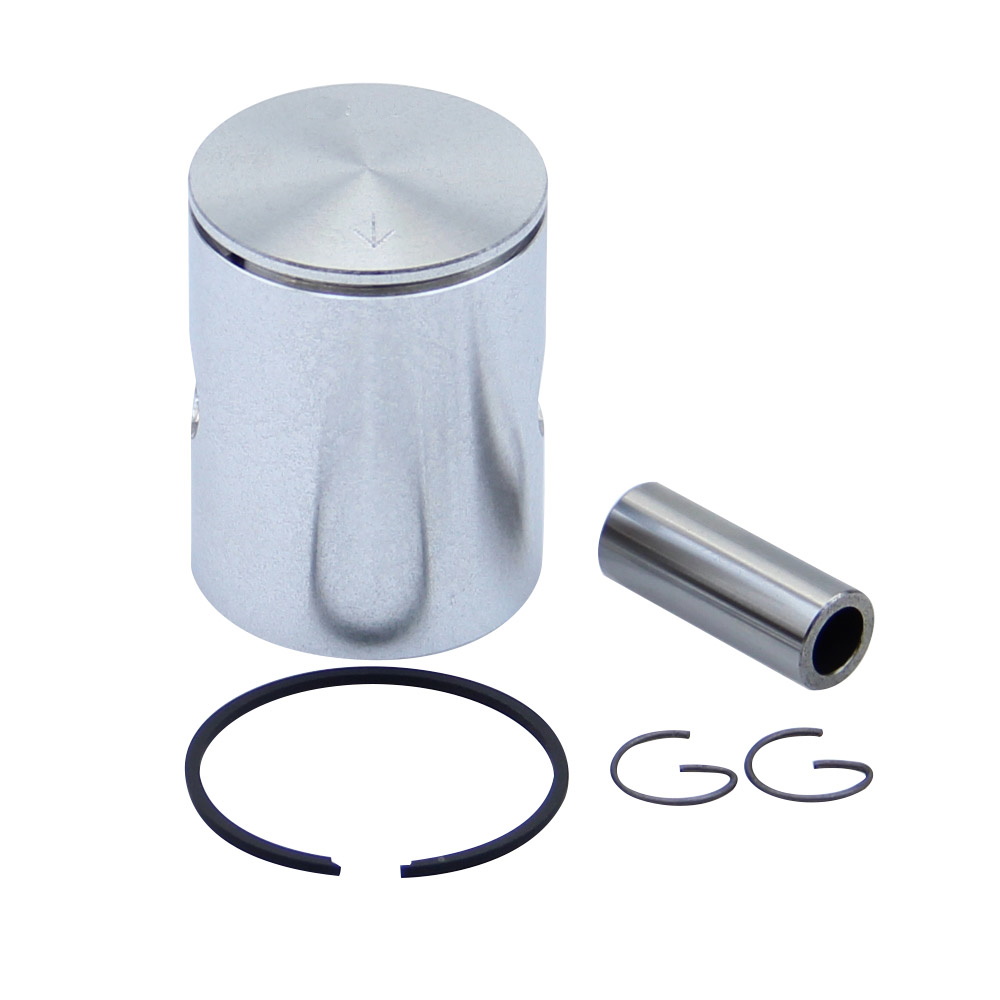

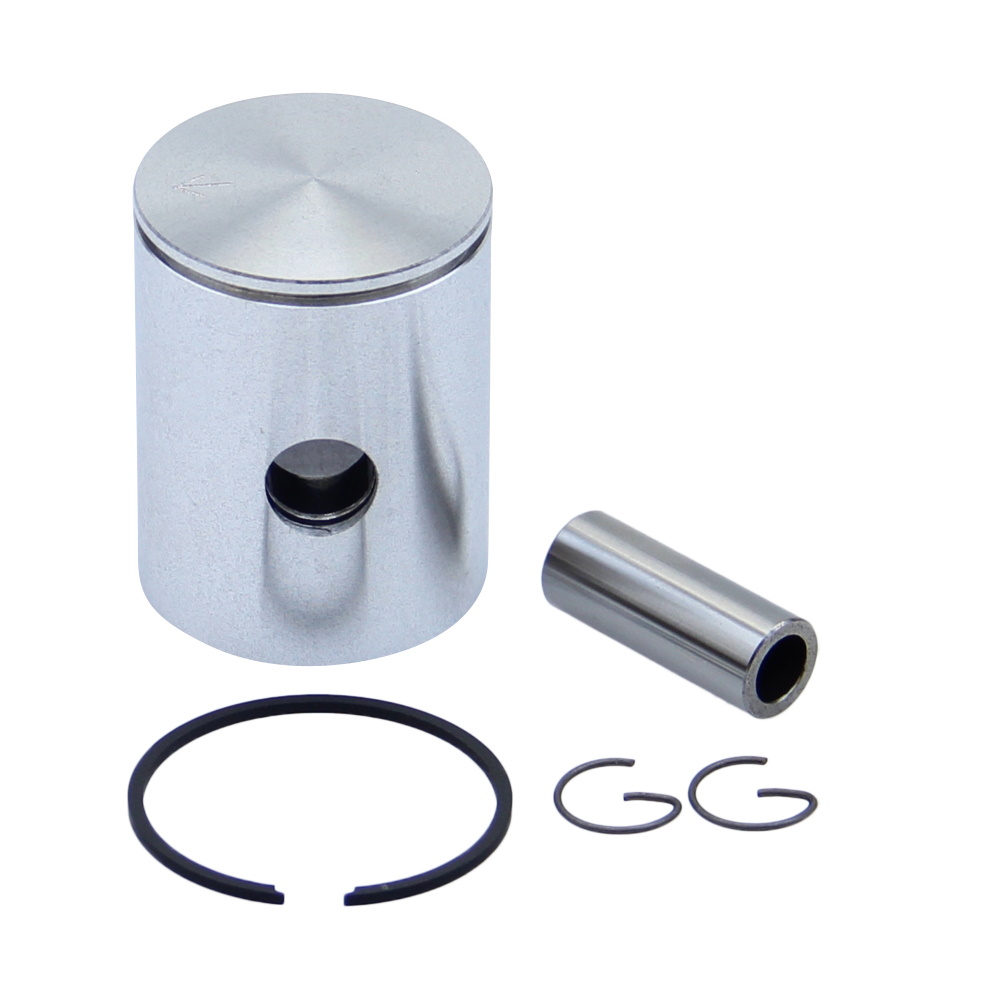

Piston set 38.970mm Tol. F 50ccm for Zündapp CS Hai ZX X ZL ZS 25 / C GTS R 50 type 448 460 517 529 540 561
- Manufacturer: Citomerx
- Item no: 278-02.729-F
- Manufacturer no.: 100117
- EAN: 4060861113857
Item data
| Product type: | Piston set |
| Dimension B (compression height): | 26.5 mm |
| Dimension I (piston skirt length outlet side): | 47 mm |
| Piston ring dimension: | 39 x 1.5 mm |
| Tuning & Styling Part: | No |
| Piston ring profile: | Rectangular ring |
| Vintage part: | Yes |
| Cylinder bores: | 39 mm |
| Dimension C (piston height): | 50.5 mm |
| Dimension J (max. needle bearing width): | 15.5 mm |
| Dimension C + D (total height): | 52 mm |
| Dimension G (piston skirt length inlet side): | 47 mm |
| OE/OEM reference number(s): | 278-02.729, 278-02.757, 248-02.703 |
| GTIN: | 4060861113857 |
| Dimension A (piston diameter): | 38,970 mm |
| Bolt diameter: | 12 mm |
| Dimension D (curvature): | 1.5 mm |
| Scope of delivery: | Piston, Piston pin, Piston clips, Piston ring |
| Bolt length: | 31 mm |
| Piston ring width: | 1.65 mm |
| Dimension E (piston pin diameter): | 12 mm |
| Tolerance size: | F (38,970mm) |
| Piston ring shape: | B (groove for center locking pin) |
| Color: | Silver |
| Piston diameter: | 39 mm |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x piston set |
| Manufacturer number: | 100117 |
| Country and region of manufacture: | Sweden |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Piston + piston ring + piston pin + piston clips |
| Manufacturer warranty: | 2 years |
| Weight: | 0.085 kg |
| Material: | Aluminum alloy |
| suitable for: | 50 cc |
