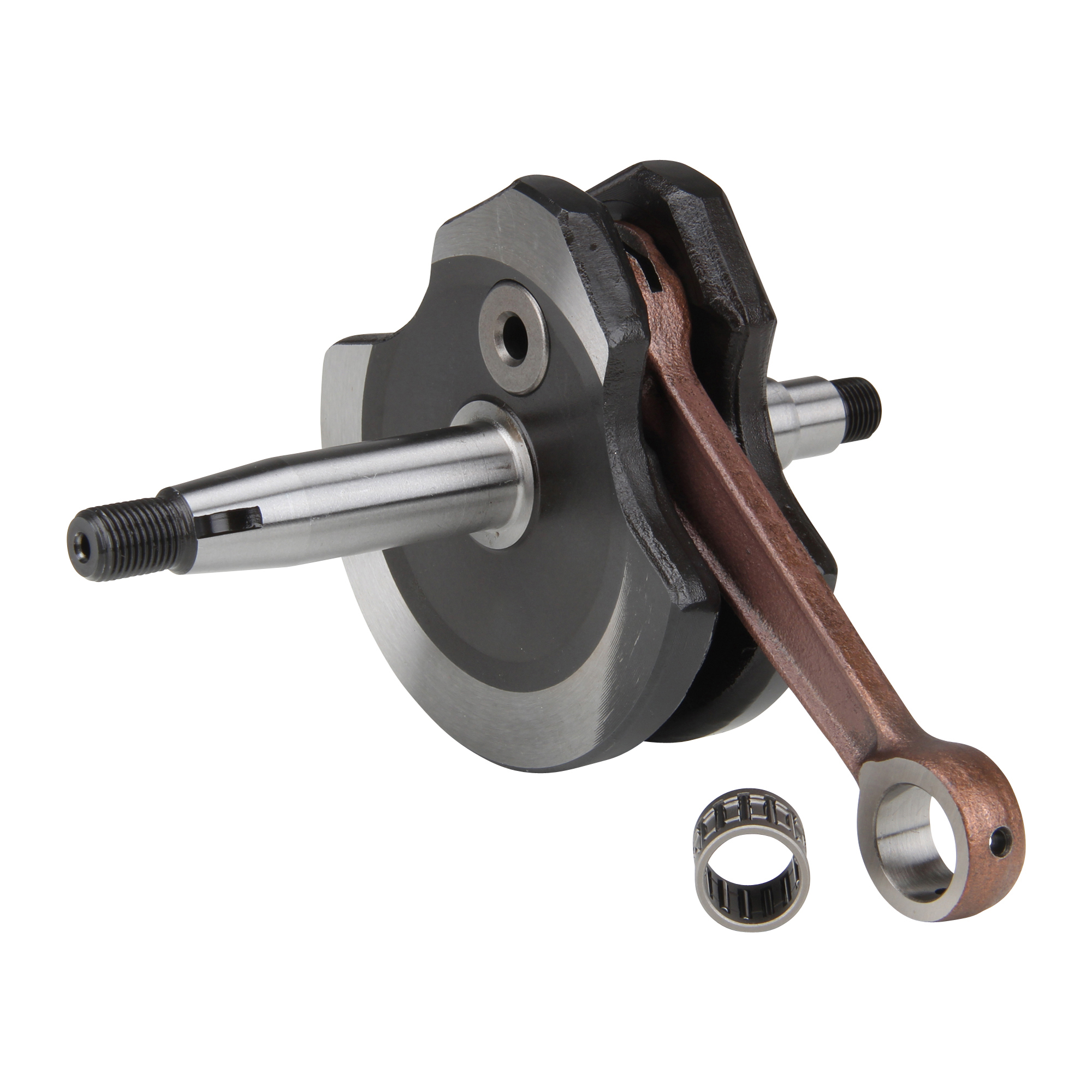

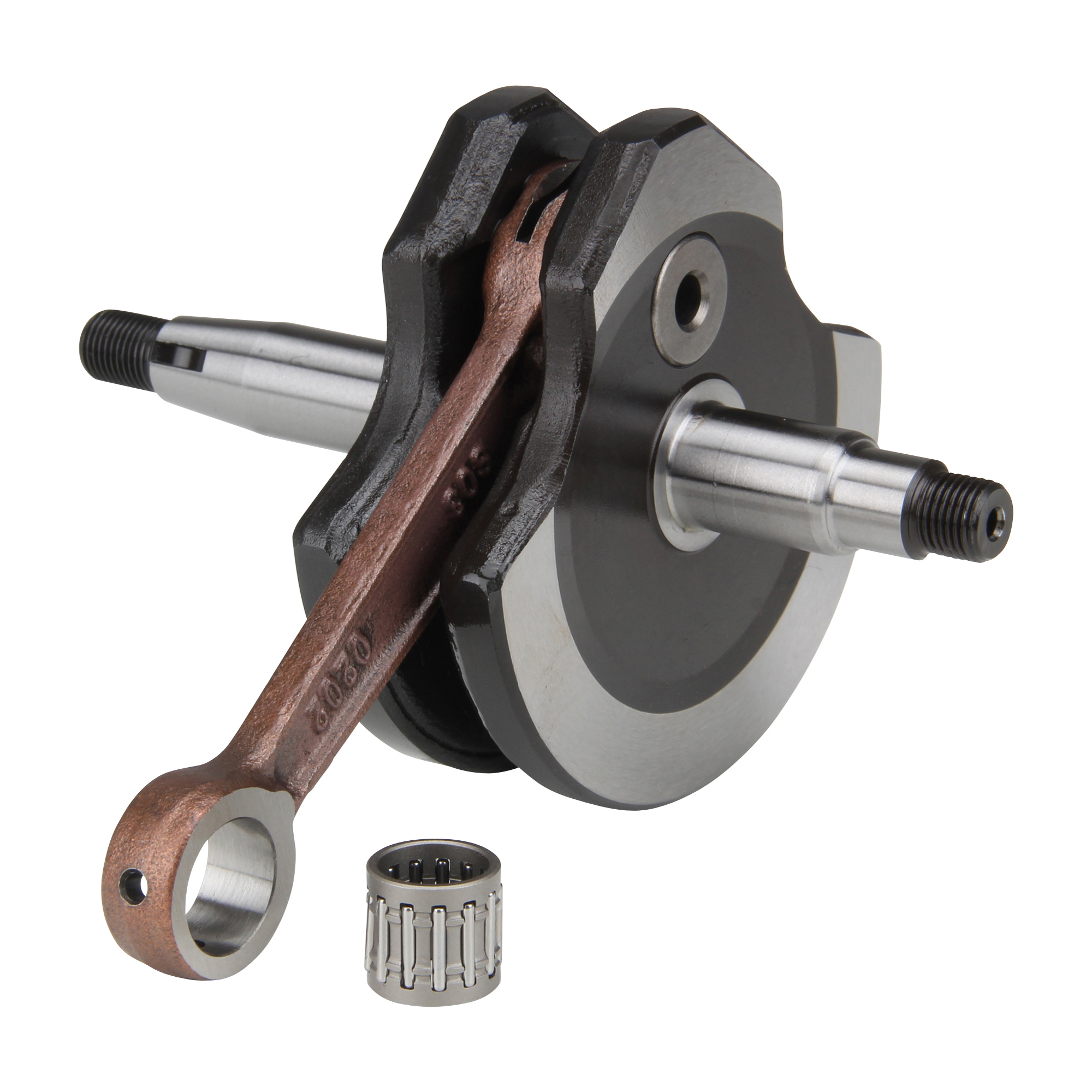

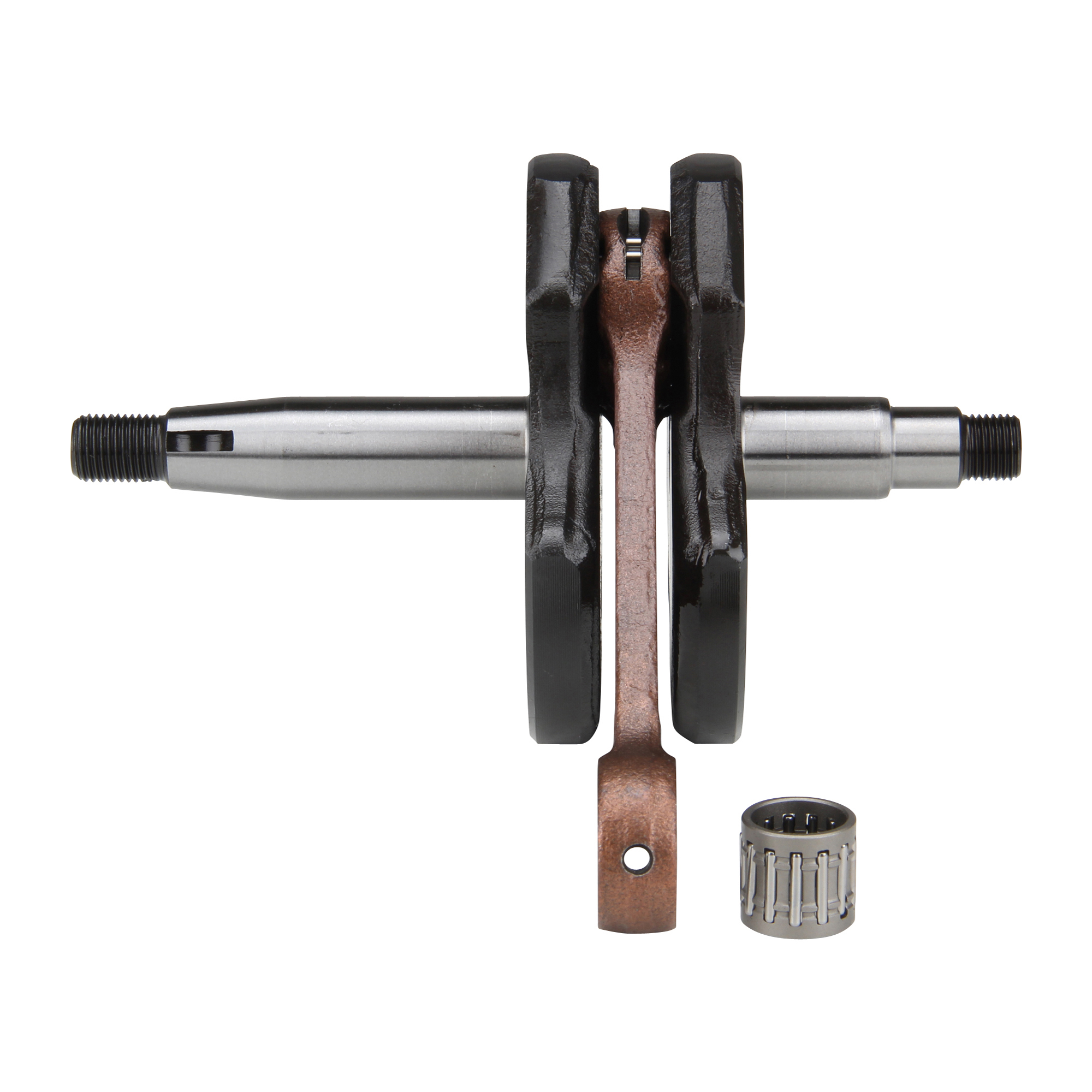

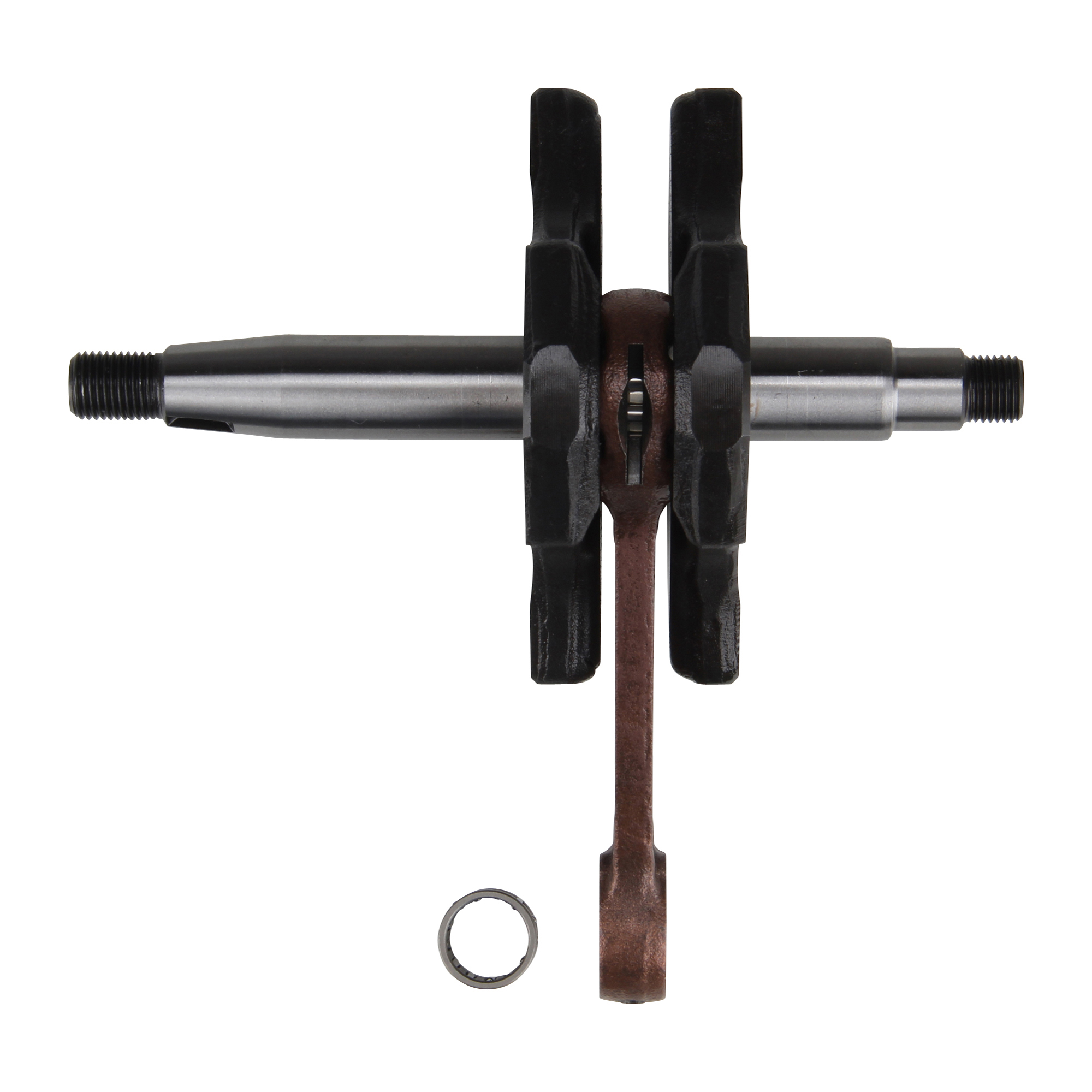

Citomerx crankshaft ORIGINAL (91mm connecting rod) for Zündapp M 25 50 Bergsteiger type 434
Prices plus VAT plus shipping costs
IN STOCK - Delivery time 1-3 working days
Only a few left!
- Item no: 247-03.901
- EAN: 4060861114632
- Manufacturer: Citomerx
- Manufacturer no.: 100206
M 25 Bergsteiger type 434-02L1 (from engine no. 3111703)
M 50 Bergsteiger type 434-01L0 (from engine no. 3111703)
M 25 Bergsteiger BASF type 434-16L0 (from engine No. 3111703)
Also suitable for: (ATTENTION only in conjunction with piston 248-02.703 (compression height: 26 / 26.5 mm))
M 25 Bergsteiger type 434- 02L1 (up to engine no. 3111702)
M 50 Bergsteiger type 434-01L0 (up to engine no. 3111702)
M 25 Bergsteiger BASF type 434-16L0 (up to engine no. 3111702)
| Product type: | Crankshaft |

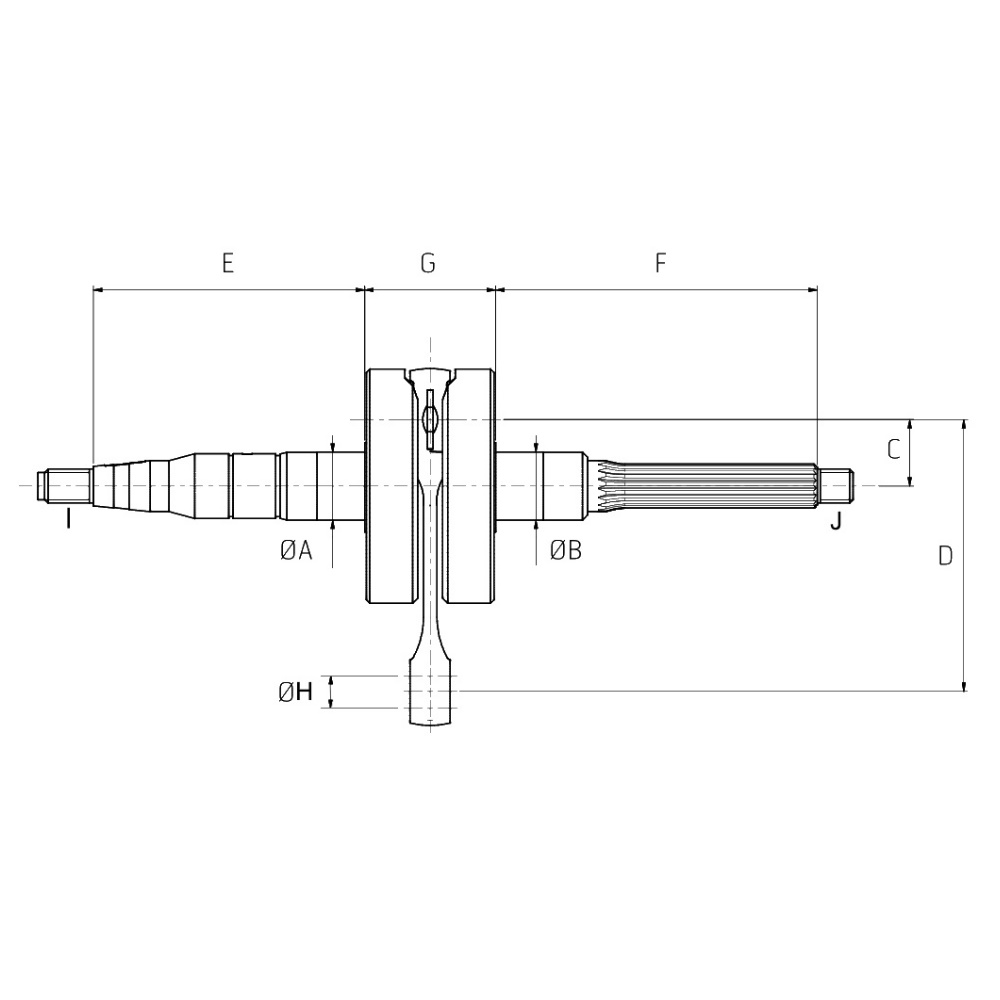

| Dimension B (shaft diameter on coupling side): | 15 mm |
| Feature: | 91 mm connecting rod |
| Crankshaft type: | Half cheek crankshaft |
| Dimension F (length of crankshaft stub on clutch side): | 31 mm |
| Tuning & Styling Part: | No |
| Vintage part: | Yes |
| Dimensions needle bearing piston pin: | 12x15x15 mm |
| Dimension C (stroke pin offset = half stroke): | 20.9 mm |
| Dimension J (thread on coupling side): | M10 x 1 right-hand thread |
| Crankshaft stroke: | 41.8 mm |
| Dimension G (width of crank webs): | 30 mm |
| Surface finish: | Matt |
| matching piston pin: | 12 mm |
| OE/OEM reference number(s): | 247-03.901 (91mm), 247-03.601 (85mm) |
| ATTENTION!: | only with piston 248-02.703 (compression height: 26/26.5 mm) |
| GTIN: | 4060861114632 |
| Dimension D (connecting rod length): | 91 mm |
| Dimension H (top diameter of connecting rod eye): | 15 mm |
| Note: | also replaces KW 247-03.601 (85mm connecting rod) |
| Dimension A (shaft diameter on alternator side): | 15 mm |
| Scope of delivery: | Crankshaft + needle bearing |
| Dimension E (length of crankshaft stub on alternator side): | 51 mm |
| Dimension I (thread on alternator side): | M10 x 1 right-hand thread |
| Color: | Grey |
| Scope of delivery: | 1x crankshaft |
| Manufacturer number: | 100206 |
| Country and region of manufacture: | Sweden |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Crankshaft incl. needle bearing |
| Manufacturer warranty: | 2 years |
| Weight: | 0.910 kg |
| Material: | Cast iron |
| Type: | Original |
