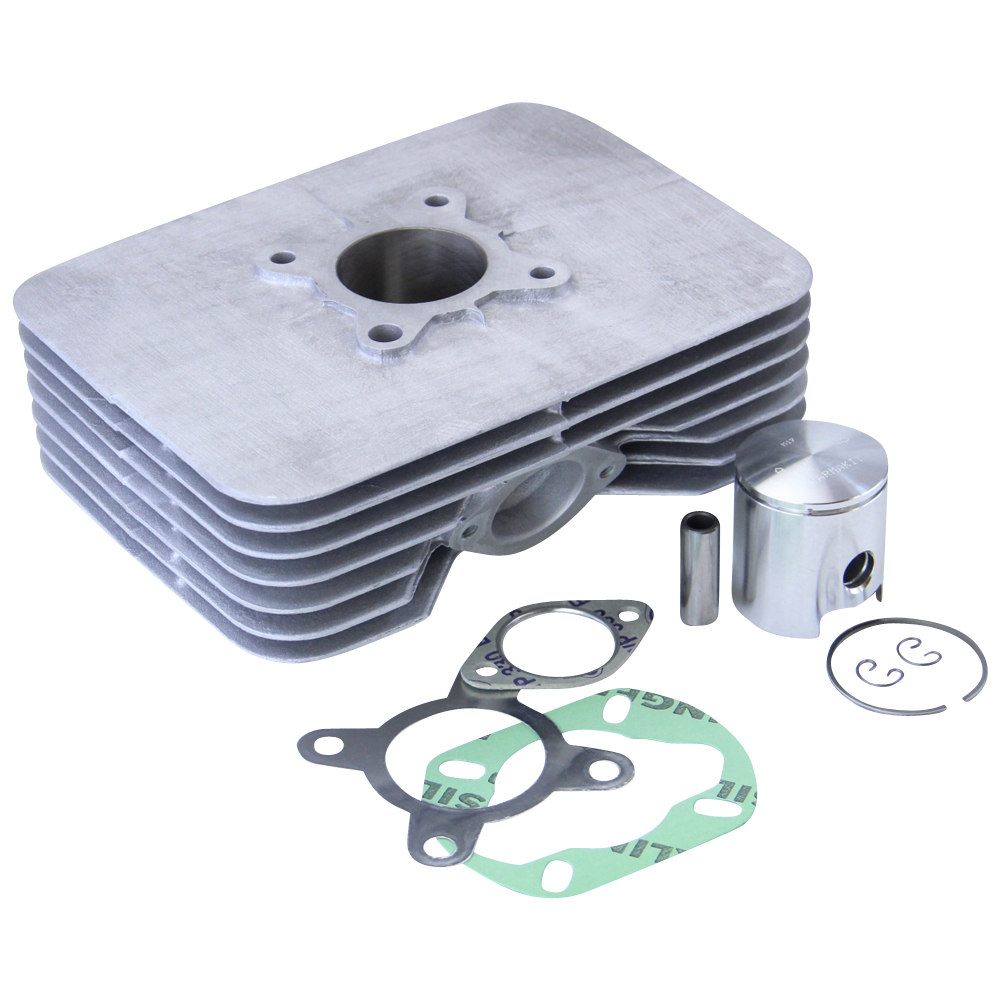

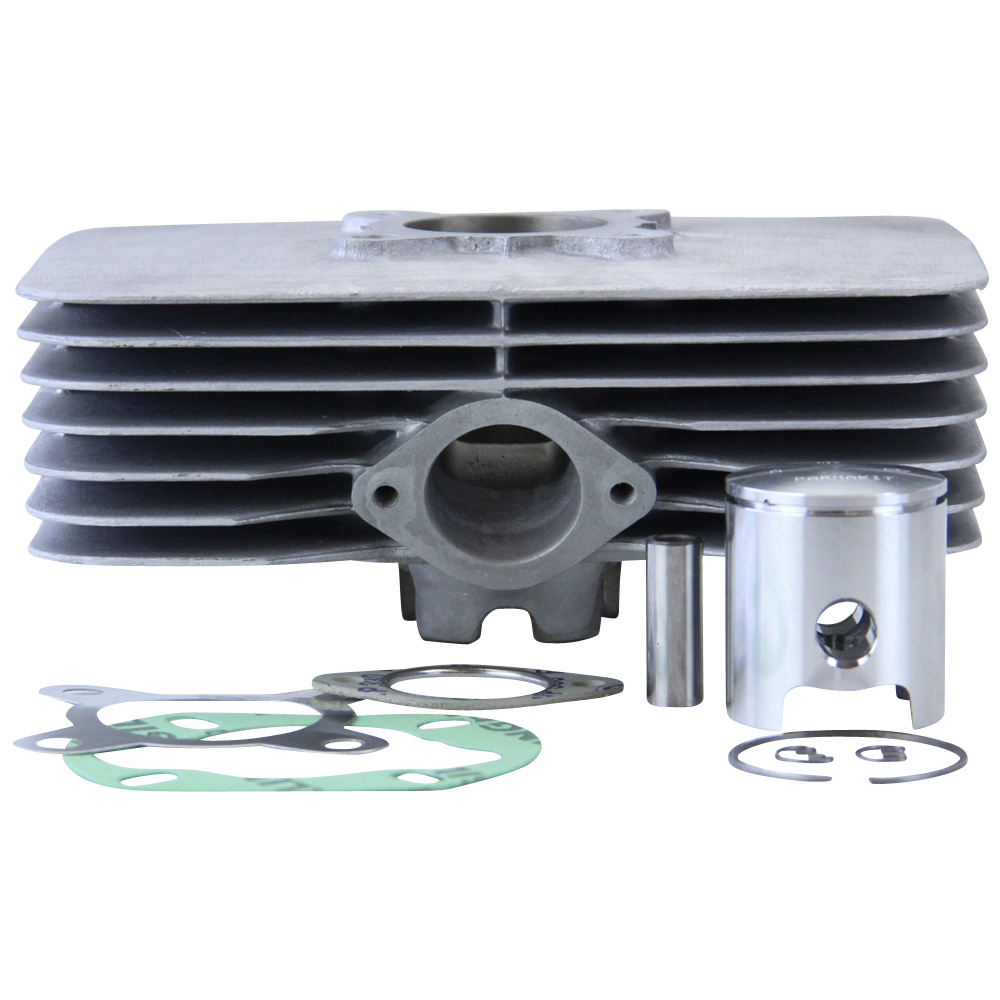

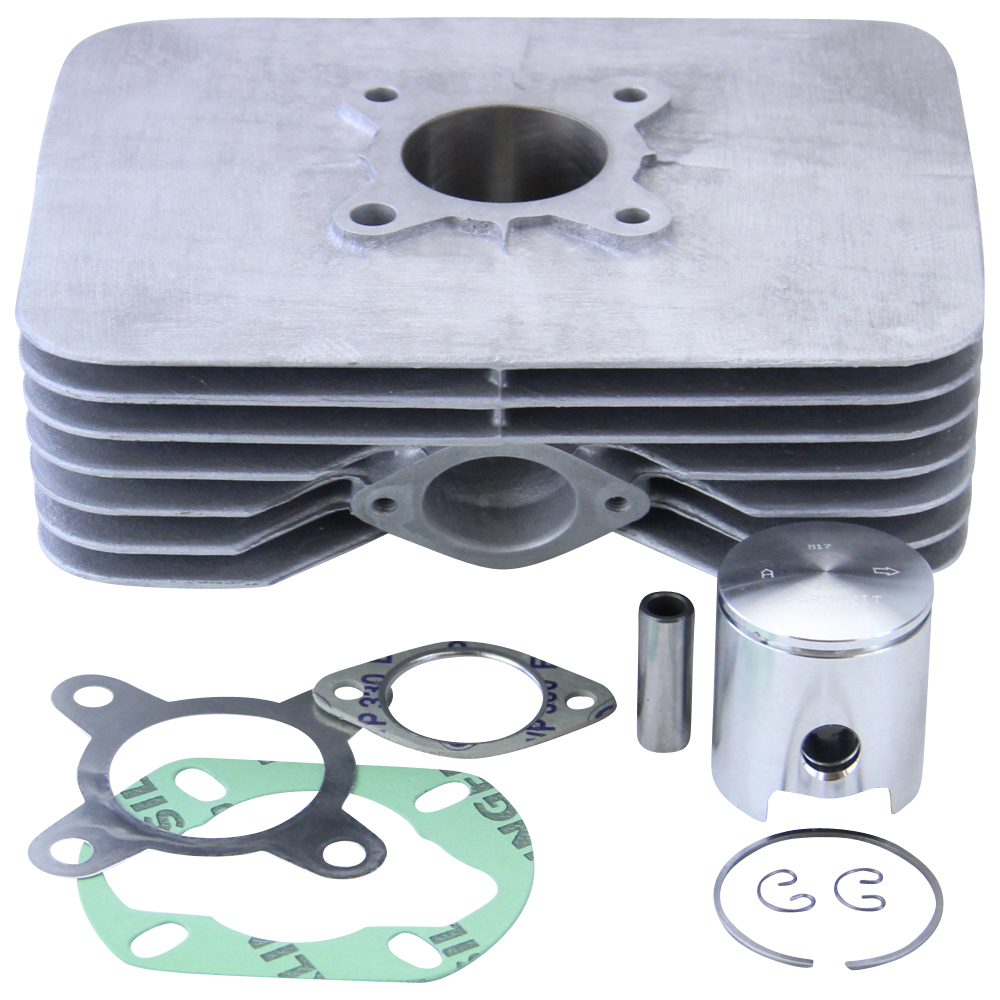

Cylinder set 80cc 48mm 12mm Kobo (4 ÜS) LANG HUB for Hercules GT K MK SB Supra KX XE Sachs 50S 501 506 50/5
- Manufacturer: Parmakit
- Item no: 64266.00
- Manufacturer no.: 64266.00
- EAN: 4060861176371
Item data
| Product type: | Cylinder set |
| Piston Reference Number: | 64151.02 |
| Piston Ring Comparison Number: | 64152.16 |
| Piston pin diameter: | 12 mm |
| Displacement: | 80 ccm |
| Tuning & Styling Part: | Yes |
| Piston ring profile: | Rectangular ring |
| Vintage part: | Yes |
| Piston special feature: | With two 4 mm piston window bores / chrome-plated piston ring |
| Surface finish: | Matt |
| Cylinder special feature: | Nikasil-coated piston track |
| Inlet inside dimension: | 22 mm, round (outside 26 mm) |
| ATTENTION!: | TUNING: Not permitted in the area of the StVZO! |
| GTIN: | 4060861176371 |
| Diffuser internal dimension: | 32 mm |
| Cylinder dimensions (LxWxH): | 160 x 210 x 80 mm |
| Outlet Stud distance: | 50 mm |
| Scope of delivery: | Gasket set, Piston, Piston rings, Cylinder |
| Outlet stud bolt thread: | M6 |
| Cylinder stud distance: | 56 x 56 mm |
| Number of overflows: | 4 |
| Comparison number: | Parmakit 64266.00, Gasket set 64266.03 |
| Cylinder stud bore: | 8 mm |
| Manifold connection type: | Flange |
| Color: | Grey |
| Number of piston rings: | 1 |
| Features: | Durable, Corrosion resistant |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x cylinder set |
| Manufacturer number: | 64266.00 |
| Country and region of manufacture: | Italy |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Units quantity: | 1 |
| Description of the package content: | Cylinder + piston + gasket set |
| Manufacturer warranty: | 2 years |
| Weight: | 2.70 kg |
| Material: | Aluminum |
| Type: | Tuning |
| suitable for: | Hercules long-stroke |
