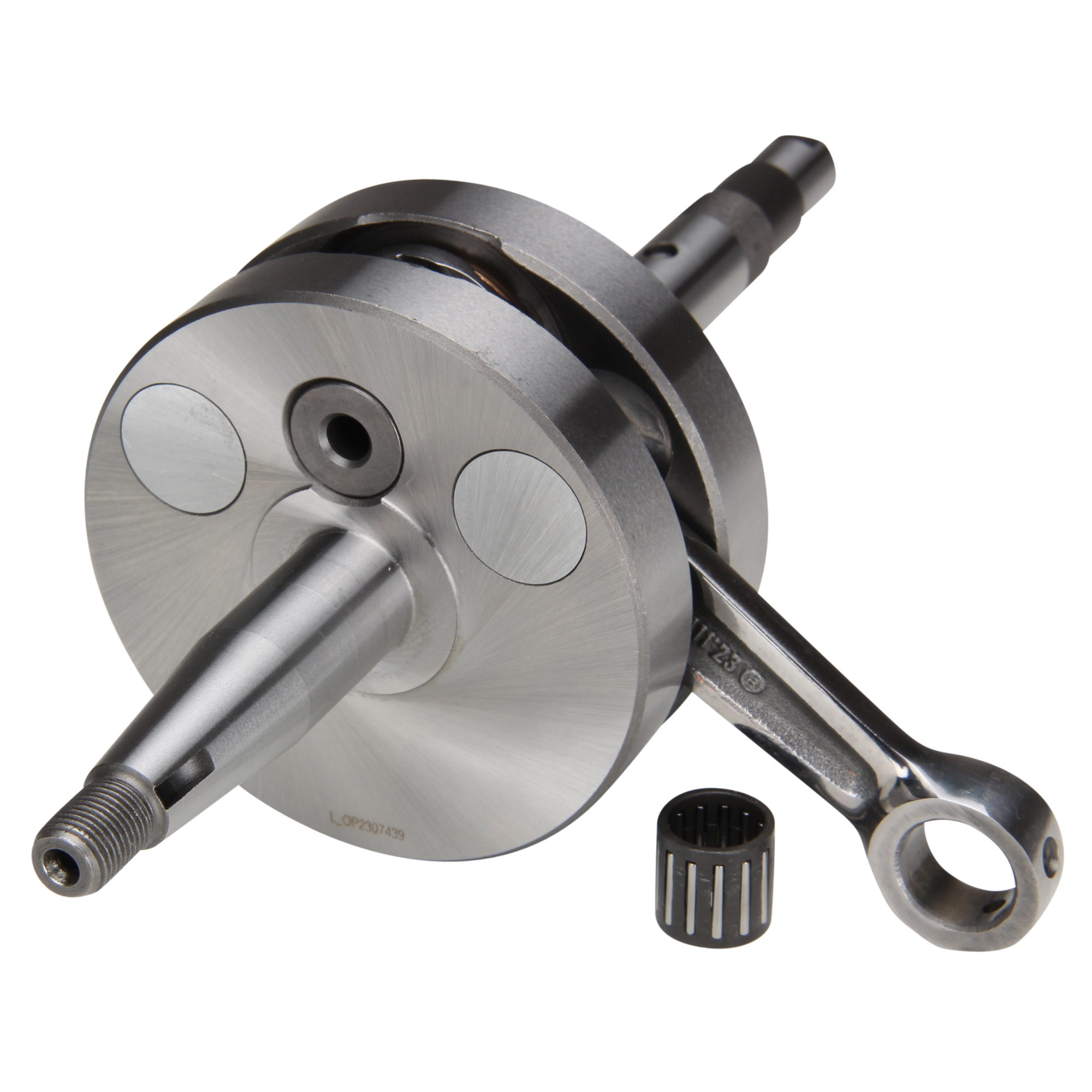

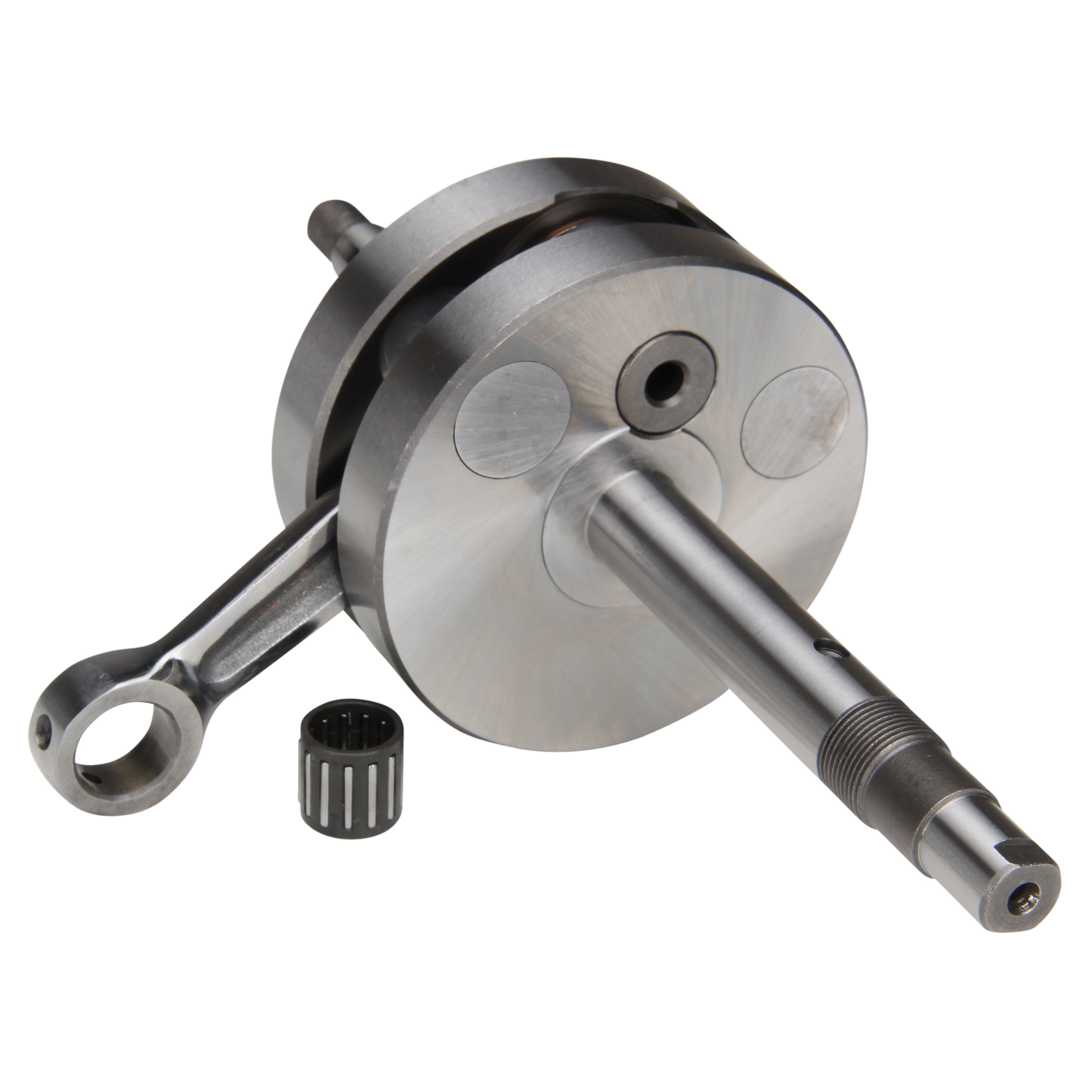

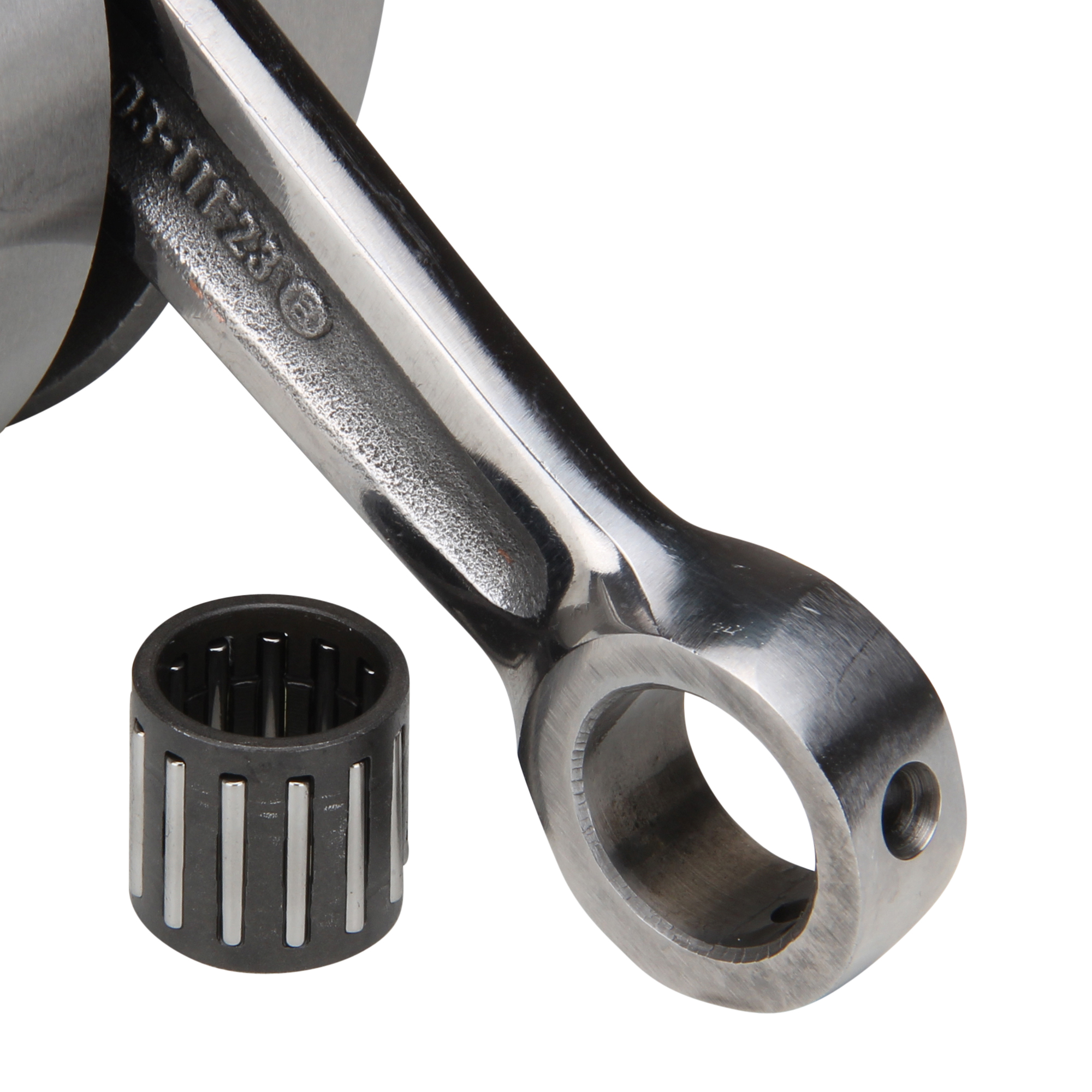

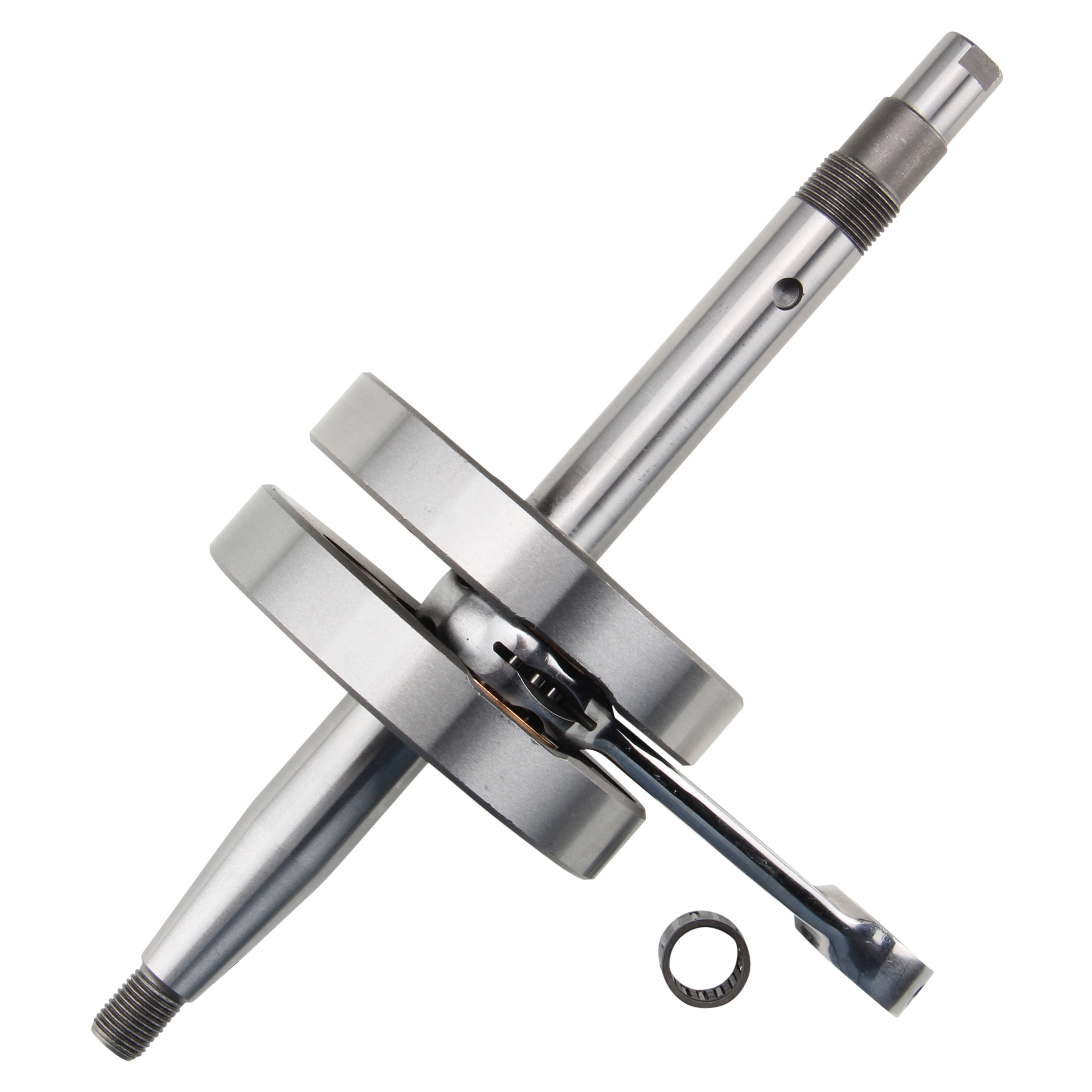

Kurbelwelle EVOLUTION (91mm Pleuel) für Zündapp 5 Gang
- Manufacturer: JASIL - Top Racing
- Item no: 6034061
- Manufacturer no.: 6034061
- EAN: 5605822035589
Item data
| Product type: | Crankshaft |
| Dimension B (shaft diameter on coupling side): | 15 mm |
| Feature: | 91 mm connecting rod |
| Crankshaft type: | Full cheek crankshaft |
| Dimension F (length of crankshaft stub on clutch side): | 100.5 mm |
| Tuning & Styling Part: | Yes |
| Vintage part: | Yes |
| Dimensions needle bearing piston pin: | 12x15x15 mm |
| Dimension C (stroke pin offset = half stroke): | 20.9 mm |
| Dimension J (thread on coupling side): | M15 x 1 right-hand thread |
| Crankshaft stroke: | 41.8 mm |
| Dimension G (width of crank webs): | 38.8 mm |
| Surface finish: | Matt |
| matching piston pin: | 12 mm |
| OE/OEM reference number(s): | Jasil - Top Racing 6 034 061 |
| GTIN: | 5605822035589 |
| Dimension D (connecting rod length): | 91 mm |
| Dimension H (top diameter of connecting rod eye): | 15 mm |
| Dimension A (shaft diameter on alternator side): | 17 mm |
| Scope of delivery: | Crankshaft + needle bearing |
| Dimension E (length of crankshaft stub on alternator side): | 53.5 mm |
| Dimension I (thread on alternator side): | M10 x 1 right-hand thread |
| Color: | Grey |
| Scope of delivery: | 1x crankshaft |
| Manufacturer number: | 6034061 |
| Country and region of manufacture: | Portugal |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Crankshaft incl. needle bearing |
| Manufacturer warranty: | 2 years |
| Weight: | 1.345 kg |
| Material: | Cast iron |
| Type: | Evolution |
Prices plus VAT plus shipping costs
In stock! Delivery time 1-3 working days
Cylinder kit 50cc including cylinder head + valves for China scooters, Baotian, Rex RS450
Cylinder kit 50cc Minarelli AC air-cooled horizontal engines, CPI, Rexy, Keeway
Cylinder kit 50cc AC air-cooled 12mm bolt angled flange for horizontal CPI engines, CPI, Keeway
Cylinder Kit 70cc LC watercooled incl. head for Piaggio engines, NRG, ZIP, NTT, Gilera Runner
JASIL crankshaft for Hercules K 50 RE RL SX Sprint Ultra KX SB XE // Sachs 50/5 AKF / 50S
JASIL - Top Racing crankshaft RACING (91mm connecting rod) for Zündapp 3/4 gear
KS 50 WC Typ 517-50L0 (bis Motor Nr. 4813449)
KS 50 WC Typ 517-50LA (bis Motor Nr. 4813449)
GTS 50 Typ 529-028
GTS 50 Typ 529-029
KS 50 WC Typ 530-65L1
KS 50 WC Typ 530-66L1
KS 50 WC Typ 530-66L2
KS 50 WC Typ 530-66L3
KS 50 Sport Typ 530-60L1
KS 50 Super Sport Typ 530-61L1
KS 50 Cross Typ 517-51L0
KS 50 Cross Typ 517-51LA
KS 50 Super Sport Typ 517-51LB
KS 50 Super Sport Typ 517-06L5 Motor Typ 284-03L2 (Motor Nr. 4749859-4763416)
KS 50 Super Sport Typ 517-20LB Motor Typ 284-03L2 (Motor Nr. 4749859-4763416)
KS 50 Typ 517-06L7 Motor Typ 284-03L3 (Motor Nr. 4749859-4763416)
KS 50 Sport Typ 517-20L0 Motor Typ 284-03L3 (Motor Nr. 4749859-4763416)
KS 50 Super Sport Typ 517-20L2 Motor Typ 284-03L3 (Motor Nr. 4749859-4763416)
KS 50 Super Sport Typ 517-20LC Motor Typ 284-03L3 (Motor Nr. 4749859-4763416)
KS 50 Super Sport Typ 517-06L5 Motor Typ 284-03L2 (ab Motor Nr. 4763417)
KS 50 Super Sport Typ 517-20LB Motor Typ 284-03L2 (ab Motor Nr. 4763417)
KS 50 Typ 517-06L7 Motor Typ 284-03L3 (ab Motor Nr. 4763417)
KS 50 Sport Typ 517-20L0 Motor Typ 284-03L3 (ab Motor Nr. 4763417)
KS 50 Super Sport Typ 517-20L2 Motor Typ 284-03L3 (ab Motor Nr. 4763417)
KS 50 Super Sport Typ 517-20LC Motor Typ 284-03L3 (ab Motor Nr. 4763417)
KS 50 WC Typ 517-52L0 (ab Motor Nr. 4813450)
KS 50 WC Typ 517-52LA (ab Motor Nr. 4813450)
KS 50 WC Typ 530-010
KS 50 WC TT Typ 530-011
KS 50 WC TT Typ 530-012
KS 50 WC TT Typ 530-014
KS 50 Super Sport Typ 530-500
KS 50 Super Sport TT Typ 530-500
KS 50 Sport Typ 530-510
KS 50 Cross Typ 517-53L0
KS 50 Super Sport Typ 517-53L1
