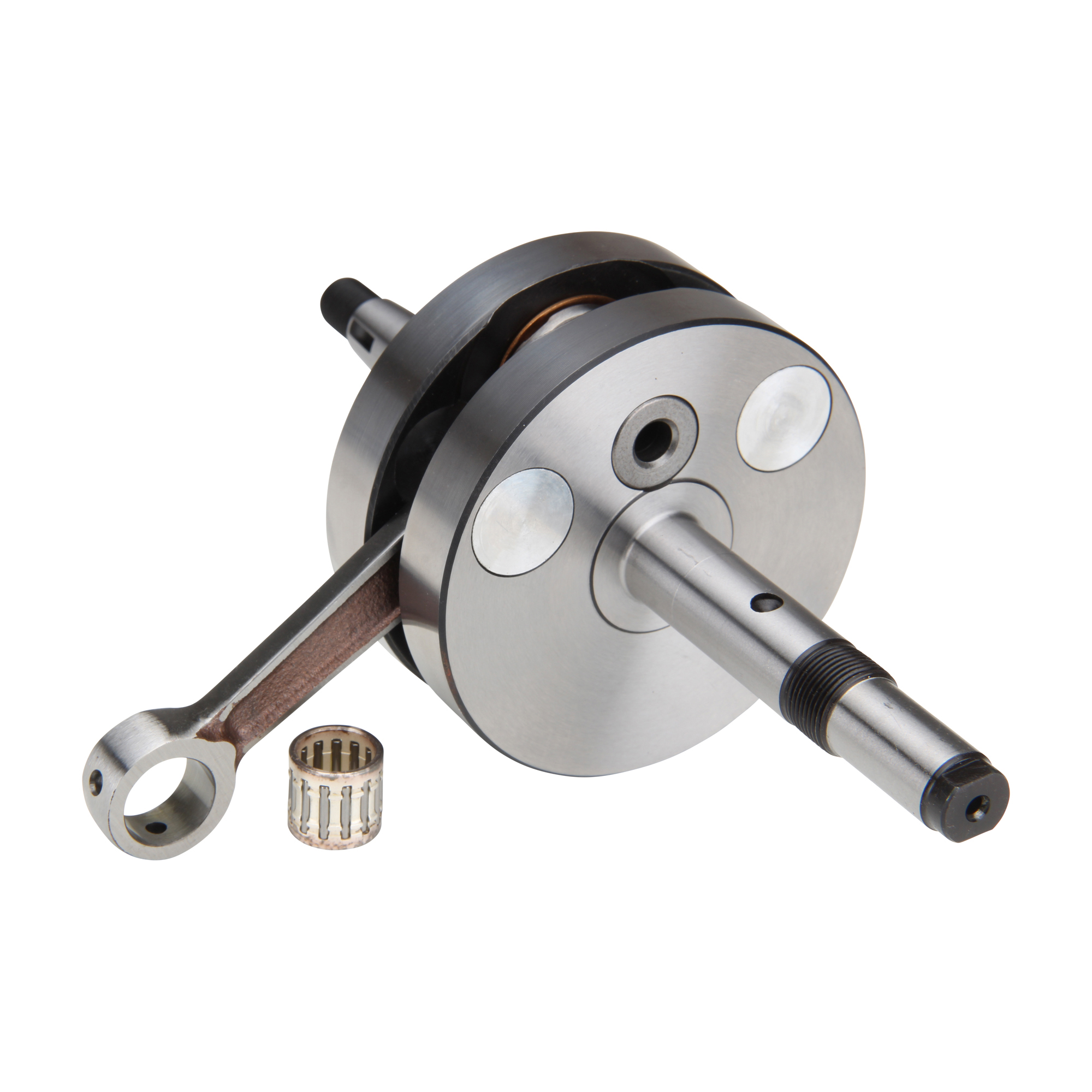

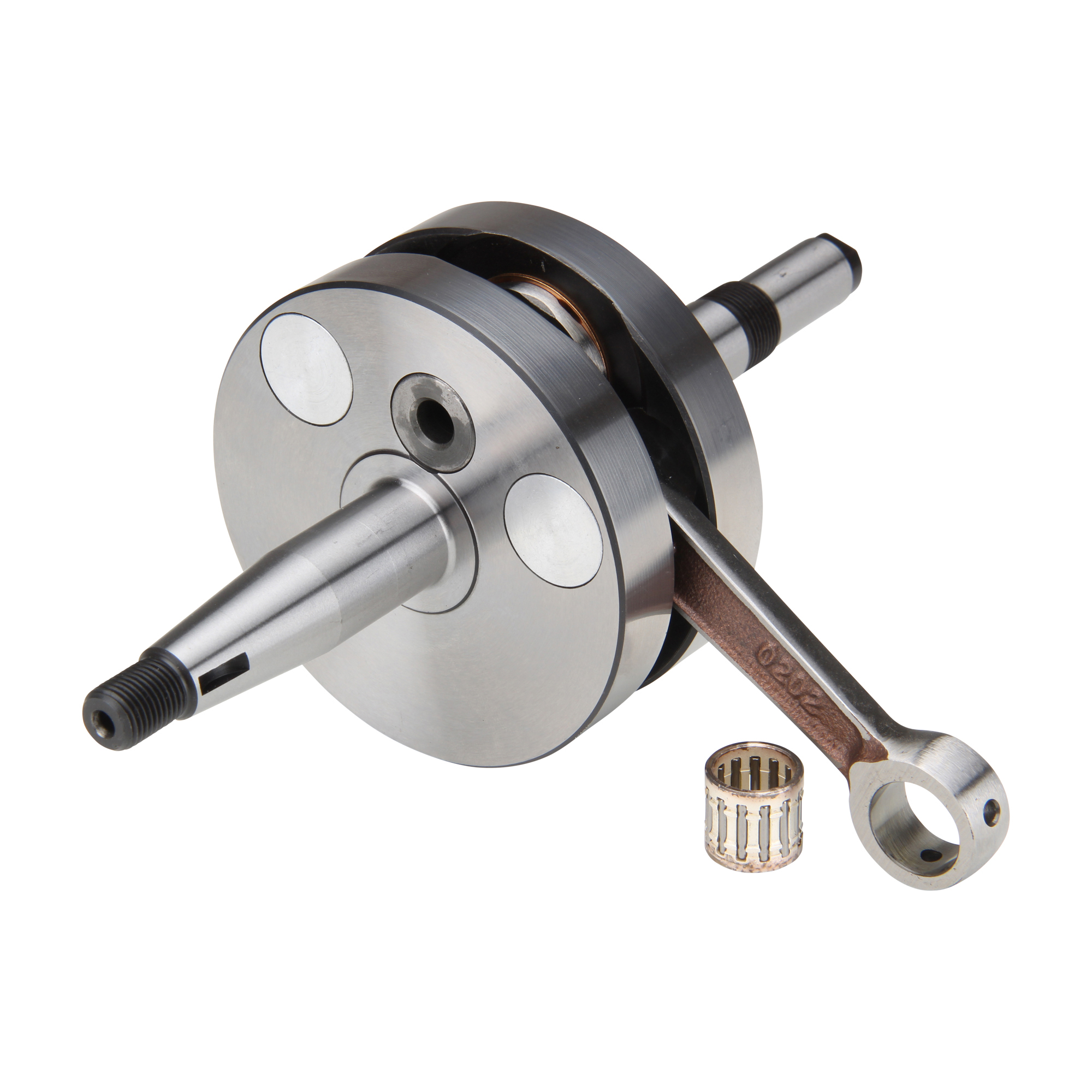

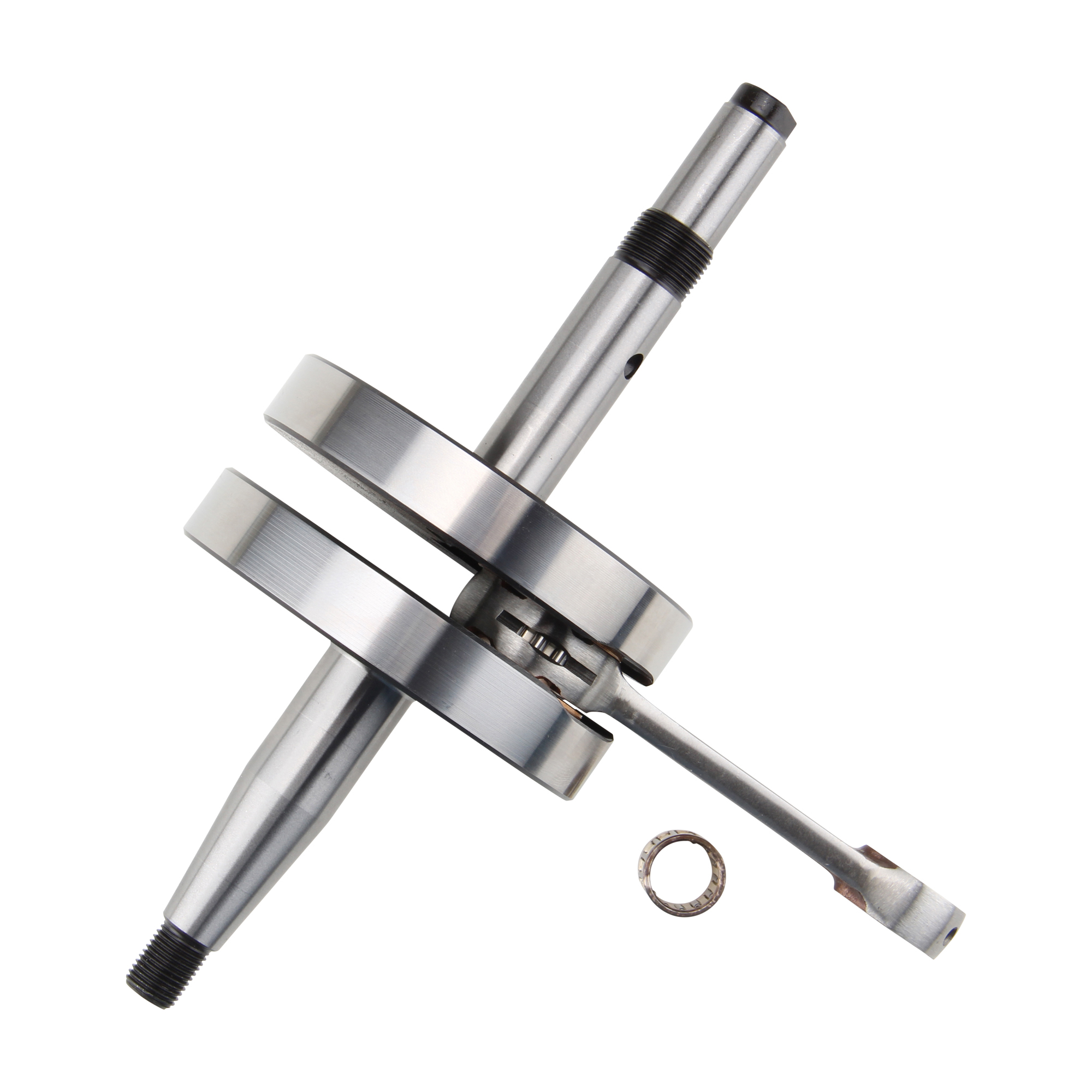

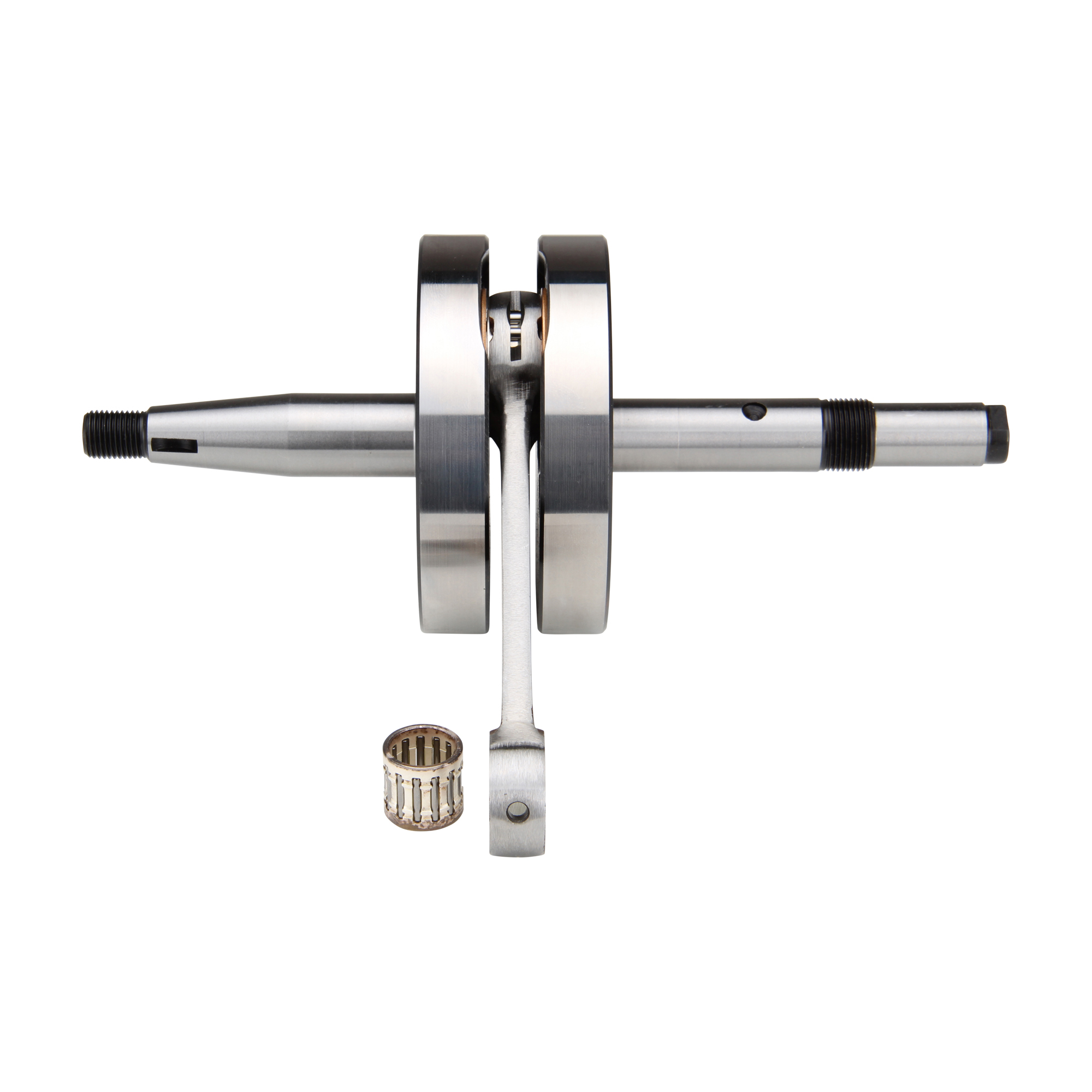

Kurbelwelle RACING (91mm Pleuel) poliert für Zündapp 2/3/4 Gang


  • Citomerx
  • 102275
  • 102275
  • 4060861194443

Item data

Product type: Crankshaft
Dimension B (shaft diameter on coupling side): 15 mm
Feature: 91 mm connecting rod
Crankshaft type: Full cheek crankshaft
Dimension F (length of crankshaft stub on clutch side): 80 mm
Tuning & Styling Part: Yes
Vintage part: Yes

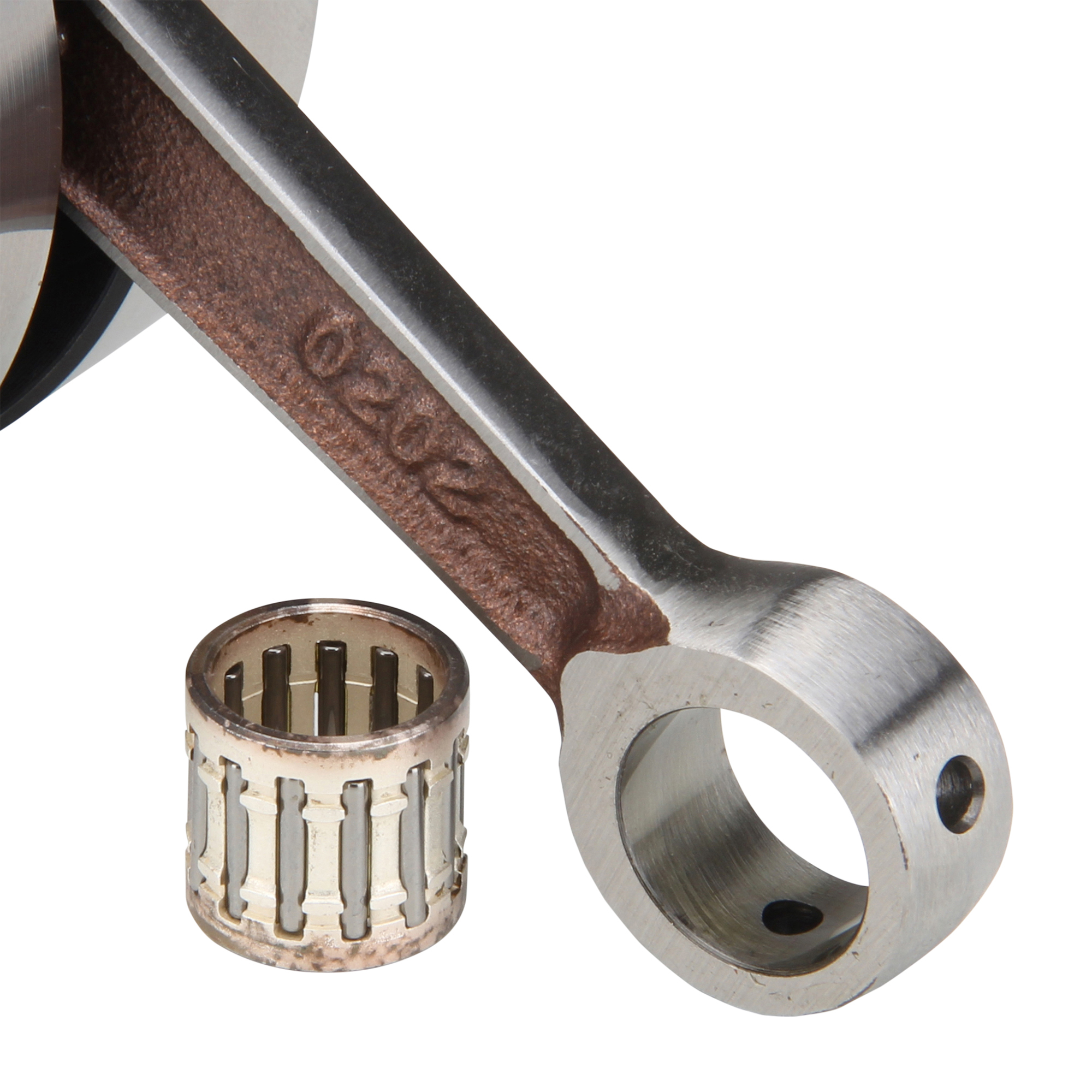

Dimensions needle bearing piston pin: 12x15x15 mm
Dimension C (stroke pin offset = half stroke): 20.9 mm
Dimension J (thread on coupling side): M15 x 1 right-hand thread
Crankshaft stroke: 41.8 mm
Dimension G (width of crank webs): 38.8 mm
Surface finish: Polished
matching piston pin: 12 mm
OE/OEM reference number(s): 278-03.902, 280-03.902
Dimension D (connecting rod length): 91 mm
Dimension H (top diameter of connecting rod eye): 15 mm
Dimension A (shaft diameter on alternator side): 17 mm
Scope of delivery: Crankshaft + needle bearing
Dimension E (length of crankshaft stub on alternator side): 53.5 mm
Dimension I (thread on alternator side): M10 x 1 right-hand thread
Color: Grey
Scope of delivery: 1x crankshaft
Manufacturer number: 102275
Country and region of manufacture: China
Type of motorcycle: Moped & Mokick
Offer package: Yes
Units quantity: 1
Description of the package content: Crankshaft incl. needle bearing
Manufacturer warranty: 2 years
Weight: 1,240 kg
Material: Cast iron
Type: Racing
£86.36 *
Content: 1 piece

Prices plus VAT plus shipping costs

No longer available

C 50 Super Typ 441-01L0 (ab Motor Nr. 3730133) C 50 Super Typ 441-01L1 (ab Motor Nr. 3730133) C... more
Product information "Kurbelwelle RACING (91mm Pleuel) poliert für Zündapp 2/3/4 Gang"

C 50 Super Typ 441-01L0 (ab Motor Nr. 3730133)
C 50 Super Typ 441-01L1 (ab Motor Nr. 3730133)
C 50 Super Typ 441-05L2 (ab Motor Nr. 3730133)
C 50 Super Typ 441-05L3 (ab Motor Nr. 3730133)
C 50 Super Typ 441-05L4 (ab Motor Nr. 3730133)
C 50 Super Typ 441-05L5 (ab Motor Nr. 3730133)
ZD 40 Typ 446-300
ZD 20 Typ 446-400
ZD 25 Typ 446-420
ZD 50 Typ 446-422
ZD 20 Typ 446-450
CS 50 Typ 448-010
CS 50 Typ 448-011
CS 50 Typ 448-013
Hai 50 Typ 448-110
Hai 50 Typ 448-111
CS 25 Typ 448-140
CS 25 Typ 448-141
Hai 25 Typ 448-150
CX 25 Typ 448-151
Sprinter Typ 448-051
Hai 50 Typ 448-160
C 50 Sport Typ 517-21L0
C 50 Sport Typ 517-21LA
GTS 50 Typ 517-39L0
GTS 50 Typ 517-40L0
GTS 50 Typ 517-40L5
C 50 Typ 517-05LA
GTS 50 Typ 517-35LA
GTS 50 Typ 517-35LC
GTS 50 Typ 517-35LE
Super Sport Typ 517-35LB
Super Sport Typ 517-35LD
Super Sport Typ 517-35LF
C 50 Sport Typ 529-010
GTS 50 Typ 529-020
GTS 50 Typ 529-022
GTS 50 Typ 529-023
GTS 50 Typ 529-024
GTS 50 Typ 529-026
CS 50 Typ 529-030
CS 50 Typ 529-032
CS 50 Typ 529-034
GTS 50 Typ 529-050
GTS 50 Typ 529-052
GTS 50 Typ 529-054
GTS 50 Typ 529-056
KS 50 Typ 529-051
KS 50 Typ 529-053
KS 50 Typ 529-055
KS 50 Typ 529-057
CS 50 Typ 517-05C
GTS 50 Typ 517-35G
KS 50 Typ 517-35H
CS 50 Typ 529-03L0
GTS 50 Typ 529-05L0
KS 50 Typ 529-05L1

ZX 25 Typ 460-010
ZX 25 Typ 460-013
X 25 Typ 460-014
ZL 25 Typ 460-040
ZL 25 Typ 460-041
ZS 25 Typ 460-050
ZS 25 Typ 460-051
ZE 40 Typ 460-090
ZE 40 Typ 460-091
GTS Super Typ 517-35L5
C 50 Sport Typ 517-02L8 Motor Typ 278-01L3 (ab Motor Nr. 3730133)
C 50 Sport Typ 517-21L0 Motor Typ 278-25L0 (ab Motor Nr. 3730133)
C 50 Super Typ 517-05L9 Motor Typ 266-50L1 (ab Motor Nr. 3730133)
C 50 Super Typ 517-23L3 Motor Typ 266-70L1 (ab Motor Nr. 3730133)
C 50 Sport Typ 517-23L1 Motor Typ 266-70L1 (ab Motor Nr. 3730133)
GTS 50 Typ 540-120
KS 50 Typ 540-121
CS 50 Typ 540-190
R 50 Typ 561-051
R 50 Typ 561-052
R 50 Typ 561-003 Motor Typ 267-020 (ab Motor Nr. 8018080)
RS 50 Typ 561-004 Motor Typ 276-010 (ab Motor Nr. 8510659)
RS 50 Super Typ 561-06L0 Motor Typ 276-44L0 (ab Motor Nr. 8510659)
