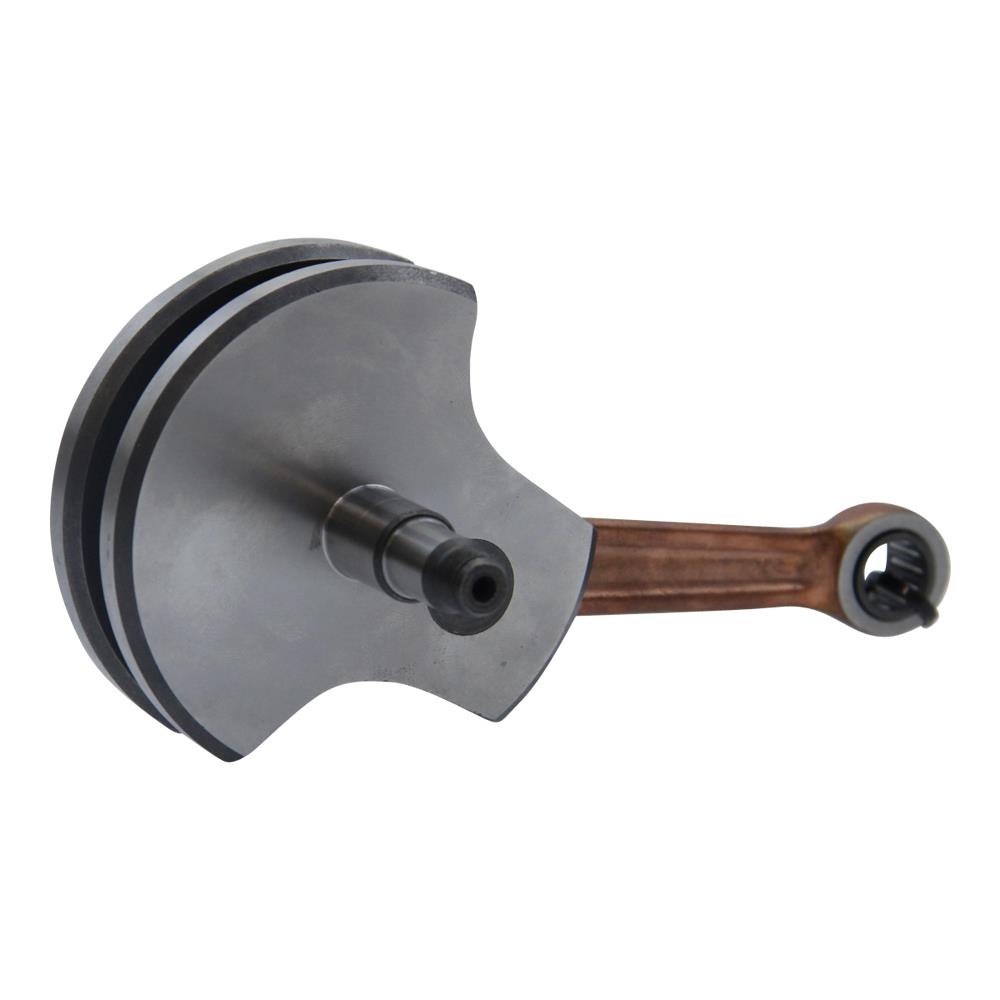

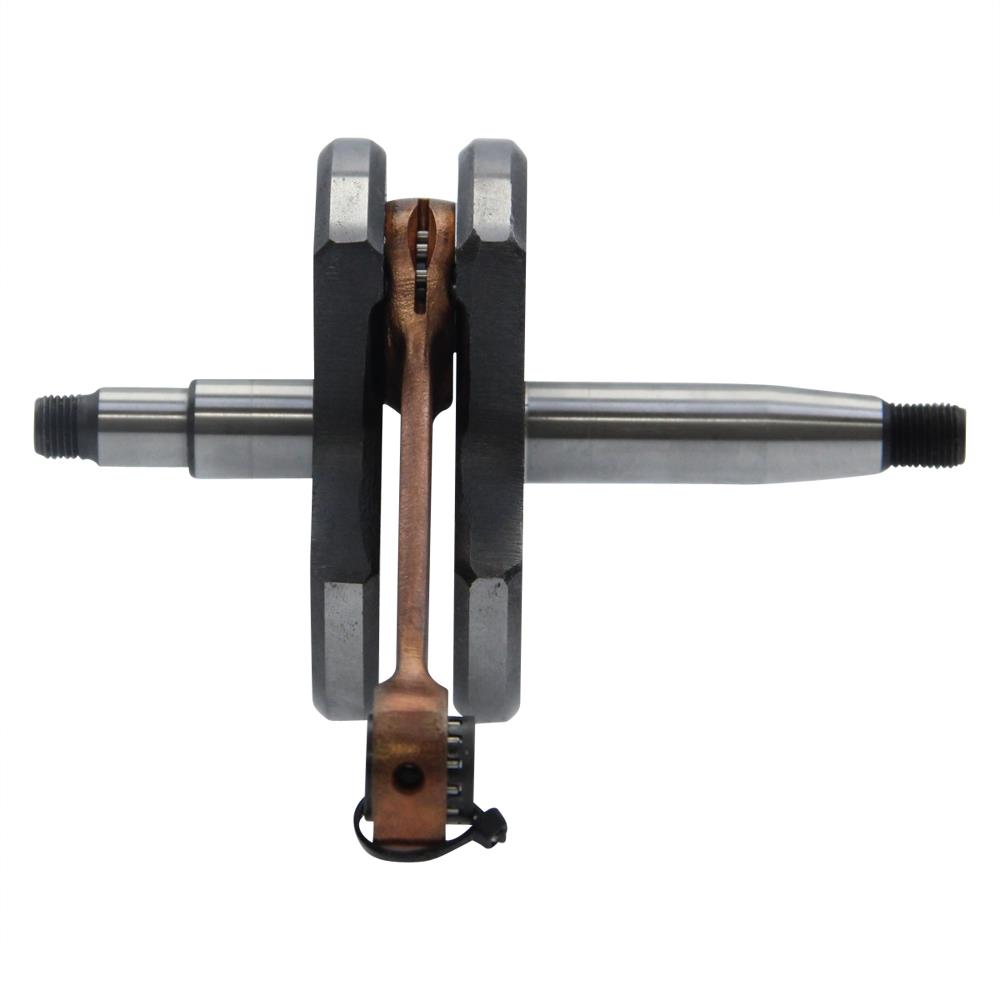

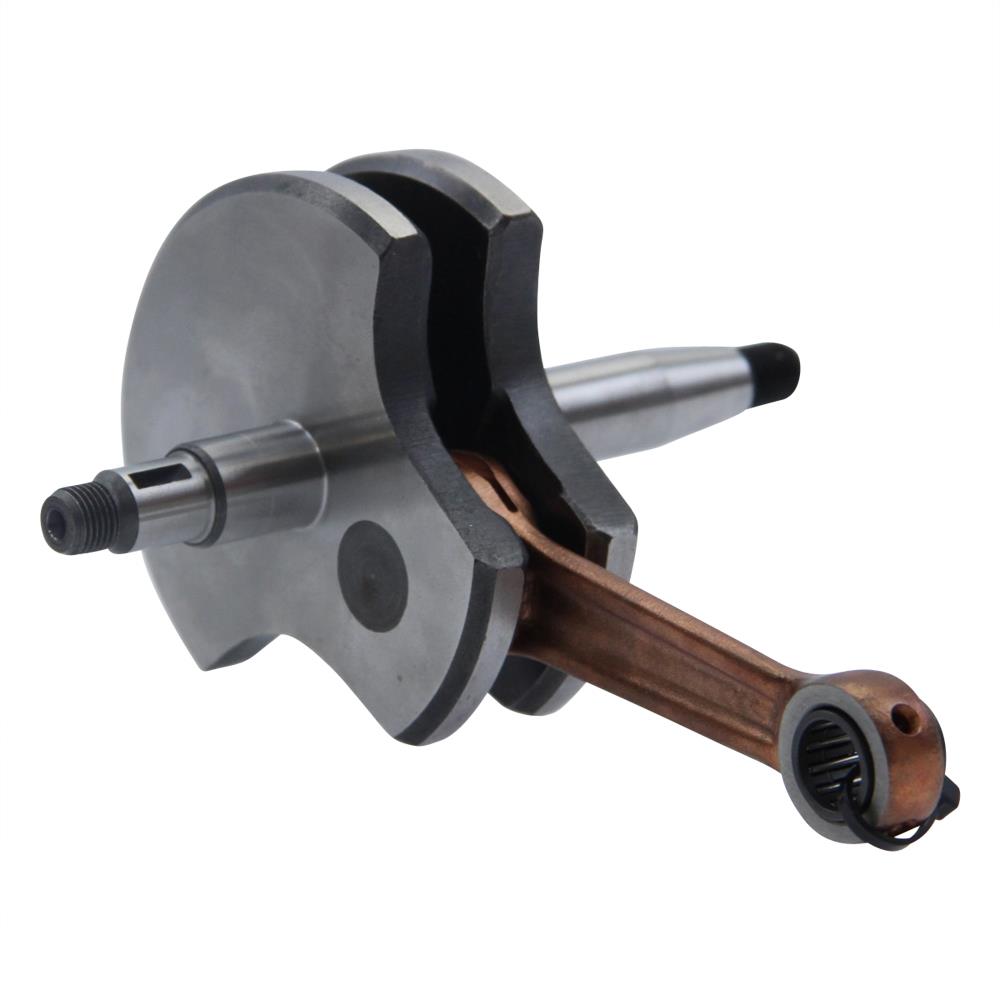

JASIL crankshaft ORIGINAL for Hercules Prima M HR2 Jogging MX1 Supra 2D 3D // Sachs 505/1 505/2 505/3
- Manufacturer: JASIL - Top Racing
- Item no: 6030155
- Manufacturer no.: 6030155
- EAN: 5605822004394
Item data
| Product type: | Crankshaft |
| Dimension B (shaft diameter on coupling side): | 15 mm |
| Feature: | 44 mm stroke |
| Crankshaft type: | Half cheek crankshaft |
| Dimension F (length of crankshaft stub on clutch side): | 65.6 mm |
| Tuning & Styling Part: | No |
| Vintage part: | Yes |
| Dimensions needle bearing piston pin: | 12x15x15 mm |
| Dimension C (stroke pin offset = half stroke): | 22 mm |
| Dimension J (thread on coupling side): | M10 x 1 right-hand thread |
| Crankshaft stroke: | 44 mm |
| Dimension G (width of crank webs): | 34.4 mm |
| Surface finish: | Matt |
| matching piston pin: | 12 mm |
| OE/OEM reference number(s): | Jasil - Top Racing 6 030 155, 0288 114 000 / 0288114000, 0288 114 625 / 0288114625, 0288 114 002 / 0288114002, 0288 114 005 / 0288114005, 0288 114 008 / 0288114008, 0288 114 011 / 0288114011, 0288 114 405 / 0288114405 |
| GTIN: | 5605822004394 |
| Dimension D (connecting rod length): | 85 mm |
| Dimension H (top diameter of connecting rod eye): | 15 mm |
| Dimension A (shaft diameter on alternator side): | 15 mm |
| Scope of delivery: | Crankshaft + needle bearing |
| Dimension E (length of crankshaft stub on alternator side): | 59.4 mm |
| Dimension I (thread on alternator side): | M10 x 1 right-hand thread |
| Color: | Grey |
| Scope of delivery: | 1x crankshaft |
| Manufacturer number: | 6030155 |
| Country and region of manufacture: | Portugal |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Crankshaft incl. needle bearing |
| Manufacturer warranty: | 2 years |
| Weight: | not specified |
| Material: | Cast iron |
| Type: | Original |
Cylinder Set 50ccm 38mm Sachs 504 505 | Hercules Optima Prima M Tuning | Gasket Included
Cylinder kit 50cc including cylinder head + valves for China scooters, Baotian, Rex RS450
Cylinder kit 50cc Minarelli AC air-cooled horizontal engines, CPI, Rexy, Keeway
Cylinder kit 50cc AC air-cooled 12mm bolt angled flange for horizontal CPI engines, CPI, Keeway
Cylinder Kit 70cc LC watercooled incl. head for Piaggio engines, NRG, ZIP, NTT, Gilera Runner
JASIL crankshaft for Hercules K 50 RE RL SX Sprint Ultra KX SB XE // Sachs 50/5 AKF / 50S
RITO crankshaft RACING (L17 bearing 17mm) (44mm stroke) for Sachs 50/3 50/4 engine
JASIL crankshaft (14mm Kobo) for Hercules MK 4 50 / Supra 4 Enduro GP // Sachs 501/4 AKF / 506/4 AKF
Hercules HR 2 (1974-1987)
Hercules Jogging (1984-1986)
Hercules M 4 (1974-1975)
Hercules M 4 S (1974-1975)
Hercules M 5 (1974-1975)
Hercules M 5 S (1974-1975)
Hercules MX 1 (1985-1997)
Hercules Prima S (1978-1987)
Hercules Prima (1978-1987)
Hercules Prima 2 S (1978-1996)
Hercules Prima 2 (1978-1996)
Hercules Prima 3 S (1978-1996)
Hercules Prima 3 (1978-1996)
Hercules Prima 4 LN (1978-1996)
Hercules Prima 4 N (1978-1996)
Hercules Prima 4 S (1978-1996)
Hercules Prima 4 SL (1978-1996)
Hercules Prima 4 (1978-1996)
Hercules Prima 5 LN (1978-1996)
Hercules Prima 5 N (1978-1996)
Hercules Prima 5 SE (1994-1995)
Hercules Prima 5 SX (1983-1986)
Hercules Prima 5 (1983-1986)
Hercules Prima 5 (1978-1996)
Hercules Prima 6 (1979-1981)
Hercules Optima de Luxe
Hercules Optima S (1980-1986)
Hercules Optima S (1982-2002)
Hercules Optima S (1986 -1988)
Hercules Optima S (1988-1993)
Hercules Optima S (1992-1996)
Hercules Optima (1982-2002)
Hercules Optima (1979-1980)< br />Hercules P 3 (1974-1979)
Hercules Supra 2D (1982-1985)
Hercules Supra 3D (1986-1988)
Sachs 505/1 A
Sachs 505/1 A NL
Sachs 505/1 B
Sachs 505/1 BX
Sachs 505/1 BY
Sachs 505/1 C
Sachs 505/ 1 D
Sachs 505/2 AK S
Sachs 505/2 AK SF
Sachs 505/2 A NL
Sachs 505/2 B
Sachs 505 /2 BS
Sachs 505/2 BY
Sachs 505/2 BY KF
Sachs 505/2 C
Sachs 505/2 CK
Sachs 505/2 DK< br />Sachs 505/2 DY
Sachs 505/3 BX
Sachs 505/3 DK
Sachs 505/3 DK CM
Sachs 505/3 D CM< br />Sachs 505/3 E S
J. Antonio da Silva
Parque Industrial de Adaúfe Lote I-6
4701-853 Braga
Web page https://www.jasil.com/
Email: info@jasil.com
| Product type | Crankshaft |
|---|---|
| Dimension B (shaft diameter on coupling side) | 15 mm |
| Feature | 44 mm stroke |
| Crankshaft type | Half cheek crankshaft |
| Dimension F (length of crankshaft stub on clutch side) | 65.6 mm |
| Tuning & Styling Part | No |
| Vintage part | Yes |
| Dimensions needle bearing piston pin | 12x15x15 mm |
| Dimension C (stroke pin offset = half stroke) | 22 mm |
| Dimension J (thread on coupling side) | M10 x 1 right-hand thread |
| Crankshaft stroke | 44 mm |
| Dimension G (width of crank webs) | 34.4 mm |
| Surface finish | Matt |
| matching piston pin | 12 mm |
| OE/OEM reference number(s) | Jasil - Top Racing 6 030 155, 0288 114 000 / 0288114000, 0288 114 625 / 0288114625, 0288 114 002 / 0288114002, 0288 114 005 / 0288114005, 0288 114 008 / 0288114008, 0288 114 011 / 0288114011, 0288 114 405 / 0288114405 |
| GTIN | 5605822004394 |
| Dimension D (connecting rod length) | 85 mm |
| Dimension H (top diameter of connecting rod eye) | 15 mm |
|---|---|
| Dimension A (shaft diameter on alternator side) | 15 mm |
| Scope of delivery | Crankshaft + needle bearing |
| Dimension E (length of crankshaft stub on alternator side) | 59.4 mm |
| Dimension I (thread on alternator side) | M10 x 1 right-hand thread |
| Color | Grey |
| Scope of delivery | 1x crankshaft |
| Manufacturer number | 6030155 |
| Country and region of manufacture | Portugal |
| Type of motorcycle | Moped & Mokick |
| Offer package | Yes |
| Description of the package content | Crankshaft incl. needle bearing |
| Manufacturer warranty | 2 years |
| Weight | not specified |
| Material | Cast iron |
| Type | Original |
