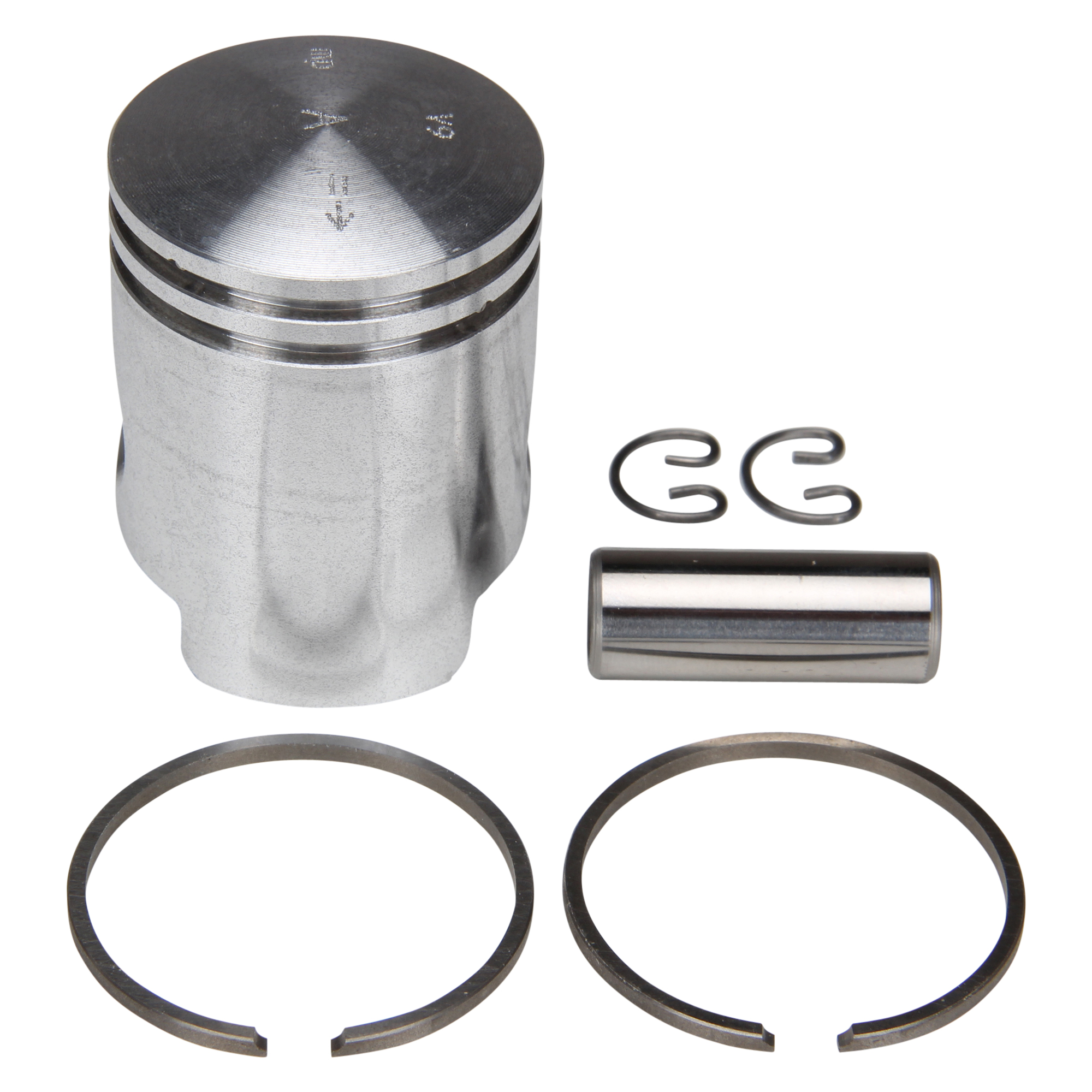

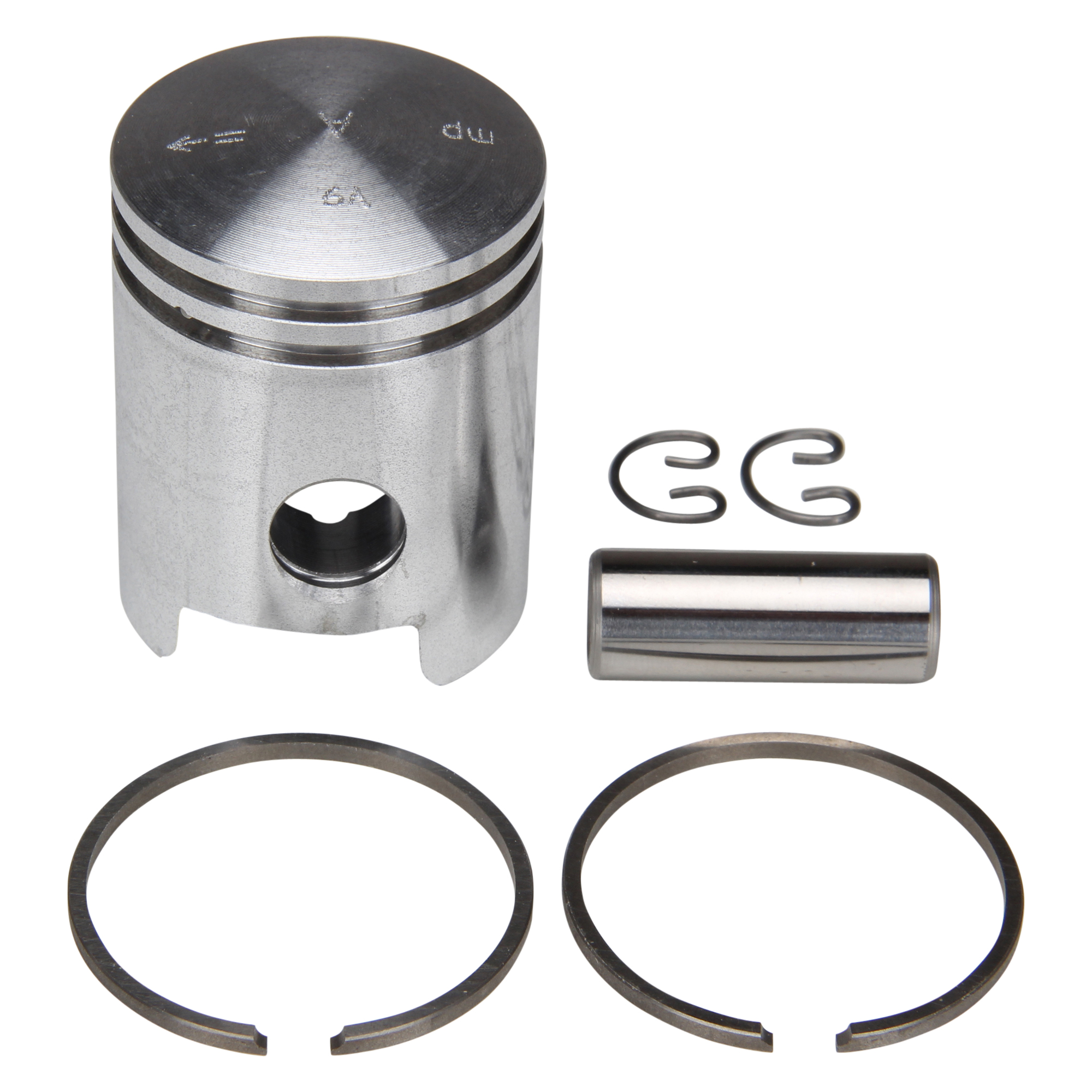

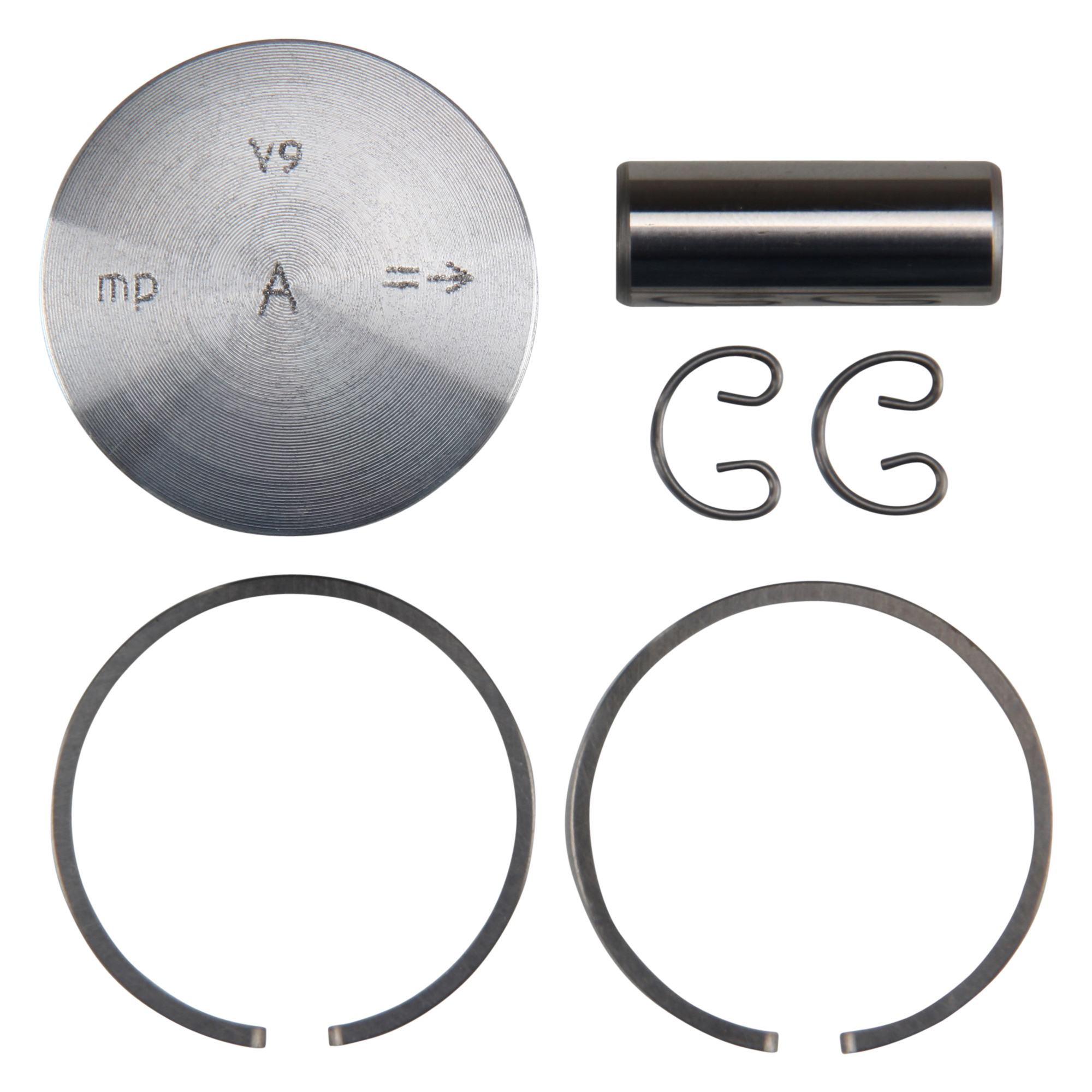

Meteor piston set 38mm Tol. A 50ccm for Hercules Optima 50 S SL P3 Supra 2D / Sachs 505/2 C CK D DK
- Manufacturer: Meteor Piston
- Item no: PC0987A
- Manufacturer no.: PC0987A
- EAN: 4060861180439
Item data
| Product type: | Piston set |
| Dimension B (compression height): | 28 mm |
| Dimension F (piston skirt width inlet side): | 34.6 mm |
| Dimension I (piston skirt length outlet side): | 38.4 mm |
| Tuning & Styling Part: | No |
| Piston ring (top) Width: | 1.60 mm |
| Vintage part: | Yes |
| Piston ring (top) Shape: | C (groove for locking pin on the edge) |
| Cylinder bores: | 38 mm |
| Dimension C (piston height): | 47.5 mm |
| Dimension J (max. needle bearing width): | 14.5 mm |
| Piston ring (top) Dimension: | 38 x 2.0 mm |
| Piston ring (top) Profile: | Rectangular ring |
| Dimension C + D (total height): | 50.5 mm |
| Dimension G (piston skirt length inlet side): | 38.4 mm |
| OE/OEM reference number(s): | Meteor AN2B1210SET (piston clips), Meteor SP121315080HI (piston pin), Meteor F0380020016015H0I (piston ring), 0286 378 011, 0286 378 051, 0286378011, 0286378051, Meteor PC0987A (piston) |
| Piston ring (bottom) Width: | 1.60 mm |
| GTIN: | 4060861180439 |
| Piston ring (bottom) Shape: | C (groove for locking pin on the edge) |
| Dimension A (piston diameter): | 37.97 mm |
| Bolt diameter: | 12 mm |
| Piston ring (bottom) Dimension: | 38 x 2.0 mm |
| Dimension D (curvature): | 3 mm |
| Piston ring (bottom) Profile: | Rectangular ring |
| Dimension H (piston skirt width outlet side): | 26.4 mm |
| Scope of delivery: | Piston, Piston rings, Piston pin, Piston clips |
| Bolt length: | 31.5 mm |
| Dimension E (piston pin diameter): | 12 mm |
| Tolerance size: | A (37.97mm) |
| Color: | Silver |
| Piston diameter: | 38 mm |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x piston set |
| Manufacturer number: | PC0987A |
| Country and region of manufacture: | Italy |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Piston + piston rings + piston pin + piston clips |
| Manufacturer warranty: | 2 years |
| Material: | Aluminum alloy |
| suitable for: | 50 cc |
Prices plus VAT plus shipping costs
Available immediately! Estimated delivery …
Cylinder kit 50cc including cylinder head + valves for China scooters, Baotian, Rex RS450
Cylinder kit 50cc Minarelli AC air-cooled horizontal engines, CPI, Rexy, Keeway
Cylinder kit 50cc AC air-cooled 12mm bolt angled flange for horizontal CPI engines, CPI, Keeway
Cylinder Kit 70cc LC watercooled incl. head for Piaggio engines, NRG, ZIP, NTT, Gilera Runner
Nozzle set 4-piece 56-62 for Bing 44-931 side float carburetor Sachs LKH 50/1 50/2 50/3
Nozzle set size 64-70 for Bing side float carburetor 44-931 Sachs 50/2 50/3
Piston set 38mm 50cc for Sachs 50 Saxonette // 50/A 50/2 50/3 // 501/4 AKF (round inlet)
Hercules Optima 50 de Luxe
Hercules Optima 50 S (1980-1986)
Hercules Optima 50 S (1982-2002)
Hercules Optima 50 S (1986-1988)
Hercules Optima 50 S (1988-1993)
Hercules Optima 50 S (1992-1996)
Hercules Optima 50 SL (1982-2002)
Hercules Optima 50 (1979-1980)
Hercules P3 (1974-1979)
Hercules Supra 2D (1982-1985)
Sachs 505/2 C
Sachs 505/2 CK
Sachs 505/2 D
Sachs 505/2 DK
