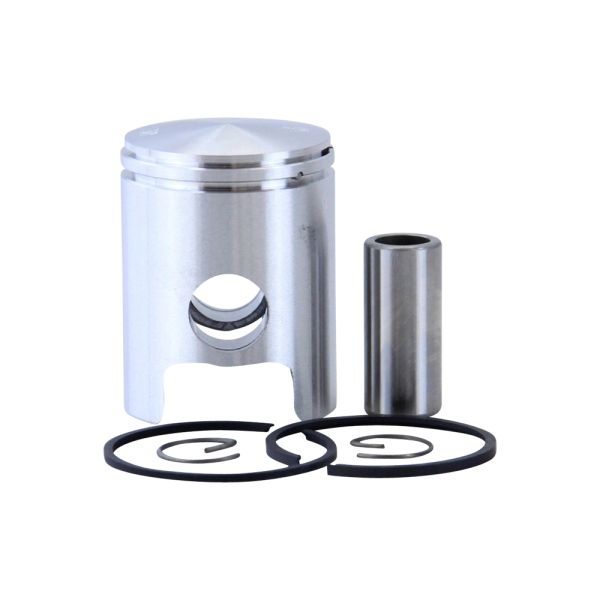

Piston set 38mm 50cc for Hercules K50 RS Sport Super Sport RE RL RX SE SL SX Sprint Ultra / SB 1 5
- Manufacturer: Citomerx
- Item no: 192171
- Manufacturer no.: 192171
- EAN: 4060861084669
Item data
| Product type: | Piston set |
| Country of origin: | China |
| Dimension B (compression height): | 28 mm |
| Dimension F (piston skirt width inlet side): | 31.5 mm |
| Dimension I (piston skirt length outlet side): | 42.7 mm |
| Tuning & Styling Part: | No |
| Piston ring (top) Width: | 1.75 mm |
| Vintage part: | Yes |
| Piston ring (top) Shape: | B (groove for center locking pin) |
| Cylinder bores: | 38 mm |
| Dimension C (piston height): | 49 mm |
| Dimension J (max. needle bearing width): | 14 mm |
| Piston ring (top) Dimension: | 38 x 2.0 mm |
| Piston ring (top) Profile: | L-ring |
| Dimension C + D (total height): | 51 mm |
| Dimension G (piston skirt length inlet side): | 42.7 mm |
| OE/OEM reference number(s): | 0286 344 011, 0286 344 111, 0286344011, 0286344111 |
| Piston ring (bottom) Width: | 1.65 mm |
| GTIN: | 4060861084669 |
| Piston ring (bottom) Shape: | C (groove for locking pin on the edge) |
| Dimension A (piston diameter): | 38.00 mm |
| Bolt diameter: | 14 mm |
| Piston ring (bottom) Dimension: | 38 x 1.5 mm |
| Dimension D (curvature): | 2 mm |
| Piston ring (bottom) Profile: | Rectangular ring |
| Dimension H (piston skirt width outlet side): | 29 mm |
| Scope of delivery: | Piston, Piston rings, Piston pin, Piston clips |
| Bolt length: | 31 mm |
| Dimension E (piston pin diameter): | 14 mm |
| Color: | Silver |
| Piston diameter: | 38 mm |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x piston set |
| Manufacturer number: | 192171 |
| Country and region of manufacture: | China |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Piston + piston rings + piston pin + piston clips |
| Manufacturer warranty: | 2 years |
| Material: | Aluminum alloy |
| suitable for: | 50 cc |
Prices plus VAT plus shipping costs
In stock! Delivery time 1-3 working days
Cylinder kit 50cc including cylinder head + valves for China scooters, Baotian, Rex RS450
Cylinder kit 50cc Minarelli AC air-cooled horizontal engines, CPI, Rexy, Keeway
Cylinder kit 50cc AC air-cooled 12mm bolt angled flange for horizontal CPI engines, CPI, Keeway
Cylinder Kit 70cc LC watercooled incl. head for Piaggio engines, NRG, ZIP, NTT, Gilera Runner
Hercules K 50 RS (1968-1970)
Hercules K 50 Sport (1968-1969)
Hercules K 50 Super Sport (1968-1970)
Hercules K 50 (1963-1970 )
Hercules K 50 RE (1973-1974)
Hercules K 50 RL (1974-1980)
Hercules K 50 RX (1969-1972)
Hercules K 50 SE (1973 -1974)
Hercules K 50 SL (1974-)
Hercules K 50 SX (1969-1972)
Hercules K 50 Sprint (1969-1980)
Hercules K 50 Ultra AC (09/1976-1979)
Hercules K 50 Ultra II AC (1979-1980)
Hercules RT 159 Jet (1973)
Hercules RT 159 (1973)
Hercules SB 1 Sport Bike (1972-1975)
Hercules SB 5 Sport Bike (1975-1979)
