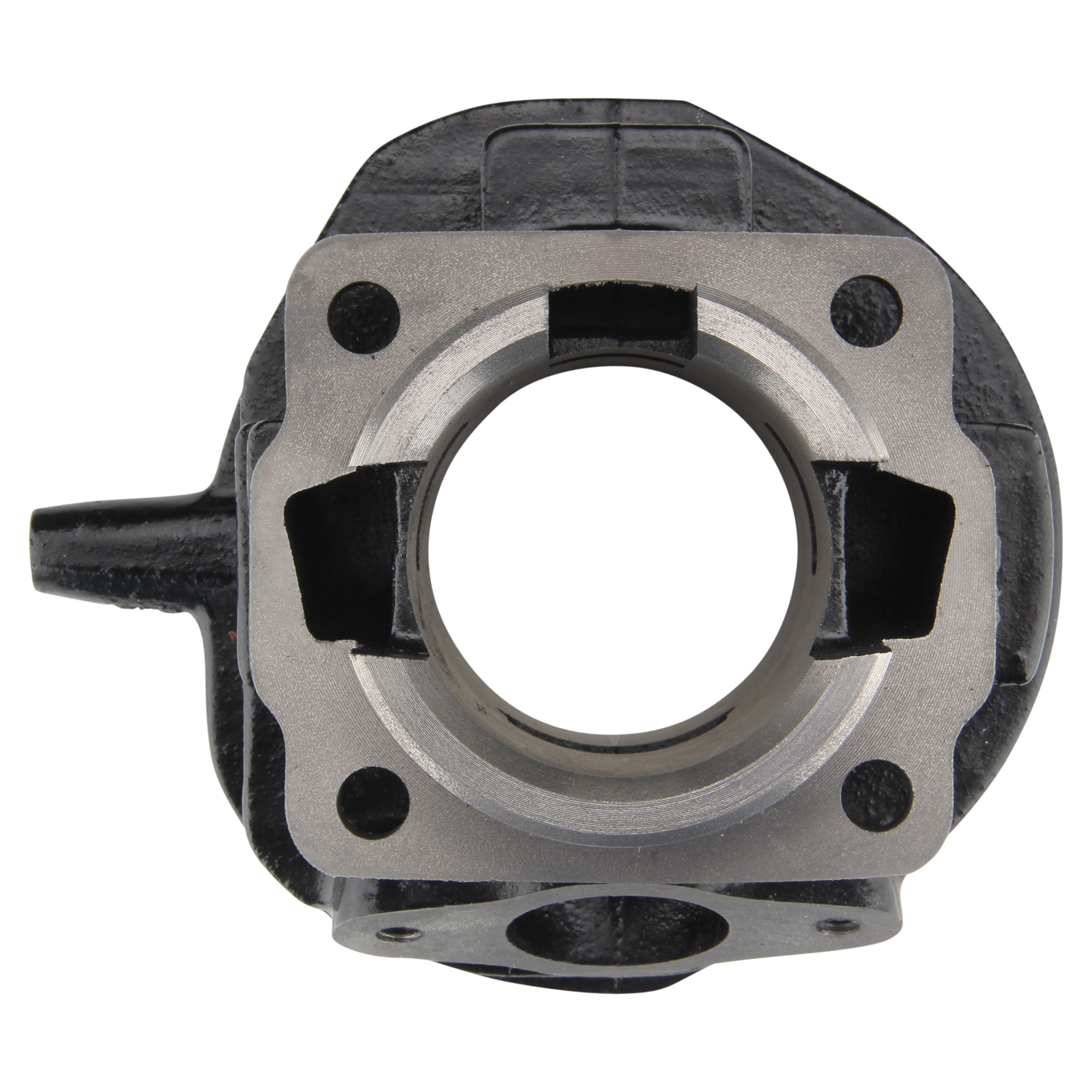

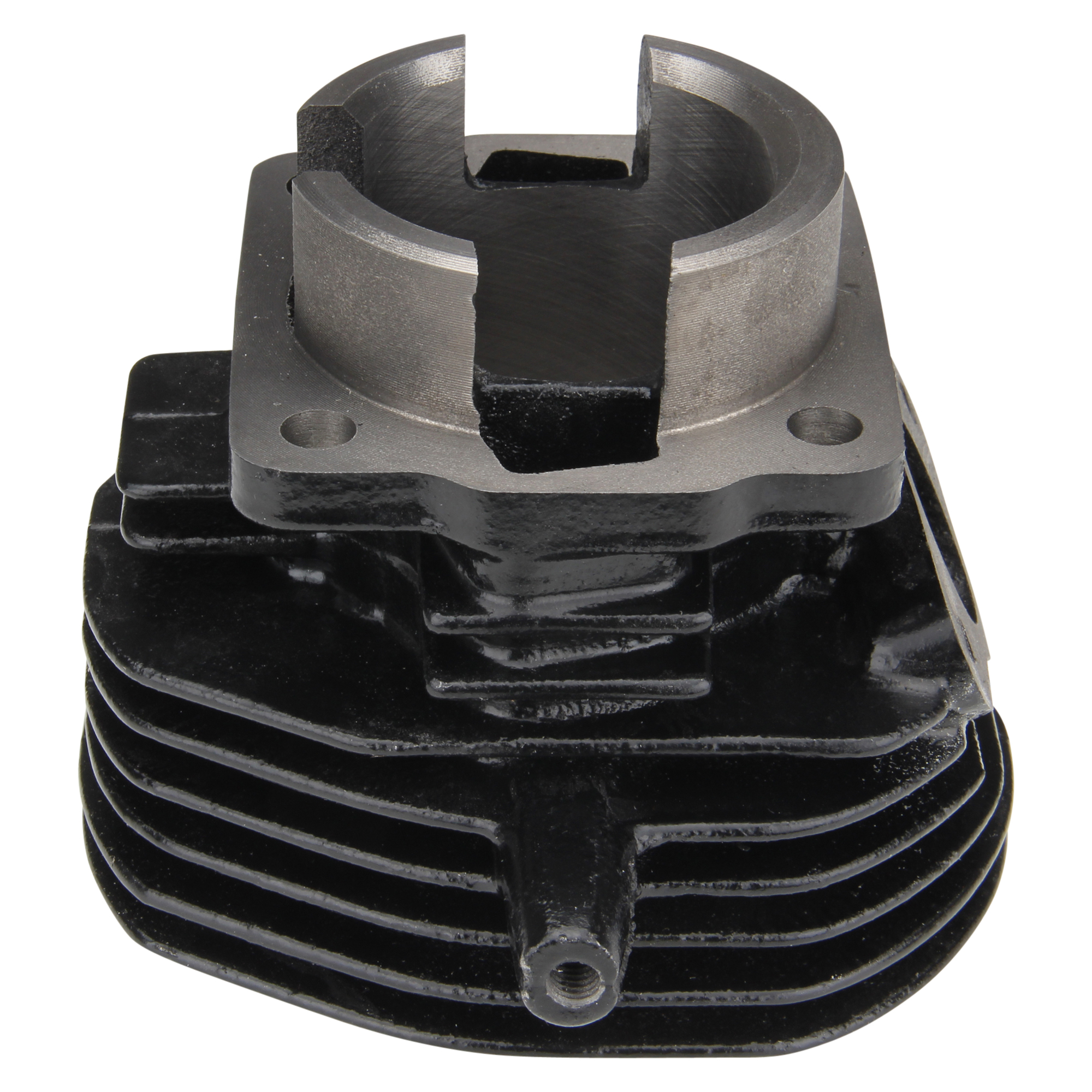

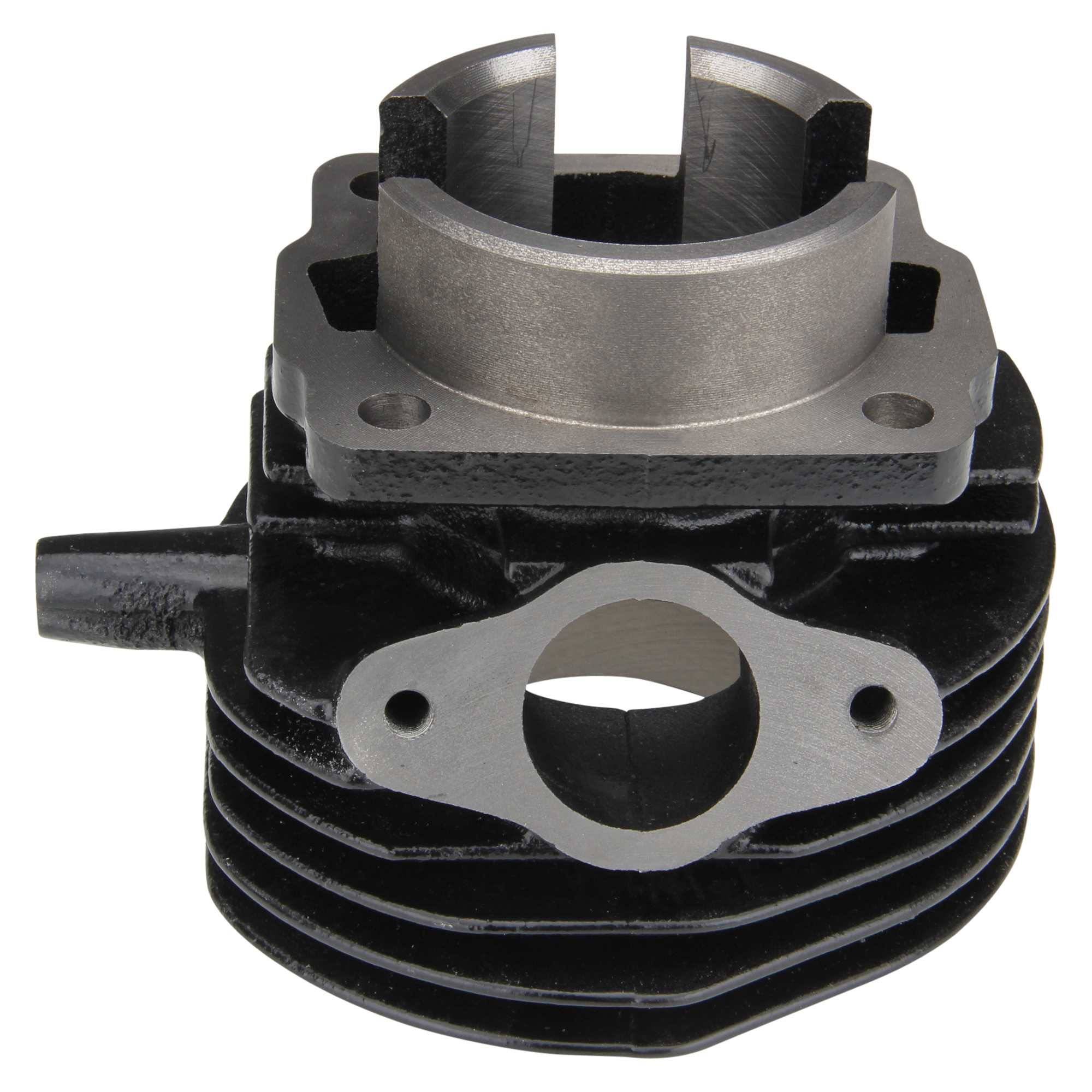

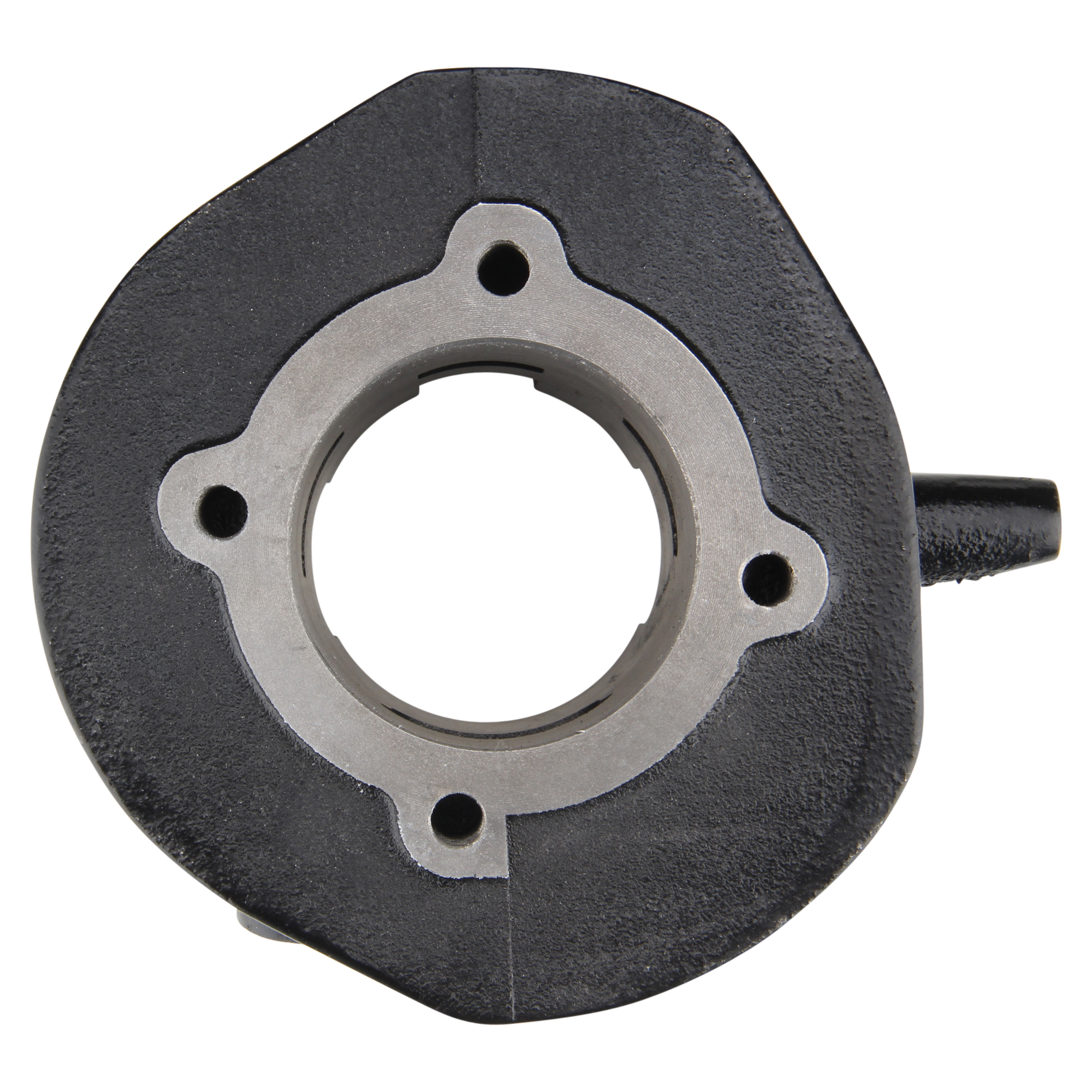

Tuning cylinder set 75cc 47mm (3 ÜS) for Piaggio APE 50 V50 PK XL XL2
- Manufacturer: DR
- Item no: KT00011
- Manufacturer no.: KT00011
- EAN: 4060861197048
Item data
| Product type: | Cylinder set |

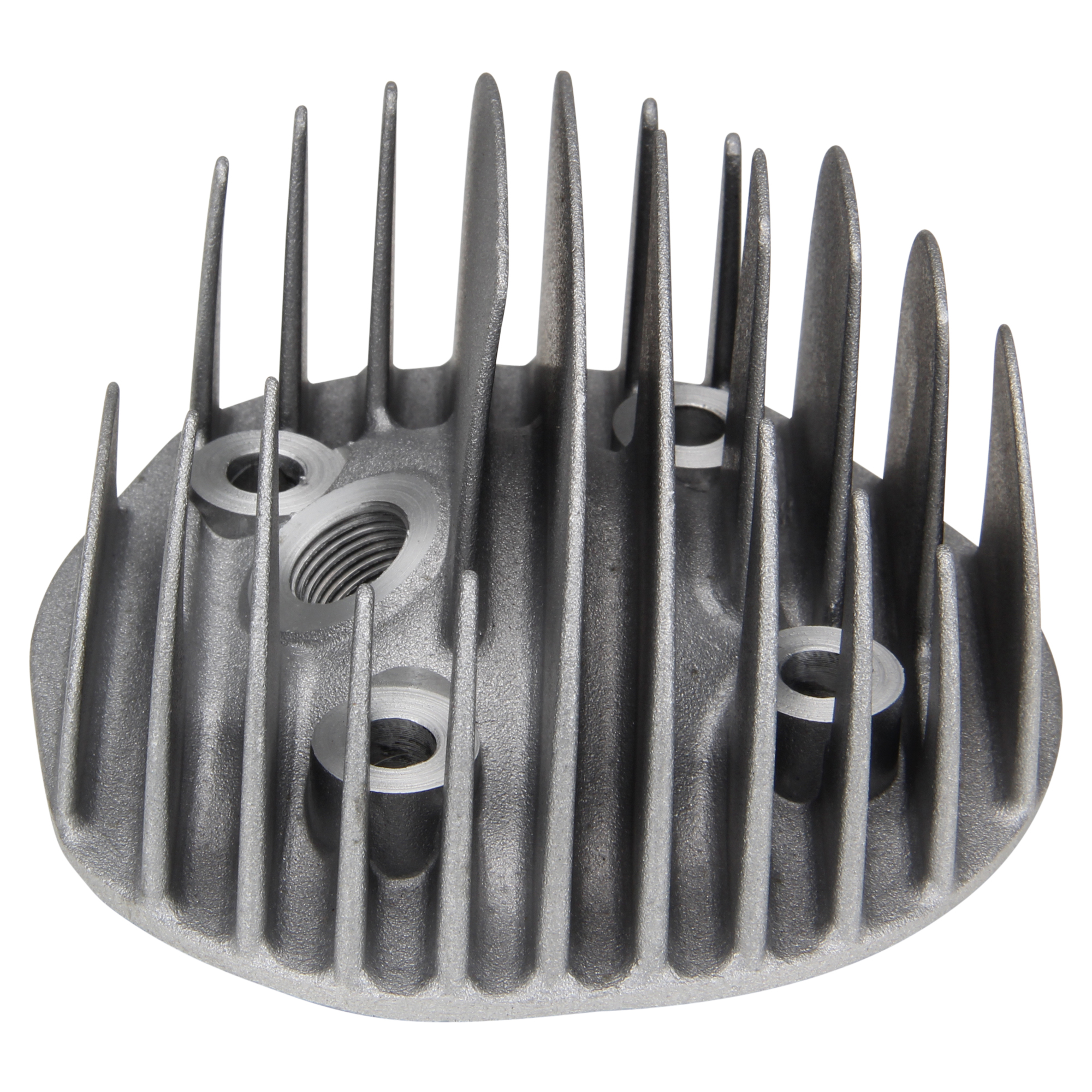

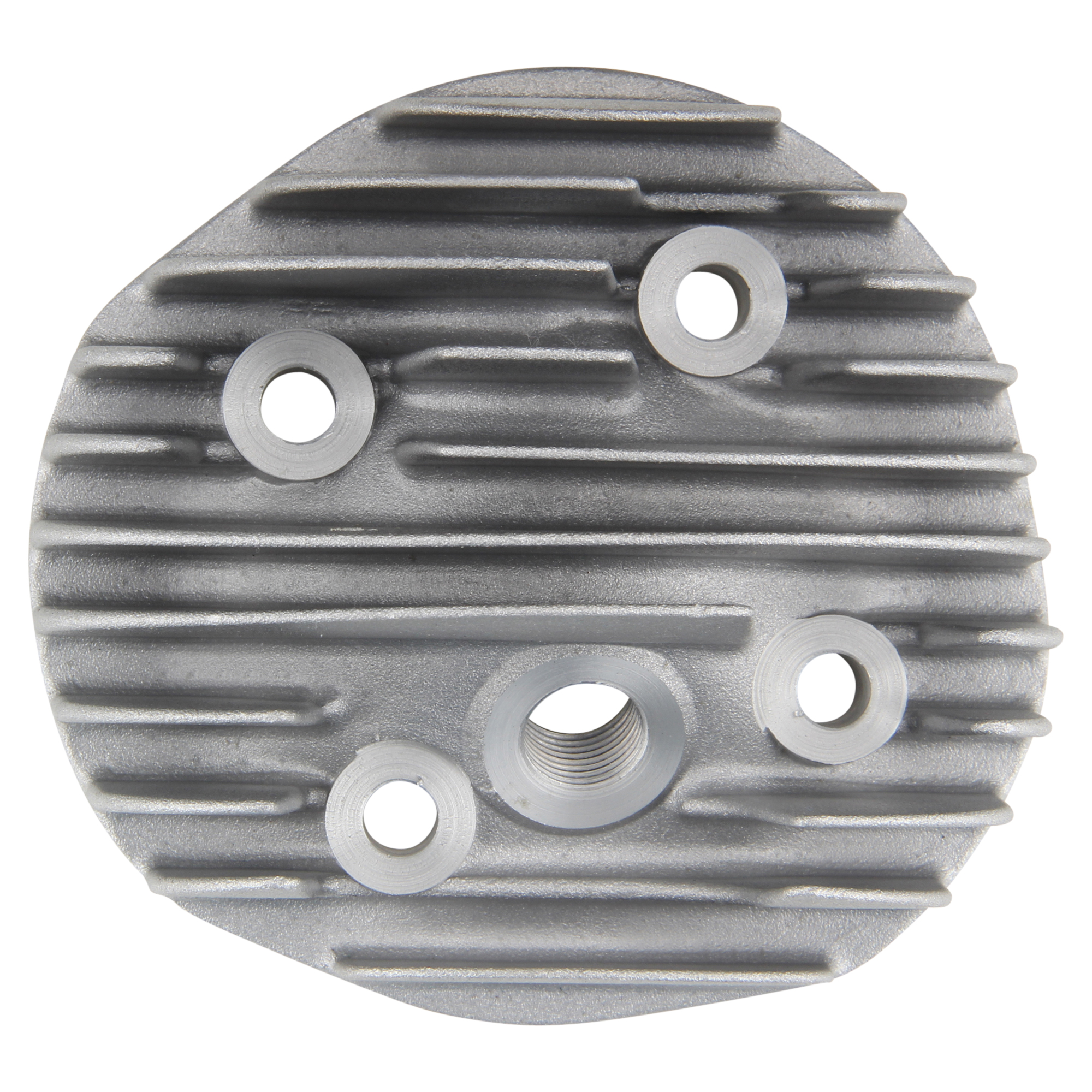

| Cylinder head dimensions (LxWxH): | 125 x 110 x 60 mm |
| Piston pin diameter: | 12 mm |
| Displacement: | 75 ccm |
| Cylinder head stud bolt spacing: | 55 x 55 mm |
| Tuning & Styling Part: | Yes |
| Piston ring profile: | Rectangular ring |
| Vintage part: | Yes |
| Cylinder head stud diameter: | 8 mm |
| Surface finish: | Matt |
| ATTENTION!: | TUNING: Not permitted in the area of the StVZO! |
| Diffuser internal dimension: | 26 mm |
| Cylinder dimensions (LxWxH): | 125 x 110 x 90 mm |
| Outlet Stud distance: | 52 mm |

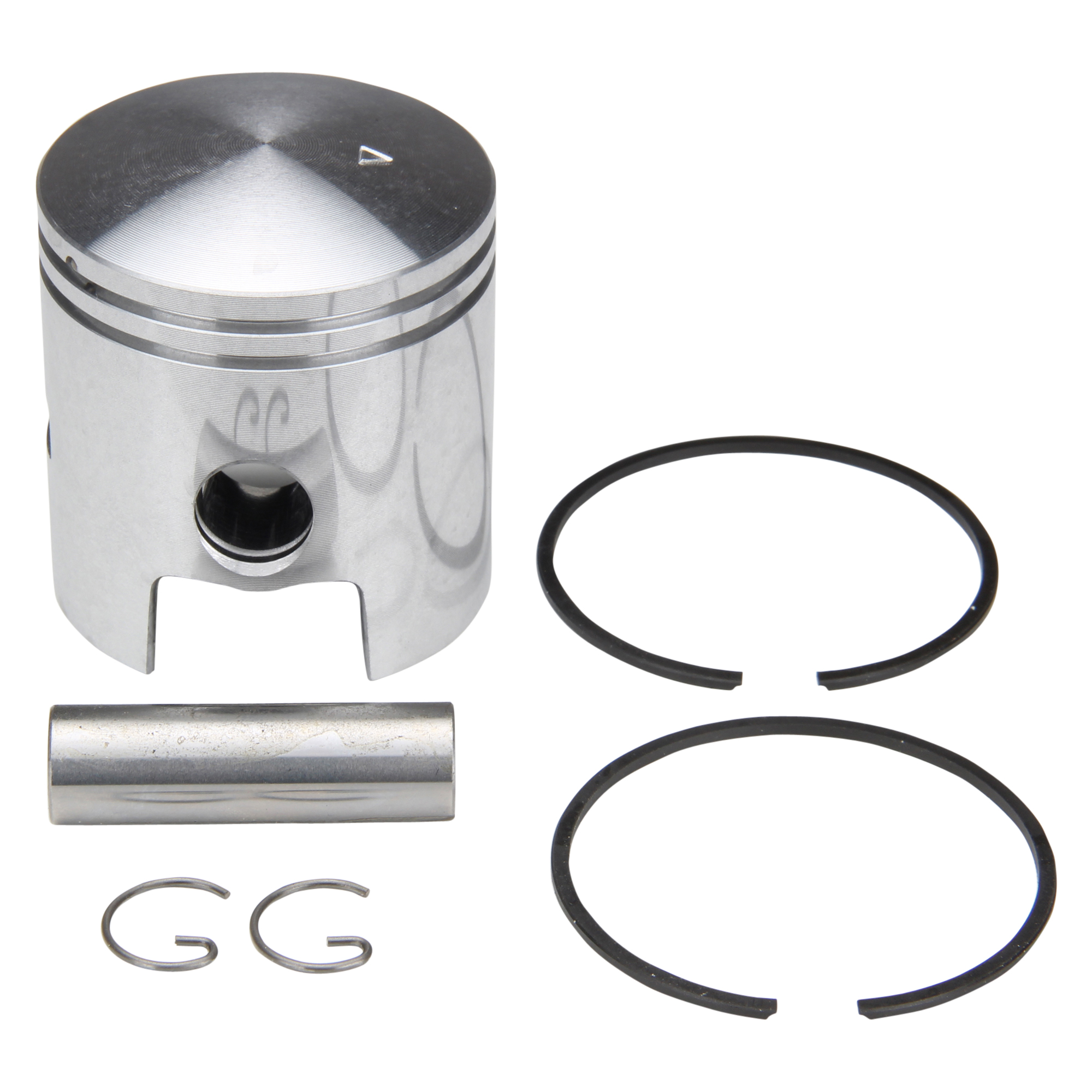

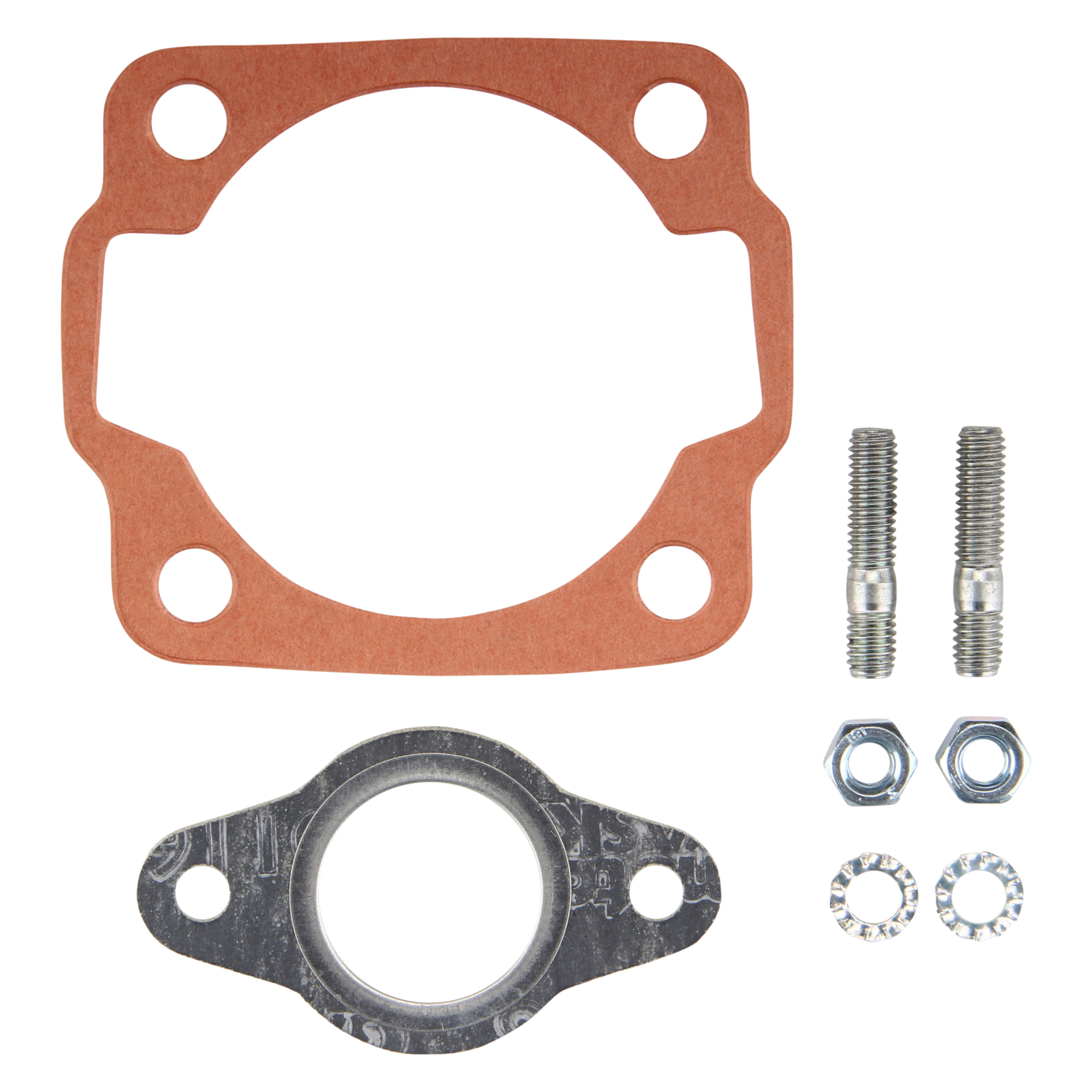

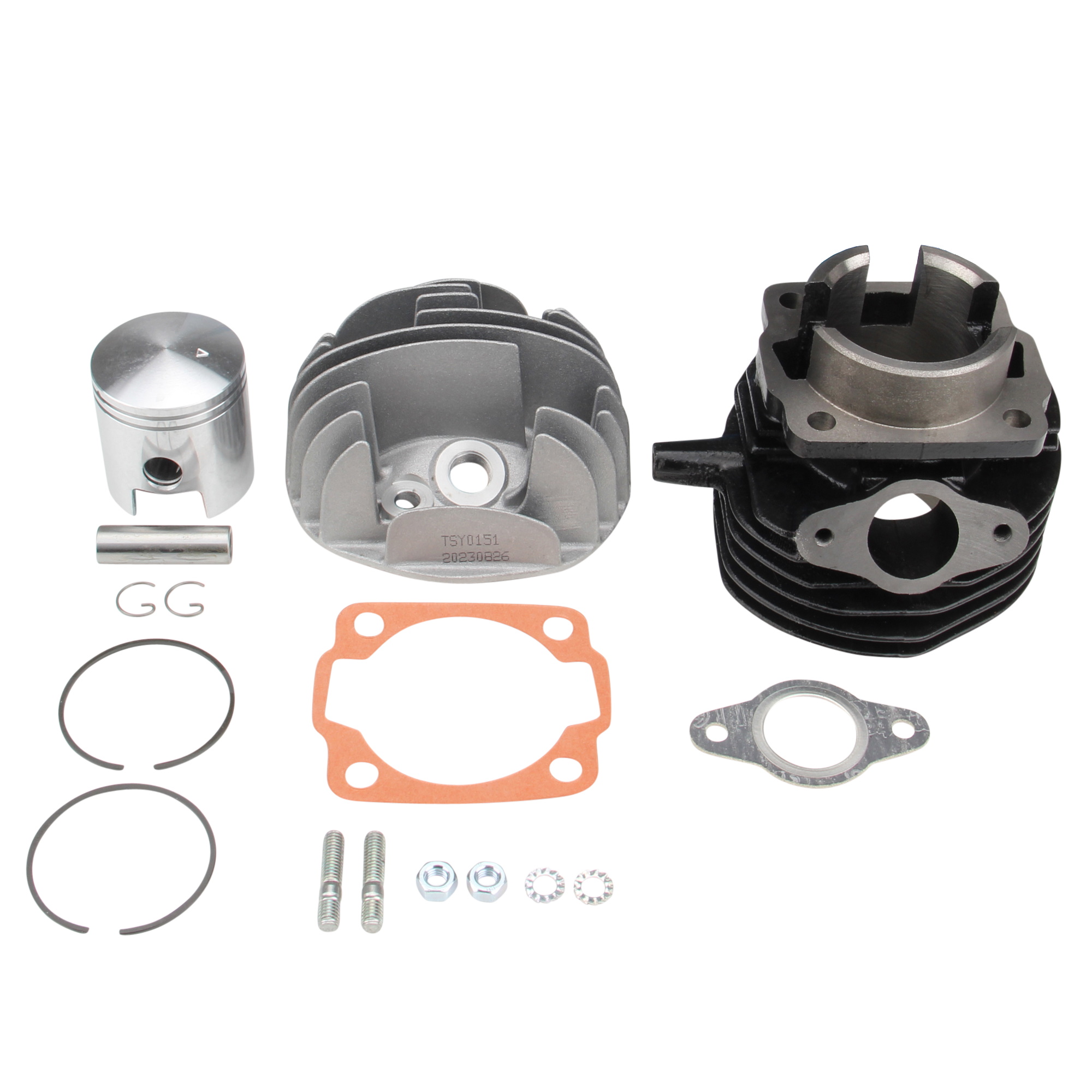

| Scope of delivery: | Gasket set, Piston, Piston rings, Retaining rings, Cylinder head, Cylinder |
| Outlet stud bolt thread: | M6 |
| Cylinder stud distance: | 55 x 55 mm |
| Number of overflows: | 3 |
| Comparison number: | KT00011 |
| Manifold connection type: | Flange |
| Color: | Grey |
| Spark plug thread: | M14 x 1.25 |
| Number of piston rings: | 2 |
| Features: | Durable |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x cylinder set |
| Manufacturer number: | KT00011 |
| Country and region of manufacture: | Italy |
| Type of motorcycle: | Scooter, Moped & Mokick |
| Offer package: | Yes |
| Units quantity: | 1 |
| Description of the package content: | Cylinder + piston + gasket set |
| Manufacturer warranty: | 2 years |
| Material: | Cast iron |
| Type: | Tuning |
